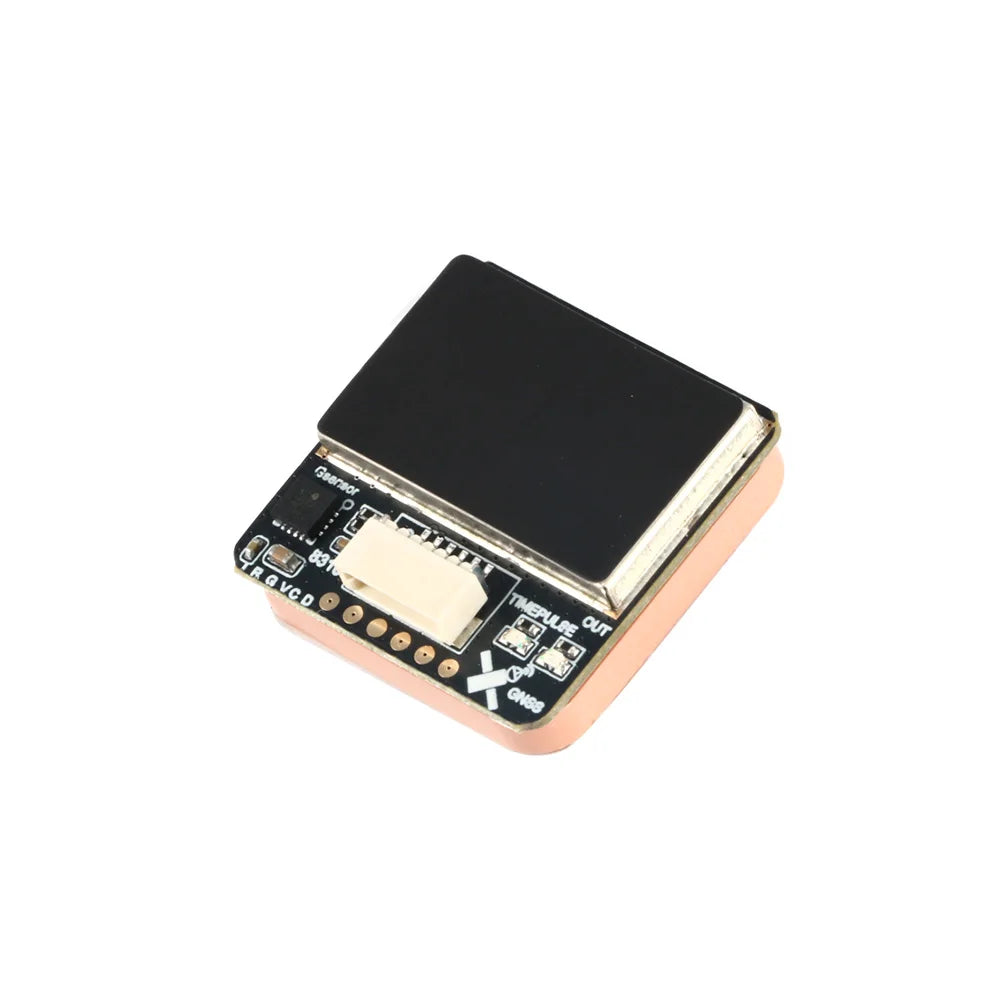

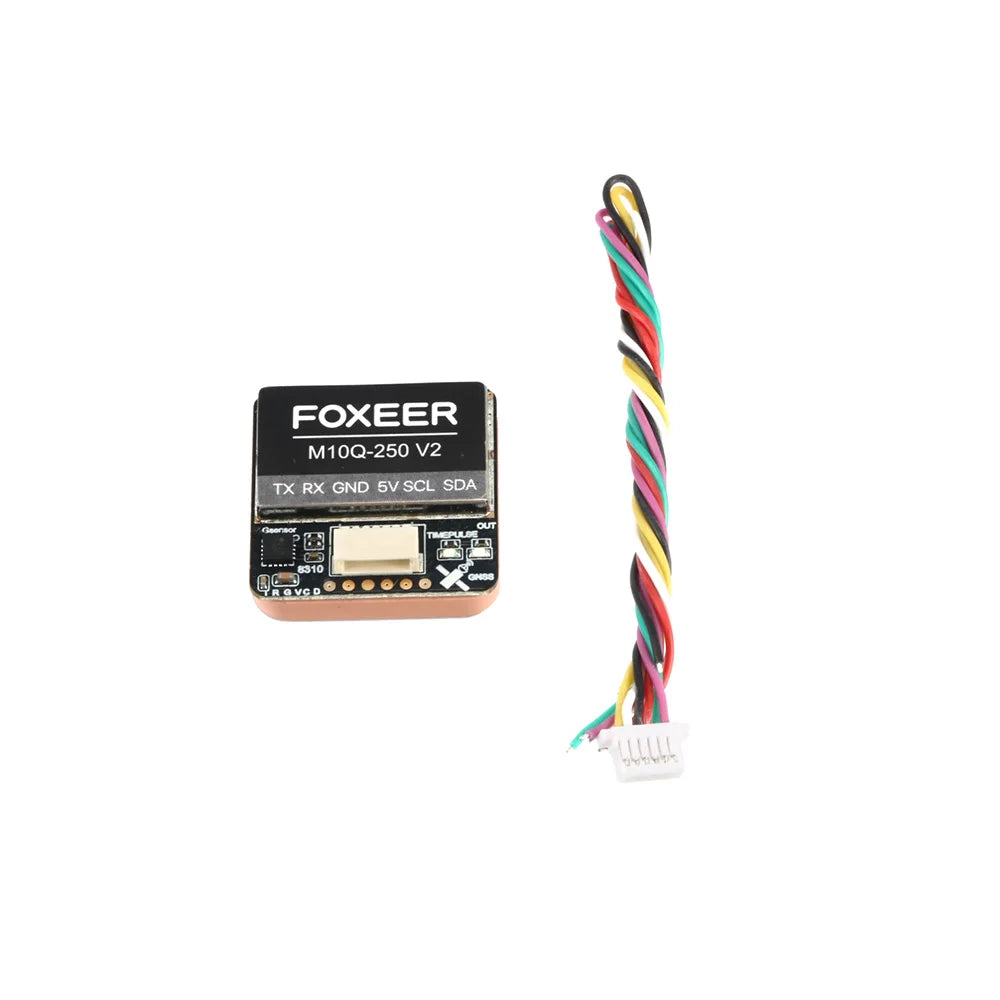

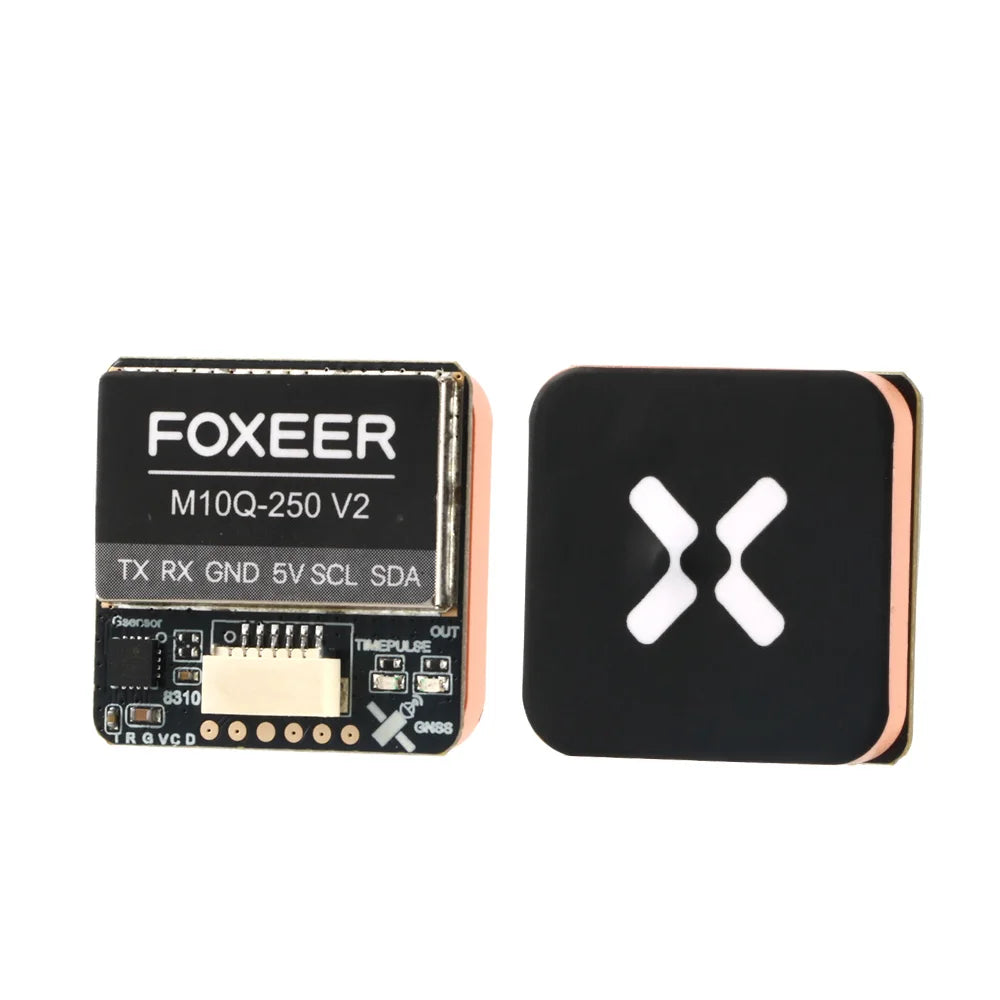

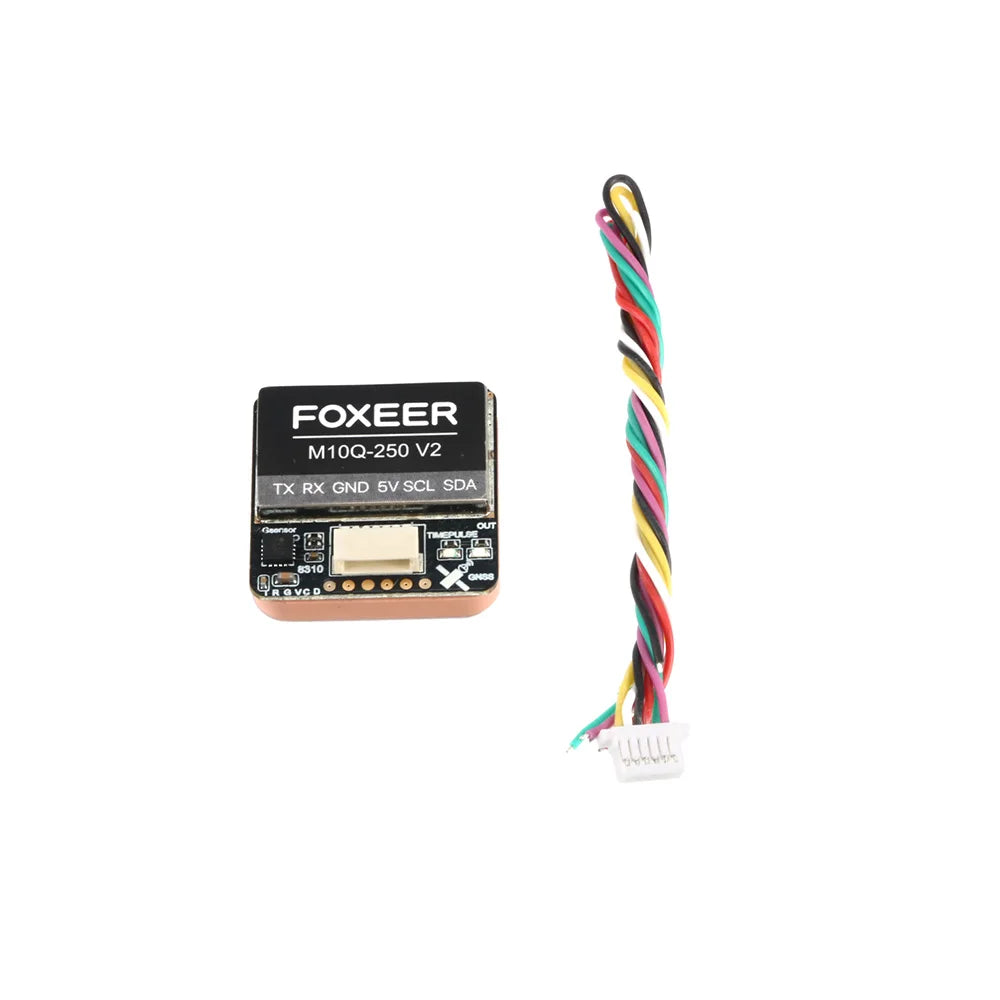

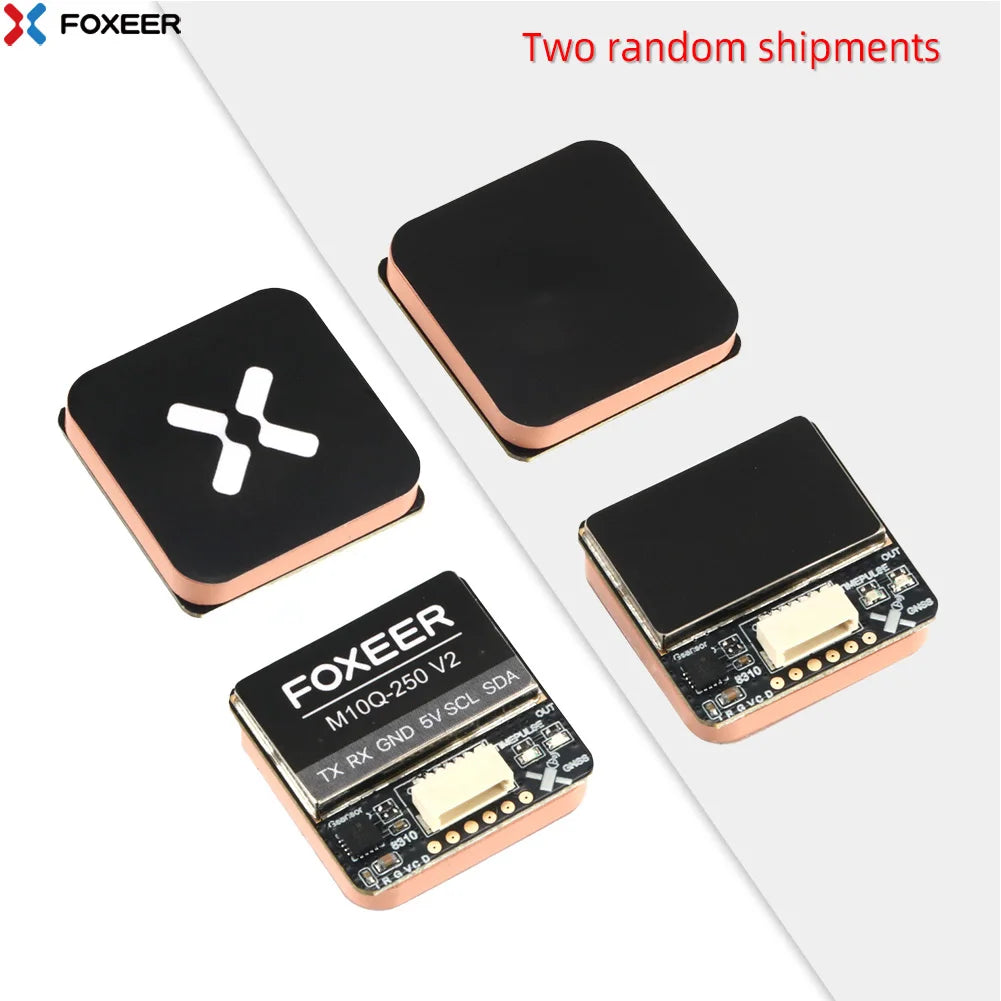

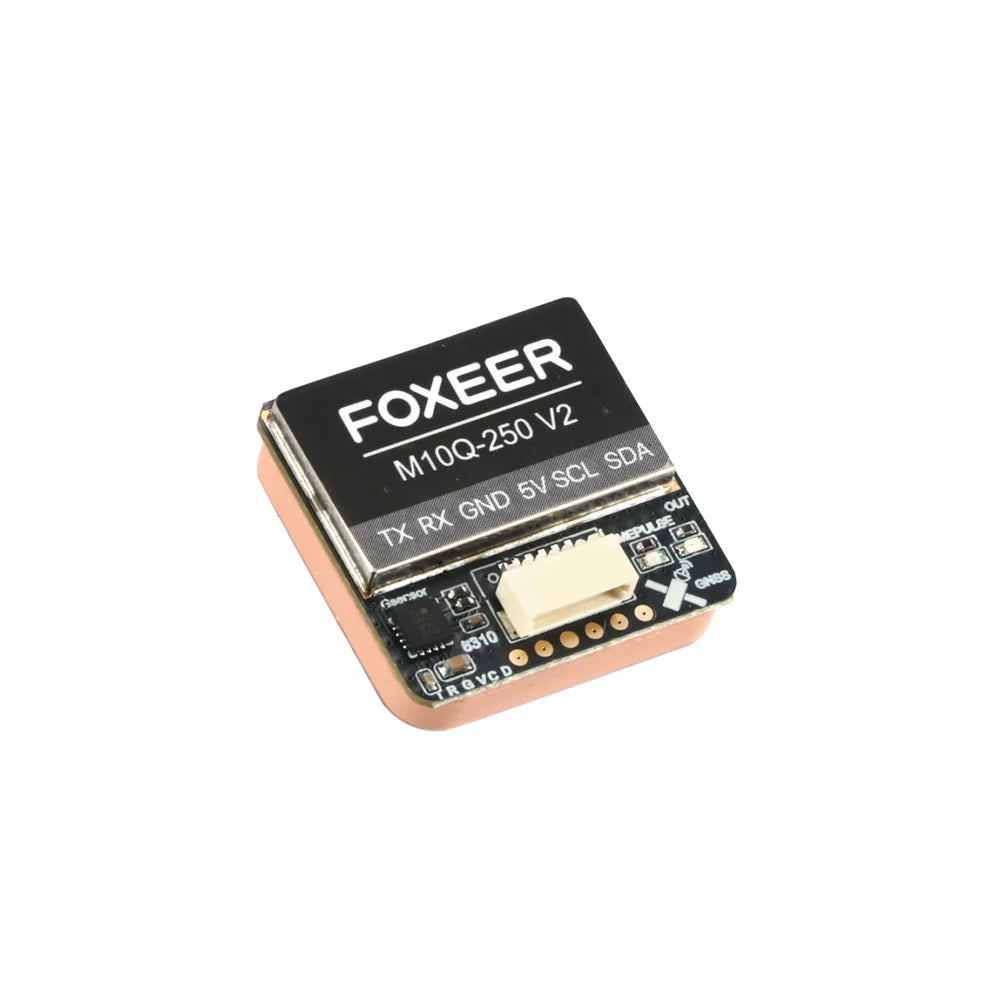

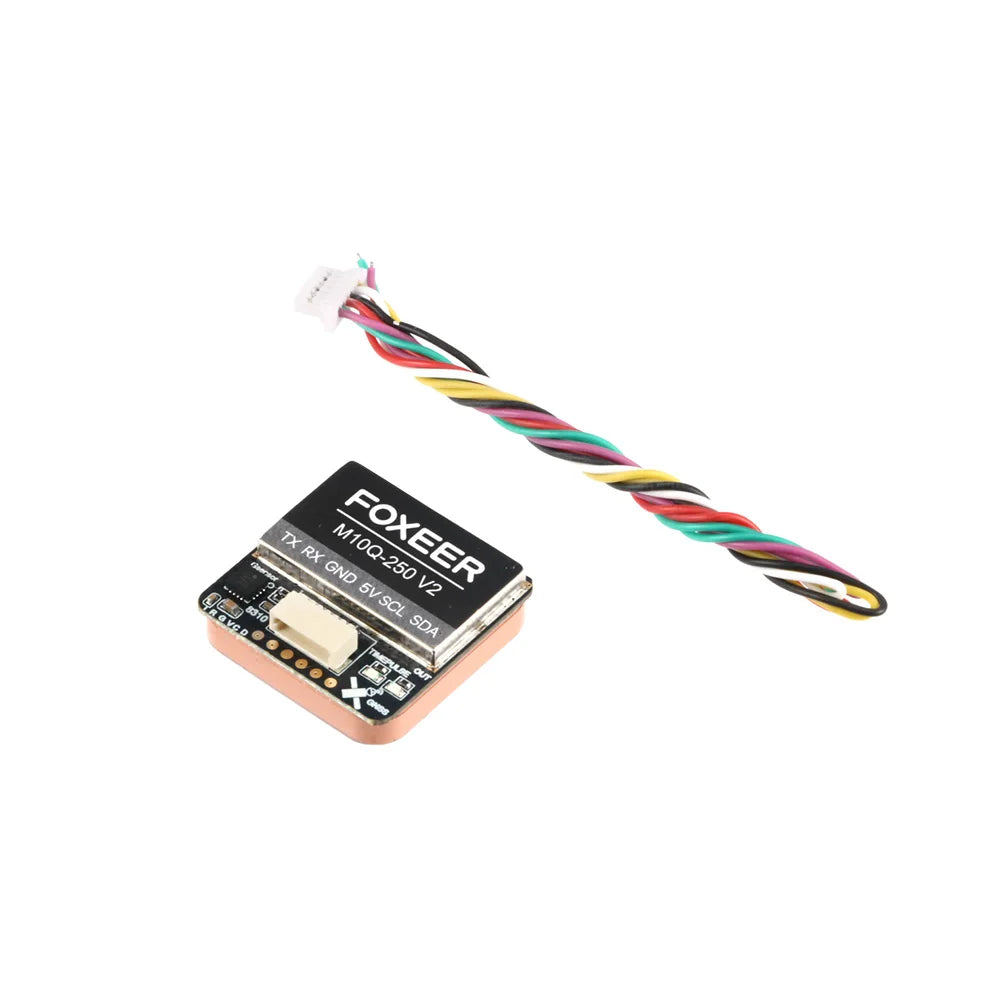

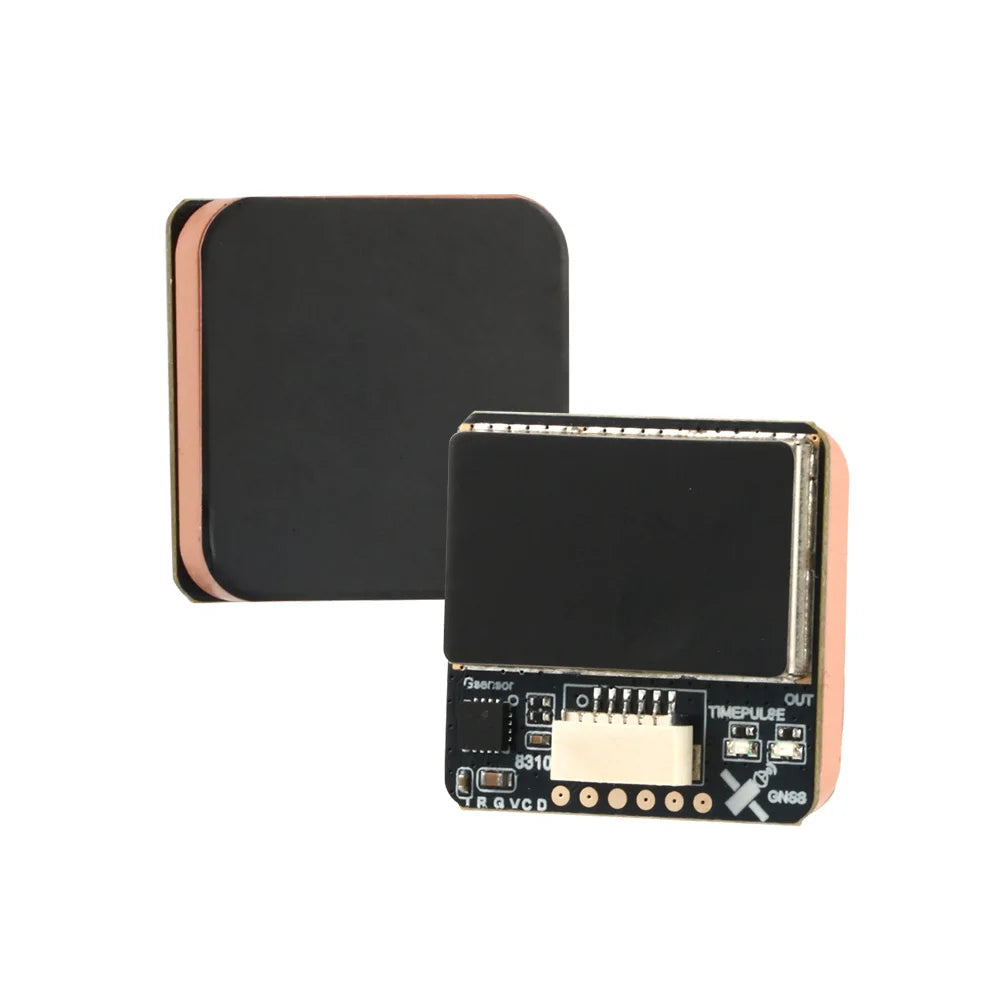

Foxeer M10Q 250 V2 GPS Module — IST8310 Compass, 72-Channel, Multi-Constellation, Dual Protocol
The Foxeer M10Q 250 V2 is a high-performance GPS module with integrated IST8310 compass for FPV drones and long-range builds. Built on the M10 10th-generation chip with 72 channels and support for GPS L1, GLONASS L1, BDS B1, Galileo, SBAS, and QZSS, it delivers 2D ACC 1.5m positioning accuracy at up to 10Hz output frequency. Dual NMEA/UBLOX protocol support ensures compatibility with Betaflight, INAV, and ArduPilot flight controllers. Compact 25×25×8mm footprint, 12g, 5V input.
Key Features
- M10 10th-Gen Chip — Latest-generation u-blox M10 GPS processor for fast acquisition and reliable positioning
- 72-Channel Multi-Constellation — Simultaneous GPS L1, GLONASS L1, BDS B1, Galileo, SBAS (ESBAS L1), and QZSS L1 reception
- IST8310 Compass — Integrated magnetometer for accurate heading; orientation: plug facing direction of flight, antenna up (Betaflight: CW 180 flip)
- Dual Protocol — NMEA and UBLOX protocol support for broad FC compatibility (Betaflight, INAV, ArduPilot)
- 10Hz Output — Default 10Hz position update rate (configurable 1–10Hz) for responsive GPS rescue and position hold
- 2D ACC 1.5m Accuracy — Precise outdoor positioning for GPS rescue, return-to-home, and waypoint navigation
- Compact & Lightweight — 25×25×8mm, 12g; fits standard 25.5×25.5mm and 20×20mm FC mounting patterns
Specifications
- Chip: M10 (10th Generation)
- Channels: 72
- Constellations: GPS L1, GLONASS L1, BDS B1, Galileo, SBAS (ESBAS L1), QZSS L1
- Compass: IST8310
- Protocol: Dual NMEA / UBLOX
- Baud Rate: 115200 bps
- Output Frequency: 1–10Hz (10Hz default)
- Positioning Accuracy: 2D ACC 1.5m (outdoor)
- Speed Accuracy: 0.05 m/s
- Receiver Sensitivity: Trace −166 dBm / Capture −160 dBm
- Input Voltage: 5V
- Antenna: Ceramic
- Weight: 12g
- Size: 25×25×8mm
- Operating Temp: −40°C to +85°C
- Storage Temp: −40°C to +105°C
- Dynamic Range: Up to 50,000m altitude, 500m/s speed, 4G acceleration
Perfect For
- FPV freestyle and long-range builds requiring GPS rescue and return-to-home
- INAV and ArduPilot fixed-wing and multirotor builds needing multi-constellation GPS + compass
- Upgrading older GPS modules to the latest M10 chip for faster lock and better accuracy
Important Notes
- Compass orientation: plug facing direction of flight, antenna up; Betaflight setting: CW 180 flip
- 5V input only; ensure FC provides regulated 5V on GPS port
- Built-in backup battery for faster cold-start acquisition
