Foxeer Reaper Extreme 2.5W FPV VTX — 5.8GHz, 40CH, 6 Power Levels, 7–36V, 20×20mm
The Foxeer Reaper Extreme is a high-power 5.8GHz FPV video transmitter delivering up to 2.5W of output power across 40 channels with 6 selectable power levels from Pit mode to 2.5W. Designed for long-range FPV builds, it accepts a wide 7–36V input (2–8S LiPo compatible), weighs just 13g, and fits the standard 20×20mm mounting pattern. Genuine Foxeer product with verification code — check authenticity at foxeer.com.
⚠️ Important: Must be paired with a quality antenna to prevent self-oscillation, which can permanently damage the VTX. Do not power on without an antenna connected.
Key Features
- 2.5W Max Output Power — High-power transmission for long-range FPV penetration and extended video range
- 6 Selectable Power Levels — Pit / 25mW / 200mW / 500mW / 1.5W / 2.5W; switch between race-legal and long-range modes
- 5.8GHz, 40 Channels — Full 40-channel coverage for race and freestyle use
- Wide Voltage Input: 7–36V — Compatible with 2S through 8S LiPo packs; direct battery connection supported
- 5V Output — Onboard 5V output for powering cameras or other accessories
- Lightweight — 13g — Minimal weight impact on FPV builds
- 20×20mm Mount — Standard stack-compatible mounting pattern
- Genuine Foxeer Product — Includes verification code; authenticate at foxeer.com
Specifications
- Frequency: 5.8GHz
- Channels: 40CH
- Power Levels: Pit / 25mW / 200mW / 500mW / 1.5W / 2.5W
- Input Voltage: 7–36V (2–8S LiPo)
- Output Voltage: 5V
- Current Consumption: 1.2A @ 9V
- Weight: 13g

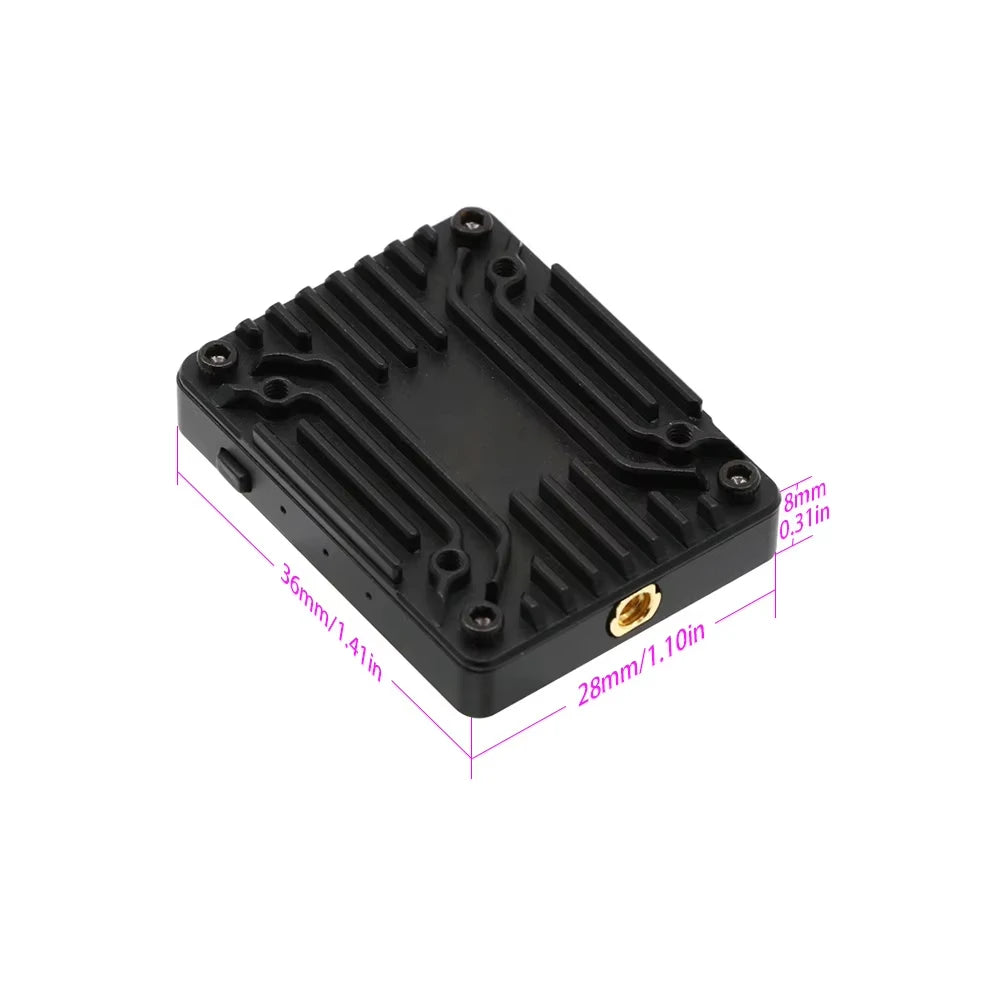

- Dimensions: 36 × 27.5 × 8mm
- Mounting: 20×20mm
Perfect For
- Long-range FPV builds requiring high-power 5.8GHz video transmission
- Freestyle and racing pilots wanting switchable power levels from pit mode to 2.5W
- Wide-voltage builds running 2S–8S LiPo without a separate voltage regulator
Important Notes
- Always connect a quality antenna before powering on — operating without an antenna or with a poor-quality antenna can cause self-oscillation and permanently damage the VTX

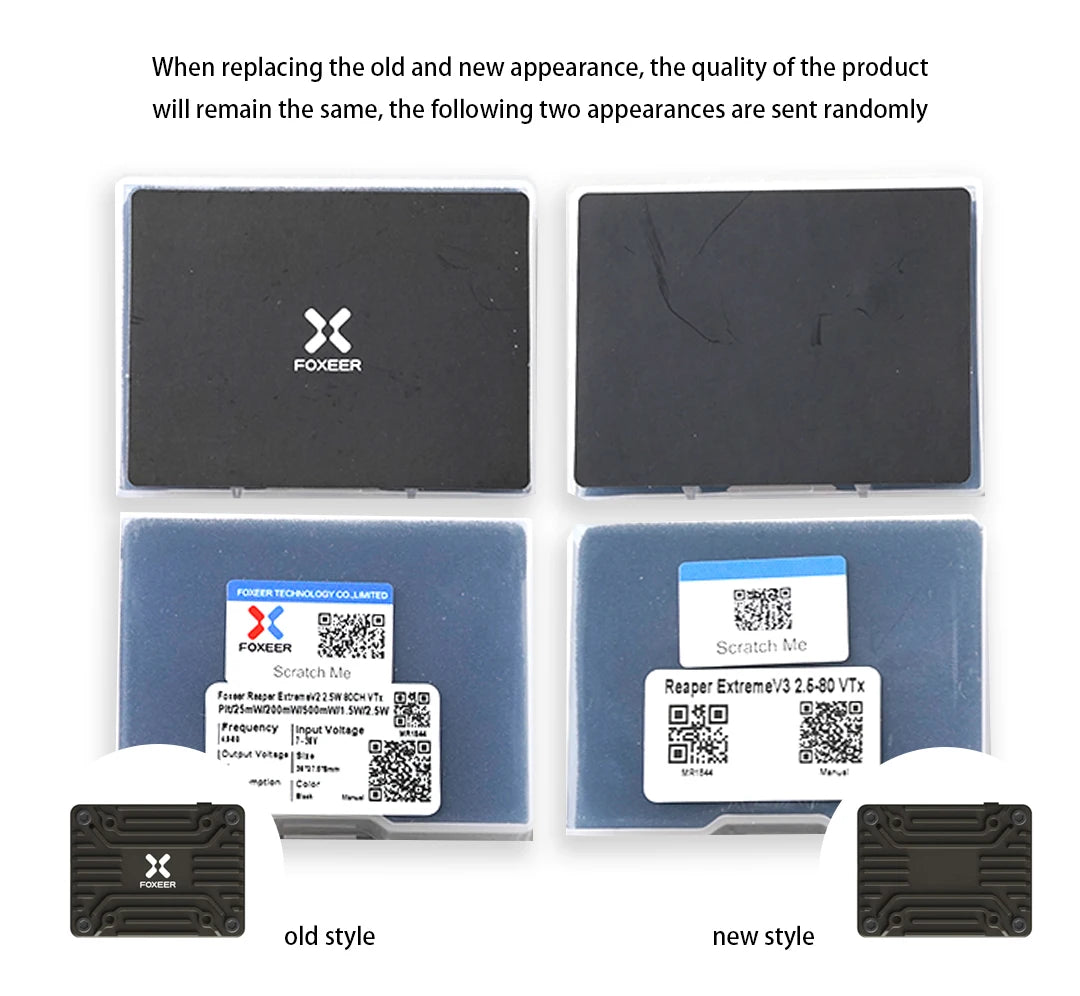

- Note: Unit does not have the Foxeer logo printed on it per Foxeer’s output policy, but is genuine and includes a verification code
- Verify authenticity at foxeer.com using the included verification code
