SPECIFICATIONS

Brand Name: Auloda

Certification: CE

For Vehicle Type: Airplanes

Four-wheel Drive Attributes: Assemblage

Material: Carbon Fiber

Model Number: GEPRC DarkStar20 Frame

Origin: Mainland China

Quantity: 1 pcs

RC Parts & Accs: Principal Axis

Recommend Age: 14+y

Remote Control Peripherals/Devices: MOTOR

Size: Wheelbase:90mm

Tool Supplies: Assembled class

Upgrade Parts/Accessories: Frame

Use: Vehicles & Remote Control Toys

Wheelbase: Screws

Summary

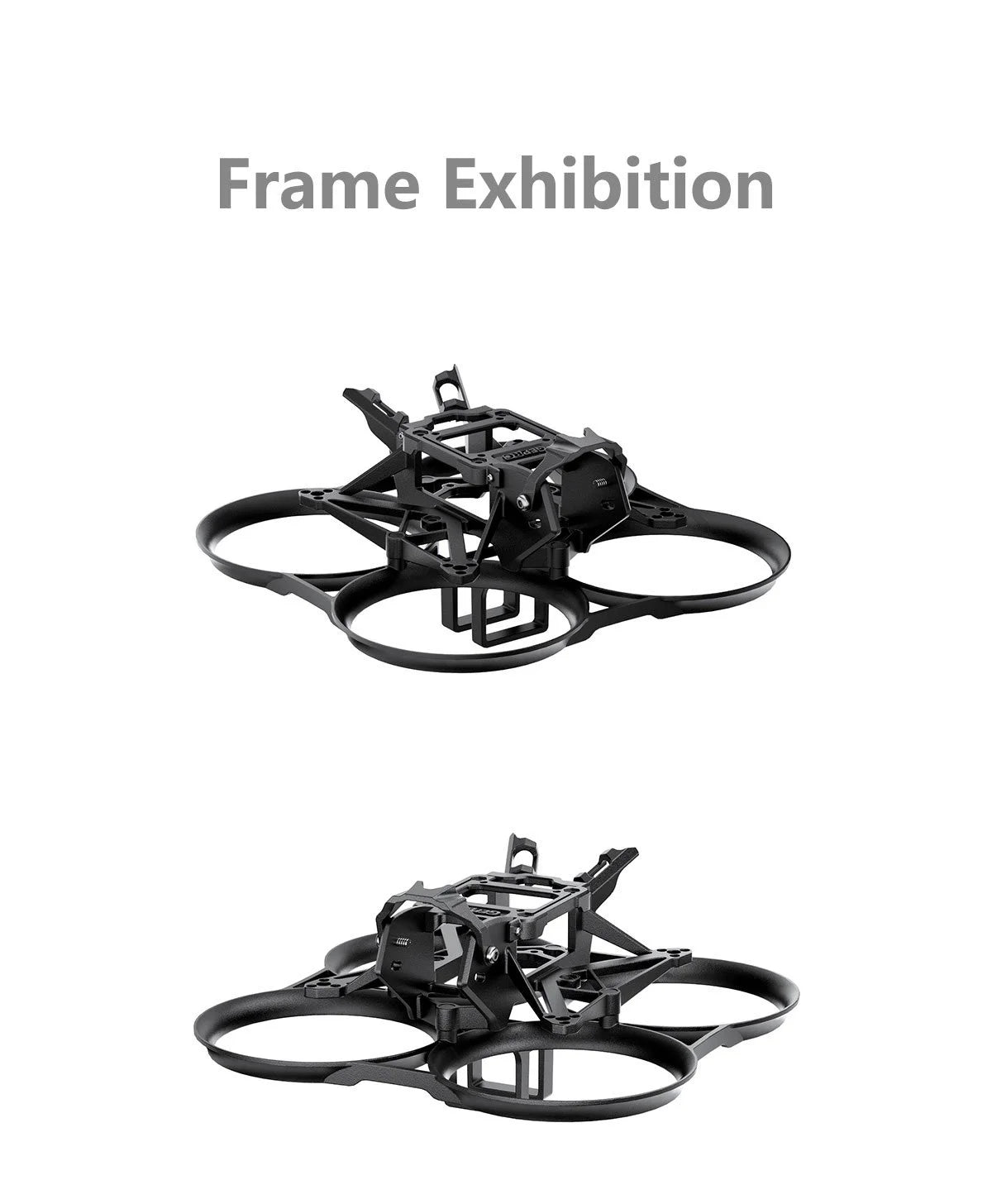

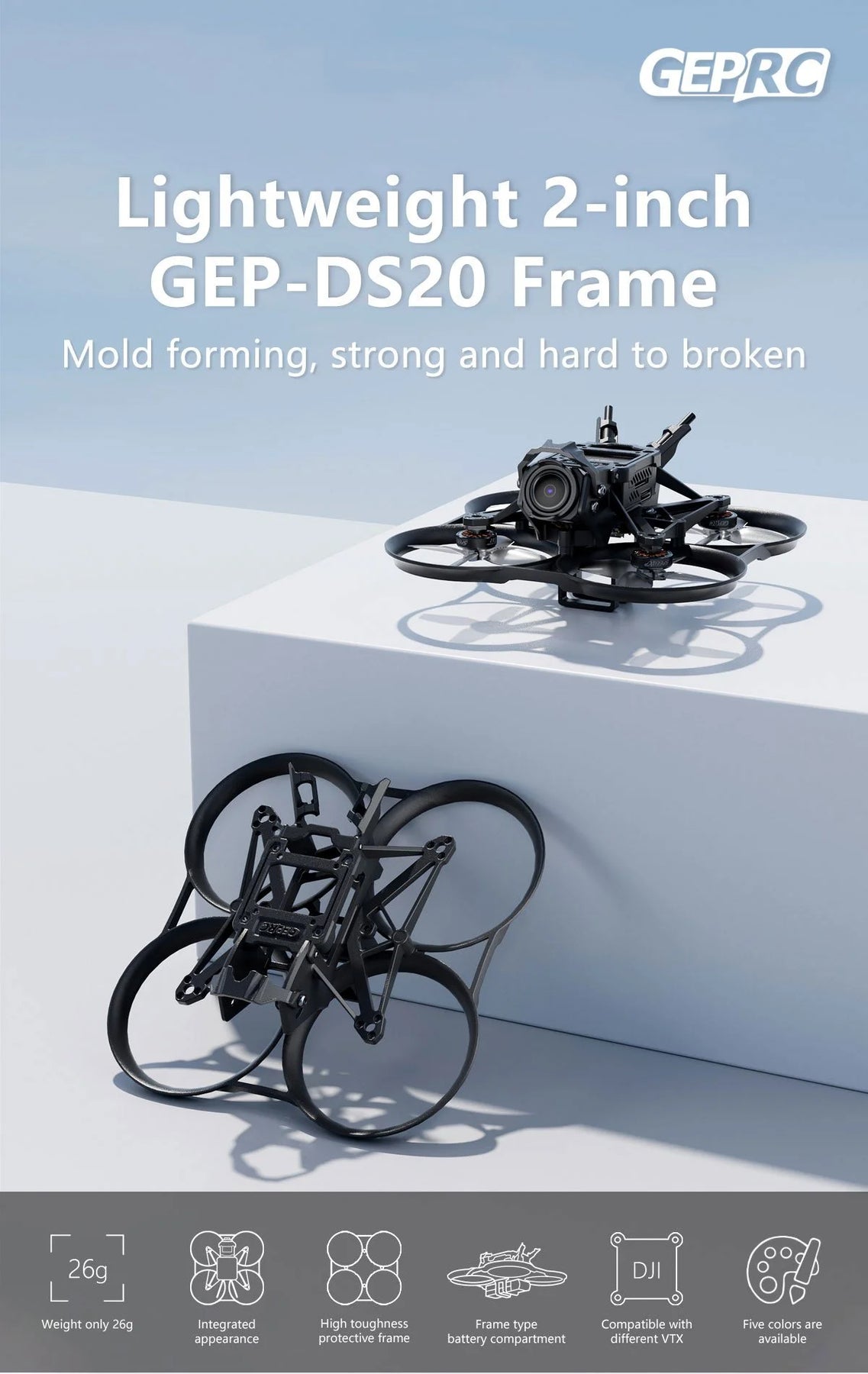

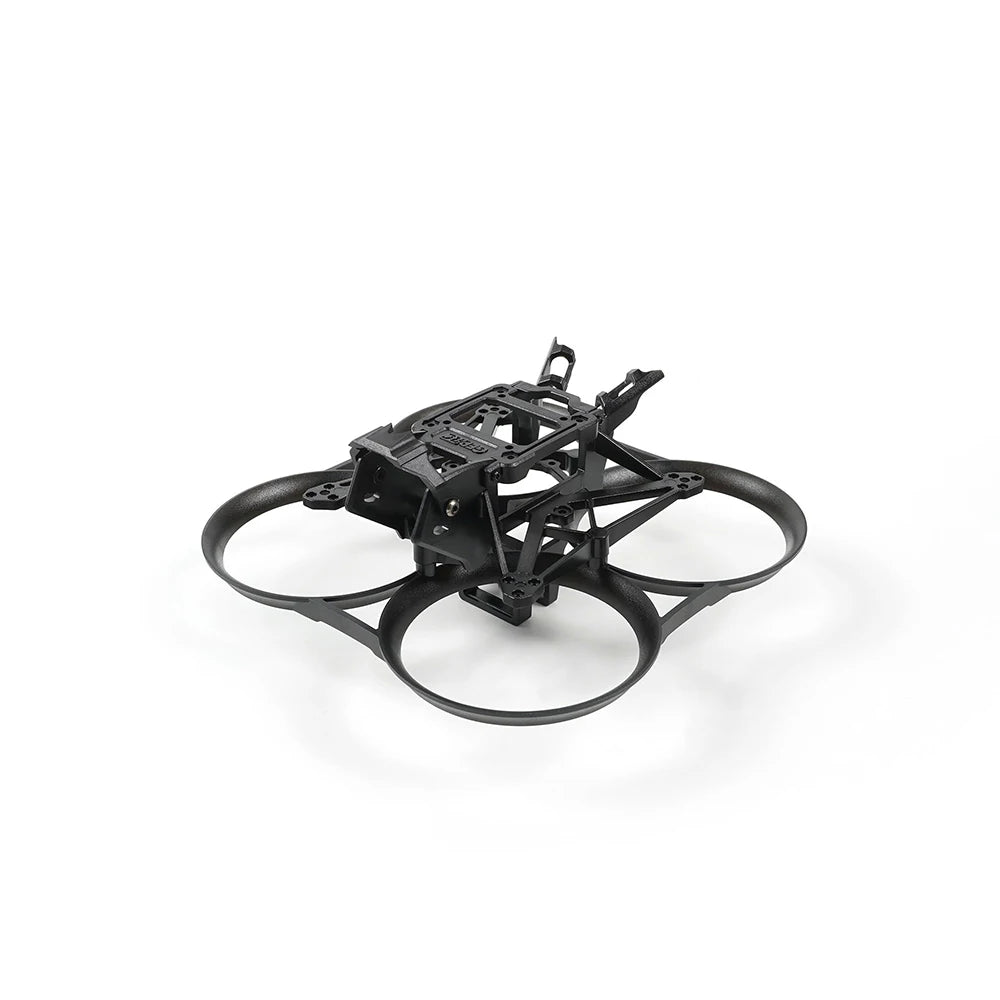

GEP-DS20 is a 2-inch lightweight frame compatible with O3 Air Unit, Link and analog video transmission. It is injection molded using high-quality materials with both toughness and strength. The GEP-DS20 is available in five colors, white ,pink, gray, black and blue.

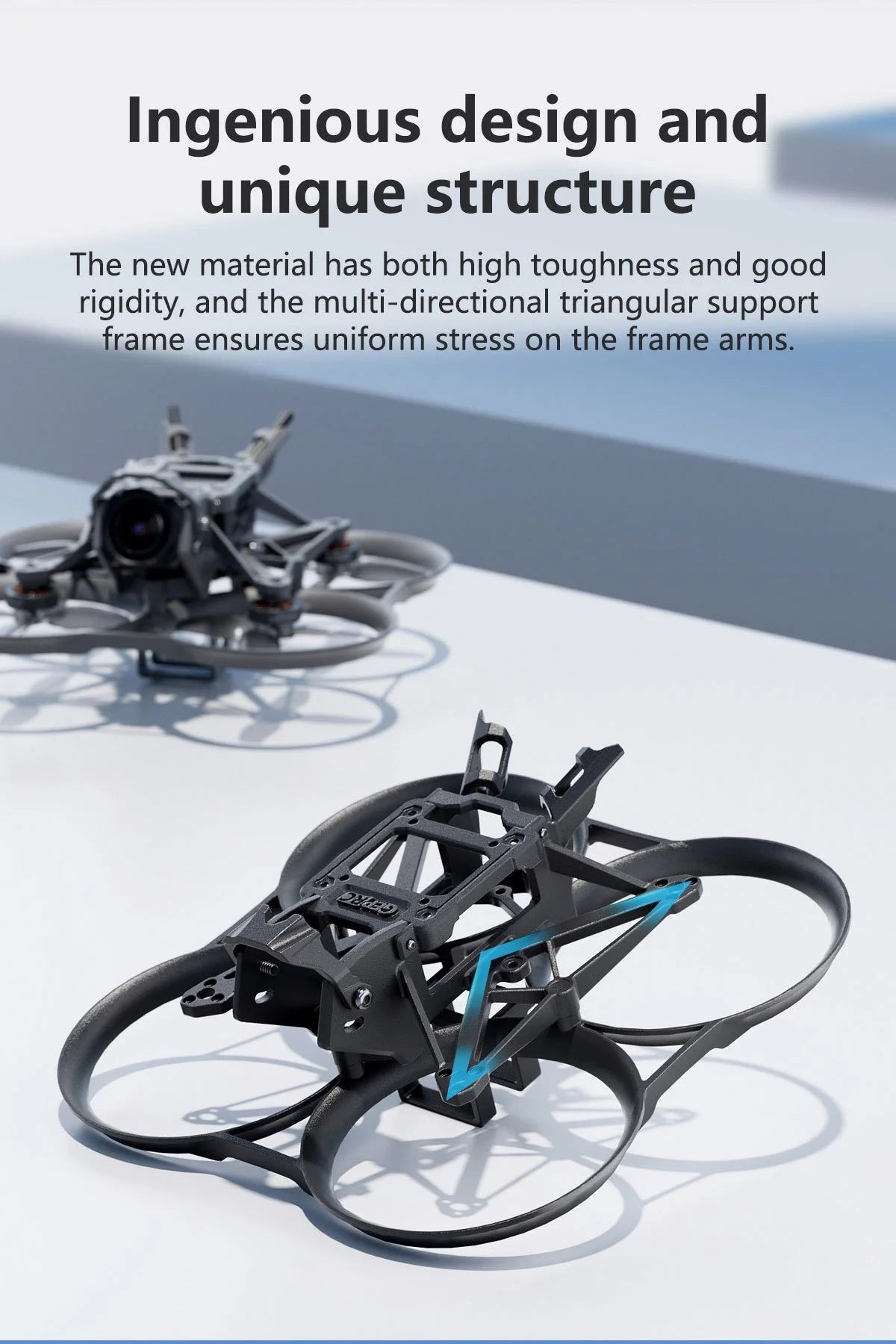

The GEP-DS20 arm axis is combined with a multi-directional triangular support frame to ensure good frame rigidity. Frame-type battery compartment makes it easier to disassemble and install batteries. The frame wheelbase is 90mm and is suitable for 1003/1102 motors with a three-hole base.

Feature

1. New design concept, lightweight fully injection molded body and multi-directional triangular support frame to ensure strength.

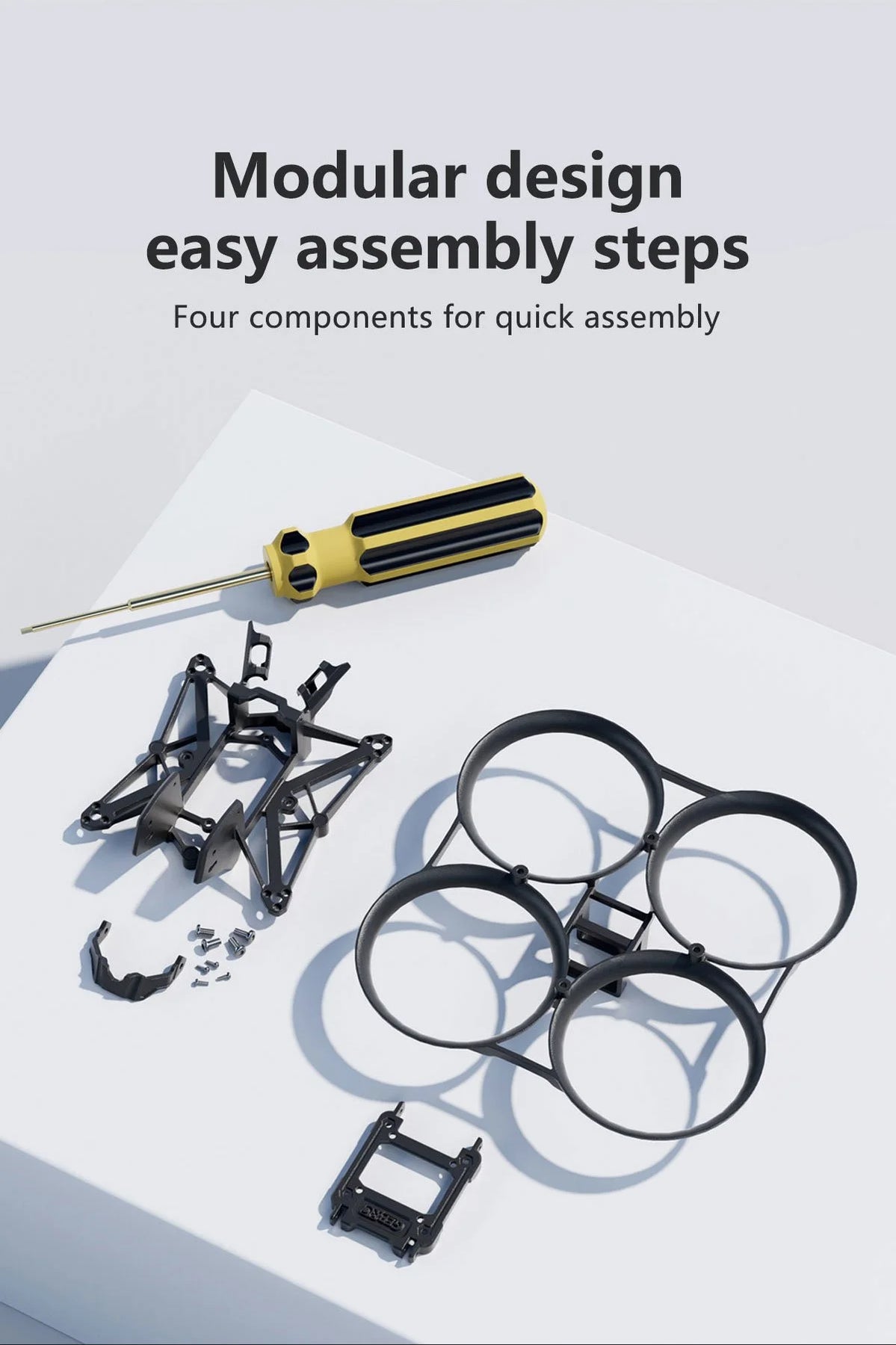

2. Modular structure, easy to assemble.

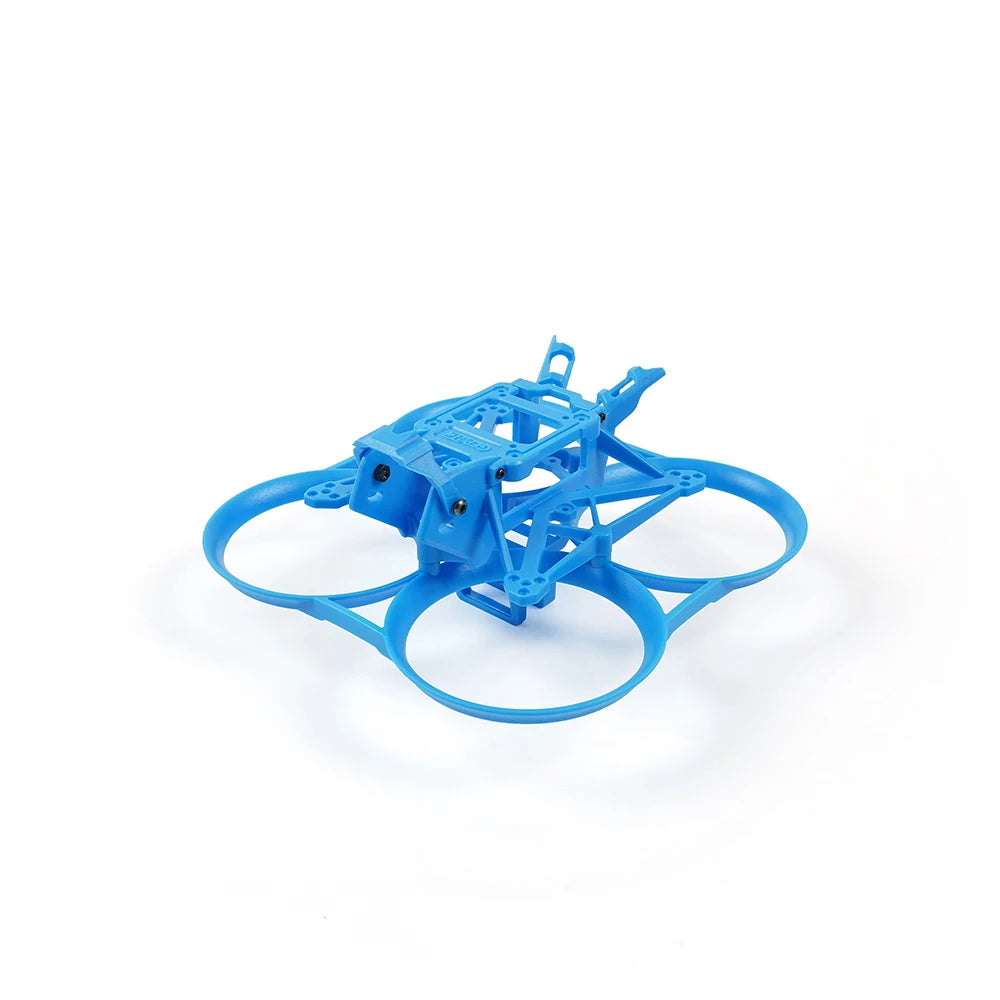

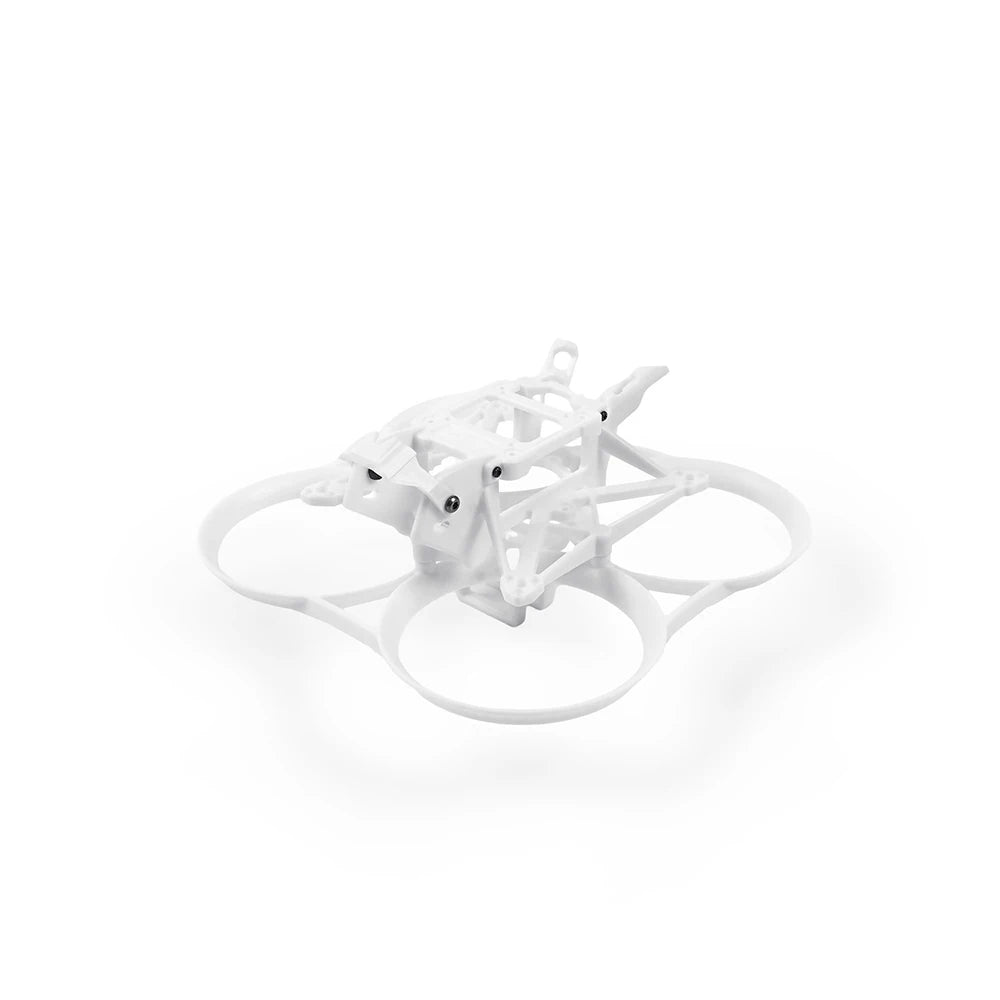

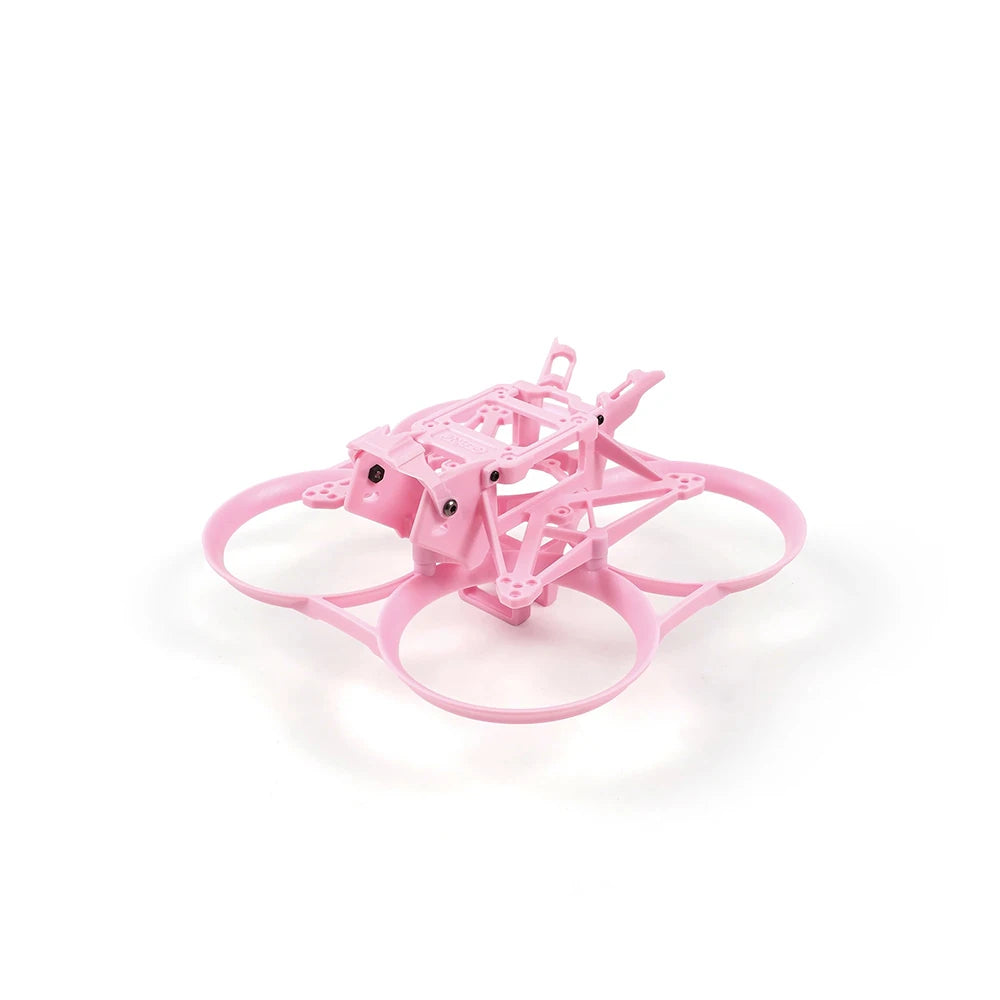

3. Five colors available: white, pink, gray, black, and blue.

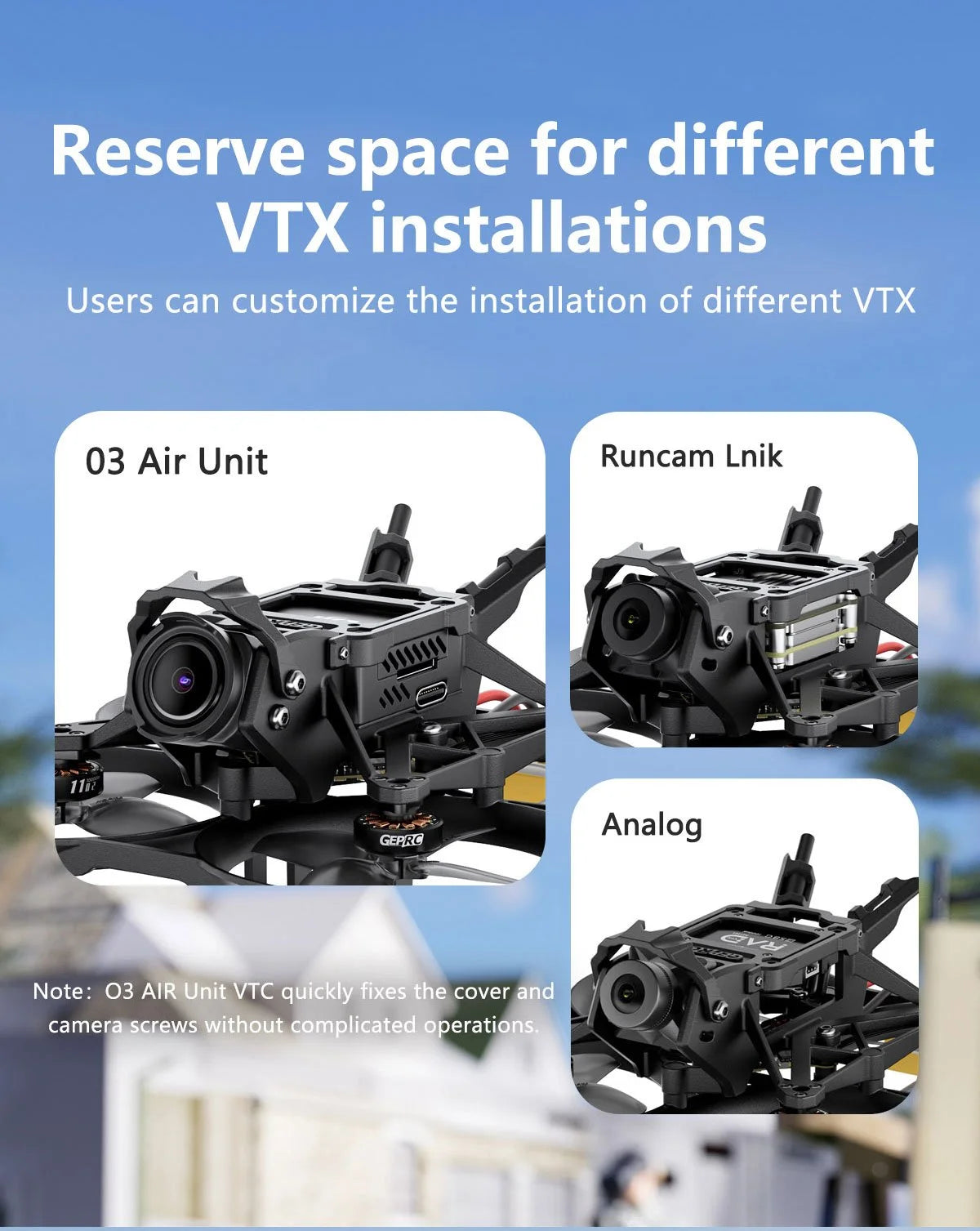

4. Adapted to O3 AIR Unit, Link, and analog image transmission.

5. Compatible with 1003 and 1102 motors.

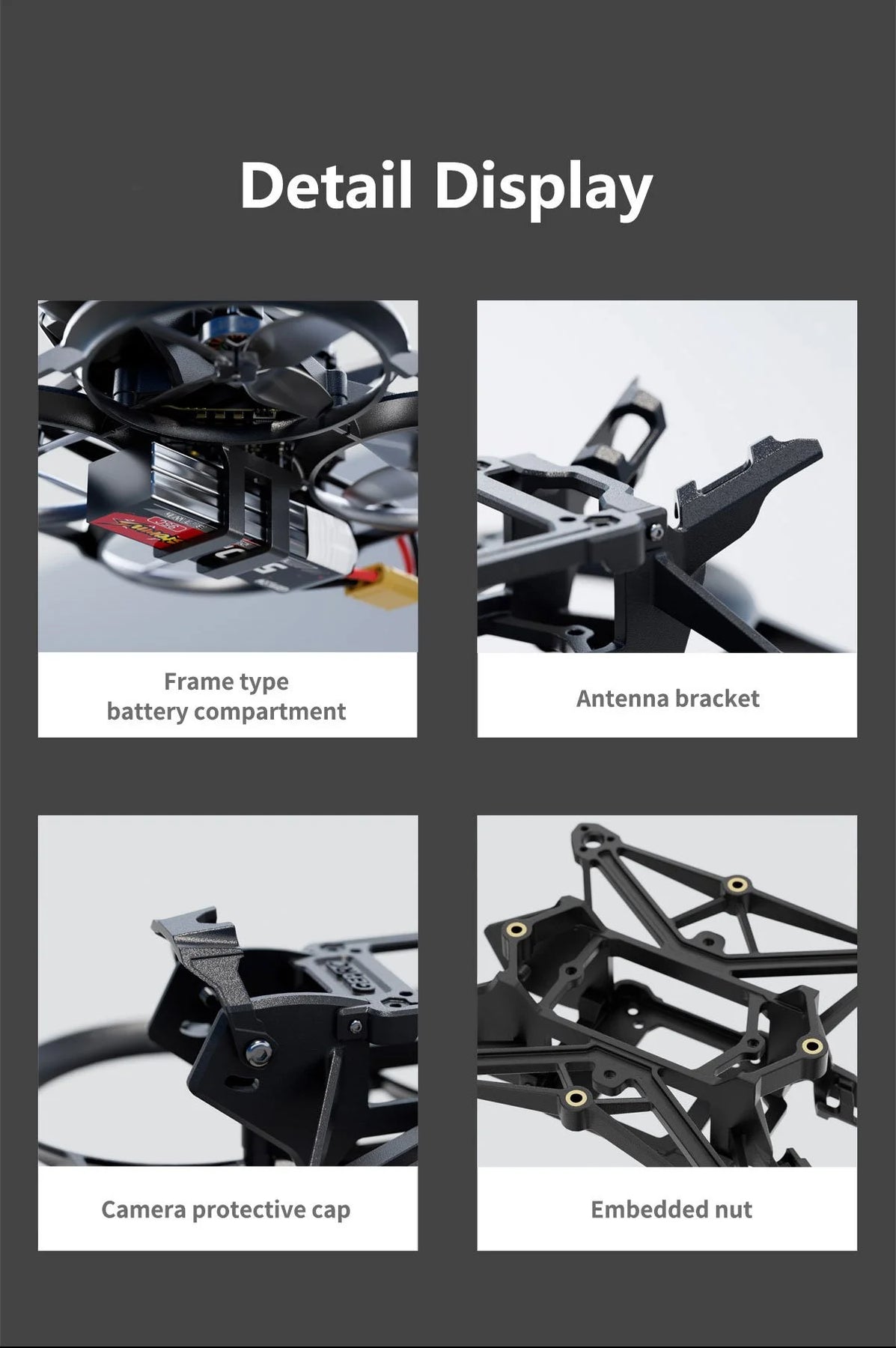

6. The antenna fixed shield is carefully designed to be both practical and beautiful.

7. Frame-type battery compartment makes it easier to disassemble and install batteries.

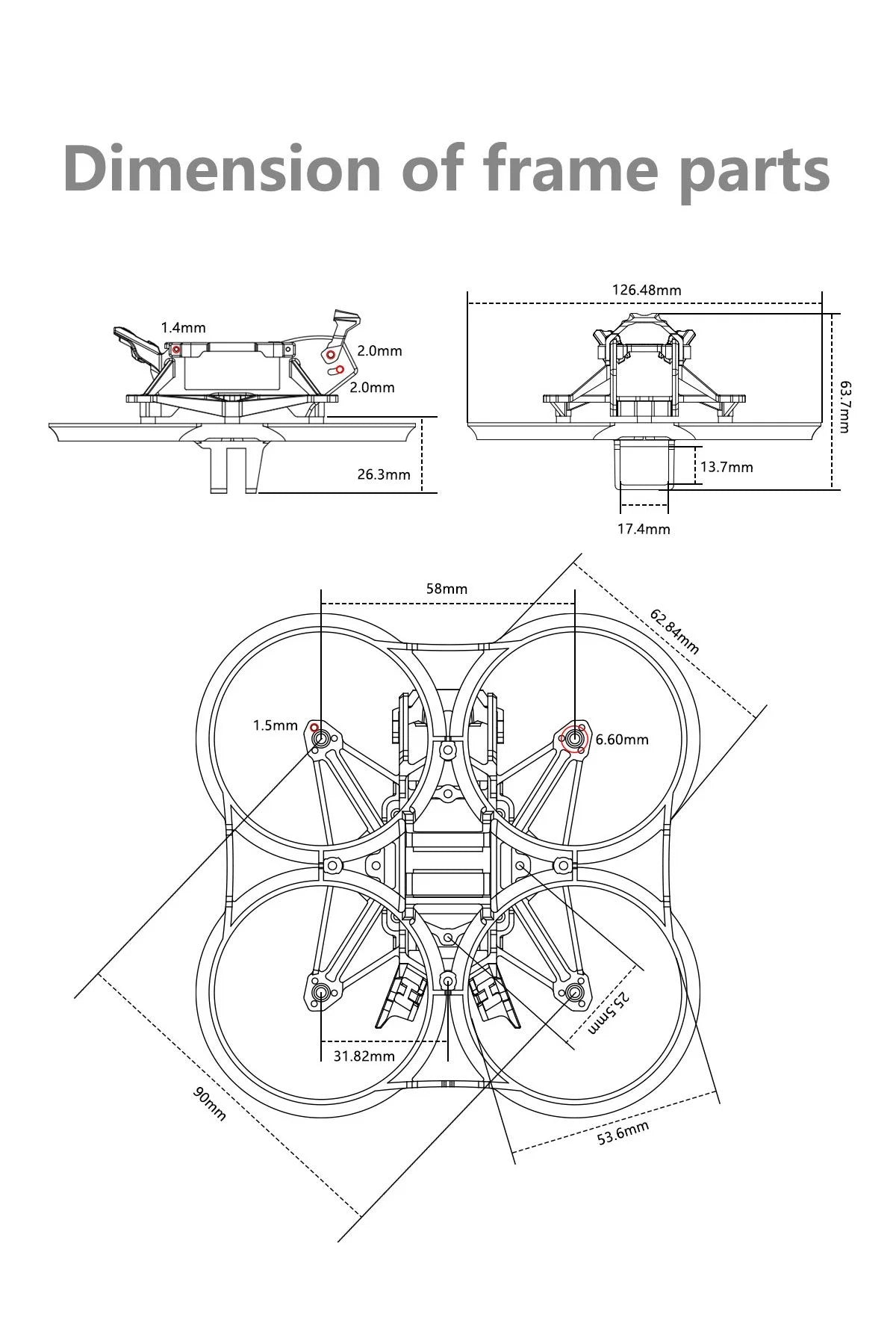

Specification

Model:GEP-DS20 Frame

Dimension:126mm*126mm*57mm

Wheelbase:90mm

FC Mount:25.5mm*25.5mm

VTX Mount:20mm*20mm/25.5mm*25.5mm

Motor Mount:3-M1.4-φ6.6mm

Camera size:19mm/20mm

Battery Slot Width:17.3mm*13.5mm

Colors:white/pink/gray/black/blue

Propellers:2 inch

Weight:26g

Related products of the adaptation framework:

GEPRC DarkStar20 HD O3 Quadcopter

GEPRC DarkStar20 HD Wasp Quadcopter

GEPRC DarkStar20 WTFPV Quadcopter
