GEPRC ELRS GemX Gemini Dual-Band Receiver — 915MHz + 2.4GHz, Semtech LR1121, TCXO, 25–1000Hz, 100mW Telemetry, 1.7g

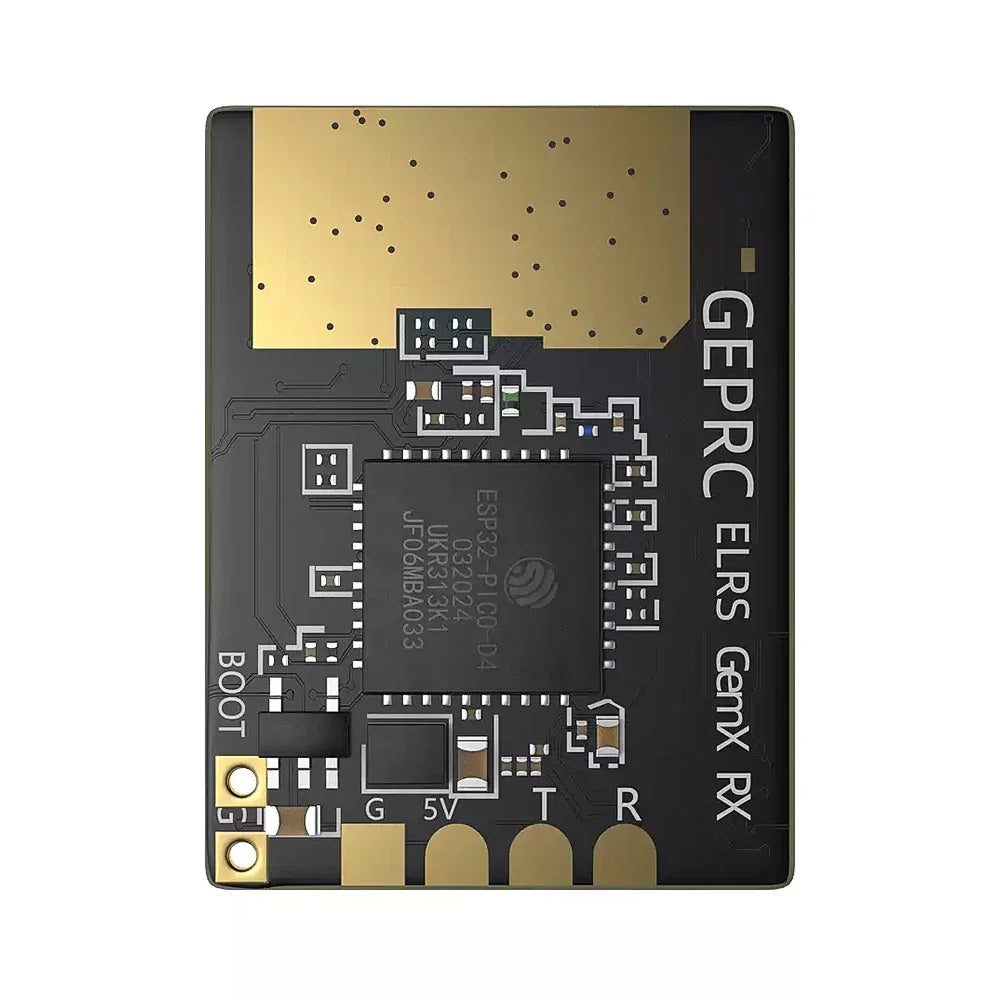

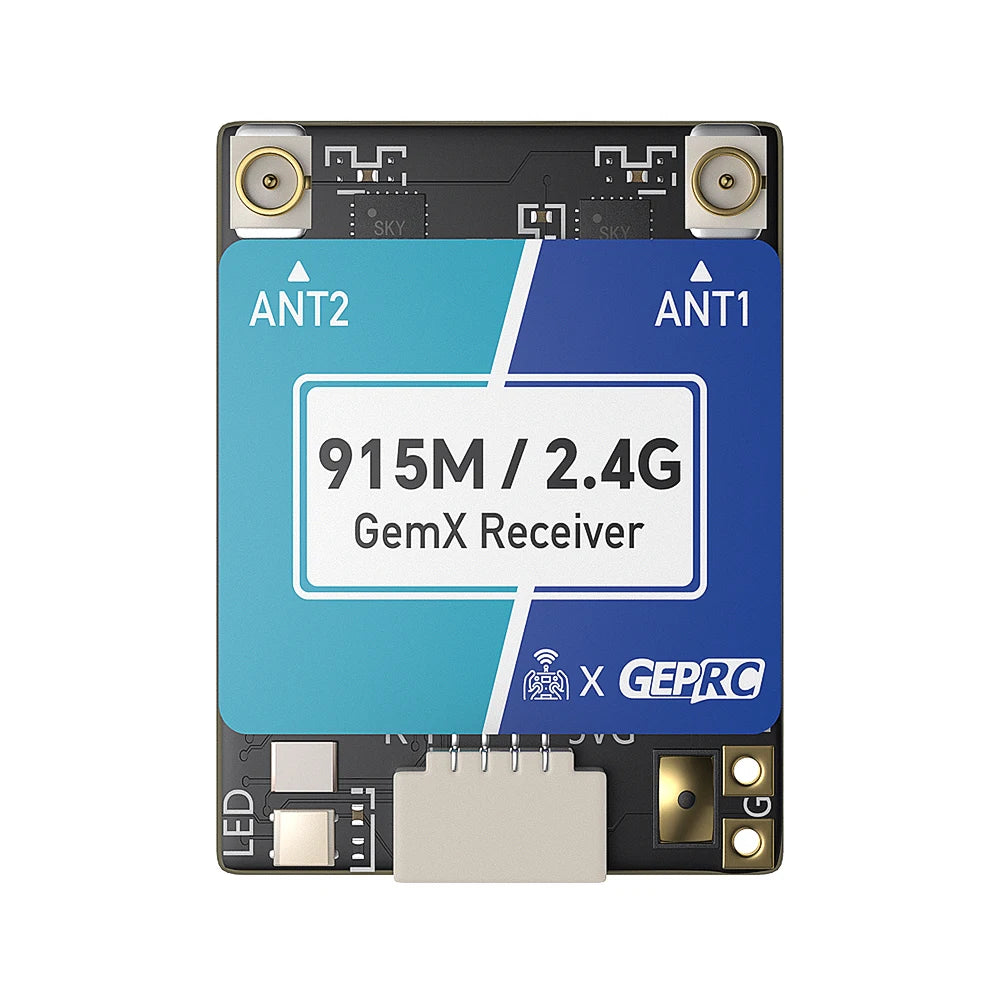

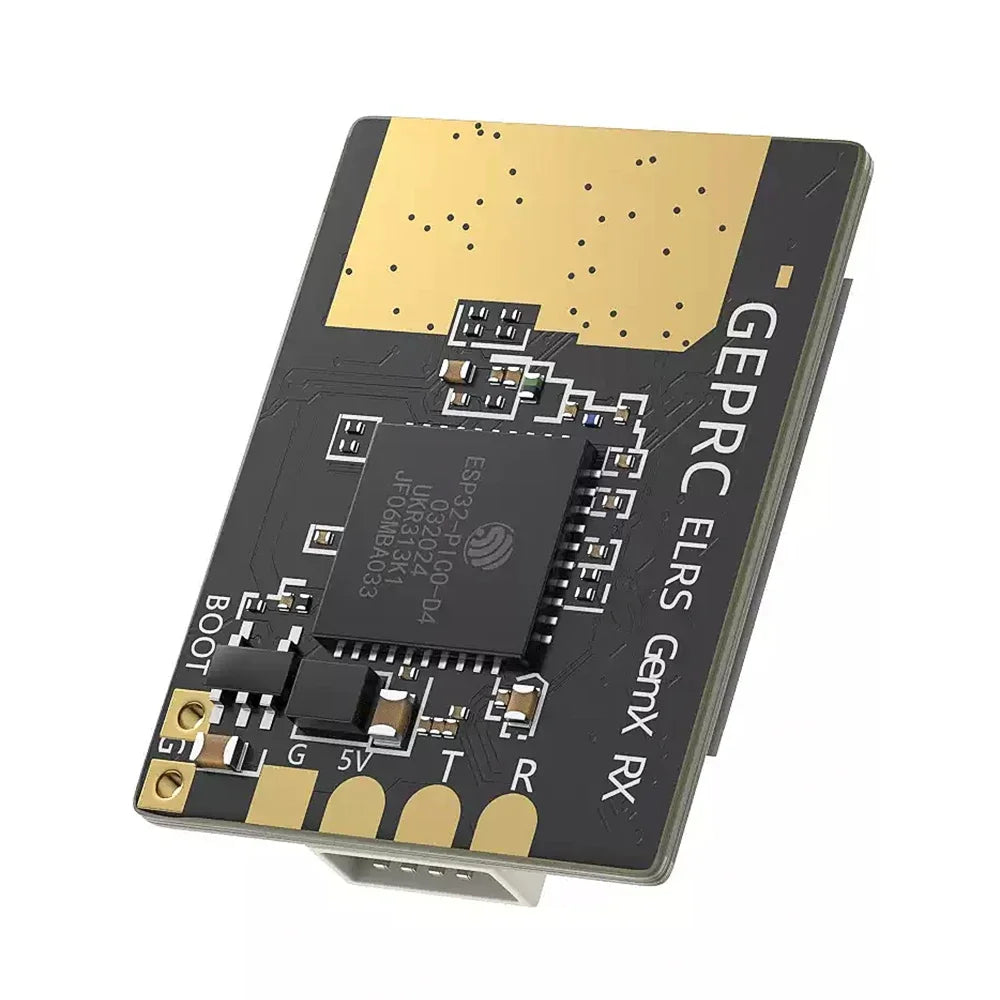

The GEPRC ELRS GemX Gemini Receiver is a next-generation dual-band ExpressLRS receiver built on Semtech's third-generation LR1121 RF chip. Featuring dual LR1121 chips, it supports simultaneous 915MHz and 2.4GHz operation — giving pilots the flexibility to run either band independently or in true dual-band Xrossband mode for maximum link stability and interference rejection. At just 1.7g and 18×23.6mm, it's one of the most capable and compact ELRS receivers available.
Compatible with all existing 915M and 2.4G ELRS TX modules, the GemX Gemini is a direct upgrade for any FPV build where link reliability in congested RF environments matters.
Key Features
- True Dual-Band ELRS — Simultaneous 915MHz + 2.4GHz via dual LR1121 chips; switchable between 915M Gemini, 2.4G Gemini, and 915M+2.4G dual-RF modes
- Semtech LR1121 (3rd Gen) — Latest-generation RF chip covering 150–960MHz (sub-GHz) and 2.4GHz bands
- TCXO Temperature-Compensated Crystal Oscillator — Stable, drift-free frequency performance across temperature variations
- 25–1000Hz Refresh Rate — Full ELRS packet rate range for racing precision or efficient long-range cruising
- 100mW Telemetry Power — Strong return link for reliable RSSI, LQ, and sensor data at range
- Ultra-Compact & Lightweight — 18 × 23.6 × 5.7mm, 1.7g; minimal footprint for micro and 5" builds
- WiFi Firmware Updates — Built-in ESP32-PICO-D4 enables OTA firmware updates via WiFi
- SH1.0 Connector — Compact, secure connector for easy installation on modern FC boards
- IPEX1 (U.FL) Antenna Connector — Standard IPEX1 port for external antenna routing
- Backward Compatible — Works with all existing 915M and 2.4G ELRS TX modules; no new transmitter required
Specifications
- Model: GEPRC ELRS GemX Gemini Xrossband Receiver
- Chipset: ESP32-PICO-D4 + LR1121 ×2
- Crystal Oscillator: TCXO
- Frequency Bands: 915MHz Gemini • 2.4GHz Gemini • 915M+2.4G Dual-Band
- Refresh Rate: 25–1000Hz
- Operating Voltage: 5V
- Telemetry Power: 100mW
- Antenna Connector: IPEX1 (U.FL)
- Data Connector: SH1.0

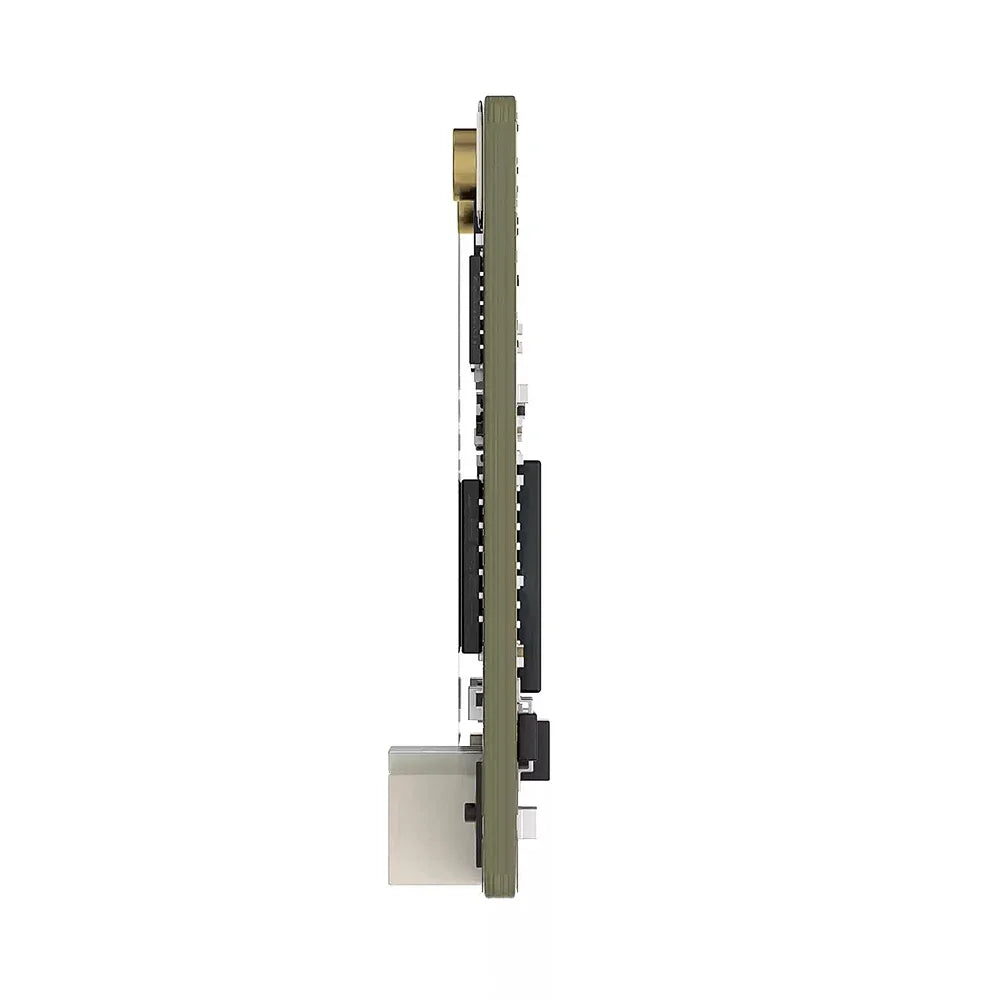

- Dimensions: 18 × 23.6 × 5.7mm
- Weight: 1.7g (receiver only)
- Firmware: GEPRC 900/2400 Gemini Xrossband RX
- Certification: CE
What’s in the Box
- 1× ELRS GemX Gemini Xrossband Receiver

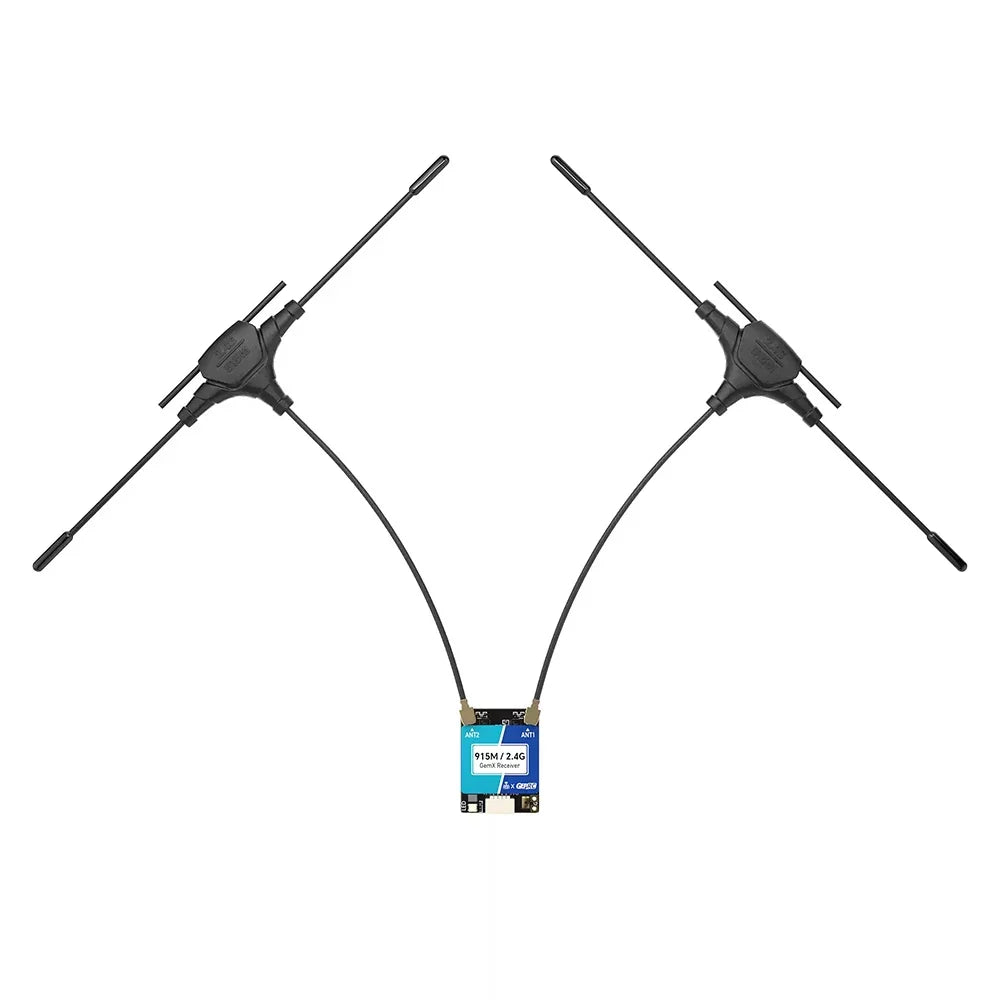

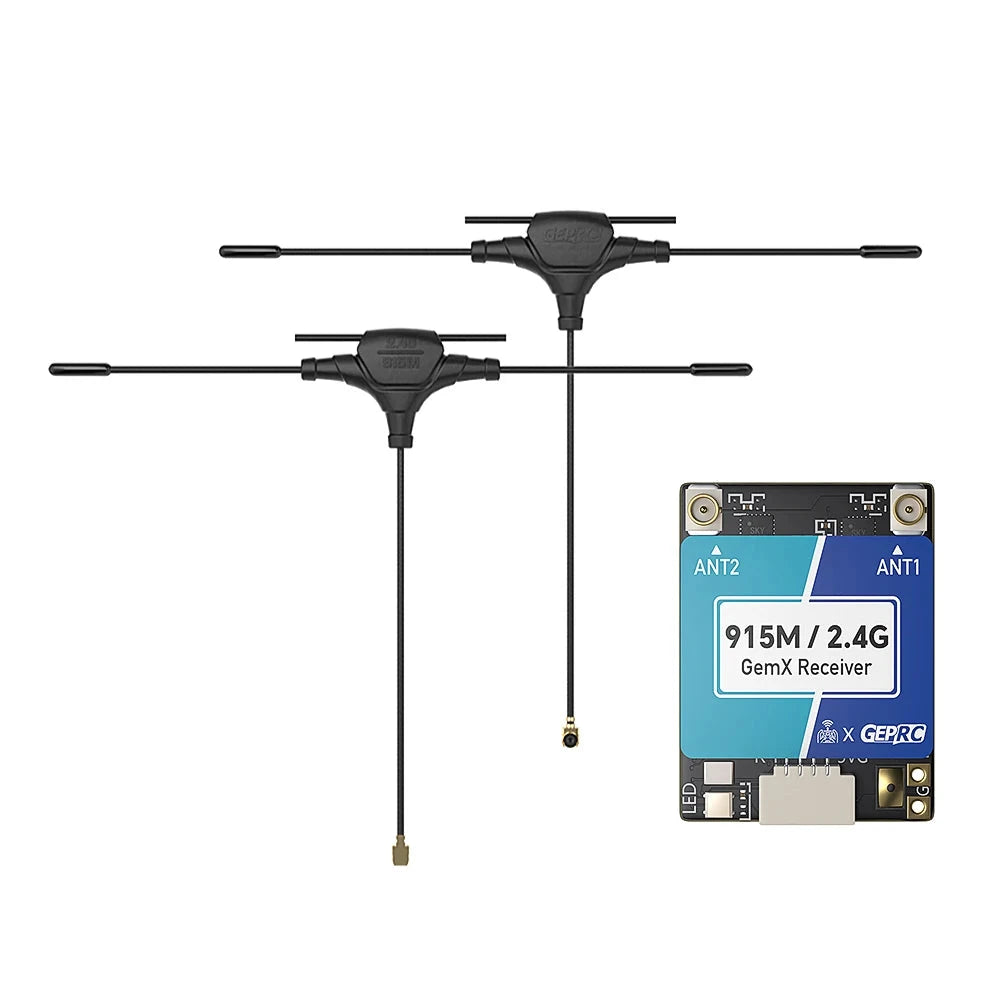

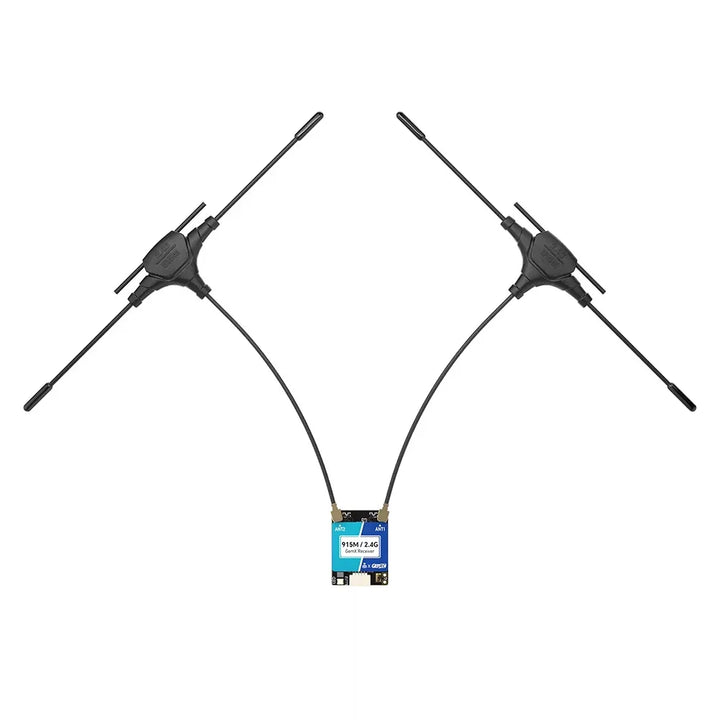

- 2× 915M/2.4G Dual-Band T-Antennas
- 1× Heat shrink tube
- 1× 4-pin silicone connect cable
- 1× User manual
Compatible With
- All ExpressLRS 915MHz TX modules
- All ExpressLRS 2.4GHz TX modules
- Any dual-band ELRS TX module supporting Xrossband mode
- Any FPV flight controller with UART and 5V output
Perfect For
- FPV racing and freestyle pilots in congested RF environments
- Long-range flyers wanting dual-band link redundancy
- Builders upgrading to the latest generation ELRS receiver technology
