Item: GEPRC GEP-MK5 FPV Frame Kits
Parameters:
Brand Name: GEPRC/Gep
Model: GEP-MK5
Wheelbase size: 225mm
Top plate thickness: 2.5mm
Bottom plate thickness: 2.5mm
Arm thickness: 5.0mm
Flight control mounting hole: 30.5mm x 30.5mm
Video transmission mounting holes: 30.5mm x 30.5mm & 20mm x 20mm
Motor mounting holes: 16mm x 16mm
Lens size: 19-20mm
Suitable for propeller size: 5 inch propeller
Dimensions: 214mm x 168mm x 42mm
Weight: 130.0g

Features:
1.7075 aluminum alloy side plate, new visual effect, strong and durable, effectively protect the PFV lens.

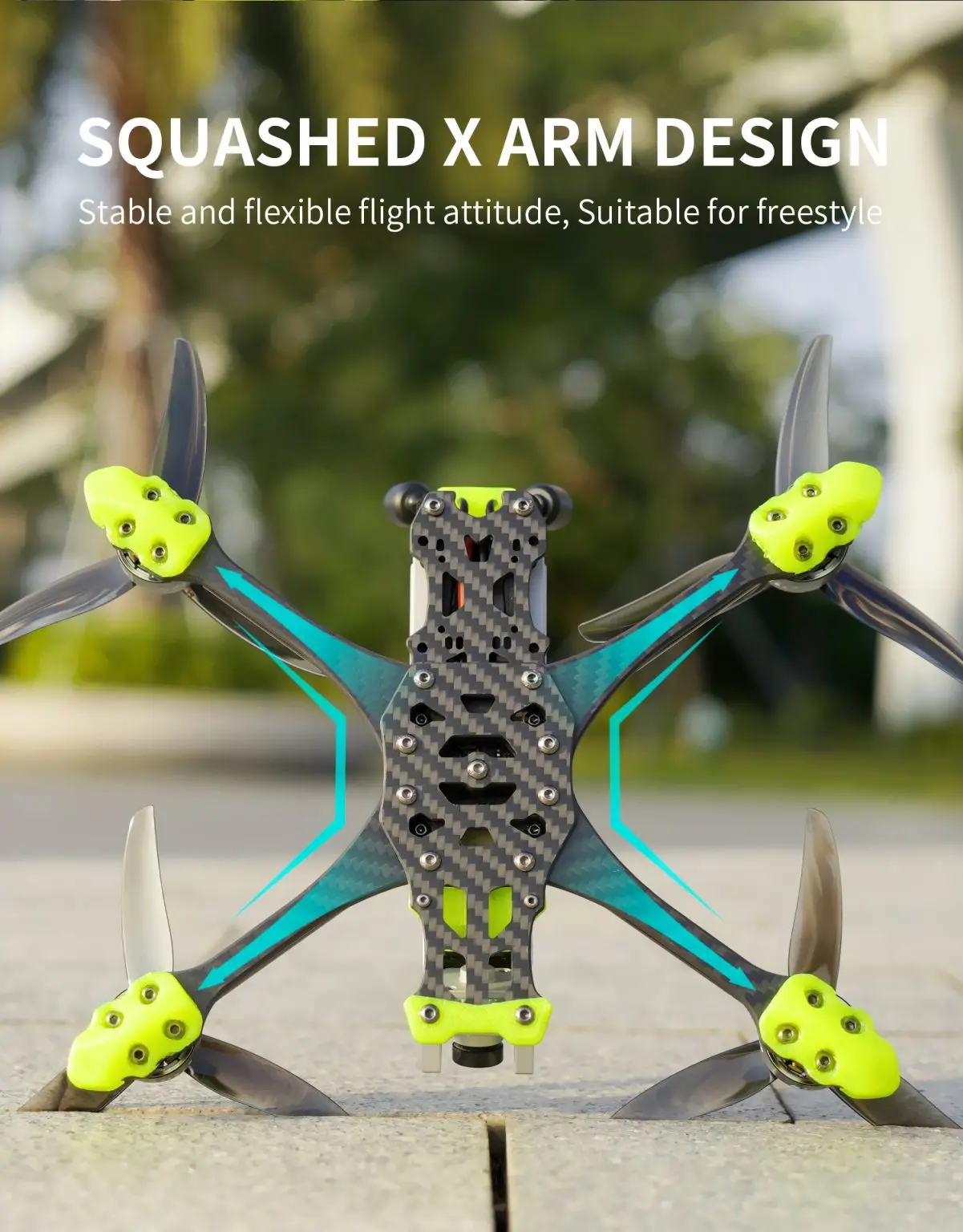

2. Wide X-arm design, stable and flexible flight attitude.
3. The installation holes of the video transmission are compatible with the sky terminal, VISTA and analog video transmission.

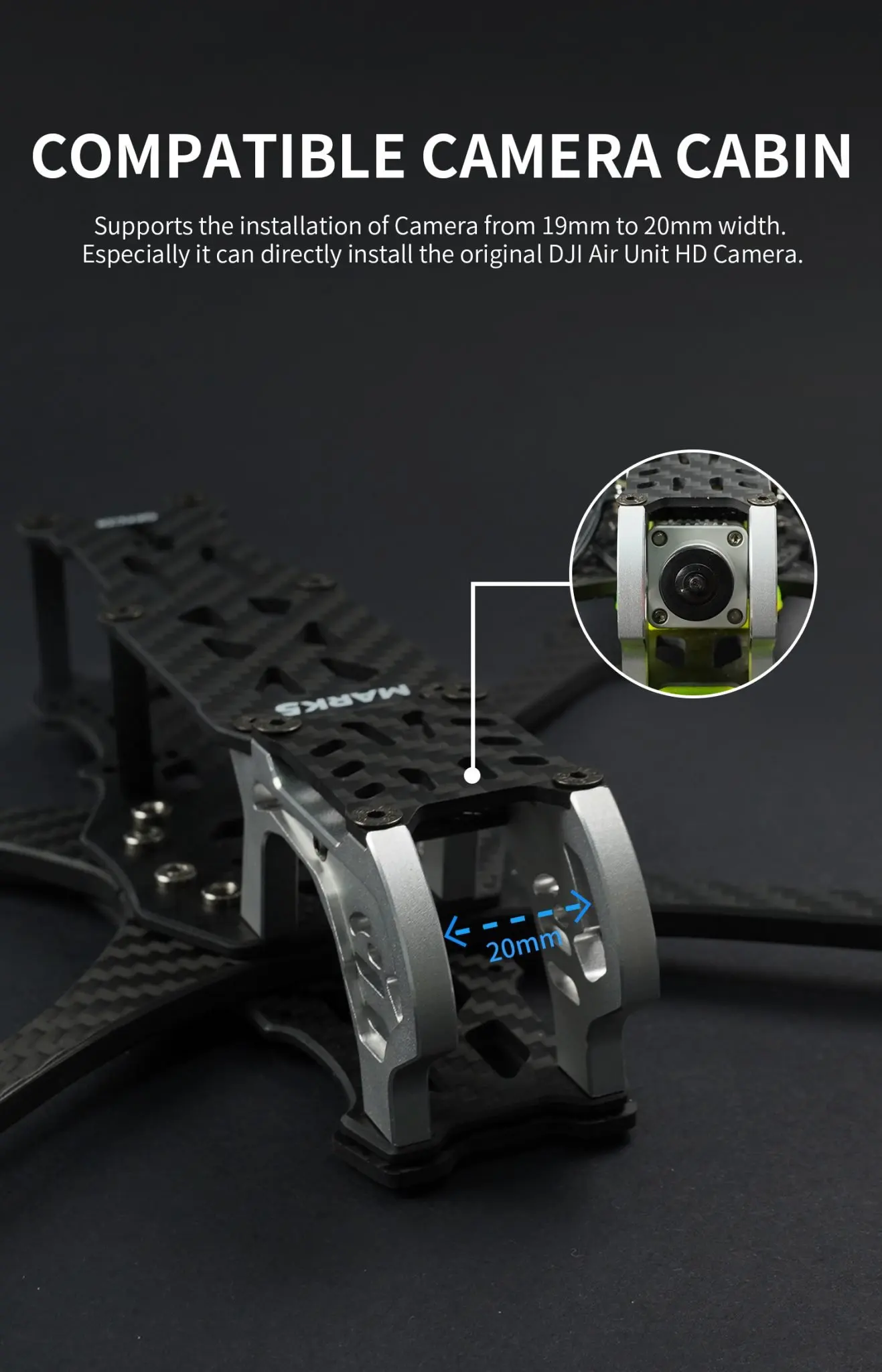

4. Compatible with lenses with a width of 19-20mm, you can directly install the original DJI lens.
5. Unique frame shock absorption design, less vibration, safe and stable electronic system operating environment.
6. Independent capacitor and buzzer compartment, the whole machine runs extremely stable, no jitter, no shaking.

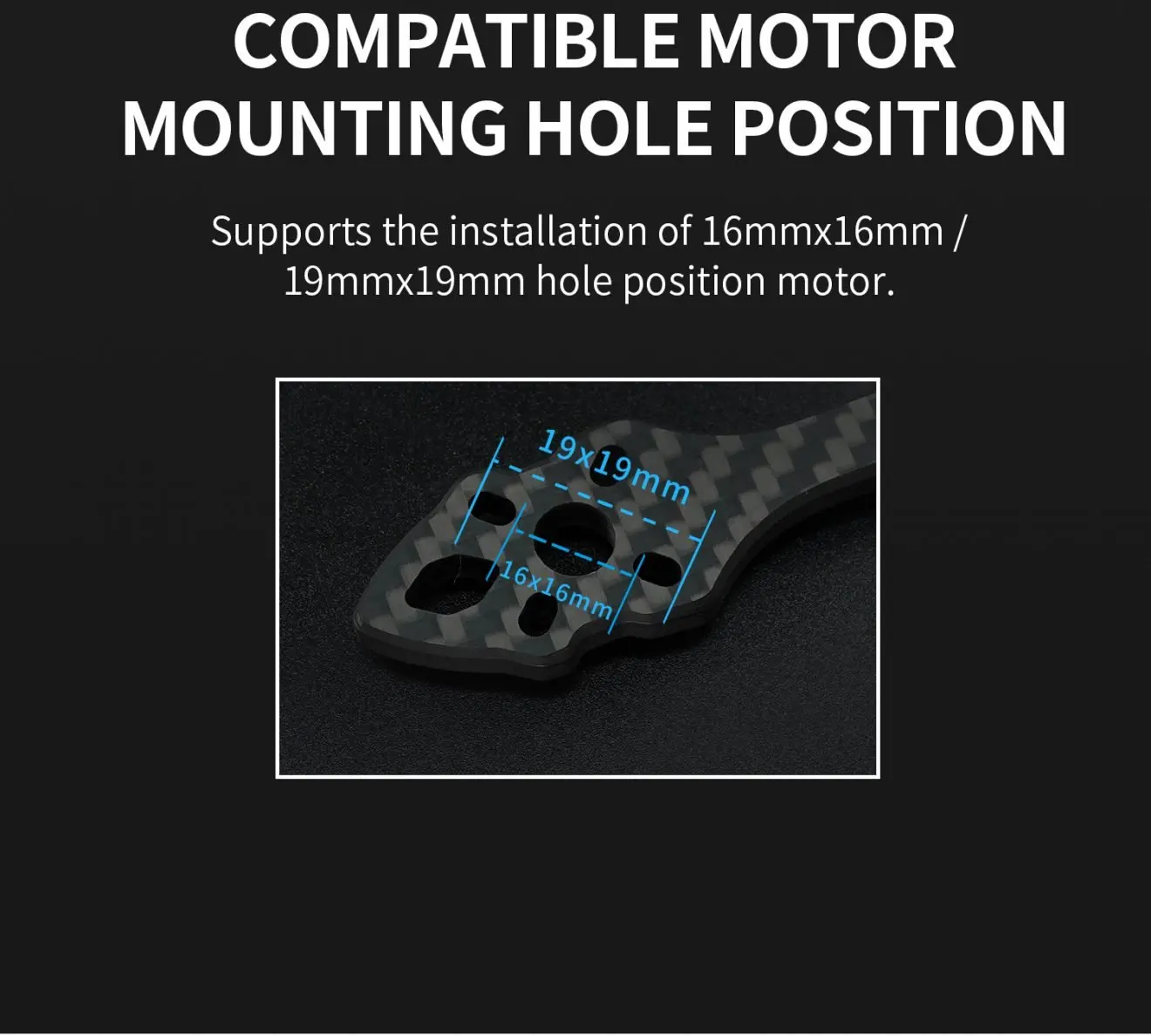

7. Compatible motor holes, support the installation of 16x16mm and 19x19mm motors.
8. Two kinds of 3D printing bases are designed, which can install GoPro cameras or Naked Dog 8, Insta 360 GO2 and Caddx Peanut cameras, and the shooting effect is stable and clear.
9. The frame is optimized for five-inch propellers for a smoother free-flying experience

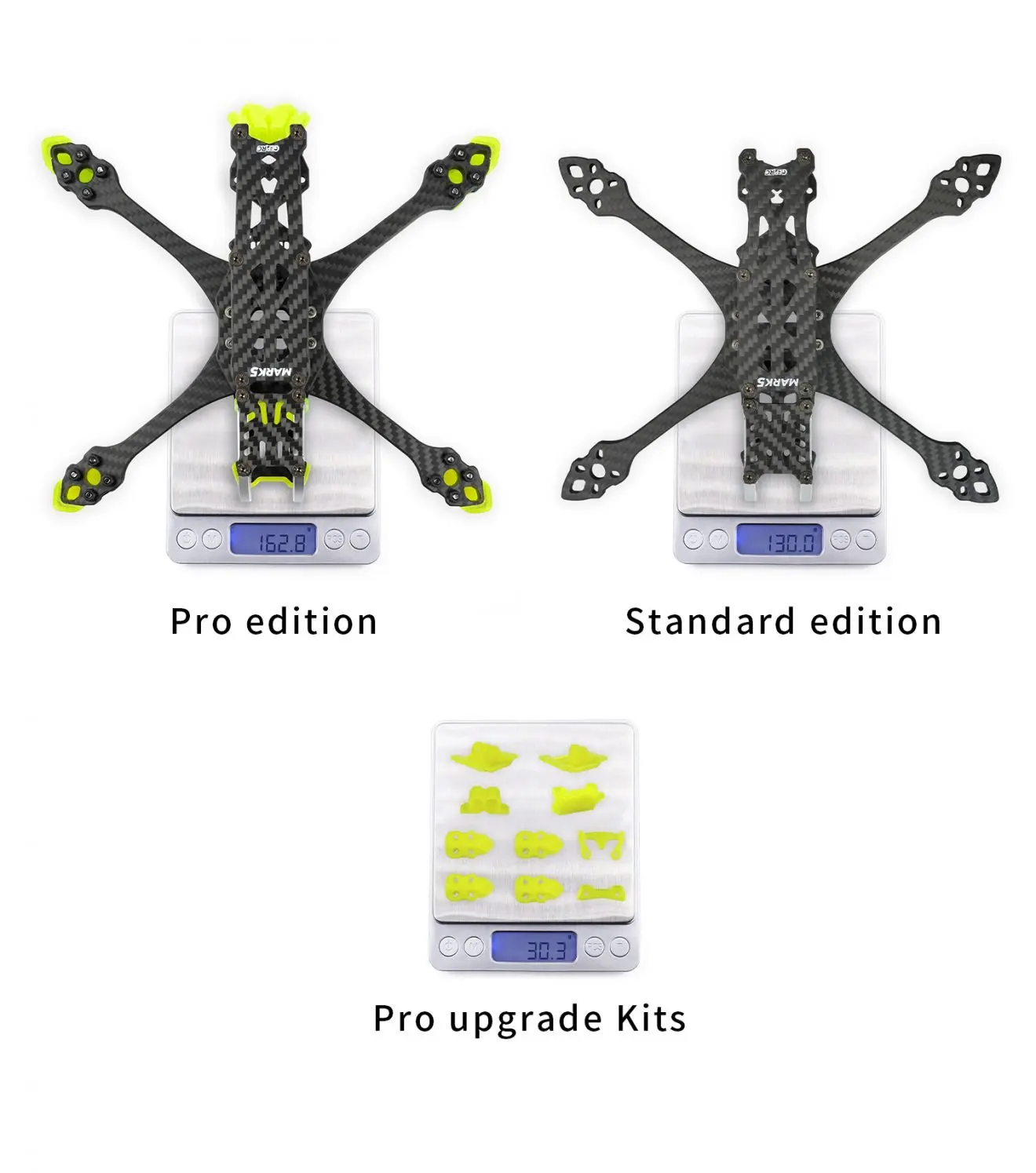

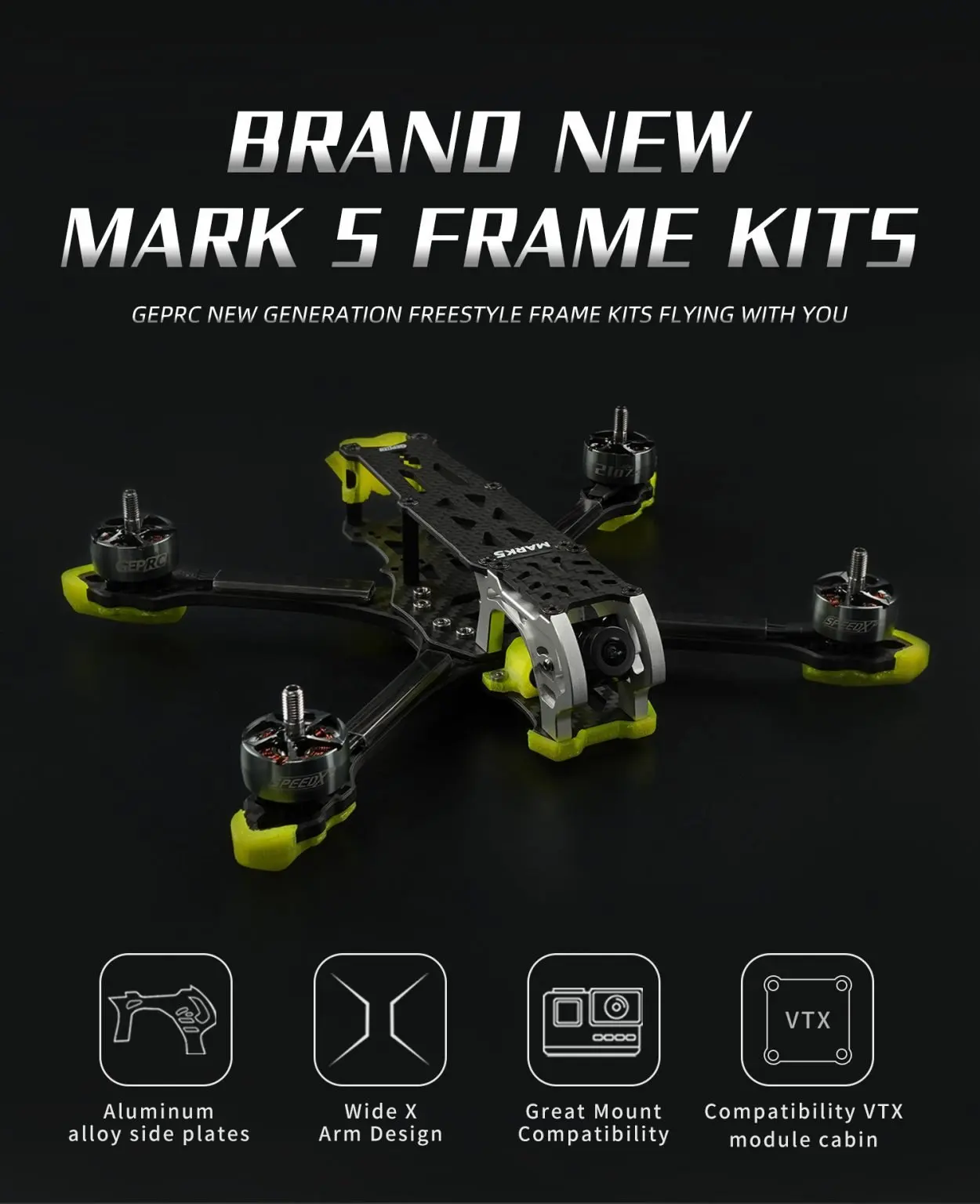

New Generation freestyle MARK5 frame. The MARK5 Frame is now officially released in three versions,which are standard version, pro version and pro upgrade kits version.The frame is compatible with DJI AIR UNIT, CADDX VISTA and Analog VTX.

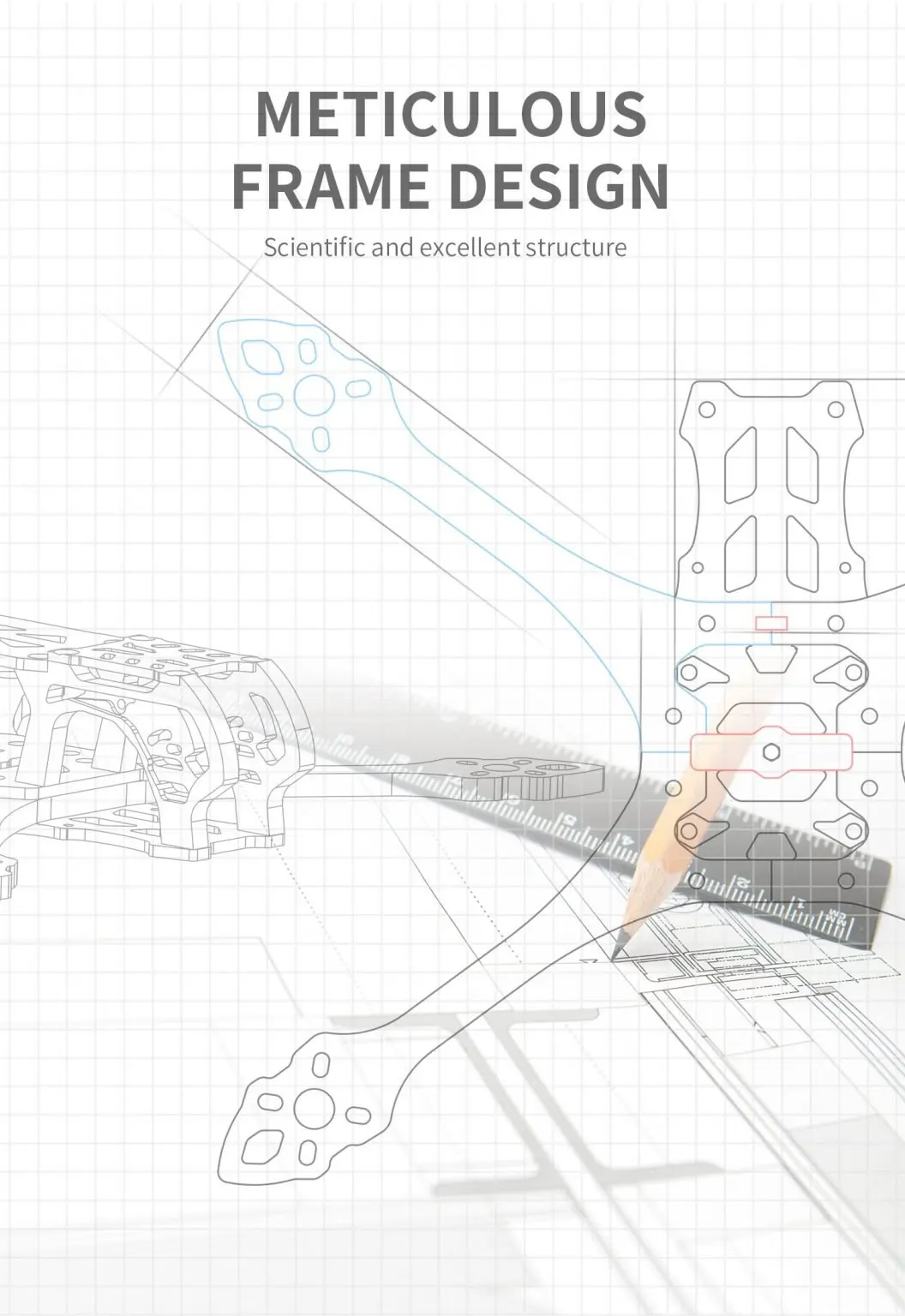

MARK5 frame is developed specifically for freestyle with wide X-arm design. Unique shock absorbing structure design, less vibrations and resonance, to provide a stable operating environment for the electronic system. Aluminum alloy side plates not only look stunning,but also reduce weight and add more endurance.

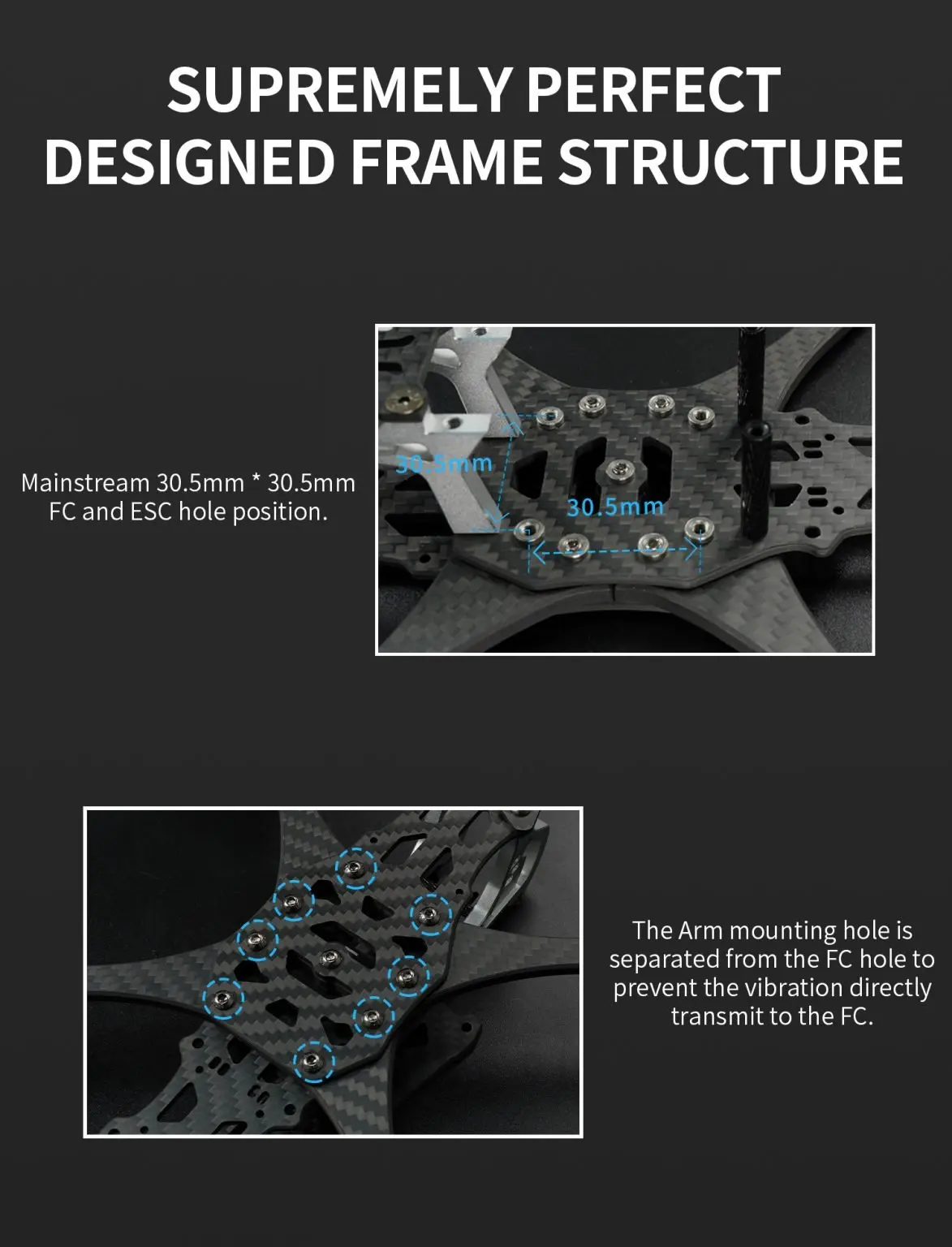

MARK5 frame supports the mainstream 30.5mm x 30.5mm Flight Controller. Pre-set two sets of installation holes, Were 30.5mm x 30.5mm and 20mm x 20mm Fixing holes respectively. The subsidiary printing parts can also be directly installed with DJI Air Unit .
Strong power system, 16mm x 16mm / 19mm x 19mm motor holes will allow you to install larger 21-22-23-25 series motors, with a 5-inch propellers, with a strong power output.

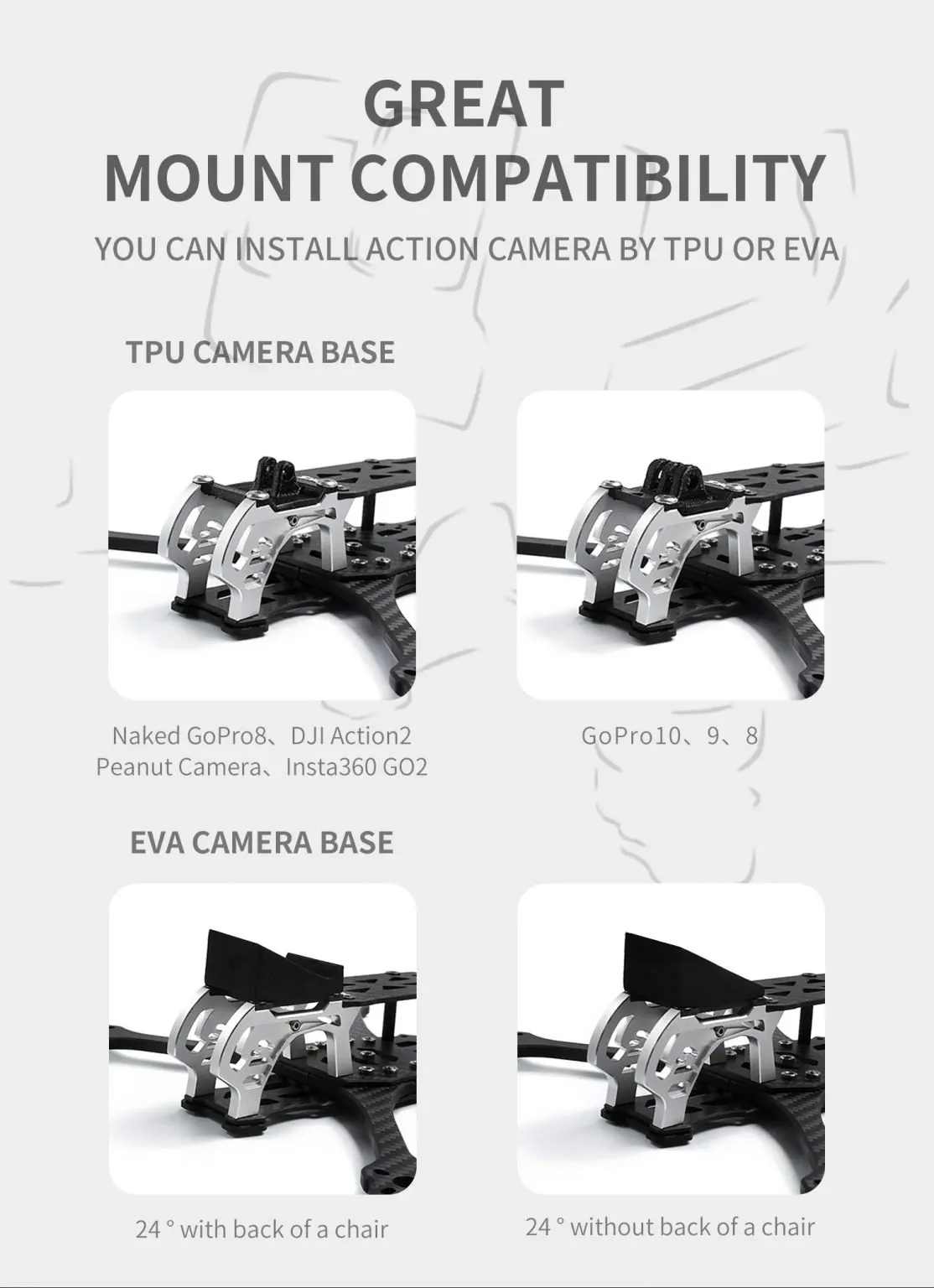

The MARK5 designed two different 3D printed mounts which can be installed with GoPro /Naked GoPro8/Insta 360 GO2 and Caddx Peanut cameras to record every moment of Freestyle.
After perfectly continuous development, testing and tuning by GEPRC R&D team, we are proud to say, by far, MARK5 frame is one of the best freestyle quadcopter frames on the market.
We've been pursuing for lighter weight, better flying experience, and more functionality for all our products!


• Package Included:
• Standard Edition product list:
  frame:
  1 x 2.0mm small top plate
  1 x 2.5mm large top plate
  1 x 2.5mm front bottom plate
  1 x 2.5mm rear bottom plate
  2 x 5.0mm front arms
  2 x 5.0mm rear arms
  1 x 5.0mm arm limiter
  1 x 2.0mm Front Protector
  1 x Lens Aluminum Piece

  Screw Pack:
  1 x M2x4x20 mesh aluminum post
  4 x M3x5x25 mesh aluminum posts
  4 x M2x6 round head screws
  4 x M2x7 round head screws
  4 x M3x5 Flat Head Screws
  6 x M3x8 Flat Head Screws
  4 x M3x8 round head screws
  5 x M3x12 cup head screws
  4 x M3x14 cup head screws
  9 x M3 rivet nuts

  3D prints:
  1 x Video Transmission Antenna Fixture
  1 x Black Sheep Antenna Fixture

  Accessories:
  4 x 10x50mm Motor Hubs
  2 x EVA Image Transmission Isolation Pads (Analog)
  1 x Airside Silicone Pad

  Other Accessories:
  1 x M15x250 battery tie
  2 x M20x250 battery ties
  2 x battery anti-skid pads
  8 x EVA tripod shock pads
  1 x EVA Square Dog Base
  1 x EVA square dog base (with backrest)
  1 x 3M Double Sided Adhesive
  1 x 1.5mmL screwdriver
  1 x 2.0mm L-type screwdriver
  1 x Antenna Sleeve
•
