SPECIFICATIONS

Brand Name: Aoft Technology

Hign-concerned Chemical: None

Model Number: GEP-Vapor-X5/X6 Frame

Quantity: 1 pcs

Size: 5inch/6inch

Four-wheel Drive Attributes: Motors

Use: Vehicles & Remote Control Toys

Wheelbase: Screws

Recommend Age: 14+y

Origin: Mainland China

RC Parts & Accs: Landing Gear

For Vehicle Type: Airplanes

Material: Carbon Fiber

Features

The 5mm wide carbon fiber arms ensure overall rigidity.

The camera side panels and front guard offer double protection for enhanced durability.

Available in both 5-inch and 6-inch options to cater to every pilot’s flying preferences.

The quick-release design makes maintenance and assembly a breeze.

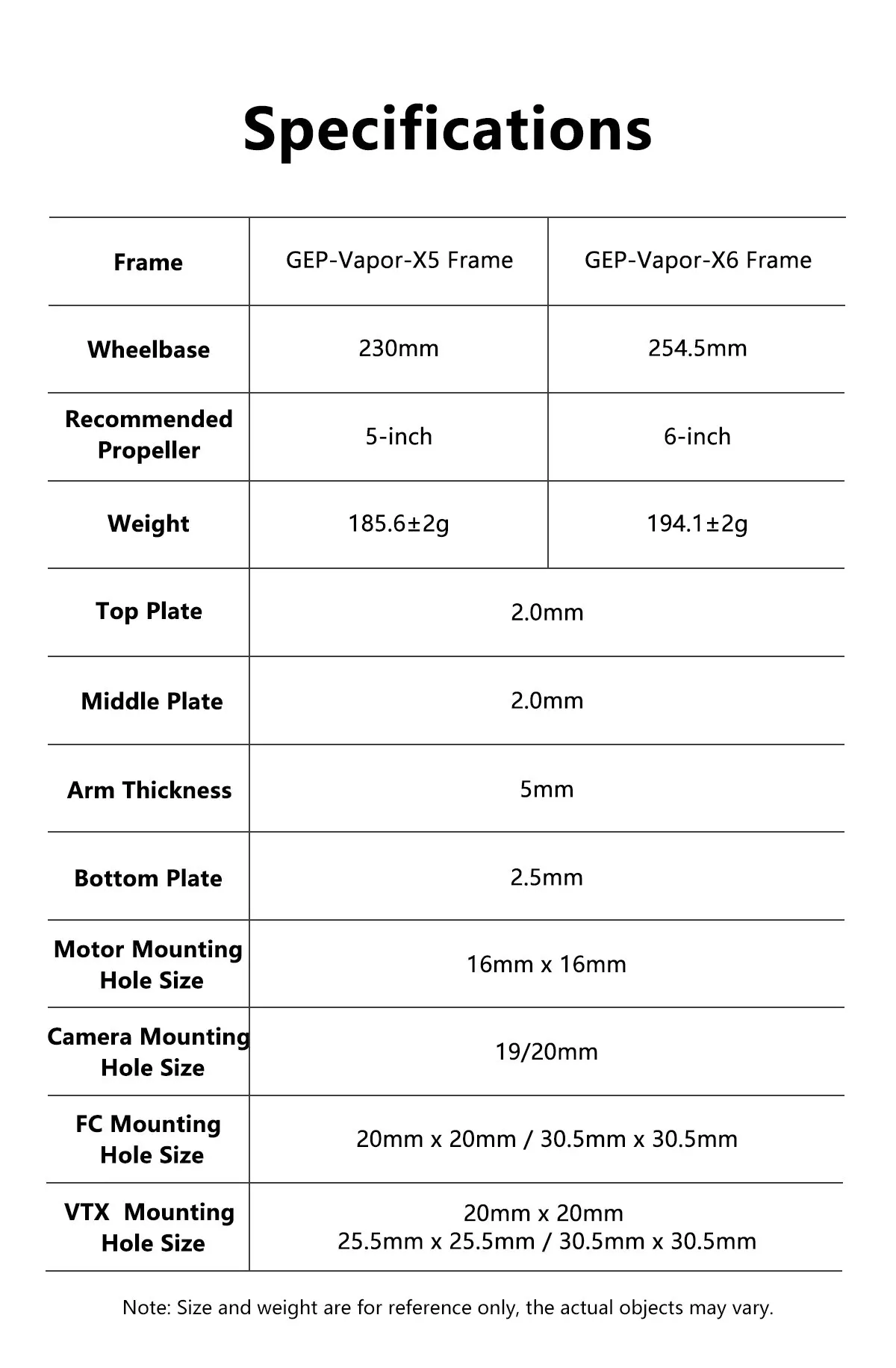

Specification

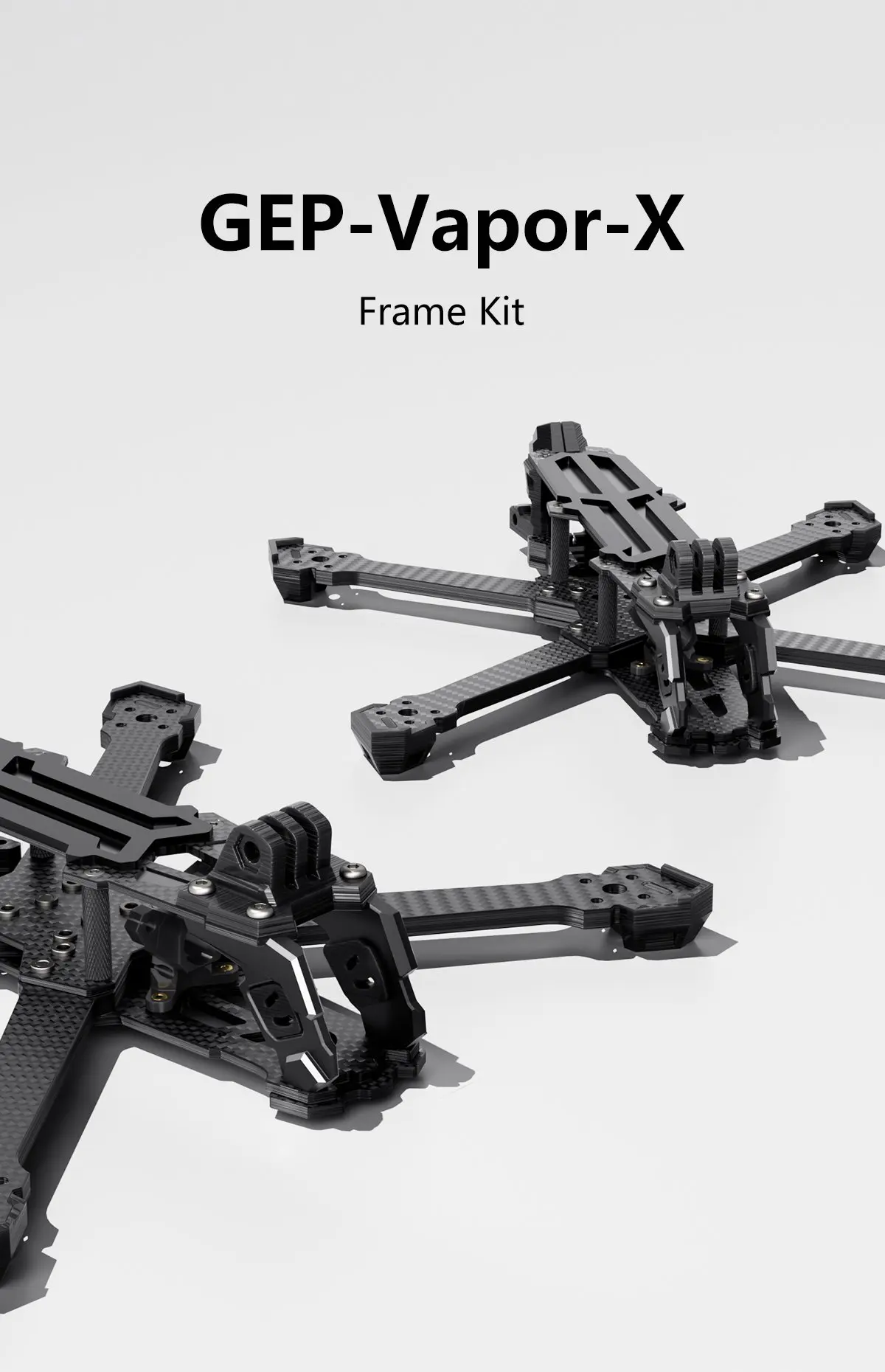

Model: GEP-Vapor-X5 Frame

Wheelbase: 230mm

Top Plate Thickness: 2.0mm

Middle Plate Thickness: 2.0mm

Arm Thickness: 5.0mm

Bottom Plate Thickness: 2.5mm

FC Mounting Hole Size: 20x20mm / 30.5×30.5mm

VTX Mounting Hole Size: 20x20mm / 25x25mm / 30.5×30.5mm

Motor Mounting Hole Size: 16x16mm

Camera Mounting Hole Size: 19mm / 20mm

Recommended Propeller: 5-inch

Weight: 185.6g ±2g

Model: GEP-Vapor-X6 Frame

Wheelbase: 254.5mm

Top Plate Thickness: 2.0mm

Middle Plate Thickness: 2.0mm

Arm Thickness: 5.0mm

Bottom Plate Thickness: 2.5mm

FC Mounting Hole Size: 20x20mm / 30.5×30.5mm

VTX Mounting Hole Size: 20x20mm / 25x25mm / 30.5×30.5mm

Motor Mounting Hole Size: 16x16mm

Camera Mounting Hole Size: 19mm / 20mm

Recommended Propeller: 6-inch

Weight: 194.1g ±2g

Includes

1 x GEP-Vapor-X Frame

2 x M20*250mm battery straps

2 x Battery Silicone Pads

1 x Set of screws

1 x Printout package

1 x L-shaped screwdriver (1.5mm)

1 x L-shaped screwdriver (2mm)

1 x L-shaped screwdriver (3mm)

1 x M8 wrench
