Regular price $146.99 Sale price$97.66 Save 34%
/
Shipping calculated at checkout.

Color
  • Free worldwide shipping
  • In stock, ready to ship
  • Backordered, shipping soon

SPECIFICATIONS

Brand Name: NoEnName_Null

Is Electric: No battery

Origin: Mainland China

Material: Carbon Fiber

Recommend Age: 14+y

RC Parts & Accs: Frame Kit

For Vehicle Type: Airplanes

Use: Vehicles & Remote Control Toys

Upgrade Parts/Accessories: Frame

Remote Control Peripherals/Devices: Frame Kit

Tool Supplies: Assembly Category

Model Number: Geprc Mark 4 HD

Four-wheel Drive Attributes: Frame Kit

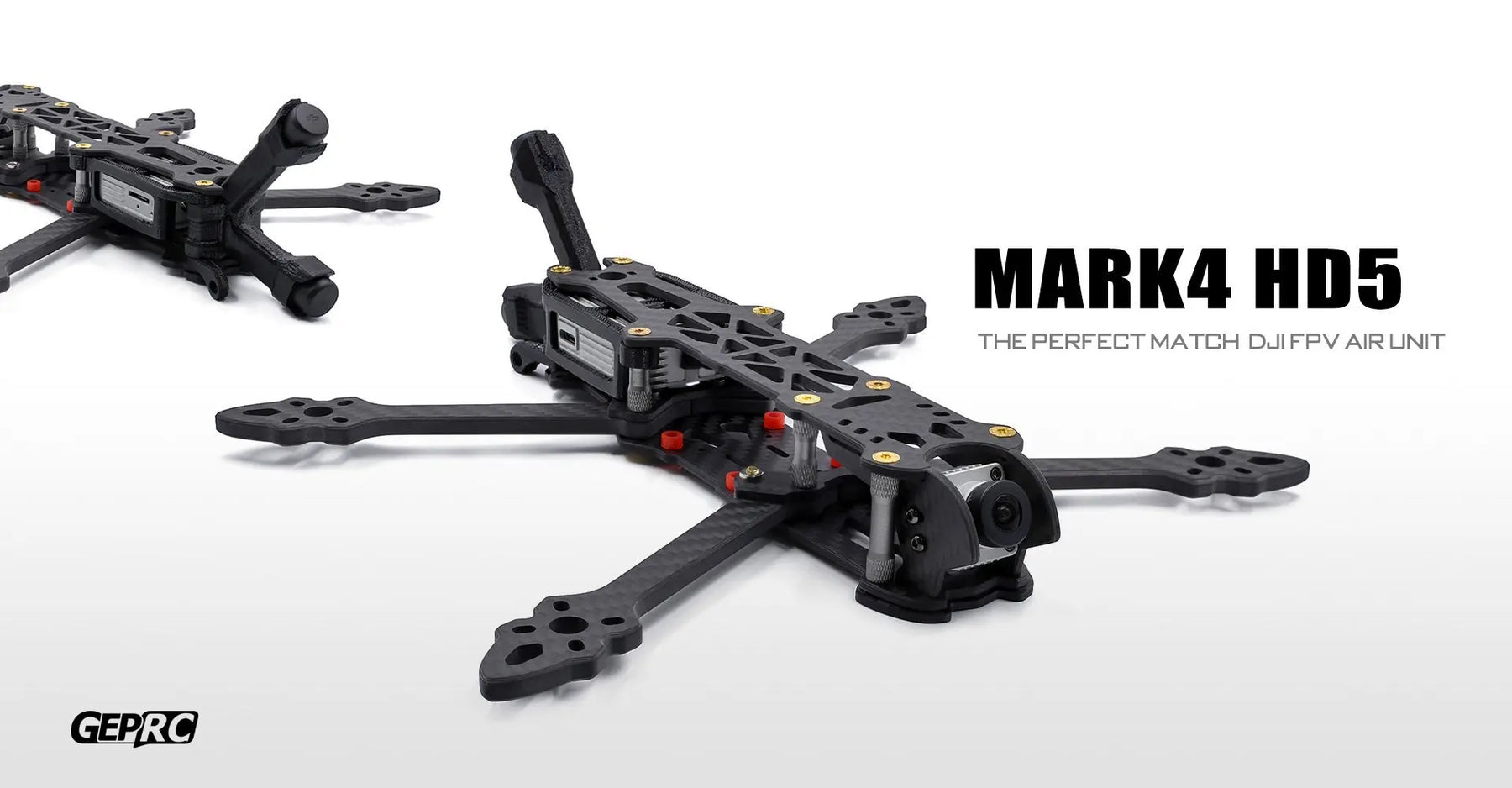

MARK4 HD5 DJI FPV Freestyle Frame

  • The perfect match DJI FPV Air Unit

  • Full 3K Carbon Fiber Frame

  • 3D printing parts are fixed and protected

  • Super lightweight Freestyle frame

  • FreeStyle Version

Features:

  • The perfect match DJI FPV Air Unit

  • 3D printing parts are fixed and protected

  • No propeller in the view

  • Full 3K Carbon Fiber Frame

  • Super lightweight Freestyle frame

  • Beautiful appearance design,durable in crashing

  • Quick maintenance Arms and replacement of equipment

  • 25mm standoffs for better height and CG relation,Ample space for electronic installation

  • ALU6061 Srandoff New , Strengthen the hardness

  • There are 30.5*30.5mm and 20*20mm flight control holes , Stack can fit in the center or the rear.

  • High quality 3K twill carbon fiber plate, high precision CNC processing

  • YFS screw, 12.9 grade strength, non-slip teeth, anti-rust,Durable steel hardware

Specifications:

  • Item name:MARK4 HD5

  • Frame type:H-TYPE

  • Propeller : 5inch

  • Motor to motor:224mm

  • Size:138*176mm

  • Mounting Holes: 30.5*30.5mm/20*20mm

  • Weight:121g

  • Arms plate : 5mm

  • Side plate : 2.5mm

  • Top plate : 2.5mm

  • Bottom plate : 2.5mm

  • Protect plate : 2mm

Recommended:

  • Flight Controller:RF/Kiss/F3/F4/F7

  • Motor: 22xx/23xx/24xx/25xx

  • ESC:30A-50A

  • Propeller:5inch

  • Lipo: 4S 1500mAh ~ 6S 1300mAh

  • FPV :DJI FPV Air Unit

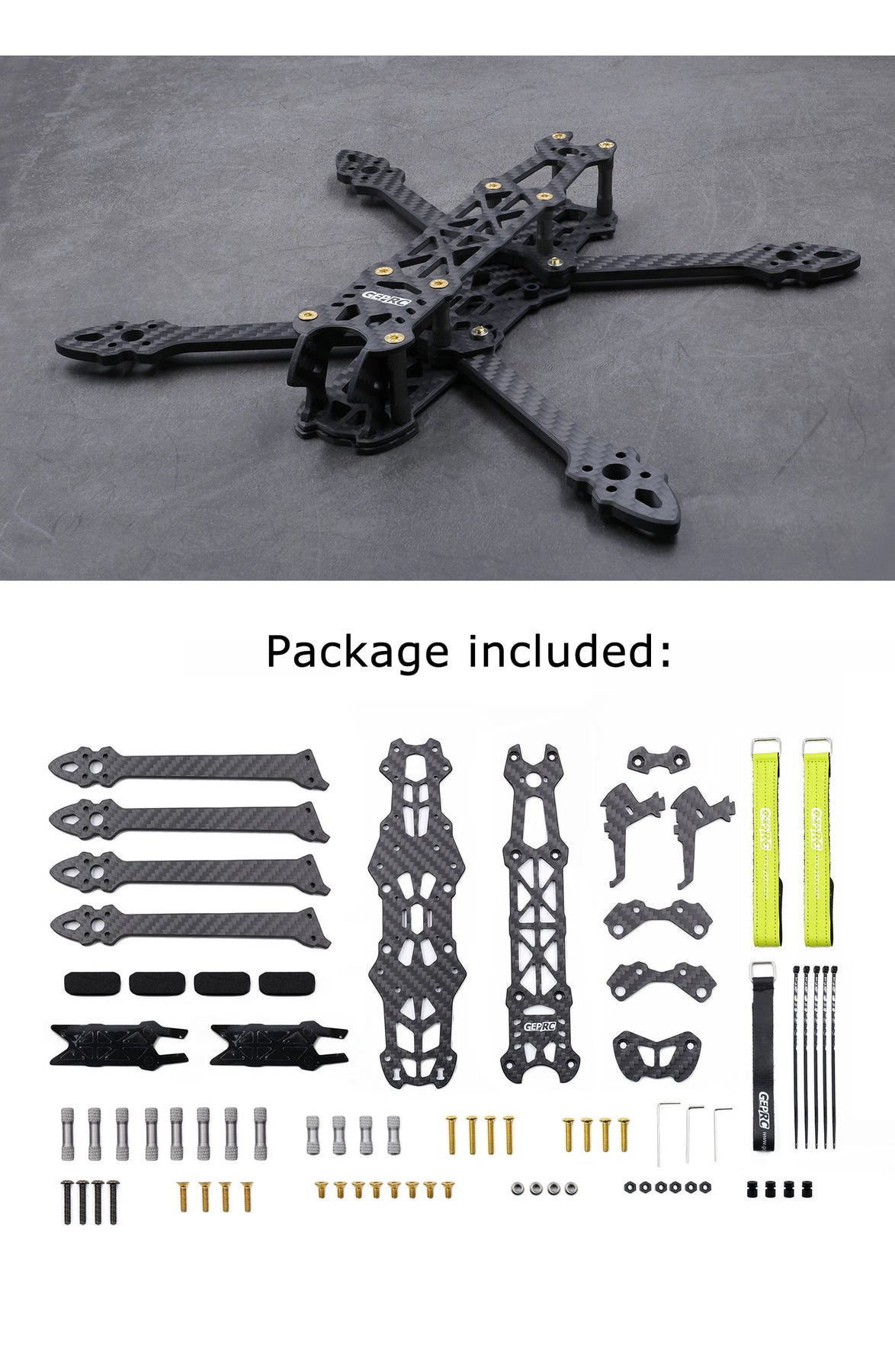

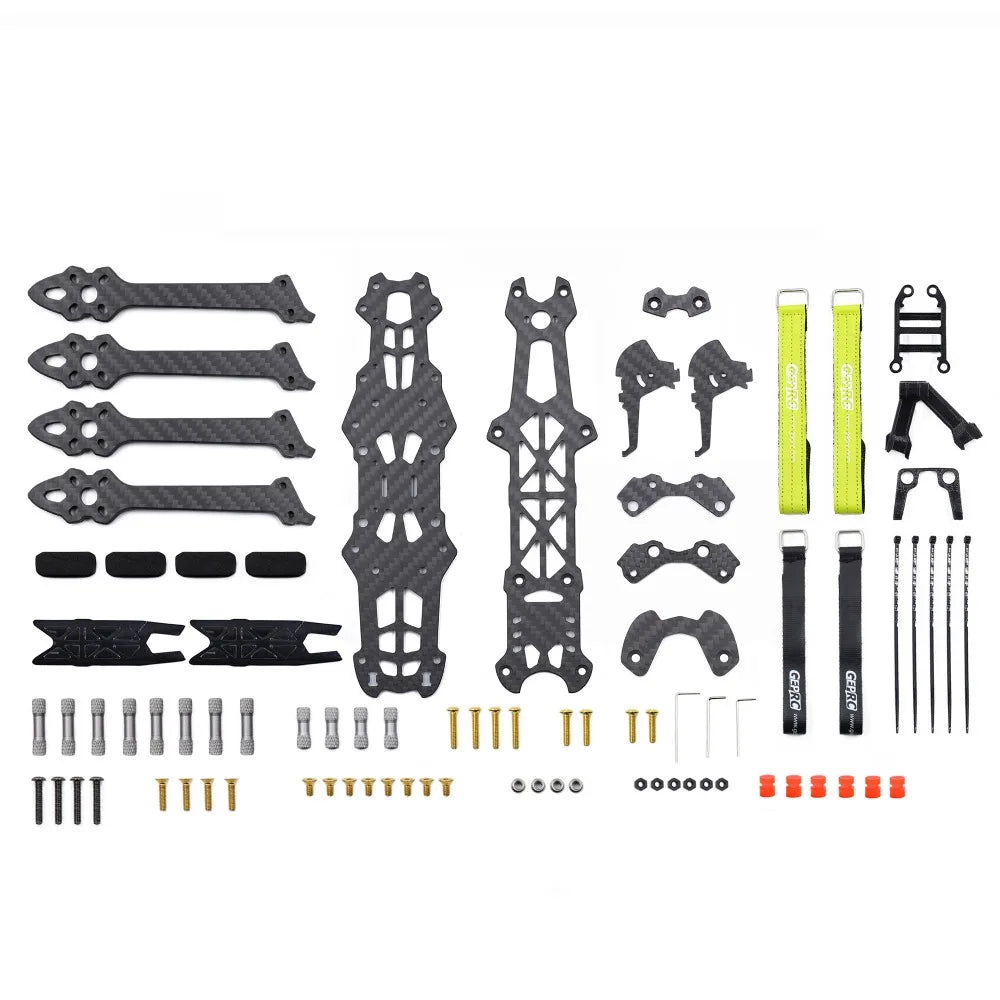

Include:

  • 4 x 5mm 5inch Arms plate

  • 2 x 2.5mm side plate

  • 1 x 2.5mm top plate

  • 1 x 2.5mm Bottom plate

  • 2 x 2mm Bumpers plate

  • 2 x 2mm Reinforce plate

  • 1 x Lipo silicone pad

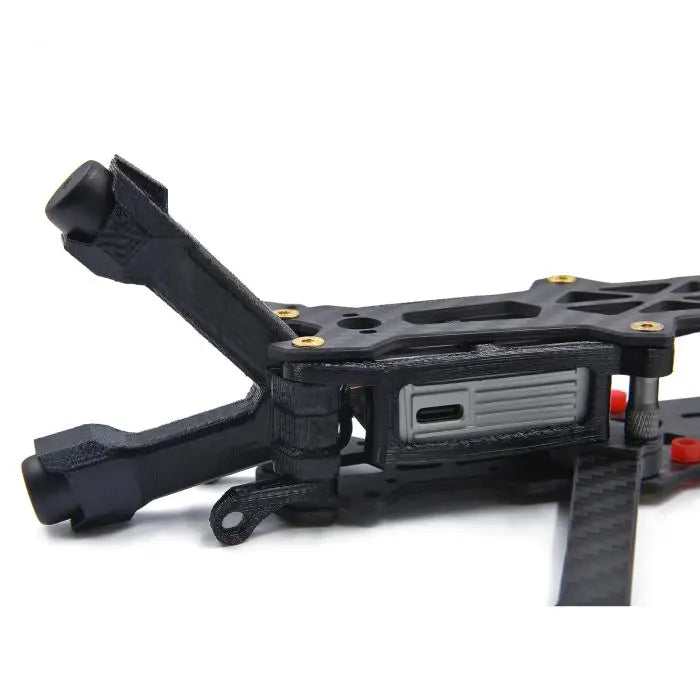

  • 1x DJI FPV Air Unit fixed

  • 1x Antenna Mount

  • 1x RX Antenna Mount

MARK4  Frame

Introduction:
I want the fancy rack to perform more in flight, the lighter rack, the convenient electronics installation and balanced center of gravity, and the smooth flight shooting, these ideas create a new fancy rack Mark4.

It is no longer a wide X design, but an H-shape, which does not affect the flight experience. The benefit is that the arm length is shortened, the weight is reduced, and the arm strength is increased. It also provides more installation space for the middle position of the low center machine compartment. Of course, you can also mount the arm to the bottom for more installation space.

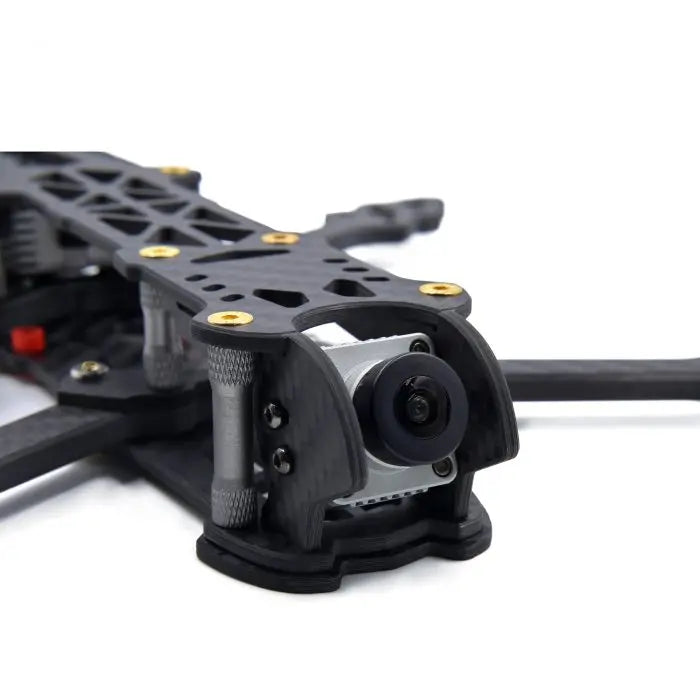

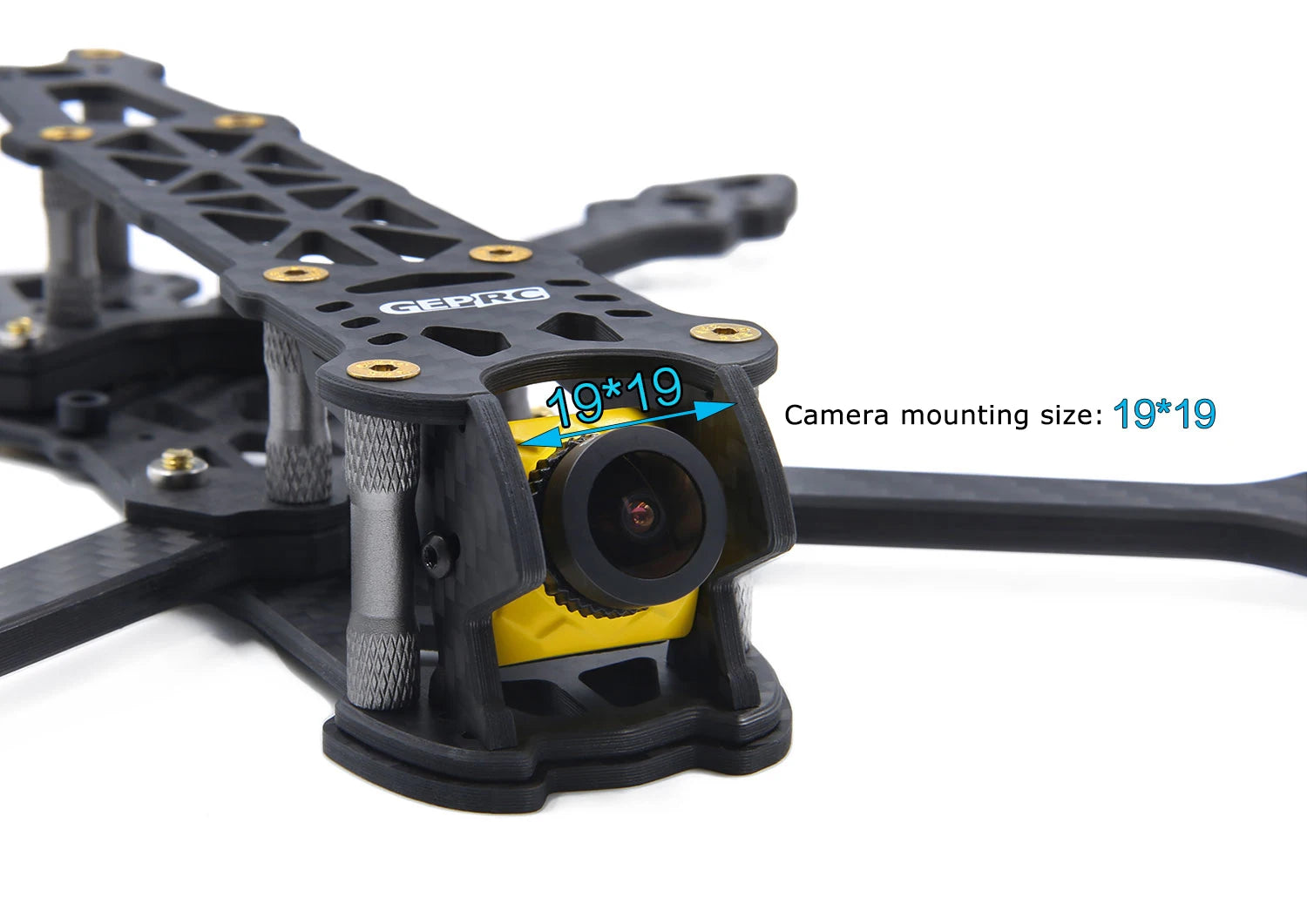

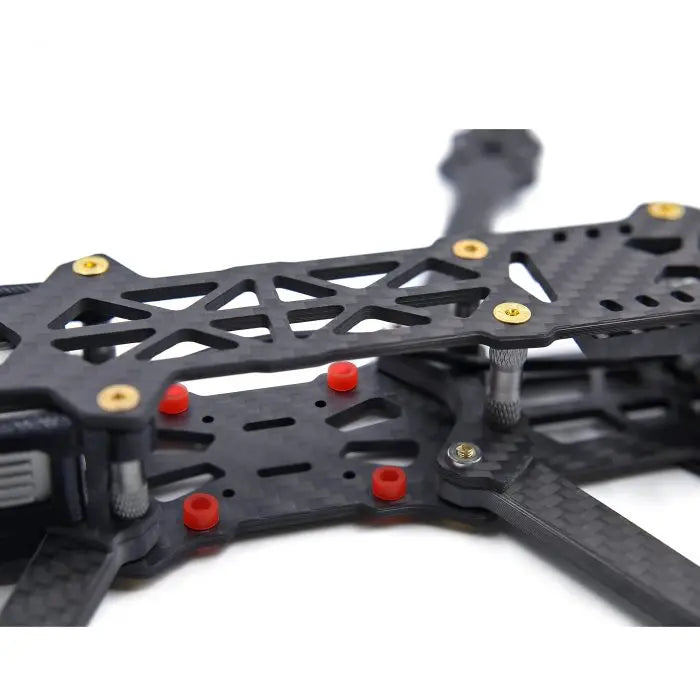

The mounting size of the FPV lens is adjusted to 19*19. There are 30.5*30.5 and 20*20 mounting holes in the middle section and the second half, and there are more directions in the selection of the flight control. In the middle section, 30.5*30.5 has been set up with soft-installed silica gel, which can reduce the pressure caused by vibration to the flight control to a greater extent, thus achieving smooth flight.

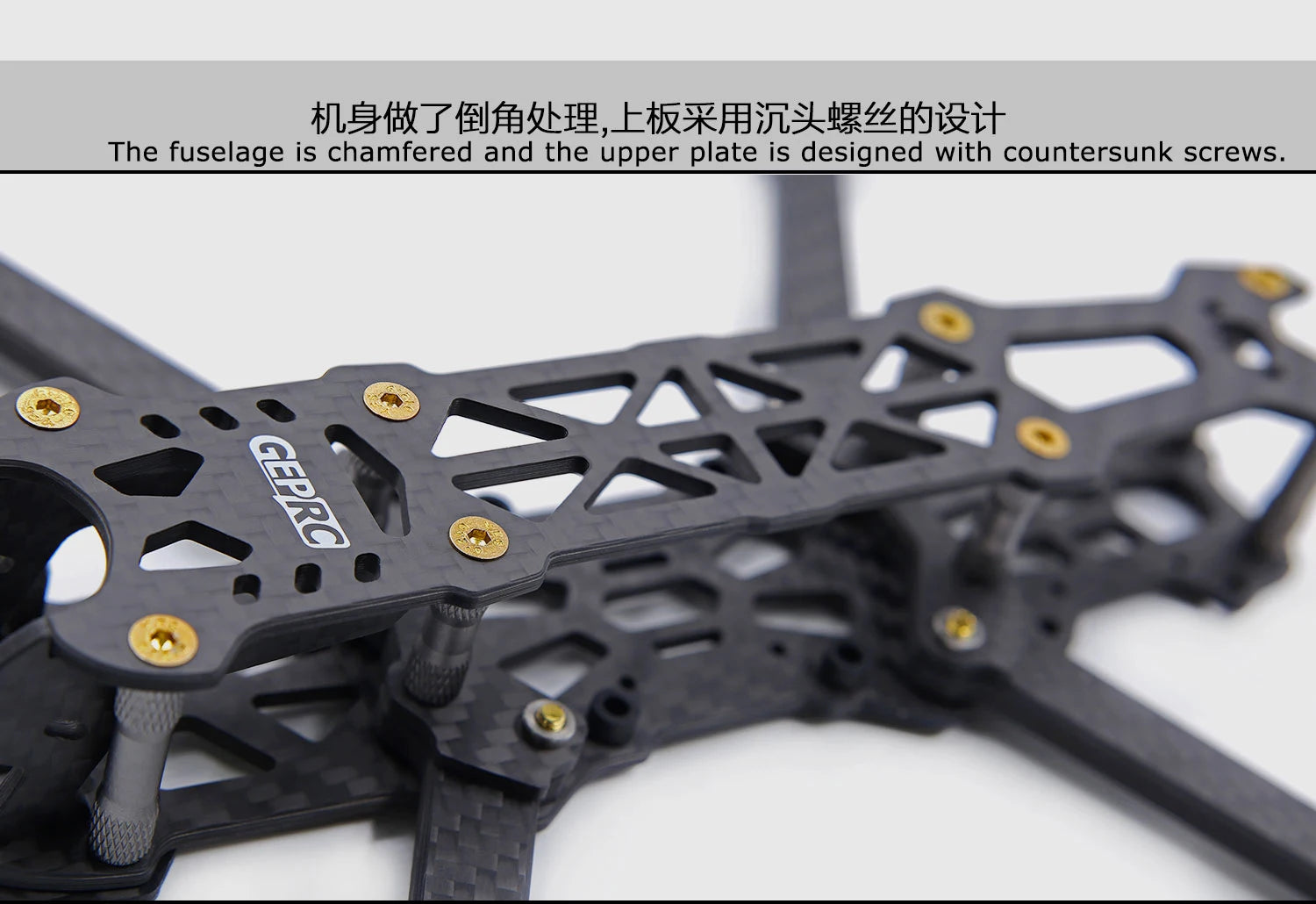

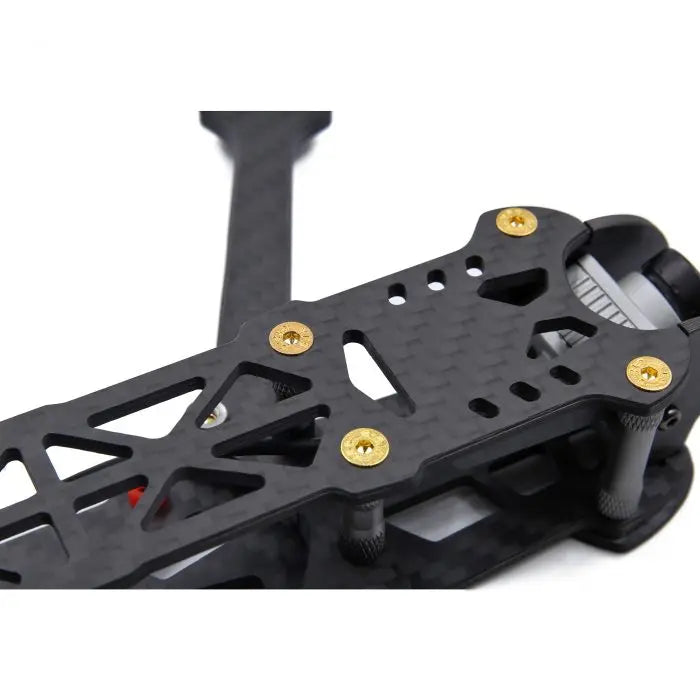

The arm of the rack is chamfered with the upper and lower plates. The upper plate uses a countersunk screw to make the surface more flat. There are also front and rear bumpers that allow the player to provide protection while flying while reducing losses and facilitating replacement. Of course, there are also custom-made thick aluminum columns to ensure the strength of the rack!

All the elements of this fancy rack, I believe it can bring you flying fun and smooth flight shooting!

Characteristic:
1.Exquisite design, durable structure
2.The arm and the body are chamfered, smooth and not scratched
3.Lower center of gravity design

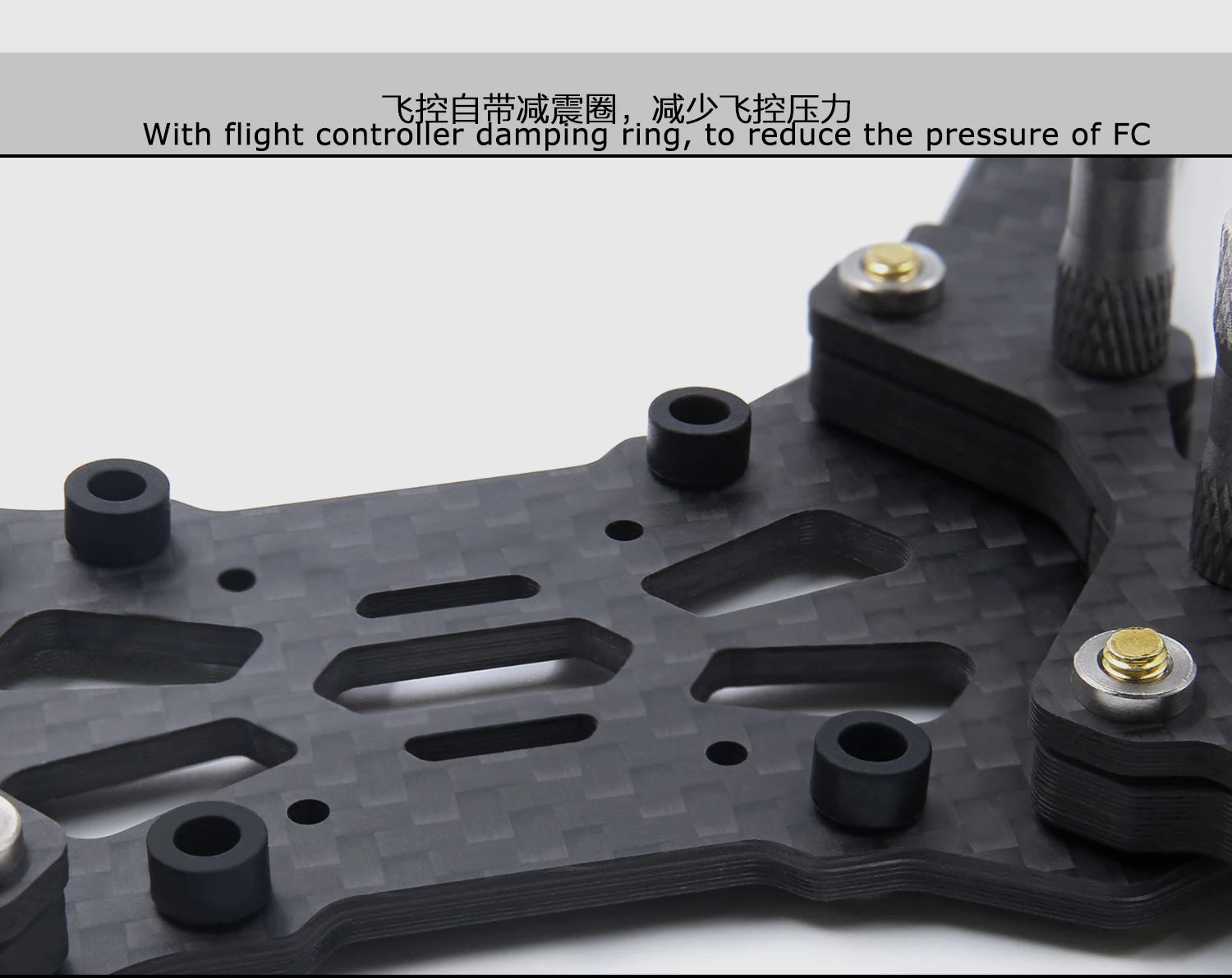

4.Flight control has its own damping ring to reduce flight control pressure

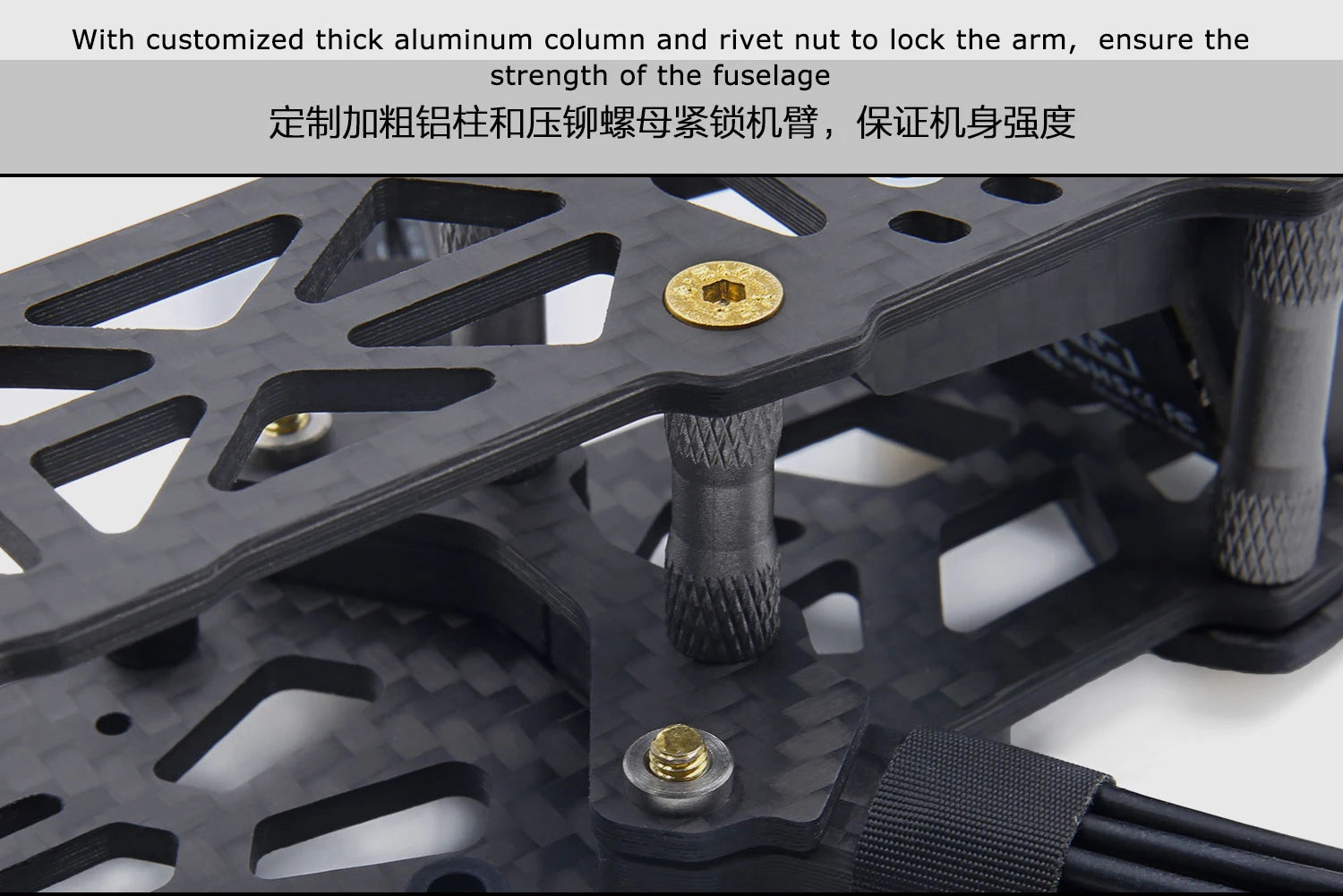

5.Customized thick aluminum column to ensure the strength of the fuselage

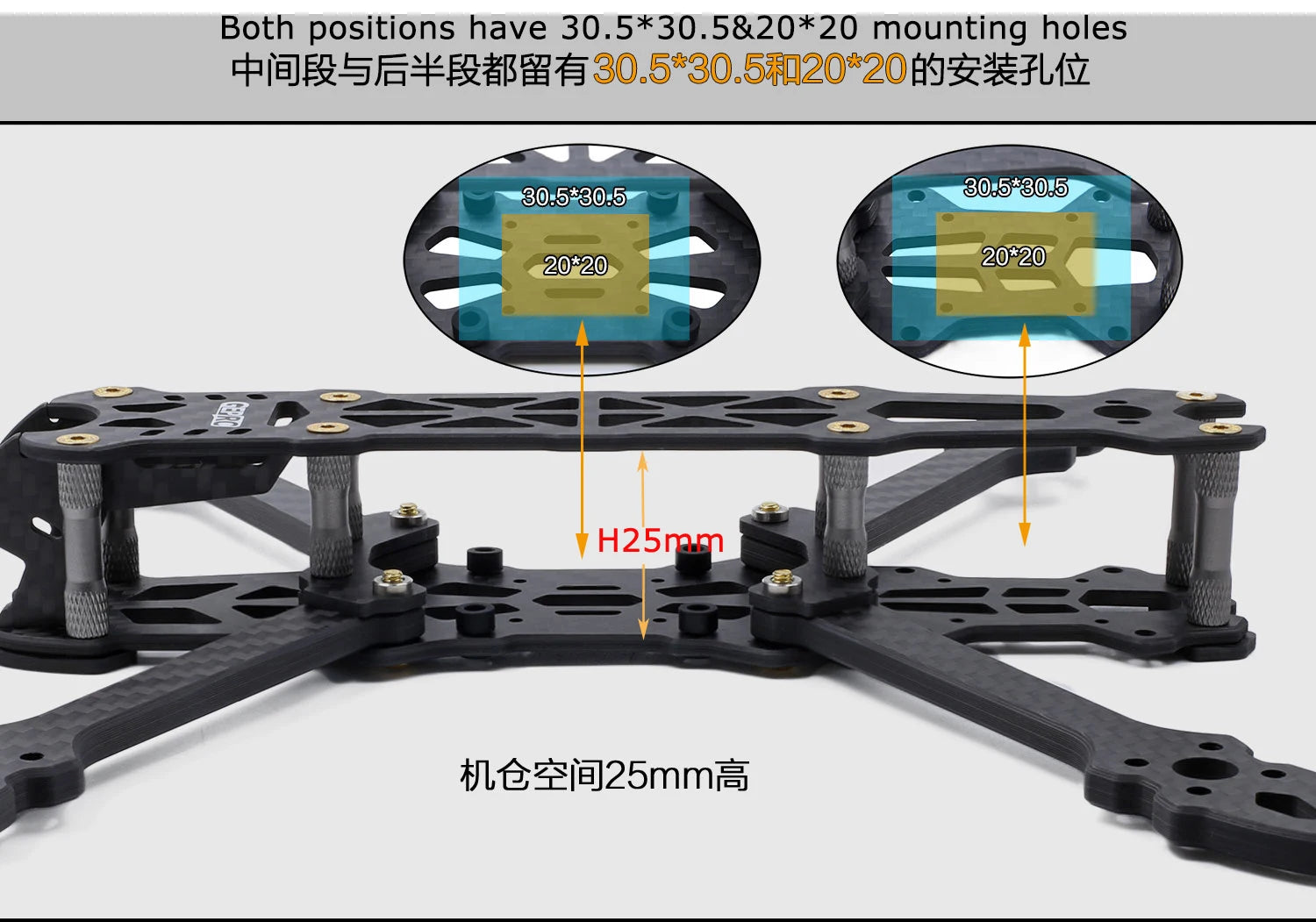

6.30.5*30.5 and 20*20 flight control holes are set in the middle and rear sections, and more installation methods are available.
7.High quality 3K twill carbon fiber board, high precision CNC machining
8.YFS screw, 12.9 hardness, hard and non-slip



Package Included:

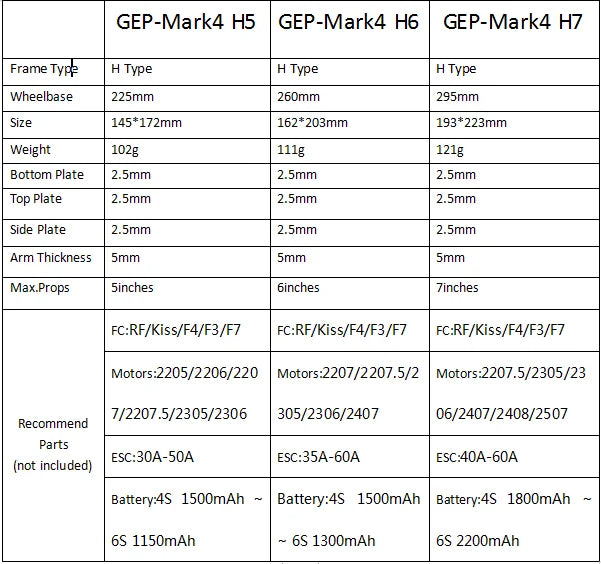

HD7 Specifications:

  • Item name:GEP-Mark4 HD7 Frame

  • Frame type:H-TYPE

  • Propeller : 7inch

  • Motor to motor:295mm

  • Size:193*223mm

  • Mounting Holes: 30.5*30.5mm/20*20mm

  • Weight:140g

  • Arms plate : 5mm

  • Side plate : 2.5mm

  • Top plate : 2.5mm

  • Bottom plate : 2.5mm

  • Protect plate : 2mm

Features:

  • 3D printing parts are fixed and protected

  • No propeller in the view

  • Full 3K Carbon Fiber Frame

  • Super lightweight Freestyle frame

  • Beautiful appearance design,durable in crashing

  • Quick maintenance Arms and replacement of equipment

  • 25mm standoffs for better height and CG relation,Ample space for electronic installation

  • ALU6061 Srandoff New , Strengthen the hardness

  • There are 30.5*30.5mm and 20*20mm control holes , Stack can fit in the center or the rear.

  • High quality 3K twill carbon fiber plate, high precision CNC processing

  • YFS screw, 12.9 grade strength, non-slip, anti-rust,Durable steel hardware

Package Included:

  • 4 x 5mm 5inch Arms plate

  • 2 x 2.5mm side plate

  • 1 x 2.5mm top plate

  • 1 x 2.5mm Bottom plate

  • 2 x 2mm Bumpers plate

  • 2 x 2mm Reinforce plate

  • 1 x Lipo silicone pad

  • 1x FPV Unit fixed

  • 1x Antenna Mount

  • 1x RX Antenna Mount
