SPECIFICATIONS

Brand Name: GEPRC

Hign-concerned Chemical: None

Is Electric: No battery

Origin: Mainland China

Material: Composite Material

Recommend Age: 14+y

RC Parts & Accs: Transmitters

For Vehicle Type: Helicopters

Use: Vehicles & Remote Control Toys

Certification: CE

Upgrade Parts/Accessories: Frame

Remote Control Peripherals/Devices: ESC

Tool Supplies: Assembly Category

Quantity: 1 pcs

Model Number: TAKER G4 35A AIO/TAKER G4 45A AIO

Four-wheel Drive Attributes: Assemblage

Wheelbase: Bottom Plate

GEP-TAKER G4 35A AIO Specifications

Model Name：TAKER G4 35A AIO

MCU：STM32G473CEU6

IMU：ICM 42688-P

Firmware target：TAKERG4AIO

OSD：Betaflight OSD w/ AT7456Ev

Uart：R1 T1 / R2 T2 / R4 T4 / R5 T5

Buzzer：YES

LED ：YES

USB ：Type-c USB

BEC output：5V@3A

ESC MCU：BB21F16G

Continuous Current：35A

Burst Current：45A(5″)

lnput Voltage：2~4S (LIPO Battery)

Supports：Dshot600,Oneshot,Multishot

Current meter: YES

target：J -H -15

Size：33.4×34.4mm Board

Install hole：25.5-26.5 Φ3.05mm

Weight：7.7g

Note the change: The latest version is GEP-TAKER G4 45A 8Bit AIO, 32Bit has been discontinued

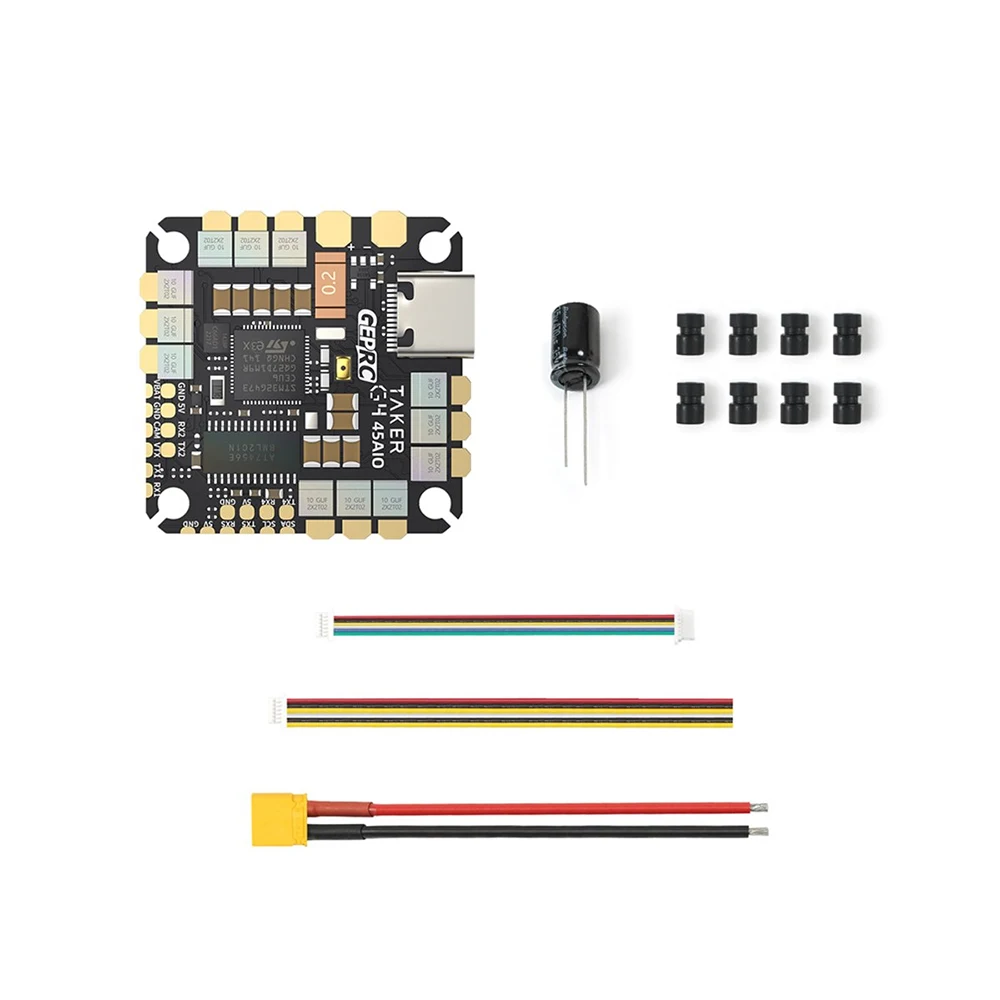

GEP-TAKER G4 45A 8Bit AIO Specifications

Model Name：TAKER G4 45A 8Bit AIO

MCU：STM32G473CEU6

IMU：ICM 42688-P

Firmware target：TAKER G4 AIO

OSD：Betaflight OSD w/ AT7456Ev

Uart：R1 T1 / R2 T2 / R4 T4 / R5 T5

Buzzer：YES

LED ：YES

USB ：Type-c USB

BEC output：5V 3A

ESC MCU：QF32MT

Continuous Current：45A

Burst Current：50A(5″)

lnput Voltage：2~6S (LIPO Battery)

Supports：Dshot600,Oneshot,Multishot

Current meter：YES

target：F4A AIO

Size：33.8mm * 34.1mm Board

Install hole：25.5 mm * 25.5mm

Weight：9g
