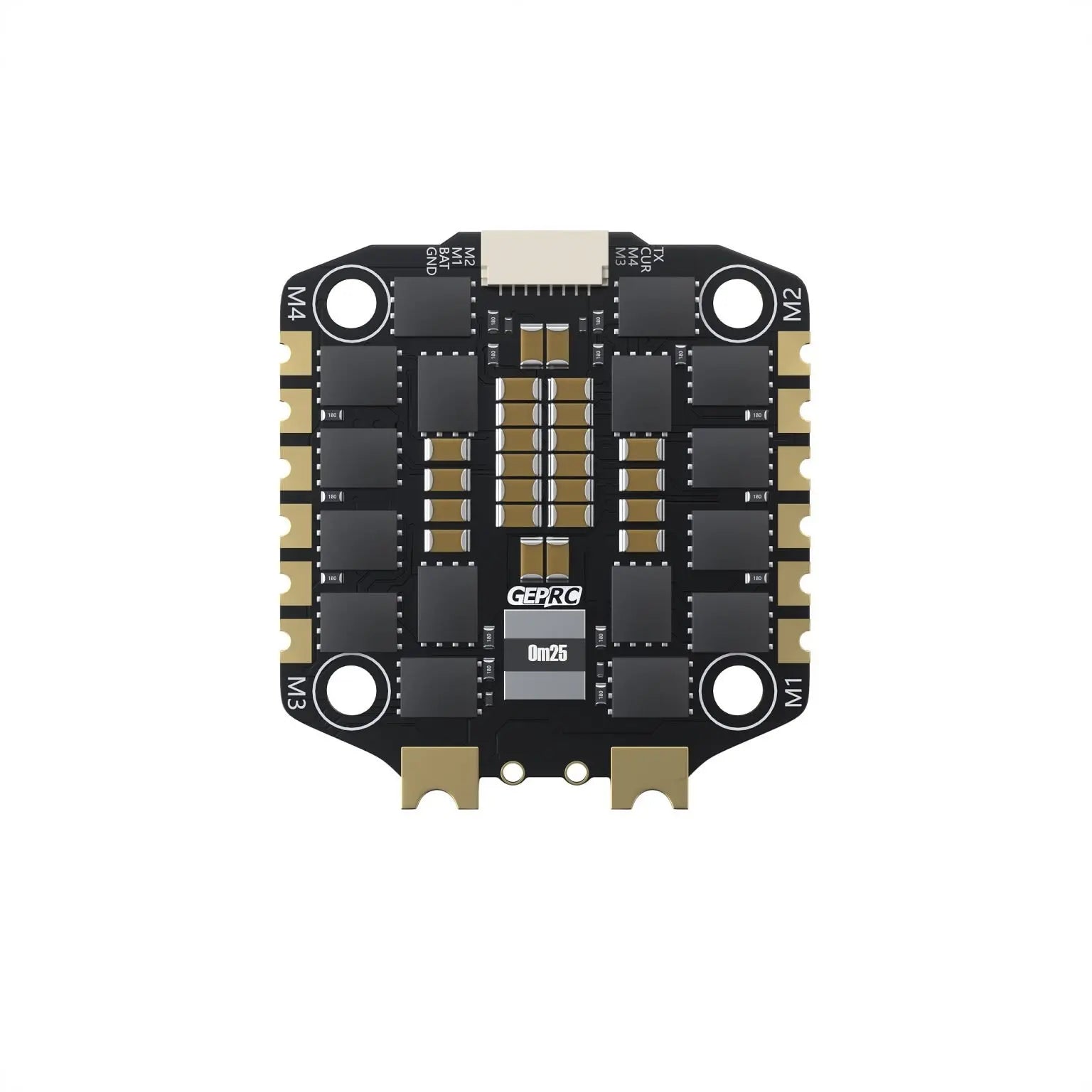

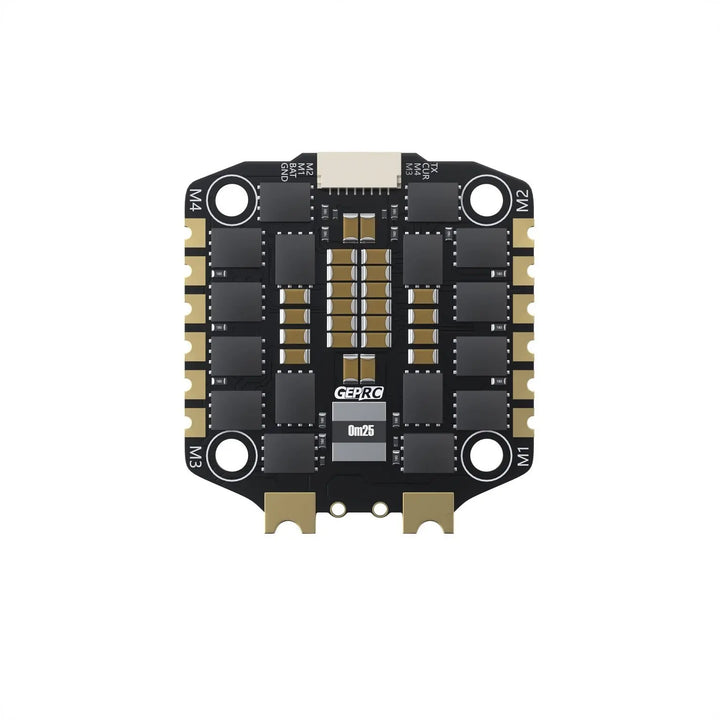

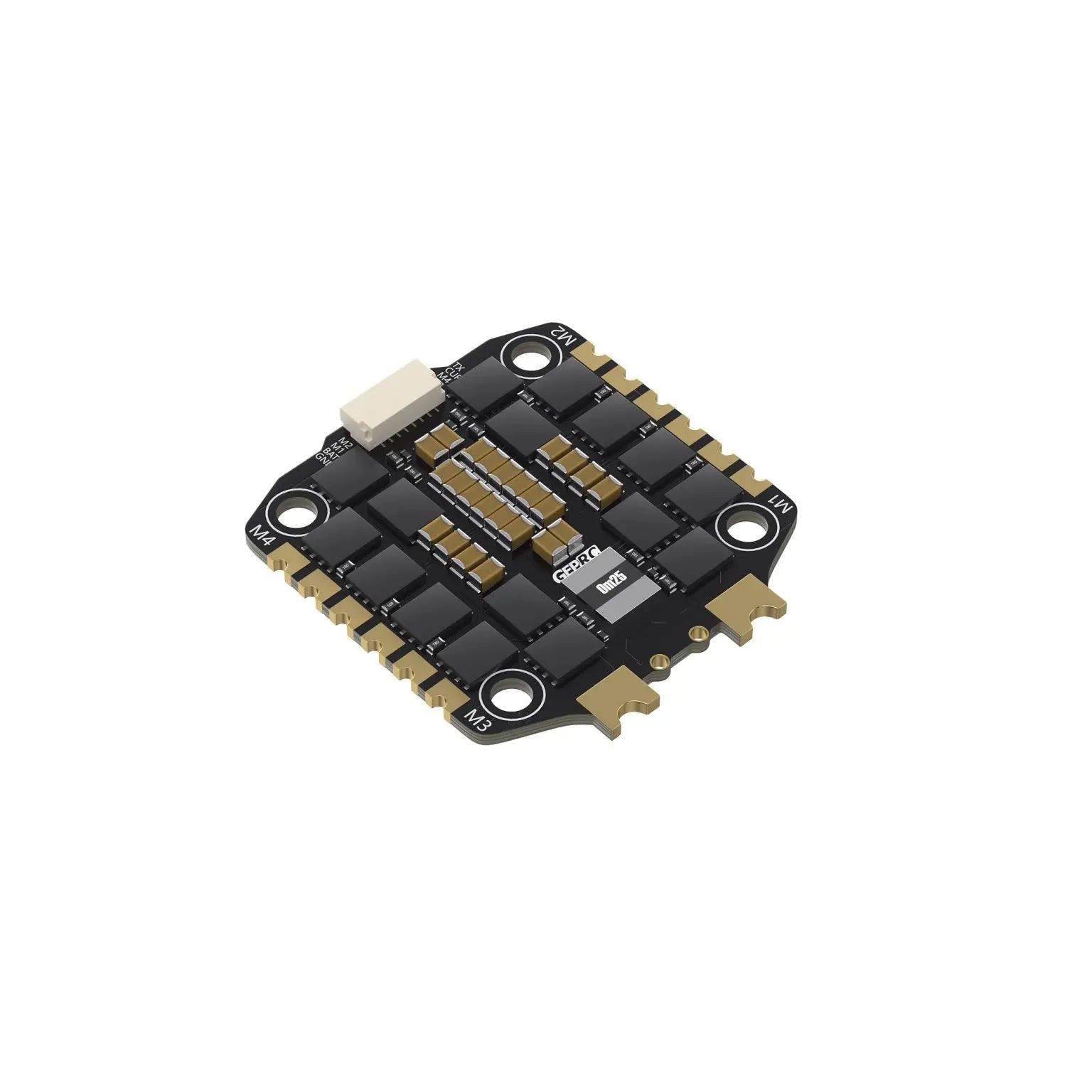

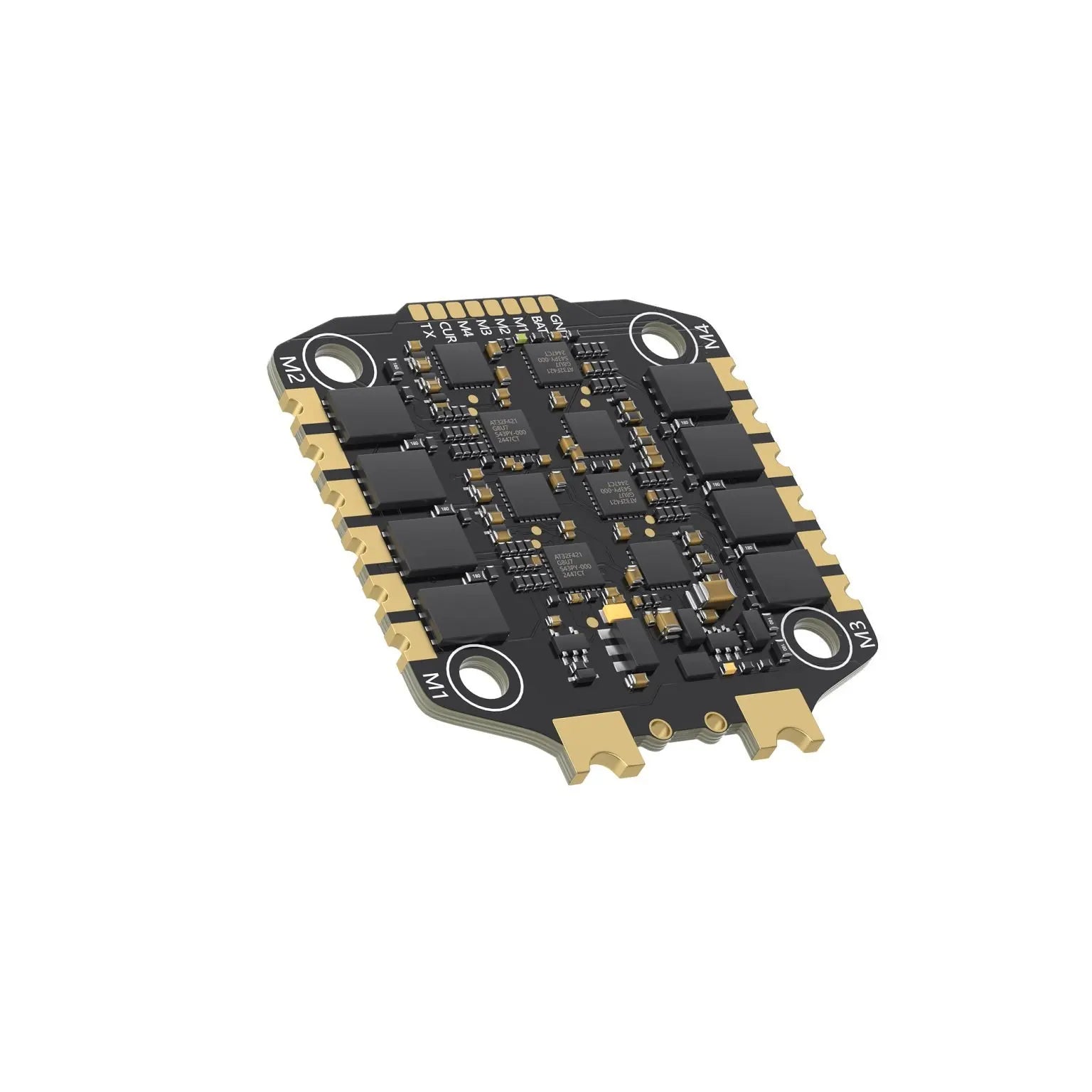

GEPRC TAKER H65 65A 4-in-1 ESC
The TAKER H65_8S_32Bit combines four motor-control channels in one board for compatible FPV builds. With 3–8S LiPo input, a listed 65A continuous rating and DShot 150/300/600 support, it offers a compact ESC option for a 30.5 × 30.5mm mounting pattern.

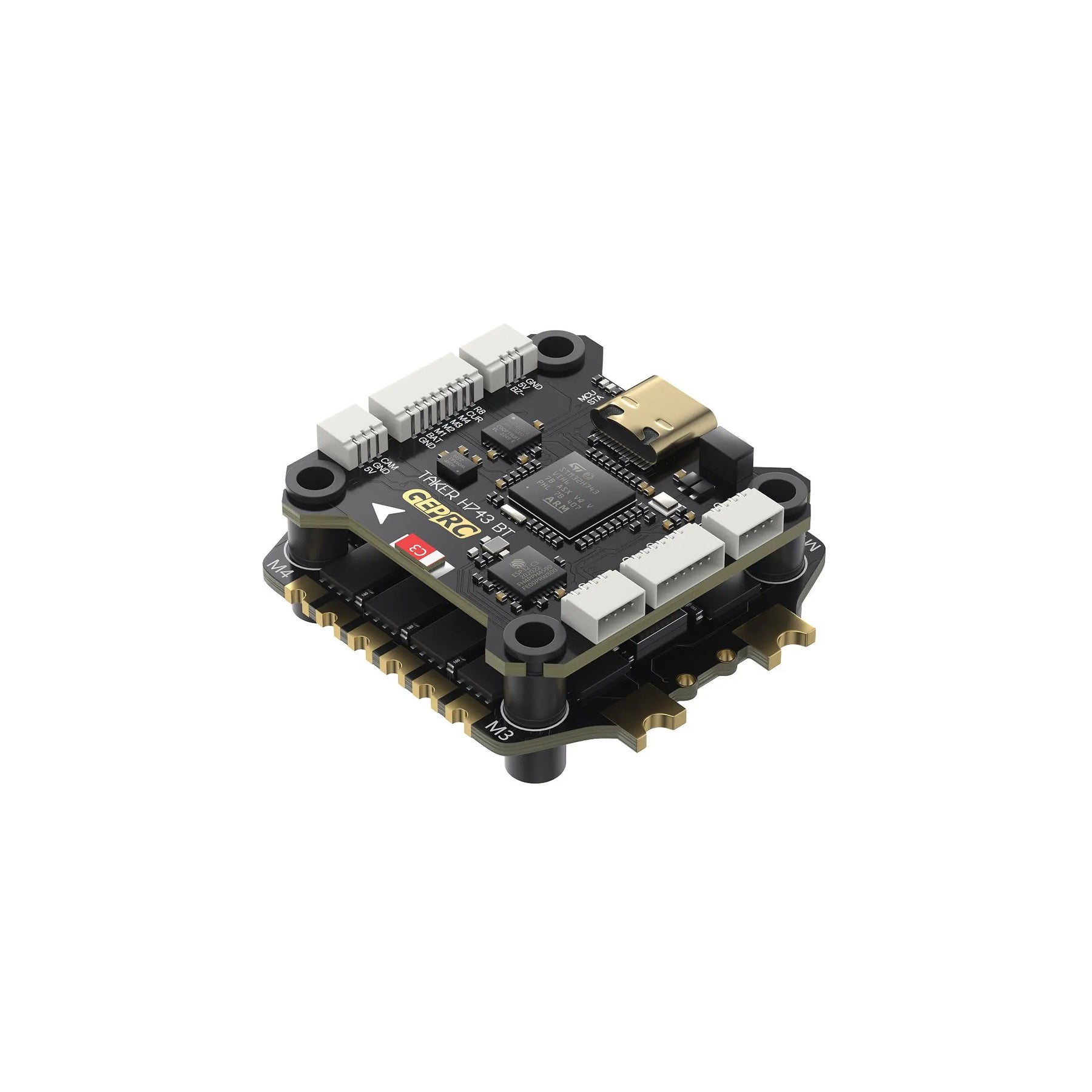

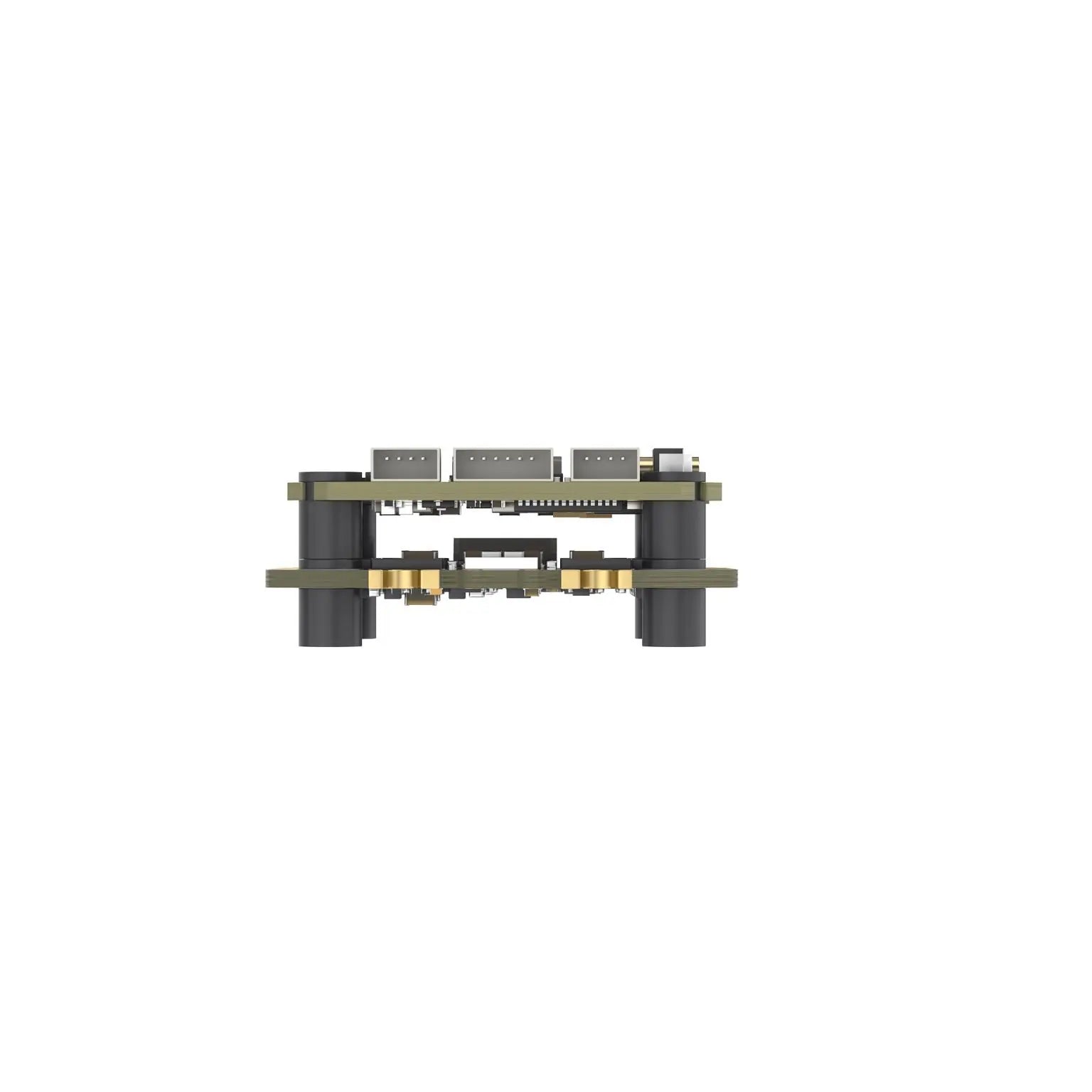

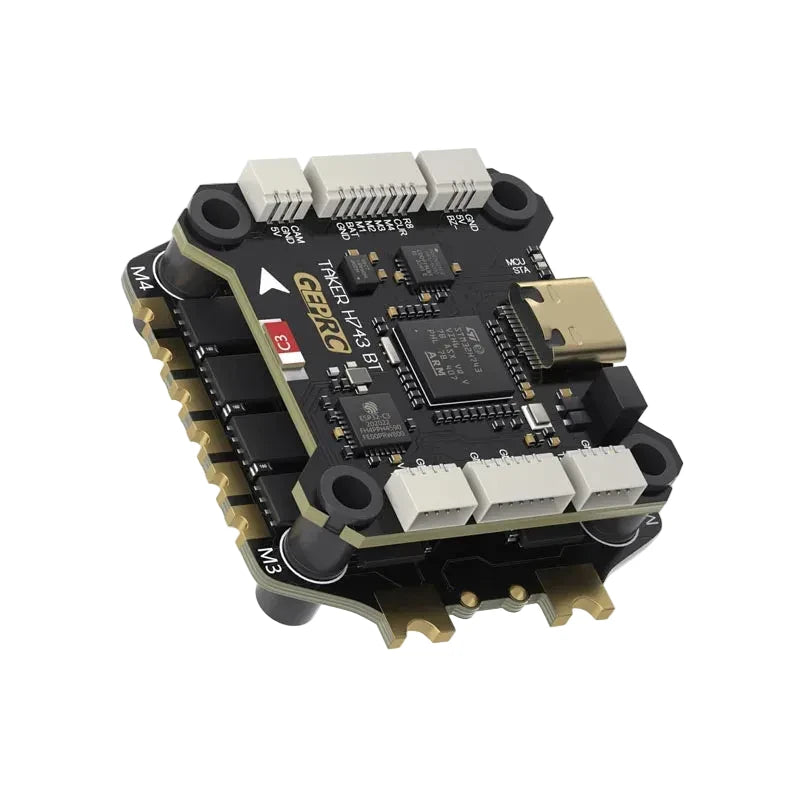

This listing is for the 65A 4-in-1 ESC only. The TAKER H743 BT flight controller is not included. Bluetooth, gyroscopes, black-box storage, UART ports and barometer features belong to the flight controller, not this ESC.
Key Features
- Four motor-control channels on a single board.
- 3–8S LiPo input support.
- 65A continuous and 70A burst rating for 5 seconds, as listed.
- DShot 150, 300 and 600 protocol support.
- Current-sensing support.
- Included adapter cable, capacitor, XT60 power cable and silicone mounting pads.
Technical Specifications
- Brand: GEPRC
- Model: TAKER H65_8S_32Bit
- Type: 65A 4-in-1 ESC
- Input: 3–8S LiPo
- Continuous current: 65A
- Burst current: 70A for 5 seconds
- Protocols: DShot 150/300/600
- Dimensions: 42 × 45.7mm
- Mounting pattern: 30.5 × 30.5mm
- Mounting holes: 4mm; 3mm with silicone inserts
- Weight: 15.8g
- Listed target: GEPRC_F4_4in1
Firmware Notes
The source specification lists preinstalled BL32 test firmware and optional AM32 support requiring user flashing, with target AM32_AT32DEV_F421. Verify the exact hardware revision, installed firmware and correct target with GEPRC before flashing; do not assume targets are interchangeable.
Perfect For
FPV builders replacing or selecting a 4-in-1 ESC for a compatible quadcopter, including builds using a matching GEPRC flight controller. Check motor current requirements, cooling and stack clearance before installation.
On the bench, connect your matched flight controller, verify wiring and test motor direction with propellers removed. Careful setup helps keep your first flight focused on tuning rather than wiring problems.
What's Included
- 1 TAKER H65 65A 4-in-1 ESC
- 1 capacitor
- 1 flight-controller adapter cable
- 1 XT60 power cable
- 4 silicone anti-vibration pads
Installation and Safety
Flight controller, motors and battery are not included. Confirm adapter-cable pinout, input voltage and mounting compatibility before connecting power. Check polarity, solder joints and capacitor installation. Remove propellers for all bench tests. For help matching components, contact sales@thedroneflight.com.
