GEPRC TAKER H65 8S BLS ESC | 65A Brushless Motor Control

Compact ESC for Your Next FPV Build

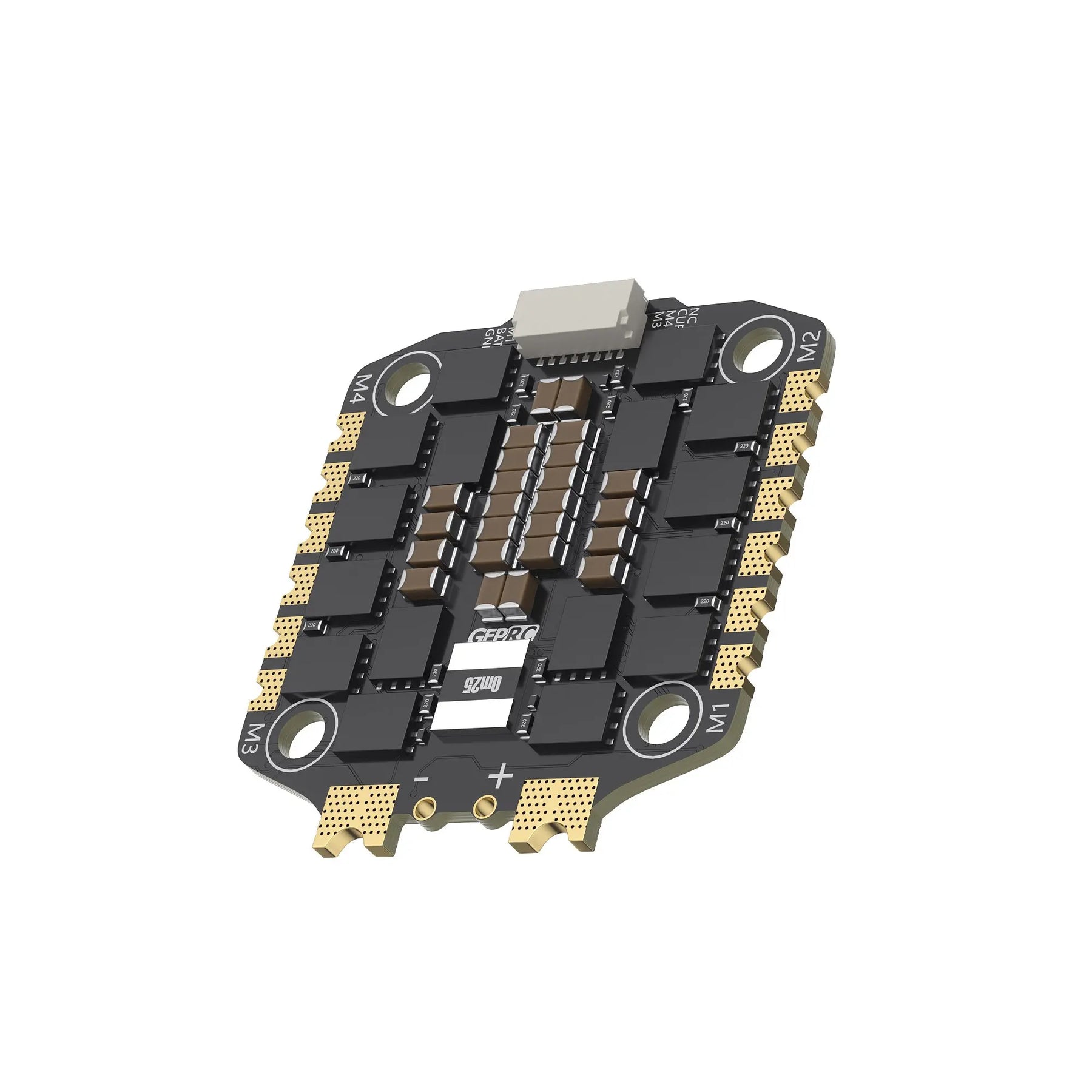

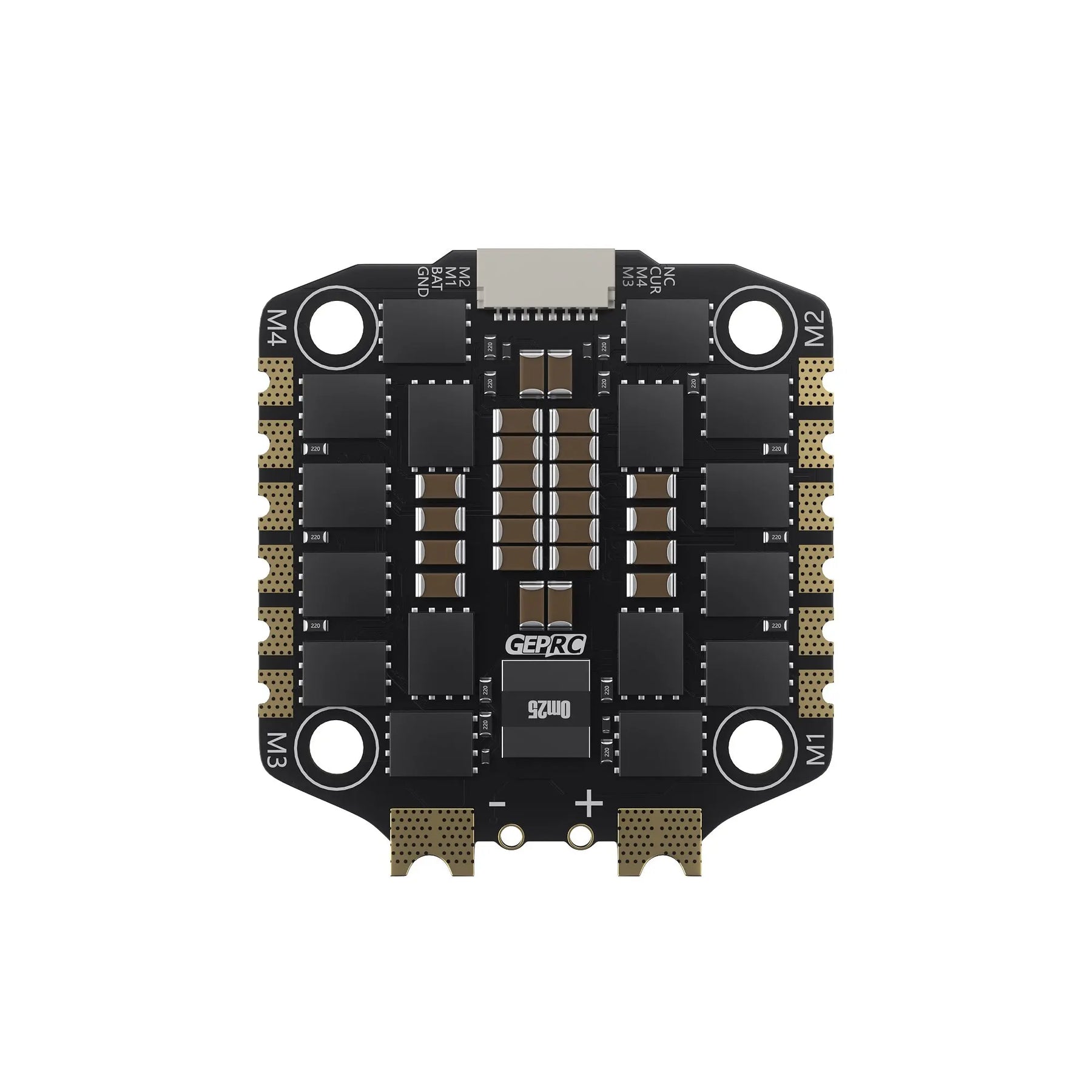

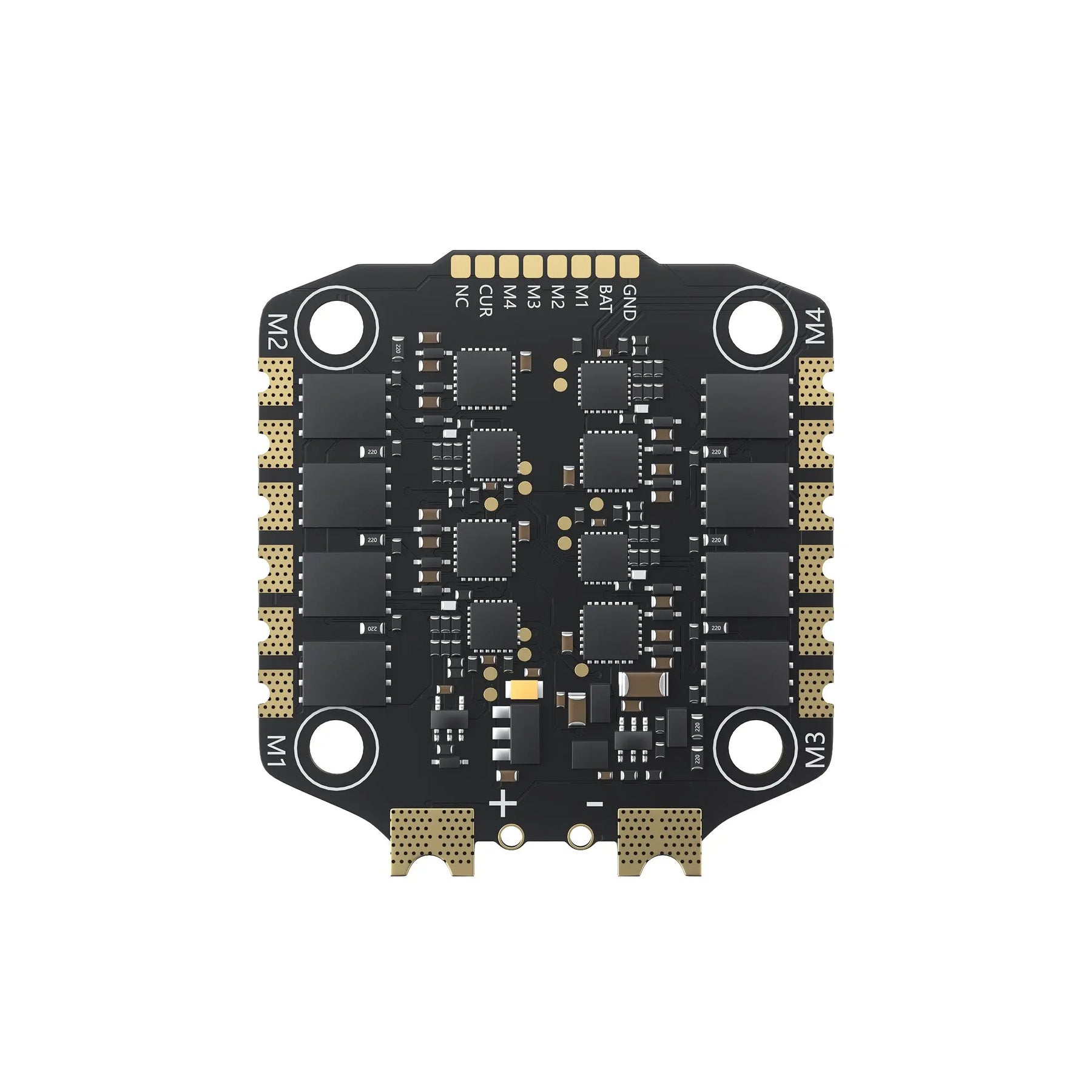

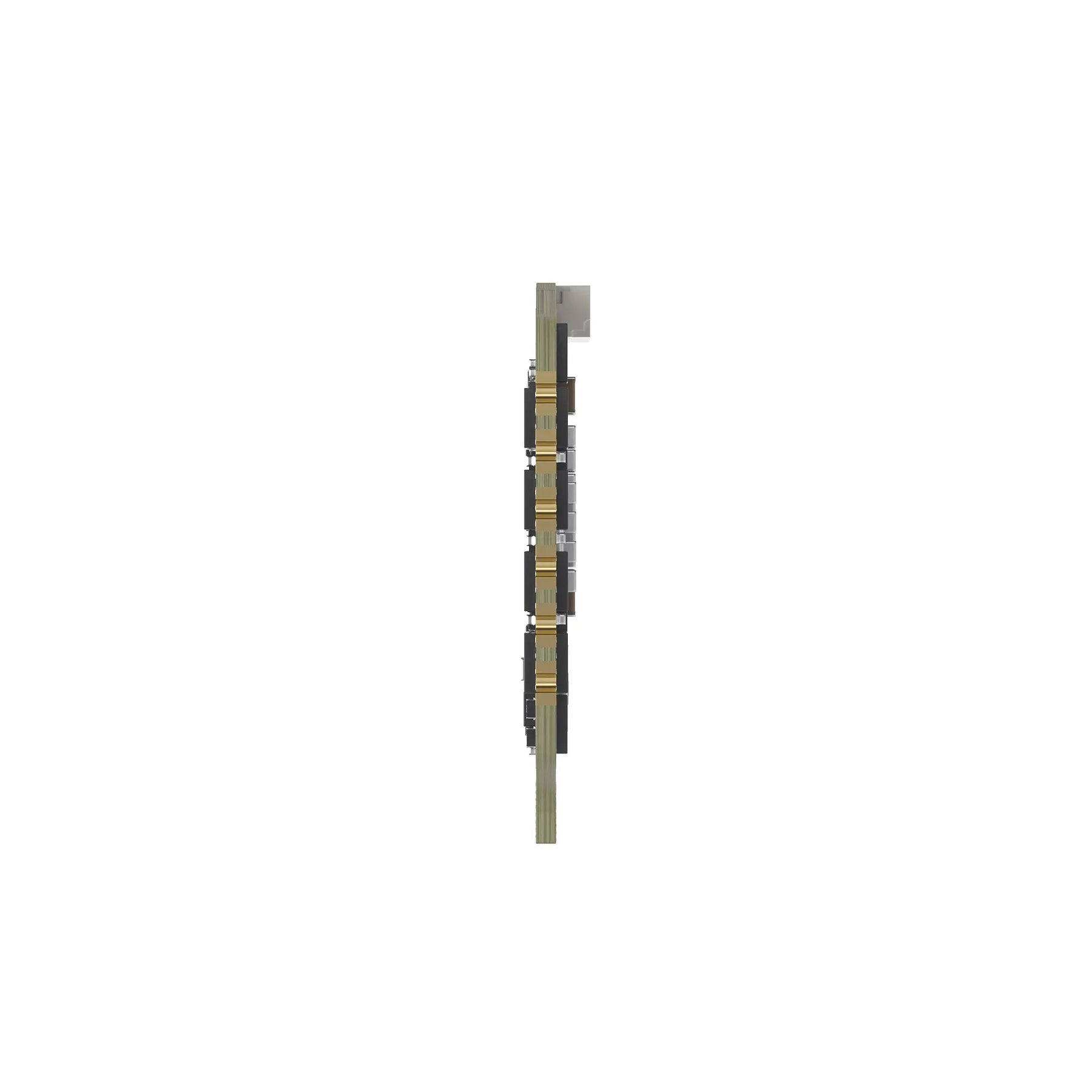

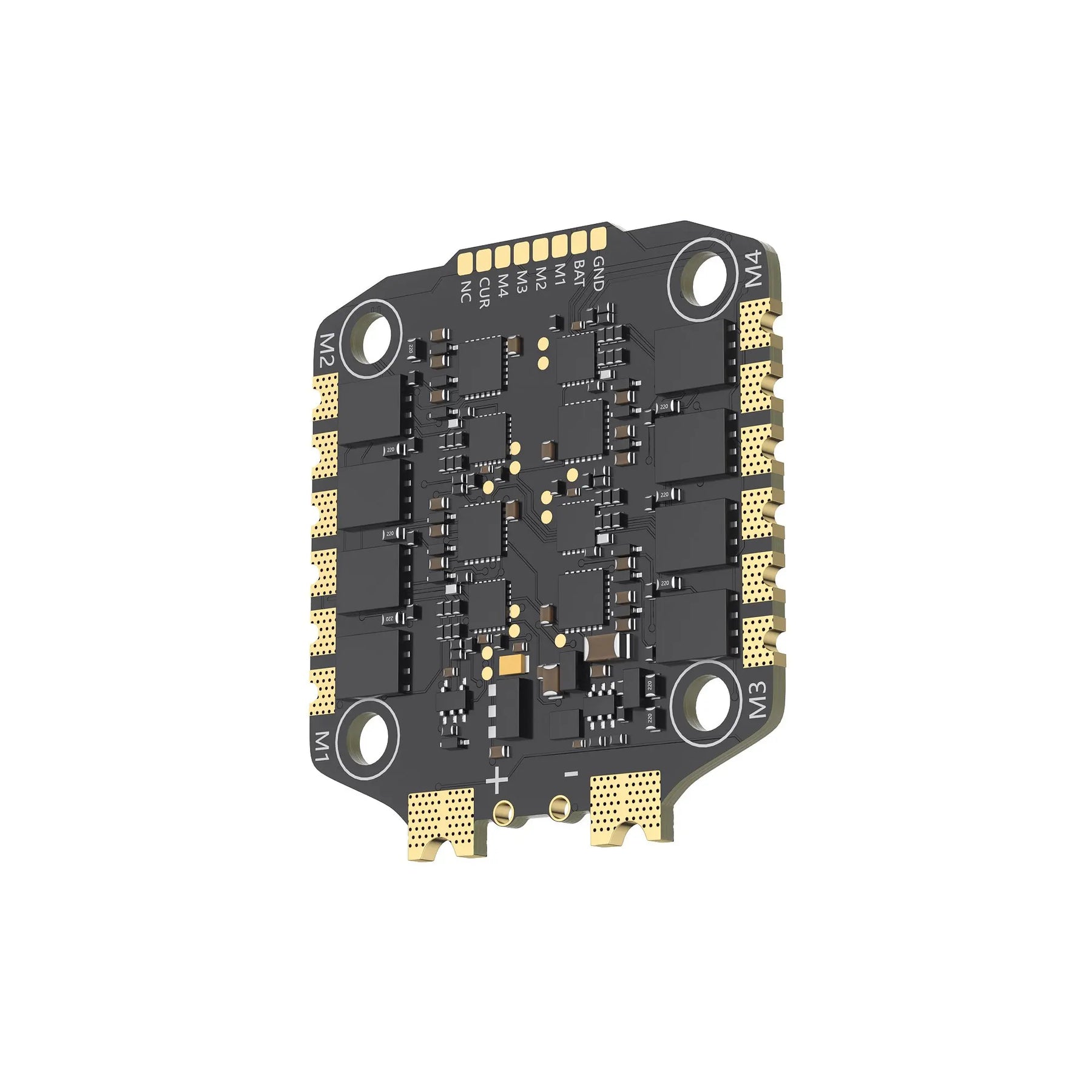

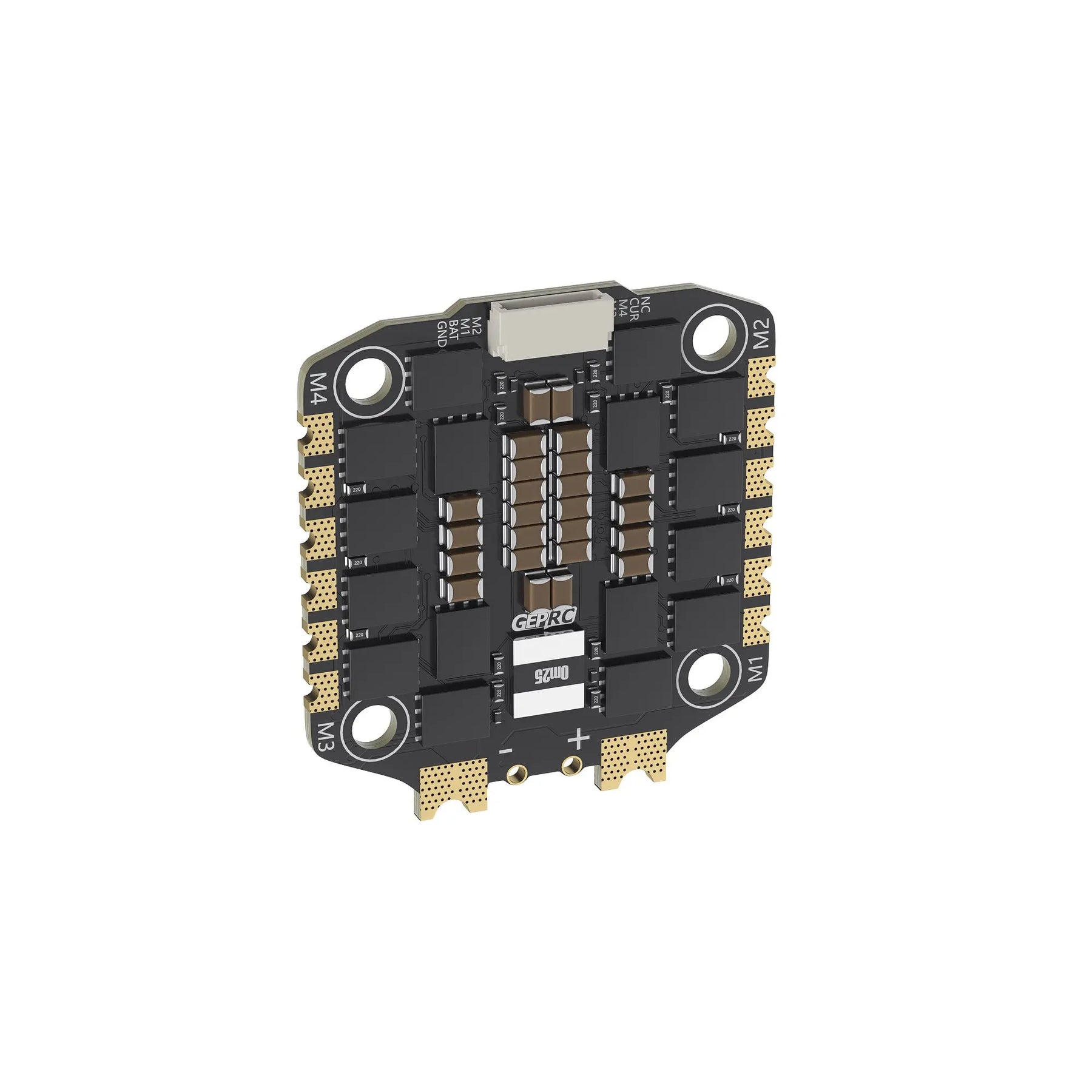

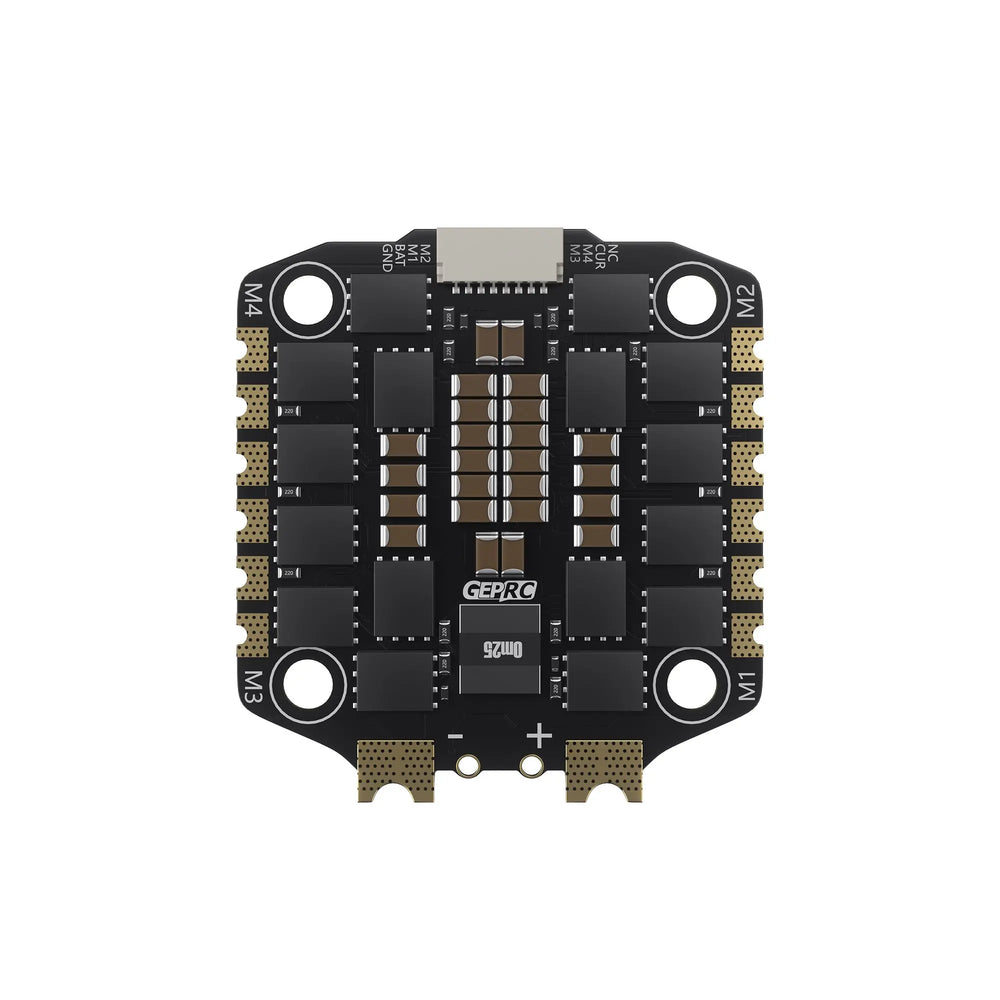

The GEPRC TAKER H65_8S_BLS is a brushless electronic speed controller with a listed 3–8S LiPo input range, current sensing and DShot 150/300/600 support. Its 30.5 × 30.5mm mounting pattern helps you plan a compatible installation without guessing from the board's outside dimensions.

Whether replacing an ESC or planning a fresh build, start by matching your motor load, battery voltage and flight-controller wiring. This listing is for the ESC and listed installation accessories, not a complete flight-controller stack.

Key Features

• 3–8S LiPo input: Provides a listed voltage range for compatible power systems.
• 65A continuous rating: With a listed 70A burst rating for up to five seconds; observe manufacturer operating conditions and cooling requirements.
• Current sensing: Supports current measurement with suitable flight-controller wiring and calibration.
• DShot support: Listed compatibility with DShot 150, 300 and 600.
• Compact board: Listed 42 × 45.7mm dimensions and 14.9g weight.

Technical Specifications

• Brand: GEPRC.
• Model: TAKER H65_8S_BLS.
• Input: 3–8S LiPo.
• Continuous current: Listed 65A.
• Burst current: Listed 70A for five seconds.
• Protocols: DShot 150/300/600.
• Current meter: Supported.
• Board dimensions: 42 × 45.7mm.
• Mounting pattern: 30.5 × 30.5mm.
• Mounting holes: Listed 4mm, reduced to 3mm with silicone mounting rings.
• Weight: Listed 14.9g.
• Listed firmware target: B_X_30. Confirm the exact board revision and firmware compatibility before flashing.

Compatibility and Installation

Check the board outline, mounting clearance, flight-controller connector pinout, motor requirements and battery voltage before purchase. A matching connector does not establish matching wiring. The BLS designation should not be treated as confirmation that this unit is the separate H65 32-bit version.

The ESC's 8S input rating does not establish 8S suitability for every connected motor, flight controller or accessory. Confirm each component separately. Do not assume telemetry features, bidirectional DShot, firmware upgrades or current-sensor calibration values that are not documented for your exact revision.

Perfect For

Experienced FPV builders replacing or integrating a compatible brushless ESC with 30.5 × 30.5mm mounting and verified power-system requirements.

Package Contents

• 1 × ESC.
• 1 × capacitor.
• 1 × flight-controller adapter cable.
• 1 × XT60 power cable.
• 4 × silicone anti-vibration pads.

Flight controller, motors, battery and aircraft are not included in the listed package. Capacitor voltage and capacitance are not specified here; verify suitability for your selected battery before installation.

Safety Notes

• Remove propellers before setup, motor testing or firmware work.
• Disconnect the battery before soldering or changing connections.
• Check polarity, solder joints and connector pin assignments before applying power.
• Install a correctly rated capacitor following the manufacturer's guidance.
• Provide suitable cooling and validate current draw under the intended load.
• Use an appropriately rated current-limiting device for the first power-up.

For fitment or wiring questions, contact sales@thedroneflight.com.
