SPECIFICATIONS

Brand Name: Auloda

Hign-concerned Chemical: None

Is Electric: No battery

Origin: Mainland China

Material: Carbon Fiber

Recommend Age: 14+y

RC Parts & Accs: Principal Axis

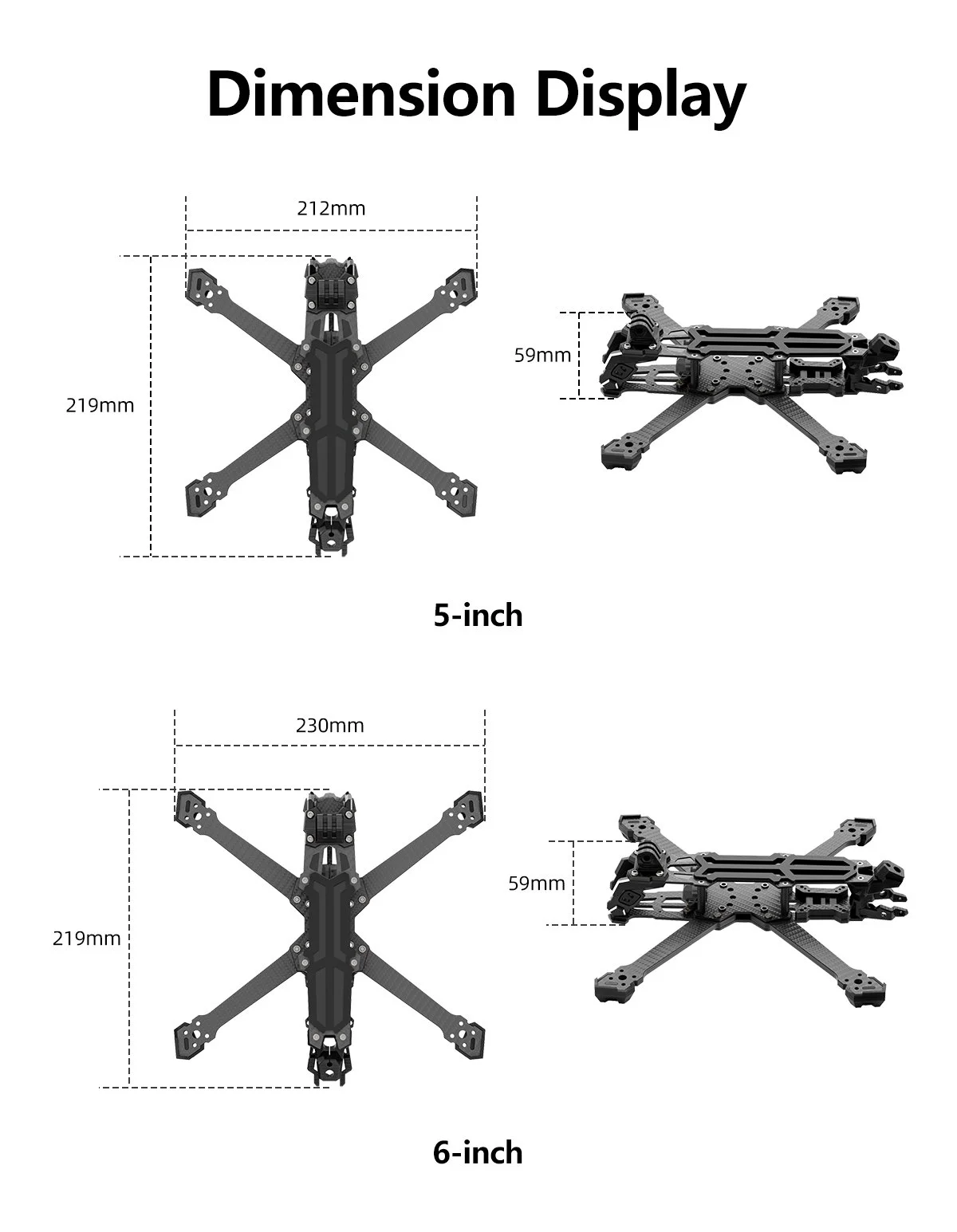

Size: Wheelbase: 230mm/254.5mm

For Vehicle Type: Airplanes

Use: Vehicles & Remote Control Toys

Certification: CE

Upgrade Parts/Accessories: Frame

Remote Control Peripherals/Devices: MOTOR

Tool Supplies: Assembled class

Quantity: 1 pcs

Model Number: GEP-Vapor-X5/X6 Frame

Four-wheel Drive Attributes: Assemblage

Wheelbase: Screws

Summary

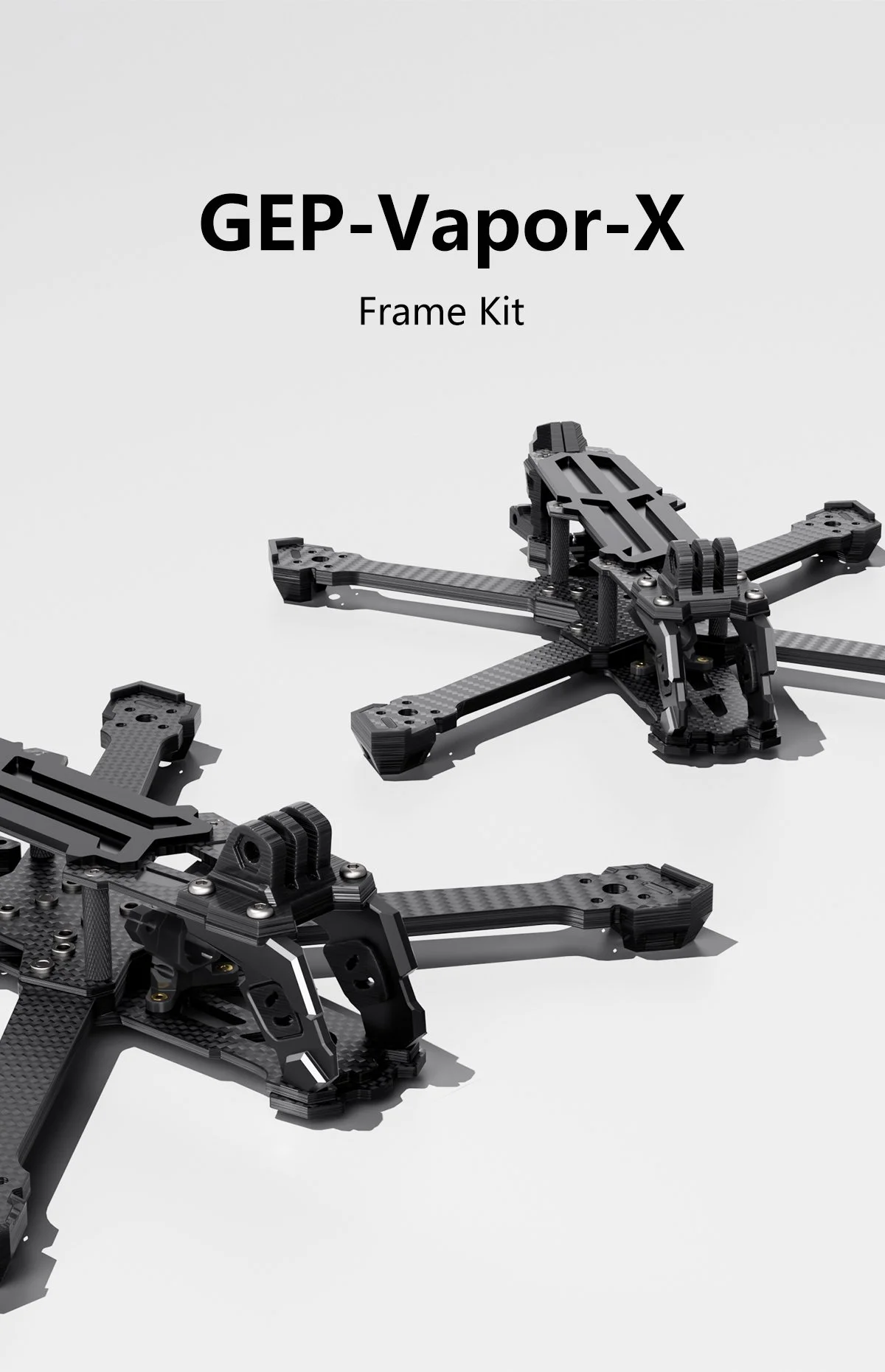

The GEP-Vapor-X frame is expertly crafted for freestyle flying. Its wide X-frame design boosts stability and maneuverability, offering an ideal balance of style and durability for exceptional flight performance.

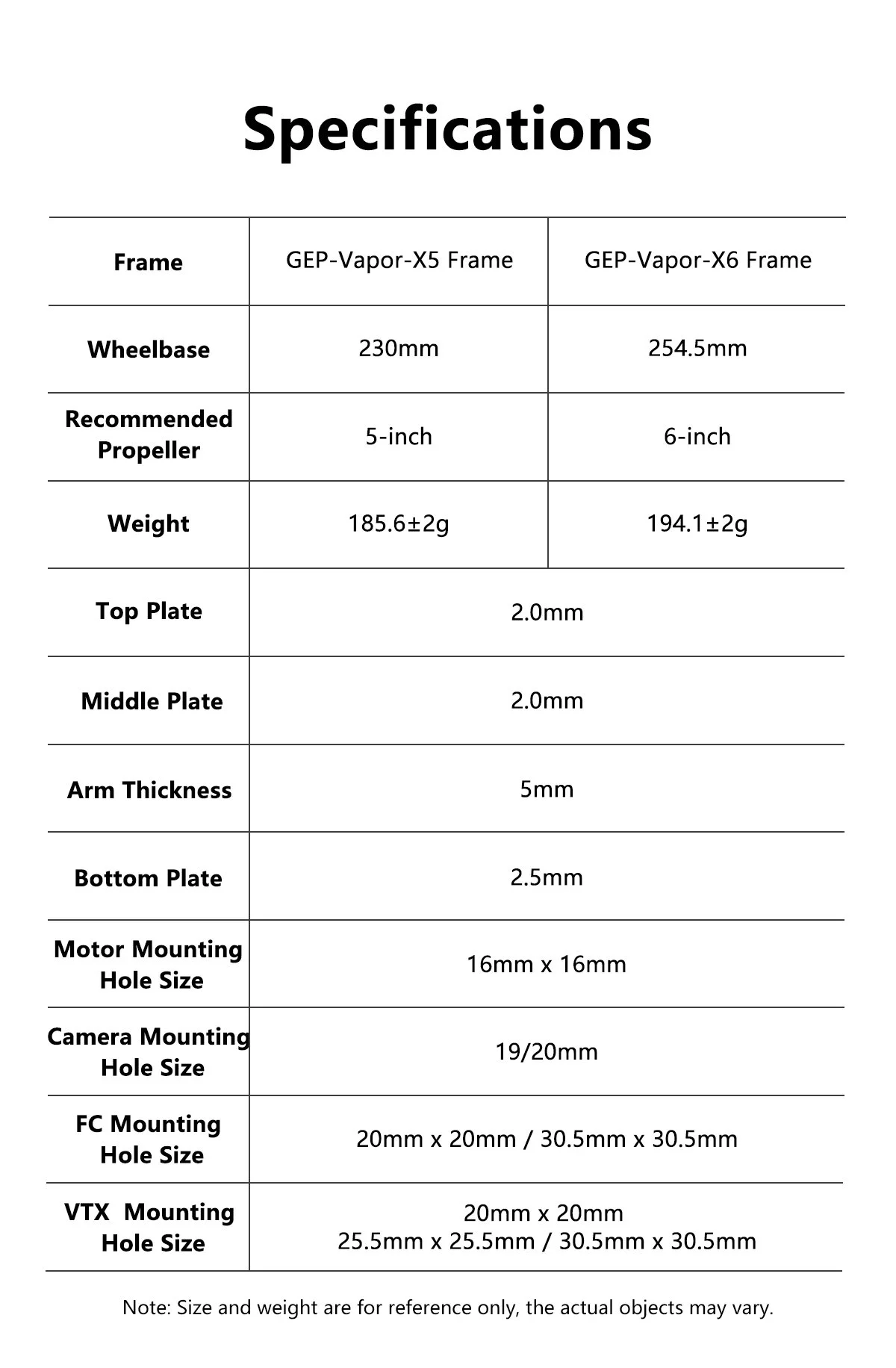

GEP-Vapor-X5 Frame Specification

Model: GEP-Vapor-X5 Frame

Wheelbase: 230mm

Top Plate Thickness: 2.0mm

Middle Plate Thickness: 2.0mm

Arm Thickness: 5.0mm

Bottom Plate Thickness: 2.5mm

FC Mounting Hole Size: 20x20mm / 30.5×30.5mm

VTX Mounting Hole Size: 20x20mm / 25x25mm / 30.5×30.5mm

Motor Mounting Hole Size: 16x16mm

Camera Mounting Hole Size: 19mm / 20mm

Recommended Propeller: 5-inch

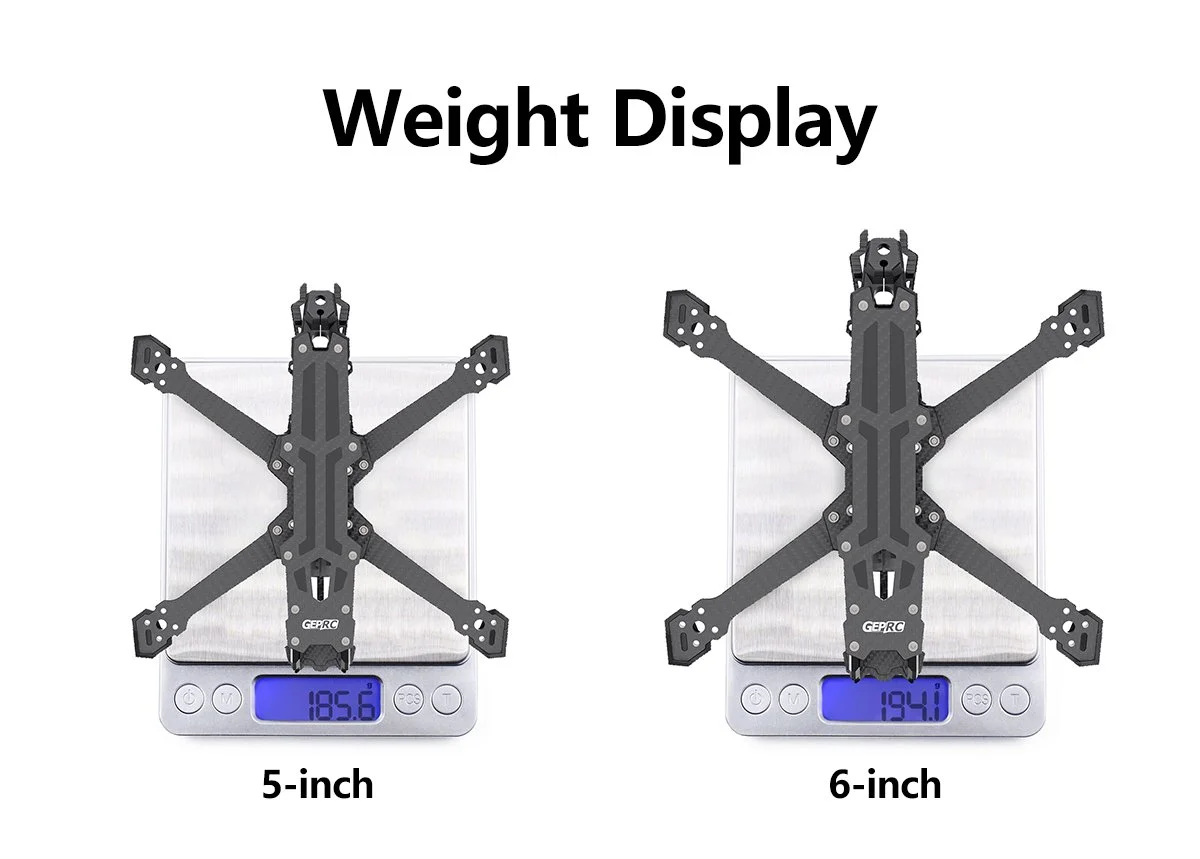

Weight: 185.6g ±2g

GEP-Vapor-X6 Frame Specification

Model: GEP-Vapor-X6 Frame

Wheelbase: 254.5mm

Top Plate Thickness: 2.0mm

Middle Plate Thickness: 2.0mm

Arm Thickness: 5.0mm

Bottom Plate Thickness: 2.5mm

FC Mounting Hole Size: 20x20mm / 30.5×30.5mm

VTX Mounting Hole Size: 20x20mm / 25x25mm / 30.5×30.5mm

Motor Mounting Hole Size: 16x16mm

Camera Mounting Hole Size: 19mm / 20mm

Recommended Propeller: 6-inch

Weight: 194.1g ±2g

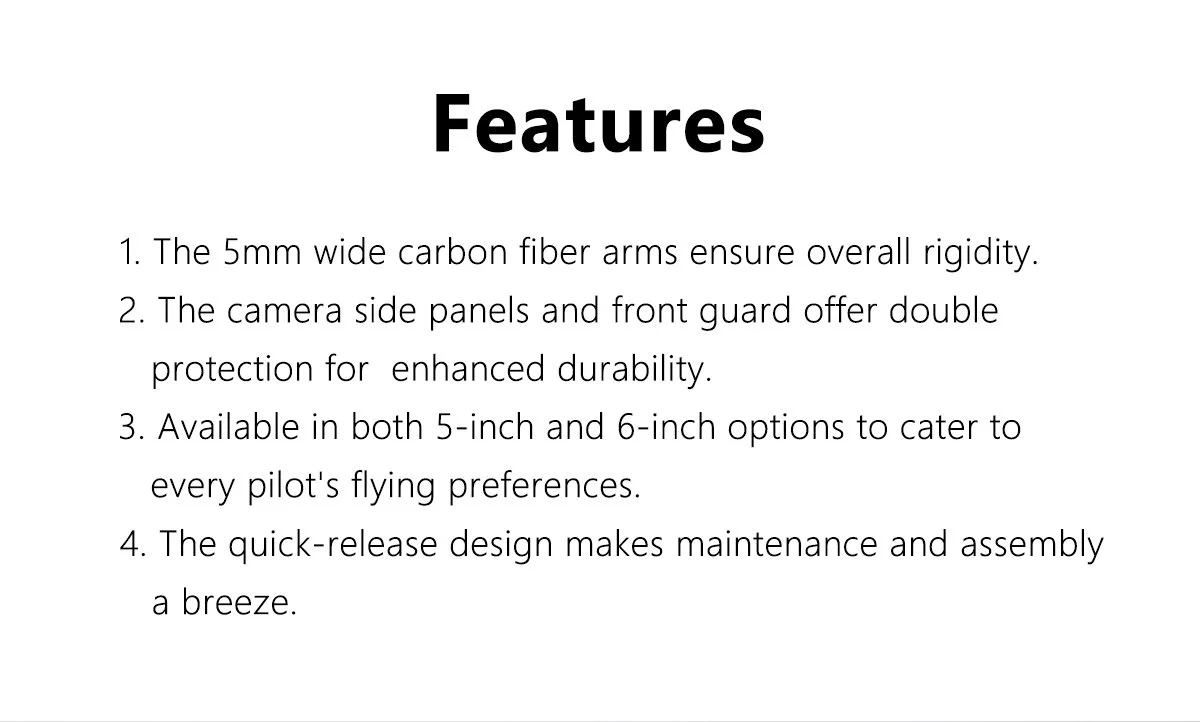

Feature

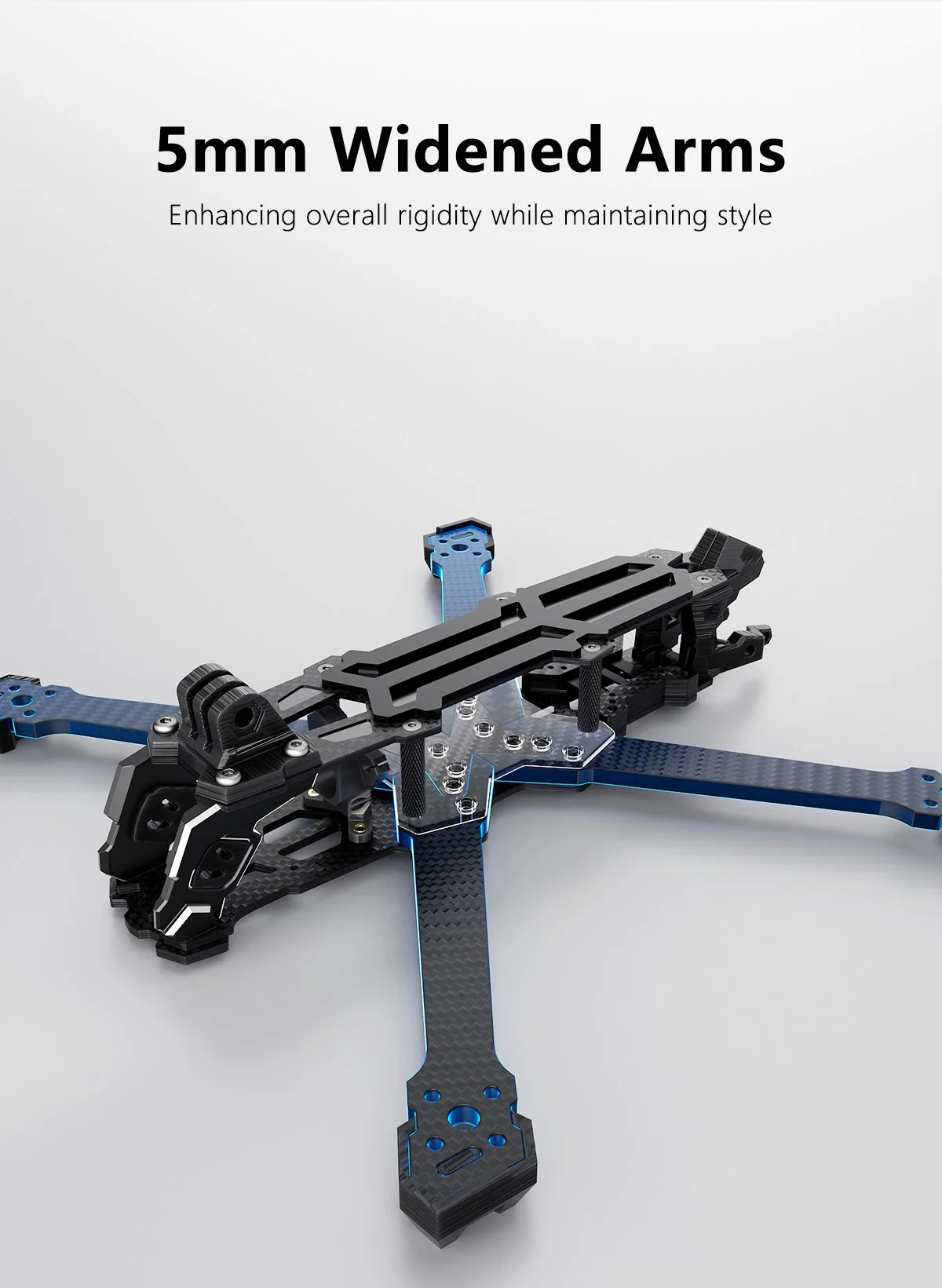

The 5mm wide carbon fiber arms ensure overall rigidity.

The camera side panels and front guard offer double protection for enhanced durability.

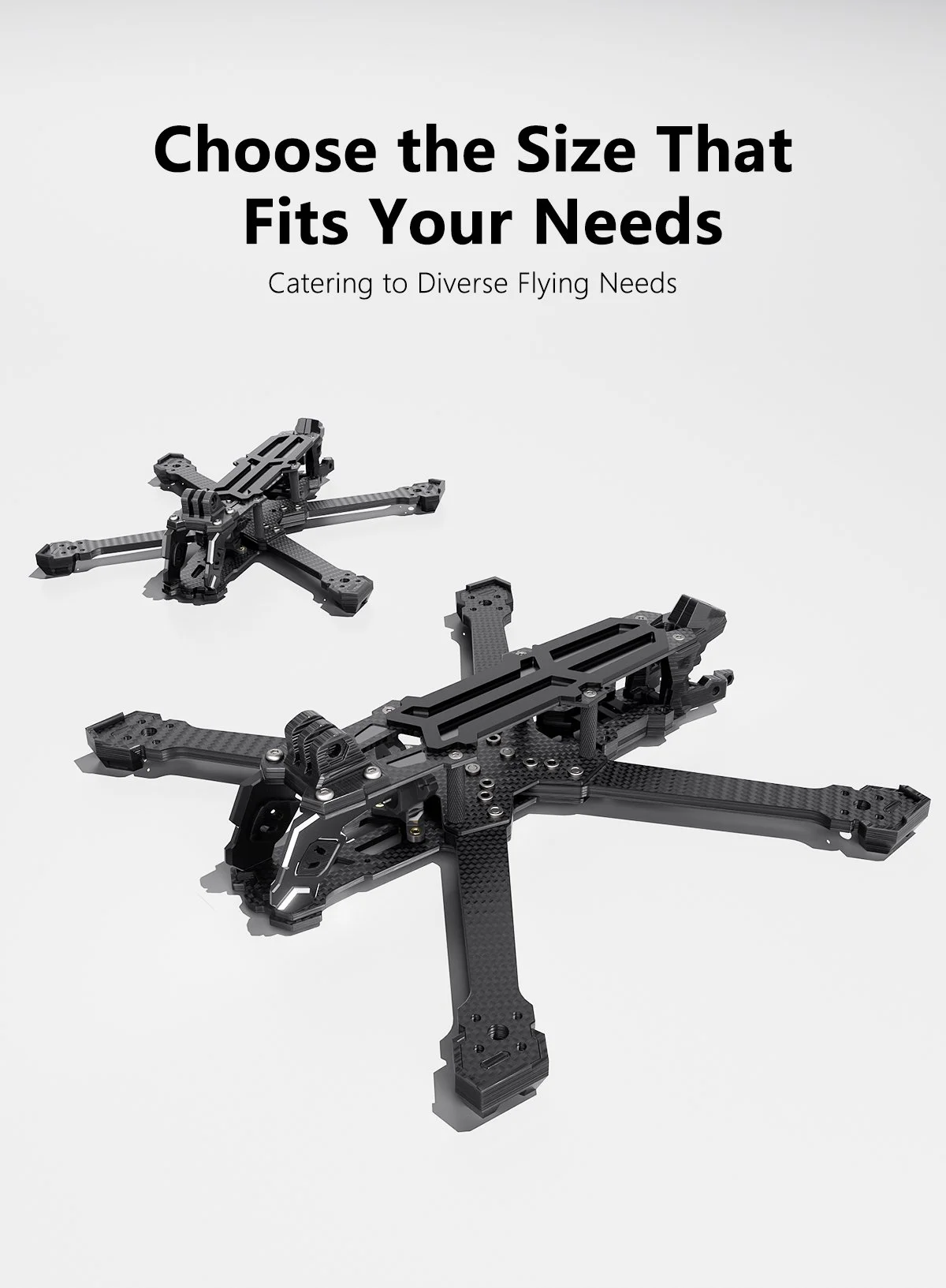

Available in both 5-inch and 6-inch options to cater to every pilot’s flying preferences.

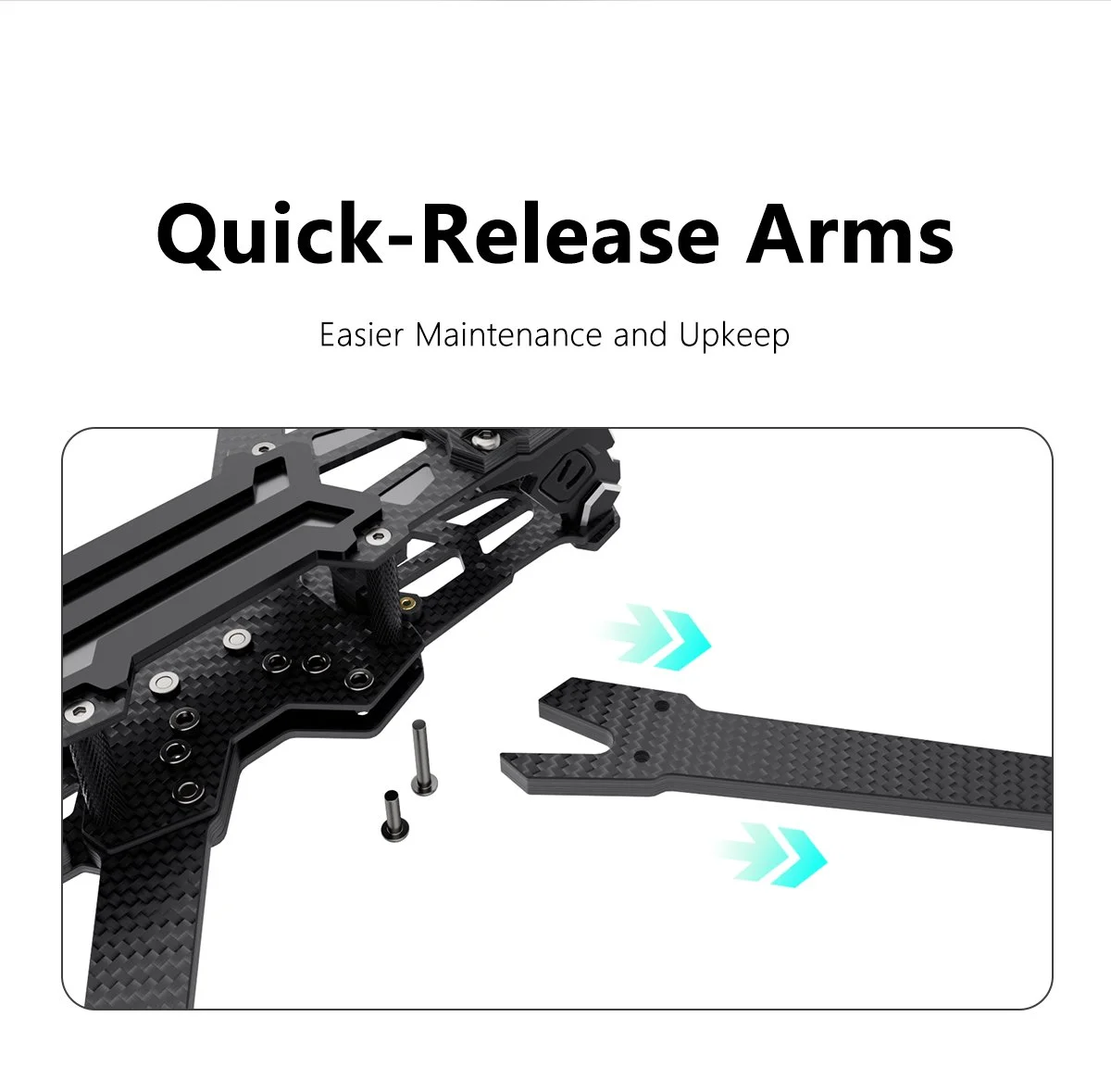

The quick-release design makes maintenance and assembly a breeze.

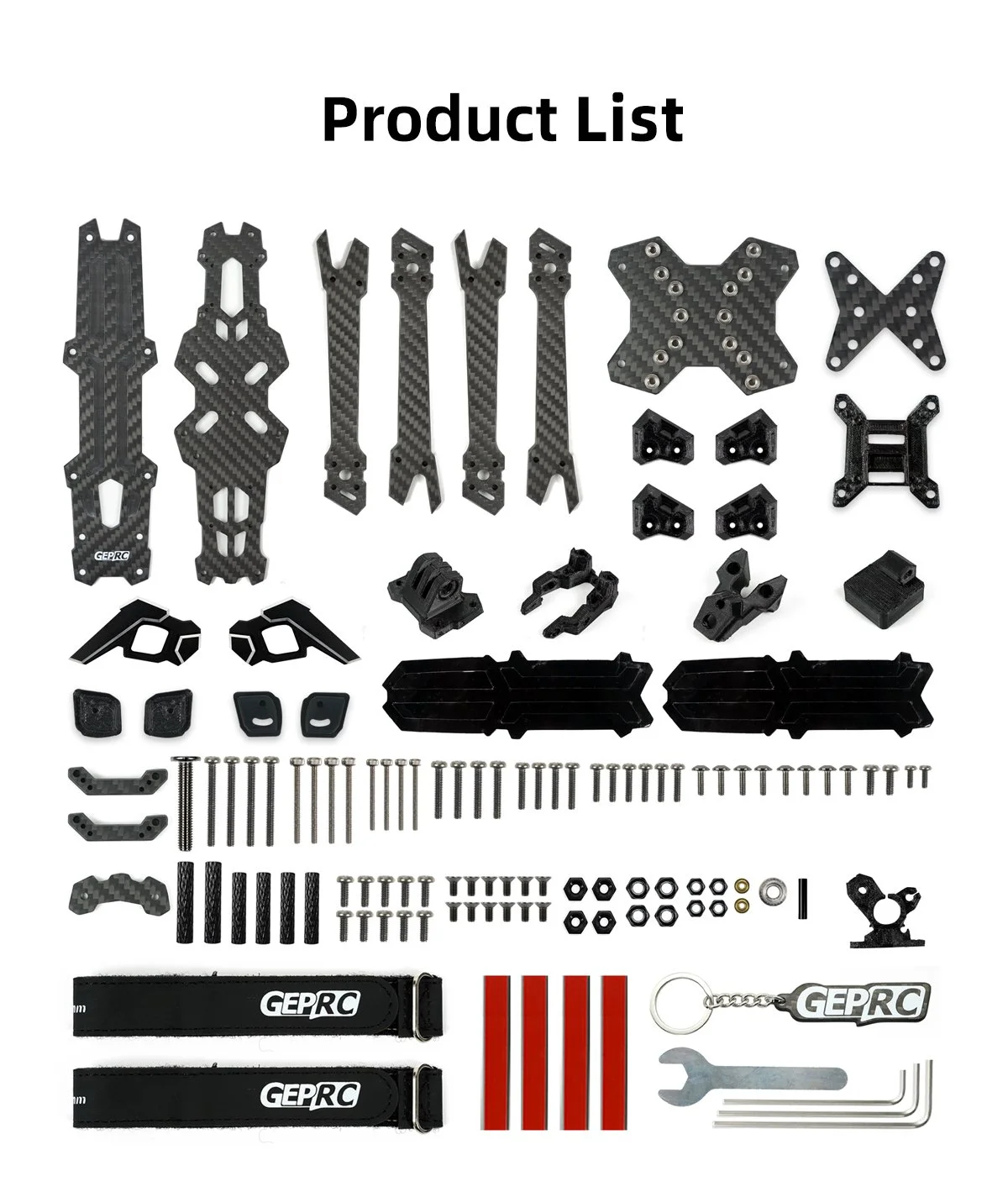

Includes

1 x GEP-Vapor-X Frame

2 x M20*250mm battery straps

2 x Battery Silicone Pads

1 x Set of screws

1 x Printout package

1 x L-shaped screwdriver (1.5mm)

1 x L-shaped screwdriver (2mm)

1 x L-shaped screwdriver (3mm)

1 x M8 wrench
