HGLRC L3 Mini Analog FPV Camera — 1800TVL, 1/2.9" CMOS, F1.0, 0.000001 Lux Ultra-Low Light, Super WDR (HDR), 3D NR, OSD, 5–40V, 19×19mm

The HGLRC L3 is a compact 19mm analog FPV camera purpose-built for very low-light flying. It delivers 1800TVL resolution from a 1/2.9" CMOS sensor through a 3.3mm F1.0 lens, achieving an ultra-low minimum illumination of 0.000001 Lux — one of the lowest in its class. Super WDR (HDR) and 3D noise reduction ensure clean, high-contrast imagery in mixed and challenging lighting. Wide voltage input of 5–40V makes it compatible with 1S through 6S power systems. Supports selectable PAL or NTSC with an OSD menu.

Key Features

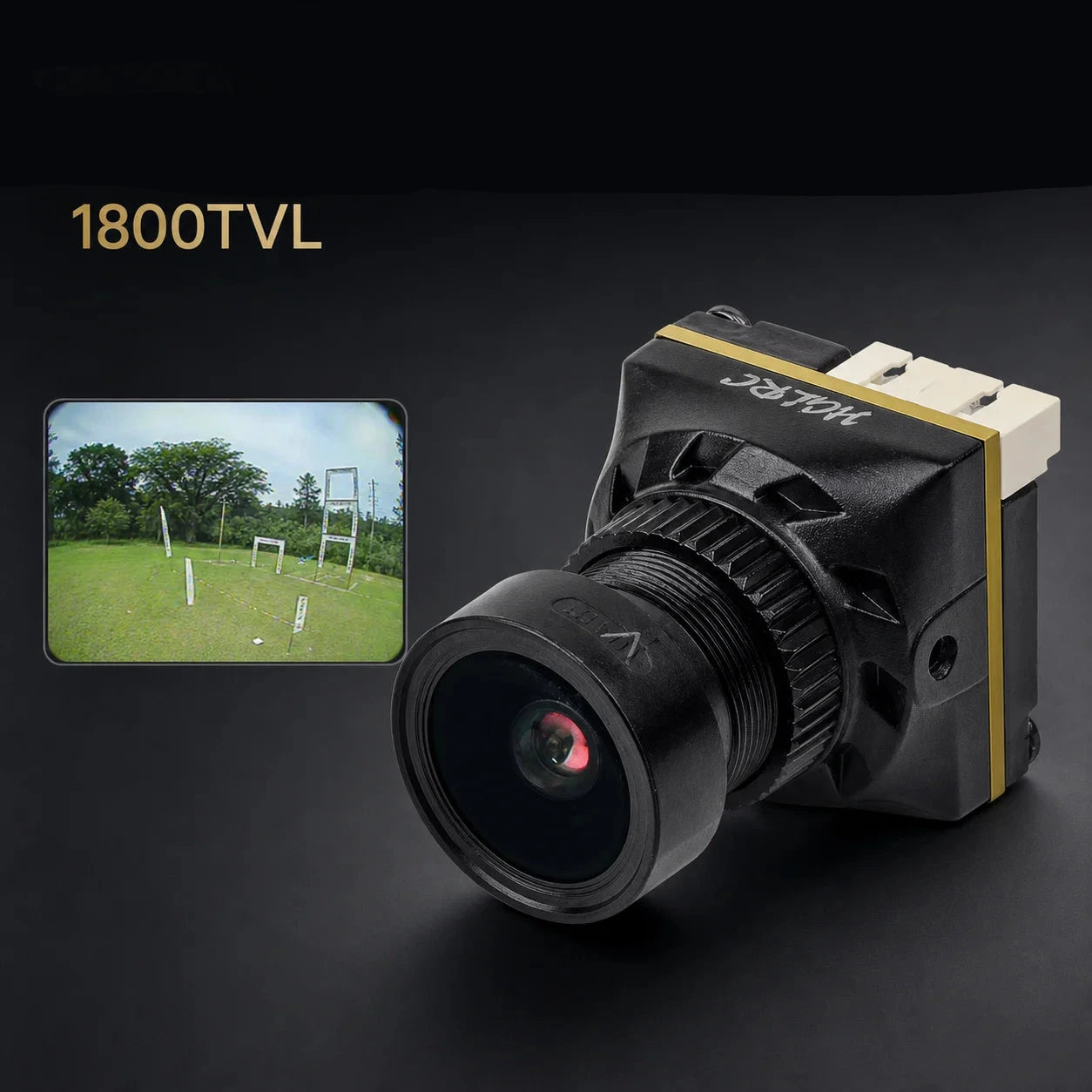

  • 1800TVL Resolution — High-resolution analog output for sharp, detailed FPV video
  • 1/2.9" CMOS Sensor — Compact sensor optimized for FPV performance
  • F1.0 Lens, 3.3mm — Ultra-wide aperture for maximum light gathering in low-light conditions

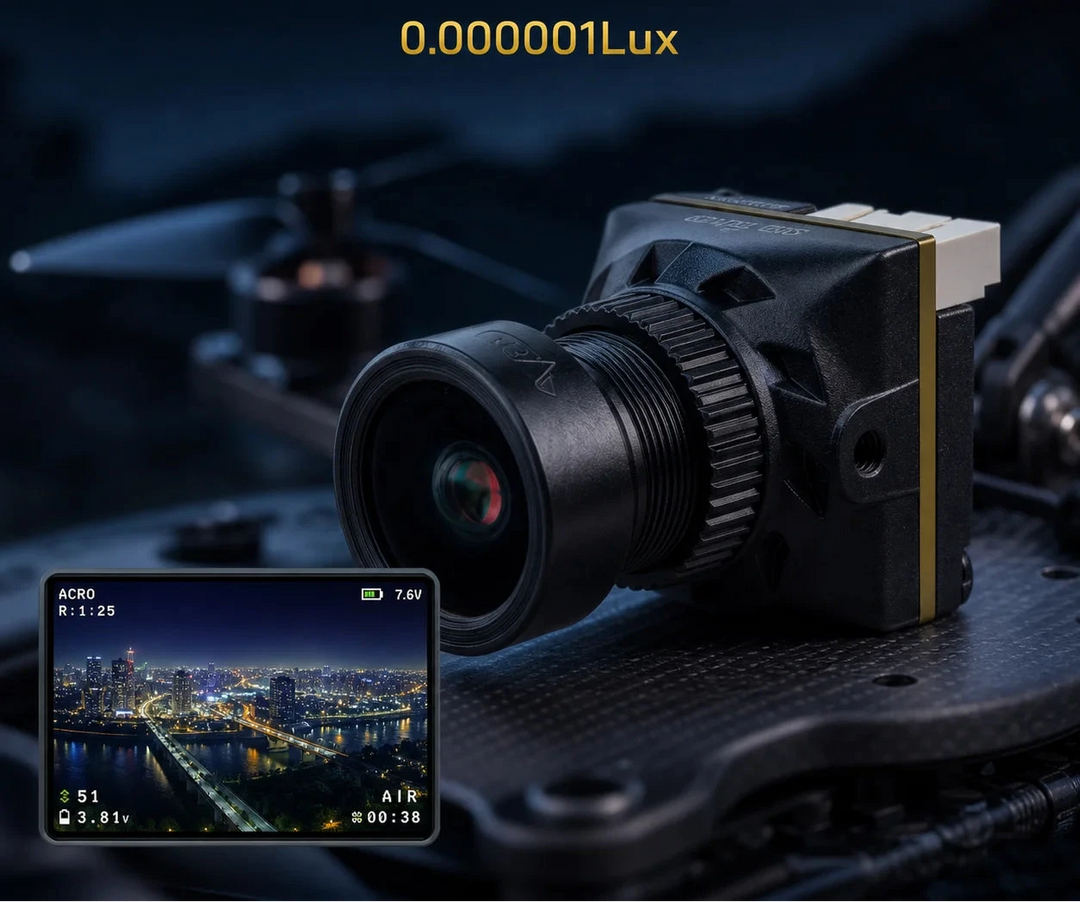

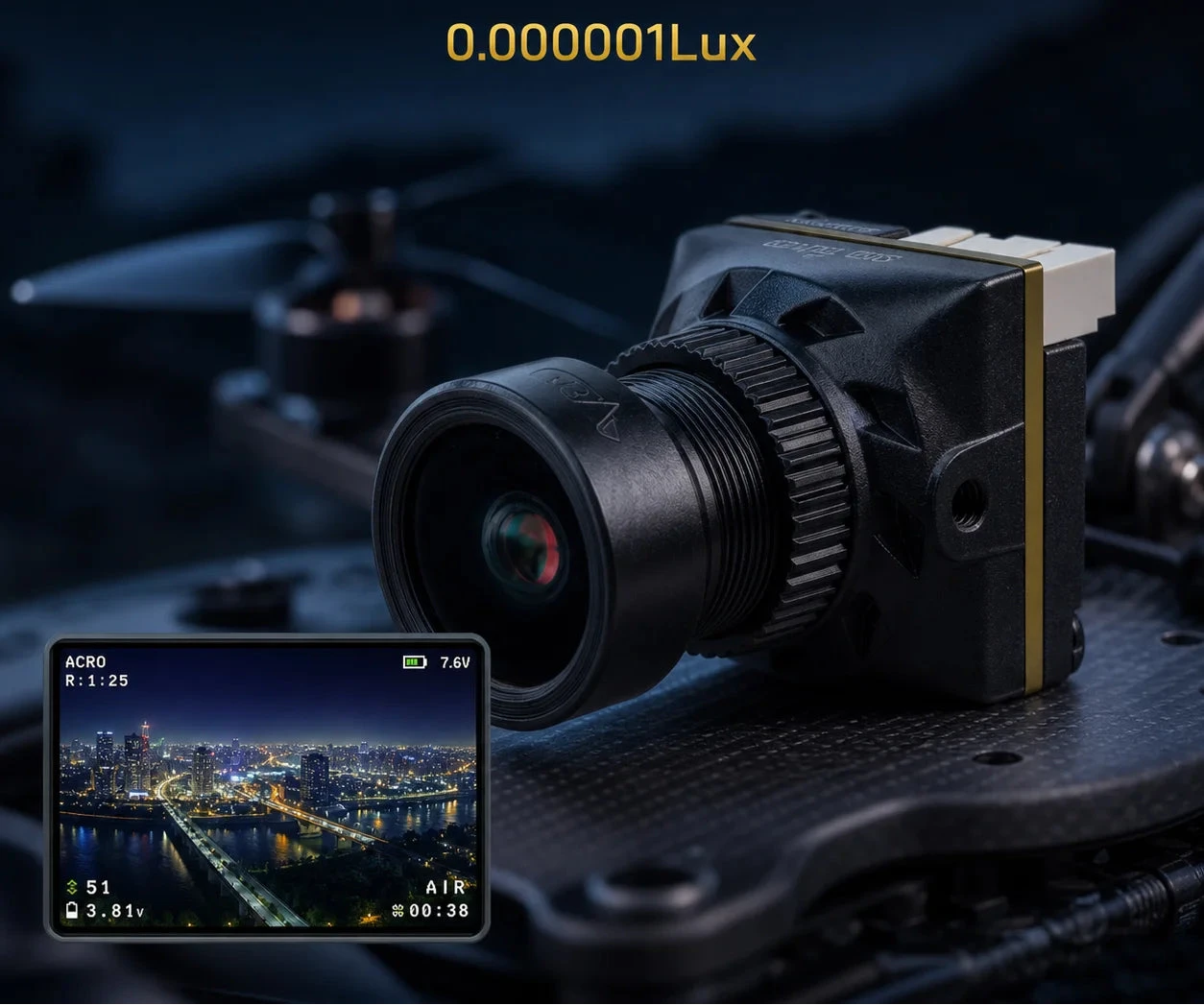

  • 0.000001 Lux Minimum Illumination — Exceptional night and ultra-low-light performance

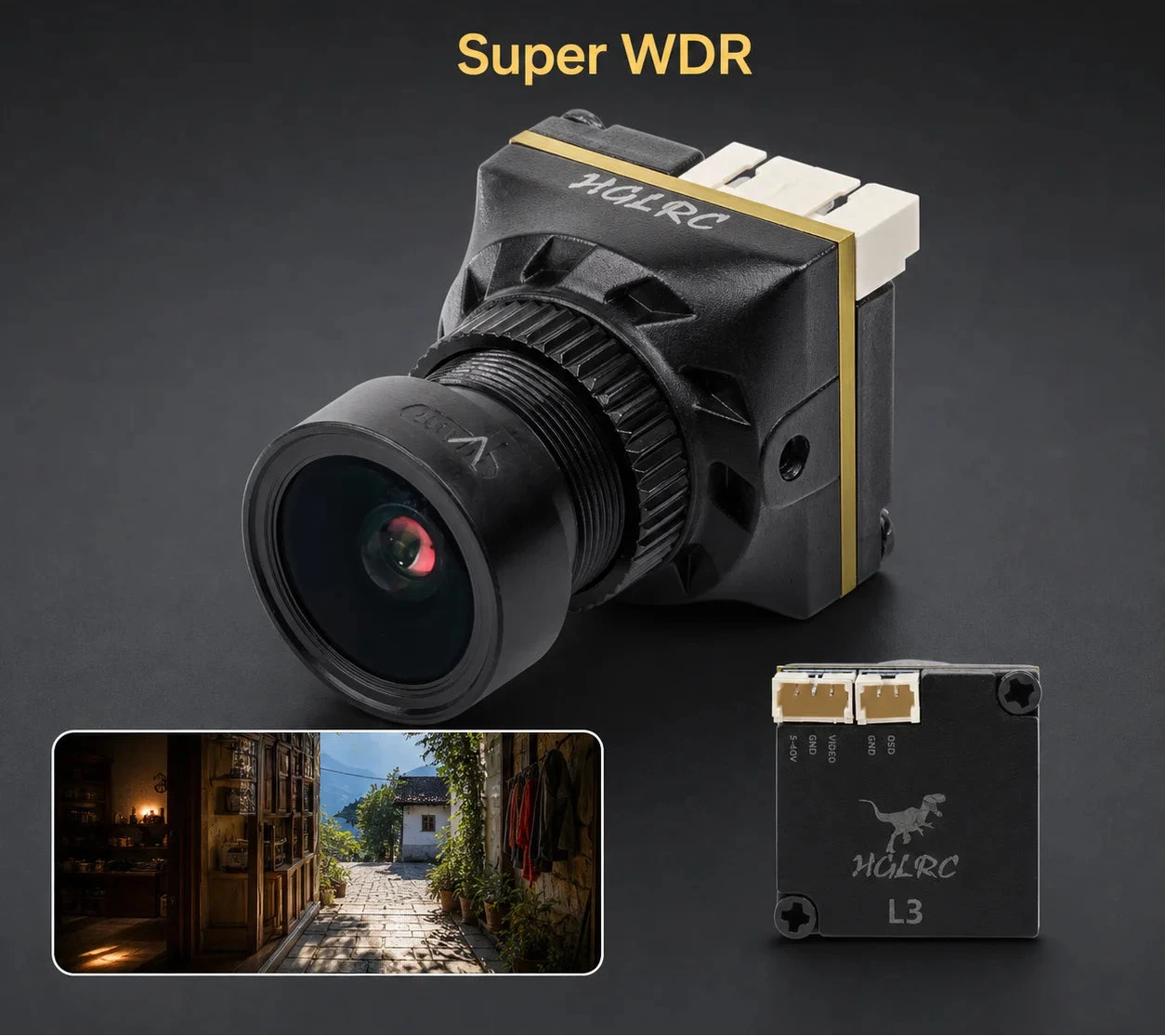

  • Super WDR (HDR) — Handles high-contrast scenes for clear imagery in mixed lighting
  • 3D Noise Reduction (3D NR) — Clean, low-noise video in all conditions
  • OSD Menu — On-screen display for in-field camera settings adjustment
  • PAL / NTSC Selectable — Choose the video standard that matches your FPV system
  • Wide Voltage Input: 5–40V — Compatible with 1S through 6S LiPo power systems
  • Compact 19×19mm Form Factor — Fits standard 19mm and 20mm camera mounts

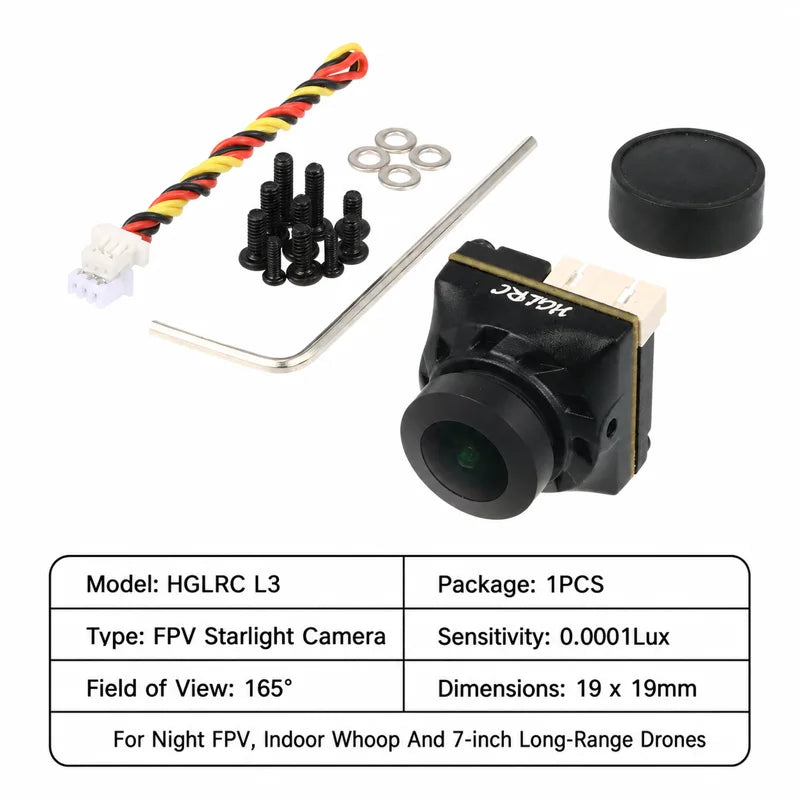

Specifications

  • Resolution: 1800TVL
  • Sensor: 1/2.9" CMOS

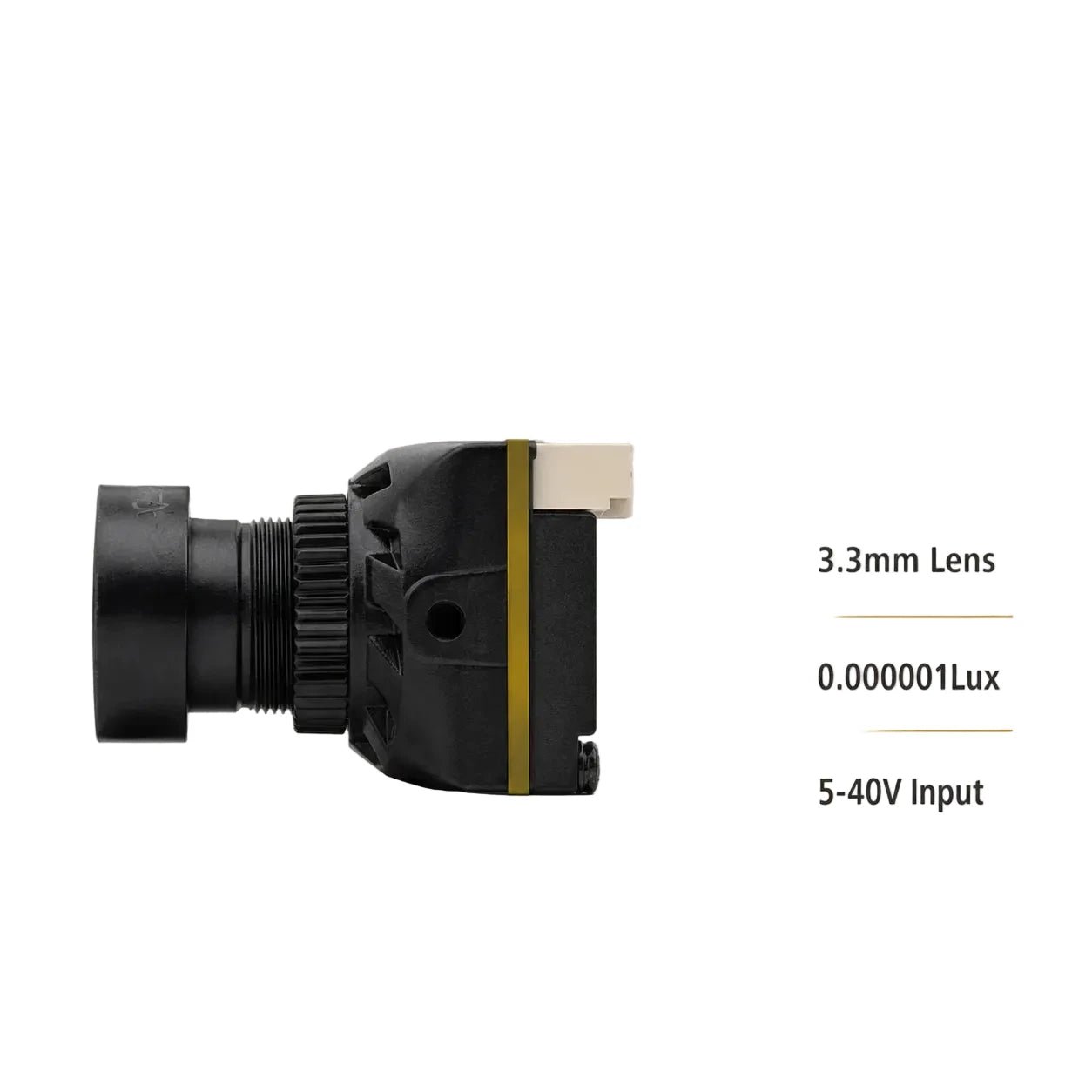

  • Lens: 3.3mm, F1.0
  • FOV: H125° / V76°
  • Aspect Ratio: 16:9
  • Min. Illumination: 0.000001 Lux
  • WDR: Super WDR (HDR)
  • Noise Reduction: 3D NR
  • OSD: Yes
  • Video System: PAL / NTSC selectable
  • Input Voltage: 5–40V

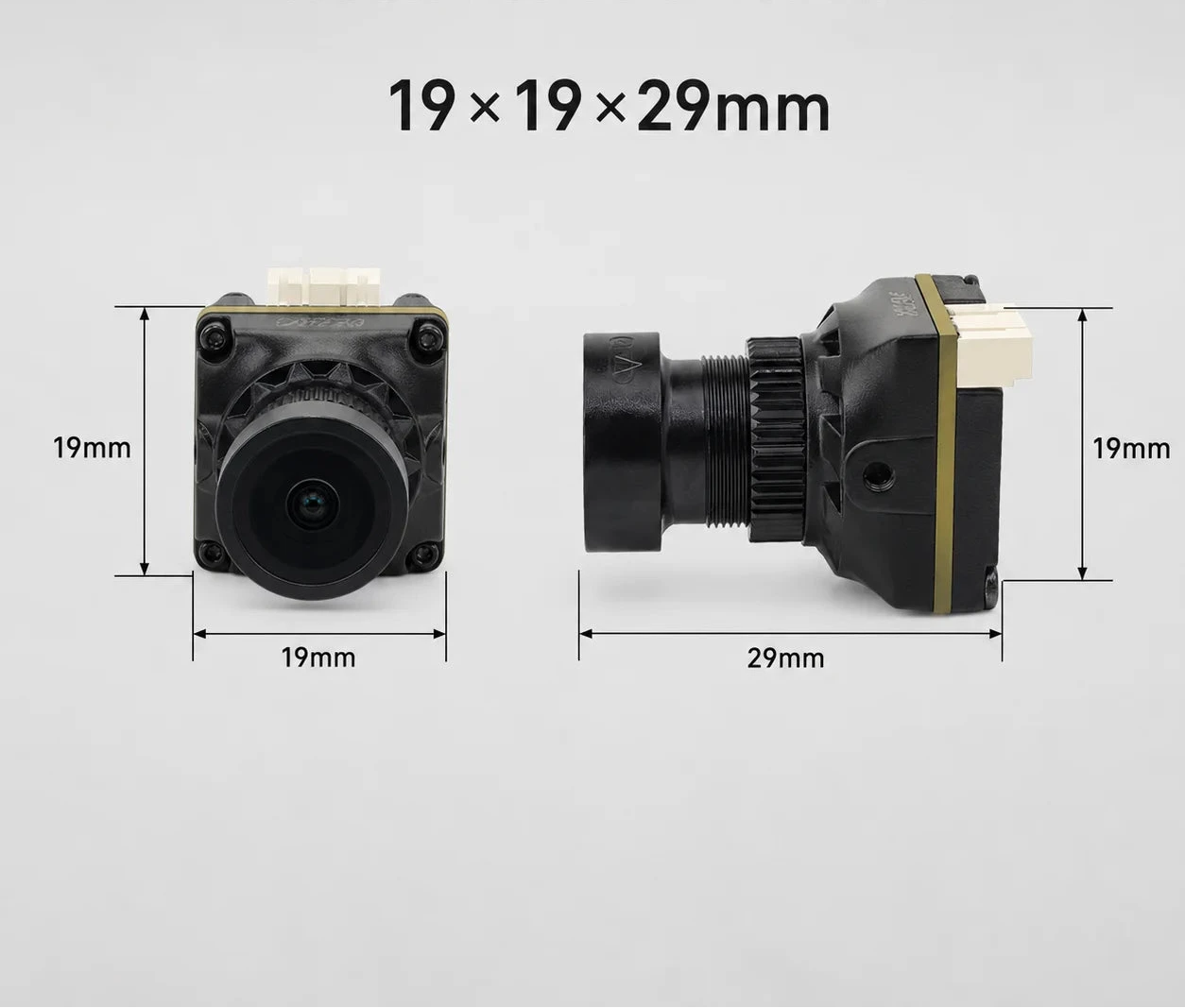

  • Dimensions: 19 × 19 × 29mm
  • Weight: ~46g

Applications

  • Night FPV flying and low-light racing
  • FPV freestyle and racing drone builds
  • Any analog FPV build requiring ultra-low-light performance

Important Notes

  • This is an analog CVBS camera — not compatible with digital FPV systems (DJI O3/O4, HDZero, Walksnail)
  • Requires a compatible analog video transmitter (VTX) and analog FPV goggles
  • Select PAL or NTSC to match your FPV goggles and video system
