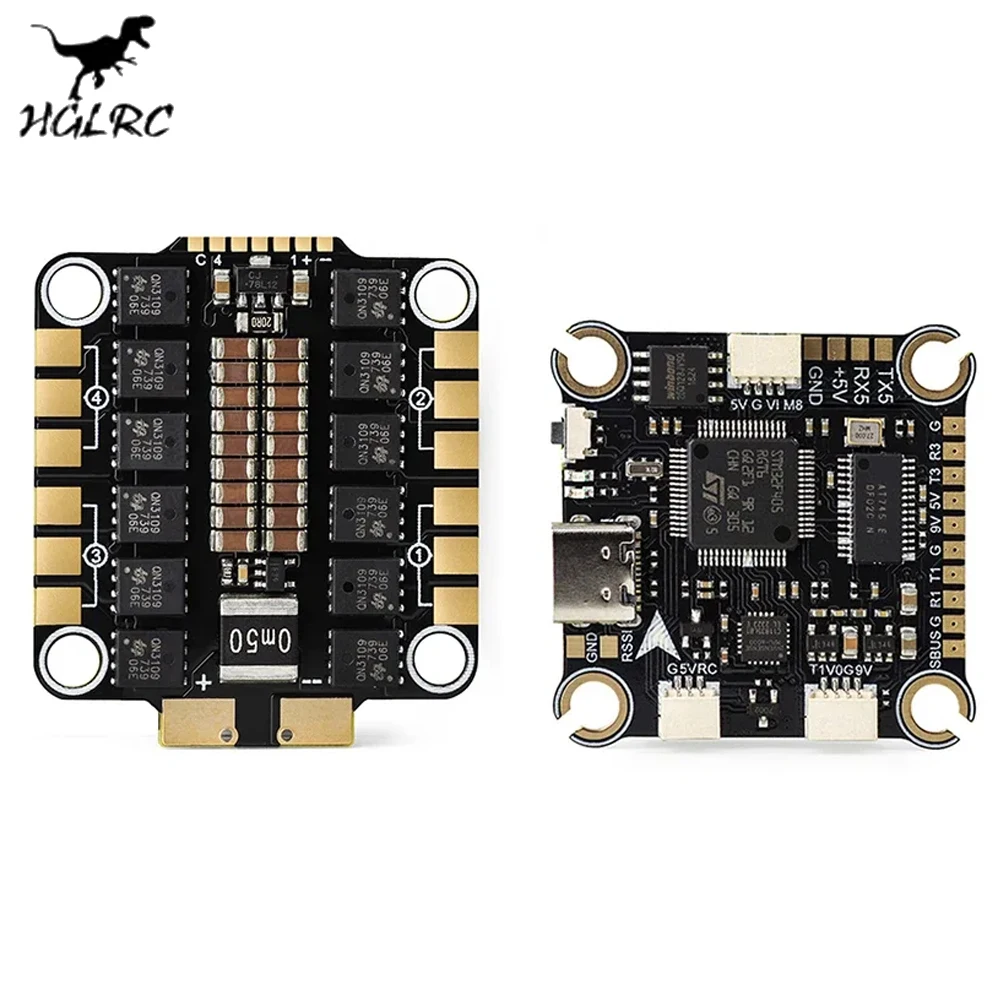

HGLRC SPECTER F460 2-6S 30X30mm Stack F405 V2 MPU6000 Flight Controller BLHELI_S 60A 4in1 ESC

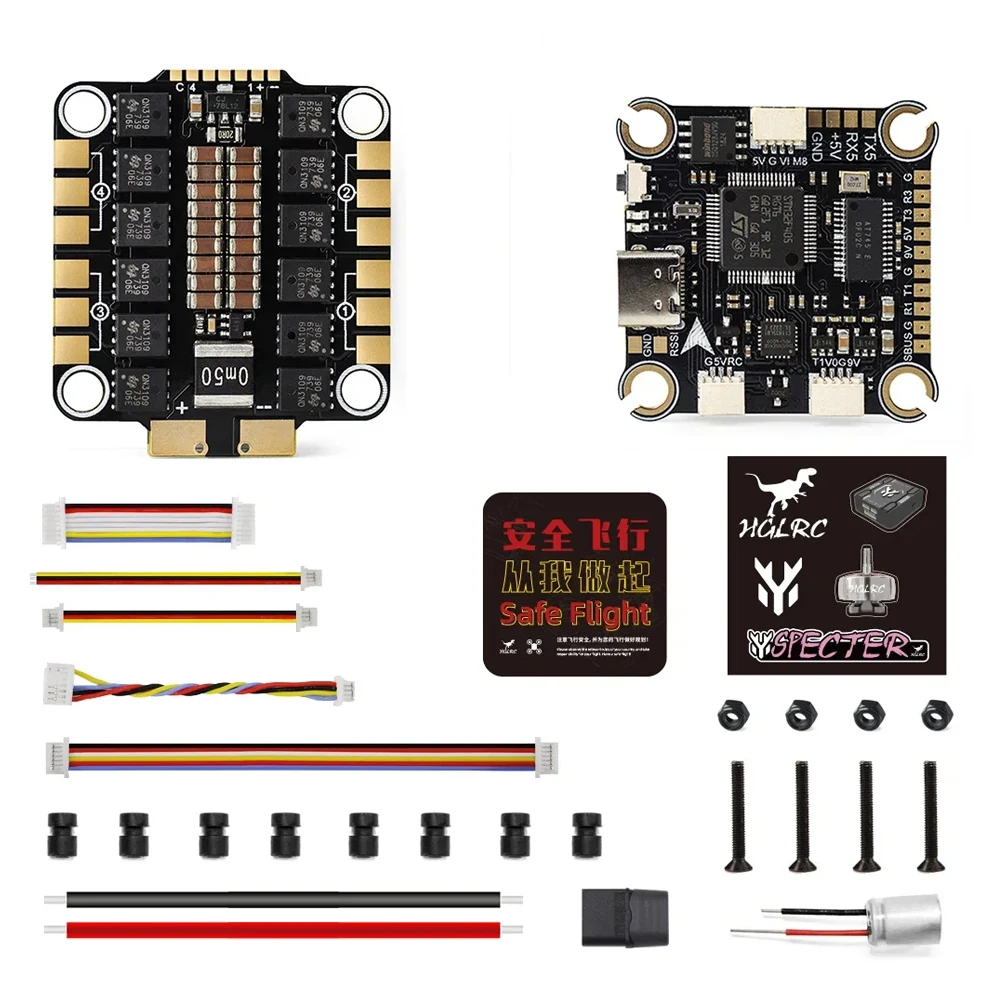

HGLRC SPECTER F460 STACK
NOTE: After receiving the goods, please do not weld first, connect it to BF first, and ensure that all functions of the sensor are normally welded. If you have any questions, please contact customer service at the first time. Please read the above carefully to avoid unnecessary disputes.

Features:
* The flight control adopts the extremely stable MPU6000 gyroscope;
* The flight control main control chip adopts F405 chip, and the serial port supports up to 4 groups, with fast operation speed and smoother control;
* The main chip of the ESC selects a new imported FD6288 processor, which is matched with ON3109 high-performance MOS, and can continuously withstand current and stabilize output;
* It can be quickly connected to the camera/receiver/image transmission/LED/GPS through the socket, no welding required;
* Maximum support for BEC 9V2A/BEC 5V2.5A, which can provide stable voltage and current output to external devices;
* Immersion gold high-tech design is temperature-resistant and current-resistant, the ESC has a large pad, and the flight controller is directly plugged in, so there is no trouble in welding;
* Integrated 16M black box, can record flight data;
* Onboard galvanometer module, real-time viewing of data such as current feedback through the flight control;

Item Name: HGLRC SPECTER F460 STACK
* Input Voltage: 2-6S Lipo (7.4V-22.8V)
* Installing Hole: 30.5x30.5mm, M3
* Support Protocols: DShot600/300/150/Oneshot125/42,MultiShot
* Weight: 29g

SPECTER F405 FC
* MCU: STM32F405
* GYRO: MPU6000
* OSD: AT7456E
* Blackbox: 16MB
* UART: 4
* BEC: 9V2A/5V2.5A
* FC Firmware: HGLRCF405V2
Size: 38mm*38mm

SPECTER 60A ESC
* Constant Current: 60A
* Peak Current: 70A(10s)
* ESC Firmware: BL_S (J-H-30)
Size: 37x42.7mm
