SPECIFICATIONS

Brand Name: NoEnName_Null

Hign-concerned Chemical: None

Is Electric: No battery

Material: Composite Material

Recommend Age: 14+y

RC Parts & Accs: Compass

Size: AN

For Vehicle Type: Airplanes

Use: Vehicles & Remote Control Toys

Upgrade Parts/Accessories: Compass

Remote Control Peripherals/Devices: RECEIVERS

Tool Supplies: Assembly Category

Quantity: 1 pcs

Technical parameters: KV1100

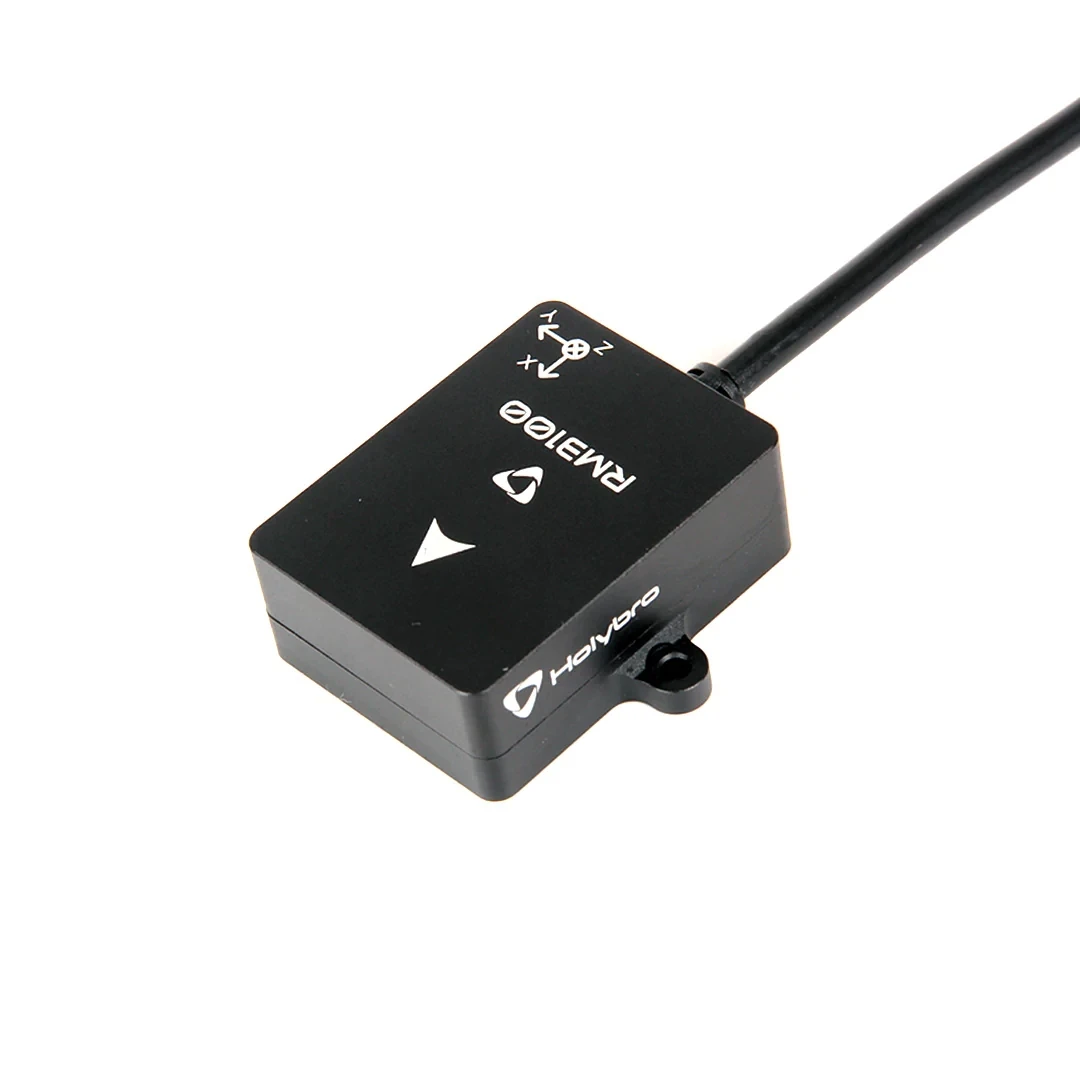

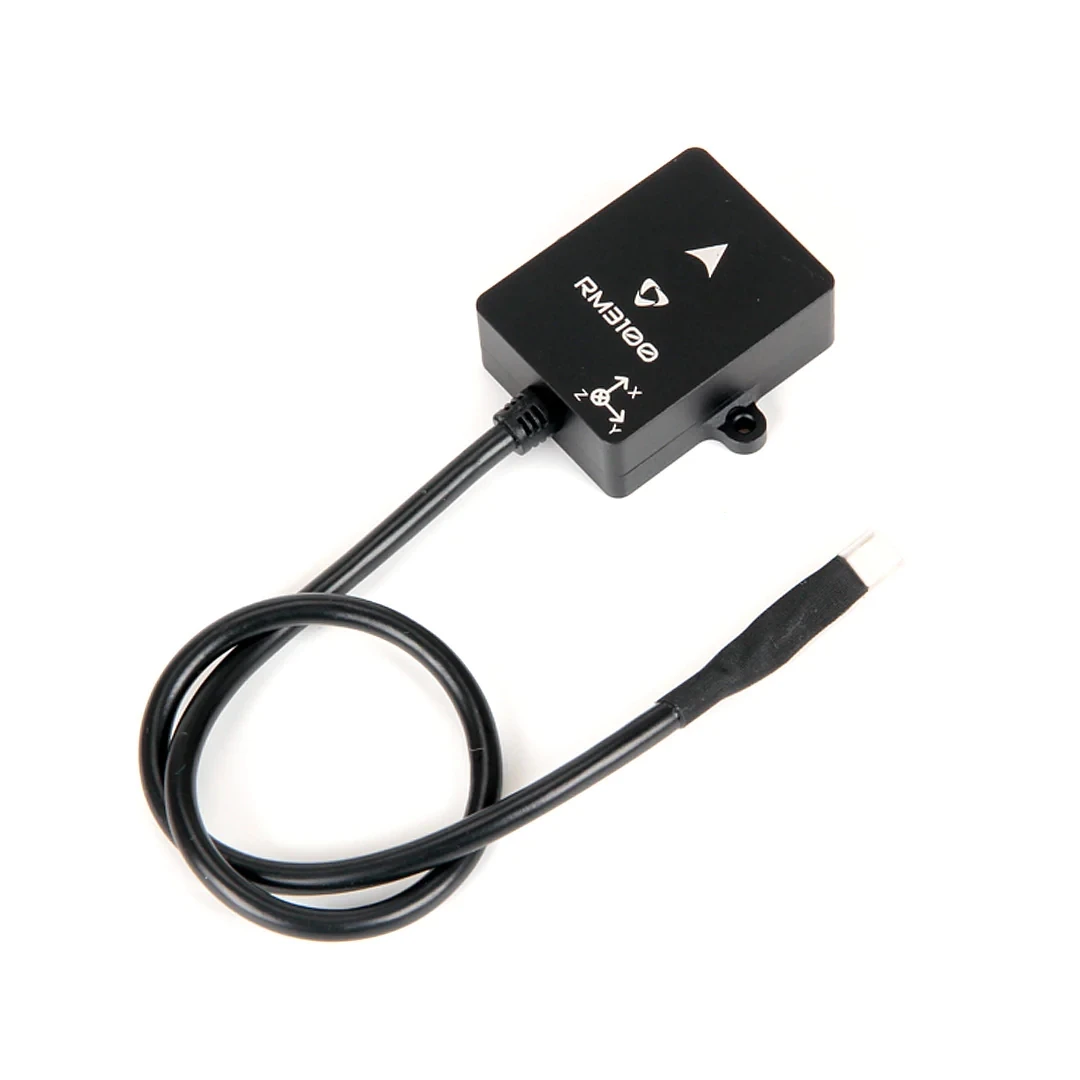

Model Number: DroneCAN RM3100 Compass

Four-wheel Drive Attributes: Assemblage

Wheelbase: Bottom Plate

Description:

This professional-grade RM3100 compass/magnetometer has impeccable signal-to-noise ratios, no drift, and precise magnetic field measurements. It can provide professional-grade heading accuracy and orientation calculations for your vehicle. With this compass, your vehicle can navigate through waypoints with little magnetic disturbance due to motor coils and metal parts. You can achieve the best result by placing this module far away from motor coils and other metal parts, getting rid of one of the largest points of failure on your unmanned vehicle.

This 3-axis magnetometer, based on PNI's proprietary magneto-inductive technology, delivers high-performance resolution and repeatability. It has a very high level of resolution (10 nT) and ultra-low magnetic hysteresis, making it perfect for applications that require high heading accuracy.

With its DroneCAN output protocol, it can deliver robust and reliable connectivity over relatively large distances, and wiring is less complicated as you can have a single bus for connecting all your DroneCAN peripherals. It also does not occupy any serial ports on the flight controller.

Specification

Parameter	Cycle Counts			Units
	50	100	200
Field Measurement Range	-800 to +800			μT
Gain	20	38	75	LSB/μT
Sensitivity	50	26	13	nT
Noise	30	20	15	nT
Max Single-Axis Sample Rate (Divide by 3 for Max. 3-Axis Sample Rate)	1600	850	440	Hz
Operating Temperature	-40 to +85			C

Output connector: 4pin JST-GH1.25

Mounting Orientation :

Package Includes:

1x  DroneCAN RM3100 Compass
