HolyBro H-RTK F9P Ultralight — RTK GNSS Module, u-blox ZED-F9P, IST8310 Compass, Integrated Helical Antenna, 21.4g, 1cm RTK Accuracy, for Pixhawk Series & UAV Autopilots
The HolyBro H-RTK F9P Ultralight is a professional-grade, ultra-lightweight RTK GNSS module built around the u-blox ZED-F9P high-precision positioning engine. Designed specifically for weight-sensitive UAV applications, it integrates an IST8310 compass and a helical antenna in a single compact package weighing just 21.4 grams. Capable of tracking all four major GNSS constellations simultaneously — GPS, GLONASS, Galileo, and BDS — it delivers centimeter-level RTK accuracy (1cm+1ppm) when paired with correction data, making it ideal for precision mapping, inspection, and autonomous UAV operations.
Key Features
- u-blox ZED-F9P GNSS Engine — Industry-leading multi-band RTK positioning chipset with proven reliability in professional UAV deployments
- 1cm+1ppm RTK Accuracy — Horizontal centimeter-level accuracy for precision navigation, mapping, and autonomous missions
- Concurrent Multi-Constellation — Simultaneous GPS L1C/A L2C, GLONASS G1/G2, Galileo E1/E5b, BDS B1I/B2I, QZSS, and SBAS reception

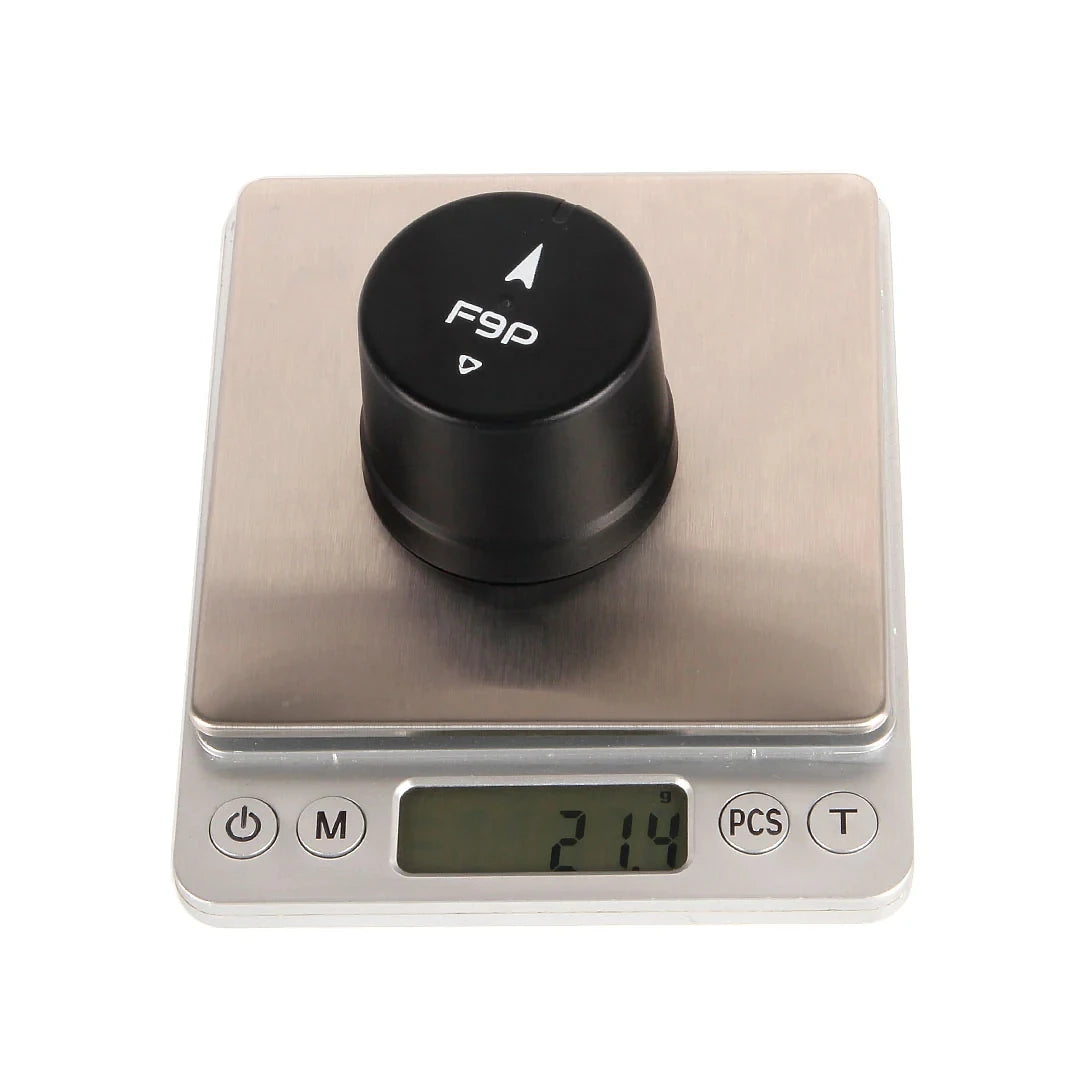

- Ultra-Lightweight at 21.4g — Optimized for weight-critical aircraft where every gram impacts flight time and payload capacity
- Integrated Helical Antenna — High-performance, compact helical antenna built in for minimal installation complexity
- IST8310 Compass — Integrated 3-axis magnetometer for precise heading reference
- Dual UART Interface — UART1 for GNSS data output; UART2 dedicated for RTCM3 correction input
- I2C Interface — For compass data output to autopilot
- 10Hz Navigation Update Rate — High-frequency position updates for responsive autopilot control (higher rates available on request)

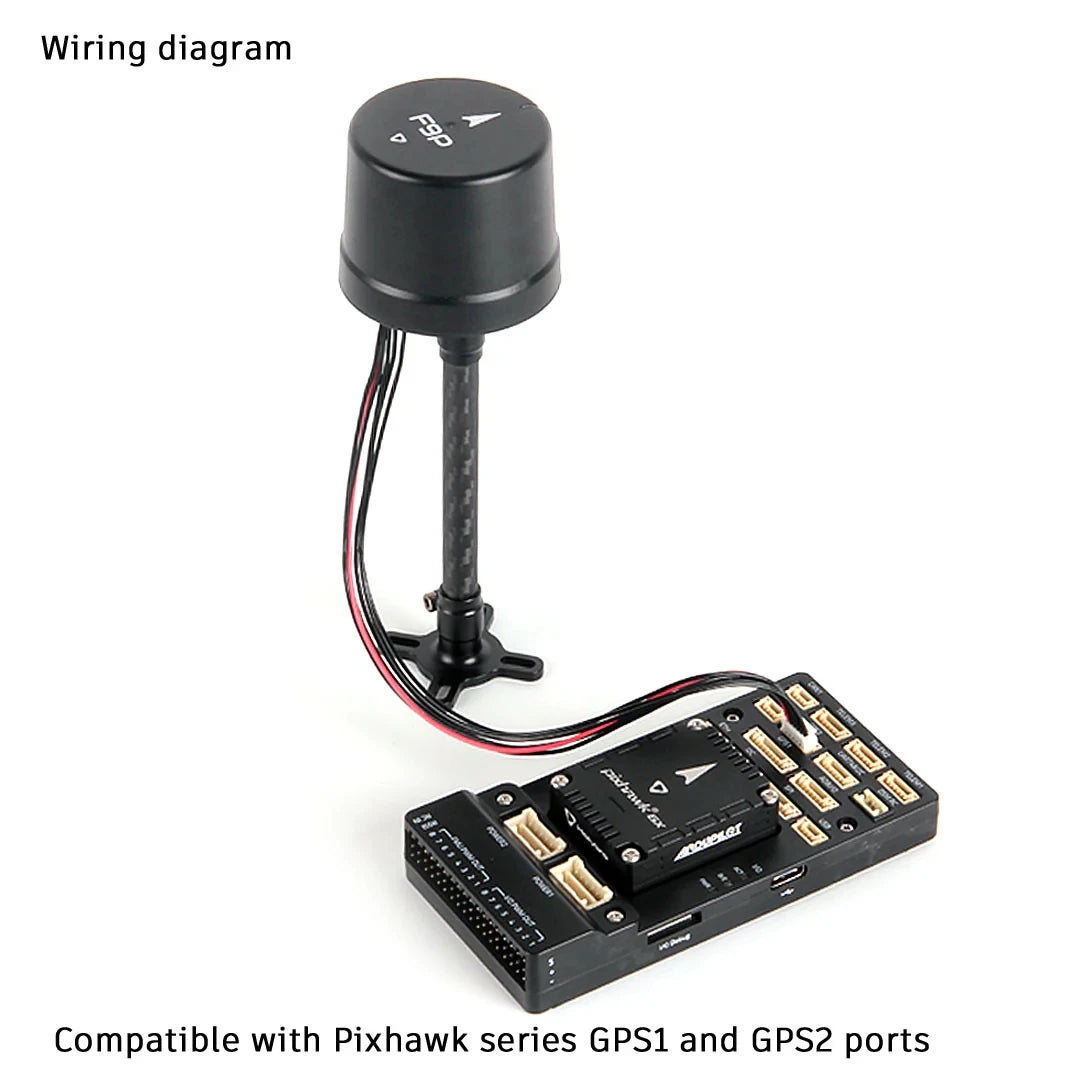

- Plug-and-Play with Pixhawk Series — Compatible with Pixhawk 4, 5X, 6X, Cube, and all ArduPilot/PX4-based autopilots via standard GH connectors
- Interference Suppression — Reliable positioning even in difficult RF environments
Technical Specifications
- GNSS Module: u-blox ZED-F9P
- Compass: IST8310
- Weight: 21.4g
- Application: Rover (Aircraft)
- Constellations: GPS L1C/A L2C • GLONASS G1/G2 • Galileo E1/E5b • BDS B1I/B2I • QZSS • SBAS
- RTK Accuracy: 1cm + 1ppm (Horizontal)
- Autonomous Accuracy: 2.0m CEP
- DGNSS Accuracy: 0.5m CEP
- Sensitivity (Tracking): -163dBm
- Sensitivity (Reacquisition): -147dBm
- Time-To-First-Fix: Cold Start ≤35s • Warm Start 20s • Hot Start 1s
- Velocity Accuracy: GNSS 0.1m/s • D-GNSS 0.05m/s
- Timing Accuracy: 30ns RMS
- Max Navigation Update Rate: 10Hz
- Baud Rate: 38400–230400 bps (Default: 115200 bps)
- Operational Limits: ≤4g dynamics • 18,000m altitude • 515m/s velocity
- Interface: UART ×2 (UART2 dedicated RTCM3), I2C

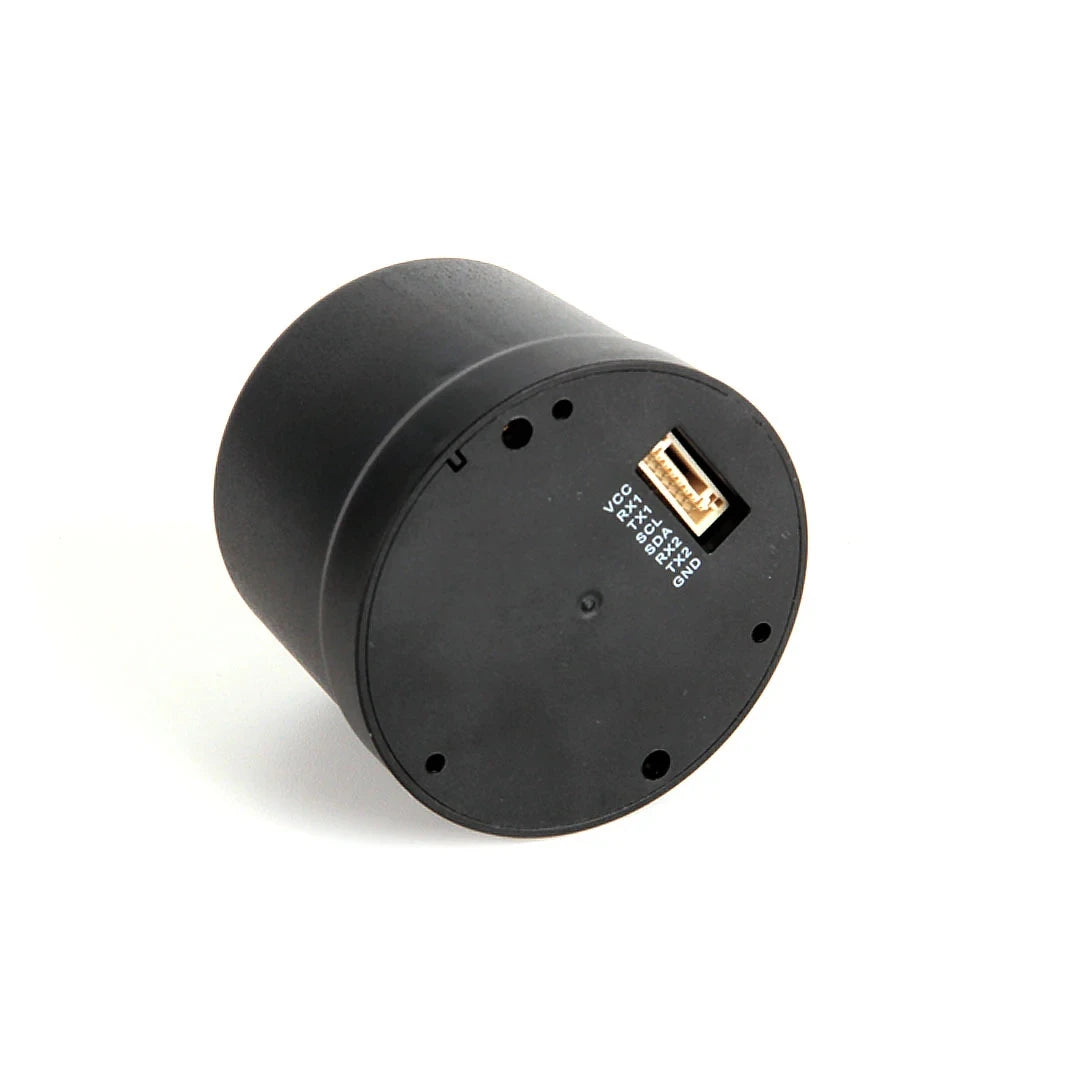

Pin Map
- 1 — VCC: Main supply
- 2 — RX1: GPS RX1 (UART1 input)
- 3 — TX1: GPS TX1 (UART1 output)
- 4 — SCL: I2C Clock (leave open if unused)
- 5 — SDA: I2C Data (leave open if unused)
- 6 — RX2: UART2 — dedicated for RTCM3 corrections input
- 7 — TX2: NC
- 8 — GND: Ground
Compatible Autopilots
- Pixhawk 4, 5X, 6X, 6C
- Cube Orange, Cube Blue, CubeOrange+
- All ArduPilot and PX4-based flight controllers
- Any autopilot with standard GH GNSS connector

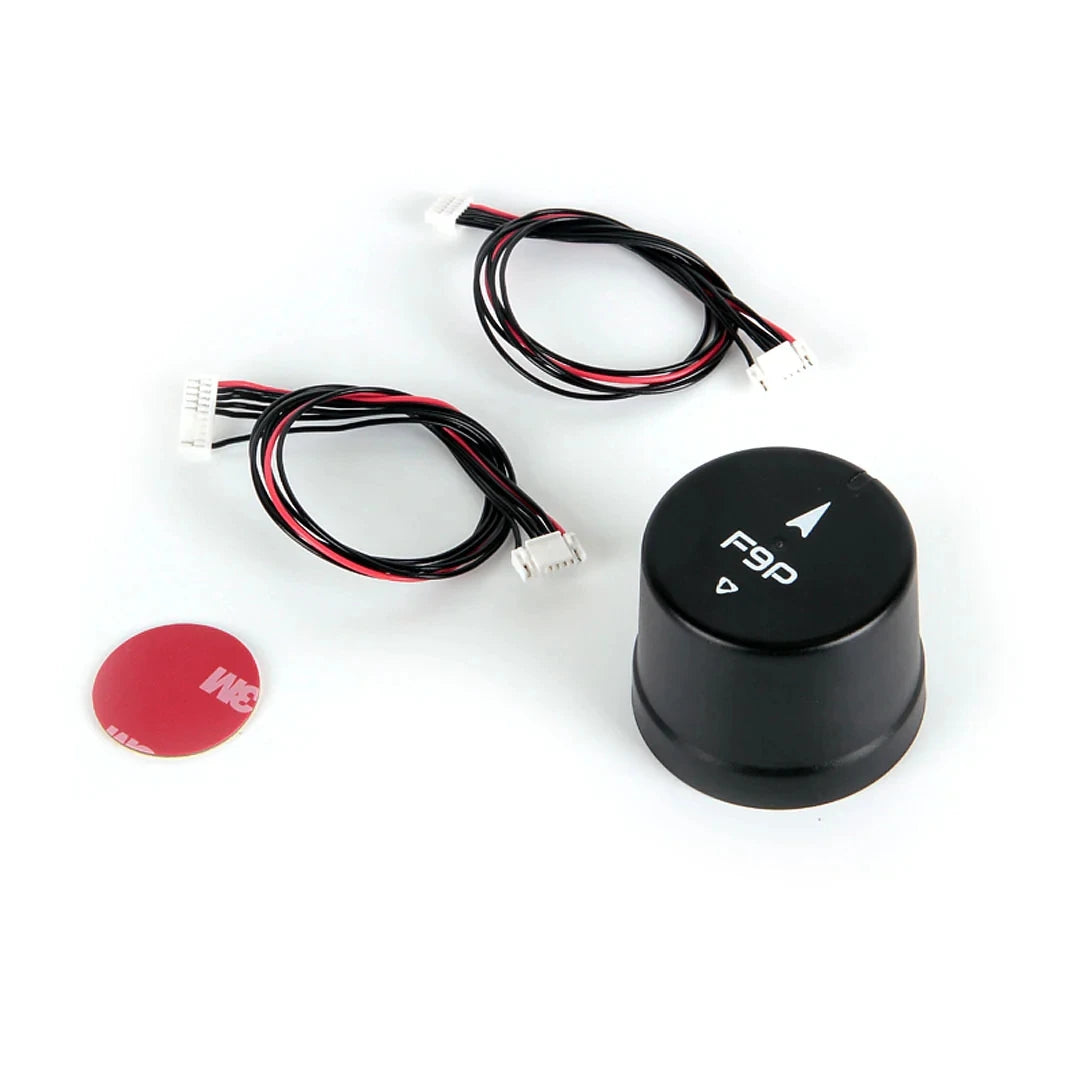

What’s in the Box
- 1× HolyBro H-RTK F9P Ultralight Module
- 1× GH 10P Cable, 200mm
- 1× GH 6P Cable, 200mm
Perfect For
- Precision mapping and photogrammetry UAVs requiring centimeter-level GNSS accuracy
- Inspection and survey drones where weight and accuracy are critical
- Autonomous VTOL and fixed-wing platforms needing reliable RTK positioning
- Research and enterprise UAV deployments with ArduPilot or PX4 autopilots
