Holybro Kakute G4 AIO FC w/ 35A ESC (AM32)
Holybro Kakute G4 AIO FC w/ 35A ESC (AM32)
Holybro Kakute G4 AIO FC w/ 35A ESC (AM32)
Holybro Kakute G4 AIO FC w/ 35A ESC (AM32)
Holybro Kakute G4 AIO FC w/ 35A ESC (AM32)

Holybro Kakute G4 AIO FC w/ 35A ESC (AM32)

Regular price $249.99 Sale price$149.99 Save 40%
/
Shipping calculated at checkout.
Was $249.99 Save $100.00 (40%)

Default Title
  • Free US shipping on orders $100+
  • In stock, ready to ship
  • Backordered, shipping soon
👑 Join Elite Members & Save 15%
Get this item for $127.49 (save $22.5) plus FREE shipping with Elite membership
View Membership Benefits →
PayPal Shop Pay VISA Mastercard Amex Discover
PayPal Buyer Protection covers your purchase — shop with confidence
🚚 FREE shipping when you spend $100+. Combine with accessories to unlock it!
Pay

PayPal Secure Checkout

Use your preferred credit or debit card — no PayPal account needed

VISA MASTERCARD AMEX DISCOVER

Save 10% at Checkout

Use code SAVE10 for 10% off your order

  • Secure Checkout
  • 30-Day Defect/Damage Returns
  • Fast & Reliable Shipping

    PINMAP



    Includes:

    • 1X KAKUTE G4 AIO 35A
    • 1x Capacitor 35V 470µF
    • 2X 6 Pin SH1.0- 8 Pin GHR1.25  Cable (DJI VTx)
    • 1X 6 Pin SH1.0 Cable

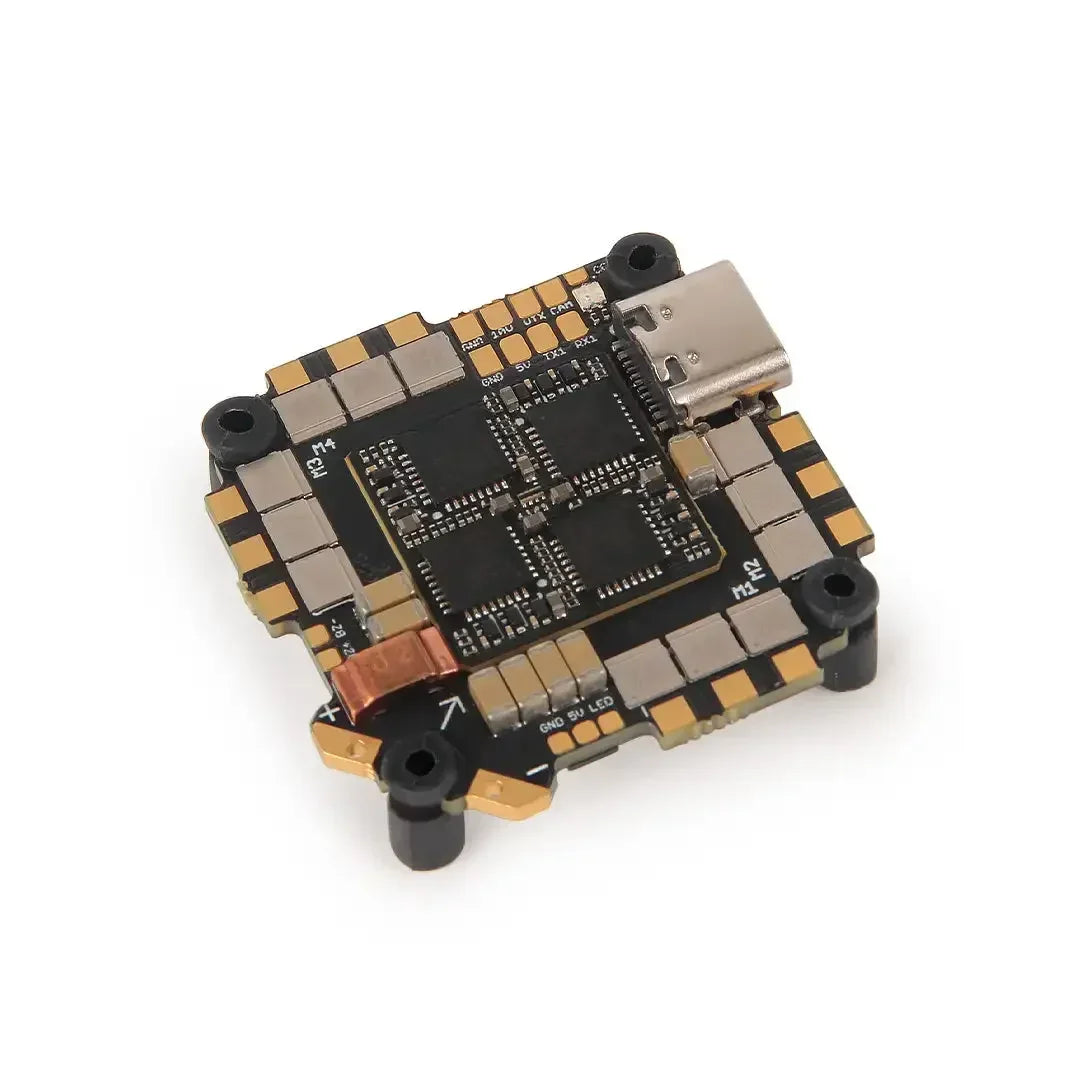

    • 4X M2 Anti-Vibration Silicone Grommet Insert





    SPECIFICATIONS

    Brand Name: HGLRC

    For Vehicle Type: Helicopters

    Hign-concerned Chemical: None

    Is Electric: No battery

    Material: Composite Material

    Model Number: Kakute G4 AIO 35A

    Origin: Mainland China

    Recommend Age: 14+y

    Use: Vehicles & Remote Control Toys

    Description:

    The Holybro Kakute G4 AIO FC w/ 35A ESC is a powerful and compact fight controller + 4in1 ESC All-in-One board that is plug and play with digital systems such as the O3 at full power. It also works with analog systems due to the onboard OSD chip. The FC on this AIO uses a G4 processor, and the 4in1 ESC uses four F4 processors running AM32 firmware.

    It has STM32G4 MCUs, ICM-42688p gyro, 5V & 10V BEC, 16MB of flash storage, DSP310 baro, plug & play port for digital VTX, and 35A 4in1 ESC, all in a small form factor weighing only 7.5g.

    It also comes in a super-hydrophobic nano-waterproof coating. This coating allows air to pass through while avoiding water, giving extra protection from moisture and other elements.

    Features

    • AIO board with G4 Processor FC & F4 ESC
    • 35A ESC running AM32 firmware, capable of up to 6S
    • 10V/2.5A BEC for O3 Air Unit
    • Digital VTX port
    • Superhydrophobic Nano Coating

    Specifications:

    Flight Controller

    • MCU: STM32G473
    • Gyro: ICM42688
    • Baro: DPS310
    • BEC
      • 5V/3A
      • 10V/2.5A
    • Blackbox: 128Mbit (16MB) Flash
    • OSD: AT7456
    • UART: 5 total

    4in1 ESC:

      • AM32 firmware with F4 MCU
        • Open Source firmware
        • Firmware upgradable via Betaflight passthrough (make sure your Betaflight firmware is up to date when you try to use passthrough)
        • Article explaining AM32 by Oscar Liang
      • Input Voltage: 2S-6S
        • For input voltage below 4S, 10V BEC output cannot be used
        • For input voltage below 3S, both the 10V & 5V BEC output cannot be used
        • PWM Frequency 8k to 48k
        • Supports
          • DShot 150/300/600/1200
          • MultiShot/OneShot/Proshot/PWM etc.
          • ESC telemetry
        • Onboard analog current sensor
        • Metal MOSFETs for better heat dissipation

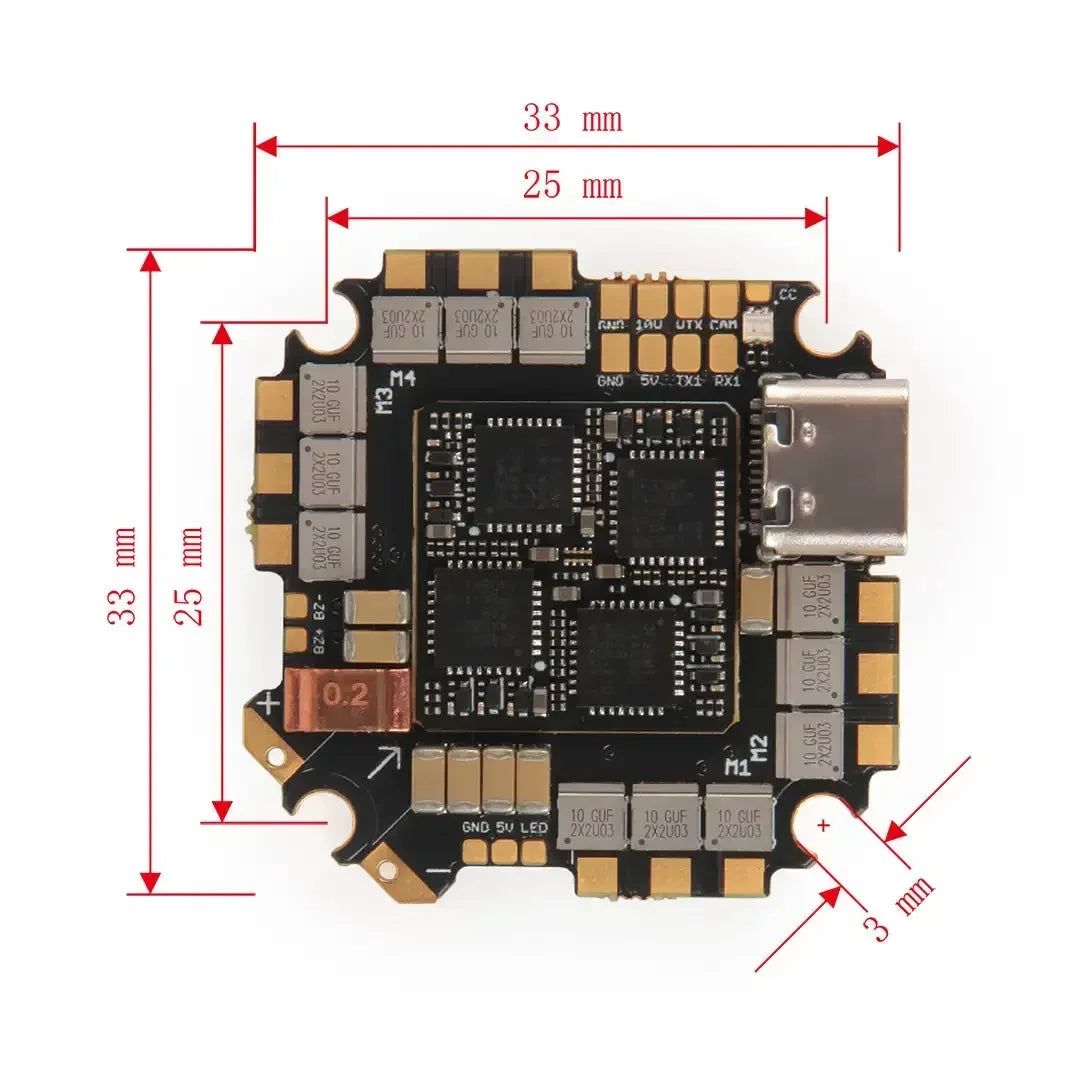

        Mechanical Specification

          • Mounting - 25 x 25mm/Φ3mm hole with Φ2mm Grommets
          • Dimension - 33x33mm

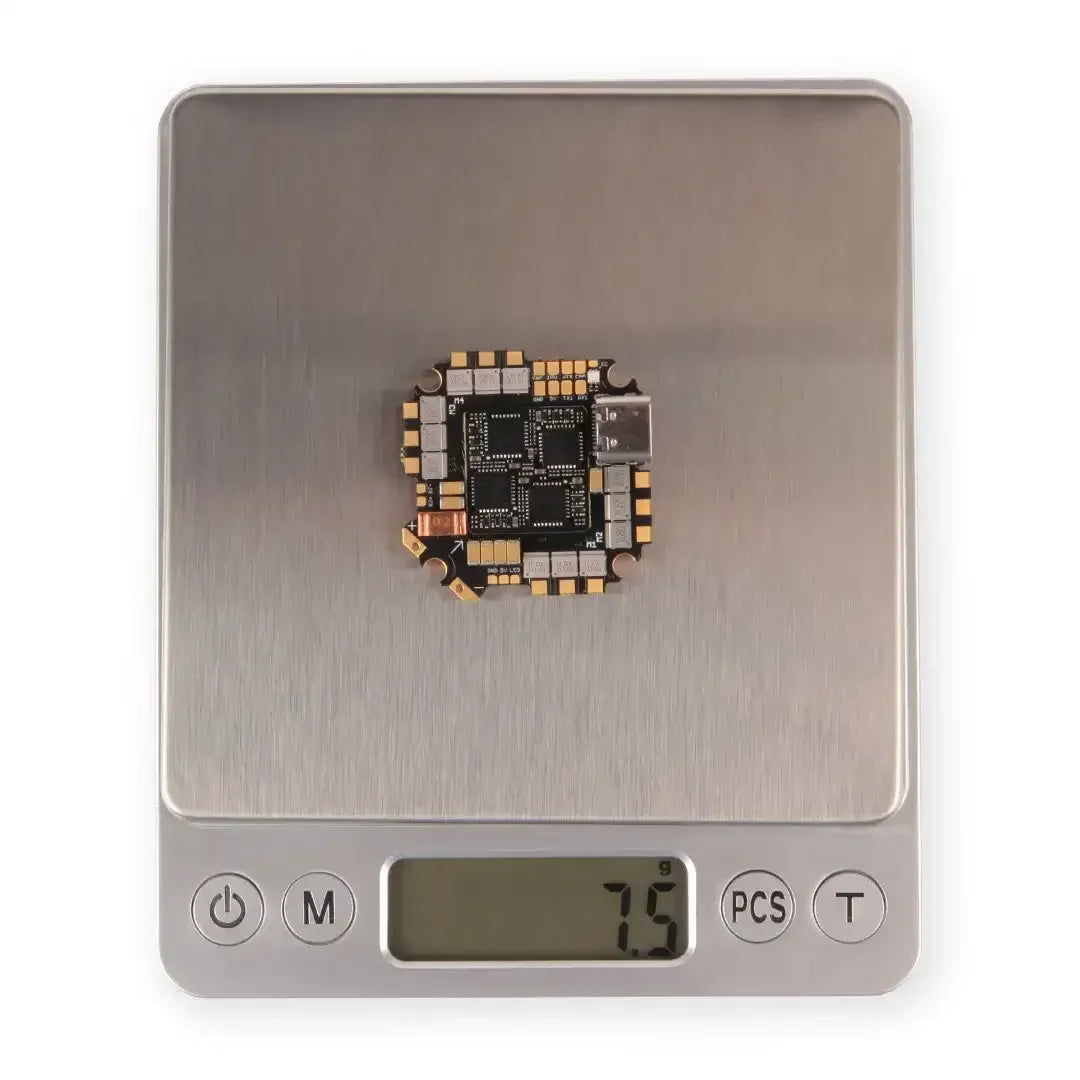

          • Weight - 7.5g
