Holybro Pixhawk 6X Pro Autopilot — Industrial-Grade Flight Controller
The Holybro Pixhawk 6X Pro is Holybro’s most advanced Pixhawk autopilot, engineered for demanding industrial and commercial UAV applications. Built around the STM32H753 processor with a triple redundant IMU including the ADIS16470 industrial-grade IMU (±40g), dual redundant barometers, Ethernet connectivity, and an NXP EdgeLock SE050 hardware secure element, the Pixhawk 6X Pro delivers the reliability, sensor redundancy, and connectivity required for professional UAV platforms. Available in Standard, Mini, and FC Module Only configurations.
Key Design Features
- ADIS16470 Industrial IMU — ±40g accelerometer dynamic range, vibration-isolated; ideal for high-vibration industrial UAV applications
- Triple Redundant IMU — ADIS16470 + IIM-42652 + ICM-45686 (BalancedGyro™) on separate buses for maximum fault tolerance
- Dual Redundant Barometers — ICP20100 + BMP388 on separate buses
- STM32H753 FMU Processor — 480MHz Cortex-M7, 2MB flash, 1MB RAM for high-performance autopilot computation
- Modular Architecture — Separated IMU, FMU, and base system; FC Module + baseboard required for operation
- Ethernet Interface — High-speed mission computer integration; transformerless with 50Ω termination
- NXP EdgeLock SE050 — Hardware secure element for cryptographic security
- Temperature-Controlled IMU Board — Maintains optimal IMU operating temperature for consistent sensor performance
- Advanced Vibration Isolation — Custom silicone-based isolation material with resonance frequency in the higher spectrum
- Independent LDO Power Rails — Each sensor powered independently with individual power control
- Hardware Switchable 3.3V / 5V Signal Mode — Flexible I/O compatibility (requires base board modification)
Variant Options

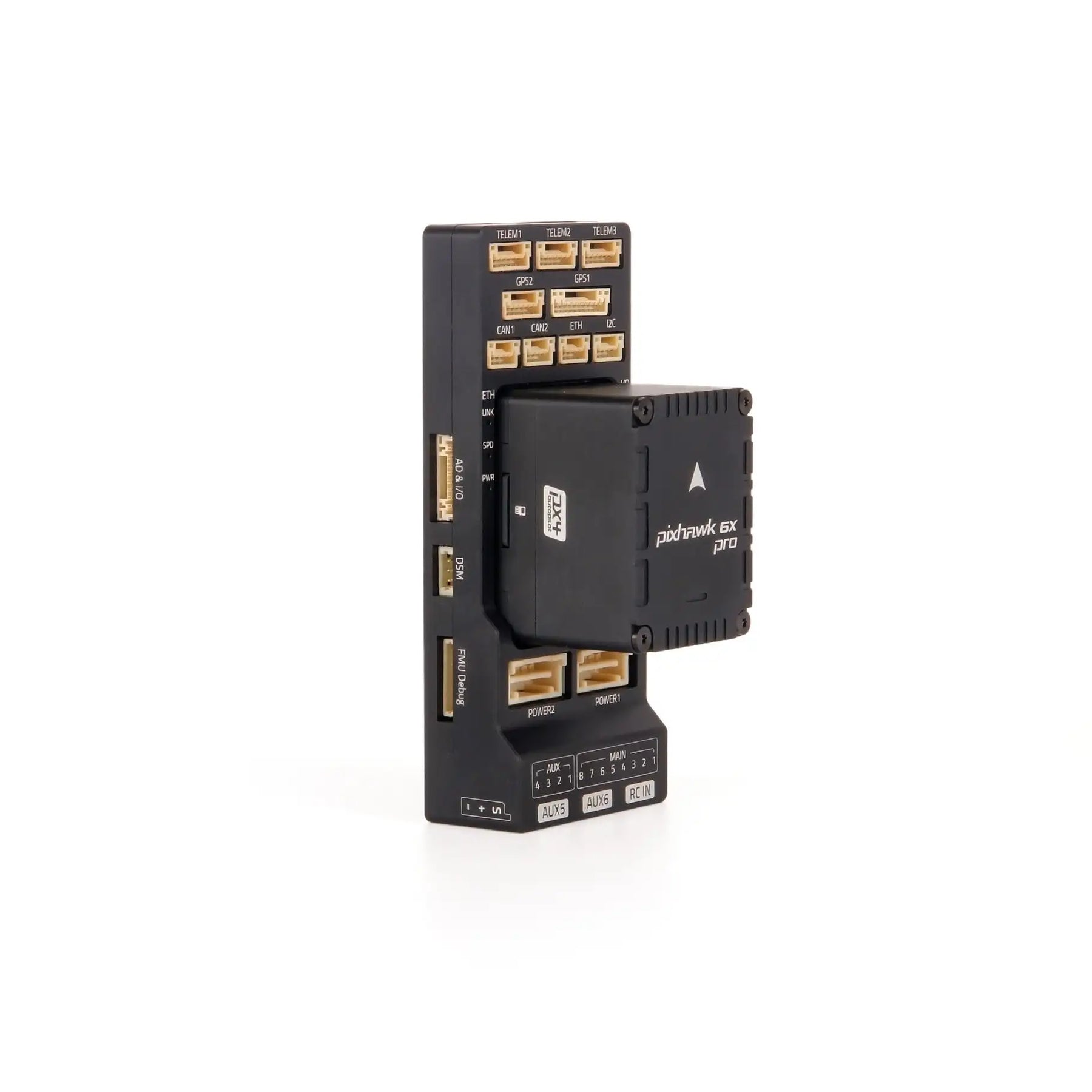

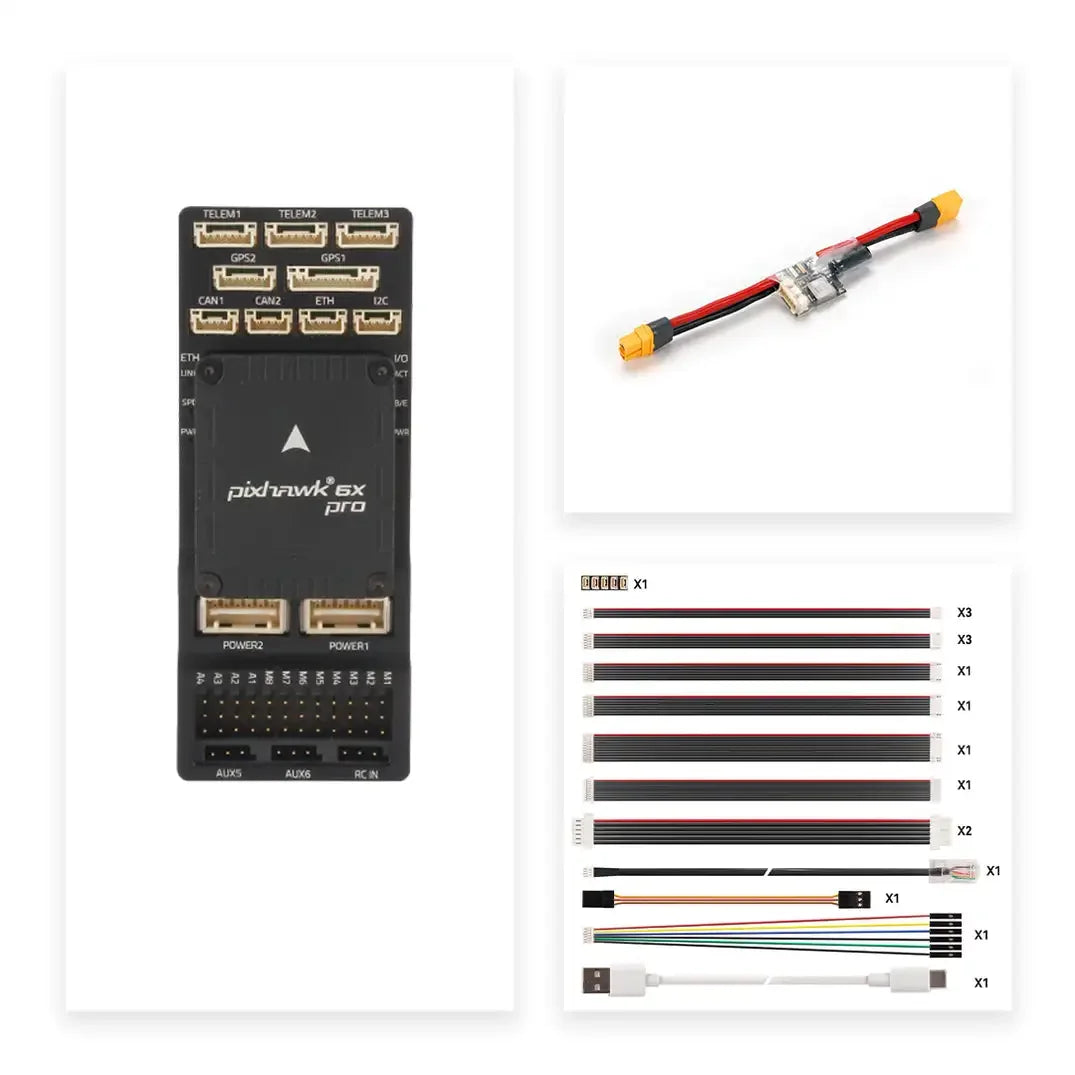

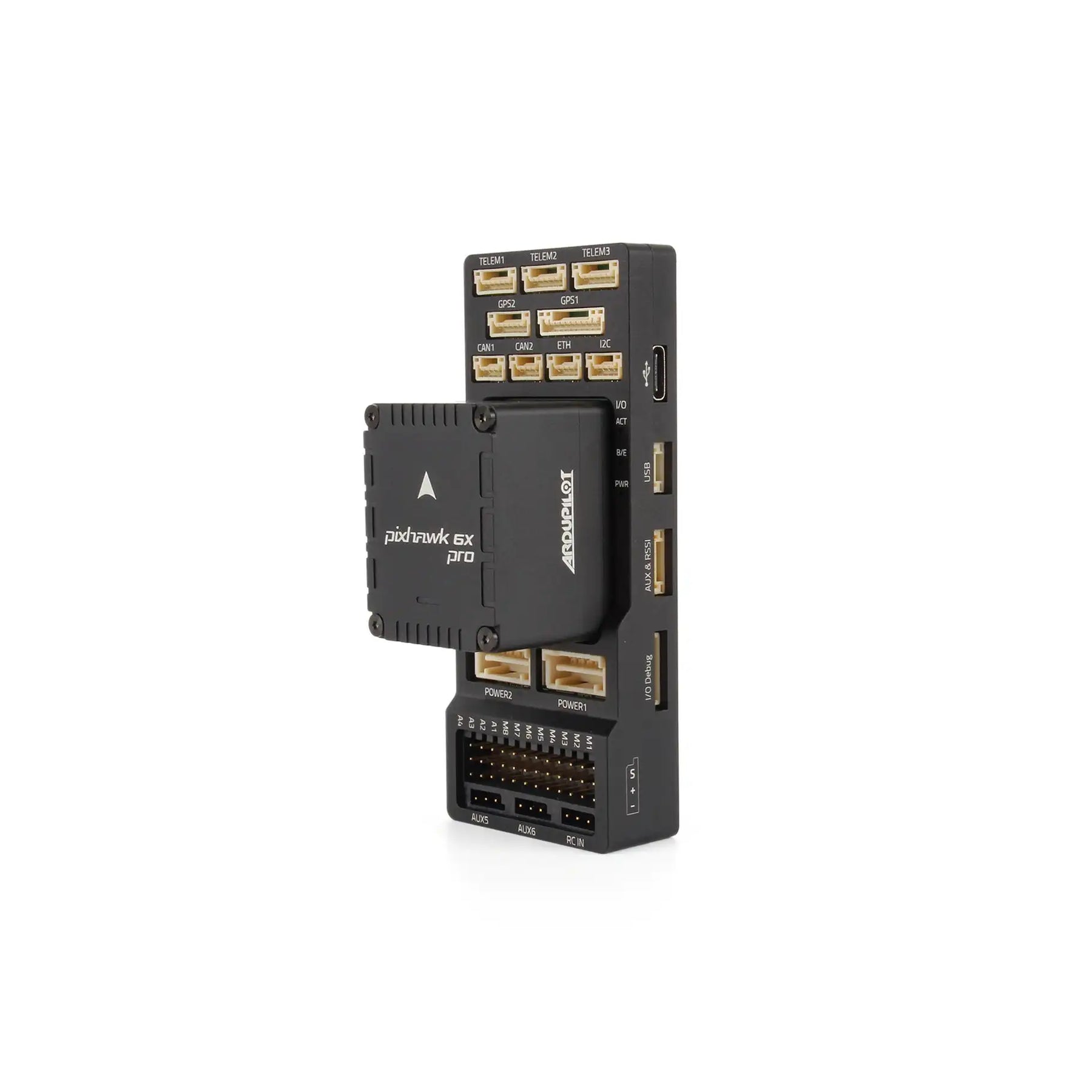

- Standard v2A — FC Module + Standard aluminum baseboard (52.4×102×16.7mm, 72.5g), configuration A
- Standard v2B — FC Module + Standard aluminum baseboard, configuration B

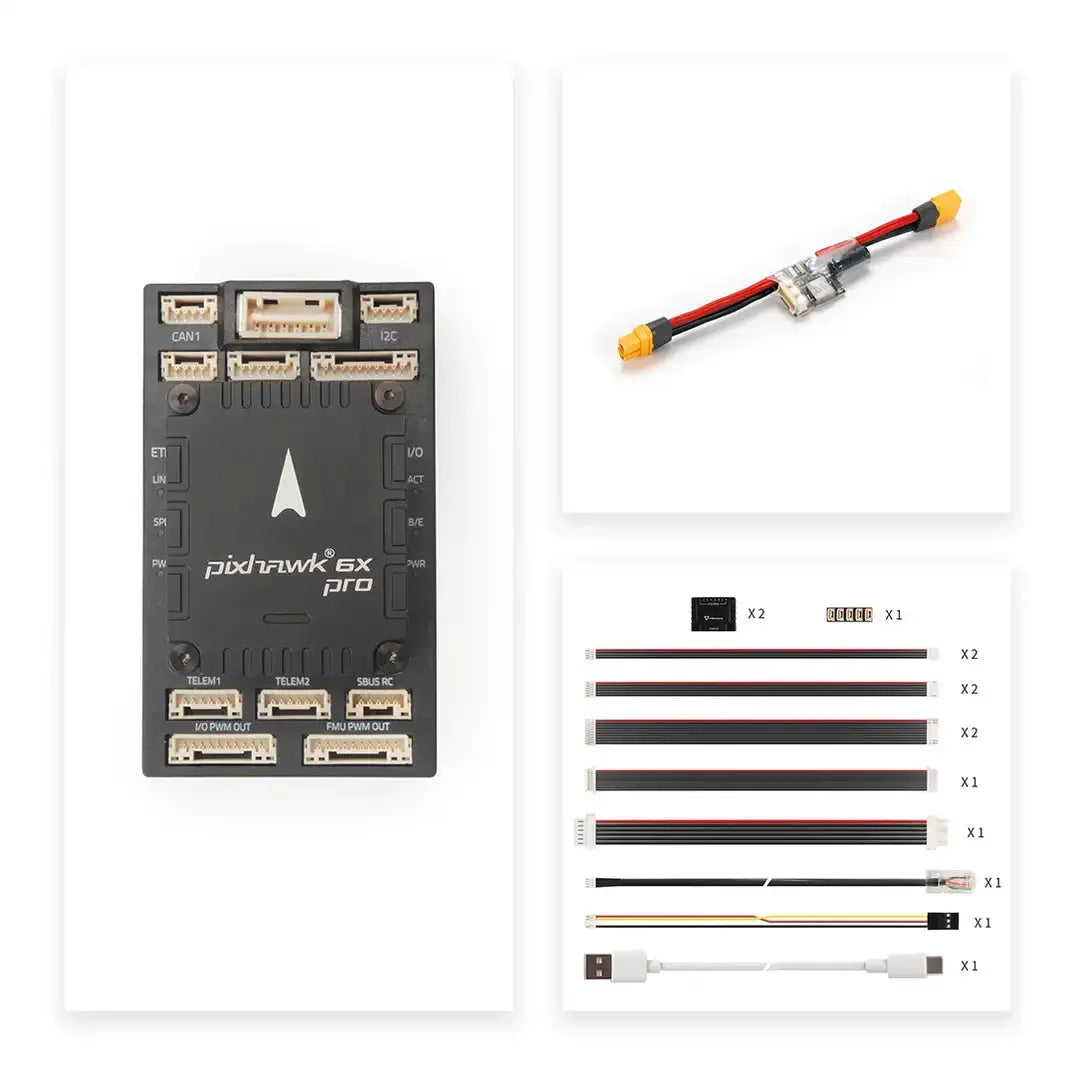

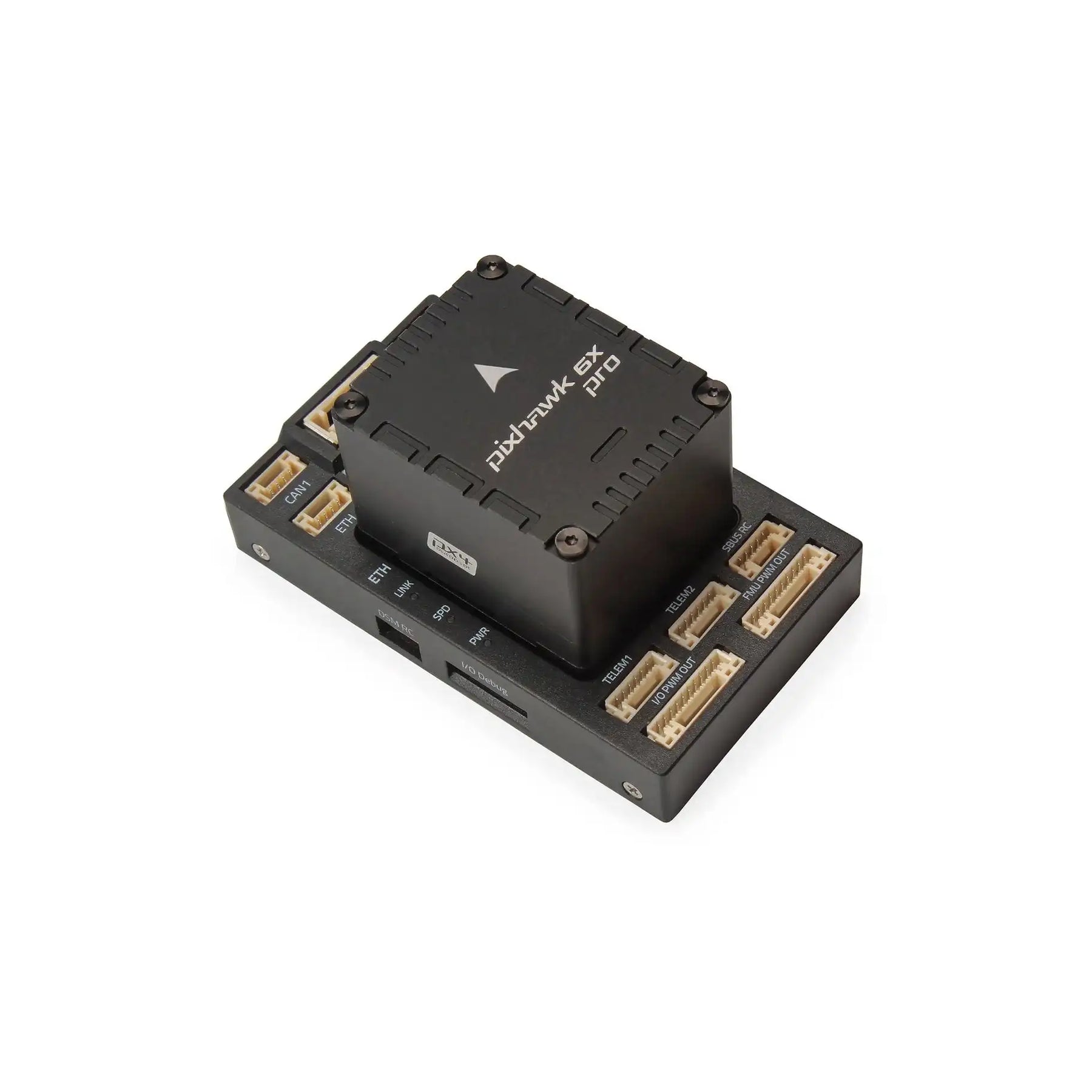

- Mini Set — FC Module + Mini baseboard (43.4×72.8×14.2mm, 26.5g) for compact builds

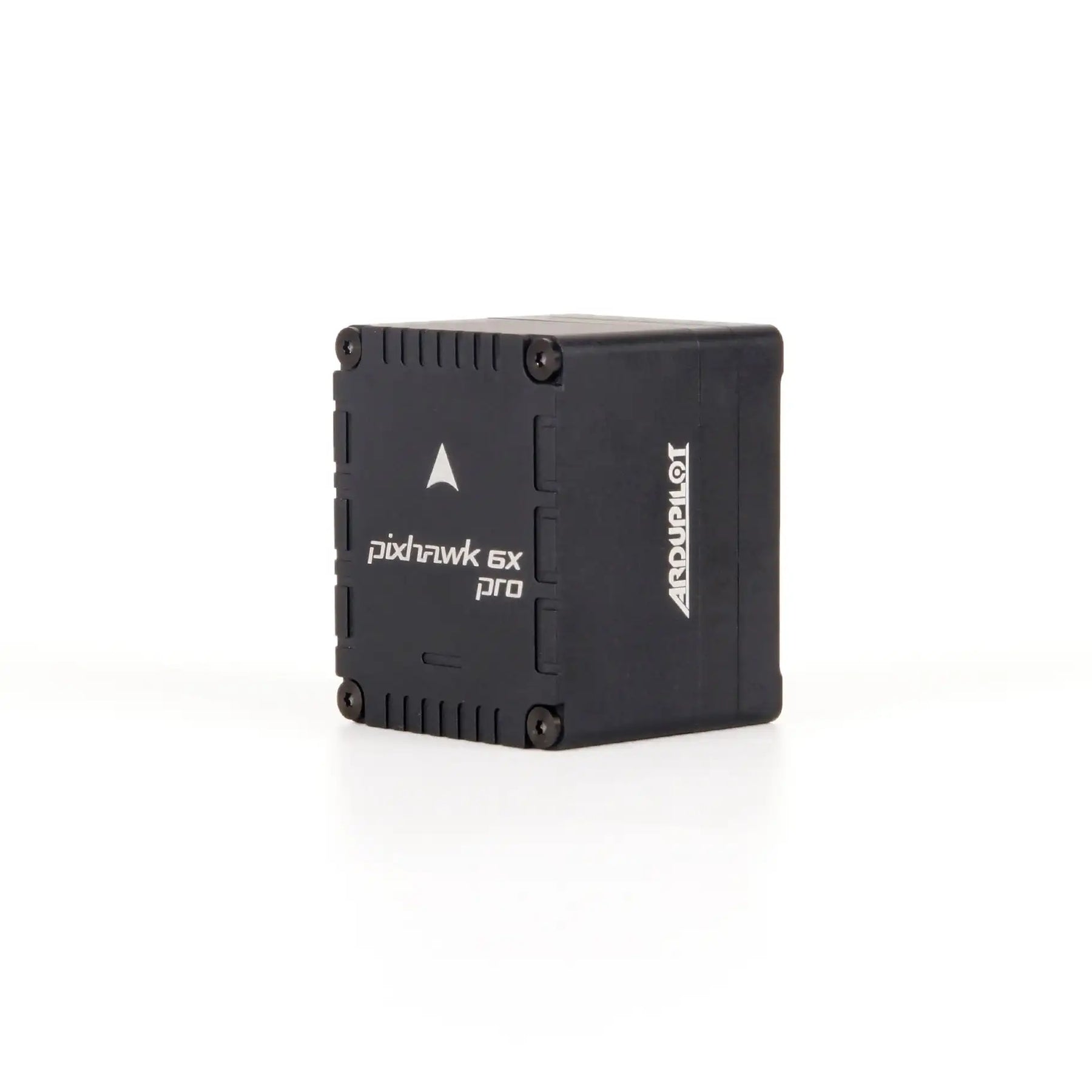

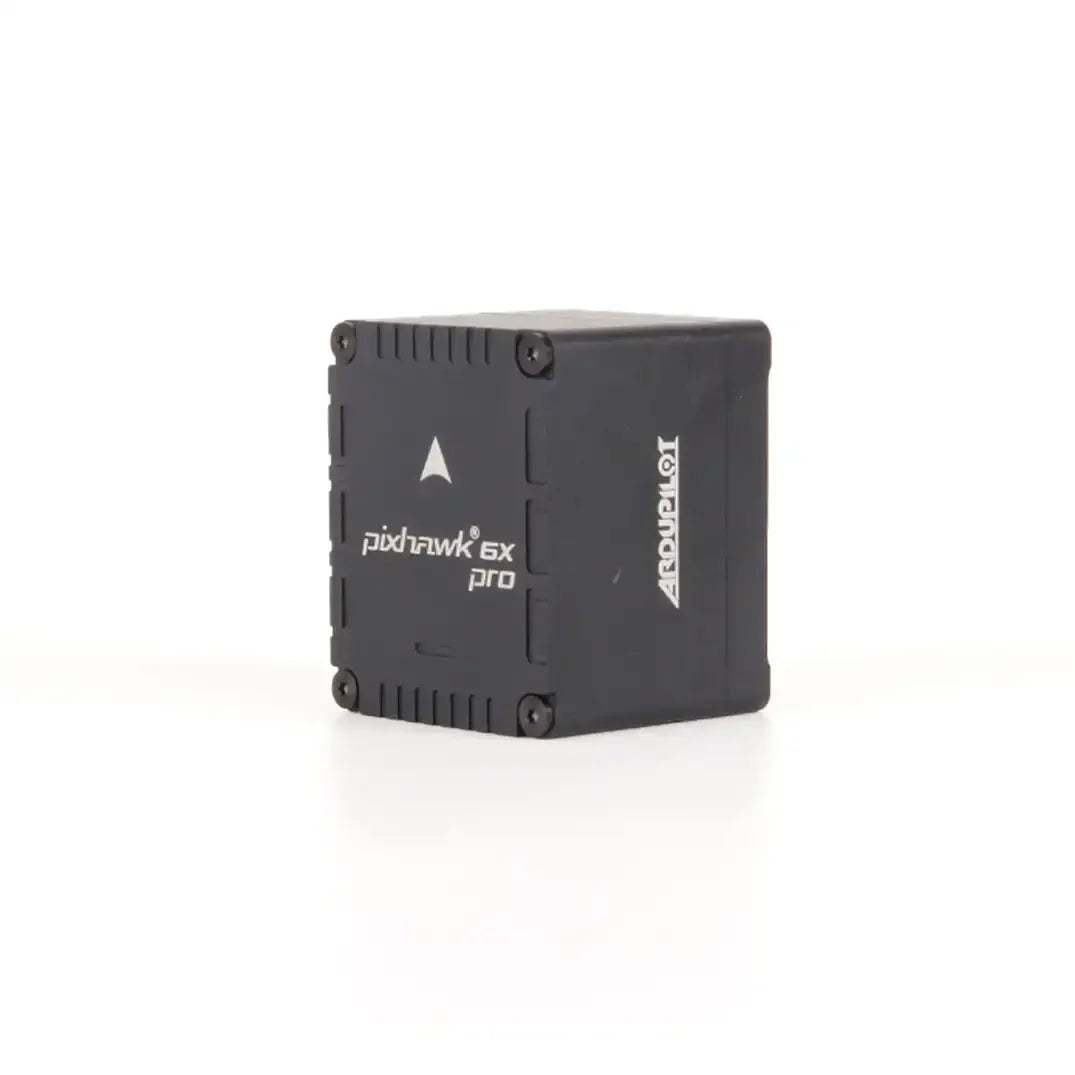

- FC Module Only — Flight controller module only (38.8×31.8×30.1mm, 50g); baseboard required separately
Specifications
- FMU Processor: STM32H753, 32-bit Cortex-M7, 480MHz, 2MB flash, 1MB RAM
- IO Processor: STM32F103, 32-bit Cortex-M3, 72MHz, 64KB SRAM
- IMU 1: ADIS16470 (±40g, vibration-isolated, industrial)
- IMU 2: IIM-42652 (±16g, vibration-isolated, industrial)
- IMU 3: ICM-45686 BalancedGyro™ (±32g, hard-mounted)
- Barometers: ICP20100 + BMP388
- Magnetometer: BMM150
- Secure Element: NXP EdgeLock SE050
- Max Input Voltage: 6V
- USB Power: 4.75–5.25V
- Servo Rail: 0–36V
- Operating Temperature: -25°C to +85°C
- FC Module Dimensions: 38.8×31.8×30.1mm, 50g
- Standard Baseboard: 52.4×102×16.7mm, 72.5g (aluminum)
- Mini Baseboard: 43.4×72.8×14.2mm, 26.5g
Perfect For
- Industrial and commercial UAV platforms requiring maximum sensor redundancy
- High-vibration environments where the ADIS16470 industrial IMU excels
- Mission-critical builds needing Ethernet-connected companion computers
- Developers building on PX4 or ArduPilot requiring a top-tier Pixhawk platform
Important Notes
- FC Module + a baseboard is required for operation — FC Module alone will not function
- Compatible with PX4 and ArduPilot firmware
- Recommended for ages 14+
