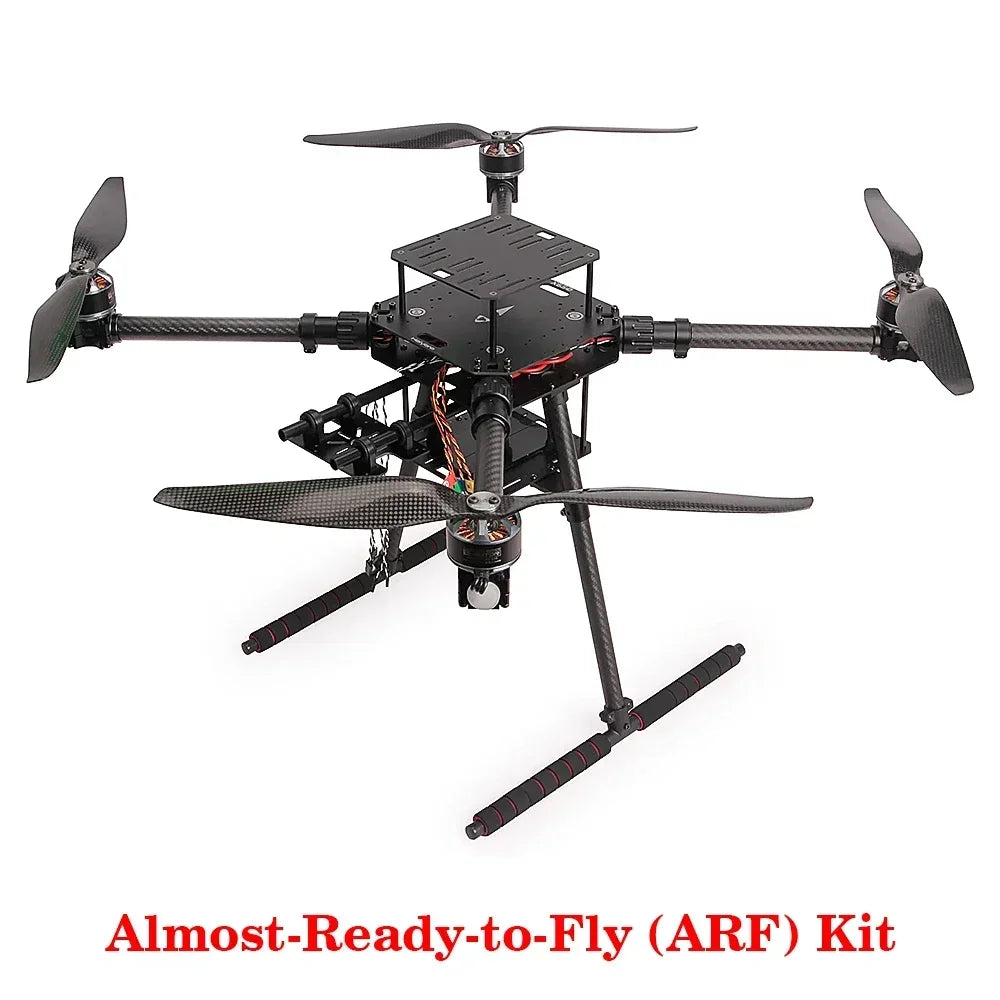

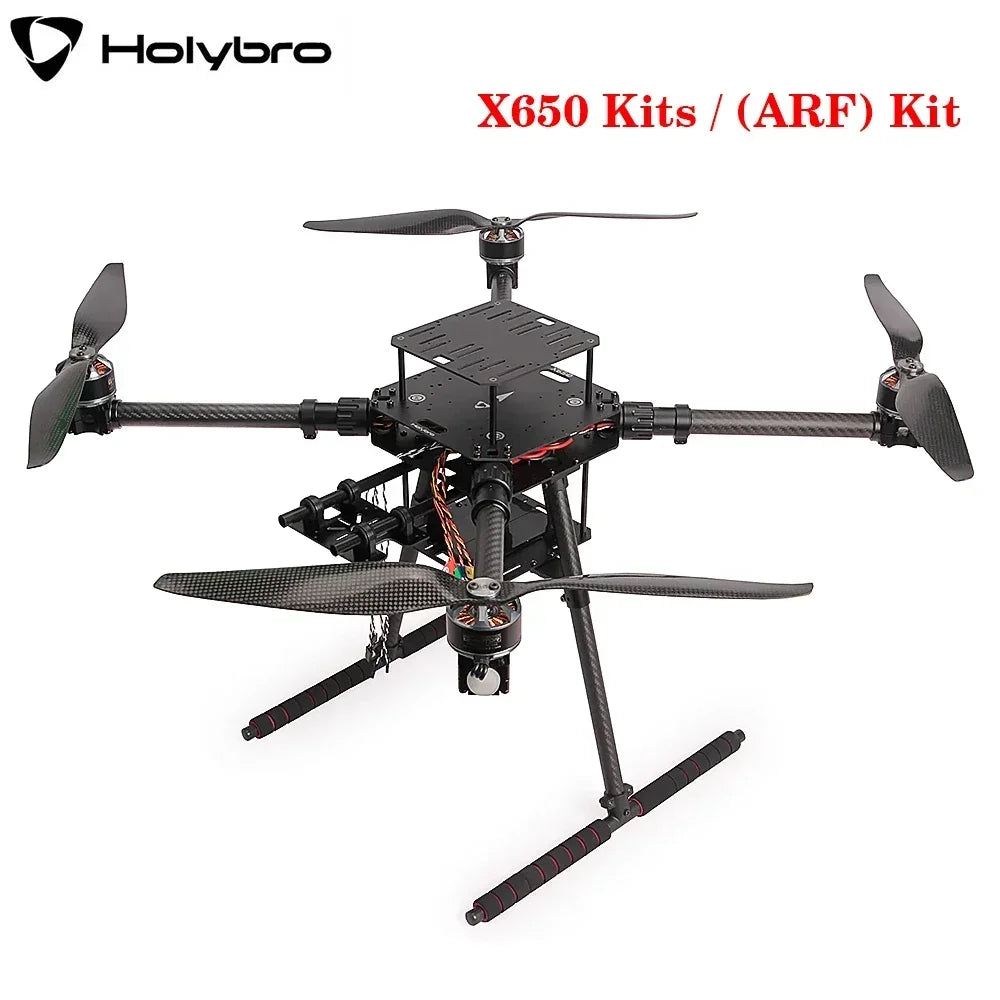

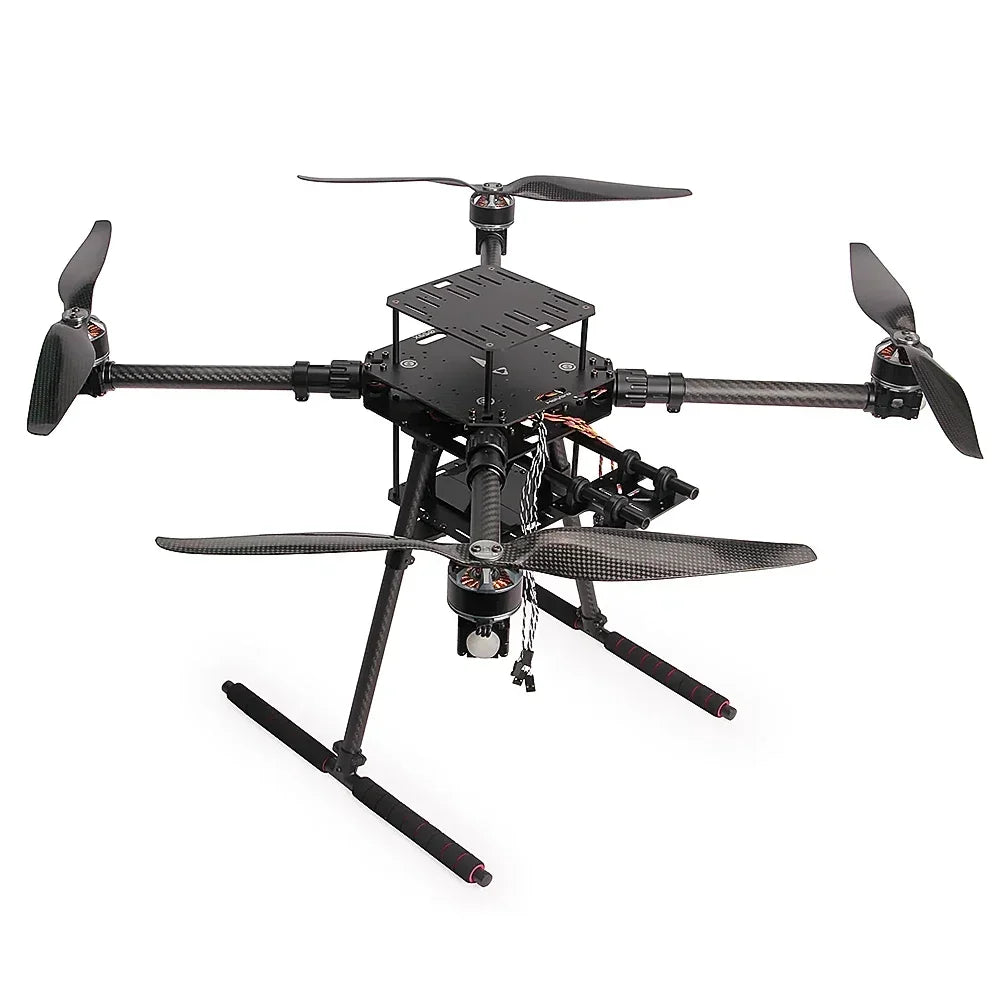

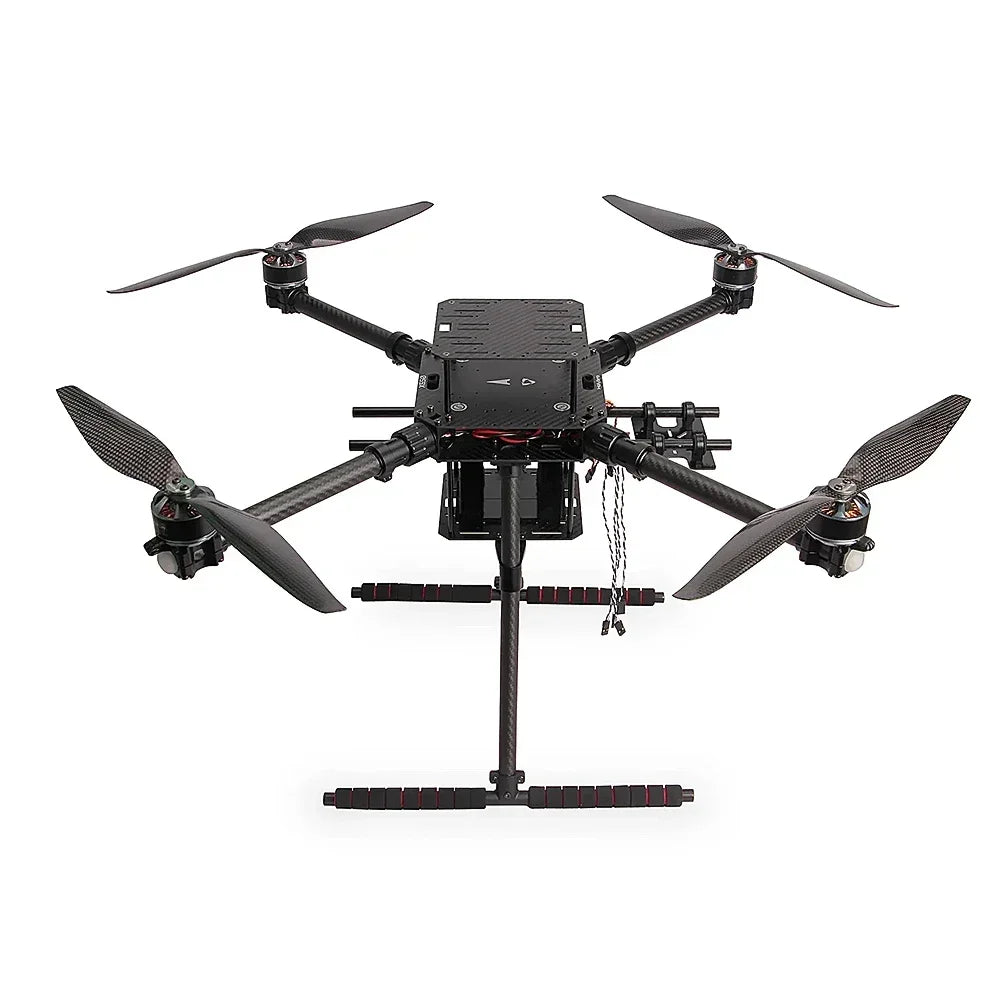

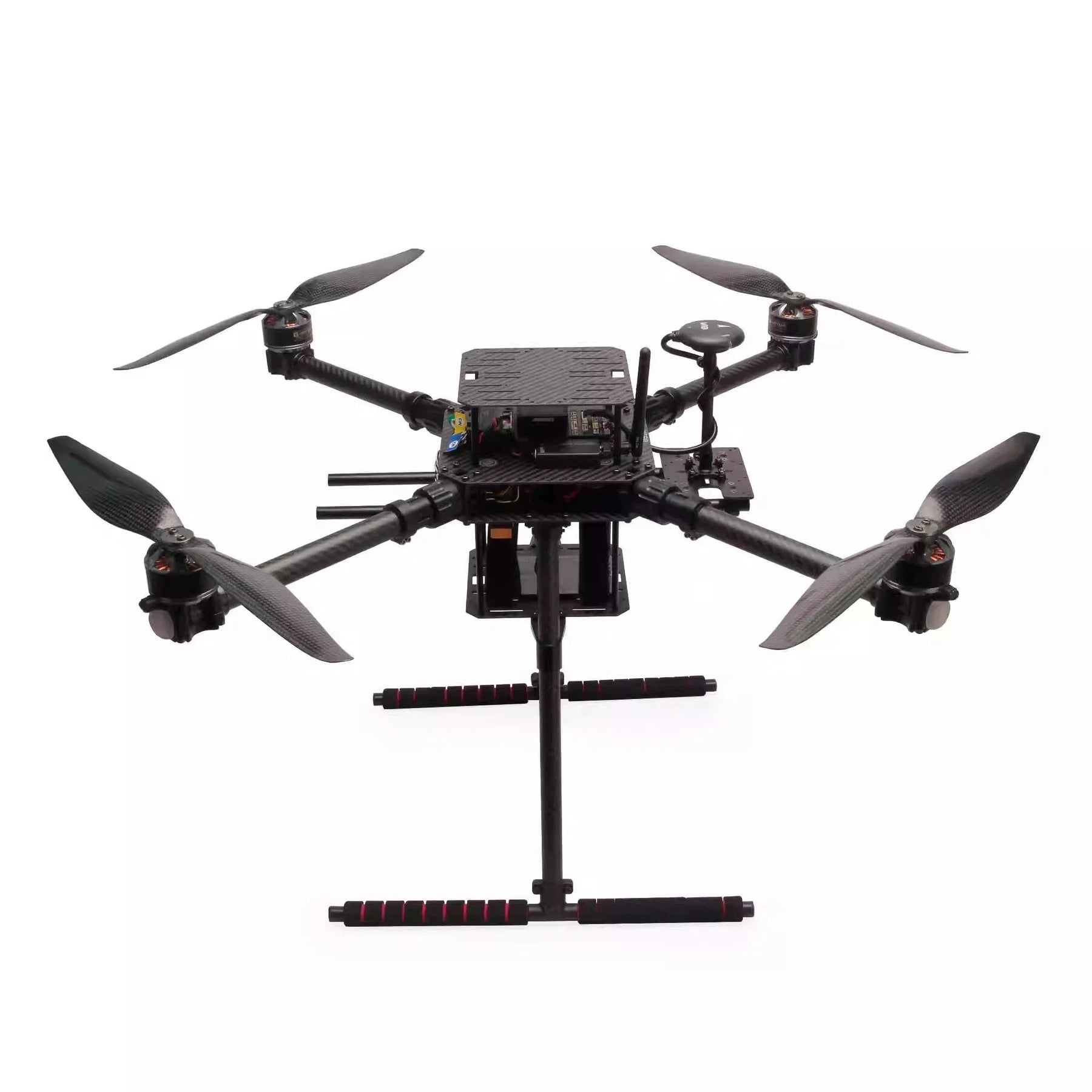

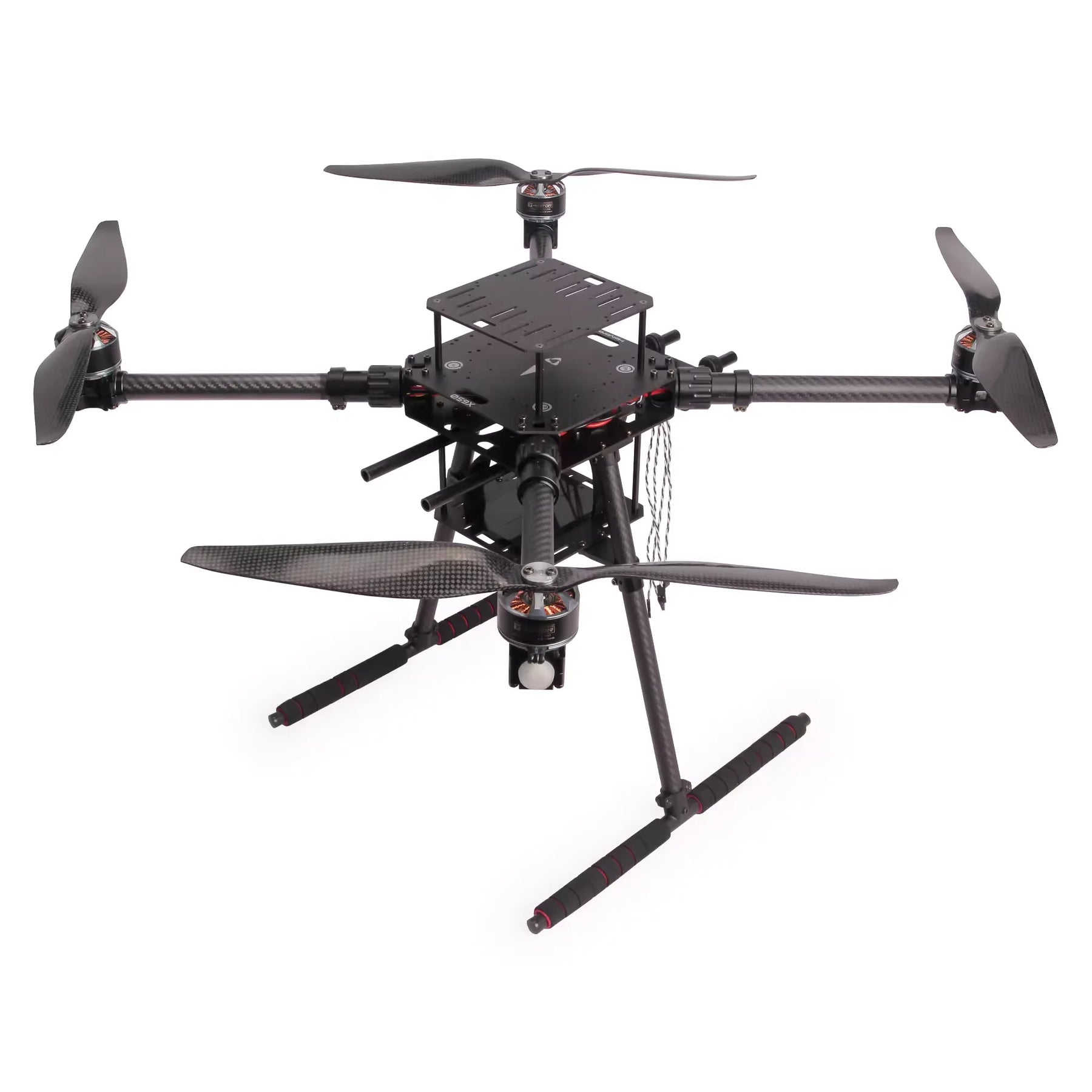

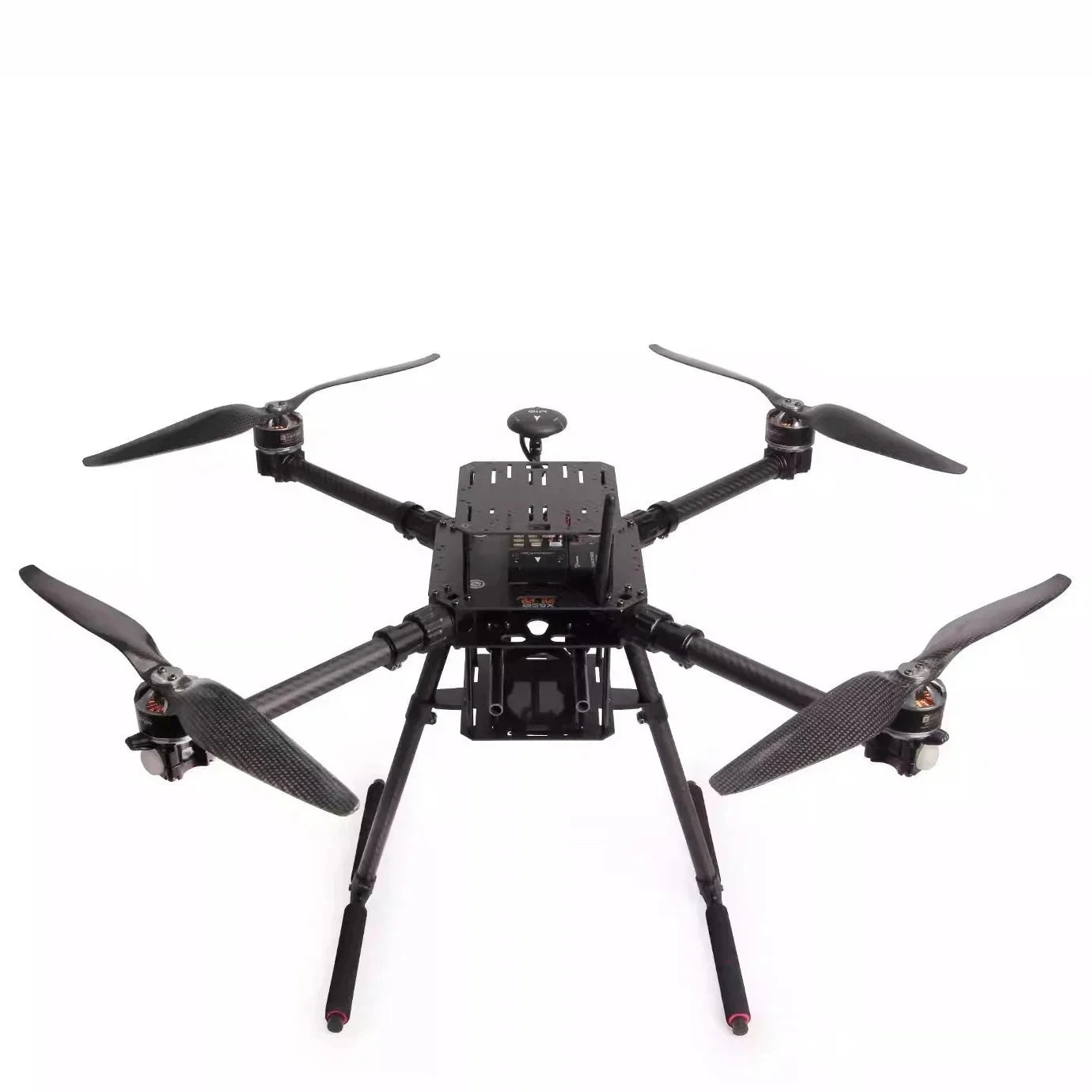

Holybro X650 Development Kit — 650mm Carbon Fiber ARF Quadcopter
The Holybro X650 Development Kit is a professional, easy-to-assemble carbon fiber quadcopter platform designed for UAV development, research, and commercial applications. Featuring the latest Pixhawk 6C or Pixhawk 6X autopilot, M10 GPS, SiK Telemetry Radio, pre-installed T-Motor MN4014 motors, Tekko32 ESCs, and NeoPixel LEDs, the X650 requires no soldering and can be assembled quickly so you spend more time flying and developing. Compatible with both PX4 and ArduPilot firmware.
Key Features

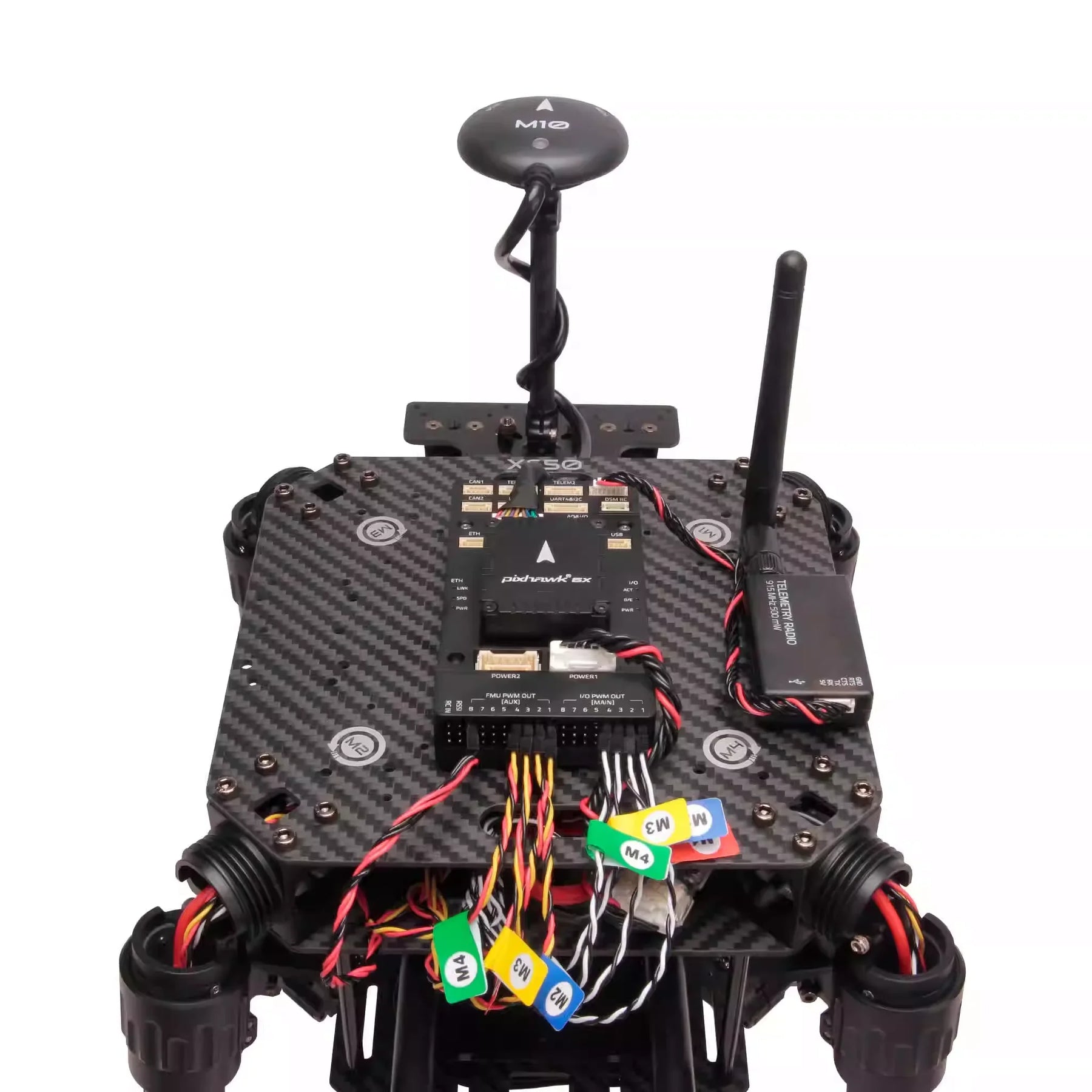

- Pixhawk 6C or 6X Autopilot — Choose your flight controller; ships with PX4, ArduPilot flashable via Mission Planner or QGroundControl
- M10 GPS Module — u-blox M10 high-performance GNSS for accurate positioning
- SiK Telemetry Radio V3 — 433MHz or 915MHz plug-and-play telemetry link
- No Soldering Required — Pre-installed motors, ESCs, and LEDs with XT30 plugs connect directly to the PDB

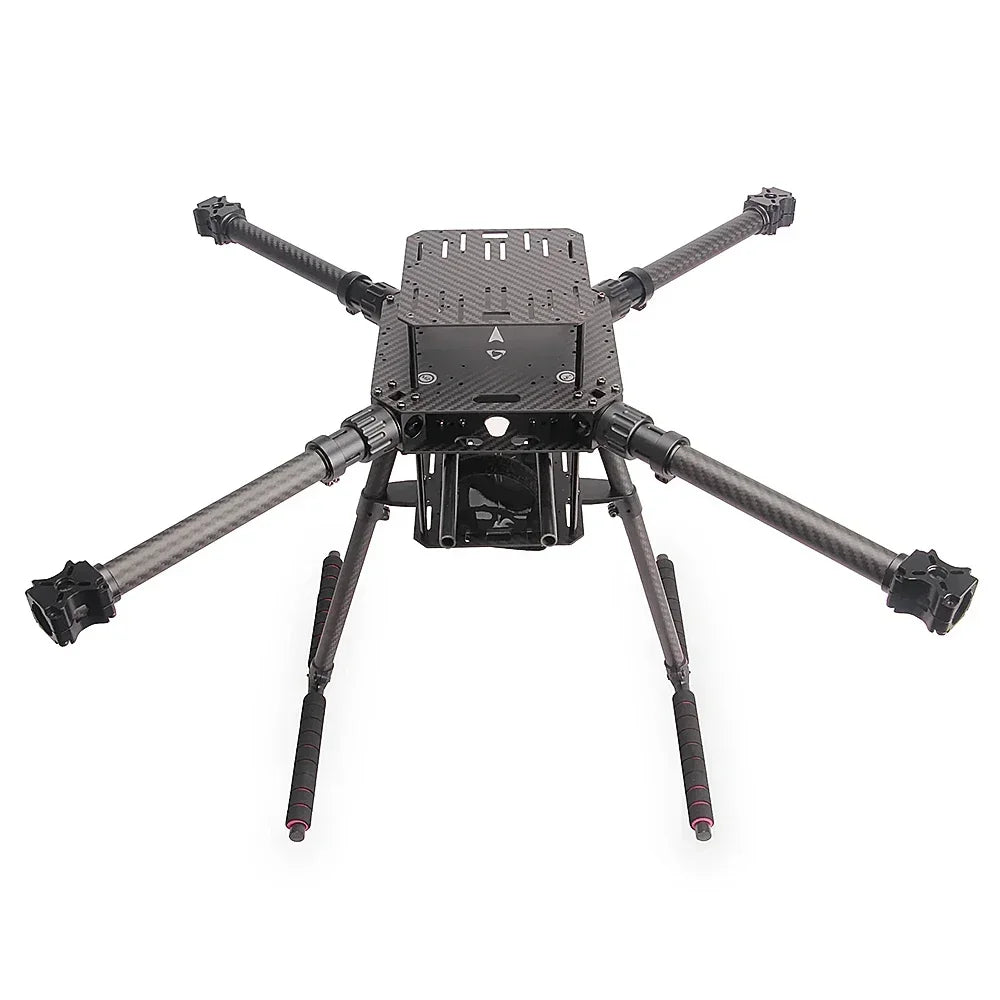

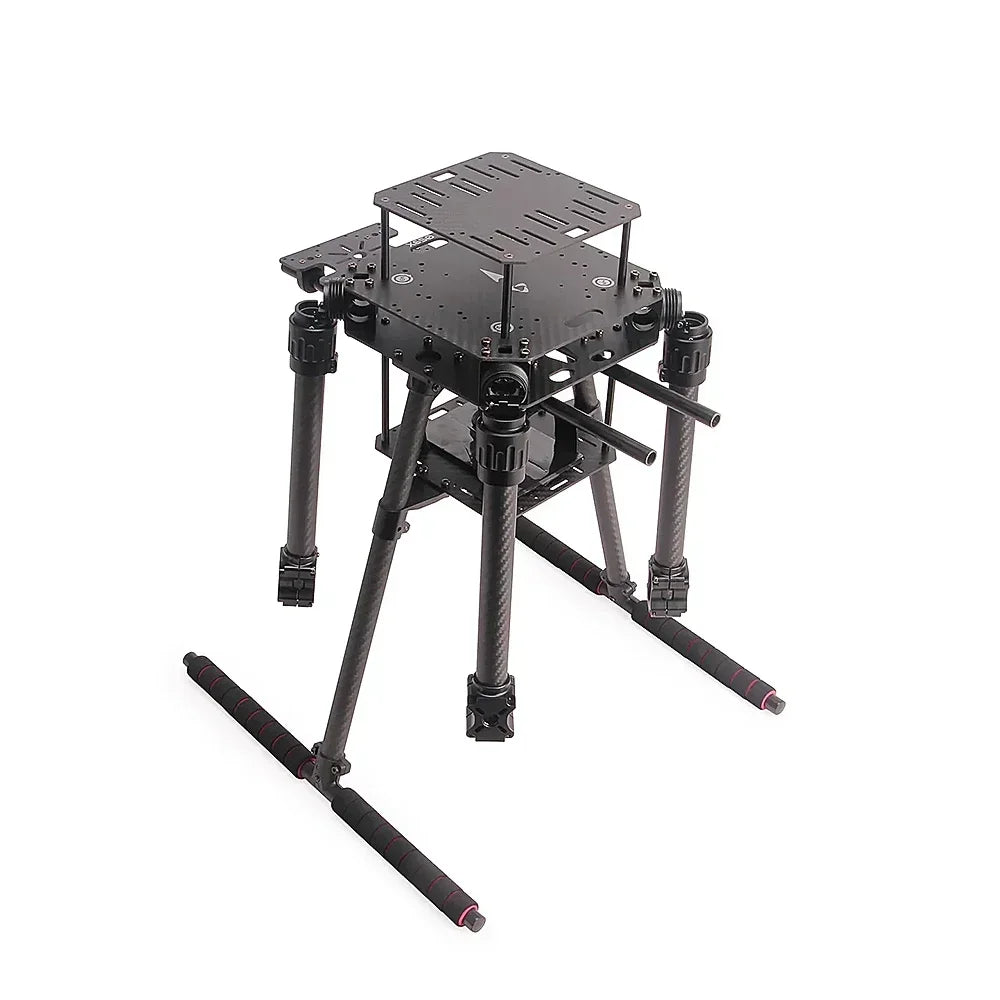

- 650mm Carbon Fiber Frame — Full carbon fiber twill body with foldable aluminum arm connectors and 20mm CF tube arms
- 30-Minute Flight Time — With 6S 10,000mAh battery (hover, no payload)
- 4.3kg Payload Capacity — Without battery; 3.1kg with 10,000mAh battery
- Companion Computer Ready — Platform board with mounting holes for Raspberry Pi 4, Jetson Nano, and popular companion computers
- Rail Mounting System — Dual 10mm rod rail for camera mounts, gimbals, and accessories
- Optional Depth Camera Mount — Compatible with Intel RealSense and Structure Core depth cameras (sold separately)
Variant Options
- 6C M10 GPS 915MHz — Pixhawk 6C + PM02 V3 power module + SiK 915MHz telemetry
- 6C M10 GPS 433MHz — Pixhawk 6C + PM02 V3 power module + SiK 433MHz telemetry
- 6X M10 GPS 915MHz — Pixhawk 6X + PM02D power module + SiK 915MHz telemetry
- 6X M10 GPS 433MHz — Pixhawk 6X + PM02D power module + SiK 433MHz telemetry

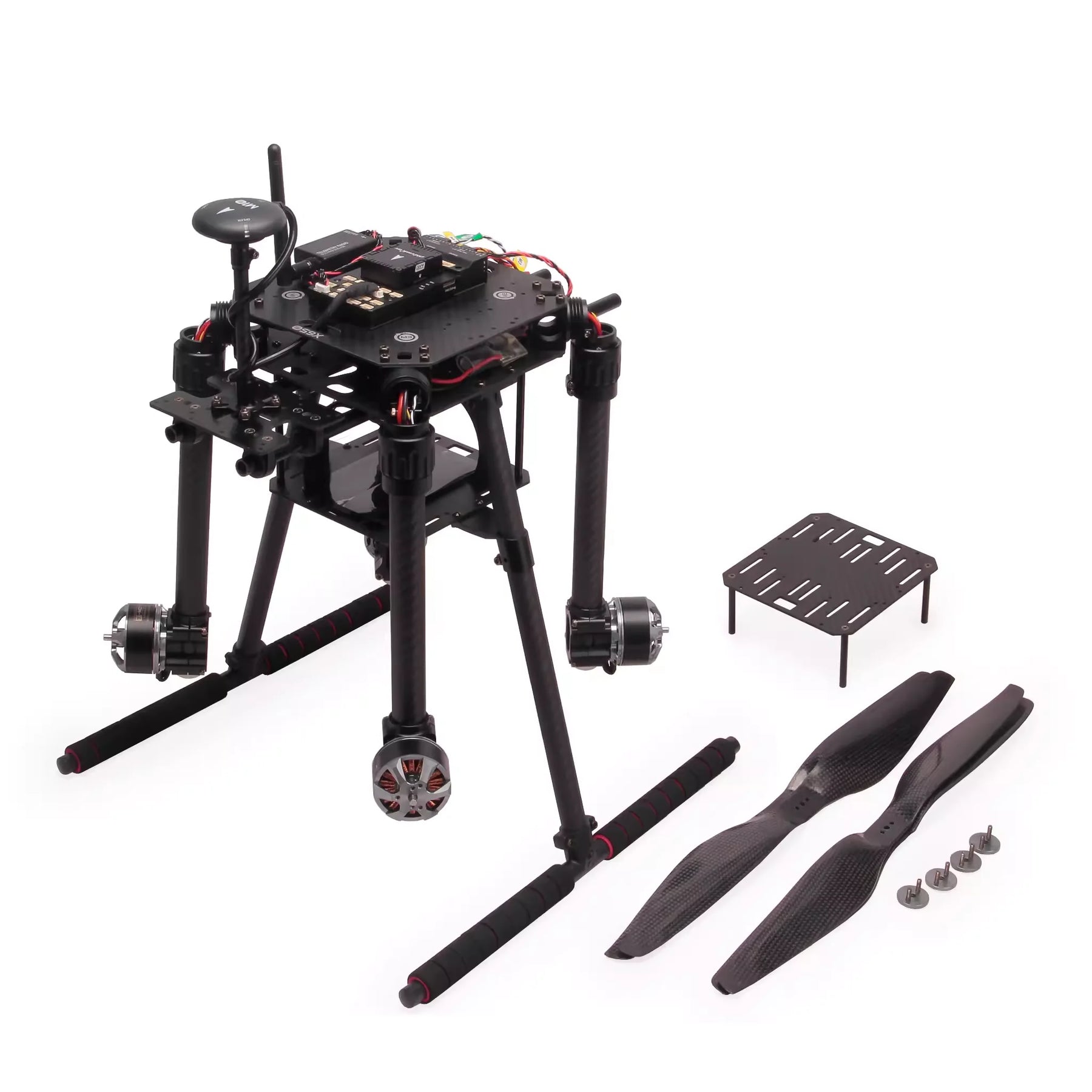

What’s Included
- Pixhawk 6C (with PM02 V3) or Pixhawk 6X (with PM02D) autopilot
- M10 GPS Module
- SiK Telemetry Radio V3 (433MHz or 915MHz)

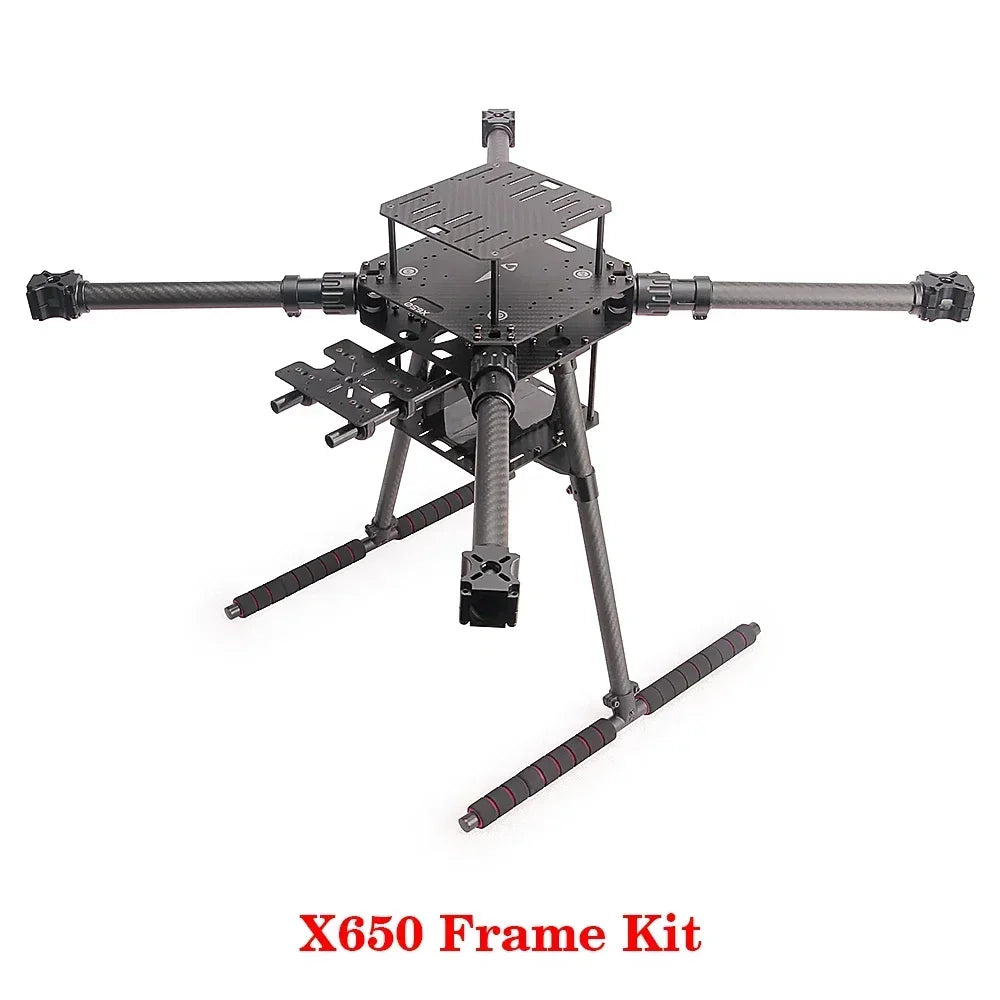

- X650 V2 Frame Kit (650mm wheelbase, full carbon fiber)
- 4× T-Motor MN4014 KV330 motors (pre-installed, XT30 plug)
- 4× Tekko32 F4 45A ESCs (pre-installed, XT30 plug)
- 4× NeoPixel WS2812 LEDs (pre-installed)
- Gemfan 1555 Carbon Fiber Propellers (4 pcs)
- Power Distribution Board (XT60 battery input, XT30 ESC outputs)
- Landing gear, battery straps, and all installation tools

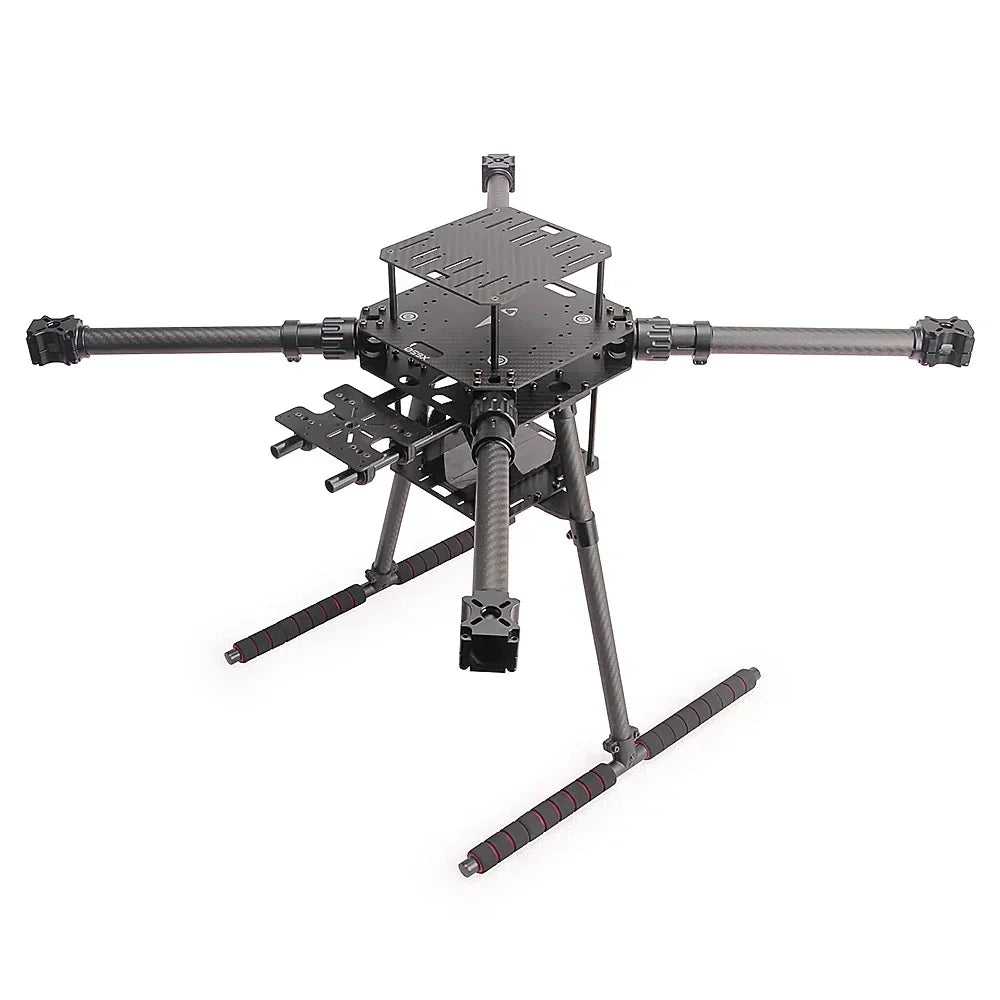

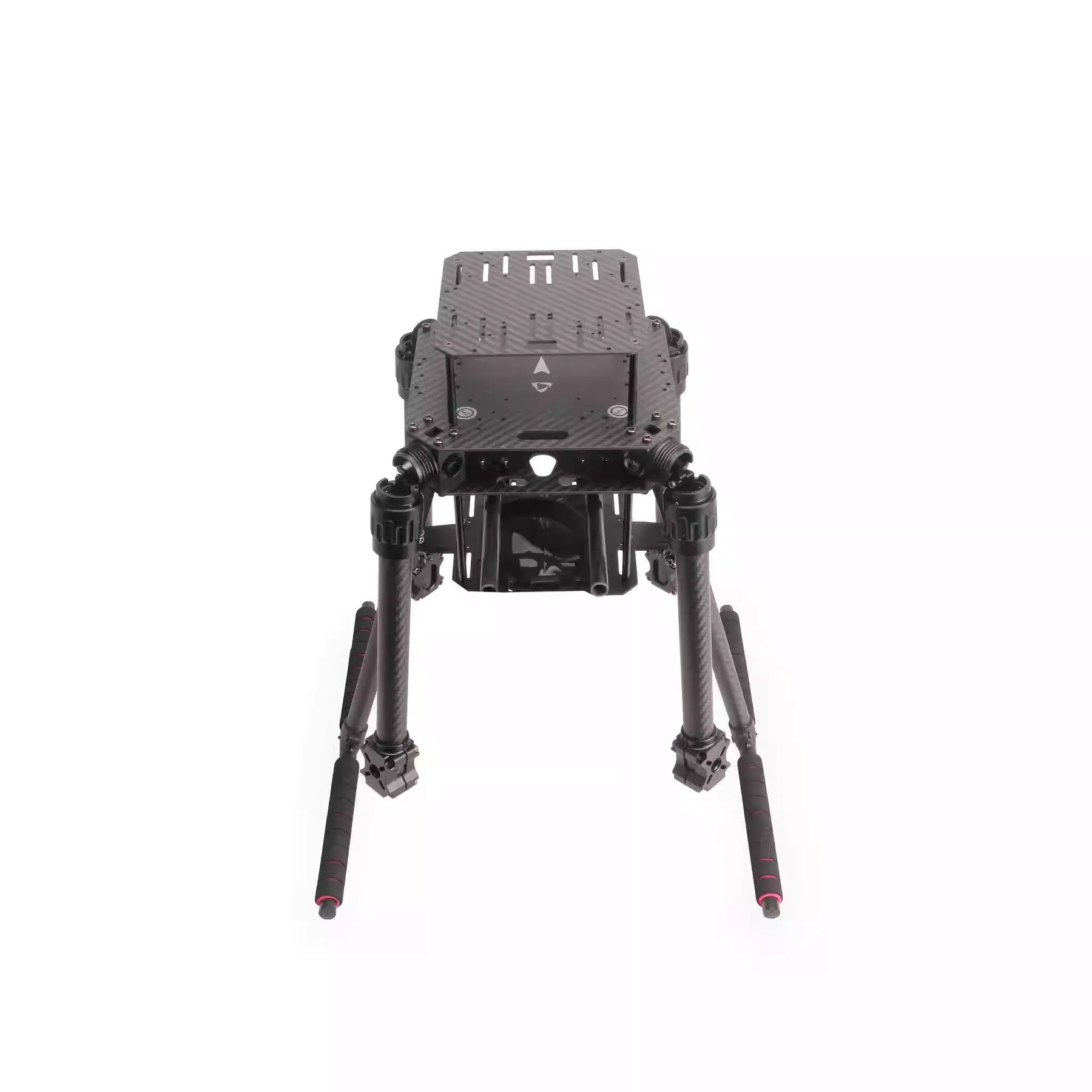

Frame Specifications
- Wheelbase: 650mm
- Body: Full carbon fiber twill, 160×160mm, 2mm thick
- Arms: 20mm carbon fiber tubes, foldable aluminum arm connectors
- Landing Gear: 16mm & 10mm CF tubes with reinforced plastic tee connectors
- Upper/Battery Plate: 120×128mm carbon fiber
- Motor Mount Pattern: 16–25mm
- Full Kit Weight: 2,000g (without battery)
- Max Takeoff Weight: 6,300g (at 70% throttle)
Flight Performance
- Flight Time: ~30 min (hover, 6S 10,000mAh, no payload)
- Payload: 4.3kg (no battery) / 3.5kg (with 5,200mAh) / 3.1kg (with 10,000mAh)
- Recommended Battery: 6S 5,000–12,000mAh LiPo with XT60 (not included)
Perfect For
- UAV research and development requiring a reliable, expandable platform
- PX4 and ArduPilot developers needing a ready-to-fly test bed
- Payload integration projects with companion computers and depth cameras
- Commercial inspection and survey builds on a proven Holybro platform
Sold Separately
- RadioMaster TX16S RC Controller
- RadioMaster R81 Receiver
- Depth Camera Mount
- 6S LiPo Battery (XT60)
