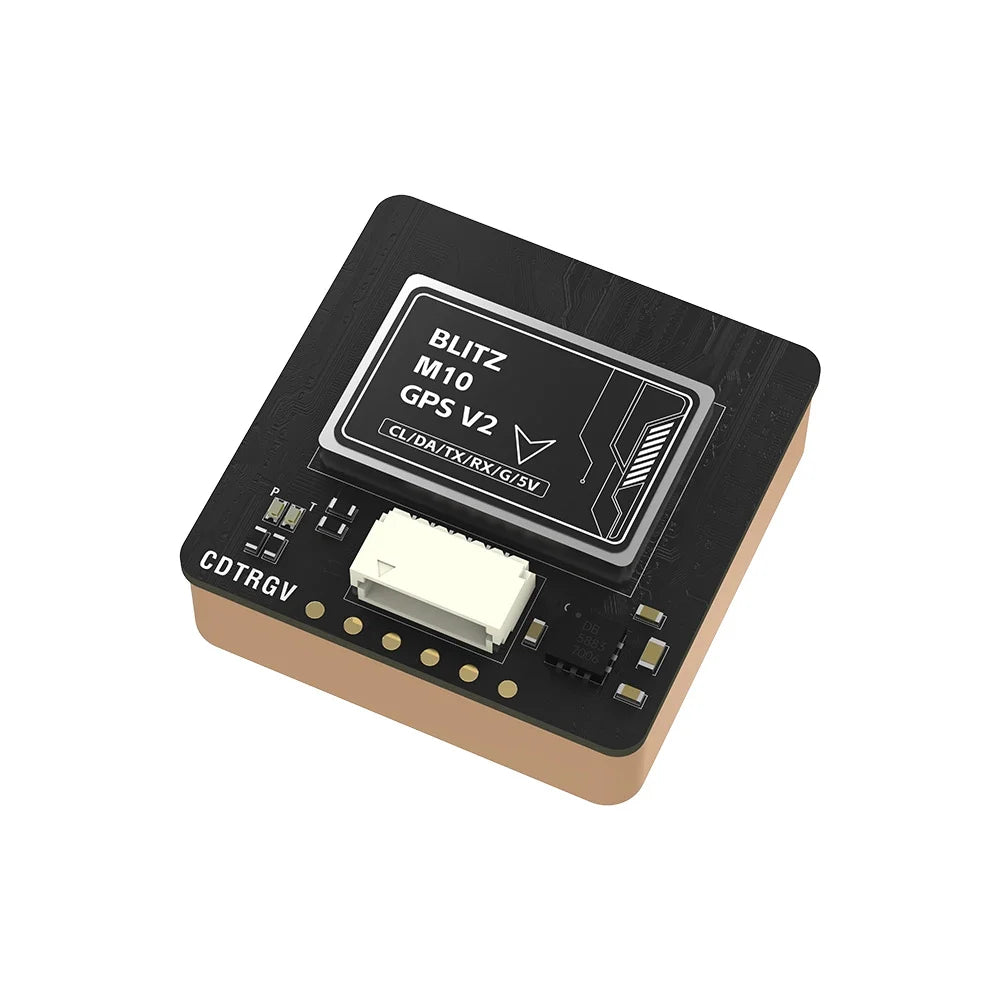

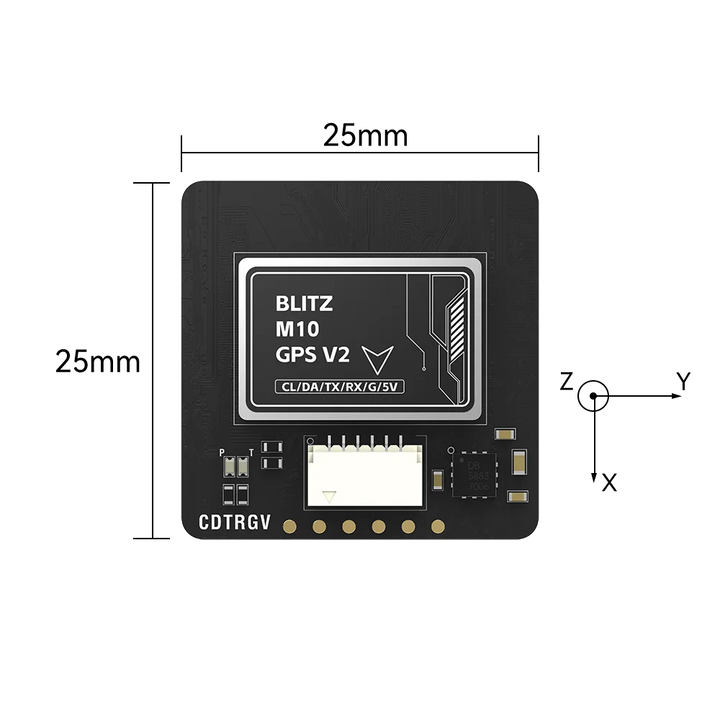

iFlight BLITZ M10 V2 GPS — u-blox M10, Built-In Compass, 10Hz
The iFlight BLITZ M10 V2 GPS is a compact, high-performance GPS module built around the u-blox M10 chip — the 10th-generation u-blox platform offering faster satellite acquisition, lower power consumption, and stronger signal reception. With a built-in QMC5883L compass, 10Hz refresh rate, 1-second hot start, and onboard LNA, RF filter, and TCXO, the BLITZ M10 V2 delivers reliable, high-precision positioning for FPV long-range and GPS-assisted builds. Available in Mini and Standard sizes.
Key Features
- u-blox M10 Chip — 10th-generation u-blox GPS for faster lock, lower power, and stronger signal
- Built-In QMC5883L Compass — Integrated magnetometer for heading accuracy without a separate compass module
- 10Hz Refresh Rate — Fast position updates for responsive GPS-assisted flight modes
- 1-Second Hot Start — Near-instant reacquisition after power cycle; 27s cold start
- Onboard LNA + RF Filter + TCXO — Low-noise amplifier, RF filtering, and temperature-compensated oscillator for stable, accurate positioning
- Built-In Farad Capacitor — Enables faster hot start by retaining satellite data
- Built-In Flash — Stores almanac and ephemeris data for faster subsequent locks
- Multi-Constellation GNSS — GPS + SBAS + Galileo + QZSS + GLONASS for maximum satellite coverage
- Mini & Standard Variants — Choose the size that fits your build
Variant Options

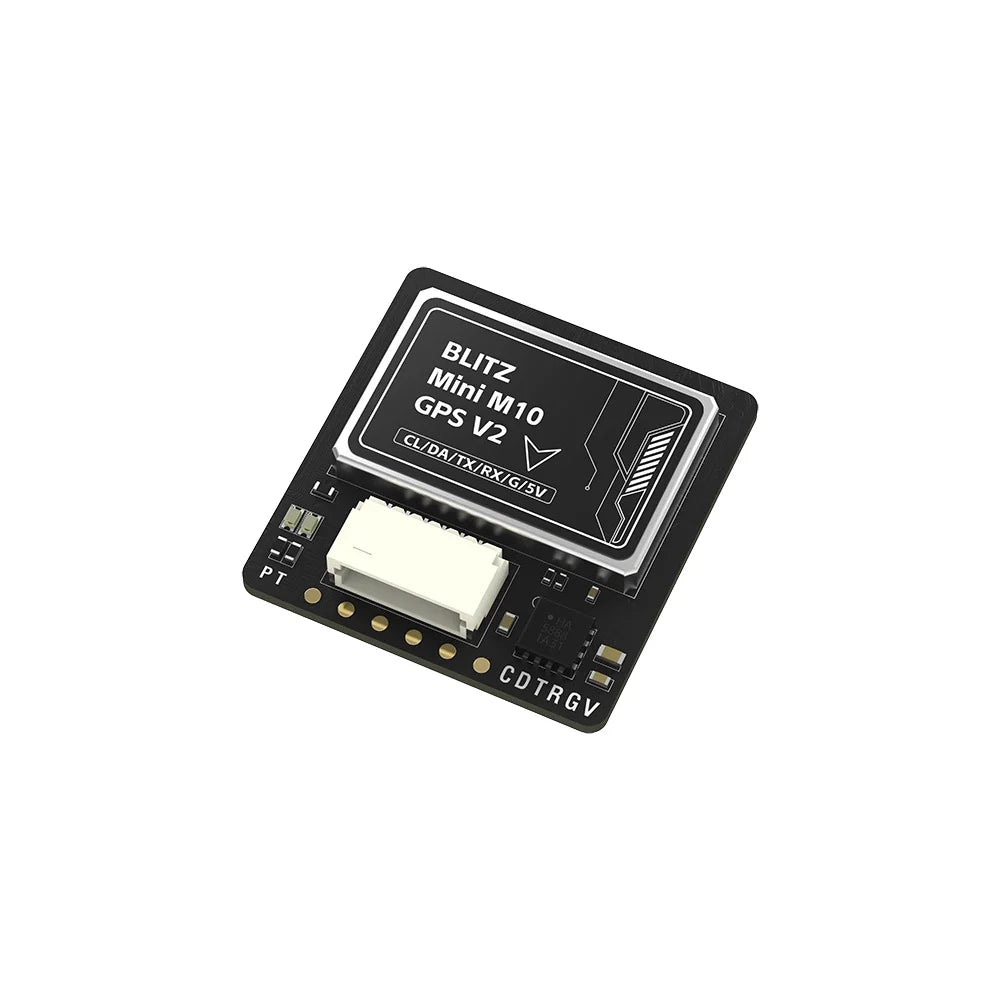

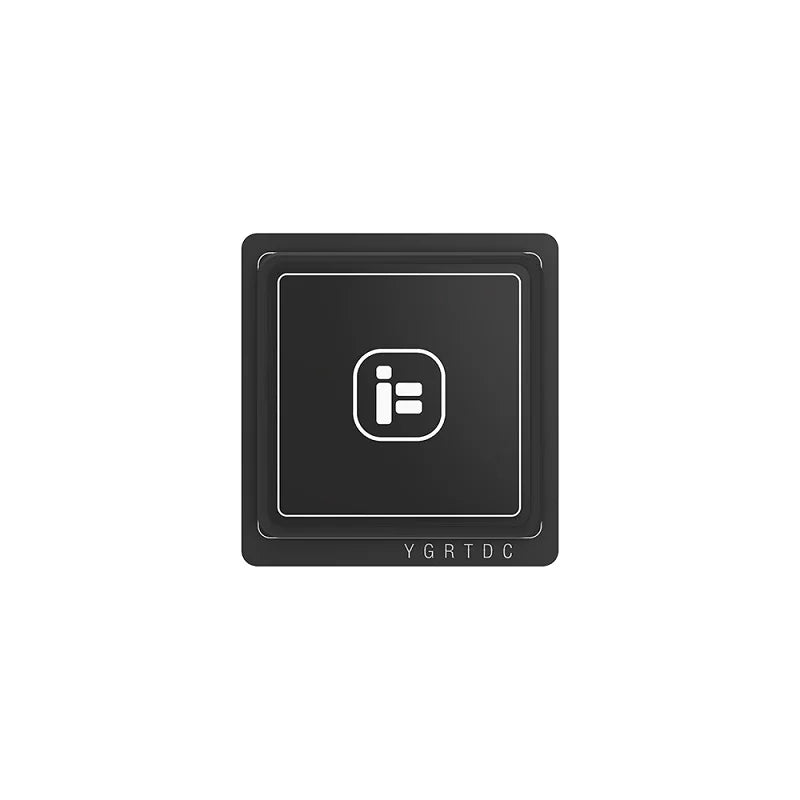

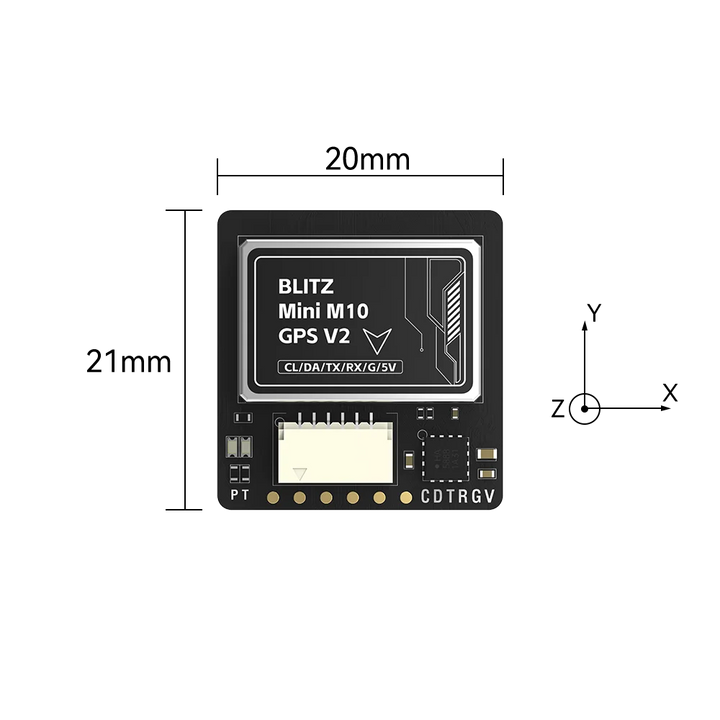

- BLITZ Mini M10 GPS — 20×21×8mm, 8g; for compact and weight-sensitive builds

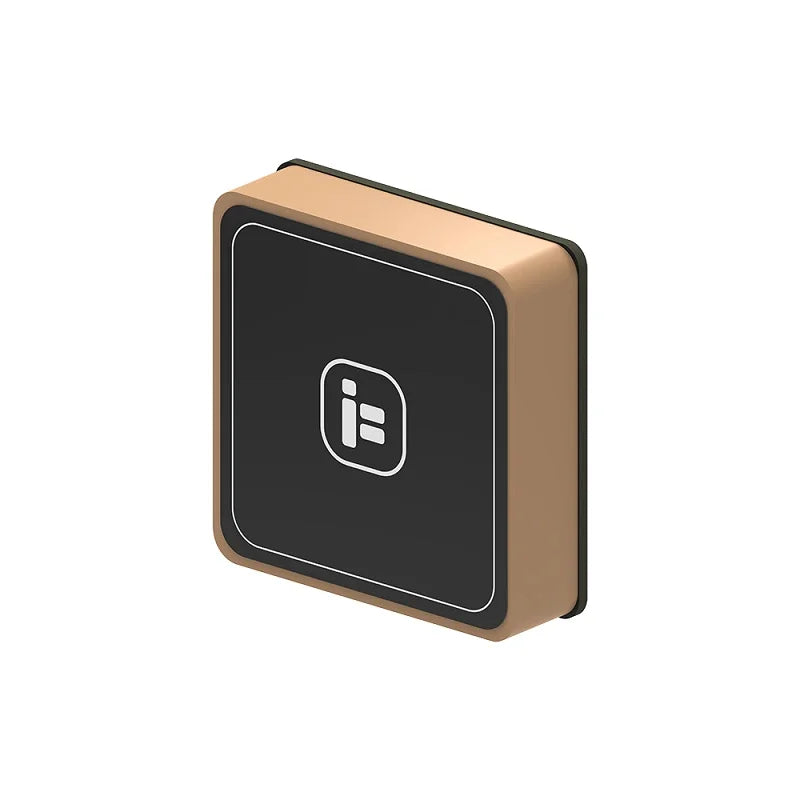

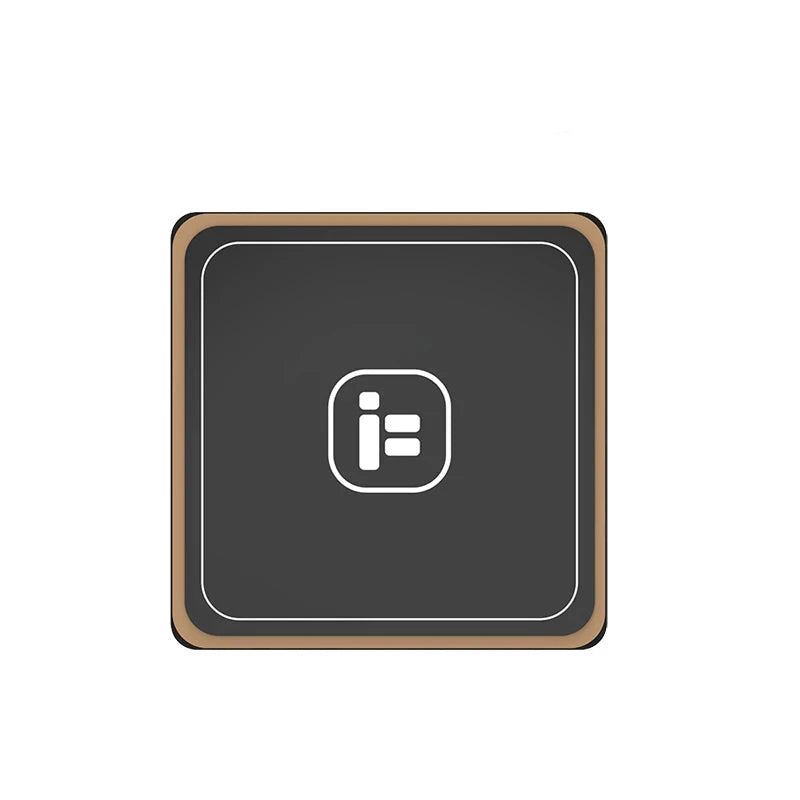

- BLITZ M10 GPS V2 — 25×25×11mm, 16g; standard size with larger patch antenna
Specifications
- GPS Chip: u-blox M10
- Compass: QMC5883L
- GNSS: GPS + SBAS + Galileo + QZSS + GLONASS
- Refresh Rate: 10Hz
- Sensitivity: -167dBm (tracking)
- Cold Start: 27s
- Hot Start: 1s
- Baud Rate: 9600–460800bps (default 115200bps)
- Input Voltage: 3.3–5.5V
- GPS Interface: RX/TX UART
- Compass Interface: SDA/SCL I2C
- Max Altitude: 80,000m
- Max Speed: 500m/s
- Speed Accuracy: 0.05m/s
- Dimensions (Mini): 20×21×8mm | Weight: 8g
- Dimensions (Standard): 25×25×11mm | Weight: 16g
Frame Compatibility (Mini Version)
- Chimera7 Pro V2, iH3 O3, Nazgul Evoque F4/F5/F6, XL10 V6, BOB57 HD, Nazgul XL5/DC5 ECO V1.1, SH CineFlow 5, SH CineLR 7 (single-hole TPU mount)
- Nazgul5 V3, Nazgul XL5/DC5 ECO V1, Taurus X8 Pro/V3, ProTek60 Pro (dual-hole TPU mount)
- Helion 10 (no TPU mount required)
What’s in the Box
- 1× BLITZ M10 GPS V2 (Mini or Standard)
- 1× Cable Set
Perfect For
- FPV long-range builds requiring GPS rescue and position hold
- Betaflight GPS rescue, position hold, and return-to-home setups
- ArduPilot and iNav builds needing a compact, reliable GNSS module
