iFlight Borg H7 Stack — STM32H743, Dual ICM42688P, 4–12S FC + Borg 60A BL32 ESC

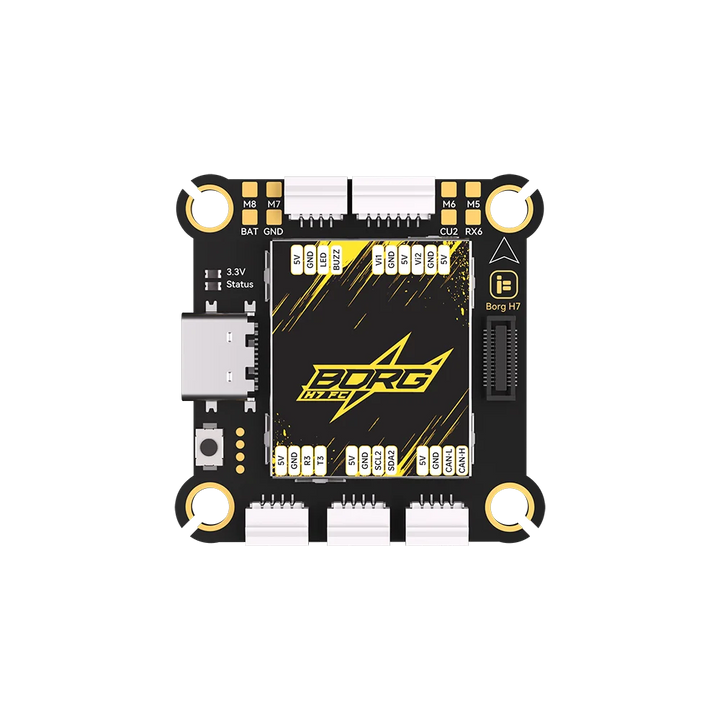

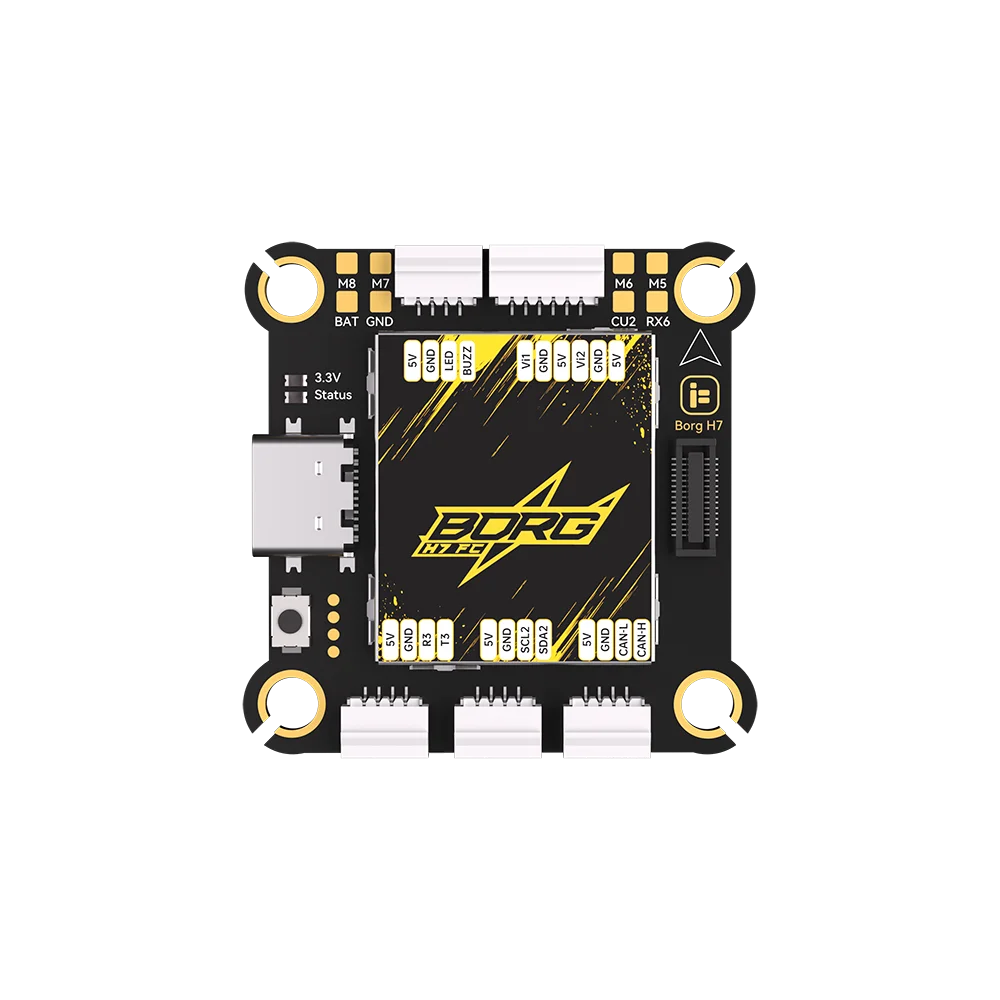

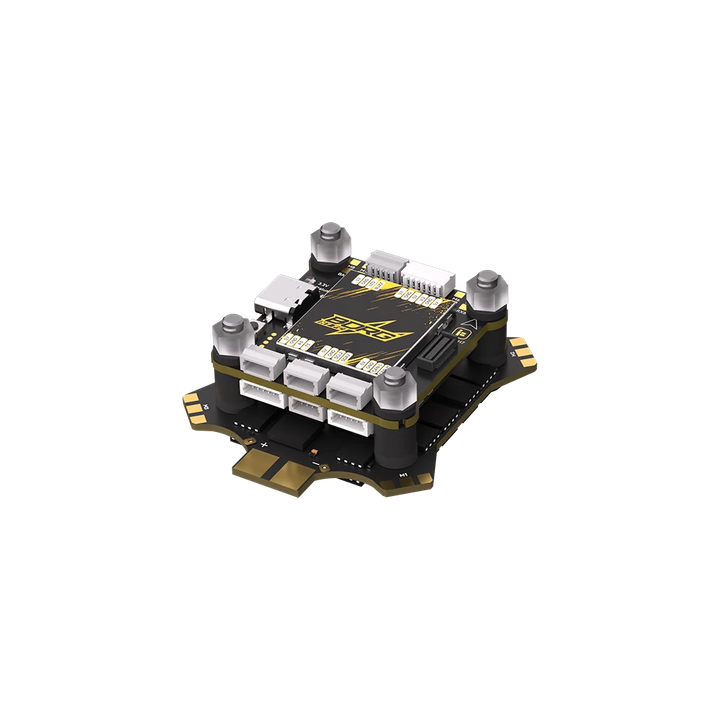

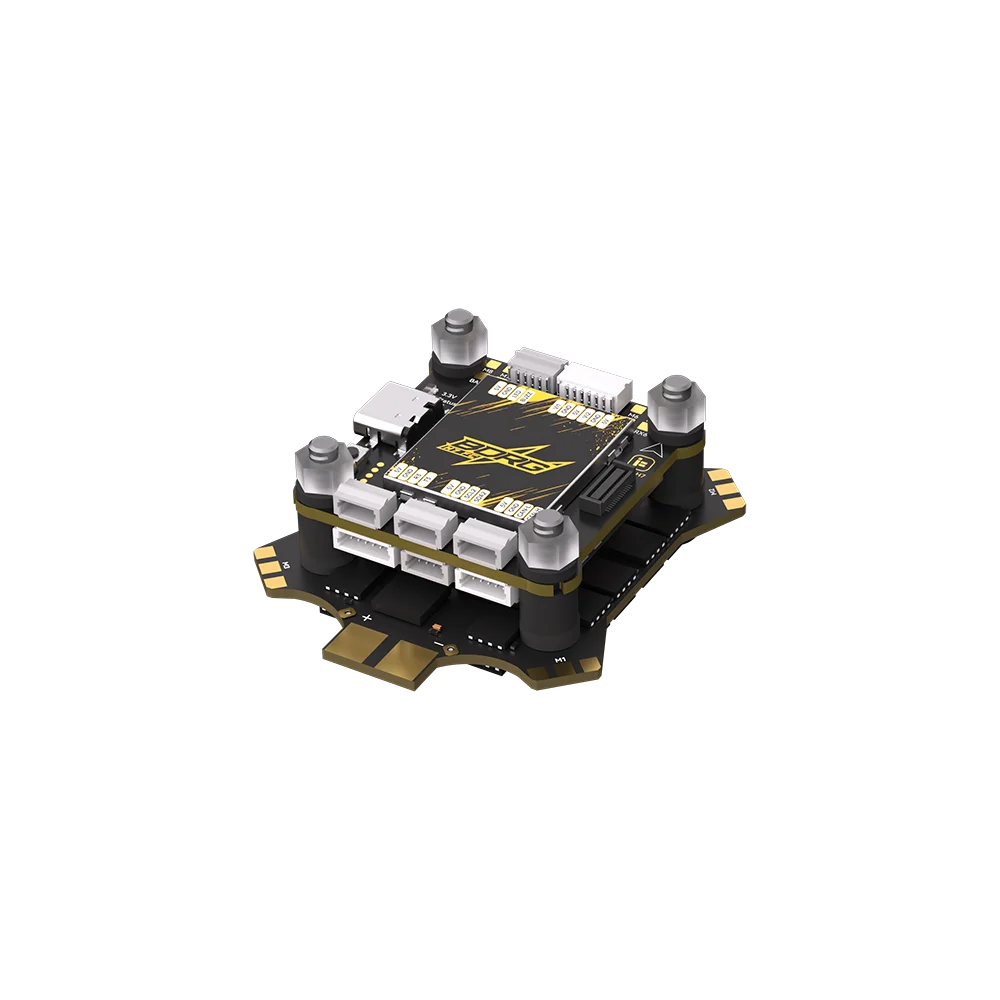

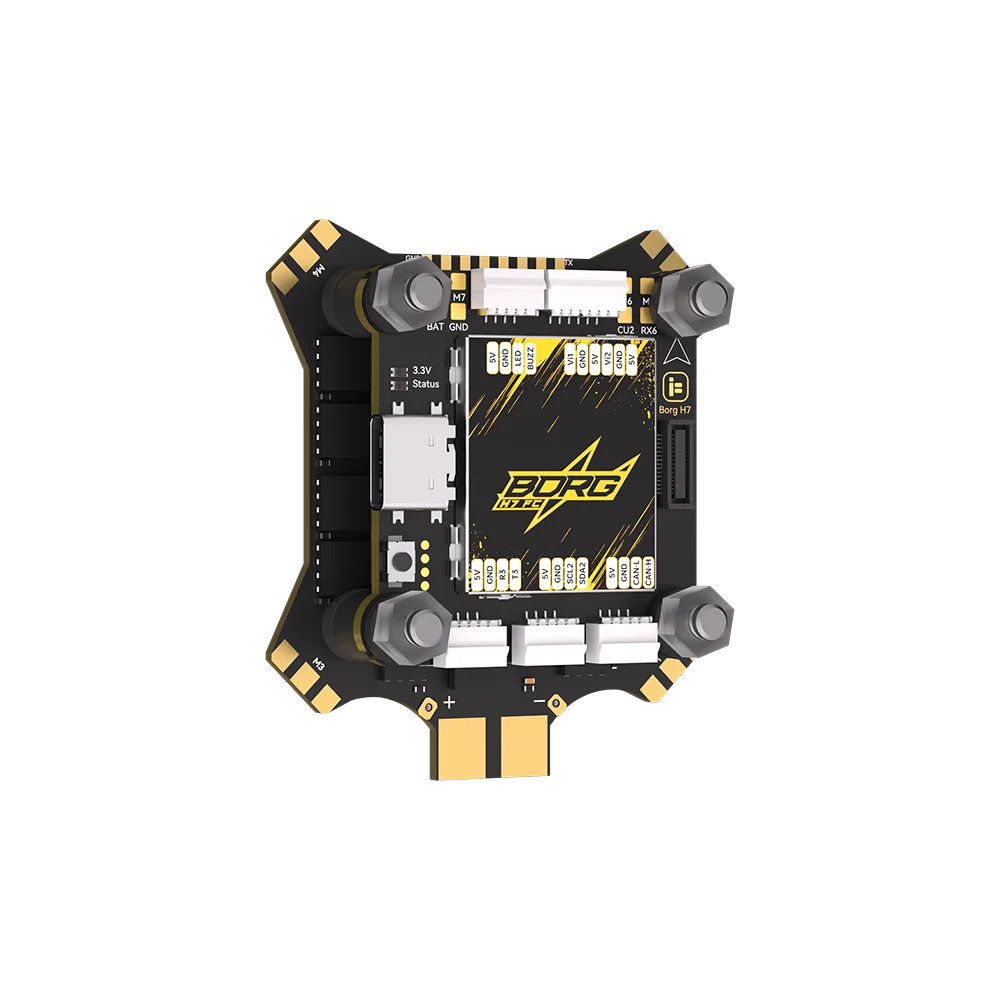

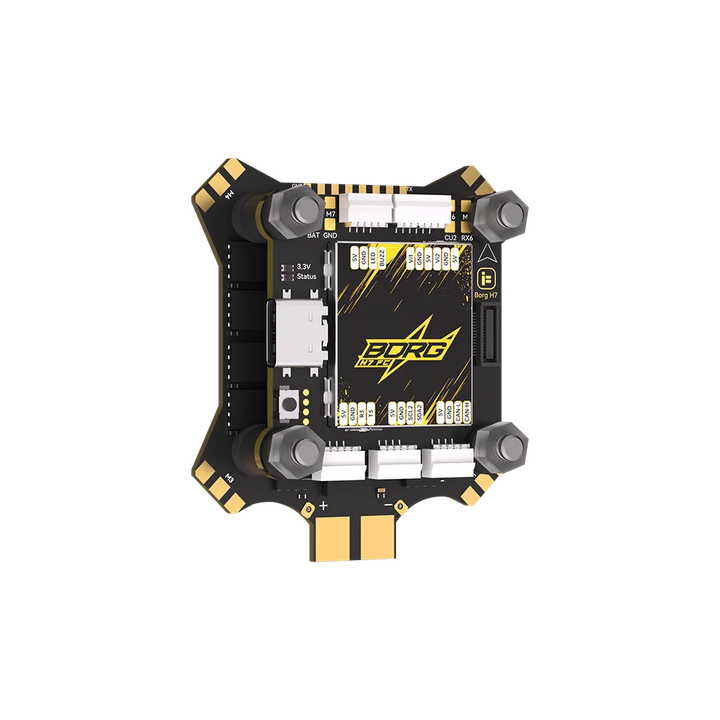

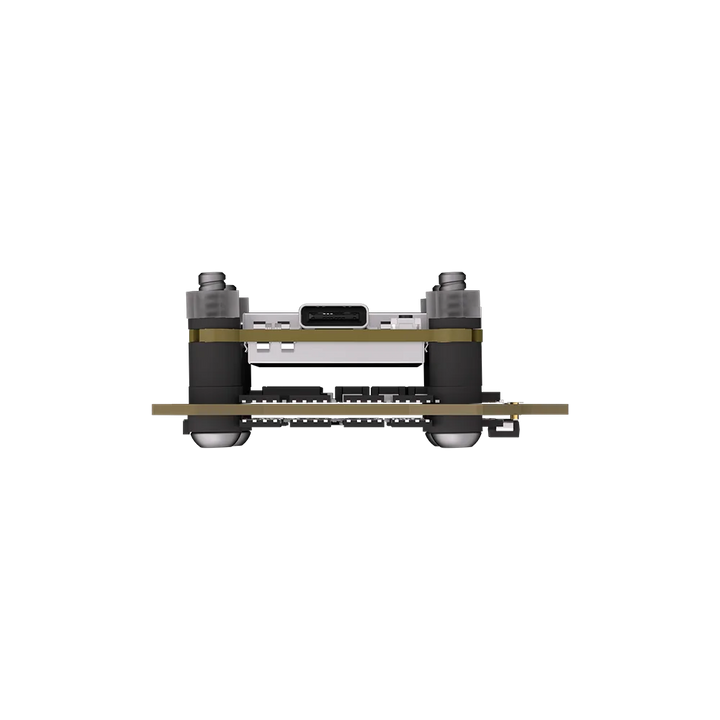

The iFlight Borg H7 Stack pairs the Borg H7 Flight Controller with the Borg 60A BL32 ESC for a high-performance 5–10 inch FPV drone stack. The FC runs on the STM32H743 with dual ICM42688P gyroscopes, supports 4–12S battery input, features dual camera input switching, a 12V BEC with remote VTX on/off, and connects to the ESC via FPC ribbon cable for reliable signal transmission. Available as a full stack, FC only, or ESC only.

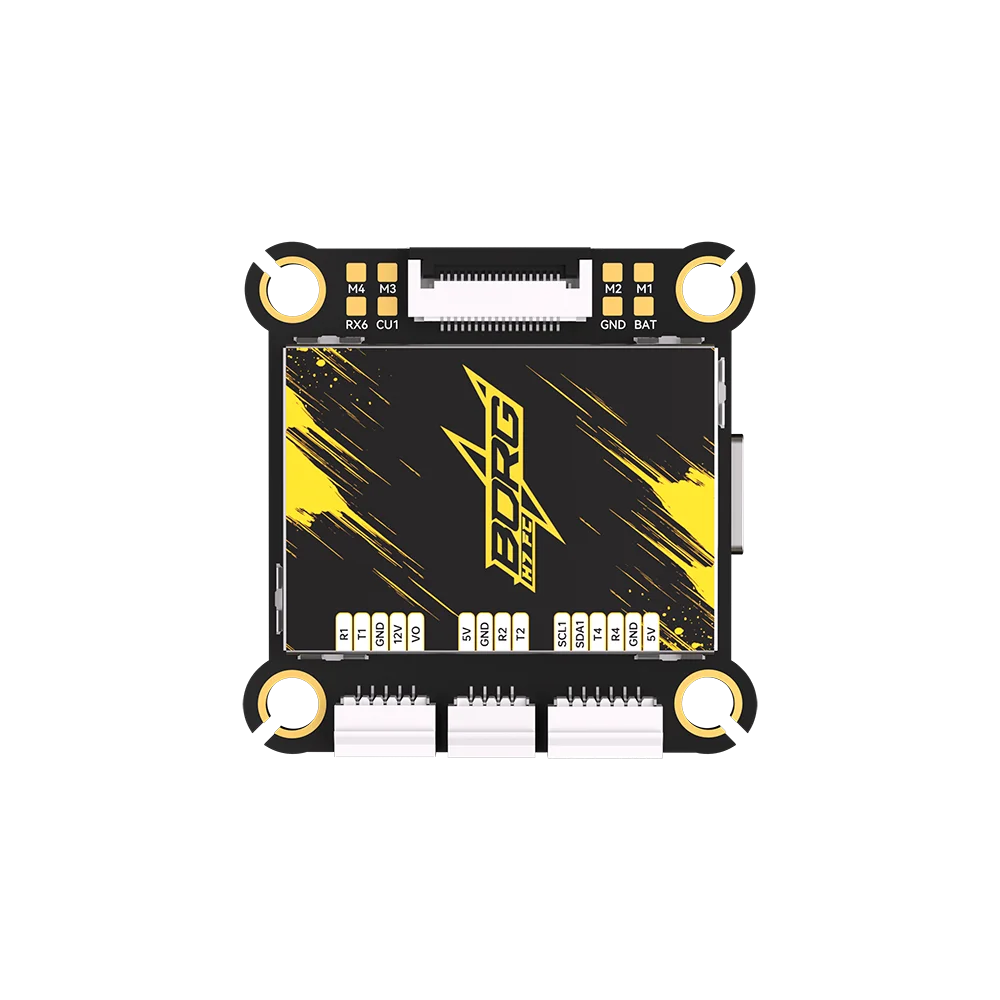

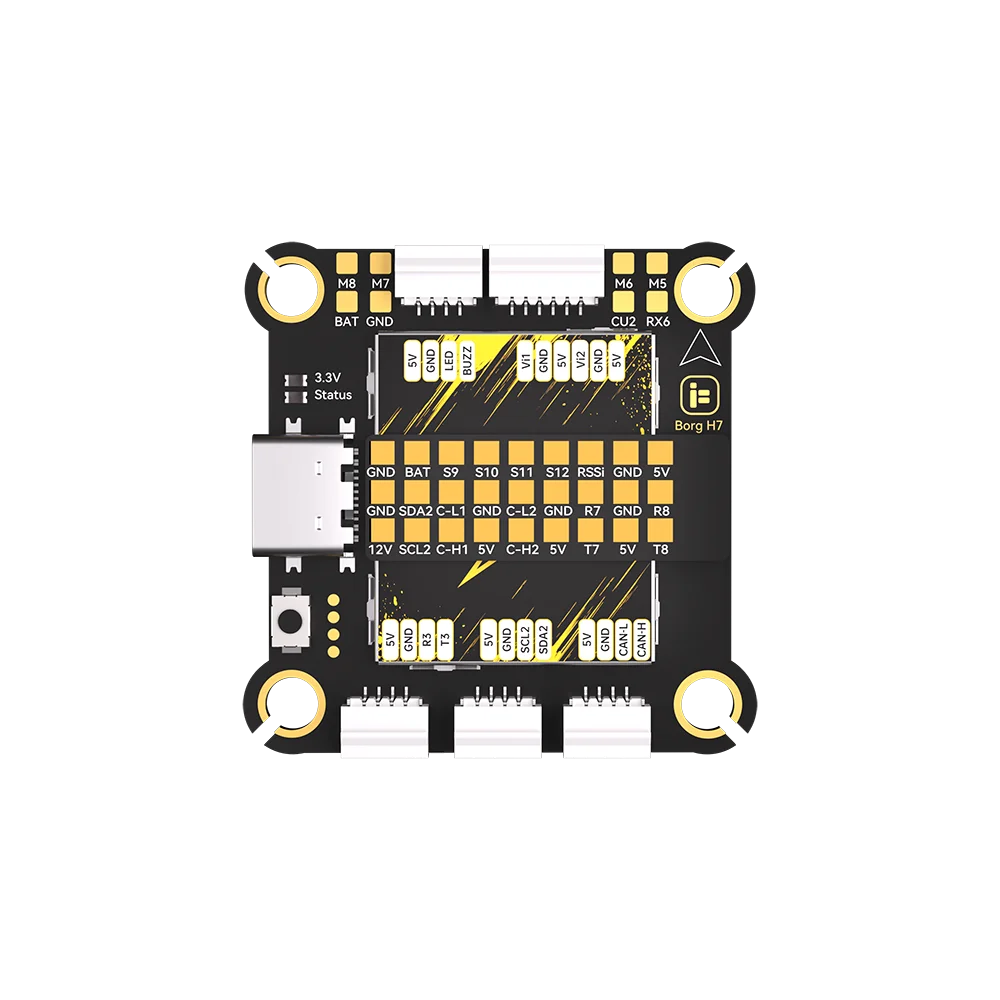

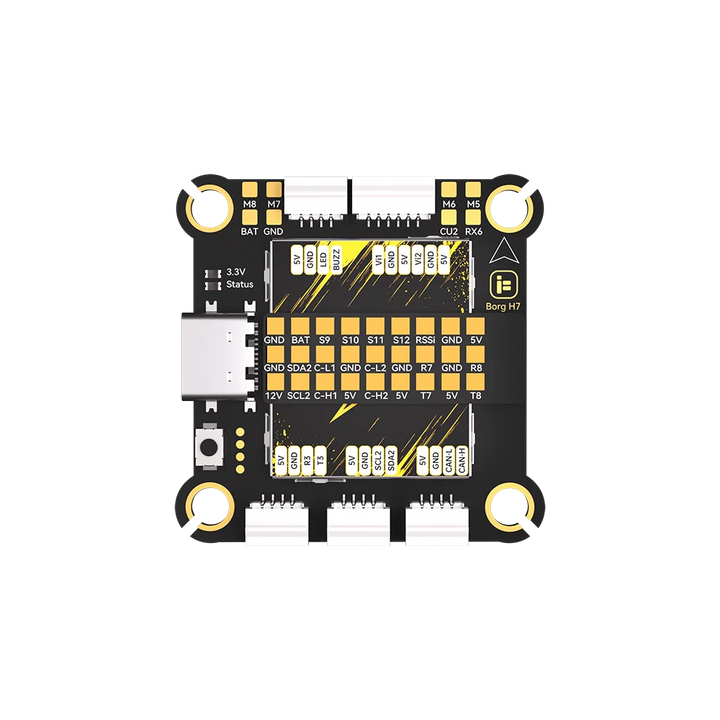

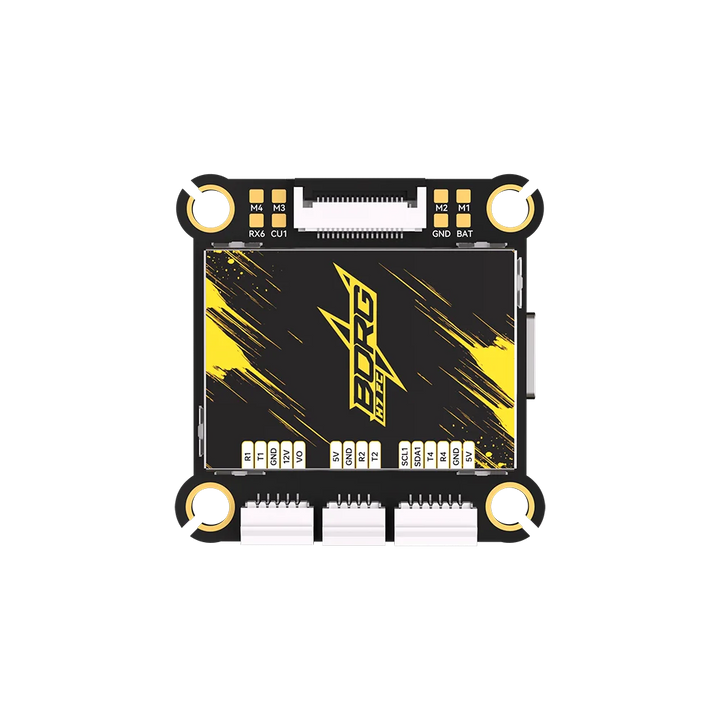

FC Key Features
- STM32H743VIH6 MCU — High-performance processor for demanding FPV builds
- Dual ICM42688P Gyroscopes — Enhanced flight stability and accuracy in complex environments
- 4–12S Input (LIHV supported) — Wide voltage range for 5–10 inch builds
- Dual Camera Input — Switch between two cameras via remote control for flexible FPV setups
- 12V BEC with VTX Switch — Stable 12V/2A for VTX; remotely switchable via Betaflight
- 5V 2.5A BEC — Dedicated 5V rail for peripherals
- 7 UARTs, 8 Motor Outputs — Extensive connectivity for GPS, receivers, VTX, and ESC telemetry
- 32MB Blackbox Flash — Onboard logging for tuning and analysis
- FPC Ribbon Cable to ESC — Reliable, vibration-resistant FC–ESC connection; SH1.0 lock connectors on other interfaces
- VTX Protocol Support — DJI MSP, Smartaudio, IRCTramp, HDZero
- Betaflight Target: IFLIGHT_BORG_H7

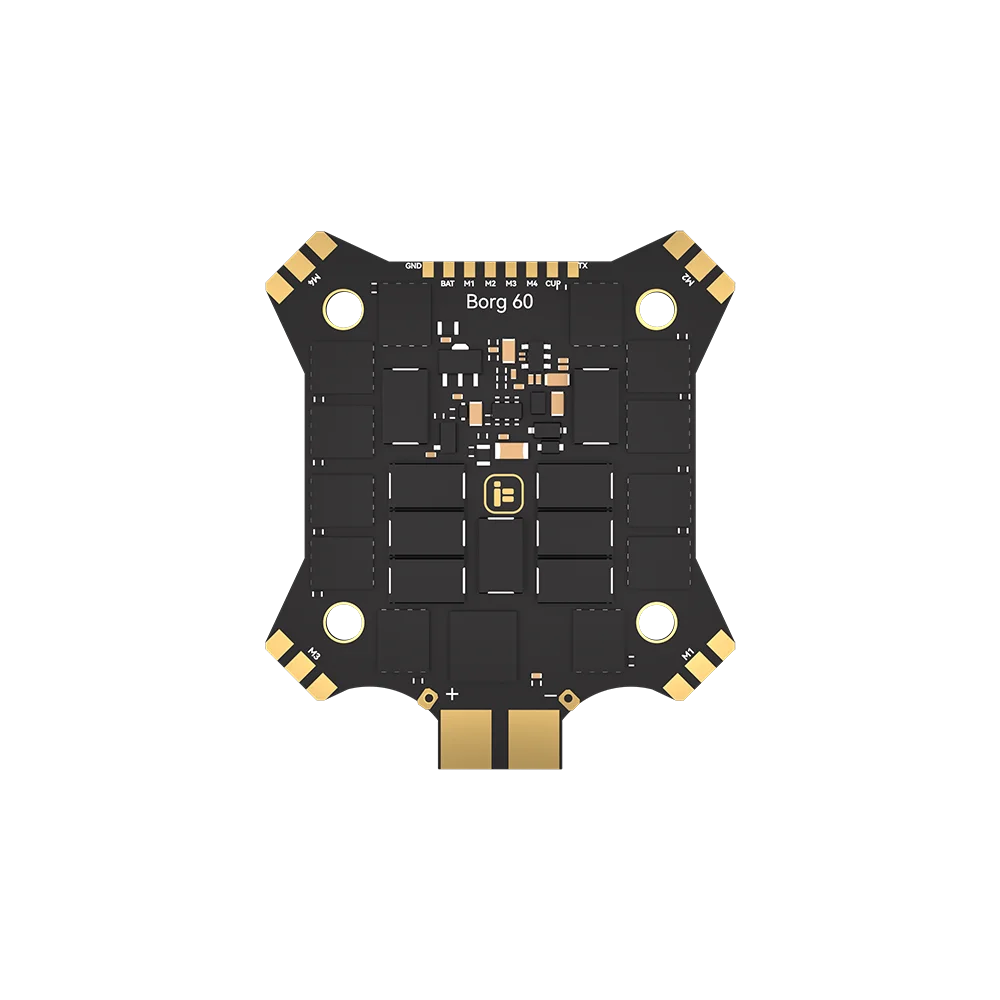

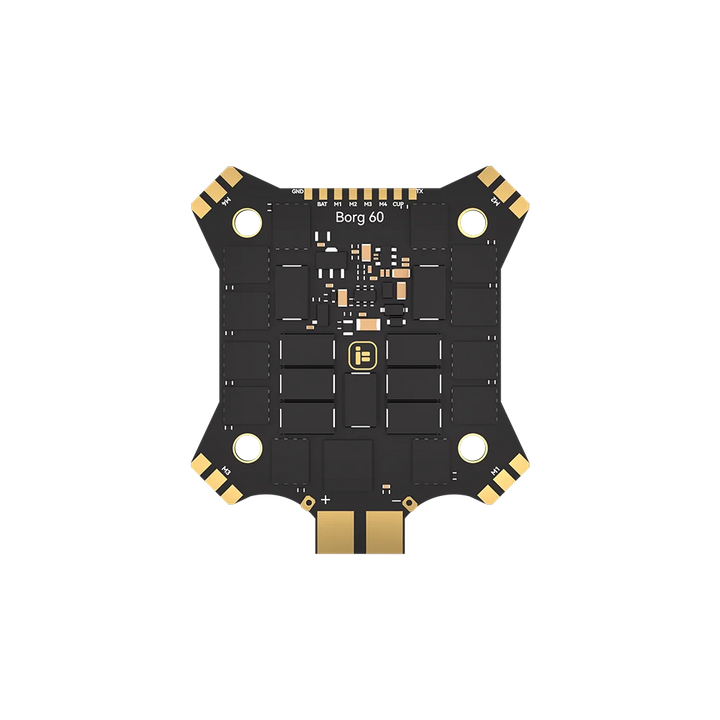

ESC Key Features
- 60A Continuous / 65A Burst (10s) — 8-layer high-current PCB for sustained power delivery
- 4–6S Input (LIHV supported) — STM32G071N MCU, FD6288 driver, BL32 firmware
- Bidirectional DSHOT — RPM telemetry for advanced filtering and motor diagnostics
- Current Sensor (1/200) — Onboard current sensing for battery monitoring
- Anti-Spark Filter — Protects electronics from voltage spikes on plug-in
- Built-In Polymer Capacitors — No external cap needed on 5-inch builds
- Protocol Support: DShot150/300/600, MultiShot, OneShot
- ESC Firmware Target: IFLIGHT_BLITZ_G3 32.9
Variant Options
- Borg H7 60A Stack — FC + ESC complete stack
- Borg H7 FC — Flight controller only
- Borg 60A ESC — ESC only

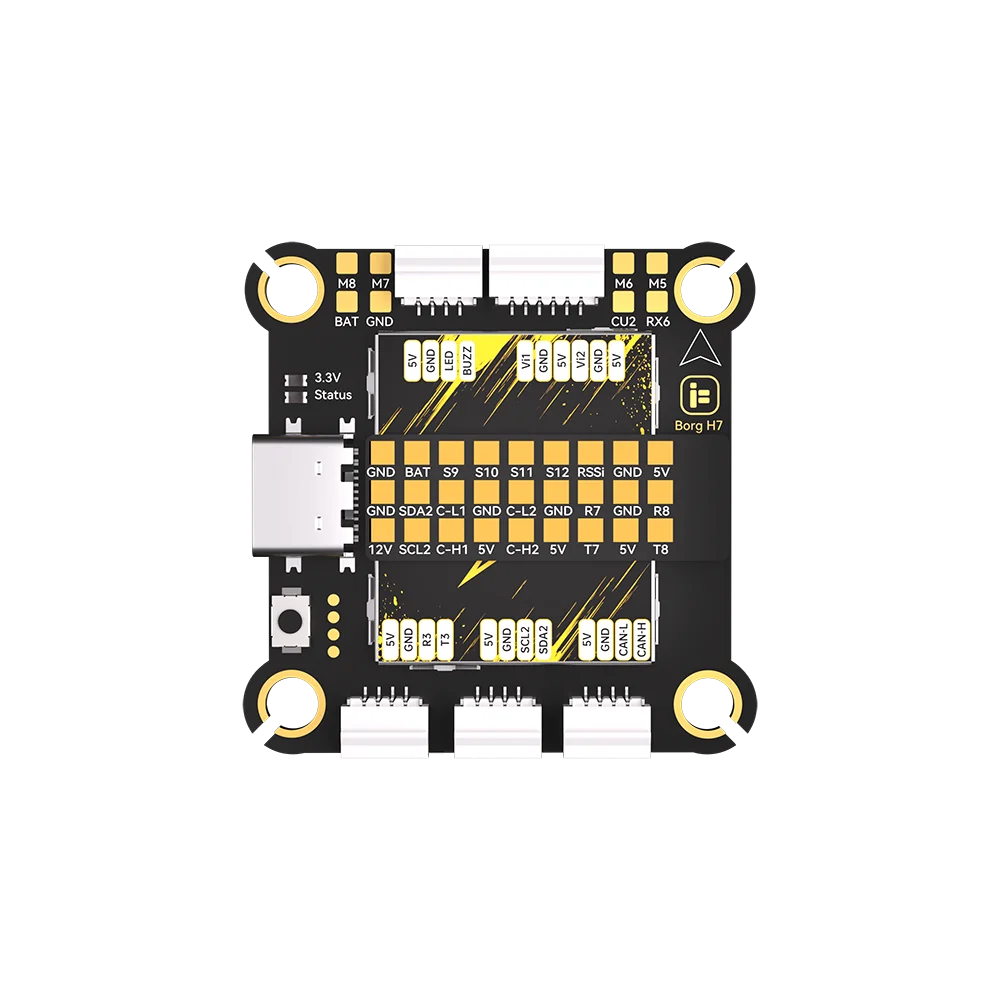

FC Specifications
- MCU: STM32H743VIH6
- Gyro: ICM42688 ×2
- Baro: SPA06-003
- OSD: AT7456E
- Flash: 32MB
- UARTs: 7
- Motor Outputs: 8
- BEC: 5V/2.5A + 12V/2A (VTX switchable)
- Mount: 30.5×30.5mm, φ4
- Dimensions: 37.5×37.5mm
- Weight: 17g
ESC Specifications
- Input: 4–6S (14–26.1V, LIHV)
- Continuous Current: 60A
- Burst Current: 65A (10s)
- MCU: STM32G071N
- Driver: FD6288
- Firmware: BL32
- Mount: 30.5×30.5mm, φ4
- Dimensions: 52×45.5mm
- Weight: 15.5g
What’s in the Box (Stack)
- 1× Borg H7 Flight Controller
- 1× Borg 60A ESC
- 1× Cable set
- 4× Silicone grommets
Perfect For
- 5–10 inch FPV freestyle and long-range builds requiring 4–12S flexibility
- Builders wanting dual gyro stability and dual camera switching
- Pilots running DJI HD, HDZero, or analog VTX systems
