Dual-Band Control with a Hands-On Feel

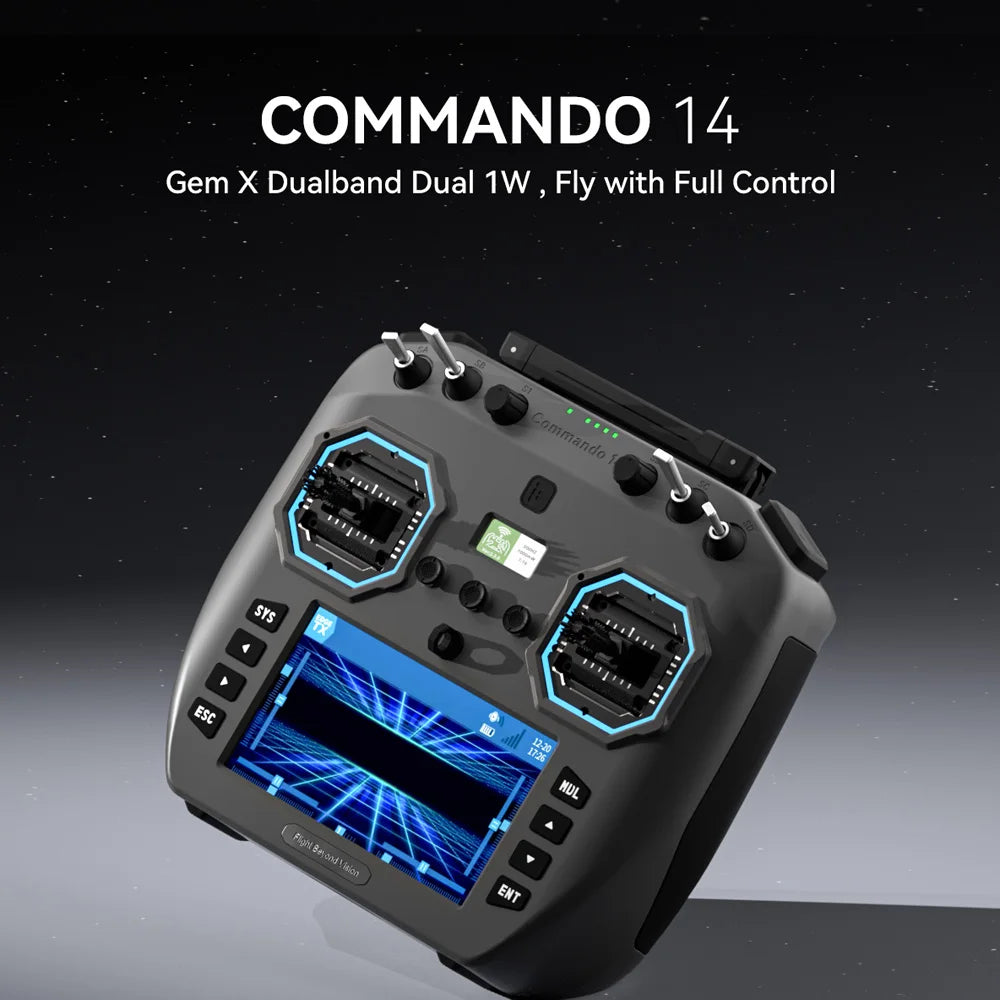

The iFlight Commando 14 GemX radio transmitter combines built-in dual-band ExpressLRS control with adjustable CNC aluminum Hall-sensor gimbals and a bright 4.3-inch touchscreen. Configure your model at the bench, fold the antennas for transport, and keep module status in view on a separate 0.96-inch display.
Key Features
- GemX dual-band ELRS module: Listed 2.4GHz plus 900/868MHz operation, with advertised dual 1W output capability. Available bands, modes and power depend on the hardware version, firmware and regional settings.

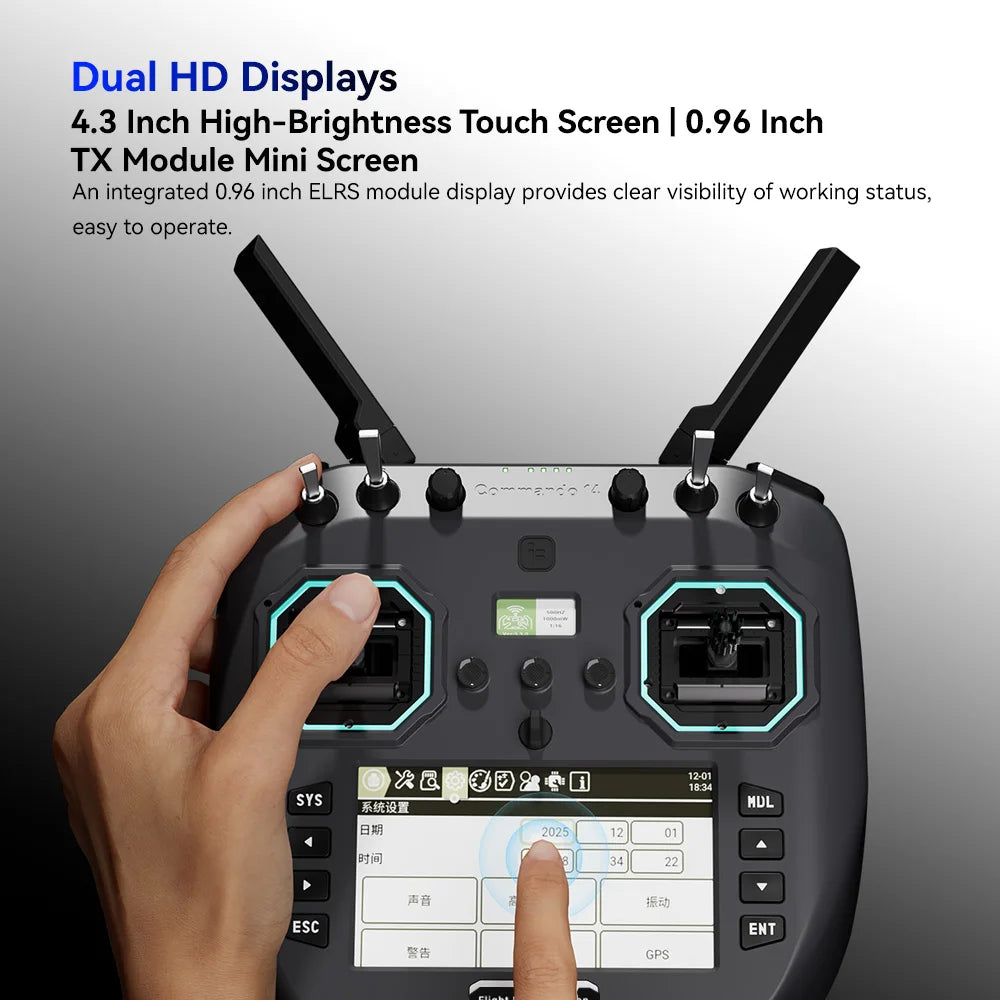

- Two displays: A 4.3-inch IPS touchscreen with listed 1000-nit brightness, plus a dedicated 0.96-inch color module screen.
- Adjustable Hall-sensor gimbals: CNC aluminum construction, adjustable spring tension, resistance and X/Y travel, with customizable RGB rings.

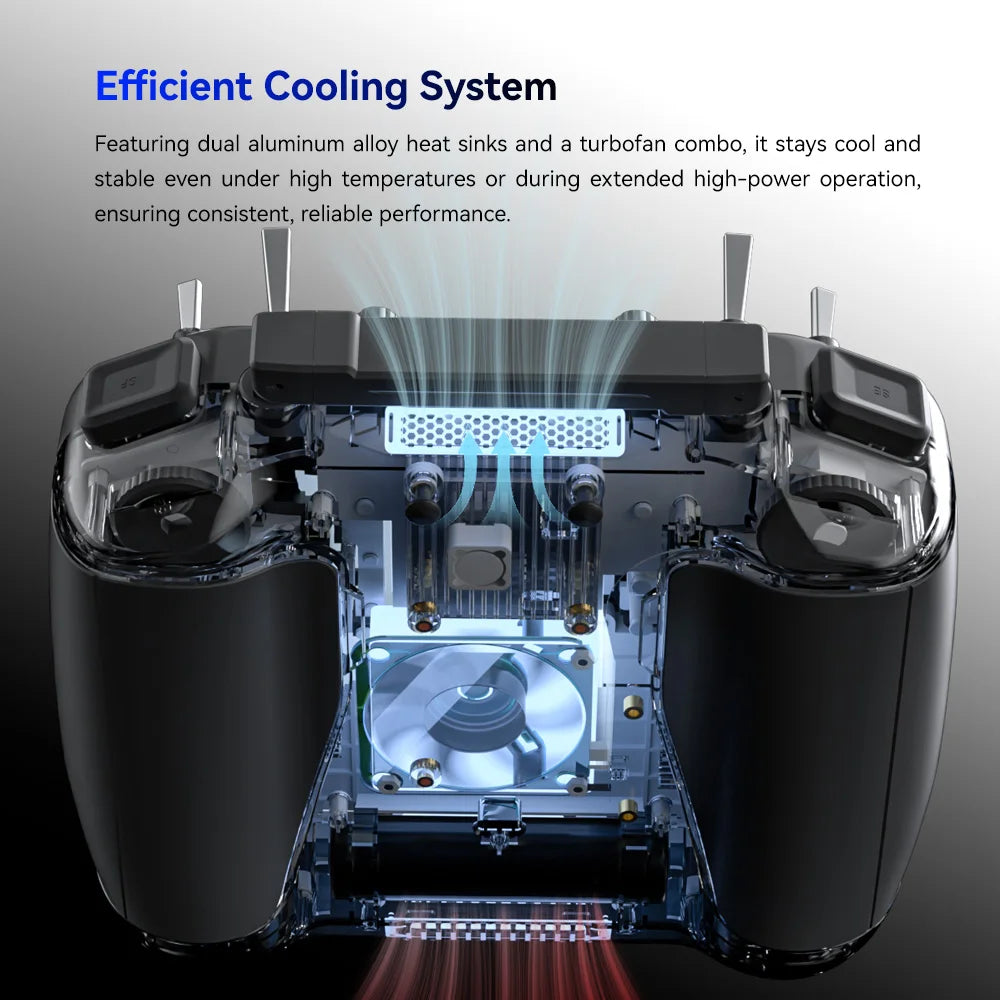

- Active cooling: Dual aluminum heat sinks and a fan help manage transmitter heat.
- Trainer support: A compatible wired USB-C connection enables an instructor/student setup; confirm the second radio, cable and configuration requirements.
- Simulator connections: Listed Bluetooth and USB-C wired support. Compatibility depends on the simulator and host device; software licenses are not listed as included.
- Expansion: Listed support for compatible external TBS or ELRS transmitter modules, sold separately unless expressly included.

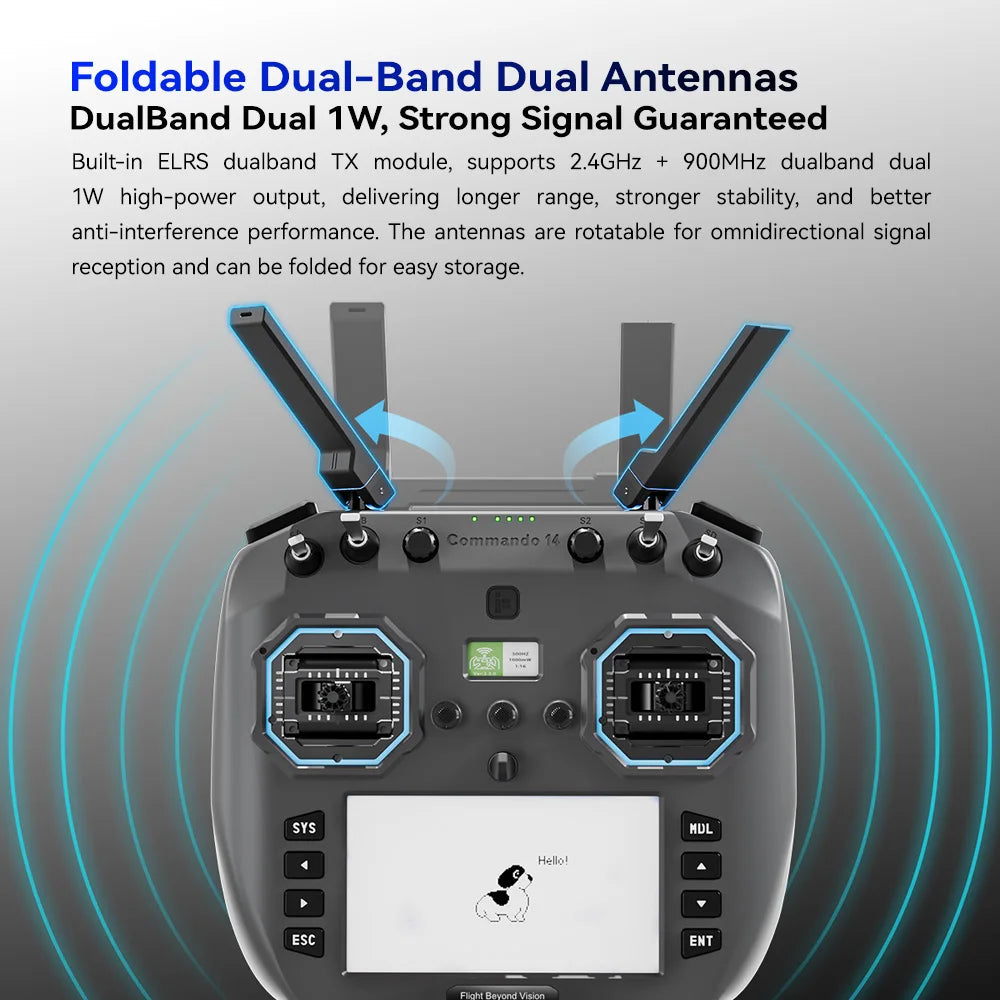

- Convenient handling: Foldable, rotatable dual-band antennas, a carry handle and mode adjustment without disassembling the radio.
Receiver Compatibility
Match your receiver's frequency band, ExpressLRS firmware and operating mode to the transmitter configuration before purchase. Dual-band capability does not mean every ELRS receiver supports GemX dual-band operation, nor does it establish compatibility with unrelated radio protocols. The listed package does not include a receiver.
Technical Specifications
- Model: Commando 14 GemX.
- Control channels: 14, as listed.
- Operating system: EdgeTX; the existing specification references version 3.0.0. Confirm the installed release and use firmware intended for the exact hardware.
- RF system: Built-in GemX ELRS, 2.4GHz and 900/868MHz band references.
- Antennas: Foldable, linearly polarized omnidirectional dual-band antennas.
- Gimbals: Digital Hall sensors, with menu-based trim.
- Listed battery specification: 5000mAh, 3S1P.
- Charging: USB-C PD, listed 5–20V at up to 3A and 60W maximum with suitable charging equipment.
- Folded dimensions: 180 × 168.2 × 81.4mm, ±5mm, with sticks and antennas folded.
- Unfolded dimensions: 180 × 217.4 × 85.3mm, ±5mm, with sticks and antennas extended.
- Weight: Approximately 950g, ±10g.

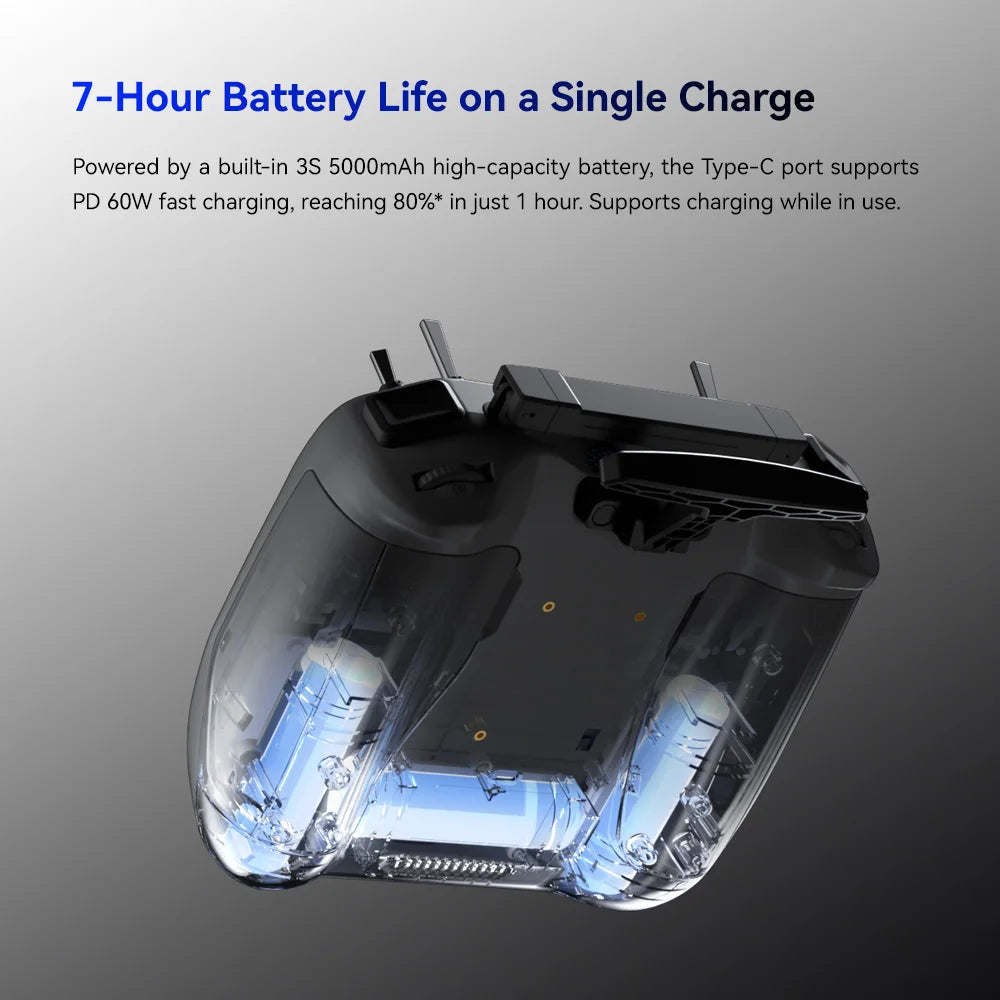

Battery and Charging Details
The detailed feature text describes a built-in 3S 5000mAh battery, but the original basic specification says no battery is included. Battery inclusion must be confirmed before ordering. The source advertises up to seven hours of use, charging to 80% in approximately one hour and charging while in use; these are conditional figures, not guaranteed results. Actual runtime and charging time depend on RF output, screen settings, cooling, temperature and charger capability. Charger and cable inclusion are not confirmed.
Perfect For
FPV pilots seeking adjustable full-size controls, model setup through EdgeTX, compatible simulator practice and a wired trainer workflow. Confirm your aircraft receiver and preferred control mode before switching radios.
What's Included
- 1 × iFlight Commando 14 GemX radio transmitter.
Only the transmitter is itemized in the existing packing list. Do not assume a receiver, external RF module, trainer cable, charger or other accessories are supplied. Contact sales@thedroneflight.com to confirm battery inclusion and package contents.
Setup and Safe Operation
Follow the manufacturer’s antenna, power and charging instructions. Remove propellers during setup, check channel mapping and failsafe behavior, and perform a range check before flight. Maintain airflow around the radio during high-power operation. No radio link is interference-free, and output-power capability is not a flight-range guarantee.
