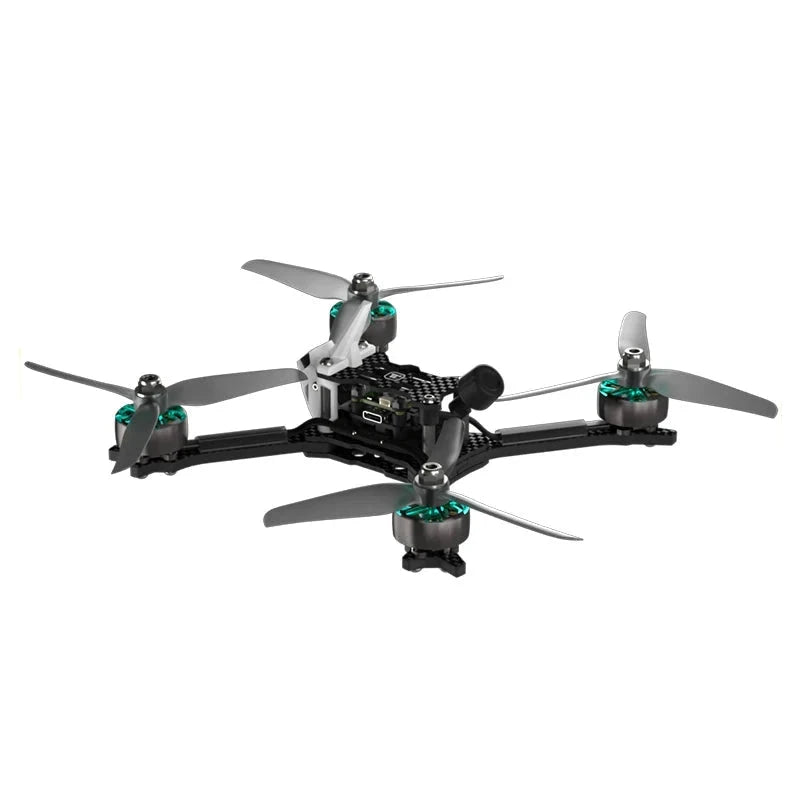

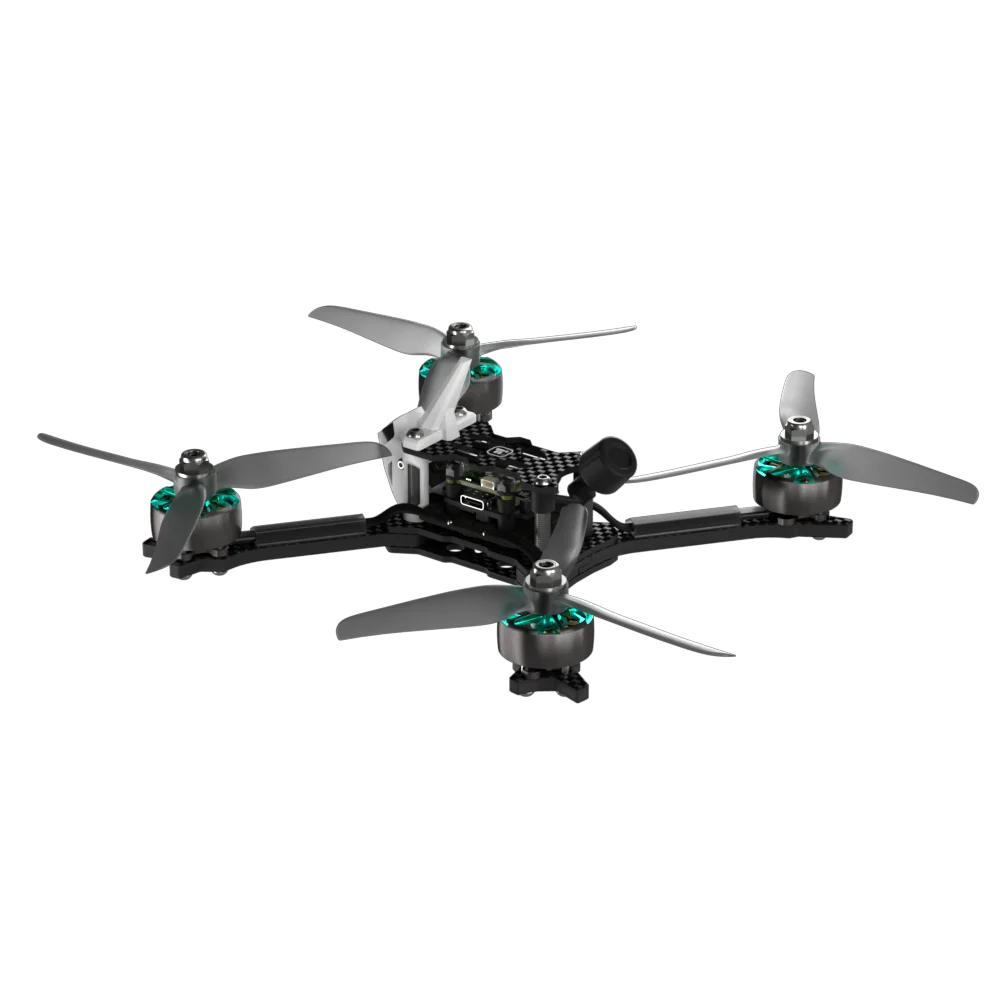

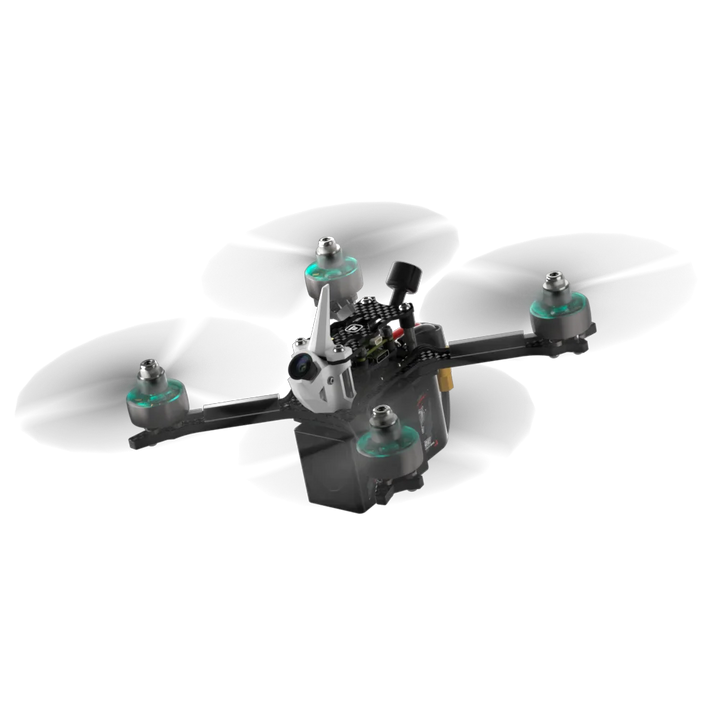

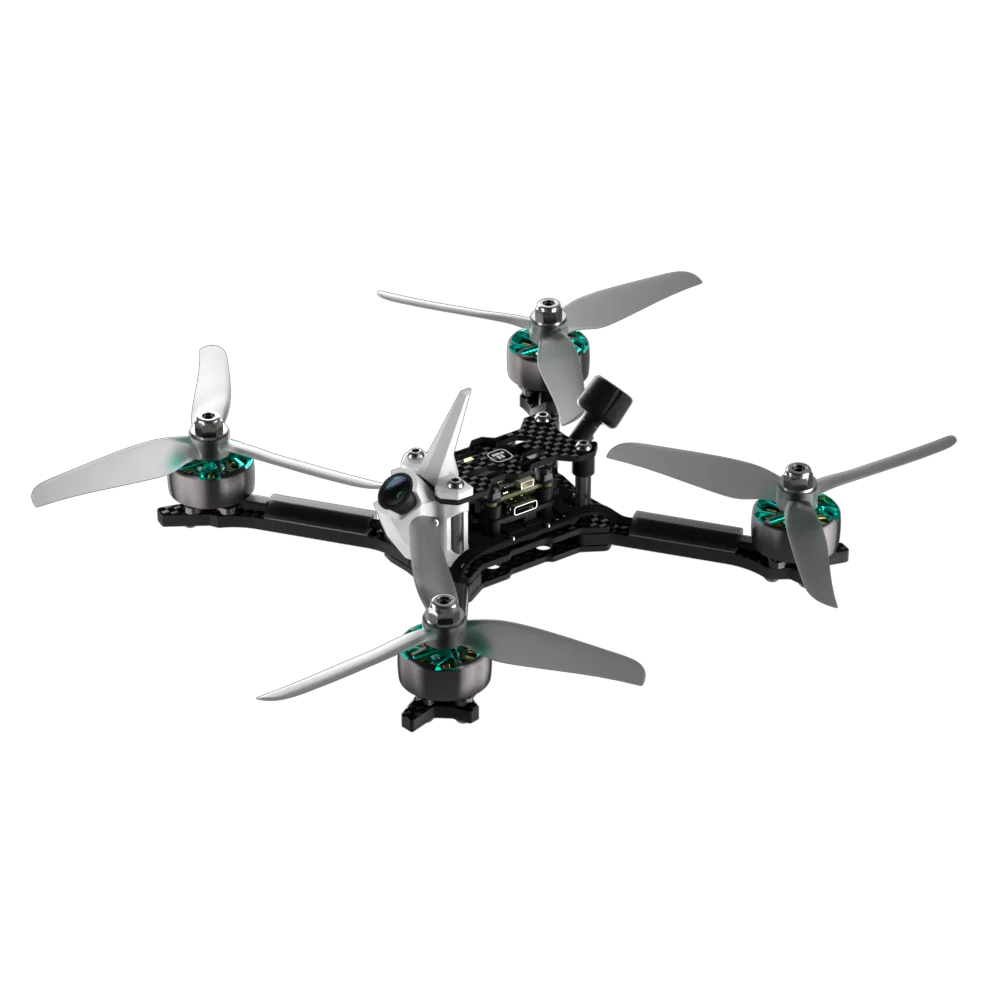

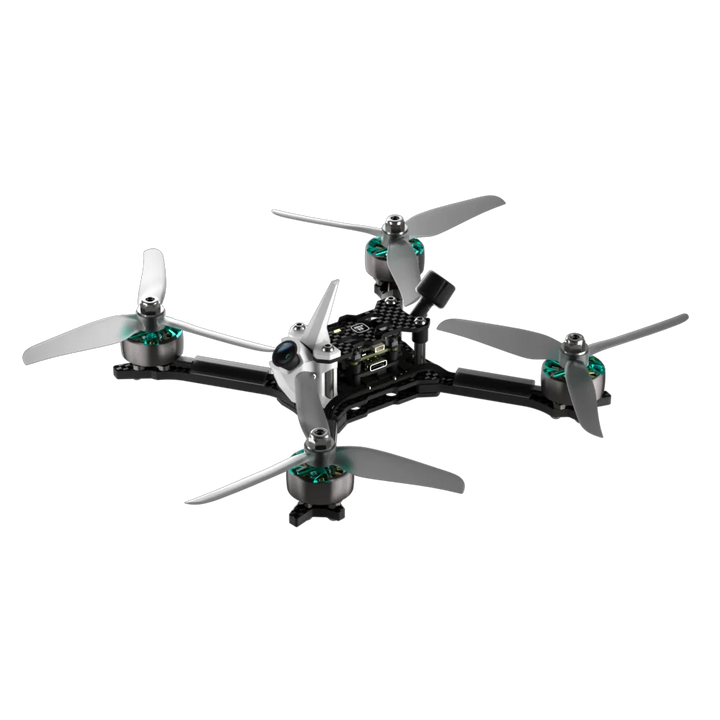

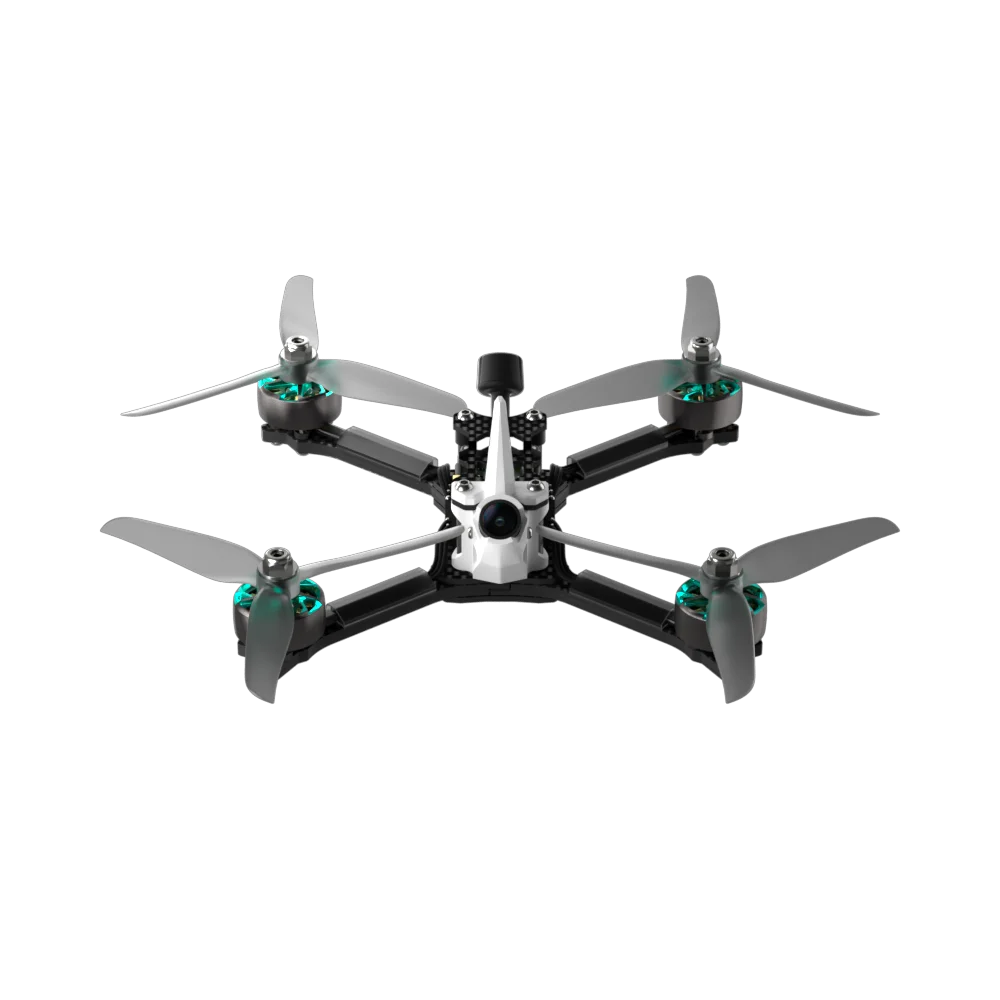

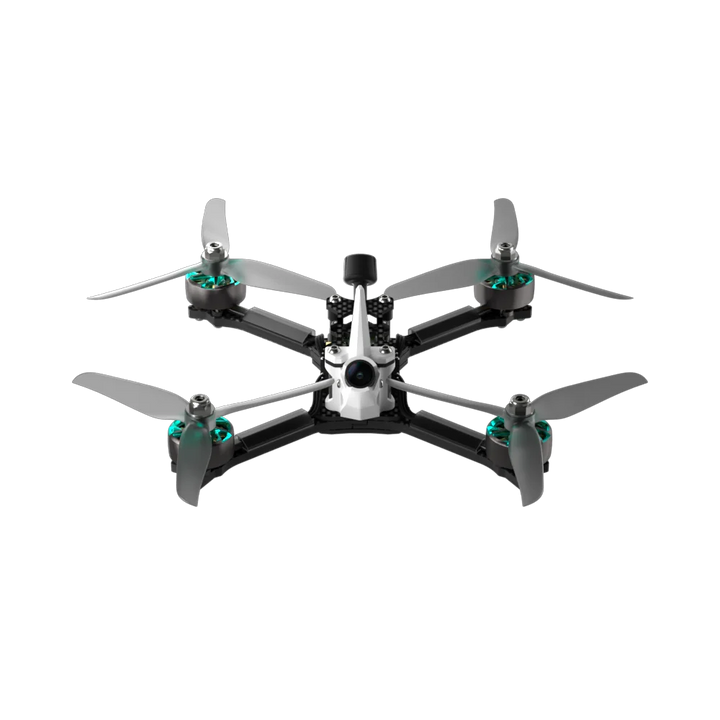

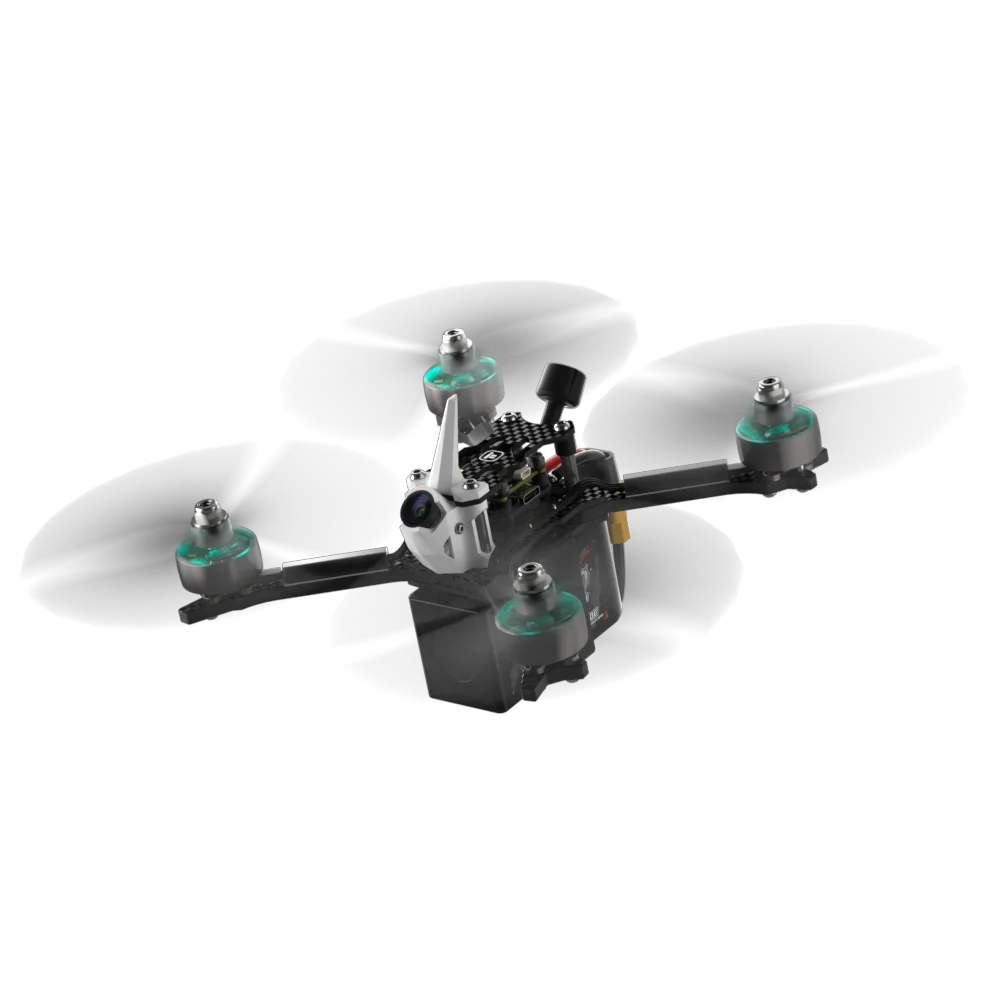

iFlight Mach R5 Ultra 6S Analog FPV Race Drone — BNF, ELRS 2.4GHz
The iFlight Mach R5 Ultra is iFlight’s top-tier 5-inch analog FPV race drone, engineered for pilots who demand peak performance on the track. Built on a 190mm compact H-frame with T700 carbon fiber plates, powered by R5 2207 2100KV motors and the Borg 60RS ESC, and featuring a built-in ELRS 2.4GHz receiver with SMD antenna, the Mach R5 Ultra hits 245 km/h at just 285g. Available in 25mW or 600mW VTX configurations. All iFlight BNFs are tested before shipment.
Key Features
- 245 km/h Max Speed — Top-tier race performance from the moment of takeoff
- 285g Lightweight Frame — Compact H-geometry improves space utilization by 20%, reduces cornering inertia
- T700 Carbon Fiber Plates — High-rigidity carbon absorbs crash impact without deformation
- Built-In ELRS 2.4GHz Receiver — SMD antenna saves build space; supports external antenna via solder pad; zero-latency stick control
- R5 2207 2100KV Motors — Newly upgraded motors paired with Borg 60RS ESC; supports up to 8S wide input, 65A peak
- Built-In Polymer Capacitor — No external capacitor needed on 5-inch builds; reduces weight and simplifies installation
- Onboard Anti-Spark Filter & TVS — Transient voltage suppressor keeps circuitry stable during power bursts
- BNF — Bind and Fly — Fully assembled and tested; just bind your transmitter and fly
Variant Options
- 25mW VTX — BLITZ RACE 5.8G 25mW VTX (PIT/25mW, 10CH, IPEX antenna, 7–26V input)
- 600mW VTX — BLITZ Mini Force 5.8G 600mW VTX (PIT/25/200/400/600mW, 40CH, MMCX antenna, 5V input)
Specifications
- Frame: 190mm wheelbase, compact H-geometry, T700 carbon fiber
- FC: Borg 5S RX FC
- ESC: Borg 60RS ESC (up to 8S, 65A peak)
- Motors: R5 2207 2100KV
- Props: Nazgul R5 V2
- Receiver: Built-in ELRS 2.4GHz w/ SMD antenna
- Weight: 285±5g (without battery)
- Takeoff Weight: ~527±5g (with 6S 1480mAh battery)
- Dimensions: 169×161×34mm
- Max Speed: 245 km/h
- Max Hover Time: ~12.5 min (6S 1480mAh, no load)
- Max Takeoff Altitude: 6,000m
- Operating Temperature: -10°C to +40°C
- Battery: 6S LiPo (not included)
What’s in the Box
- 1× Mach R5 Ultra 6S Analog BNF
- 2× R5 Prop pairs
- 1× Battery strap
- 1× Battery pad
Perfect For
- Competitive FPV racing pilots on 5-inch class builds
- ELRS 2.4GHz pilots wanting a ready-to-fly race platform
- Pilots upgrading to a lightweight, high-speed 6S race drone
Important Notes
- BNF — RC transmitter, battery, and charger not included
- For recreational/sport use only; does not support autonomous flight
- All iFlight BNFs are tested before shipment; contact iflightrc.freshdesk.com for support
