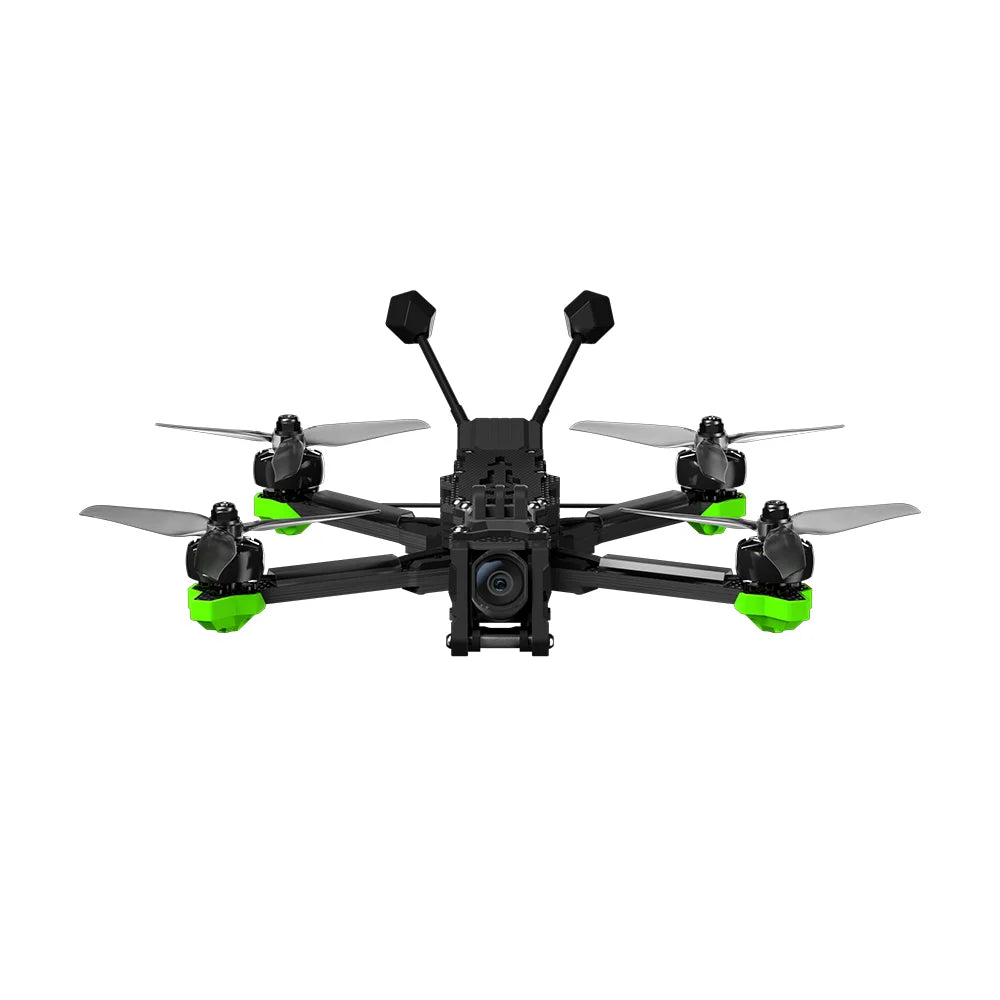

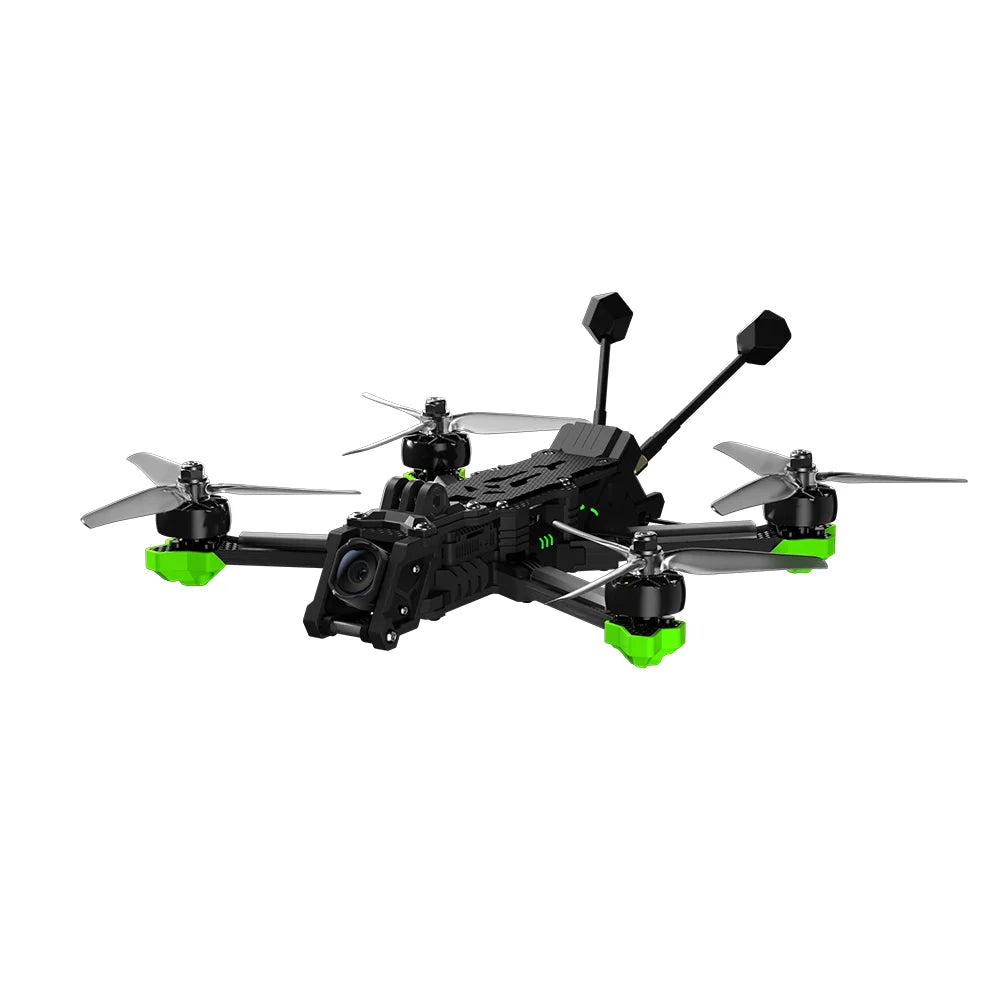

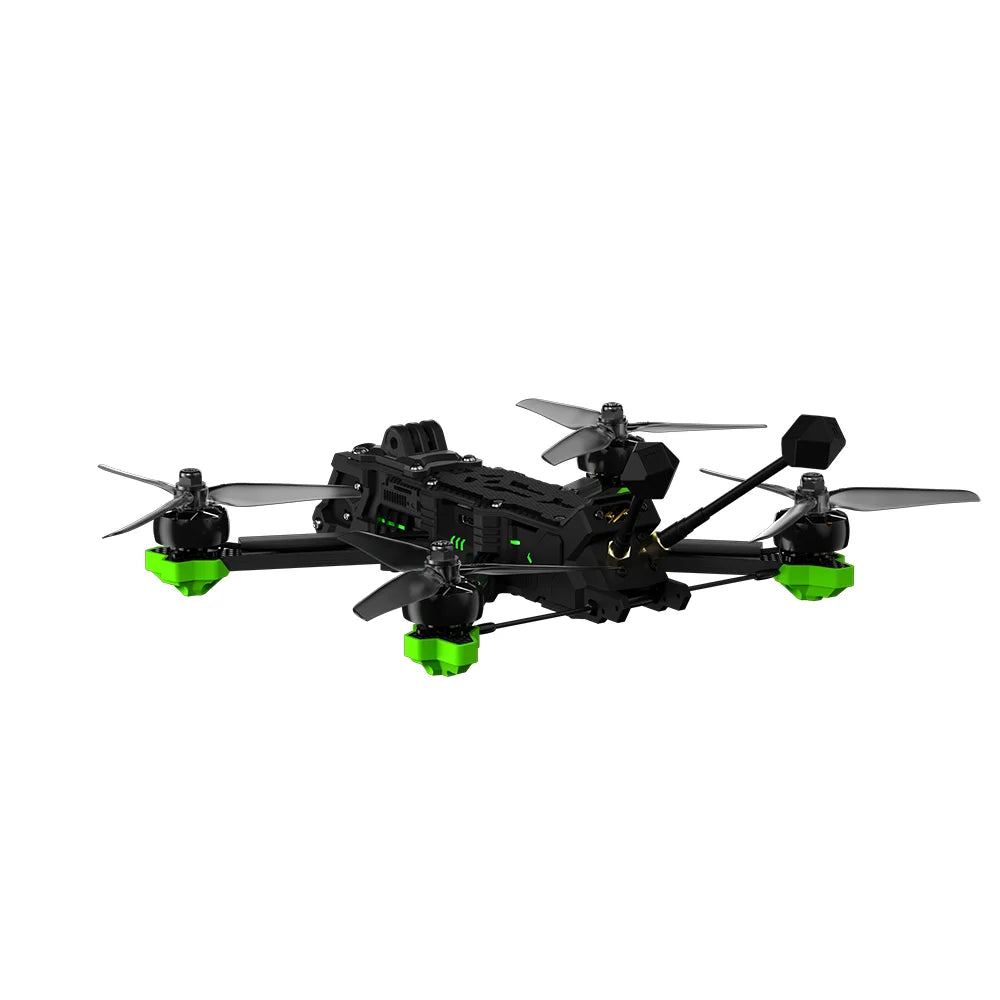

iFlight Nazgul Evoque F5 V3 6S FPV Drone | O4 Pro & GPS Options

One FPV Platform, Two Frame Geometries

The iFlight Nazgul Evoque F5 V3 pairs DJI O4 Air Unit Pro video with XING2 2207 1750KV motors and a switchable DeadCat/True X frame. Its default DeadCat layout is designed to help keep propellers out of the camera view, while the True X configuration offers an alternative layout for freestyle flying.

Choose your radio receiver and GPS configuration, set the camera angle for your flying style and complete the setup checks before your next session. Geometry conversion is a mechanical setup change, not an in-flight switching feature; follow the manufacturer's instructions and confirm required parts.

Choose Your Receiver

• ELRS 2.4GHz RX: Requires a compatible ExpressLRS 2.4GHz transmitter with matching firmware and binding settings.
• ELRS 868 900MHz RX: Sub-GHz ELRS selection. Confirm the supplied receiver frequency and configuration match your transmitter. It is not interchangeable with 2.4GHz ELRS hardware.
• TBS Crossfire NANO: Requires a compatible TBS Crossfire transmitter or module; ELRS equipment does not bind to Crossfire.
• No receiver: No separate radio receiver is selected. Plan to install a compatible receiver, or verify supported DJI control hardware, wiring and flight-controller settings before purchase.

GPS or No GPS

Each receiver choice is available with GPS or No GPS. GPS is optional, not standard across all packages. Hardware inclusion does not establish configured rescue behavior, automatic landing, obstacle avoidance or camera-drone-style return-to-home. Verify and test your configuration before relying on navigation features.

Core Specifications

• Model: Nazgul Evoque F5 V3 6S O4 HD.
• Flight controller: Borg Mini F7.
• ESC: Borg Mini 60 ESC.
• Video hardware: DJI O4 Air Unit Pro.
• Motors: XING2 2207 1750KV.
• Propellers: Nazgul F5, 5-inch class.

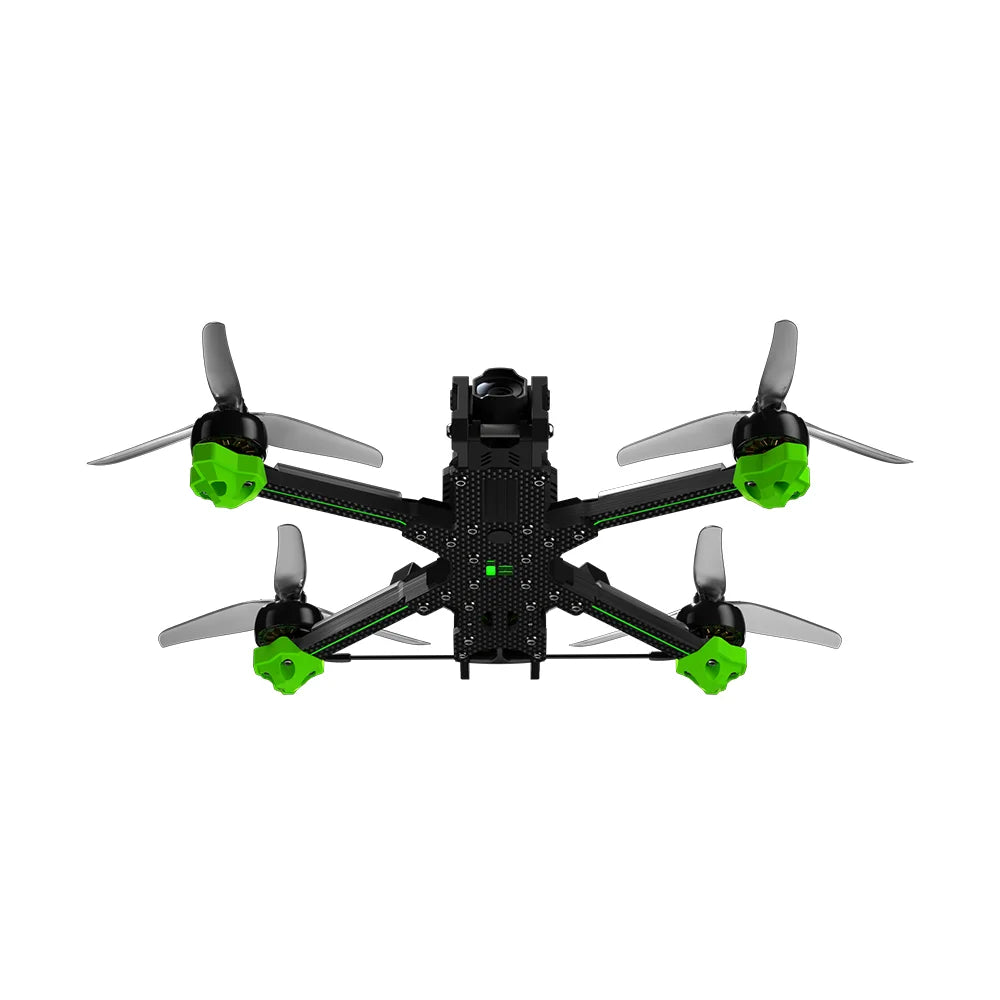

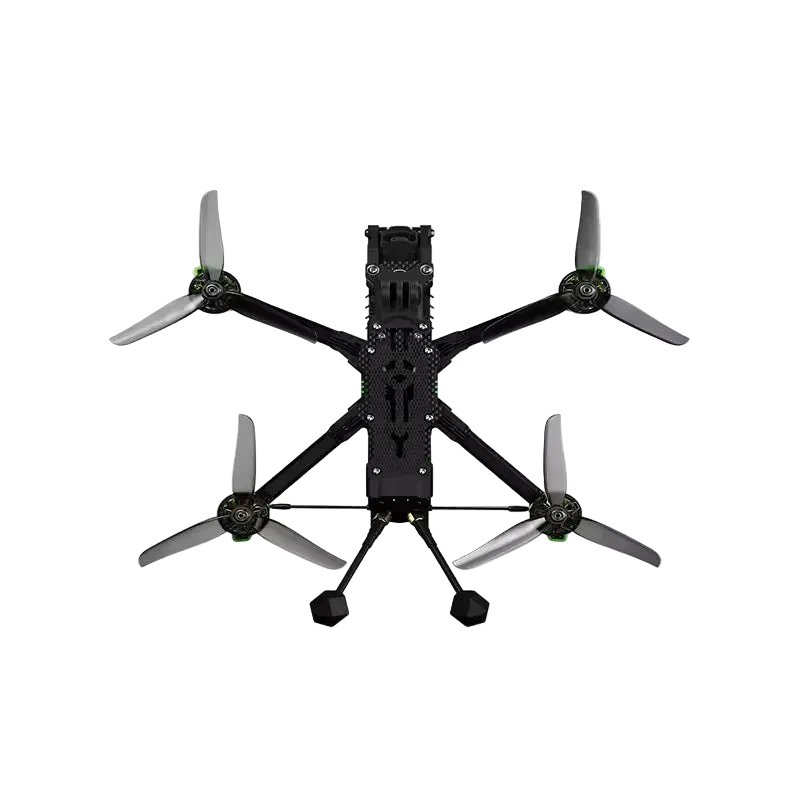

• Geometry: DeadCat by default; switchable to True X.
• Wheelbase: Listed 236mm DeadCat / 239mm True X.
• Dimensions: Listed 230 × 207 × 54mm DeadCat / 207 × 199 × 54mm True X.
• Camera angle: Listed adjustment from 10–45°.
• Aircraft weight: Listed 492g ±5g; configuration can affect weight.
• Example takeoff weight: Approximately 736g with the listed 1480mAh battery setup.
• Operating temperature: Listed −10 to 40°C.

Electronics and Cooling

The listed Borg Mini stack incorporates anti-spark filtering, dual independent BEC supplies and a polymer capacitor. Front-mounted video hardware and organized wiring support the layout, while fin-shaped cooling channels help dissipate heat. These features do not eliminate electrical faults or overheating, and powered video hardware still needs appropriate cooling during bench setup.

DJI O4 Pro Imaging

The detailed specifications identify a 1/1.3-inch sensor, listed 155° field of view and 4K recording capability. Recording modes, stabilization, field of view and live-view frame rate depend on firmware, goggles and settings. A listed 1080p/100fps live view is separate from onboard recording.

Confirm goggles compatibility, activation and firmware requirements before ordering. Video pairing and radio-control pairing are separate setup steps. No goggles, radio transmitter or action camera are established as included.

Flight-Time Expectations

The source lists approximately 12–13 minutes of no-load hovering using a 6S 1480mAh battery. This is a reference test figure, not a guaranteed freestyle flight duration. Battery condition, flying style, payload and environment affect results. Advertised maximum speed and video-transmission range are not promised operating results.

Perfect For

Experienced FPV pilots seeking a 5-inch 6S platform for cinematic flight lines and freestyle, with configurable frame geometry and a choice of radio systems.

What's Included

• 1 × Nazgul Evoque F5 V3 6S O4 HD aircraft in the selected receiver/GPS configuration.
• 2 × antennas.
• 1 × battery pad.
• 2 × pairs of propellers.
• 2 × battery straps.

Flight battery, charger, goggles, radio transmitter and memory card are not established as included. The previous launch-week GPS and ND-filter gift offer is not included as a current package promise. Confirm any geometry-conversion accessories needed for your intended layout.

Setup and Safety

• Use a compatible 6S pack with verified connector, fit and discharge capability.
• Remove propellers during bench configuration and motor testing.
• Check receiver binding, motor order, direction and failsafe settings before flight.
• Recheck wiring, fasteners, motor layout and tuning after geometry changes.
• Provide airflow around powered video hardware during setup.
• This aircraft has no listed obstacle avoidance or integrated propeller guards and is not water resistant.
