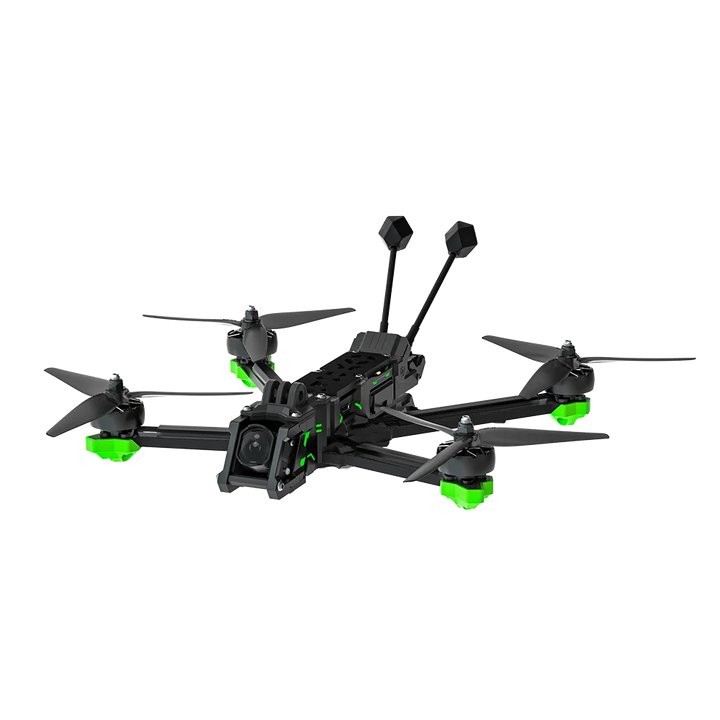

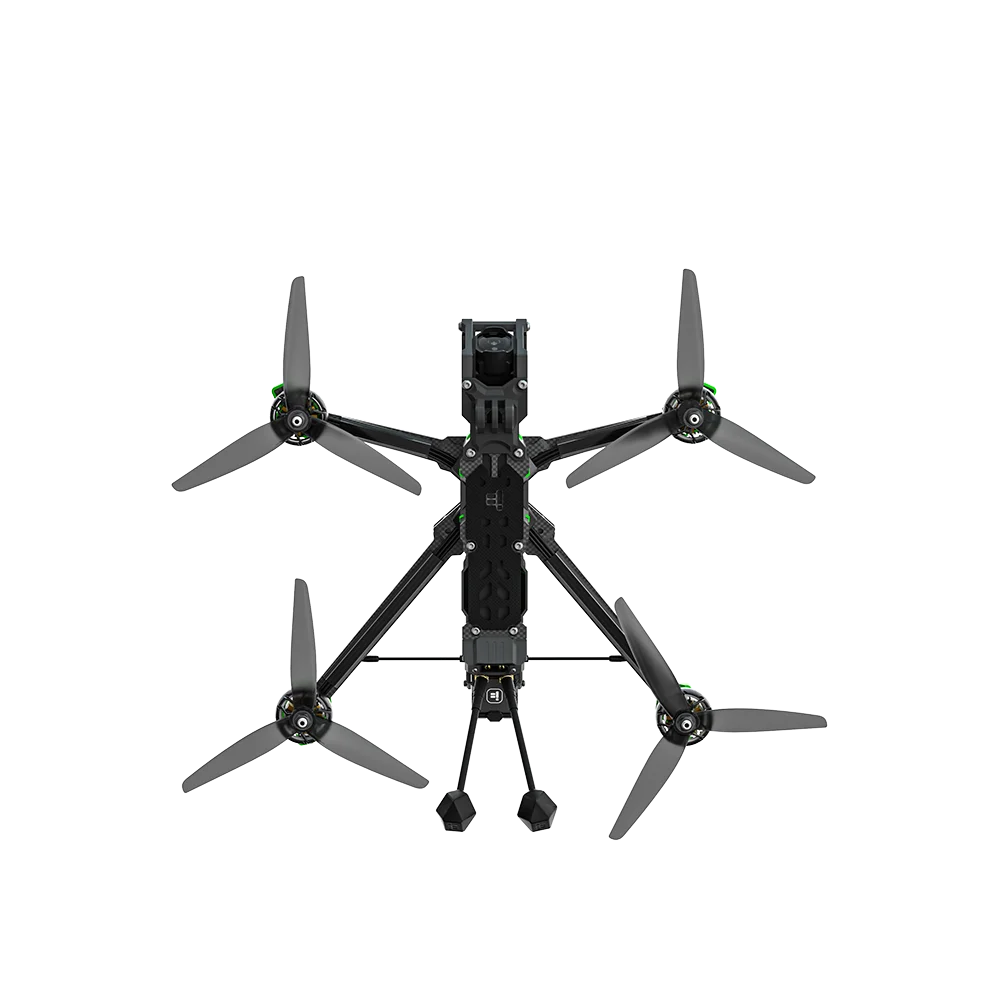

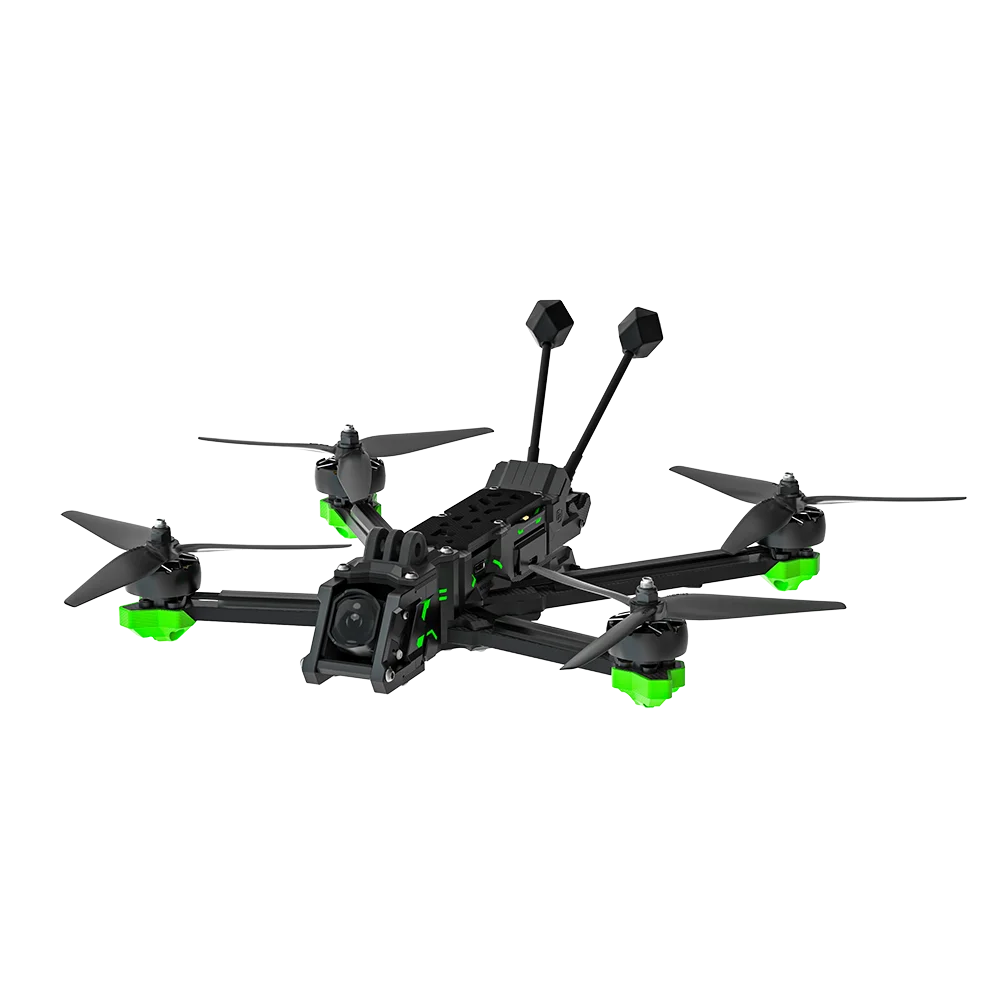

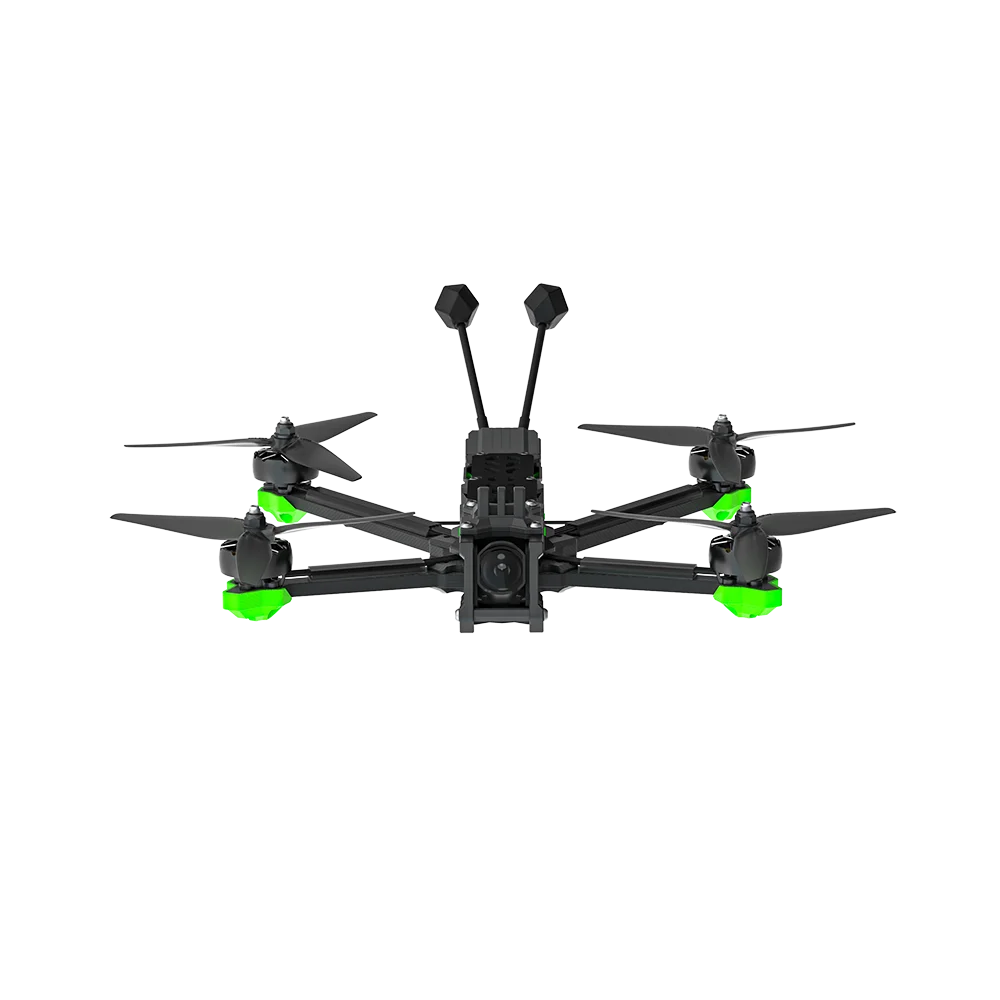

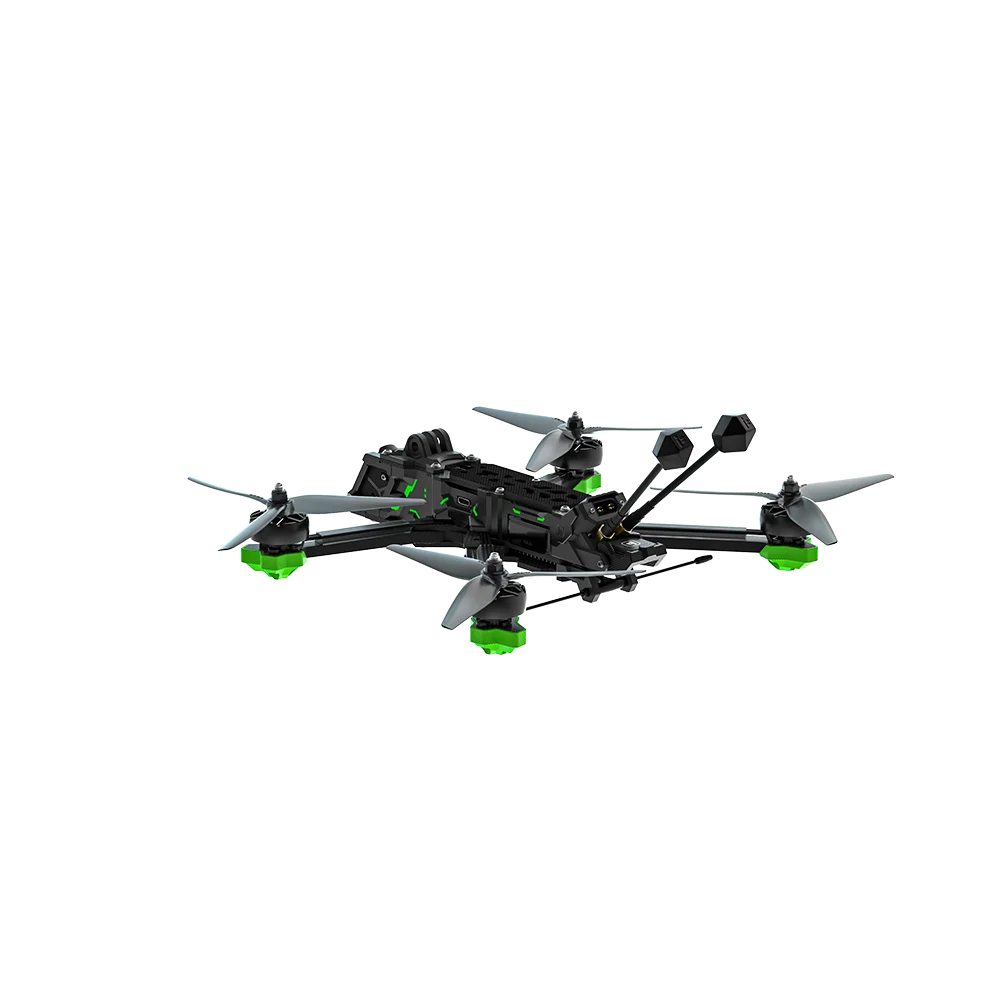

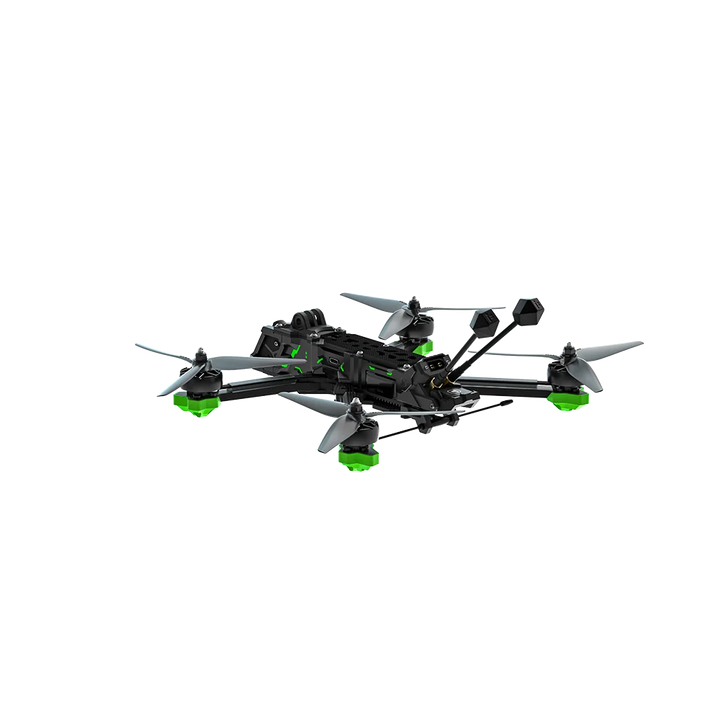

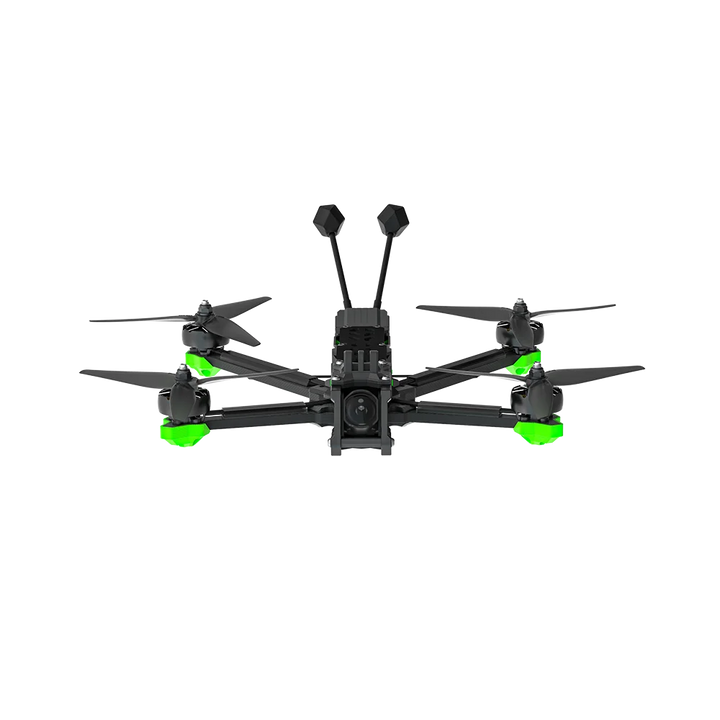

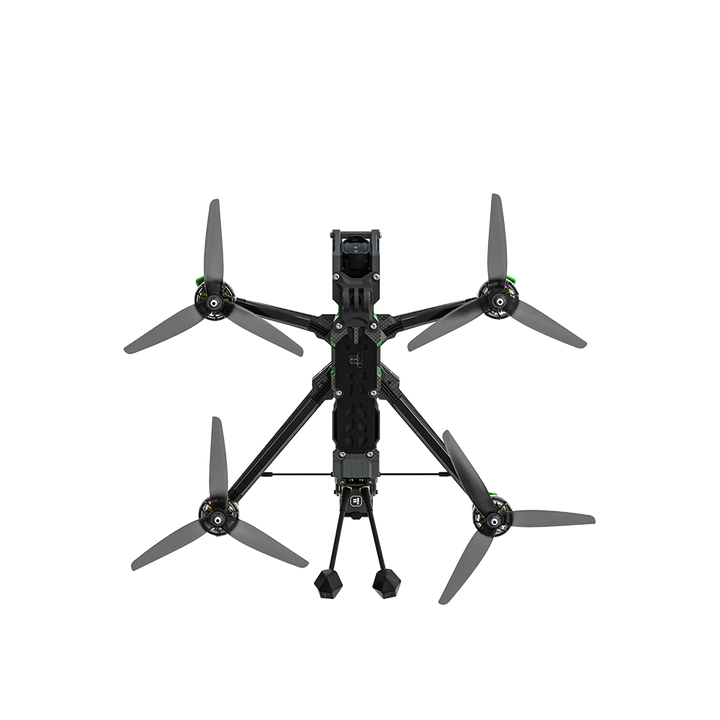

6-Inch 6S DeadCat FPV Drone with DJI O4 Pro Air Unit, 4K RockSteady, GPS & XING2 Motors
The iFlight Nazgul Evoque F6 V2 O4 is iFlight's premier 6-inch pre-built FPV drone, now upgraded with DJI's cutting-edge O4 Pro Air Unit. Built on the F6D DeadCat geometry frame with XING2 2506 1500KV motors, BLITZ Mini F722 FC, and BLITZ Mini E55 55A ESC, the Evoque F6 V2 delivers 4K stabilized video with RockSteady 3.0+, up to 15km video transmission range, and 8.5 minutes of hover time on a 6S 1480mAh battery. Available in 4 receiver configurations — No RX (for DJI RC), TBS Crossfire Nano, ELRS 868/900MHz Nano, and ELRS 2.4GHz — this is the definitive long-range cinematic FPV platform for serious pilots.
Key Features
- DJI O4 Pro Air Unit - 1/1.3" sensor, 155° FOV, 4K recording
- RockSteady 3.0+ Stabilization - Smooth cinematic footage
- 15km Video Transmission - FCC range with DJI Goggles 3
- 1080p/100fps Live View - Ultra-smooth real-time FPV
- 24ms Transmission Latency - Near-zero lag FPV experience
- XING2 2506 1500KV Motors - Unibell titanium shaft, NSK bearings
- BLITZ Mini F722 FC - High-performance flight controller
- BLITZ Mini E55 55A ESC - 2-6S, 55A per channel
- F6D DeadCat Frame - 262mm wheelbase, prop-free FOV
- GPS + GNSS - GPS/SBAS/Galileo/QZSS/Glonass
- Anti-Spark Filter - XT60 connector protection
- 360° TPU Protection - Illuminated side panels
- 485g Body / 710g Takeoff - Lightweight for a 6-inch platform
- 8.5-Minute Hover Time - Extended flight sessions
- 5km Max Flight Distance - Long-range capable
Perfect For
- Cinematic FPV videography
- Long-range FPV exploration
- 4K aerial content creation
- GPS-assisted flying and RTH
- Professional FPV pilots
- DJI Goggles 3 / Goggles N3 users
- Pilots upgrading to 6-inch platforms
- Outdoor freestyle and cruising
Receiver Configuration Options
- No RX for DJI RC - $1,569 - No receiver installed; use DJI FPV Remote Controller 3 directly via O4 Pro (SBUS protocol required)
- TBS Crossfire Nano - $1,635 - Team BlackSheep Crossfire Nano receiver for ultra-long-range control
- ELRS 868/900MHz Nano - $1,606 - ExpressLRS sub-GHz nano receiver for maximum penetration and range
- ELRS 2.4GHz RX - $1,606 - ExpressLRS 2.4GHz receiver for low-latency long-range control
Technical Specifications
Frame & Build
- Model: Nazgul Evoque F6 V2 O4 HD
- Frame Geometry: F6D DeadCat
- Wheelbase: 262±2mm
- Propeller Size: 6-inch (HQ 6×2.5×3)
- Body Weight: 485±5g
- Takeoff Weight: ~710±5g (with 6S 1480mAh)
- Dimensions: 209×162×36±2mm
- Operating Temperature: -10° to 40°C
Flight Controller - BLITZ Mini F722
- FC: BLITZ Mini F722 Flight Controller
- ESC: BLITZ Mini E55 4-in-1 2-6S 55A ESC
- Power: 6S LiPo optimized
Motors - XING2 2506
- Motor: XING2 2506 1500KV
- Bell: Unibell (one-piece) design
- Shaft: Titanium alloy with reinforced bell joint
- Bell Material: Crash-resistant 7075 aluminum
- Bearings: Japanese NSK bearings
- Magnets: Center slotted N52H curved arc
- Protection: XING O-ring bushing gap protection
DJI O4 Pro Air Unit
- Image Sensor: 1/1.3-inch
- FOV: 155° ultra-wide angle
- ISO: 100-25600
- Video Resolution: 1080p/100fps H.265
- Max Video Bitrate: 130Mbps
- Video Format: MP4
- Color Mode: Normal / D-Log M
- Stabilization: RockSteady 3.0+
- Live View: 1080p/100fps
- Built-in Storage: 4GB
- SD Card: microSD up to 512GB
- Air Unit Weight: ~32g (with camera module)
- Air Unit Dimensions: 33.5×33.5×13mm
Video Transmission
- Operating Frequency: 5.170-5.250 GHz & 5.725-5.850 GHz
- Max Range (FCC): 15km with DJI Goggles 3 / N3
- Max Range (CE): 8km
- Transmission Latency: As low as 24ms
- Max Transmission Bitrate: 60Mbps
- Communication Bandwidth: Max 60MHz
- Antennas: Dual antennas
GPS & Navigation
- GNSS: GPS + SBAS + Galileo + QZSS + Glonass
- Functions: Return-to-home, position hold, GPS rescue
Performance
- Max Hover Time: ~8.5 minutes (with 6S 1480mAh)
- Max Flight Distance: 5km
- Wind Resistance: Level 7
- Power Connector: XT60 with anti-spark filter
Goggle & Controller Compatibility
- DJI Goggles 3 / DJI Goggles N3 + DJI FPV Remote Controller 3
- DJI Goggles 2 / DJI Goggles Integra + DJI FPV Remote Controller 2
- Any radio matching the installed receiver (TBS/ELRS variants)
Advanced Features
XING2 2506 Motors — Engineered for Durability
The XING2 2506 1500KV motors represent the latest evolution of iFlight's bestselling XING motor line. The unibell (one-piece bell) design eliminates the weak points of traditional multi-piece bells, while the titanium alloy shaft with reinforced bell joint provides exceptional crash resistance. Japanese NSK bearings ensure smooth, long-lasting operation, and center slotted N52H curved arc magnets deliver maximum magnetic efficiency for strong, consistent thrust on 6S power.

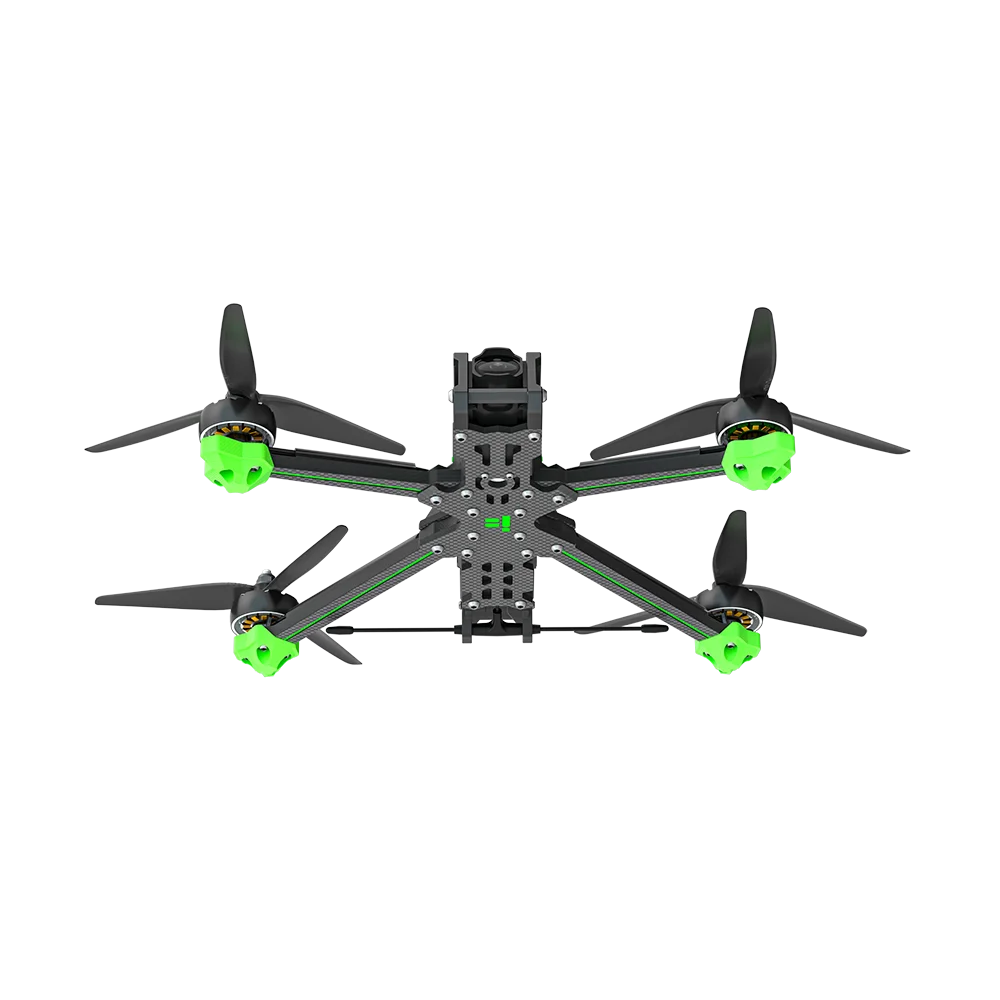

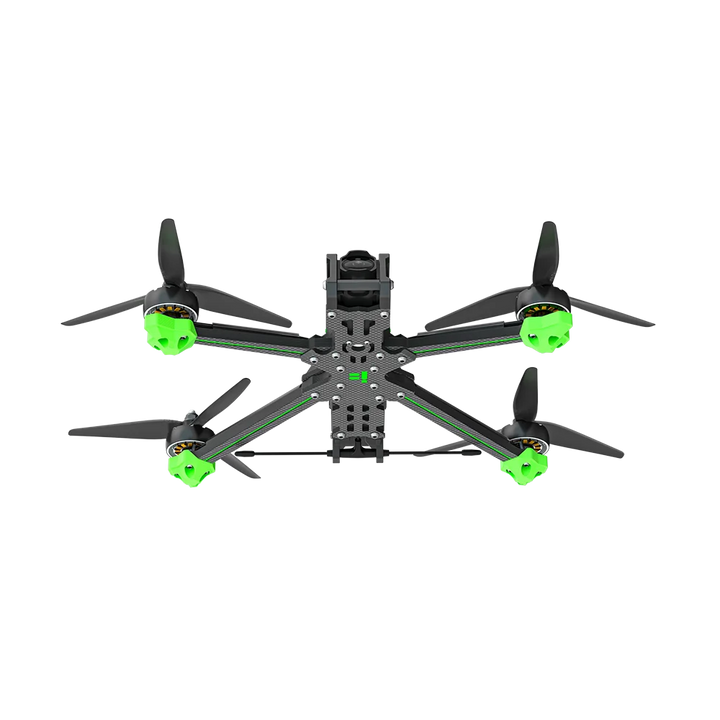

F6D DeadCat Frame — Prop-Free Field of View
The DeadCat geometry positions the front arms further apart and the rear arms closer together, pushing the front propellers completely out of the camera's 155° ultra-wide field of view. The result is clean, prop-free cinematic footage without any post-processing cropping. The frame also features strategic airflow channels to keep the FC and ESC cool and clean, illuminated side panels for visibility, and 360° TPU protective parts to absorb crash impacts.
DJI O4 Pro — 4K Cinematic FPV
The DJI O4 Pro Air Unit brings the most advanced DJI digital FPV technology to the Evoque F6 V2. The 1/1.3-inch sensor captures stunning detail in challenging lighting conditions, while RockSteady 3.0+ electronic image stabilization smooths out the inevitable vibrations of FPV flight. D-Log M color mode preserves maximum dynamic range for professional color grading in post-production. With 15km FCC video transmission range and 24ms latency, the O4 Pro delivers both the range and responsiveness needed for serious FPV flying.
Anti-Spark XT60 Protection
iFlight's integrated anti-spark filter circuit prevents the damaging voltage spike that occurs when connecting a charged LiPo battery to the ESC capacitors. This protective circuit extends the lifespan of the XT60 connectors and protects the ESC and FC from rapid current spikes — a common cause of premature electronics failure in high-performance FPV builds.
Factory Tested BNF Quality
Every iFlight BNF drone is individually tested before shipment to guarantee the highest quality. The Evoque F6 V2 arrives ready to bind and fly — no soldering, no assembly, no tuning required. iFlight's quality control process ensures your drone performs exactly as expected from the first flight.
What's Included
- 1× iFlight Nazgul Evoque F6 V2 O4 HD BNF drone
- 1× DJI O4 Pro Air Unit (installed)
- 1× GPS module (installed)
- 2× Antennas
- 2× Propeller pairs (HQ 6×2.5×3)
- 1× Battery pad
- 1× Battery strap
- 1× Operating instructions
- Receiver per selected variant (except No RX version)
What You'll Need
- 6S LiPo battery (1480mAh recommended)
- 6S LiPo charger
- DJI Goggles 3 / Goggles N3 (recommended) or Goggles 2 / Integra
- DJI FPV Remote Controller 3 (No RX version) or compatible radio (TBS/ELRS versions)
- microSD card (up to 512GB, not included)
Important Notes
- iFlight Nazgul Evoque F6 V2 O4 HD 6-inch DeadCat FPV drone
- XING2 2506 1500KV brushless motors
- BLITZ Mini F722 FC + BLITZ Mini E55 55A 4-in-1 ESC
- DJI O4 Pro Air Unit with 1/1.3" sensor and 155° FOV
- RockSteady 3.0+ stabilization and D-Log M color mode
- GPS: GPS/SBAS/Galileo/QZSS/Glonass
- 485g body weight, ~710g takeoff weight (with 6S 1480mAh)
- ~8.5 minute hover time, 5km max flight distance
- 15km FCC video transmission range (with DJI Goggles 3)
- 24ms minimum transmission latency
- XT60 connector with anti-spark filter
- All iFlight BNFs tested before shipment
- No RX version: requires DJI FPV RC3 and SBUS protocol configuration
- For civilian use only — military and terrorist use strictly prohibited
- Battery, charger, goggles, and radio not included
- Recommended for ages 14+
- Expert skill level recommended
