ImmersionRC RF Power Meter V2 — Professional RF Test Equipment for FPV VTX & RC Link Testing, -20 to +30dBm, 35MHz–6GHz, 30dB Internal Attenuator, OLED Display, 8-Hour Battery
The ImmersionRC RF Power Meter V2 is the essential RF test tool for FPV pilots and RC system builders. Measuring RF power from -20dBm to +30dBm with ±0.5dB accuracy across calibrated frequencies from 35MHz to 6GHz, the V2 gives you the measurement capability previously only available with expensive lab-grade equipment. Whether you’re verifying your VTX is actually hitting its rated output, checking that all antennas on your RC transmitter are working, or running pre-race compliance checks on a start grid, the RF Power Meter V2 is the tool that answers those questions definitively.
The V2 improves on the original with an integrated Li-ion battery, 30dB internal attenuator, and multiple measurement modes including PowerScope for visualizing pulsed RF signals from RC controllers and long-range systems.
Key Features
- Wide Power Range — -20dBm to +30dBm; covers everything from micro-power RC telemetry to 5W+ VTX outputs
- Calibrated Multi-Band Coverage — Factory-calibrated at 35, 72, 433, 1200, 2400, and 5600–6000MHz (50MHz steps); covers all major FPV and RC frequency bands
- ±0.5dB Accuracy — Precise enough to verify VTX power compliance and diagnose antenna/cable/connector faults
- 30dB Internal Attenuator — Allows safe direct measurement of high-power VTX outputs without external pads
- PowerScope Mode — Visual representation of pulsed RF signals; identify packet rate, antenna placement, LBT/duty cycle compliance on RC controllers and long-range systems
- Touch-Free Race Compliance (“Scully Mode”) — Walk the start grid with the included sniffer antenna and check each quad’s VTX output without unscrewing antennas; identify quads on high power or with antenna/connector faults before racing
- Average & Peak Measurement — Accurately measures both continuous (analog VTX) and pulsed (RC controllers, LRS) RF signals
- Integrated Li-ion Battery — 3.7V 600mAh (10440 cell), ~8 hours runtime, 5-minute auto-shutdown; recharges in under 1 hour via micro-USB

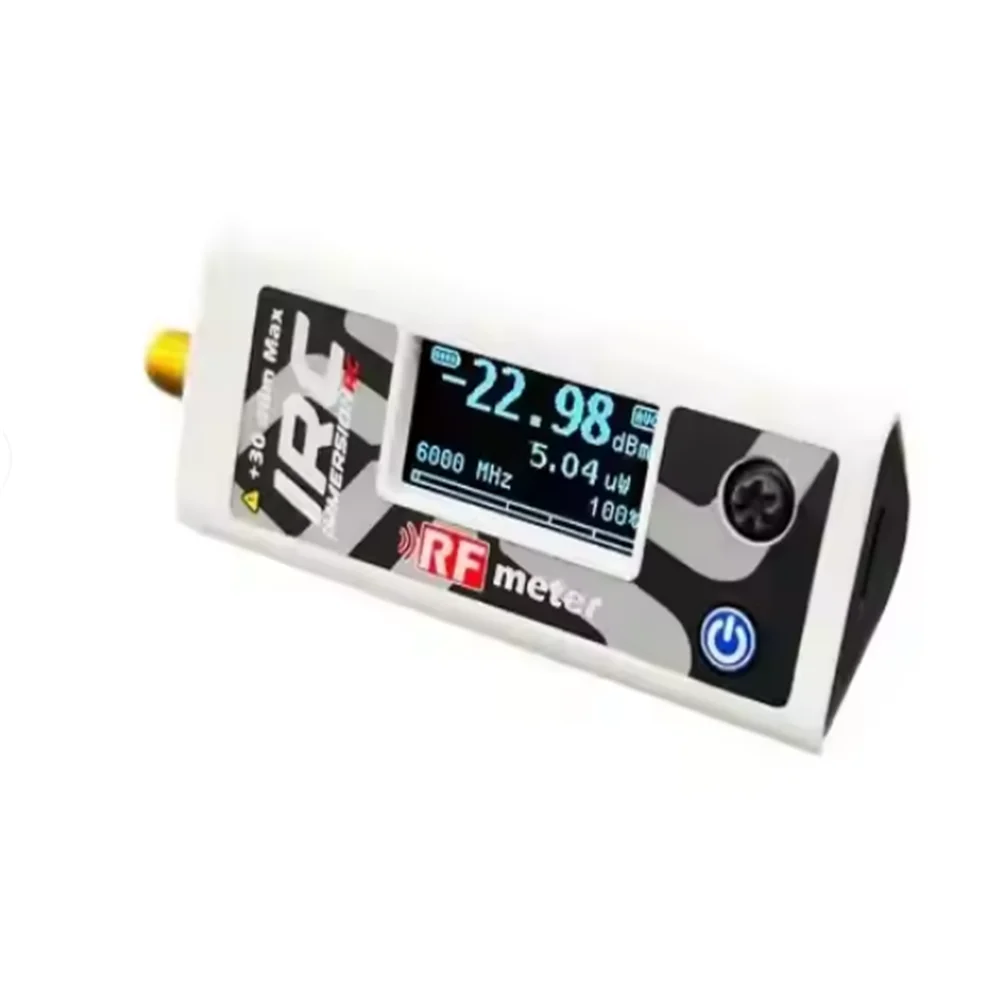

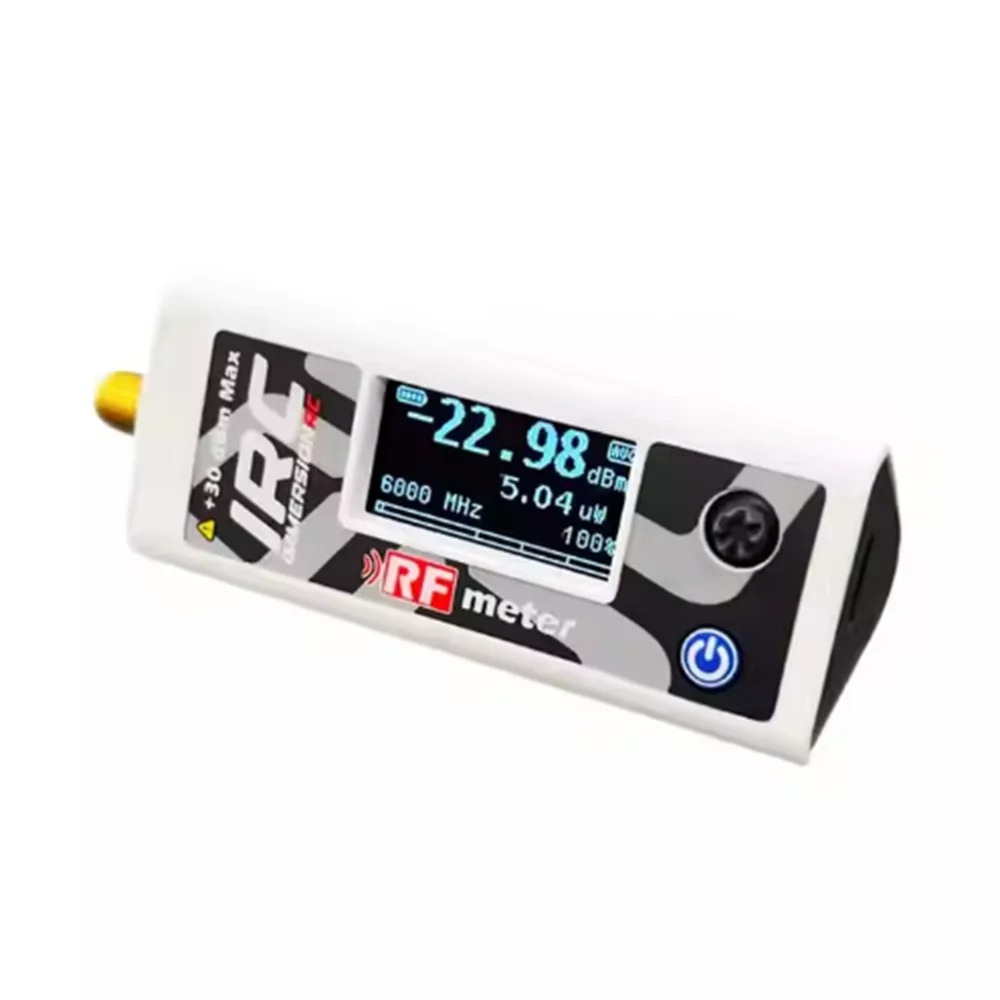

- OLED Display — 128×64 monochrome OLED; clear readings in all lighting conditions
- Joystick Navigation — Single joystick UI for fast mode and setting changes in the field
Specifications
- Power Range: -20dBm to +30dBm
- Calibrated Frequencies: 35, 72, 433, 1200, 2400, 5600–6000MHz (50MHz steps)
- Accuracy: ±0.5dB
- Internal Attenuator: 30dB
- Battery: 3.7V Li-ion, 10440 size, 600mAh
- Current Consumption: ~35mA
- Battery Life: ~8 hours
- Auto Shutdown: 5-minute timeout
- Charging: Micro-USB, <1 hour
- Display: OLED, 128×64 pixels, monochrome
- User Input: Joystick
- Interfaces: USB, power control via CDC
- Color: Black
- Weight: ~1kg (with packaging)

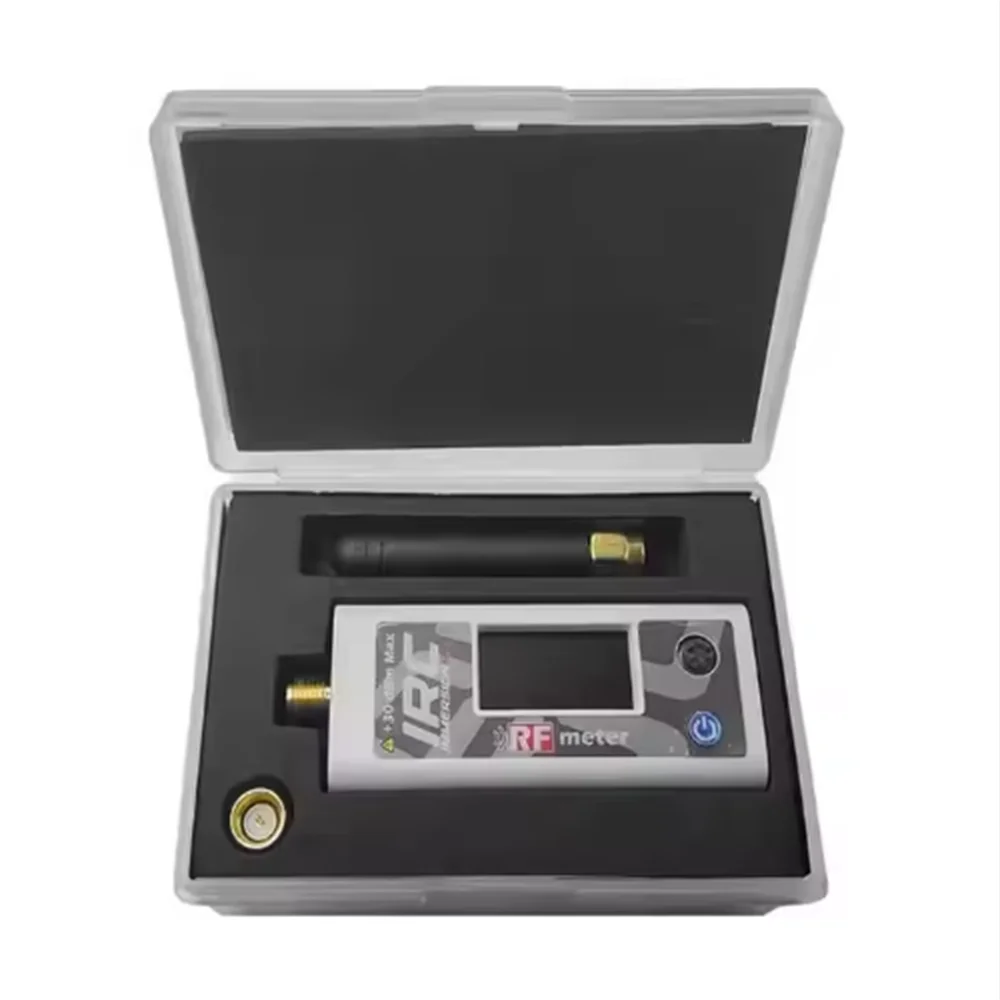

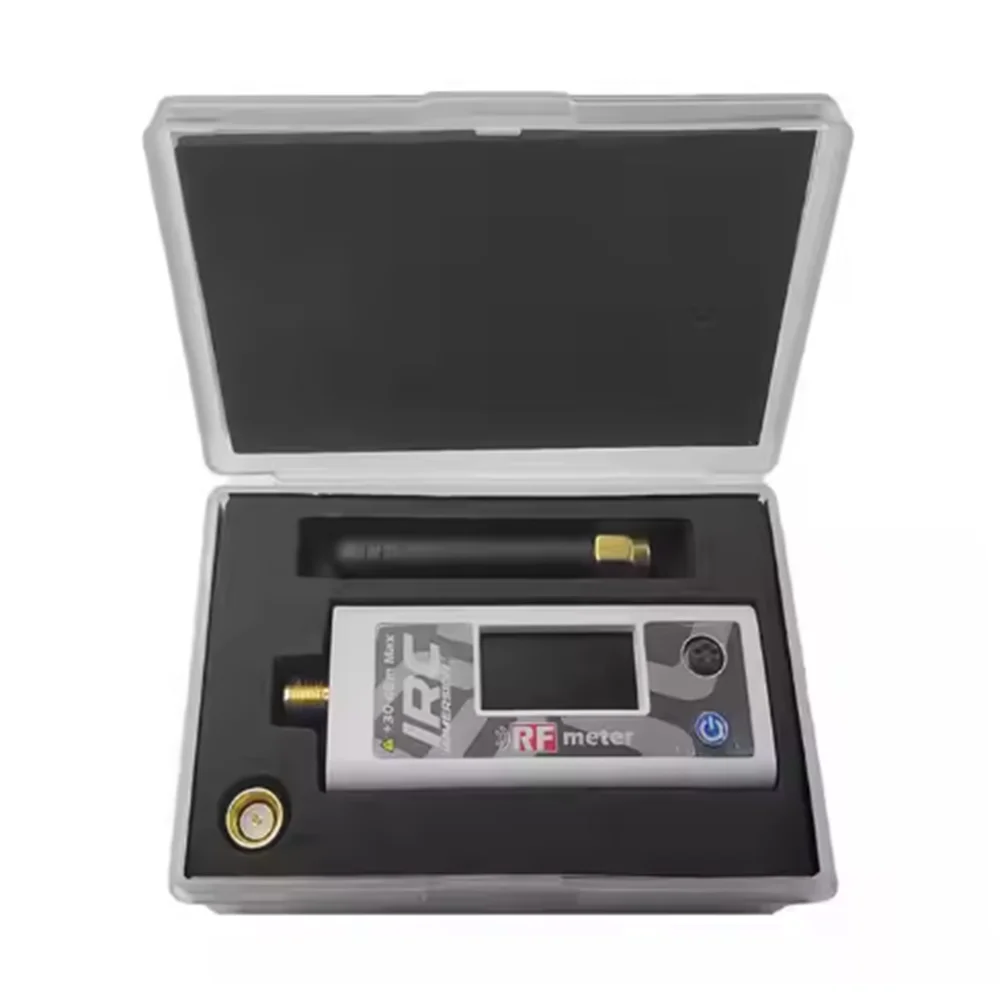

What’s in the Box
- 1× ImmersionRC RF Power Meter V2 (Black)

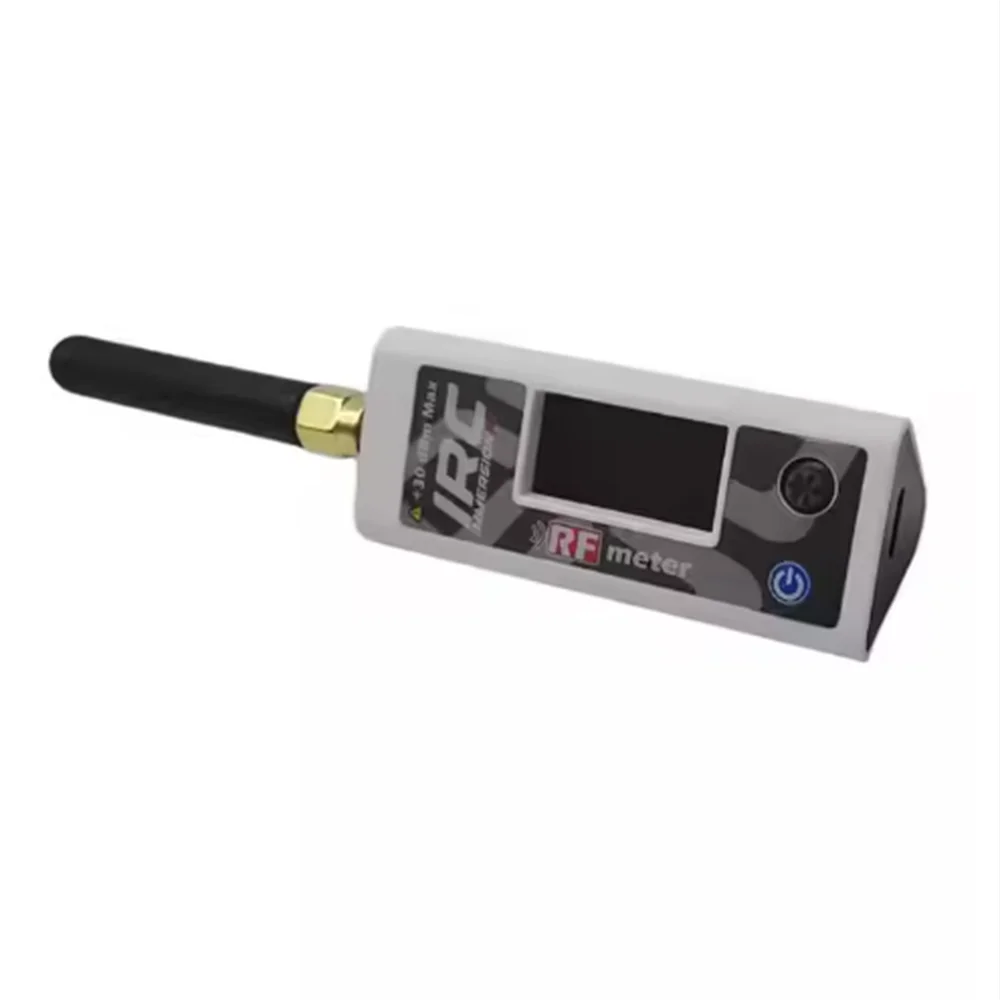

- 1× 5.8GHz Sniffer Antenna (linearly polarized ~2dBi dipole)
- 1× SMA Male-to-Male Adapter
Perfect For
- FPV race directors and TDs verifying VTX power compliance before and during race events
- Pilots diagnosing antenna, cable, or connector faults on VTX or RC systems
- Long-range builders verifying RF output across bands before deployment
- Anyone who wants to know if their VTX is actually hitting its rated power — and keeping it there
