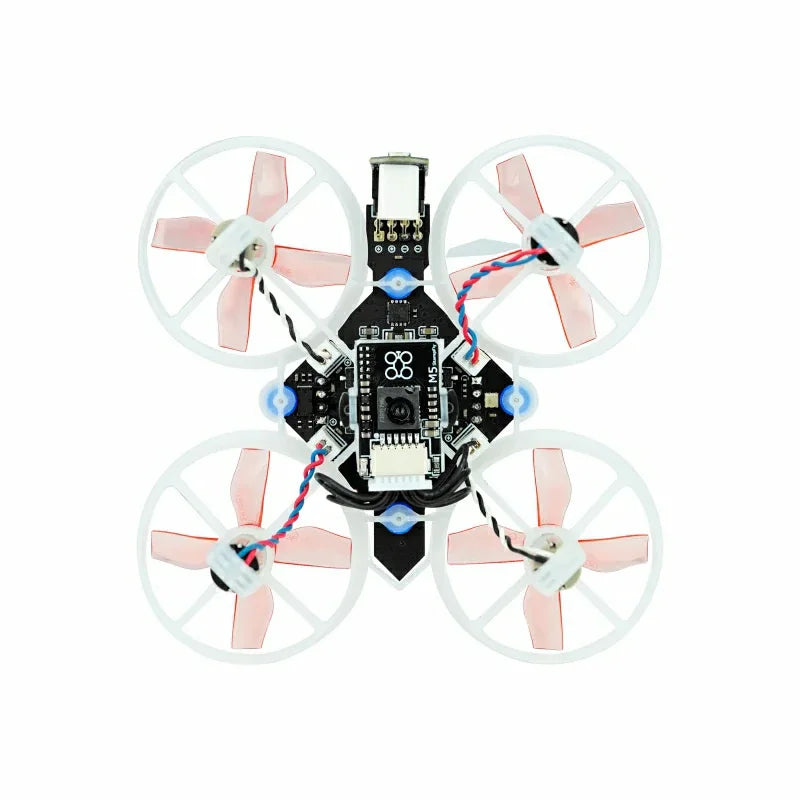

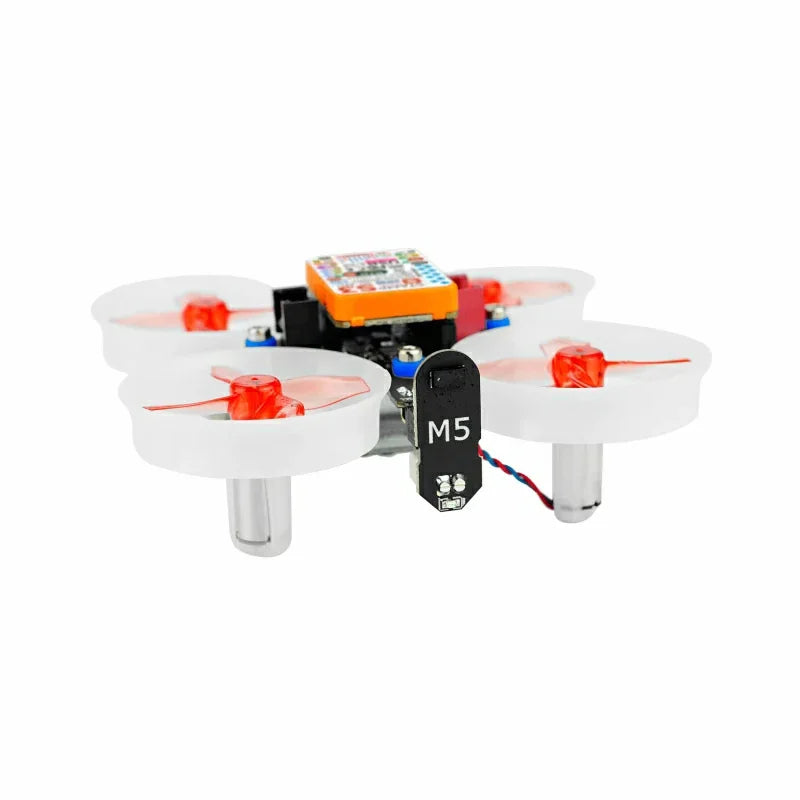

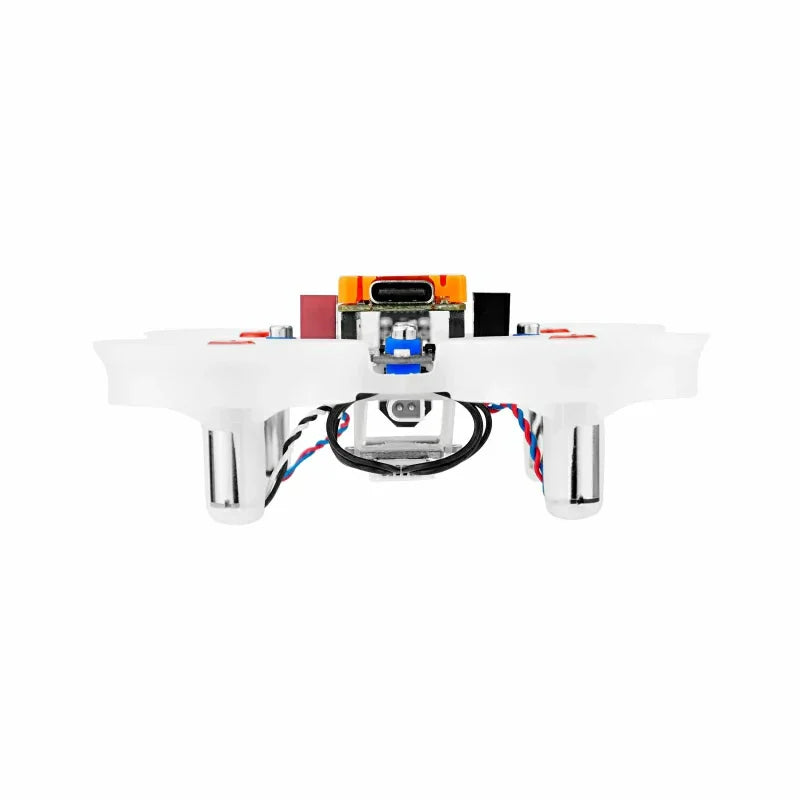

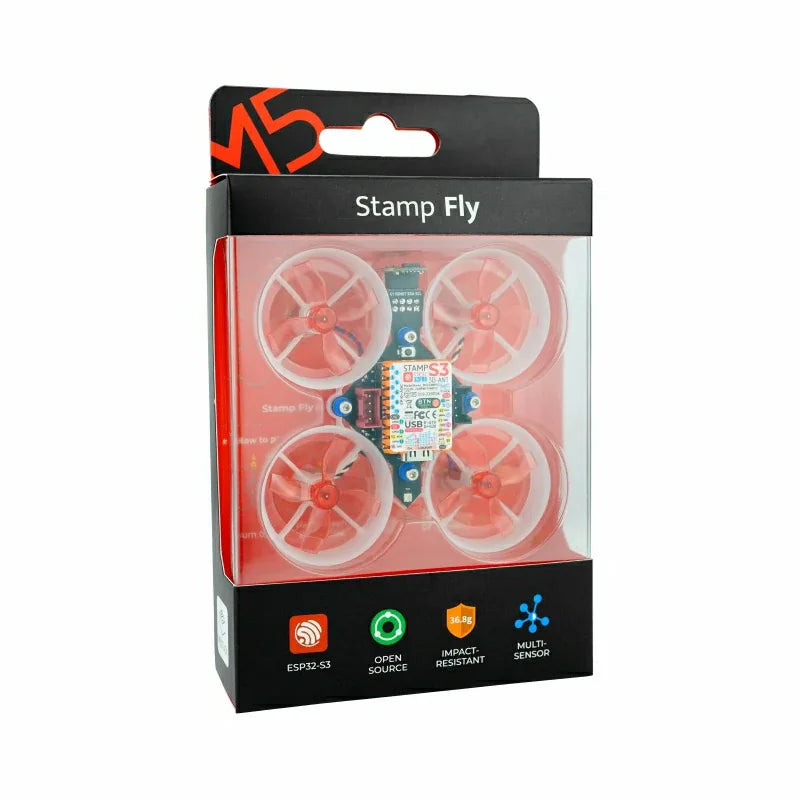

M5STACK Stamp Fly Programmable Open-source Quadcopter Development Board Kit M5StampS3 main controller

$208.99 $113.99 Save 45%

Shipping calculated at checkout.

Color

Atom JoyStick

Stamp Fly Accessory

Stamp Fly Standard

Free worldwide shipping

In stock, ready to ship
Backordered, shipping soon

✓ Free Shipping on Orders Over $X

✓ Ships within 1-2 Business Days

✓ 30-Day Money Back Guarantee

✓ Secure Checkout - SSL Encrypted

Secure Checkout

30-Day Money-Back Guarantee

Fast & Reliable Shipping

M5STACK Stamp Fly Programmable Open-source Quadcopter

Product Features

M5StampS3 as the main controller
BMP280 for barometric pressure detection
VL53L3 distance sensors for altitude hold and obstacle avoidance
6-axis attitude sensor
3-axis magnetometer for direction detection
Optical flow detection for hovering and displacement detection
Buzzer
300mAh high-voltage battery
Current and voltage detection
Grove connector expansion

Applications

Education
Research
Drone development
DIY projects

Package Includes

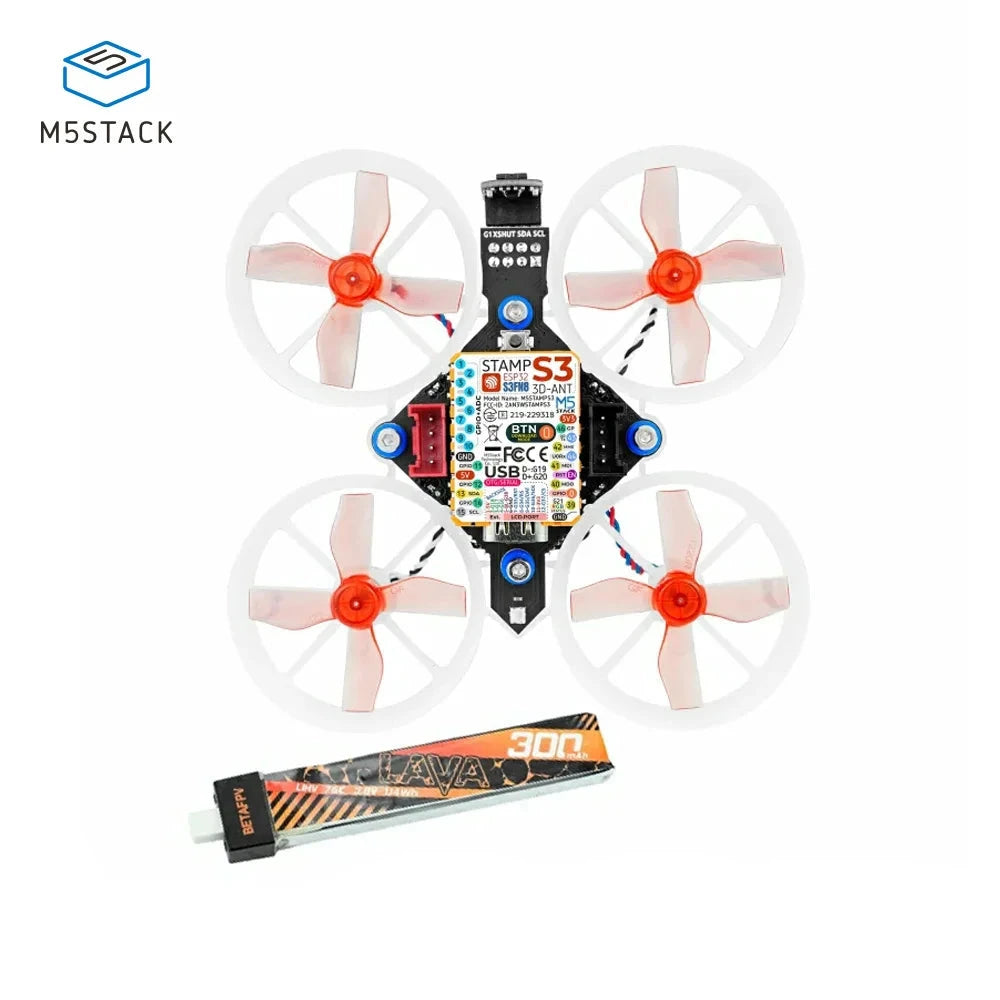

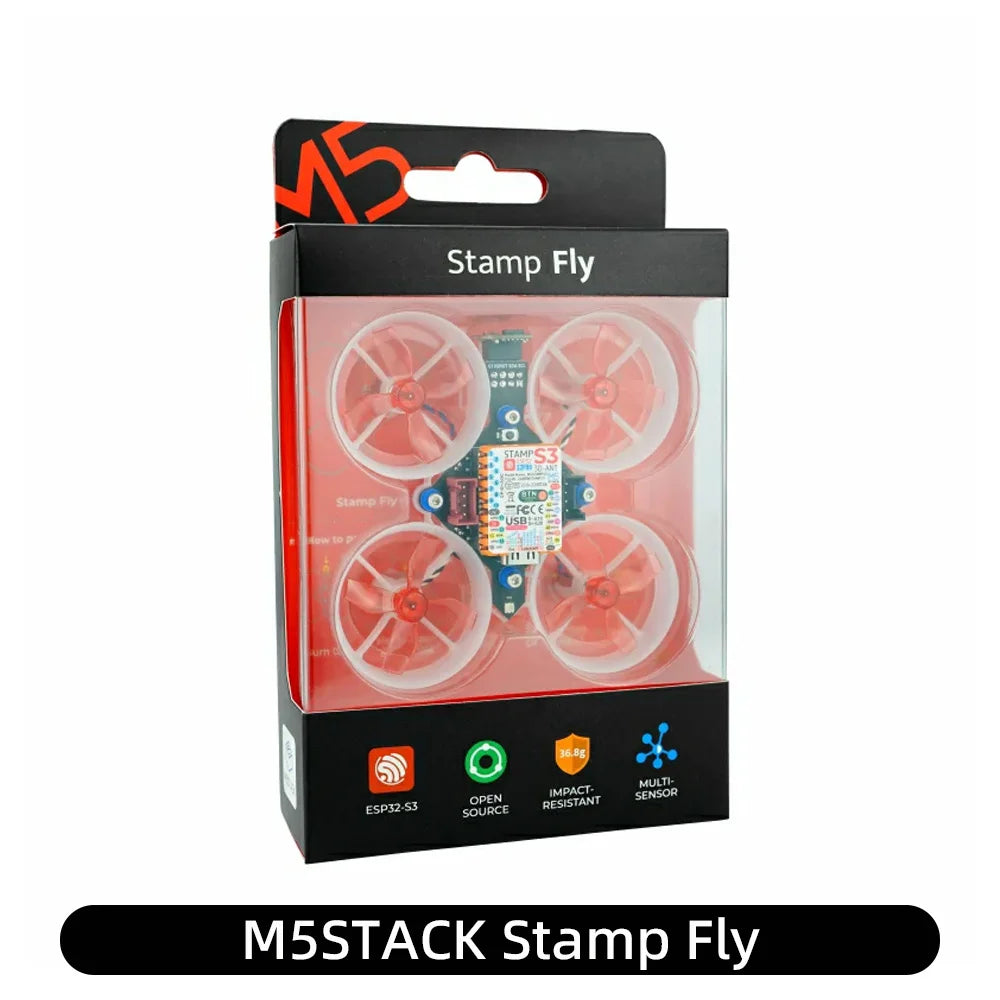

Optional 1: Stamp Fly

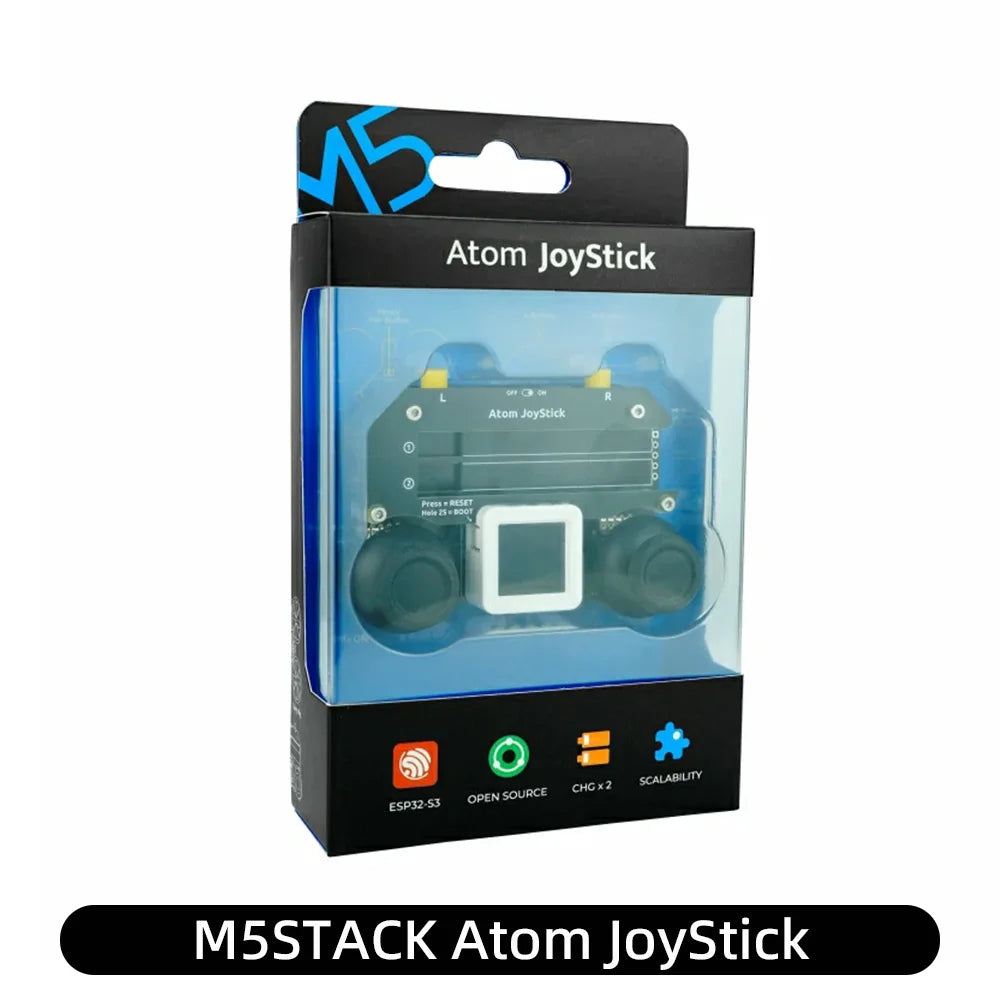

Optional 2: Atom JoyStick

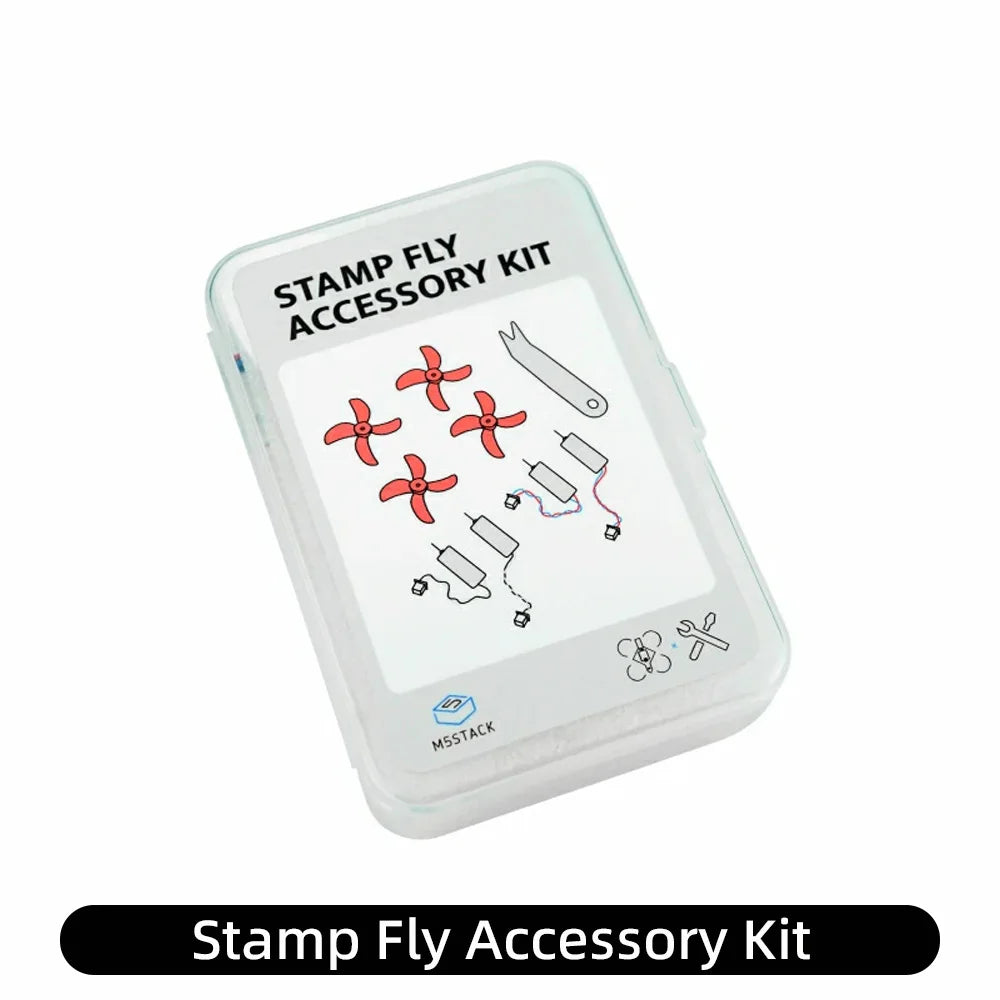

Optional 3: Stamp Fly Accessory Repair Kit

Specification

Specification Parameter

M5StampS3: ESP32-S3@Xtensa LX7, 8M-FLASH, WiFi, OTG\CDC support

Motor: 716-17600kv

Distance Sensor: VL53L3CXV0DH/1 (0x52) @ max 3m

Optical Flow Sensor: PMW3901MB-TXQT

Barometric Sensor: BMP280 (0x76) @ 300-1100hPa

3-axis Magnetometer: BMM150 (0x10)

6-axis IMU Sensor: BMI270

Grove: I2C+UART

Battery: 300mAh 1S high-voltage lithium battery

Current/Voltage Detection: INA3221AIRGVR (0x40)

Buzzer: Built-in Passive Buzzer @ 5020

operating temperature : 0-40°C

Product Size: 81.5*81.5*31mm

Packaging Size: 162*99*36mm

Product Weight: 36.8g

Packaging Weight: 70.7g

Product details

Module Size

Schematic

PinMap

I2C Interface

SPI Interface

Grove Interface

Buzzer and RGB LEDs

Product Description

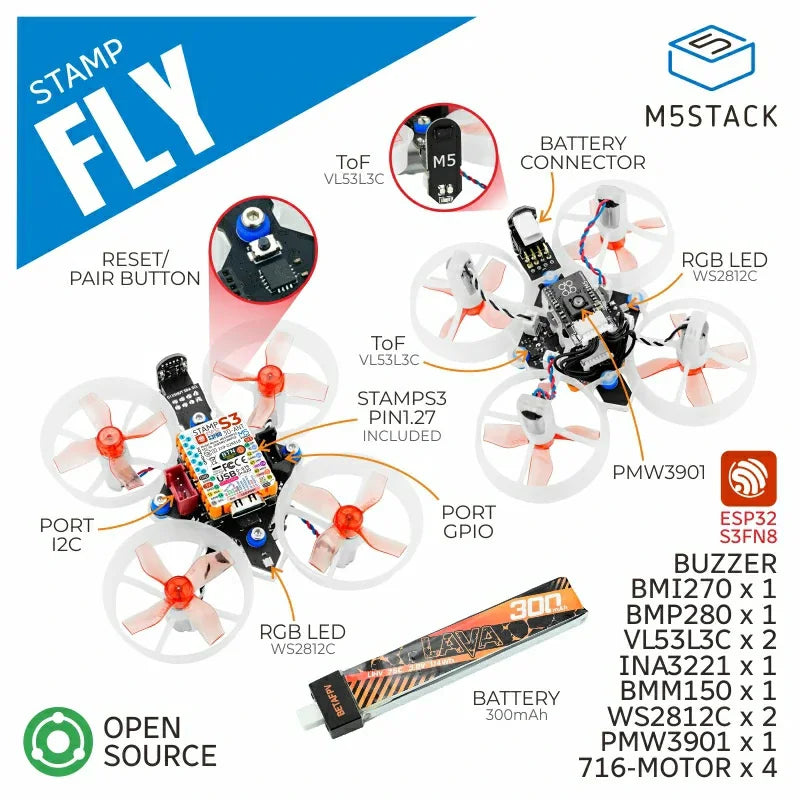

M5Stamp Fly is a programmable open-source quadcopter kit, featuring the StampS3 as the main controller. It integrates a BMI270 6-axis gyroscope and a BMM150 3-axis magnetometer for attitude and direction detection. The BMP280 barometric pressure sensor and two VL53L3 distance sensors enable precise altitude hold and obstacle avoidance. The PMW3901MB-TXQT optical flow sensor provides displacement detection. The kit includes a buzzer, a reset button, and WS2812 RGB LEDs for interaction and status indication. It is equipped with a 300mAh high-voltage battery and four high-speed coreless motors. The PCB features an INA3221AIRGVR for real-time current/voltage monitoring and has two Grove connectors for additional sensors and peripherals. Preloaded with debugging firmware, the Stamp Fly can be controlled using an Atom Joystick via the ESP-NOW protocol. Users can choose between automatic and manual modes, allowing for easy implementation of functions like precise hovering and flips. The firmware source code is open-source, making the product suitable for education, research, and various drone development projects.

Kindly Remind

Charge

When the battery is depleted, insert the battery into the charging slot of the Atom Joystick. Connect the data cable to the Atom Joystick to start charging.
