Mark4 V2 10inch 427mm FPV Racing Freestyle Drone Frame Kit F4 V3S Flight Control 60A 4IN1 ESC X3115 900KV Motor 10inch Propeller
- Free worldwide shipping
SPECIFICATIONS
Brand Name: Droyuke
Hign-concerned Chemical: None
Is Electric: No battery
Origin: Mainland China
Material: Carbon Fiber
Recommend Age: 14+y
RC Parts & Accs: Motors
For Vehicle Type: Airplanes
Use: Vehicles & Remote Control Toys
Upgrade Parts/Accessories: Frame
Remote Control Peripherals/Devices: ESC
Tool Supplies: Assembled class
Quantity: 1 pcs
Model Number: MARK4 V2
Four-wheel Drive Attributes: Motors

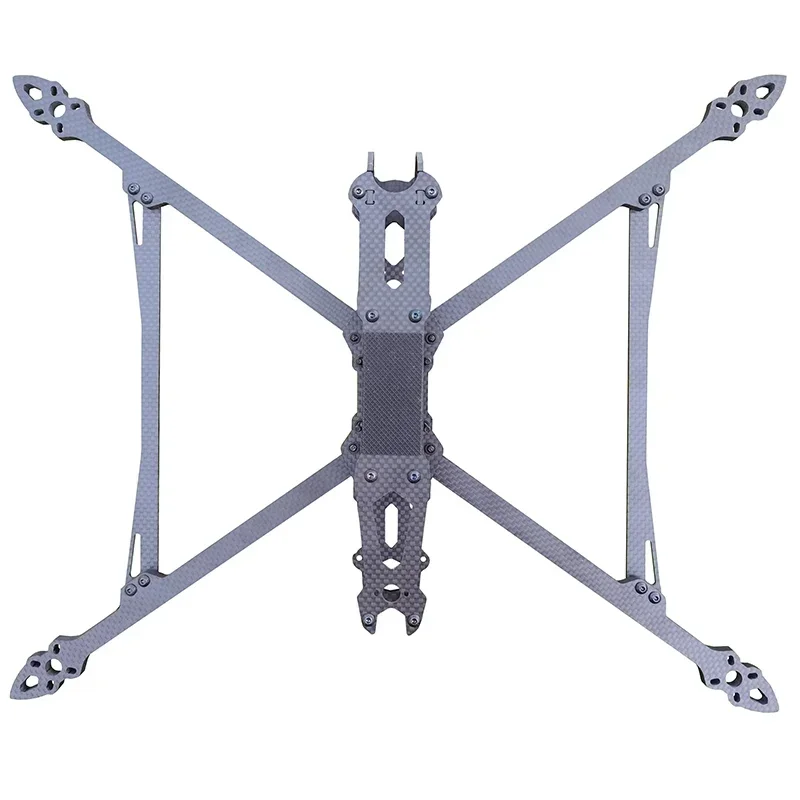

Model: MAK4 V2 10inch:
Wheelbase: 427mm
Weight: about 227g
Thickness of bottom plate: 3mm
Thickness of top plate: 2mm
Thickness of camera arm: 6mm
Camera side panel thickness: 2.5mm
Camera mounting hole spacing: 19 mm
Mapping mounting hole spacing 20*20mm & 30.5*30.5mm
Flight Control Mounting Pitch: 30.5*30.5mm
Inner space height: 35mm
Motor mounting hole pitch: 16*16mm & 19*19mm
Test item:X3115(900KV)
No.of cells: 6S
Weight:150g W/0 Silicone Wire
Max.Power (6S):1025W
Lead:18#AWG250mm
Motor Dimensions:37mm*45.3mm
Idle Current (10V):1.6A
Framework:12N 14P
Magnet:N52H
ESC:6S 50A
Propeller:9-10inch CF
Name:F4 V3S flight control
Size: 36x36mm
Mounting hole: 30.5x30.5mm
STM32 F405 single chip computer
Dshot support
Drag and drop OSD via Betaflight configuration
Gyroscope: BMI270
SBUS/PPM and Spketrum DSMX ports
MicroSD card black box
Barrow (BMP280)
BEC: 5v3a 9V3A
In-car video filter (5V only for VTX and camcorders)
