SPECIFICATIONS

Brand Name: Mitoot

Hign-concerned Chemical: None

Origin: Mainland China

For Vehicle Type: Airplanes

Upgrade Parts/Accessories: Frame

Quantity: 1 pcs

Remote Control Peripherals/Devices: Battery

Material: Metal

Tool Supplies: Battery

Four-wheel Drive Attributes: Assemblage

Wheelbase: Screws

Recommend Age: 14+y

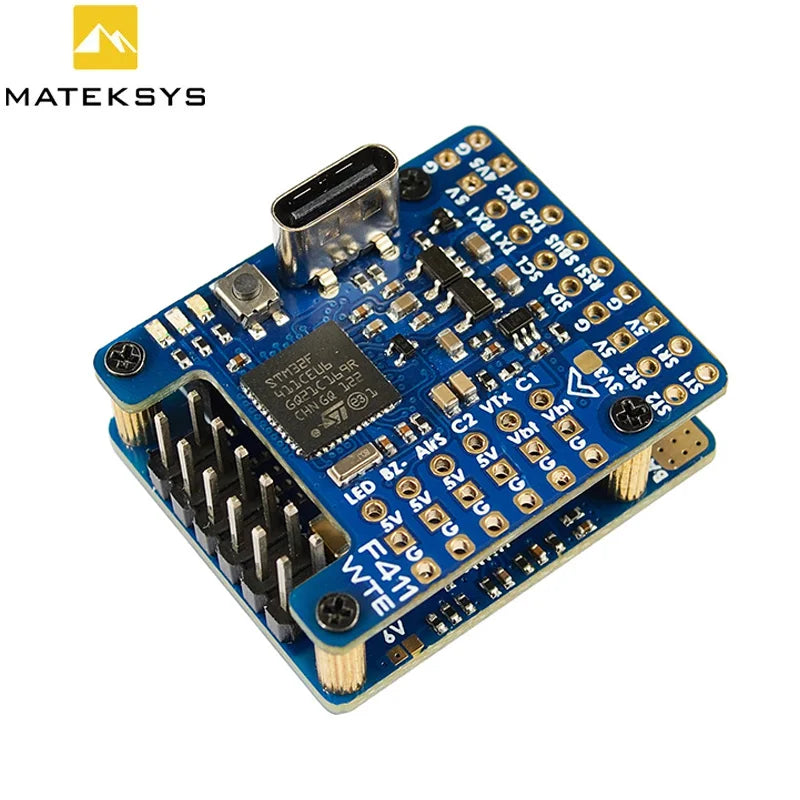

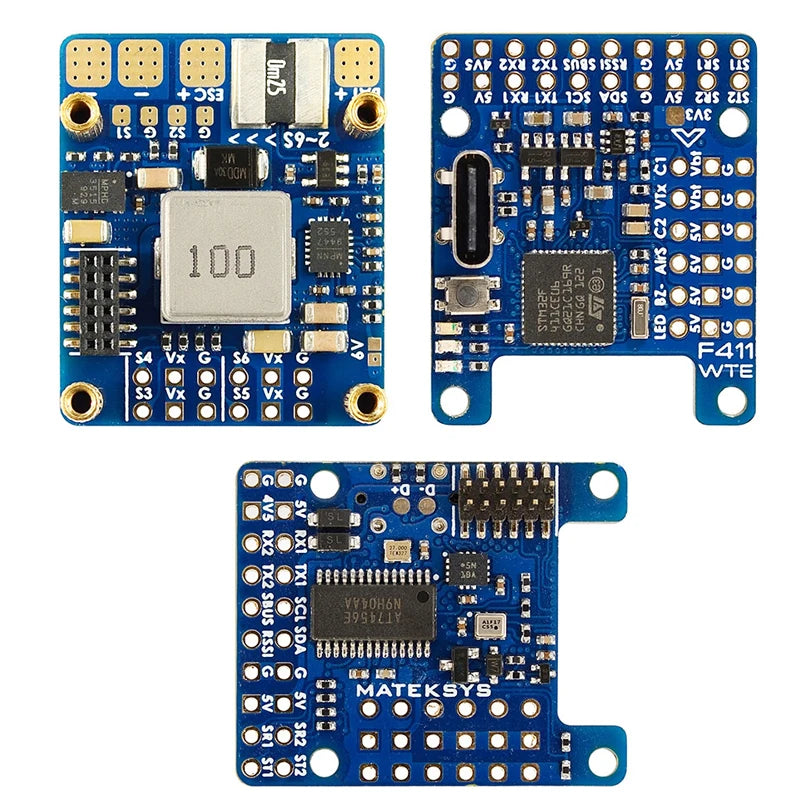

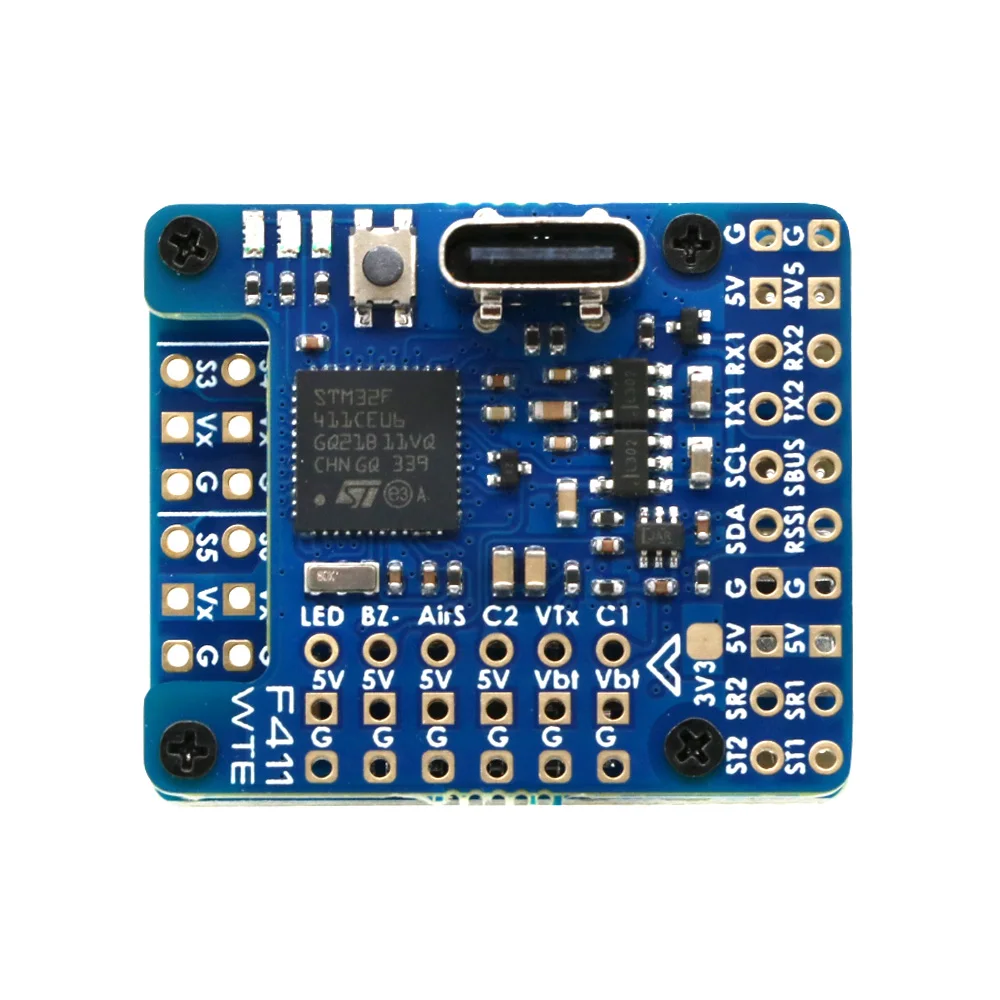

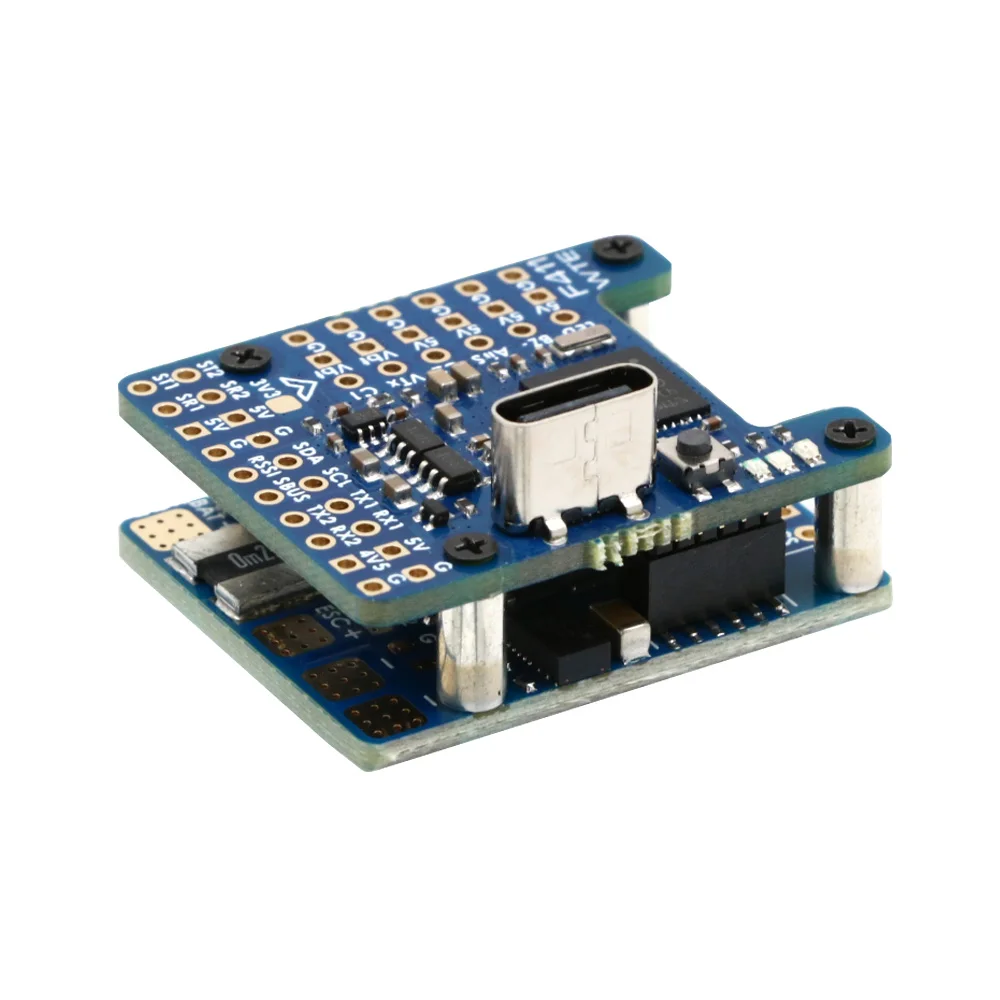

Model Number: F411-WTE

Use: Vehicles & Remote Control Toys

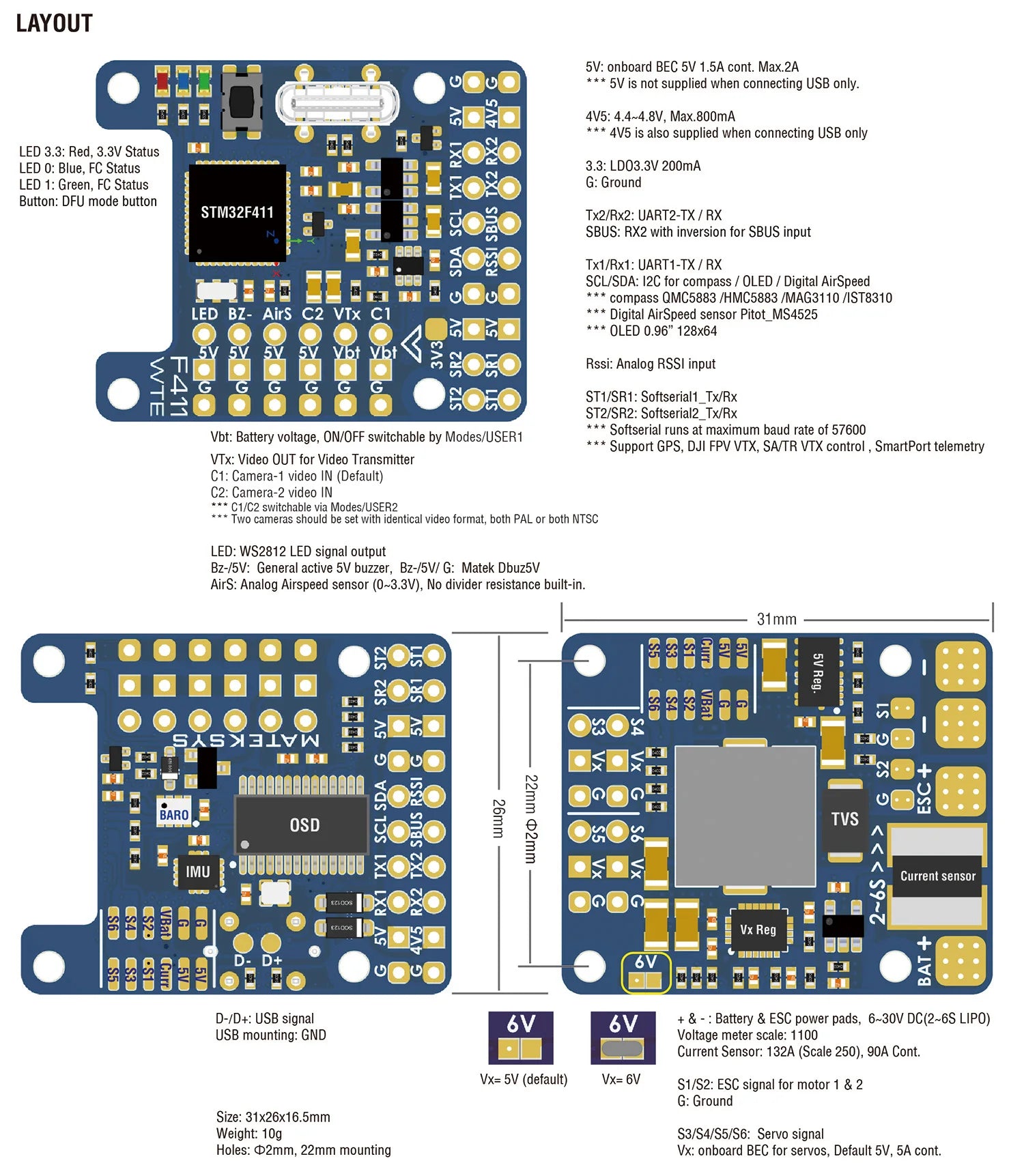

FC specification:

MCU: 10OMHz STM32F411CEU6

IMU: BMI270 (SPI)

Air Pressure: SPL06-001 (I2C)

OSD: AT7456E (SPI)

Black box: no

2 UARTs

2x full soft serial

6 times PWM output (2 times motor, 4 times servo)

1x 12C

4x ADCs (VBAT, Current, RSSI, Airspeed)

3 LEDs (blue, red) and 3.3V indicator (red) for FC status

Built-in inverter for SBU input on UART2-RX

Switchable dual camera input

Vbat power switch available for VTX and camera

PPM Receiver: Not Supported

Parameter:

6~30v DC input (2~6S LiPo)

132A current sense (scale 250)

PDB/Current Sense Resistor: 9OA continuous, 132A burst.

BEC 5V 1.5A for FC and peripherals

BEC Vx 5A for Servo, 5V/6V option

Vbat for VTX and camera (can be turned on/off)

LD0 3.3V 200mA

Battery voltage sensor: 1k:10k

FC firmware:

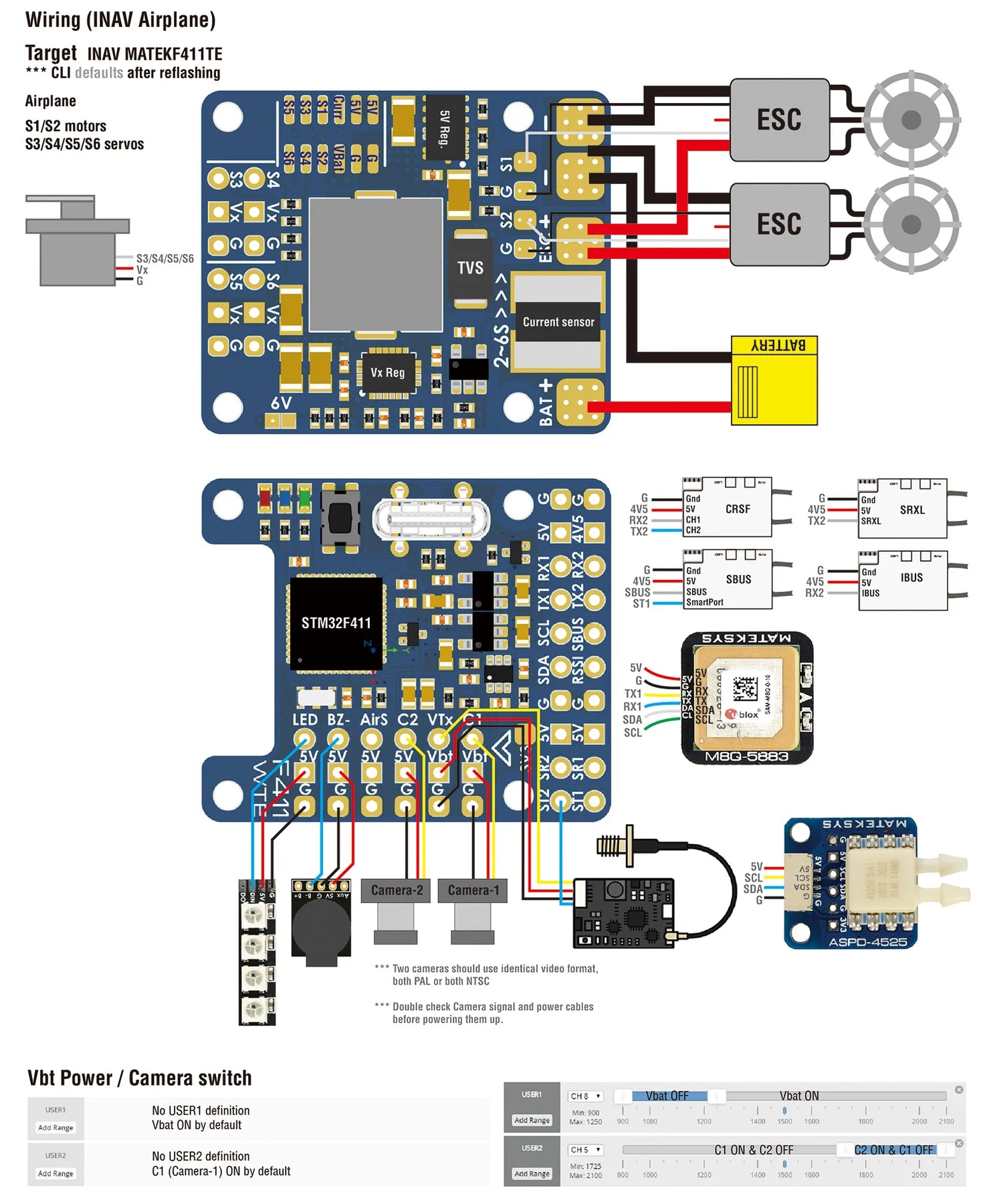

INAV target: MATEKF411TE (INAV4.1 or newer)

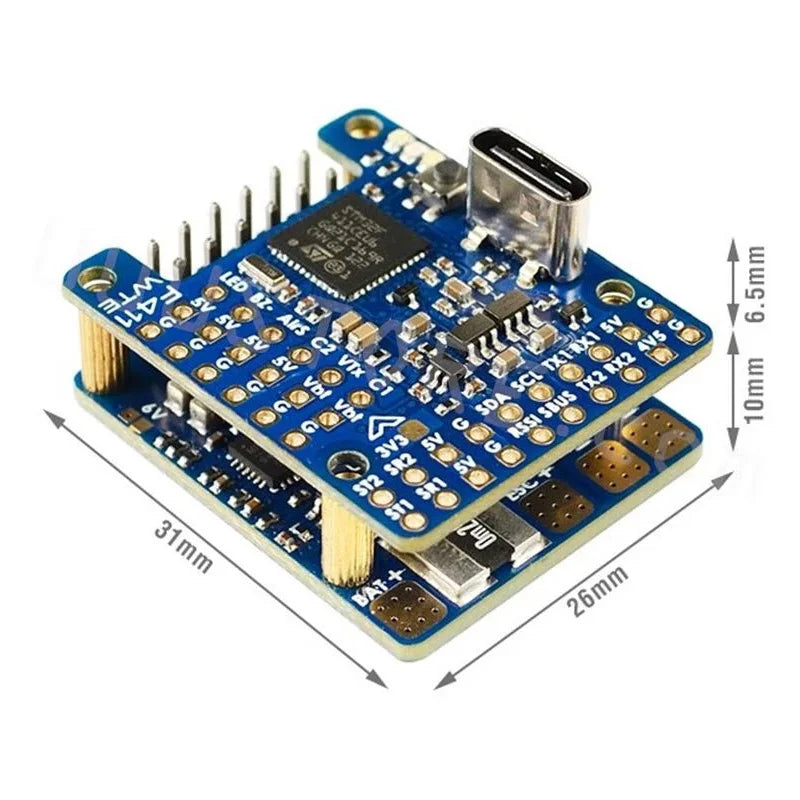

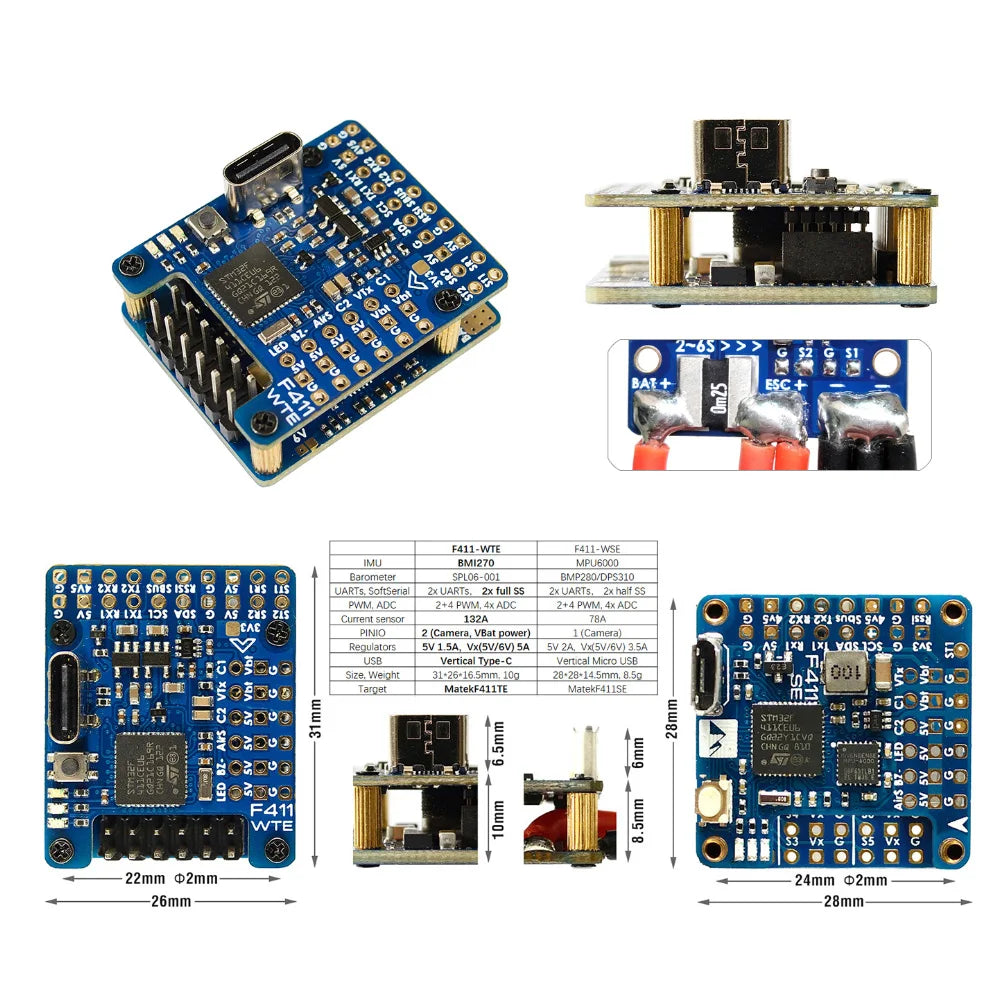

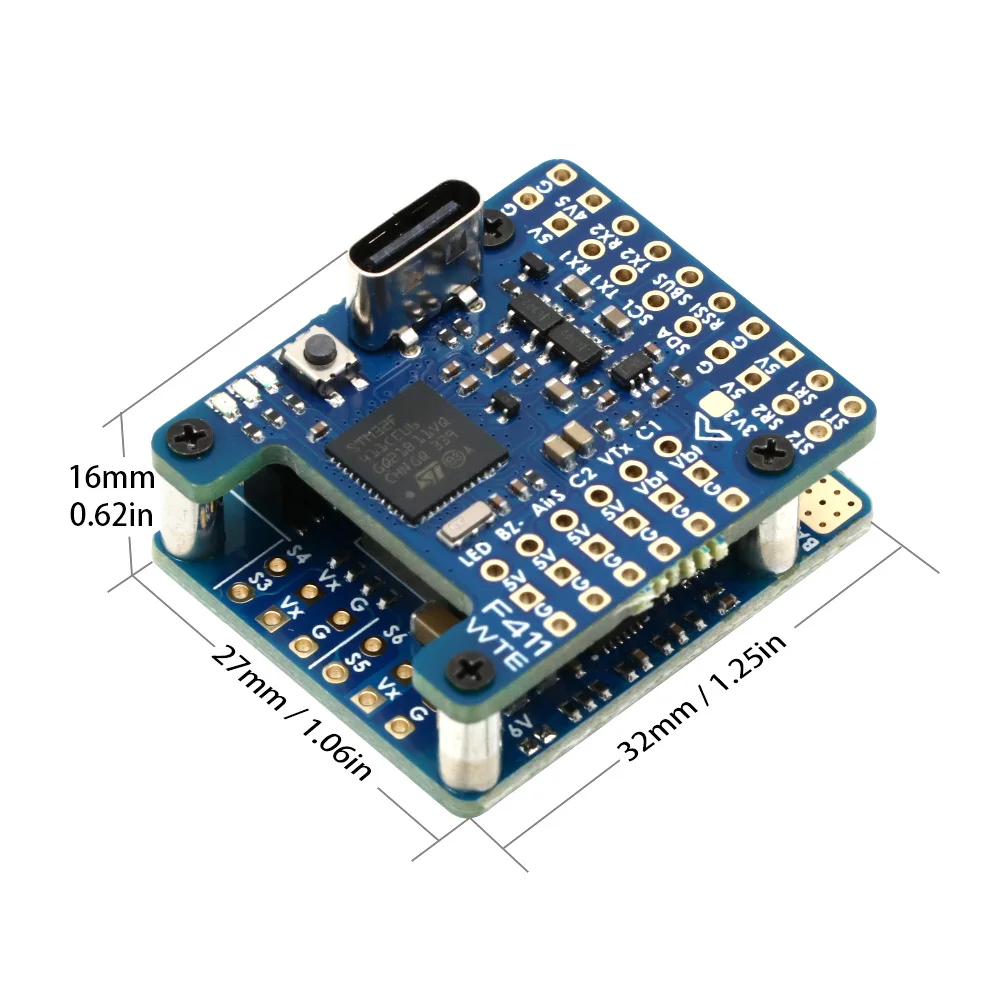

Dimensions: 31 x 26 x 16.5mm

Mounting: 22 x 22mm, 2mm

Weight: 10 grams

included

1x FC F411-WTE

DuPont 2.54 pins (board shipped unordered)
