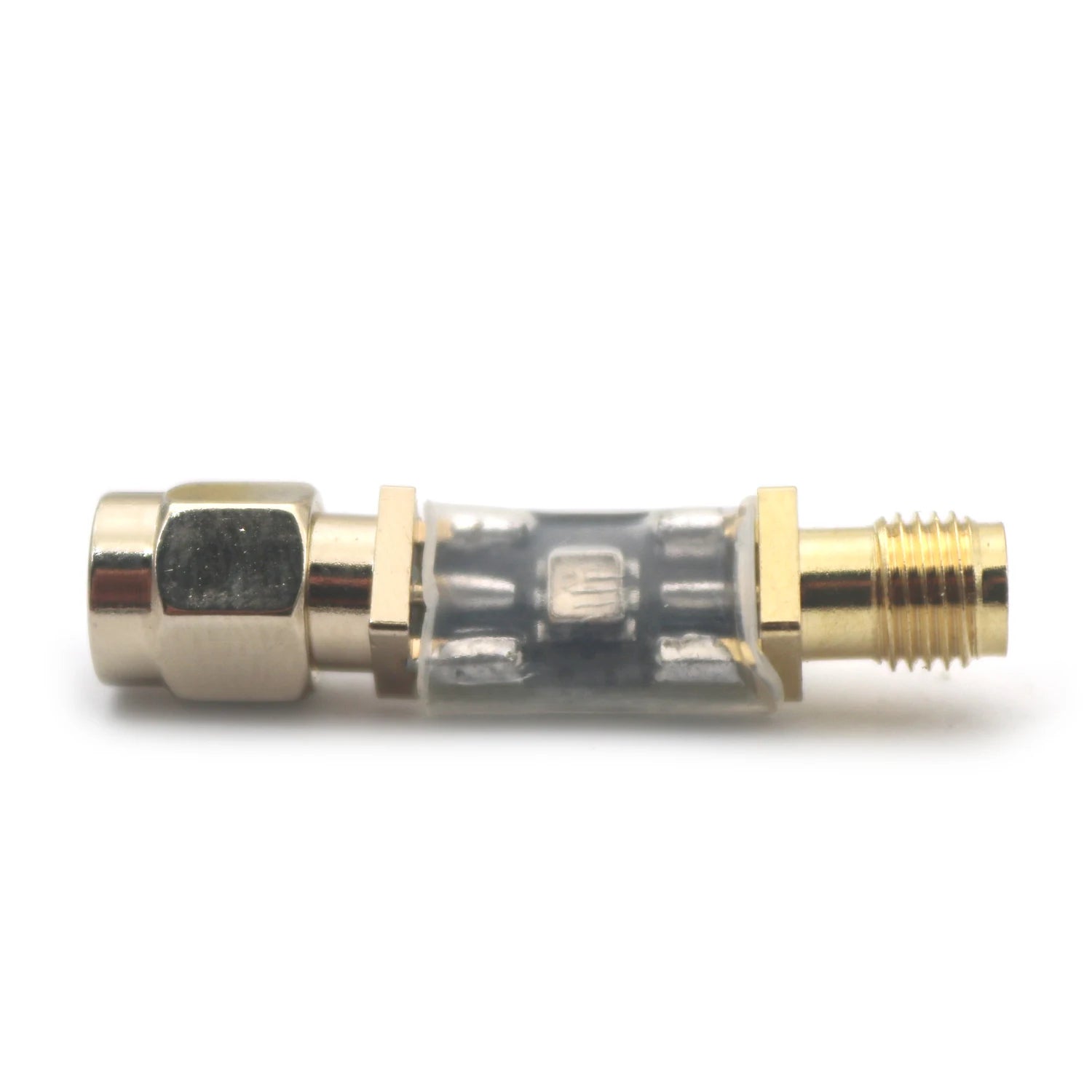

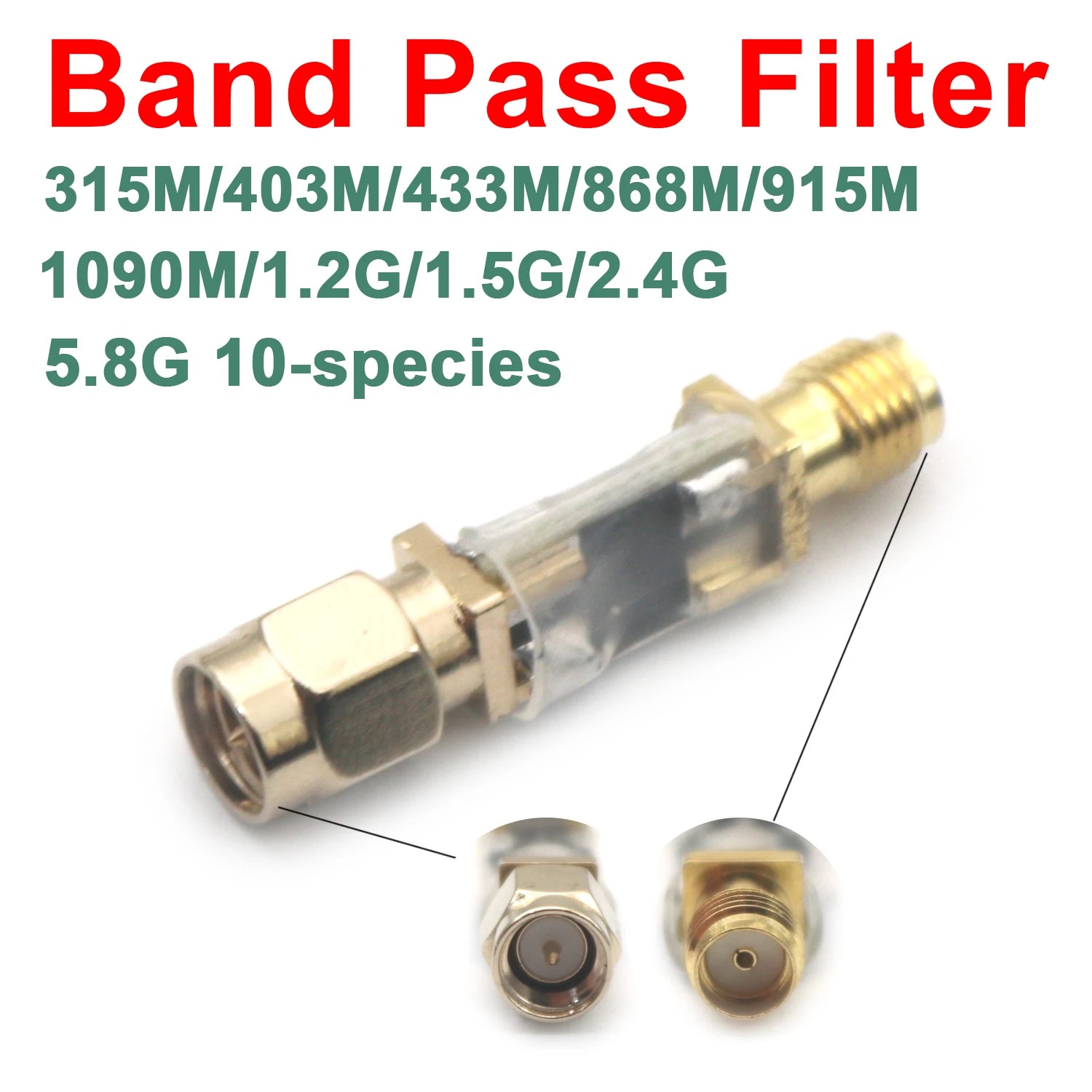

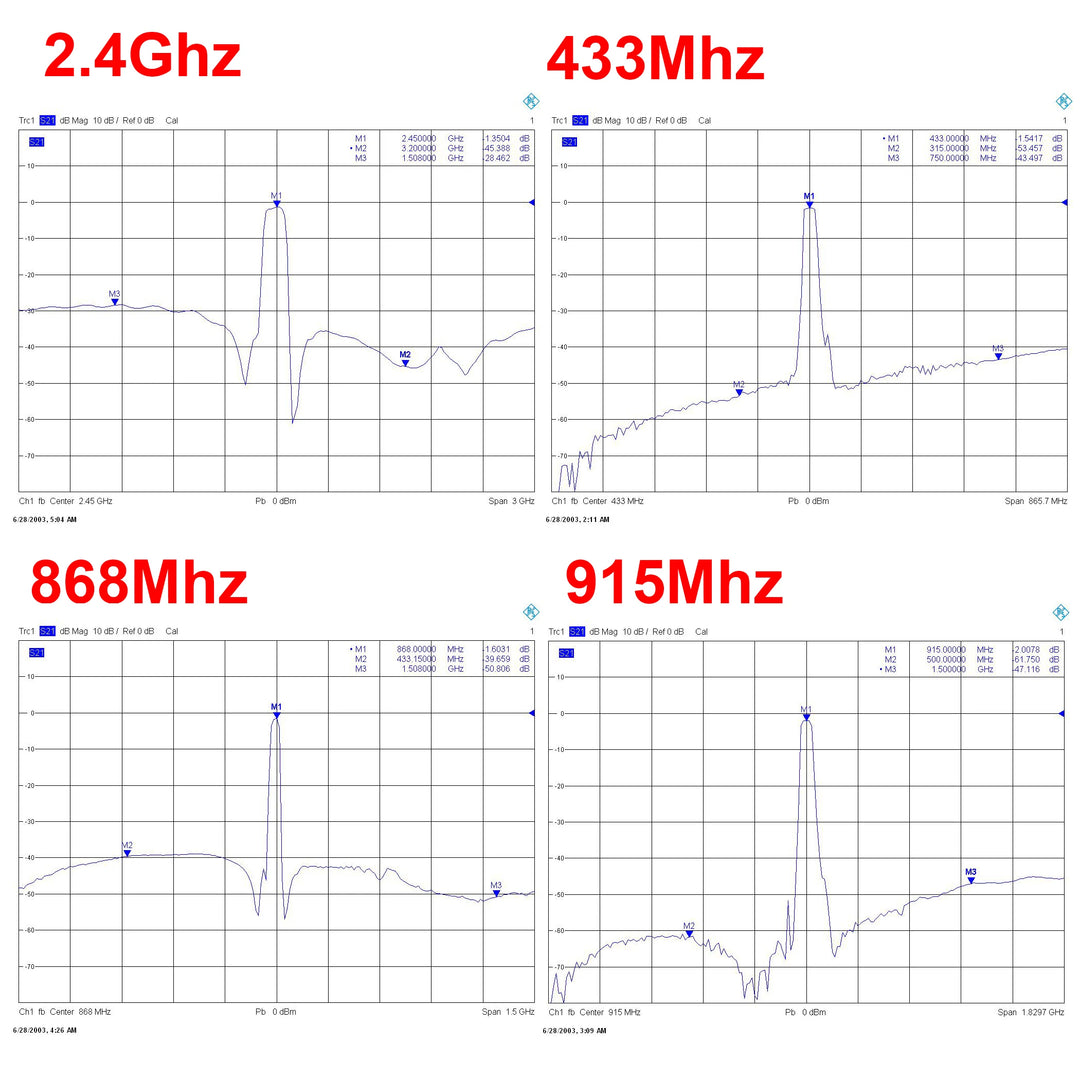

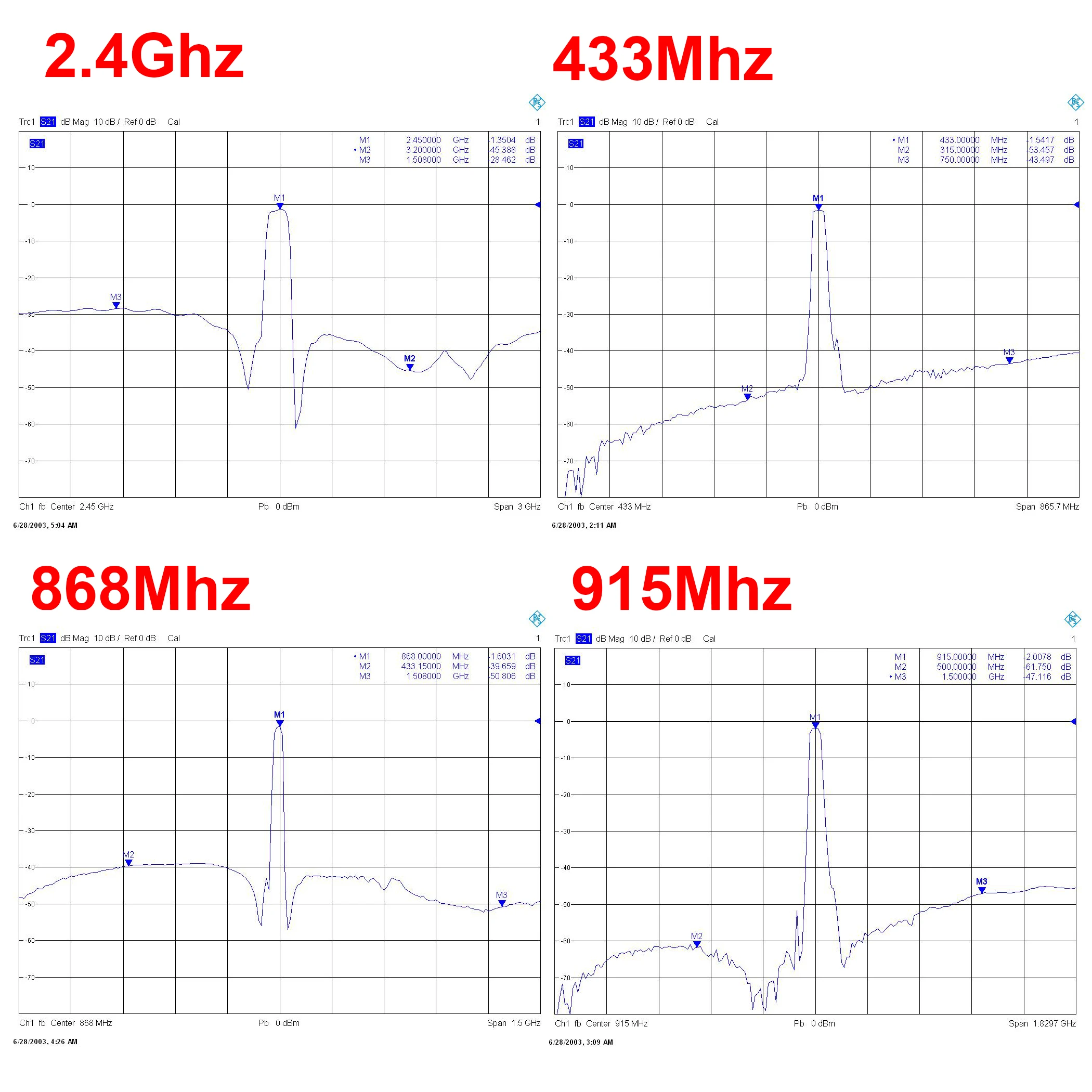

BPF Band Pass Filter 433Mhz 868Mhz 915Mhz 1090Mhz 1.2Ghz 1.5Ghz 2.4Ghz 5.8Ghz signal passive Bandpass Filter LC FOR RF transmitter receiver RFID SDR GPS WIFI Drone Walkie-talkie remote control

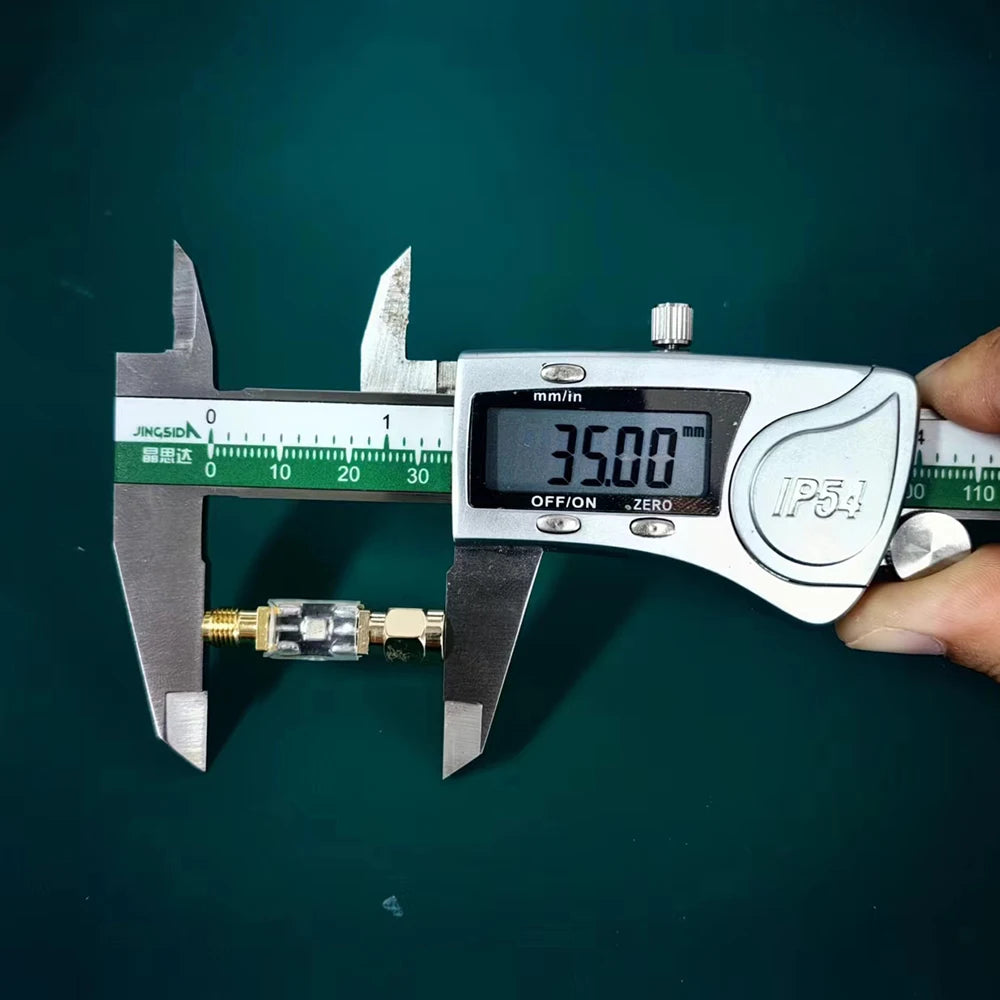

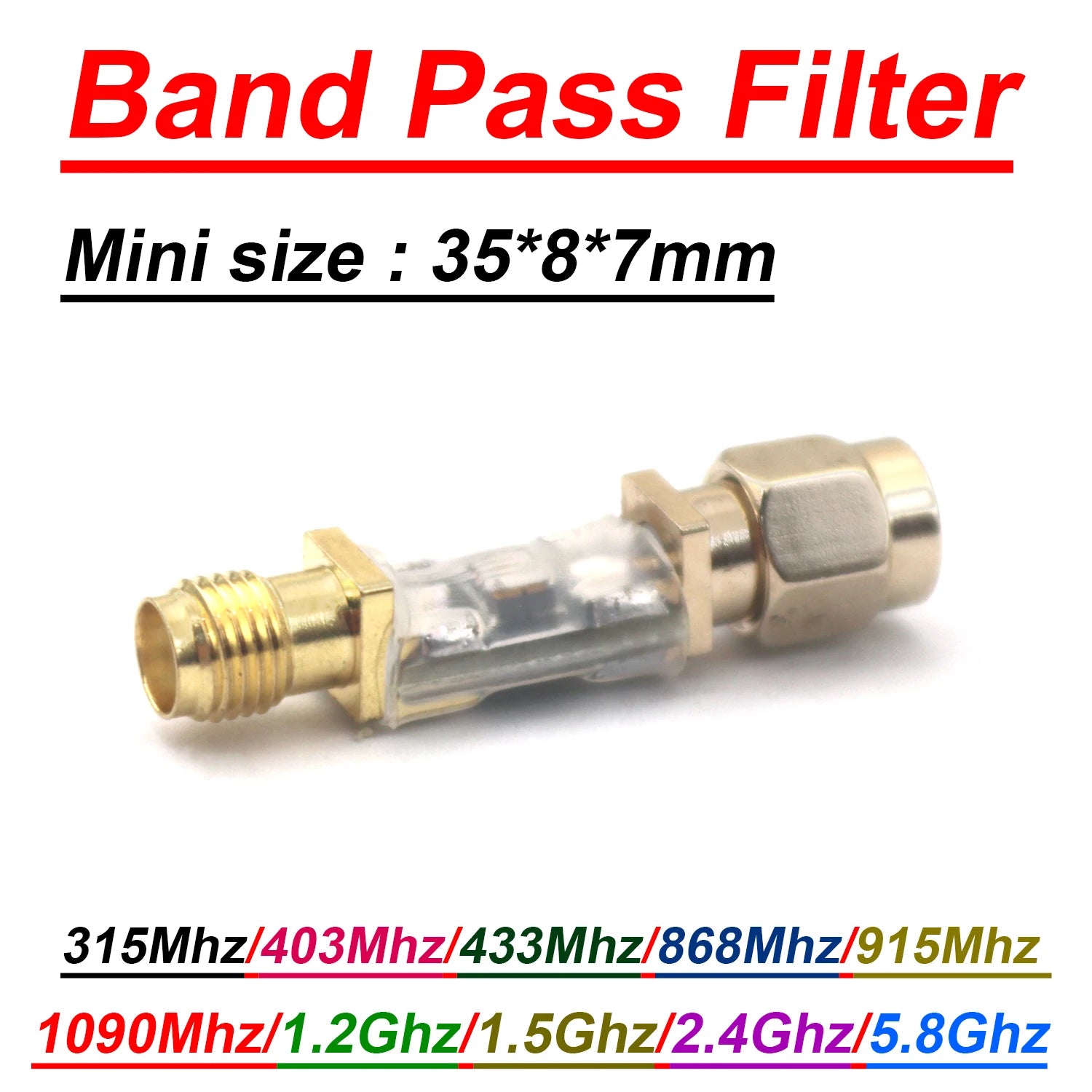

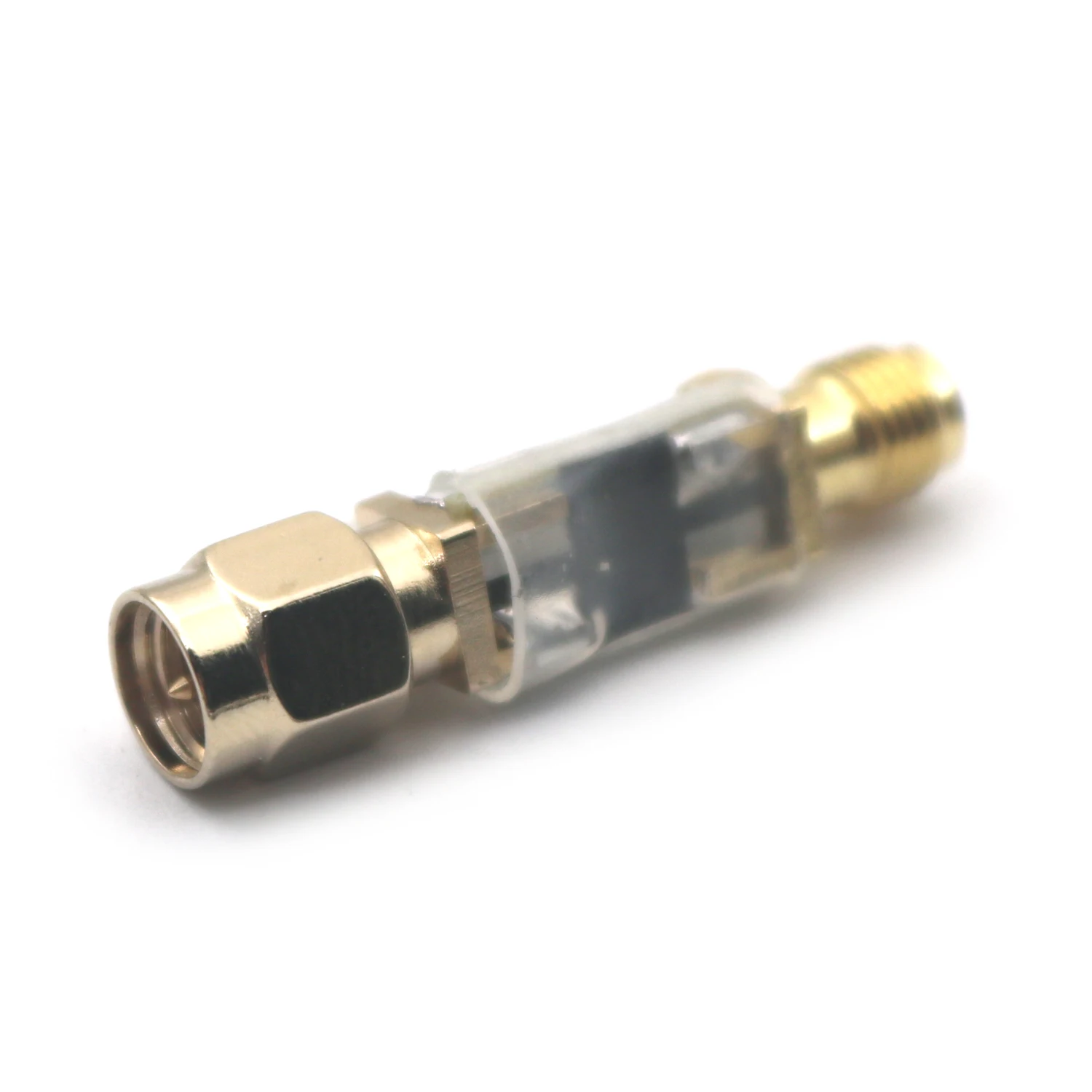

mini size : 35*8*7mm

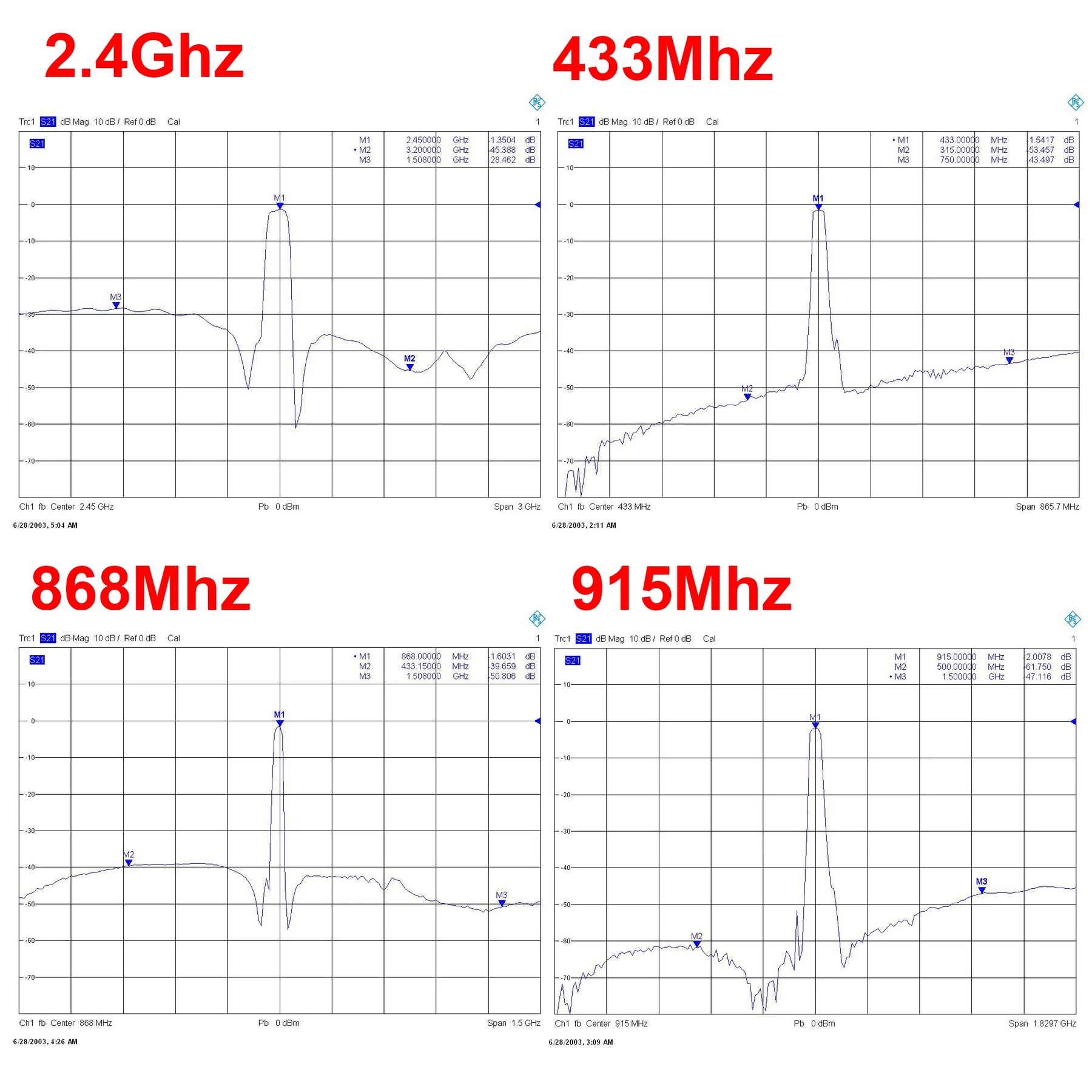

433M bandpass filter

Center frequency: 433 MHz

1dB bandwidth: 20 MHz

Tape interpolation loss: < 1.8dB

Out-of-band suppression: > 60dB@120 MHz

> 45dB@700 MHz

Impedance: 50 Ohms

Maximum load power: 20dBm(100mw)

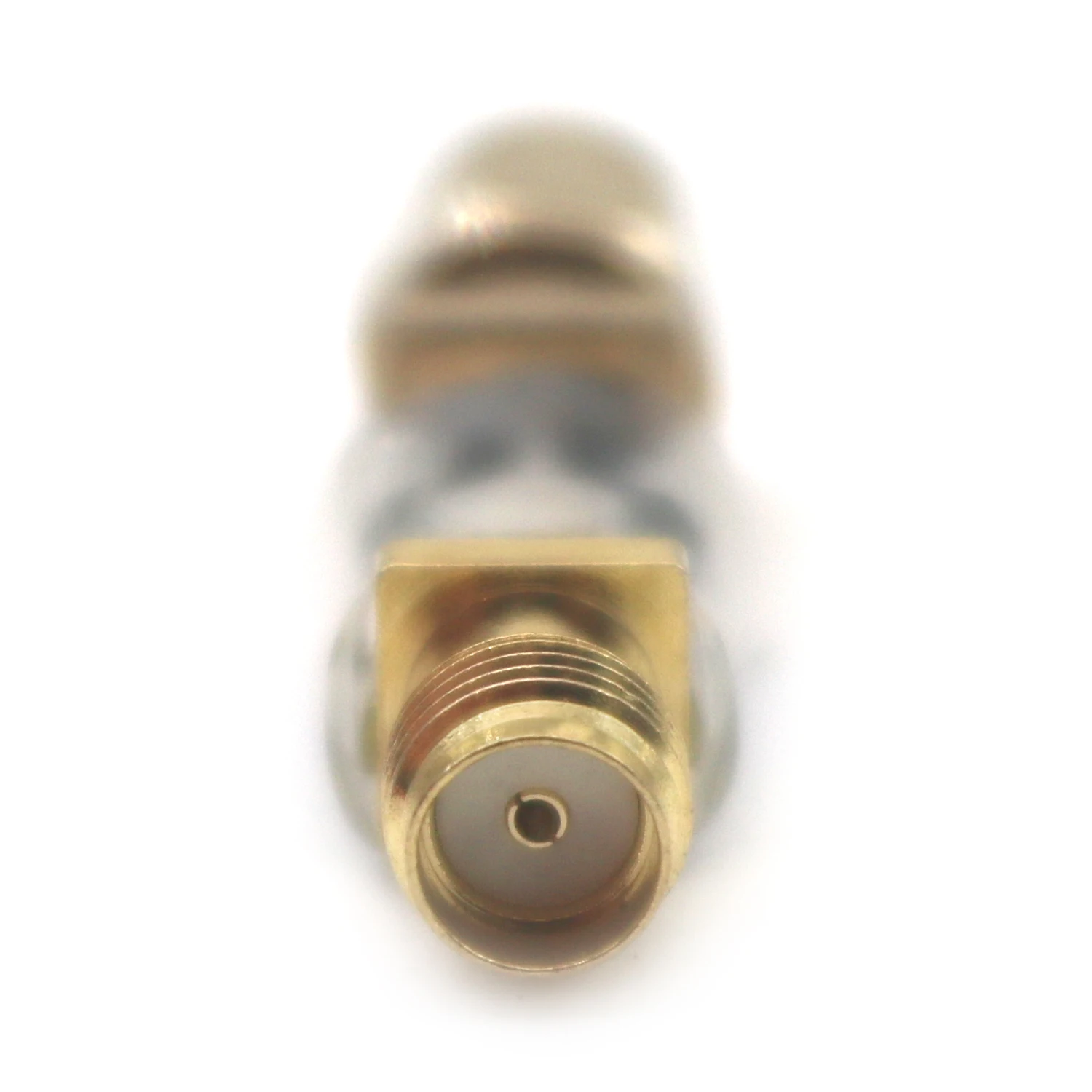

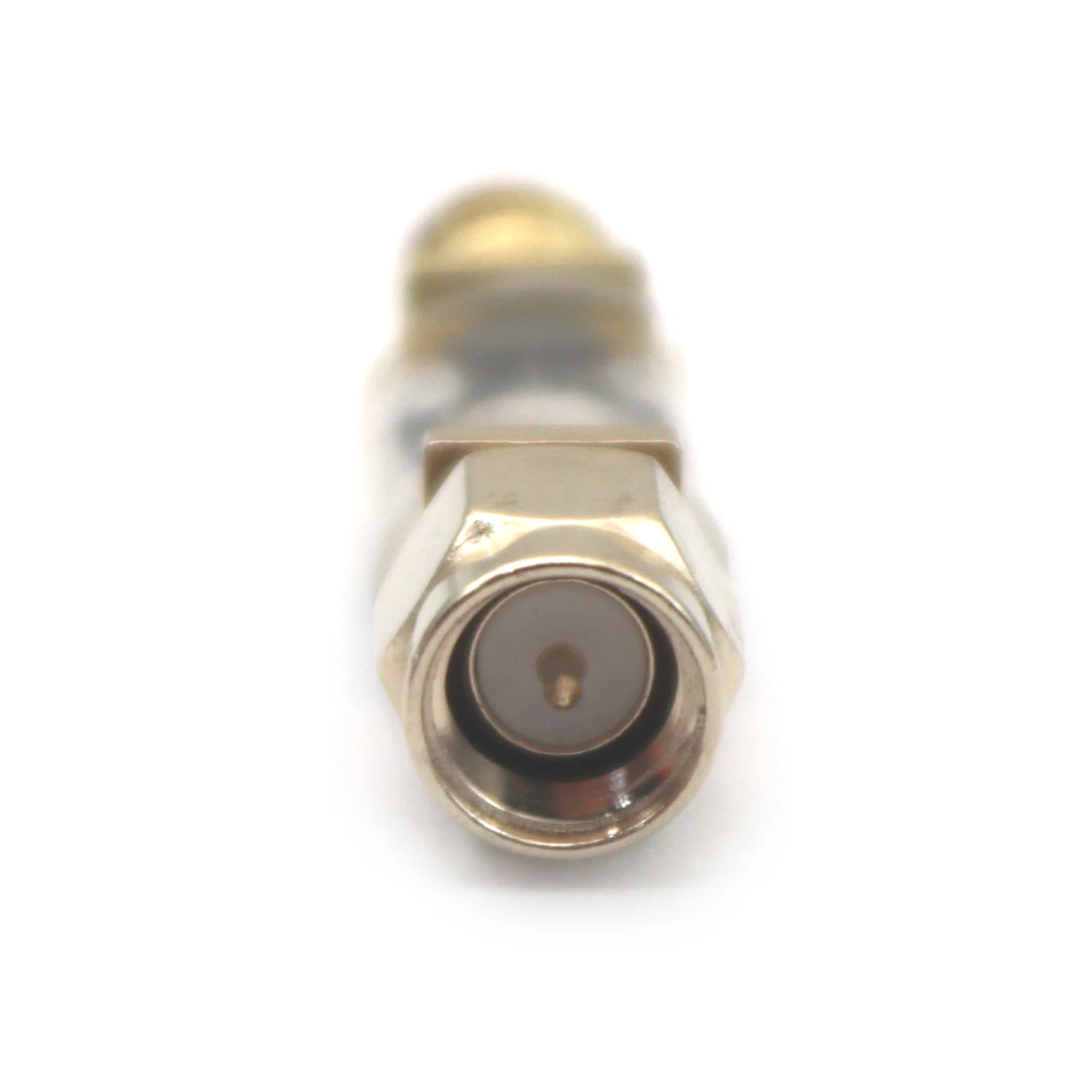

Interface: SMA (outer screw hole)

868M bandpass filter

Center frequency: 868 MHz

1dB bandwidth: 10 MHz

Tape interpolation loss: < 2.0dB

Out-of-band suppression: > 42dB@700MHz

> 50dB@1.2GHz

Impedance: 50 Ohms

Maximum load power: 20dBm(100mw)

Interface: SMA (outer screw hole)

915M bandpass filter

Center frequency: 915 MHz

1dB bandwidth: 30 MHz

Tape interpolation loss: < 2.0dB

Out-of-band suppression: > 58dB@600MHz

> 40dB@1.2GHz

Impedance: 50 Ohms

Maximum load power: 20dBm(100mw)

Interface: SMA (outer screw hole)

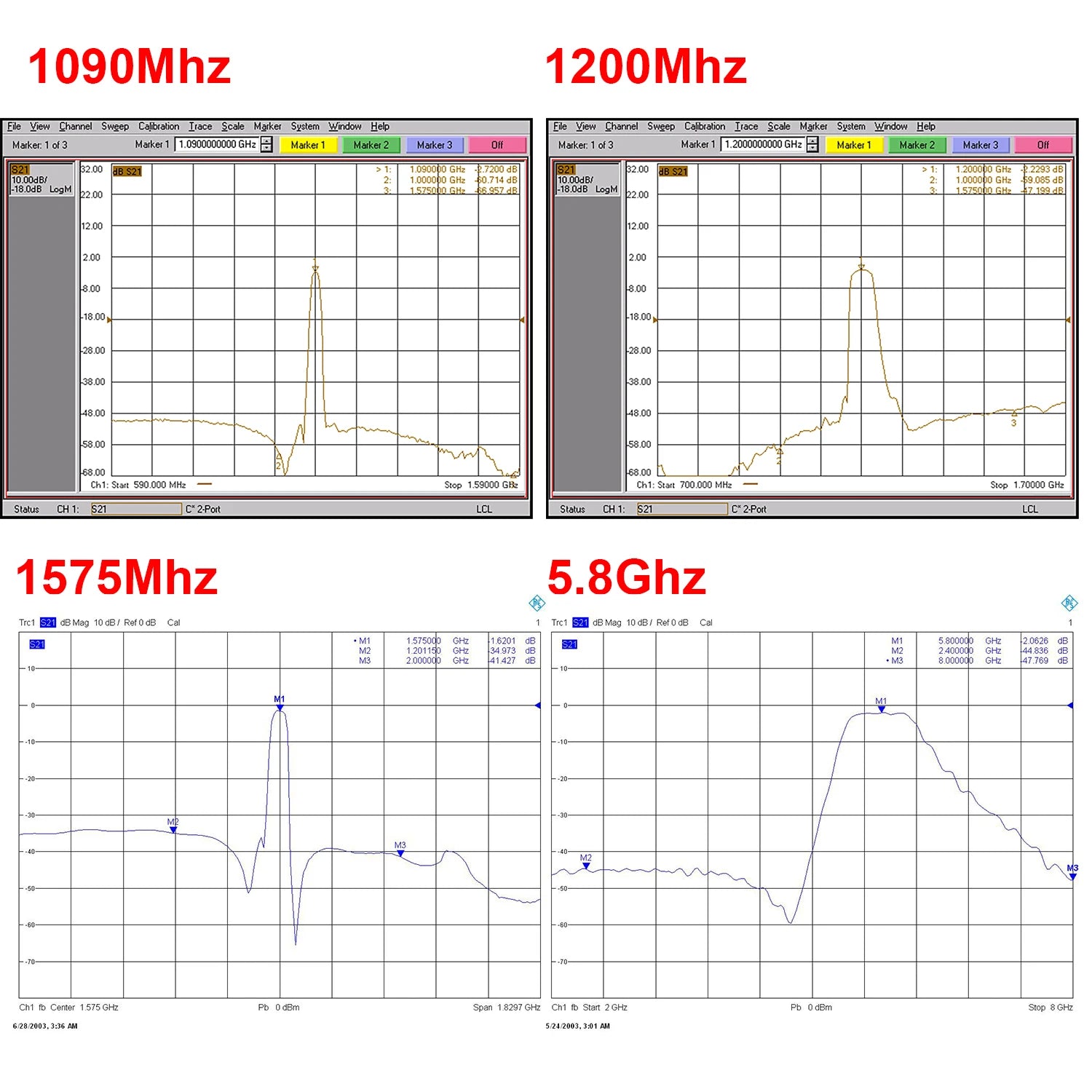

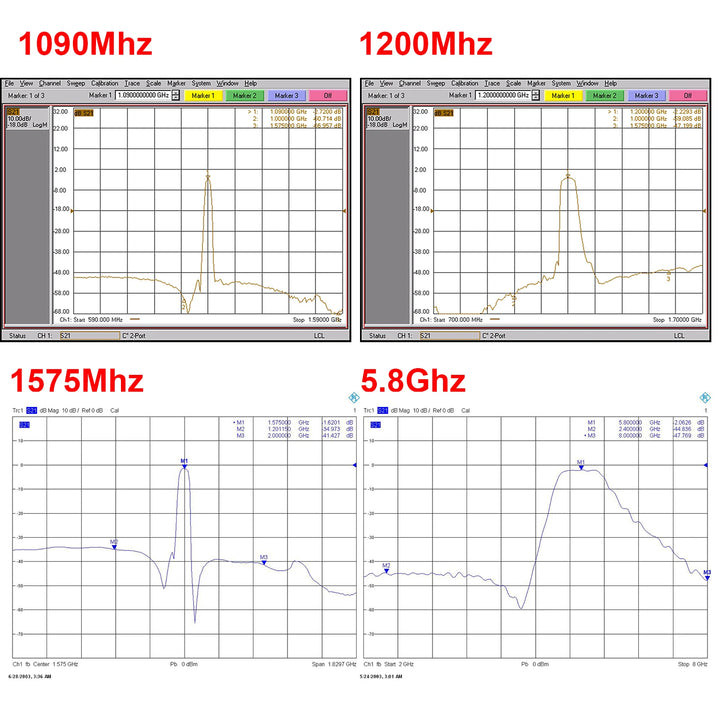

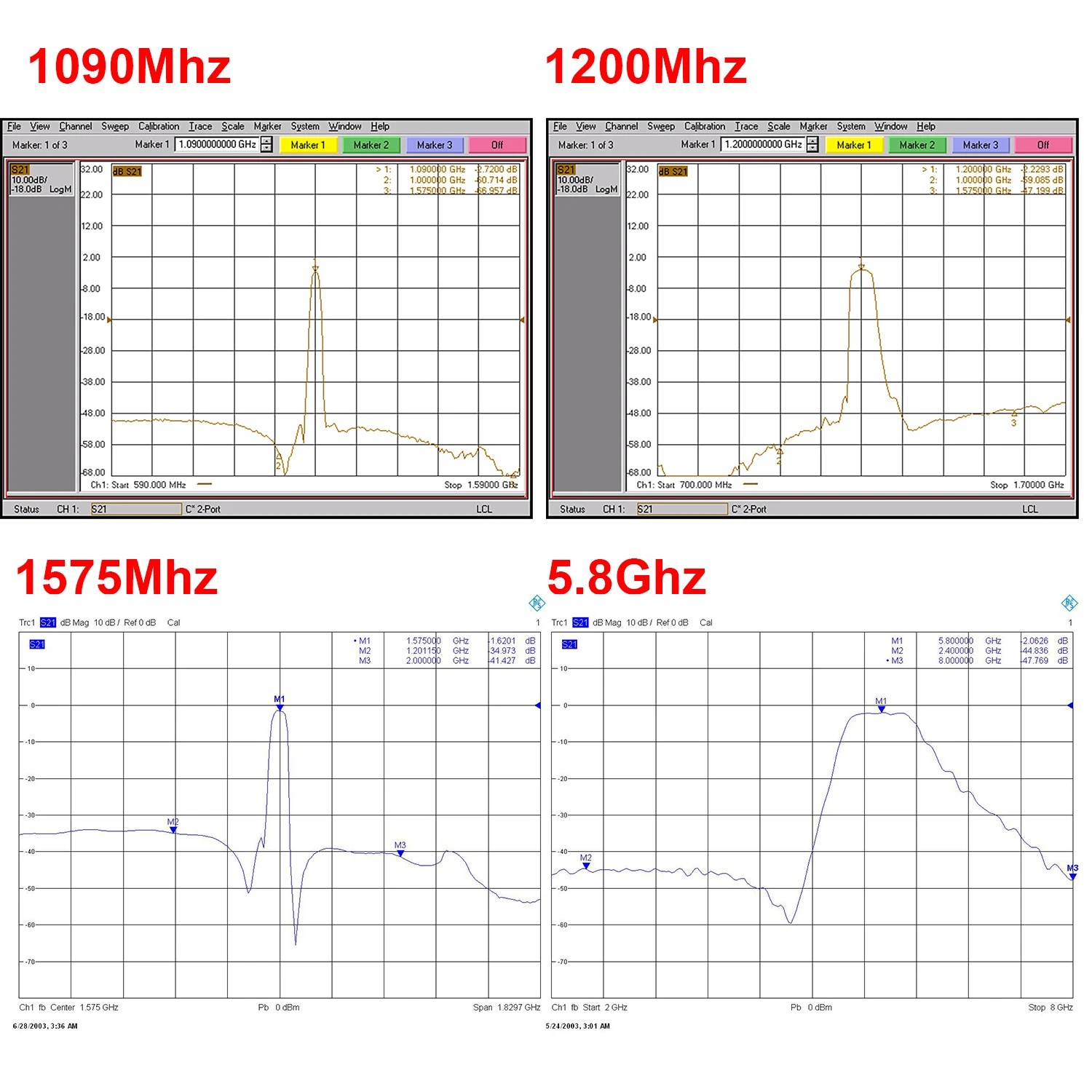

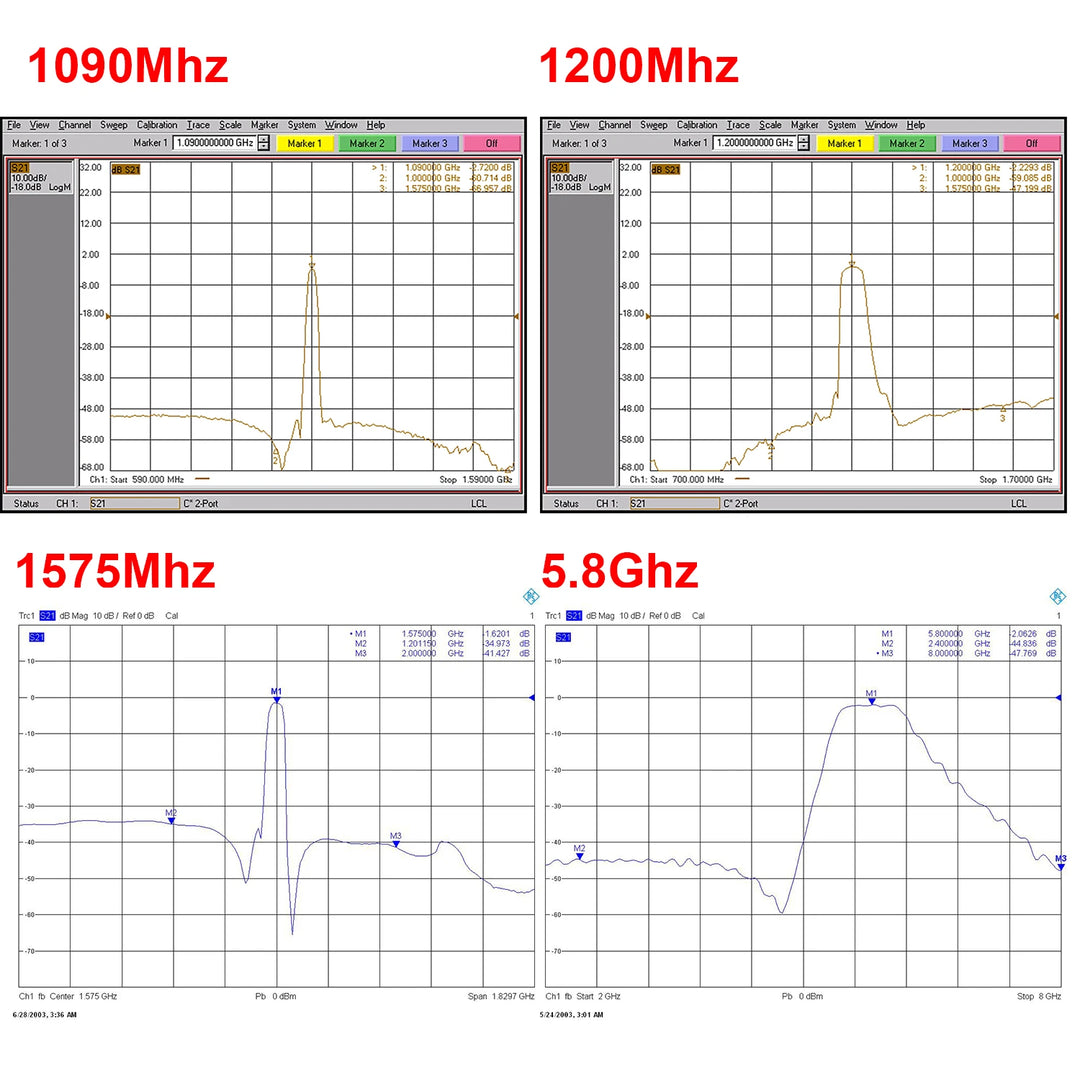

1090M bandpass filter

Center frequency: 1090 MHz

1dB bandwidth: 10 MHz

Tape interpolation loss: < 3.0dB

Out-of-band suppression: > 65dB@915MHz

> 42dB@1.5GHz

Impedance: 50 Ohms

Maximum load power: 20dBm(100mw)

Interface: SMA (outer screw hole)

1.2G bandpass filter

Center frequency: 1200 MHz

1dB bandwidth: 40 MHz

Tape interpolation loss: < 2.0dB

Out-of-band suppression: > 45dB@900MHz

> 38dB@1.575GHz

Impedance: 50 Ohms

Maximum load power: 20dBm(100mw)

Interface: SMA (outer screw hole)

1575M bandpass filter

Center frequency: 1575 MHz

1dB bandwidth: 20 MHz

Tape interpolation loss: < 1.8dB

Out-of-band suppression: > 35dB@1.2GHz

> 45dB@1.7GHz

Impedance: 50 Ohms

Maximum load power: 20dBm(100mw)

Interface: SMA (outer screw hole)

2.4G bandpass filter

Center frequency: 2450 MHz

1dB bandwidth: 100 MHz

Tape interpolation loss: < 2.0dB

Out-of-band suppression: > 45dB@2.2GHz

> 45dB@2.65GHz

Impedance: 50 Ohms

Maximum load power: 20dBm(100mw)

Interface: SMA (outer screw hole)

5.8G bandpass filter

Center frequency: 5800 MHz

1dB pass band: 600 MHz

Insertion loss: < 2.0 dB

Out-of-band suppression: > 44dB@2.4GHz

> 45dB@8GHz

Impedance: 50 Ohms

Maximum load power: 10 W (40 dBm)

Interface: SMA (outer screw hole)

SPECIFICATIONS

Name: Mini RF BPF 403Mhz 433Mhz 868Mhz 915Mhz 1090M 1.2Ghz 1.5Ghz 2.4Ghz 5.8Ghz Band Pass Filter LC For Ham Radio Amplifier SDR Drone
Brand: Thedroneflight
Price: 26.0 USD
Availability: InStock
Rating: 5.0 (83 reviews)

2.4GHZ 5.8GHZ: WIFI

BPF 433MHZ 403MHZ: Walkie-talkie

BPF 868Mhz 915m: LORA Helium Miner UAV drones

Brand Name: Dykbcells

Certification: None

Choice: yes

DIY Supplies: Electrical

Hign-concerned Chemical: None

Model Number: RF BPE 403M-5.8G

Origin: Mainland China

Output Voltage: Ham Radio Amplifier

RF Band Pass Filter: BPE RF amplifier

Style: SAM

Type: RF Band Pass Filter
