RadioMaster TX16S MK3 Radio Controller | Standard & MAX

RadioMaster TX16S MK3 Standard & MAX Radio Controller

Configure your RC setup with the RadioMaster TX16S MK3, a full-size EdgeTX radio offered here in Standard and MAX editions. The listed STM32H7 processor and 5-inch IPS touchscreen provide a platform for model programming, while the JR-compatible module bay offers room for compatible external RF modules.

At the field, select the correct model profile, verify receiver binding and check failsafe behavior before flight. Choosing the right edition, storage option and RF configuration is essential; the available variants do not all carry the same labels or establish identical hardware.

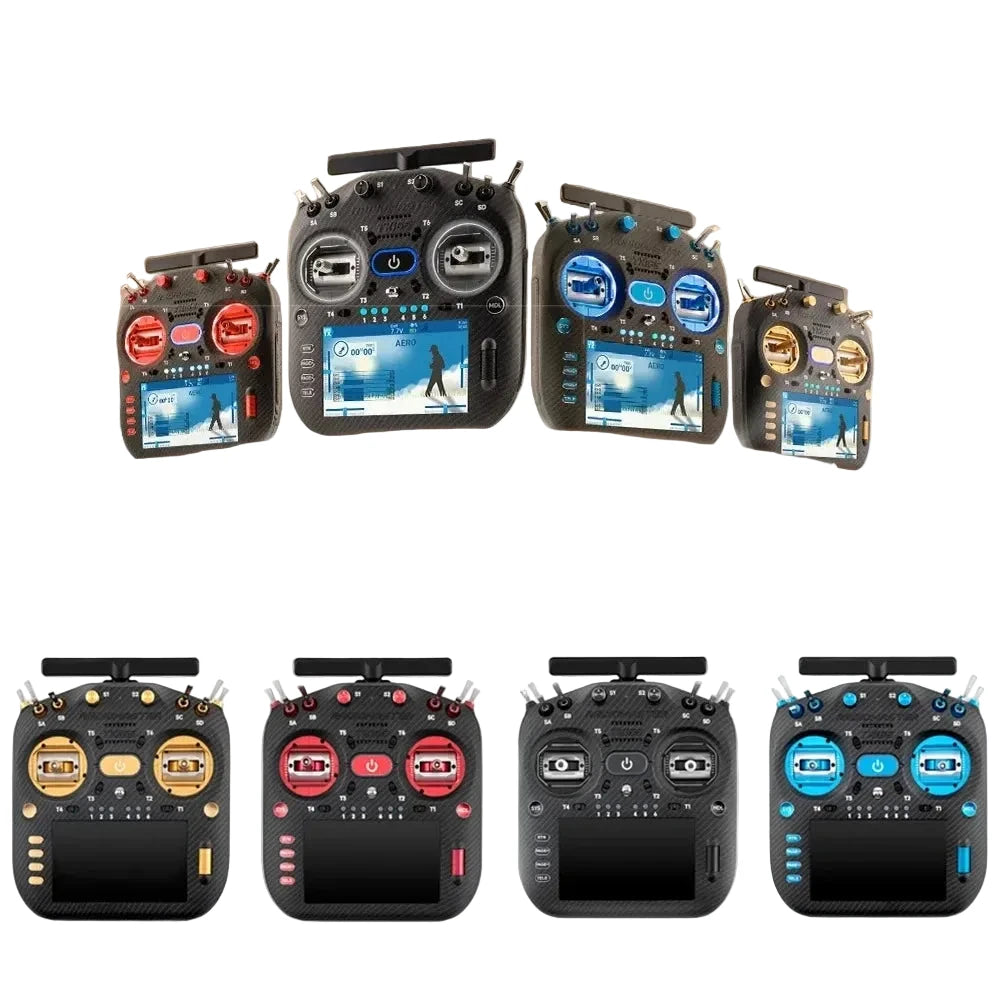

Choose Your Configuration

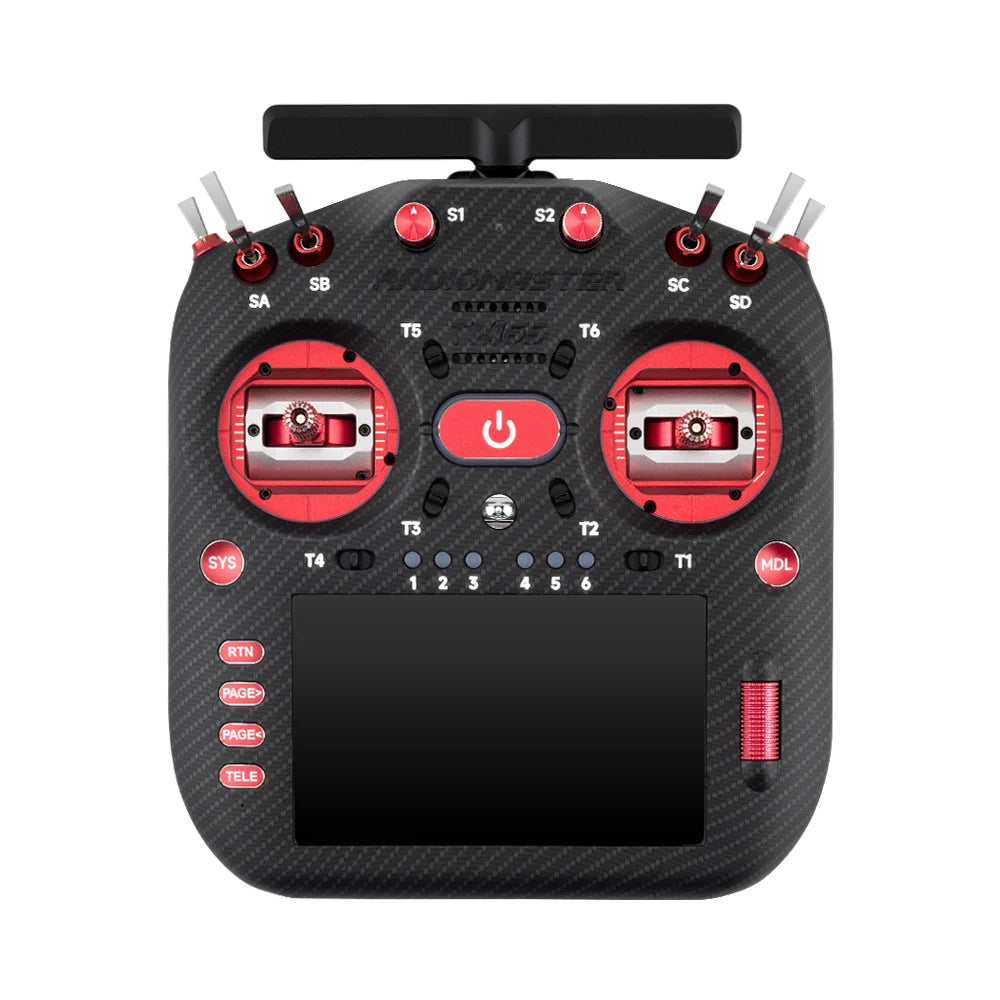

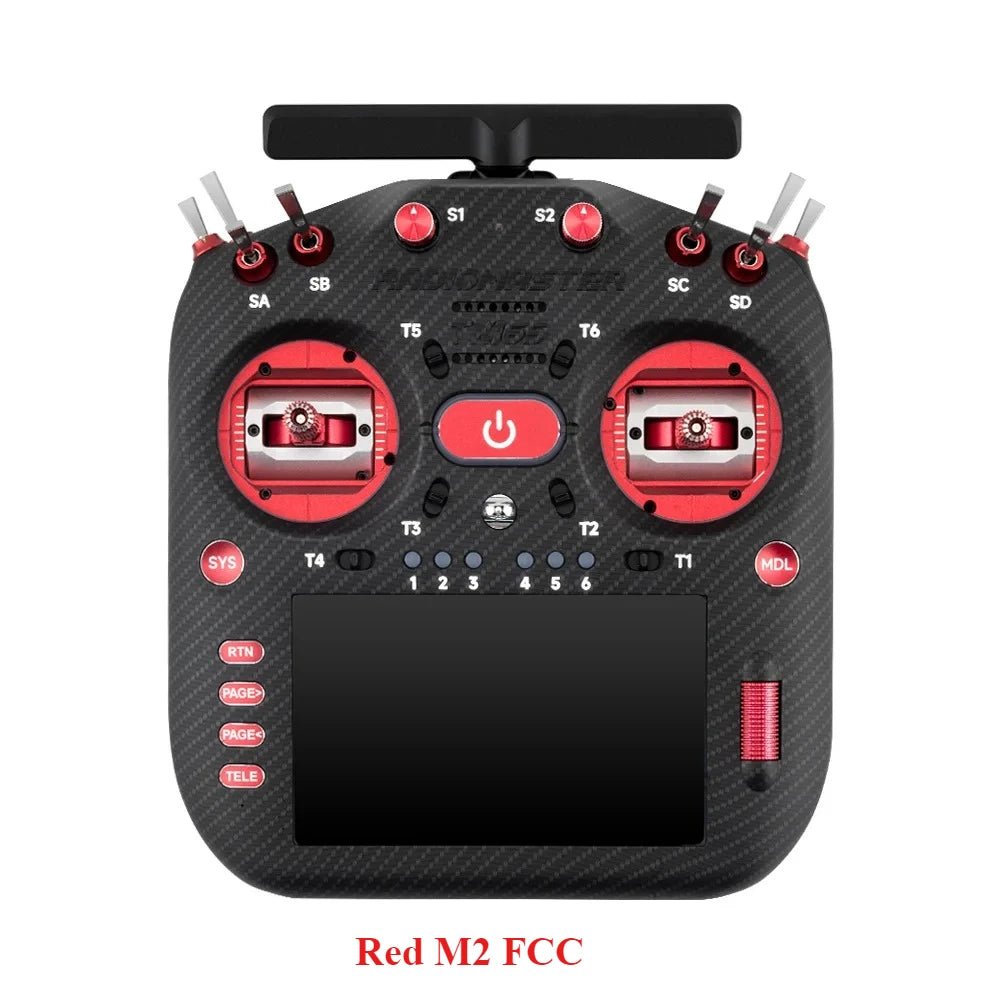

• 4GB MAX Red ELRS M2: MAX edition, red, 4GB storage, ELRS and Mode 2 identified in the option label.

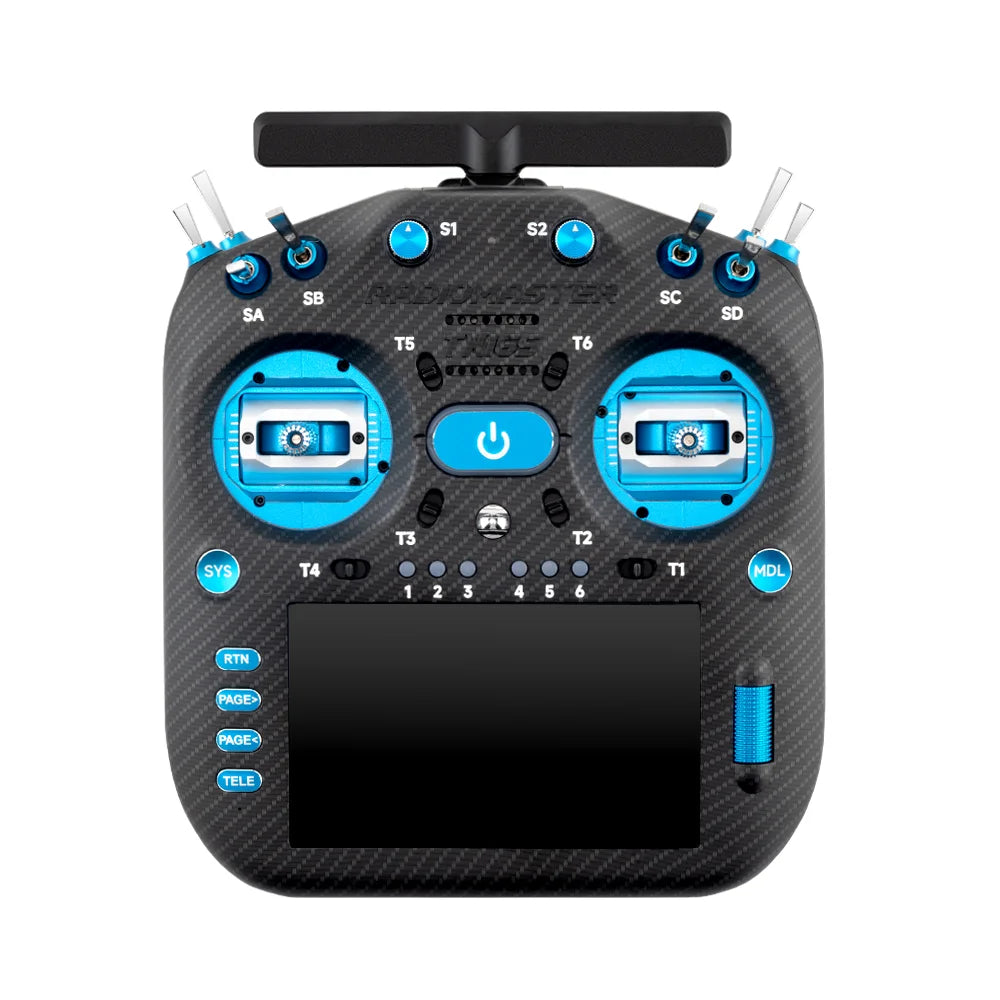

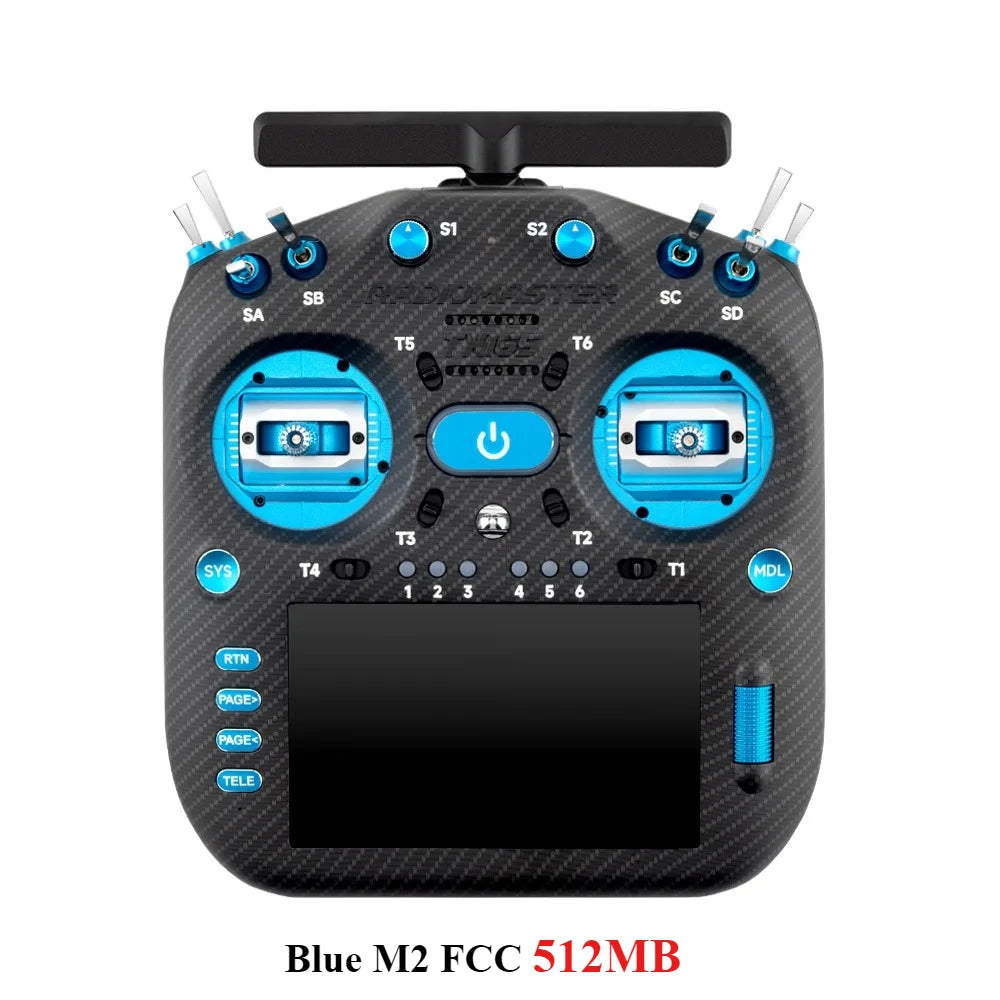

• 512MB MAX Blue ELRS M2: MAX edition, blue, 512MB storage, ELRS and Mode 2 identified in the option label.

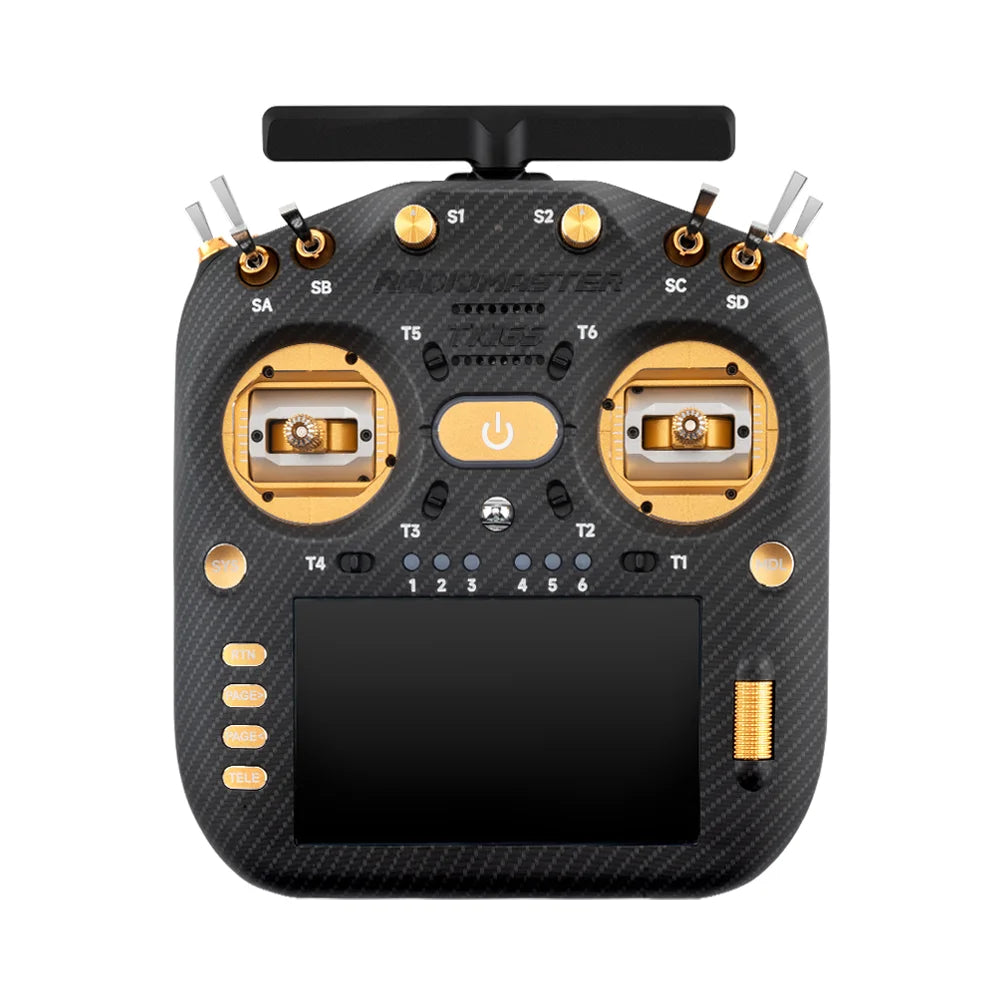

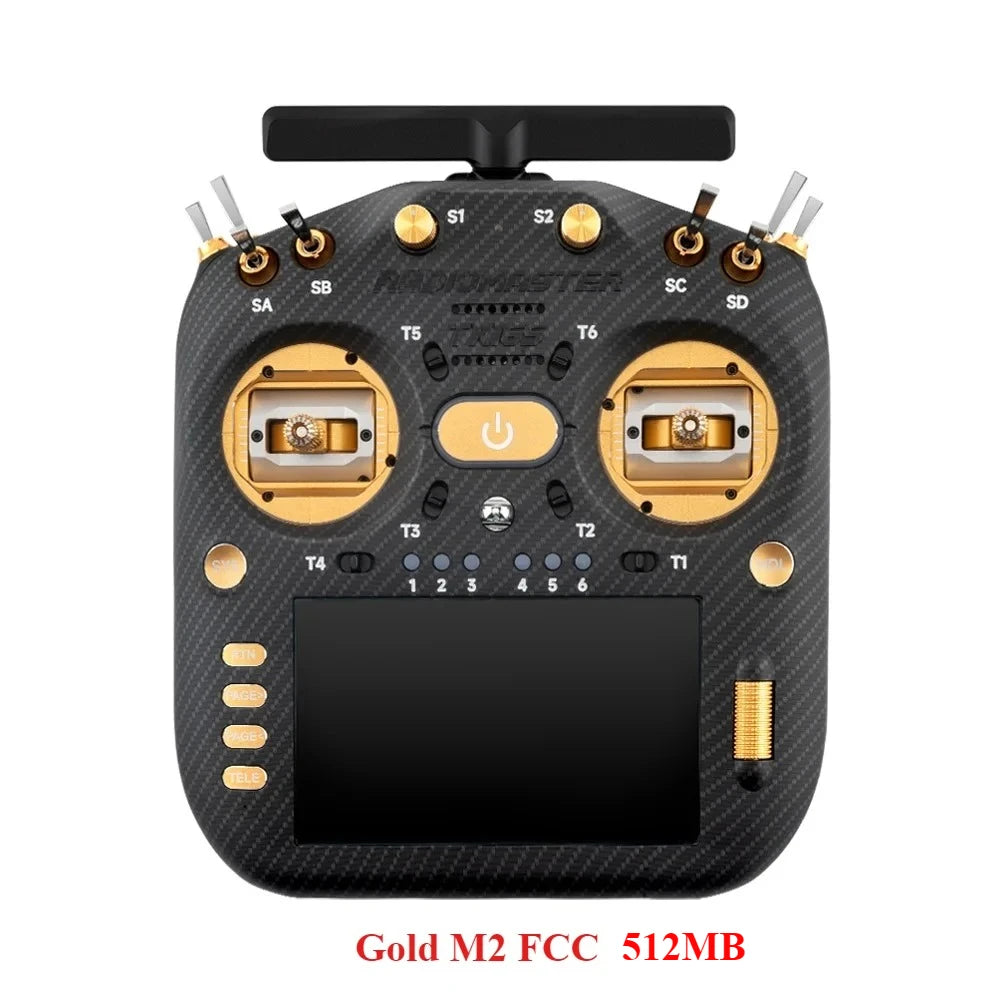

• 512MB MAX Gold ELRS: MAX edition, gold, 512MB storage and ELRS identified; confirm stick mode.

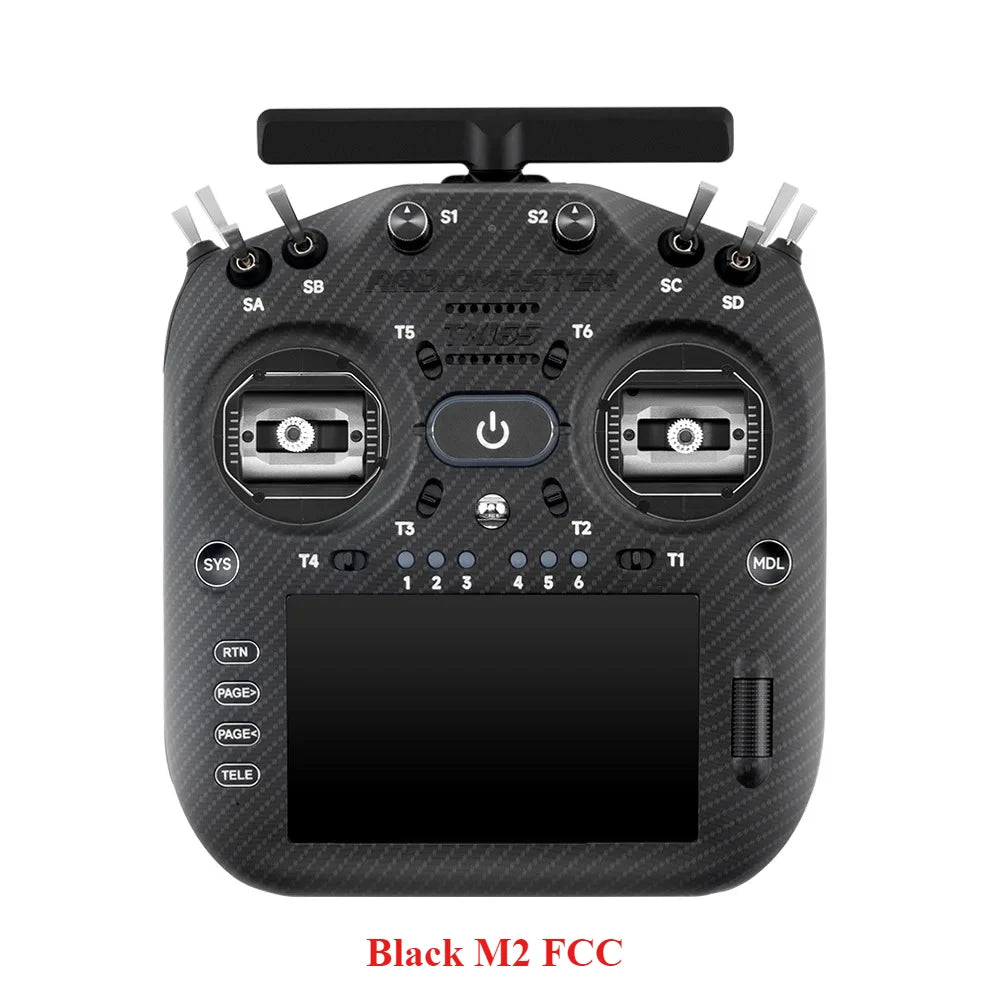

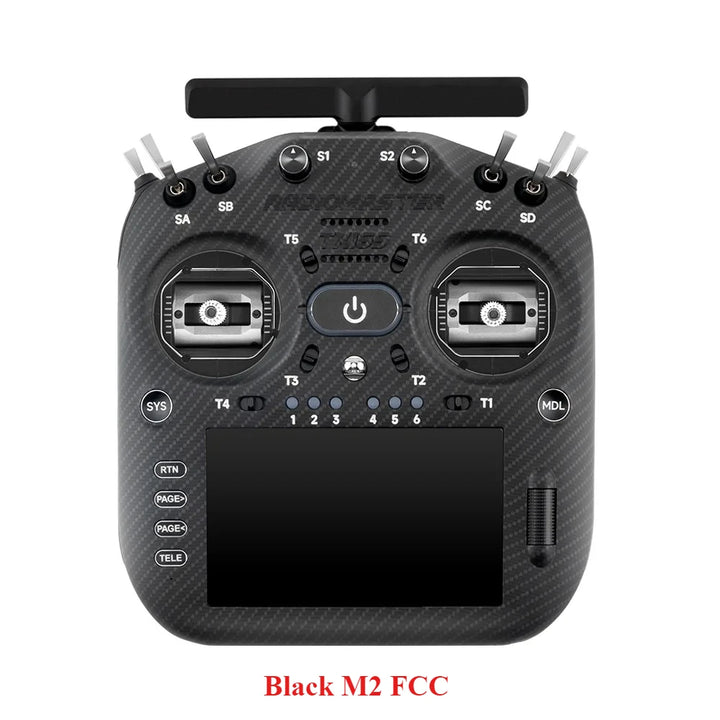

• 4GB MAX Black ELRS M2: MAX edition, black, 4GB storage, ELRS and Mode 2 identified in the option label.

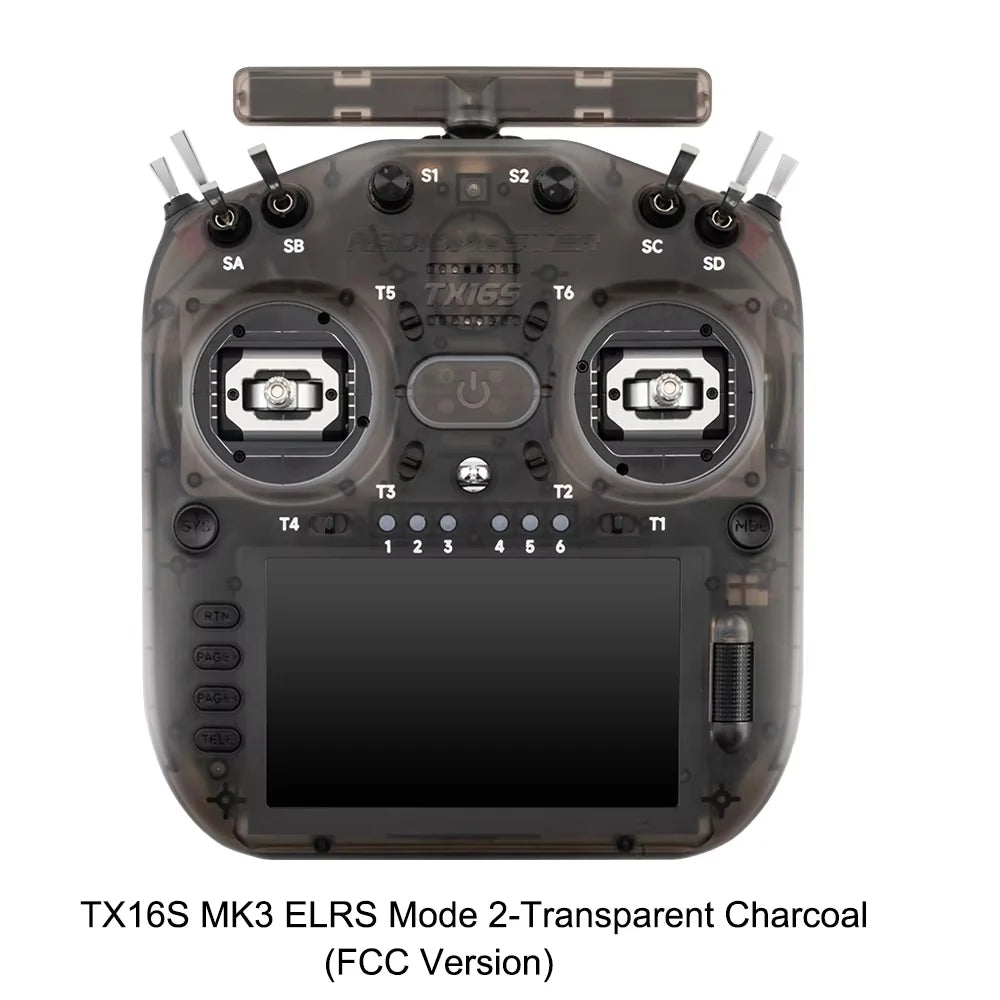

• 4GB Standard Charcoal: Standard edition, charcoal, 4GB storage; confirm internal RF configuration, gimbals and stick mode.

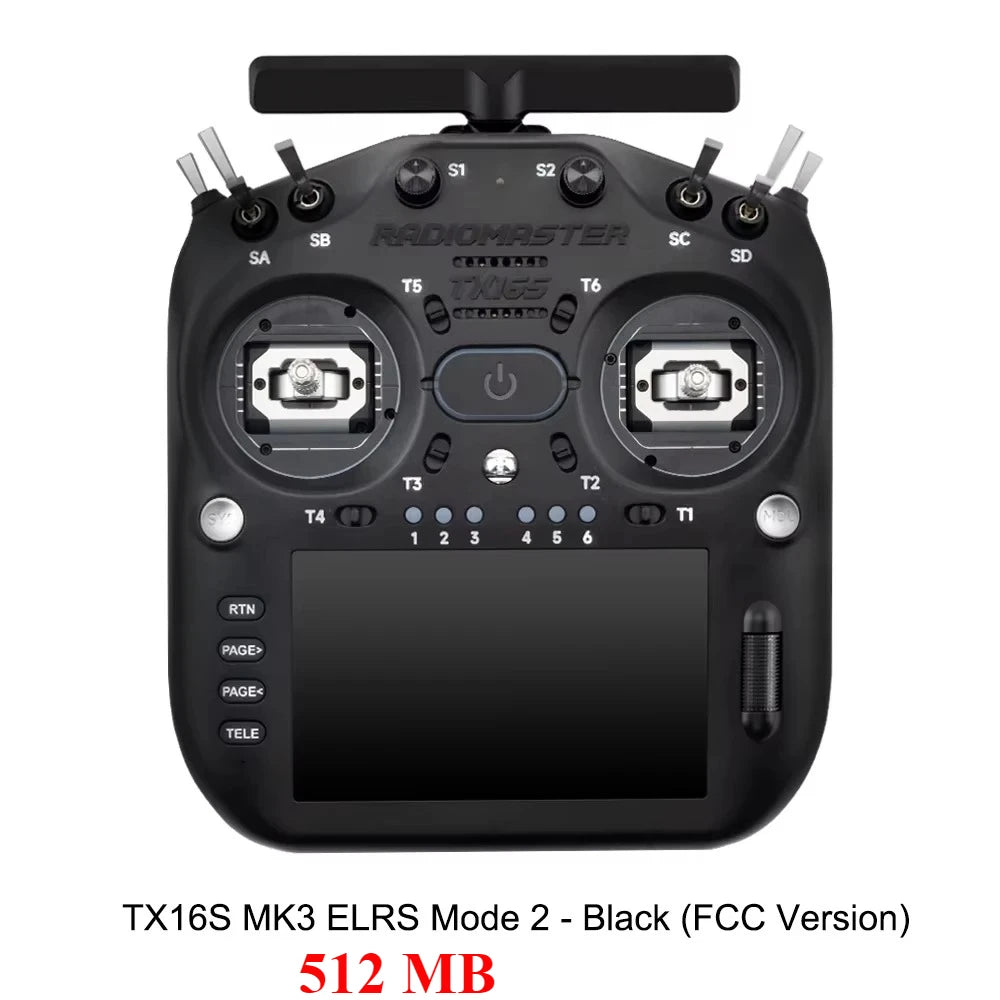

• 512MB Standard Black: Standard edition, black, 512MB storage; confirm internal RF configuration, gimbals and stick mode.

Mode 2 uses left-stick throttle. Select the storage capacity shown in the option label rather than assuming every unit includes 4GB.

Platform Features

• STM32H7 processor: Listed processing platform.
• 5-inch IPS touchscreen: Listed 800 × 480 resolution.
• EdgeTX firmware: Supplied specifications identify version 3.0.0 or later.
• JR-compatible module bay: For supported external modules.
• MicroSD expansion: Card slot listed; card not included.
• Modular shoulder panels: Listed removable switch-panel design.

MAX Edition Details

The supplied MAX information lists AG02 CNC-aluminum Hall-sensor gimbals, aluminum controls, a carbon-fiber-look case and programmable RGB gimbal light rings. These MAX-specific details should not be assumed to apply to Standard options. Confirm the exact gimbal and accessory configuration for your selected edition.

RF and Receiver Compatibility

The MAX specifications describe an internal ExpressLRS system with two LR1121 transceivers, Gemini operation and 2.4GHz / sub-GHz 900MHz bands. Confirm the supplied RF hardware, supported modes and regional configuration for the exact option before ordering.

Match your receiver's frequency band, ExpressLRS firmware and operating mode to the radio. A 2.4GHz-only receiver does not become a 900MHz or dual-band receiver simply because the transmitter supports multiple bands. Binding and failsafe setup must be verified for each model. No fixed range or universally compatible receiver support is guaranteed.

Listed Technical Specifications

• Brand: RadioMaster
• Series: TX16S MK3
• Editions: Standard / MAX, depending on selected option
• Operating voltage: 6.6–8.4 V DC
• Listed working current: 1.10 A at maximum RF output power
• Channels: Up to 16, subject to configuration
• Internal storage: 4GB or 512MB, as selected
• Display: 5-inch IPS touchscreen, 800 × 480
• Listed dimensions: 200 × 178 × 88 mm
• Listed MAX weight: 864 g without battery
• Upgrade methods: USB / EdgeTX Companion

Battery Requirements

Batteries are not included. The supplied information lists two 3.7 V 18650 lithium-ion cells with a tray and compatible transmitter battery-pack alternatives. Confirm pack dimensions, connector, polarity and approved charging requirements for the exact radio before purchase; a battery type or capacity alone does not establish fit.

Perfect For

FPV and RC pilots seeking a full-size programmable transmitter and choosing between Standard and MAX configurations. Confirm receiver compatibility and the exact edition's controls before selecting your option.

Package Contents

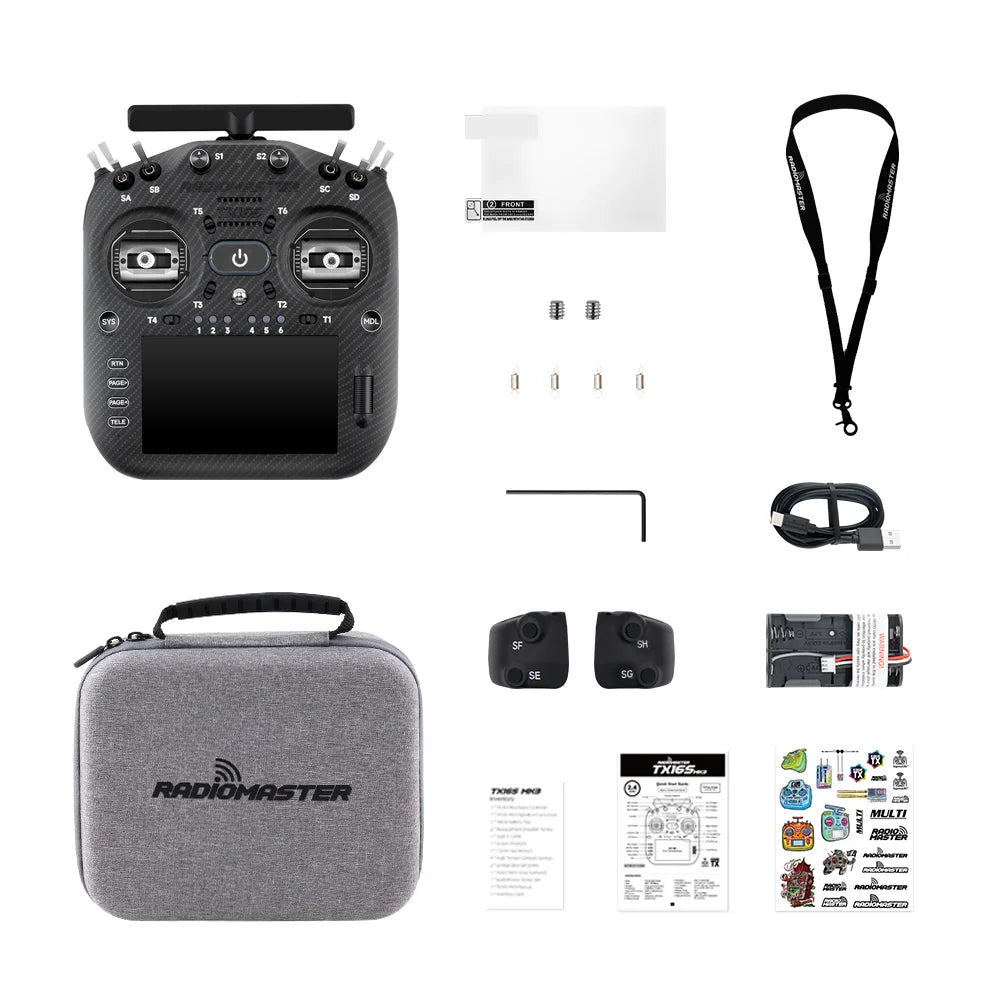

The supplied MAX package list includes the radio, signature carry case, 18650 battery tray, two replacement shoulder panels, USB-C cable, screen protector, 1.5 mm hex wrench, four low-tension gimbal springs, two gimbal stick set screws, nylon neck strap, sticker set, manual and inventory card. Confirm this accessory list for your selected MAX option. Standard package contents may differ and require confirmation. Batteries, receiver, external RF modules and MicroSD card are not established as included.

Setup and Safety

• Use firmware and setup instructions specific to the TX16S MK3 and installed RF module.
• Verify model selection, channel direction, receiver binding and failsafe settings before operation.
• Remove aircraft propellers during bench configuration.
• Use only confirmed-compatible batteries and follow the radio's charging instructions.

For edition, storage, stick-mode and receiver-compatibility questions, contact sales@thedroneflight.com before ordering.
