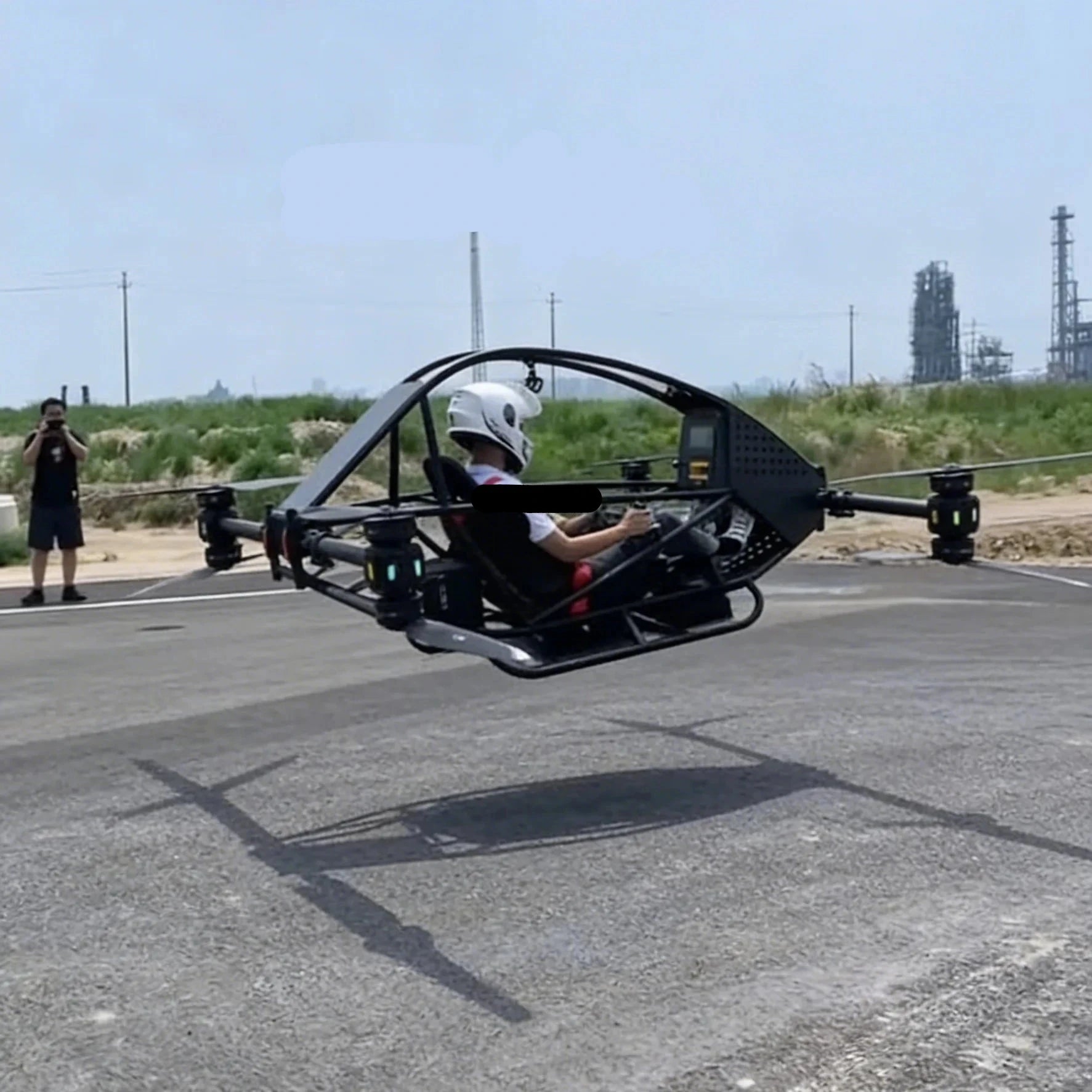

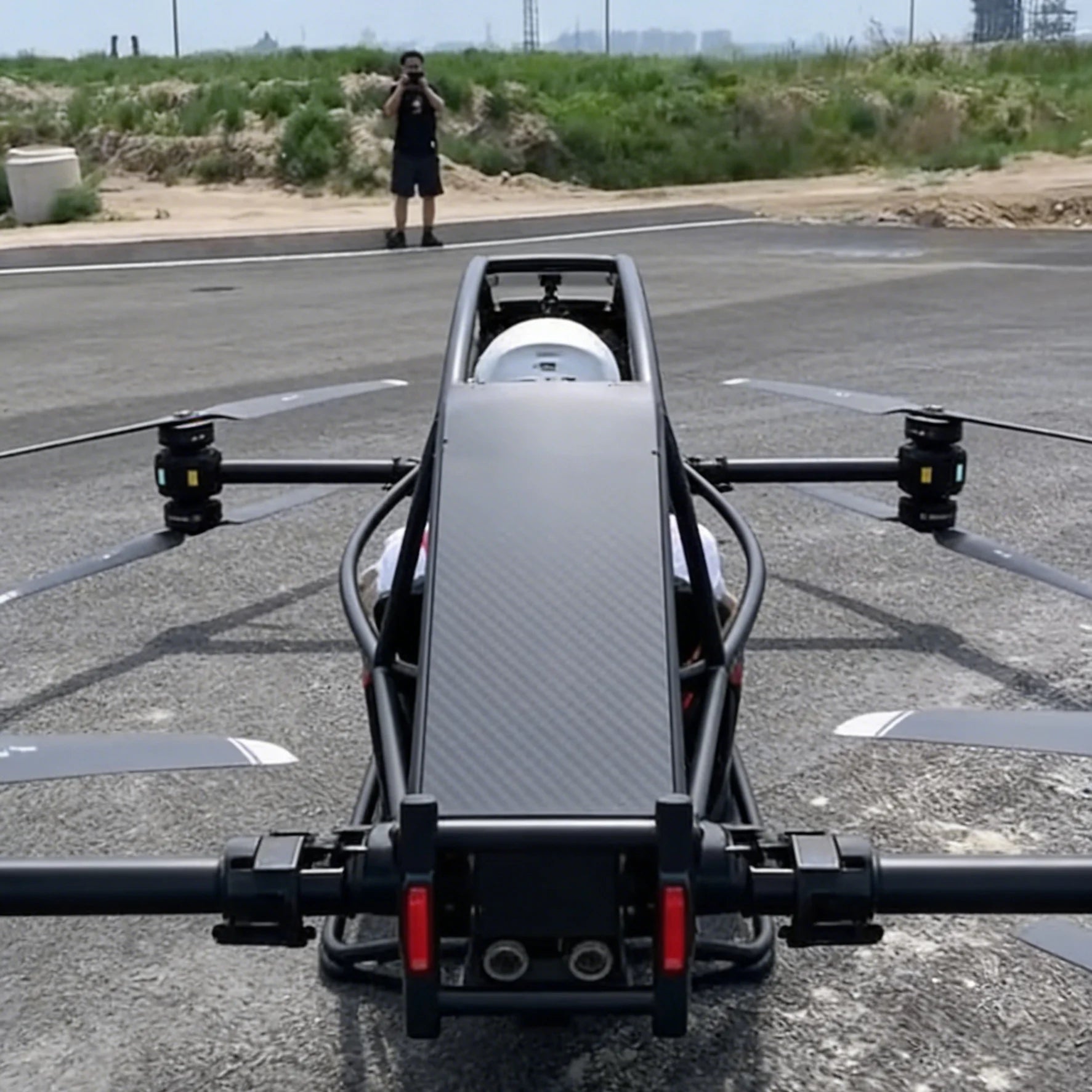

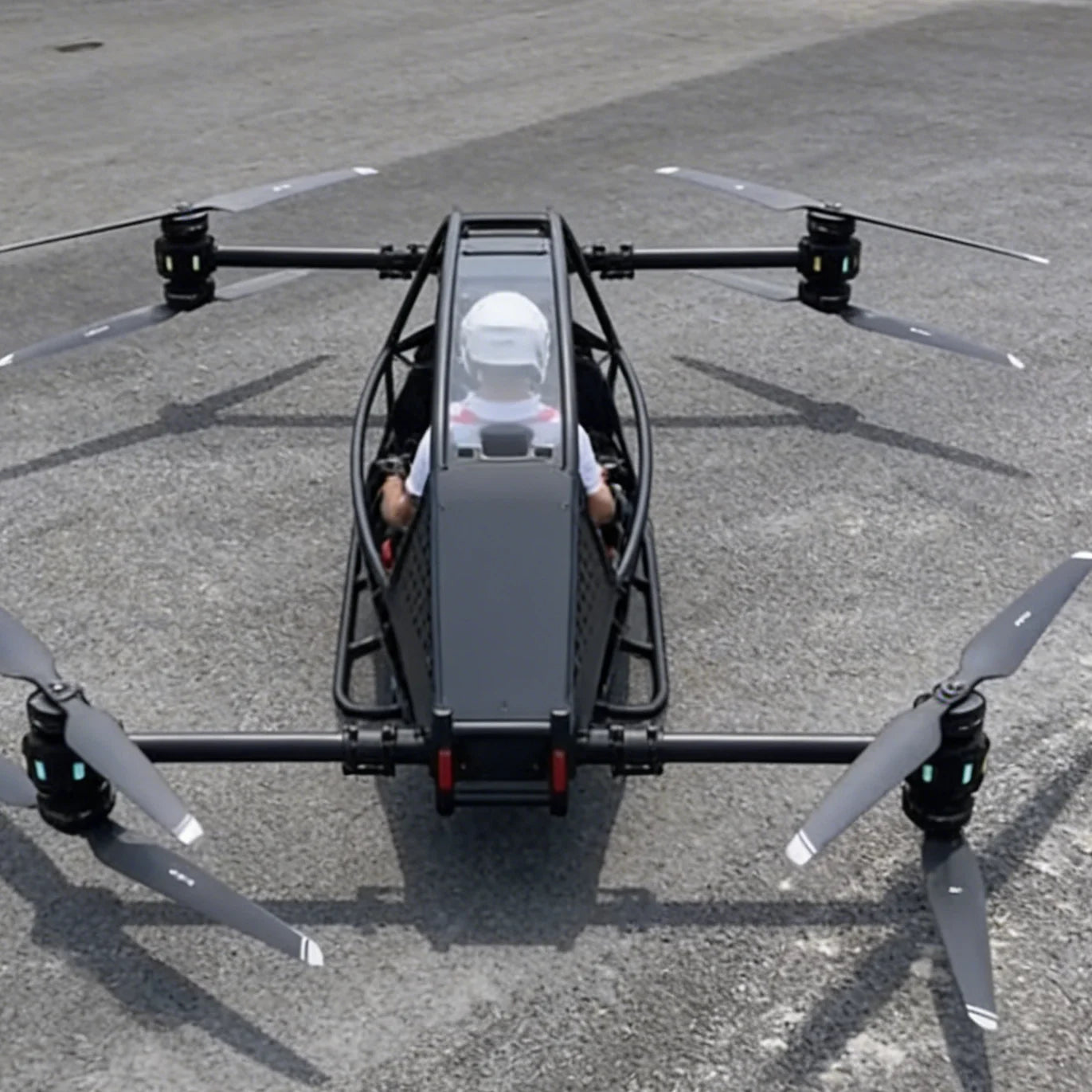

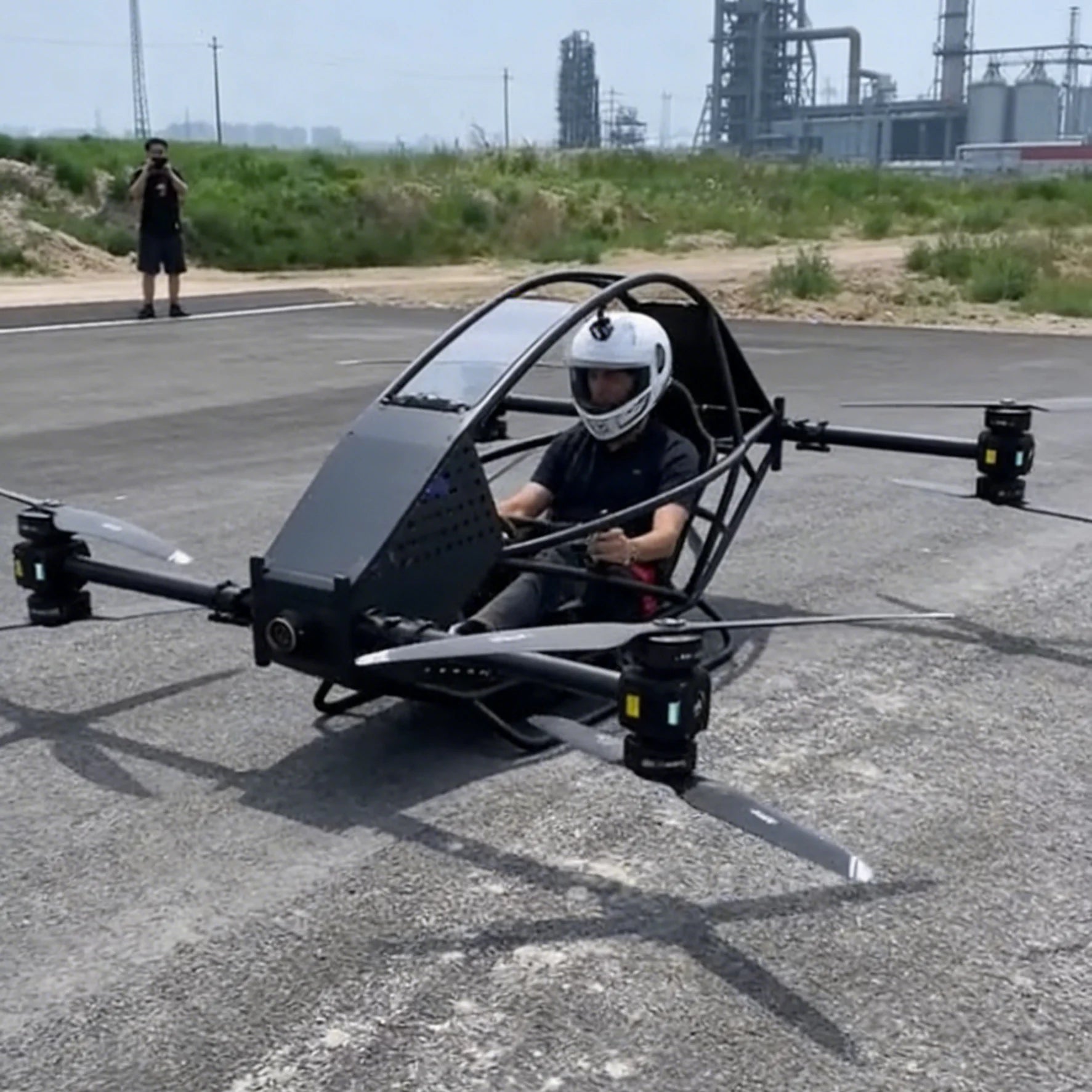

SHUIMAN JINSHAN CY-KT01 — Single-Seat eVTOL Manned Aircraft
The SHUIMAN JINSHAN CY-KT01 is a single-seat electric vertical takeoff and landing (eVTOL) manned aircraft built for low-altitude operations, transportation, and aerial mobility. Constructed from aviation-grade aluminum and carbon fiber, the CY-KT01 balances structural strength with a lightweight 85kg empty weight, supporting a maximum payload of 120kg. With a maximum output power of 23kW from high-power external rotor brushless motors and a high-discharge semi-solid lithium battery, the CY-KT01 delivers up to 30 minutes of flight time and a software-limited top speed of 20–40 km/h.
The intuitive 2-axis joystick and throttle lever control system makes operation straightforward, even for pilots new to eVTOL platforms. The compact folded width of just 1,100mm makes storage and transport practical despite the aircraft's full dimensions of 2,300mm × 1,800mm × 1,300mm.
Key Features
- Single-Seat Manned eVTOL — Designed for one pilot; supports up to 120kg payload for low-altitude personal and cargo mobility
- 30-Minute Flight Time — High-discharge semi-solid lithium battery for extended endurance
- 23kW Maximum Output Power — High-power external rotor brushless motors for strong, stable lift
- Aviation Aluminum & Carbon Fiber Construction — Lightweight yet structurally rigid airframe for demanding operational environments
- Software-Limited Speed & Altitude — Top speed 20–40 km/h; altitude limited to 50m for safe low-altitude operations

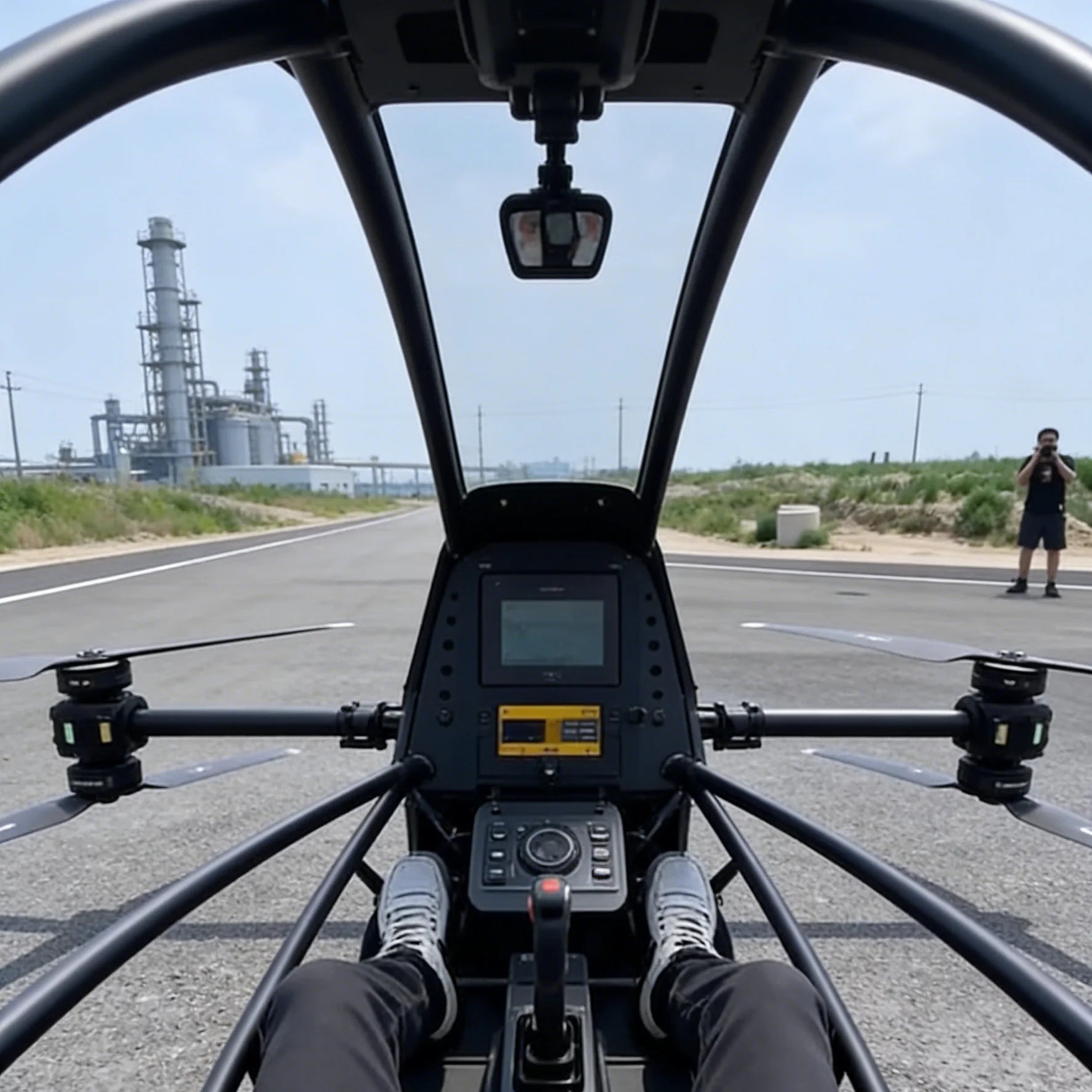

- Intuitive 2-Axis Control — Dual-axis joystick combined with throttle lever for simple, direct flight control
- Compact Folded Width — Folds to 1,100mm for easy storage and transport
- Electric VTOL — Zero direct emissions; vertical takeoff and landing with no runway required
Technical Specifications
- Model: CY-KT01
- Empty Weight: 85 kg
- Maximum Payload: 120 kg
- Maximum External Dimensions: 2,300mm × 1,800mm × 1,300mm
- Folded Width: 1,100mm
- Maximum Flight Time: 30 minutes
- Maximum Flight Speed: Software-limited to 20–40 km/h
- Maximum Flight Altitude: Software-limited to 50 meters
- Maximum Total Power Output: 23 kW
- Motor Type: High-power external rotor brushless (electric)
- Battery: High-discharge semi-solid lithium battery
- Flight Control: 2-axis joystick + throttle lever
- Body Material: Aviation aluminum, carbon fiber
- Application: Low-altitude personal mobility, cargo transport, aerial operations
Perfect For
- Low-altitude personal aerial mobility
- Last-mile cargo and logistics transport
- Agricultural and inspection operations
- Emergency response and remote area access
- Enterprise and government aerial mobility programs
Important Notes
- Pricing and shipping costs are confirmed on a per-order basis — contact us before purchasing to confirm model configuration and final pricing
- Production lead time is approximately 15 days from receipt of advance payment; shipment follows upon final payment
- Verify all applicable UAV/manned aircraft regulations and airworthiness requirements in your jurisdiction before operating
- For enterprise, government, or bulk inquiries, contact sales@thedroneflight.com or request an ACH/wire quote
