SIYI HM30 Long-Range Full HD UAV Data Link System — 30km, Mavlink, IP53
The SIYI HM30 is a professional long-range full HD digital image transmission and data link system designed for fixed-wing UAVs, multirotors, and industrial drone platforms. With a 30km operational range (50km recorded), integrated Mavlink telemetry, S.Bus/PPM RC signal passthrough, OSD overlay, and IP53 weather resistance, the HM30 provides a complete command, control, and video downlink solution for government, defense, and professional UAV operations. Compatible with ArduPilot, PX4, INAV, and standard GCS software including QGroundControl and Mission Planner.
Variant Options

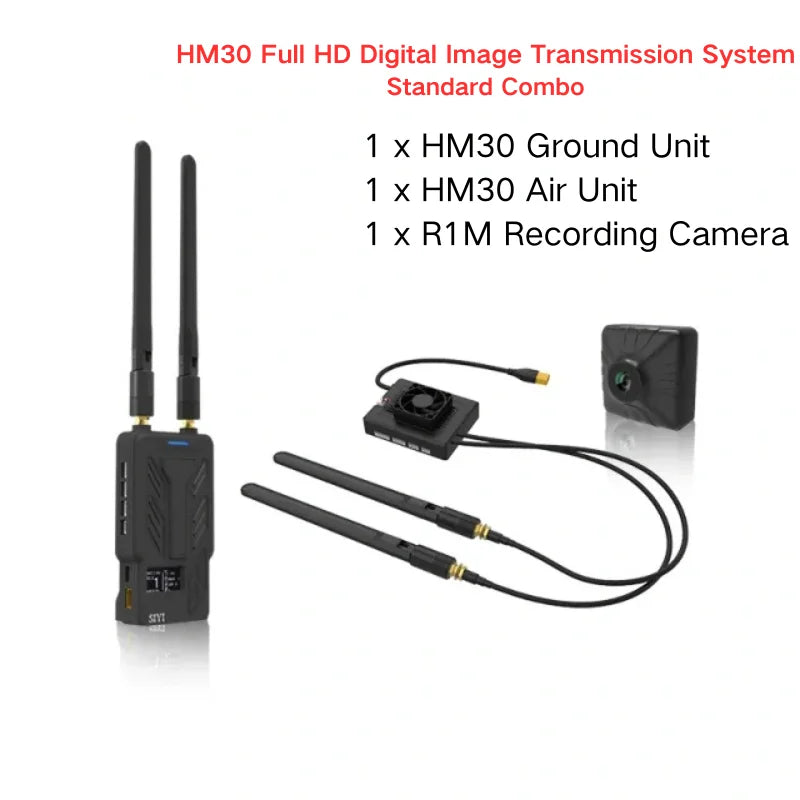

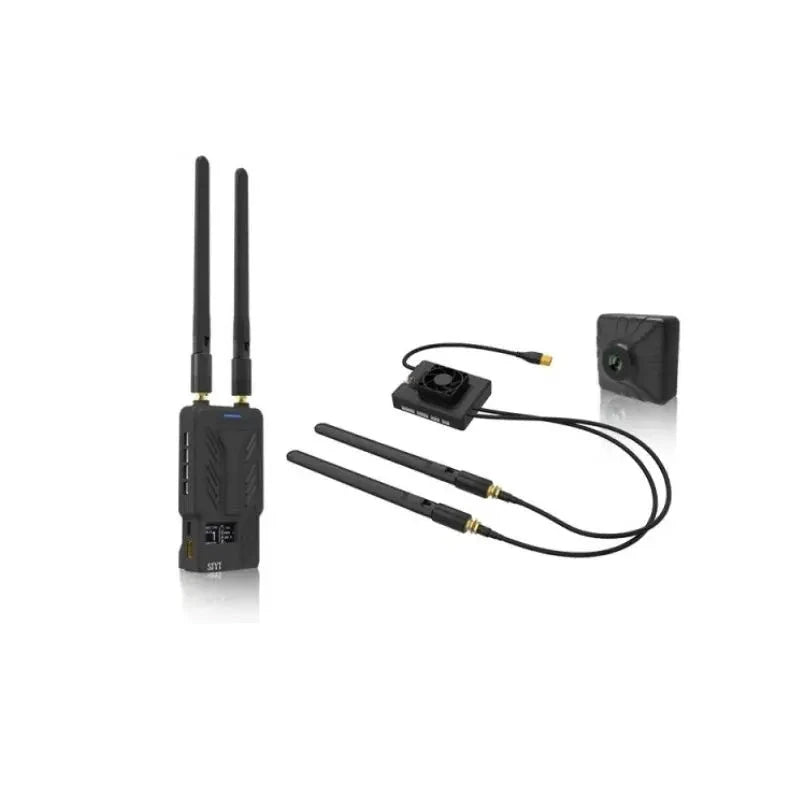

- HM30 — Standard system (ground unit + air unit + FPV camera)

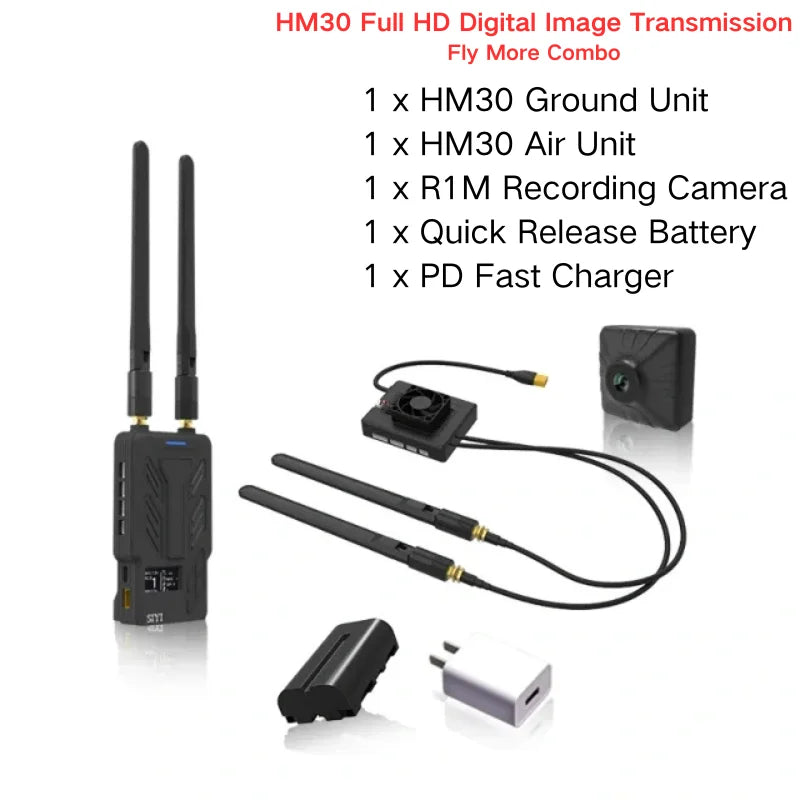

- HM30-FMC (Fly More Combo) — Includes NP-F750 battery for the ground unit
Key Features
- 30km Operational Range — Unobstructed, interference-free; 50km range recorded in field testing
- Full HD Video Downlink — 1080p@30fps H.265 video transmission with 720p@30fps FPV camera included
- Mavlink Telemetry & OSD — Bidirectional telemetry with OSD overlay for ArduPilot, PX4, and INAV flight controllers
- 16-Channel RC Signal — S.Bus and PPM RC input on ground unit; 16ch S.Bus + 5ch PWM output on air unit
- IP53 Ground Unit — Dust and light rain protection for field operations
- Multiple Video Output Options — USB-C, LAN (Ethernet), internal WiFi, and USB WiFi with simultaneous UDP telemetry
- Broad FC Compatibility — Pixhawk, APM, MATEK H743/F405, and any FC with UART datalink output
- GCS Compatible — QGroundControl and Mission Planner on Android and Windows

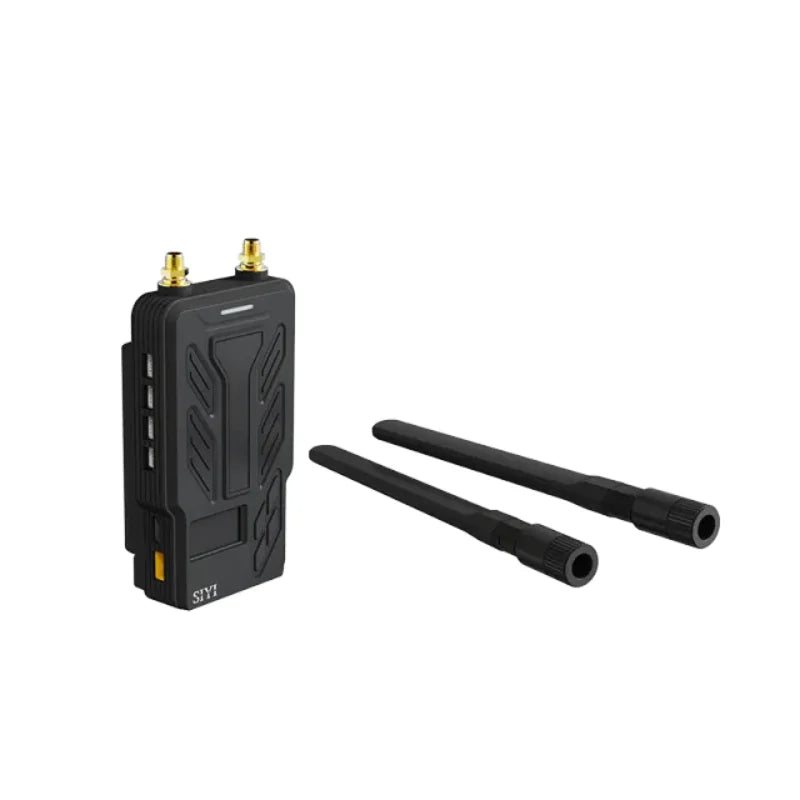

- Replaceable SMA Antennas — Standard 5dBi omni or 11dBi long-range directional; upgradeable to 17dBi high-gain
- NP-F Battery System — Ground unit accepts NP-F550/F750/F770/F950/F970 quick-release batteries with PD 30W fast charging
- Wide Air Unit Voltage — 11–16.8V native (expandable to 4S–18S with BEC)

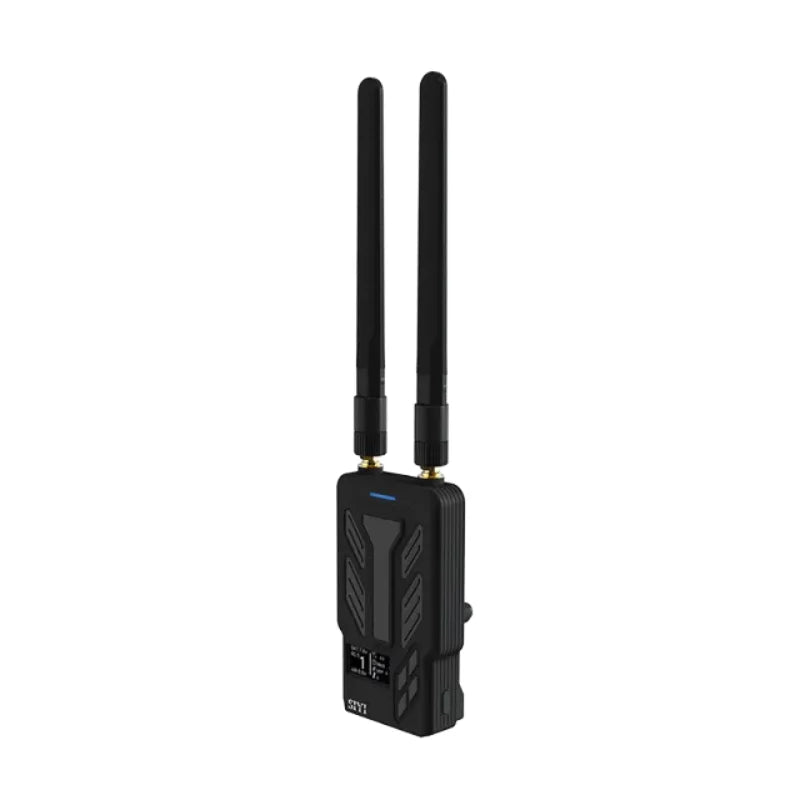

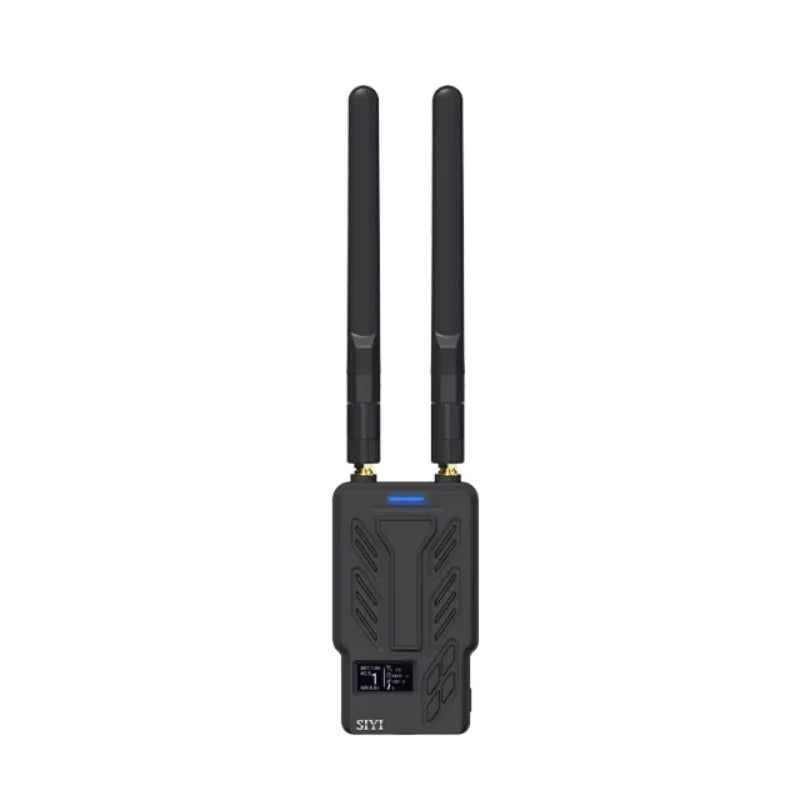

Ground Unit Specifications
- Display: 0.96-inch OLED
- Frequency: 5100–5825MHz (centering 5550MHz)
- TX Power: 25dBm / 320mW
- Channels: 16
- Antenna Gain: 5dBi omni / 11dBi long-range directional
- Interfaces: S.Bus/PPM RC input, UART datalink, LAN (Ethernet), USB-C, XT30 power input, 1/4-inch tripod mount
- IP Rating: IP53

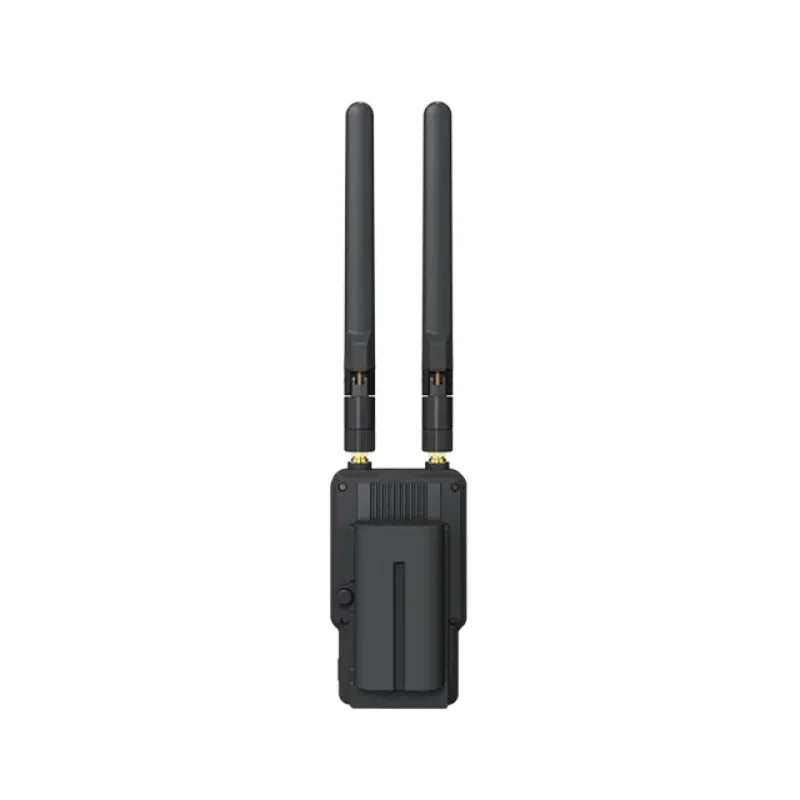

- Power: NP-F series battery (PD 30W fast charge)
- Dimensions: 109×61×28mm (excl. antennas/battery)
- Weight: 132g (excl. antennas/battery)
- Operating Temp: -10°C to +50°C
Air Unit Specifications
- RC Output: 16ch S.Bus + 5ch PWM
- Interfaces: UART datalink to FC, S.Bus, PWM, Ethernet video input, USB-C firmware upgrade
- Power Input: 11–16.8V (expandable to 18S with BEC)
- Antenna: SMA, 5dBi omni
- Dimensions: 70×55×16mm (excl. antenna)
- Weight: 74g (excl. antenna)
- Operating Temp: -10°C to +50°C
FPV Camera Specifications
- Sensor: 1/2.9-inch CMOS, 3MP
- Lens: 3.2mm, F/2.8, 105° FOV
- Video: 720p@30fps H.265 (1.57Mbps)
- Dimensions: 42×42×25mm
- Weight: 23g
- Operating Temp: -10°C to +55°C
Perfect For
- Government and defense agencies requiring long-range UAV command, control, and video downlink
- Fixed-wing and multirotor UAV platforms for ISR, survey, and inspection missions
- ArduPilot, PX4, and INAV operators needing integrated Mavlink telemetry and OSD
- Professional UAV integrators building complete C2 and video downlink solutions
Important Notes
- NP-F battery included with HM30-FMC variant only
- HDMI output requires optional sold-separately LAN-HDMI Output Converter Module
- HDMI input on air unit requires optional sold-separately HDMI-Ethernet Input Converter Module
- For professional and commercial UAV use only; comply with local RF regulations
