SIYI MK32 Enterprise Handheld Ground Station — 15km, 7" HD Touchscreen, Android 9
The SIYI MK32 is a professional-grade enterprise handheld ground station and smart controller combining a 7-inch HD high-brightness LCD touchscreen, Android 9.0 OS, and a 15km 5GHz data link into a single integrated unit. With a 10-hour battery life, 16-channel RC control, Mavlink telemetry passthrough, and compatibility with QGroundControl and Mission Planner, the MK32 is the complete command and control solution for professional UAV, UGV, and USV operations. CE and FCC certified. Available in Standard and HDMI Combo configurations.
Key Features
- 15km Data Link — 5GHz, 16 communication channels; 7M upload / 14M download bandwidth; compatible with HM30 and MK15 links
- 7" HD High-Brightness Touchscreen — Outdoor-readable LCD for clear situational awareness in all lighting conditions
- Android 9.0 OS — 4G RAM / 64G ROM; runs QGroundControl, SIYI FPV, and any Android 9.0+ compatible application including Google services
- 10-Hour Battery Life — 10200mAh 7.4V 2S Li-ion (75.48Wh); PD 30W fast charge in 3.5 hours
- 16-Channel RC Control — Mode 2; compatible with Pixhawk/APM and any FC with UART datalink output

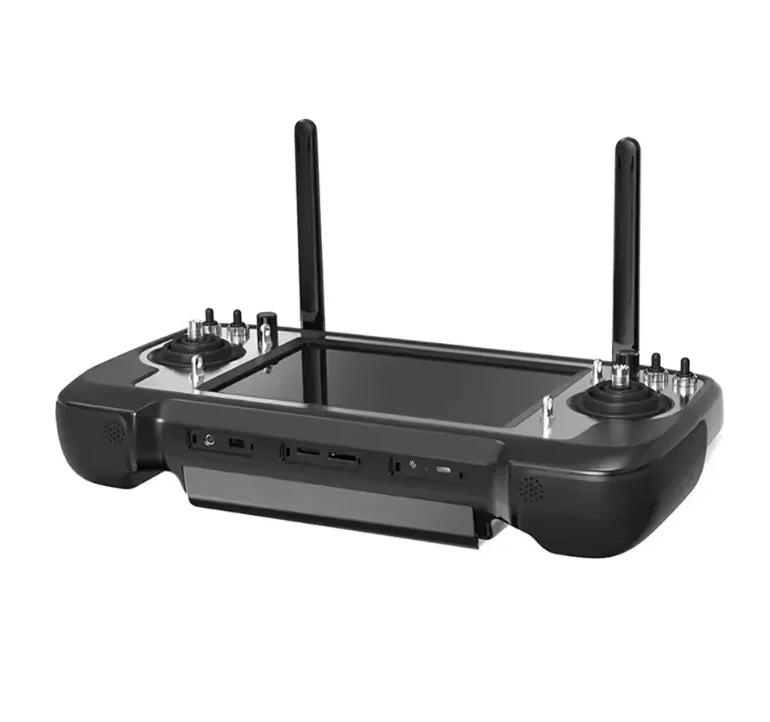

- Comprehensive I/O — HDMI out, USB-A, Type-C (charge/upgrade/transfer), SIM card slot (4G cellular), TF card, LAN (Ethernet), audio RC I/O
- IP4X Weather Resistance — Dust and splash protection for field operations
- Dual IP Camera Support — Air unit supports two IP cameras via FPV Hub with simultaneous dual video stream in SIYI FPV app
Variant Options

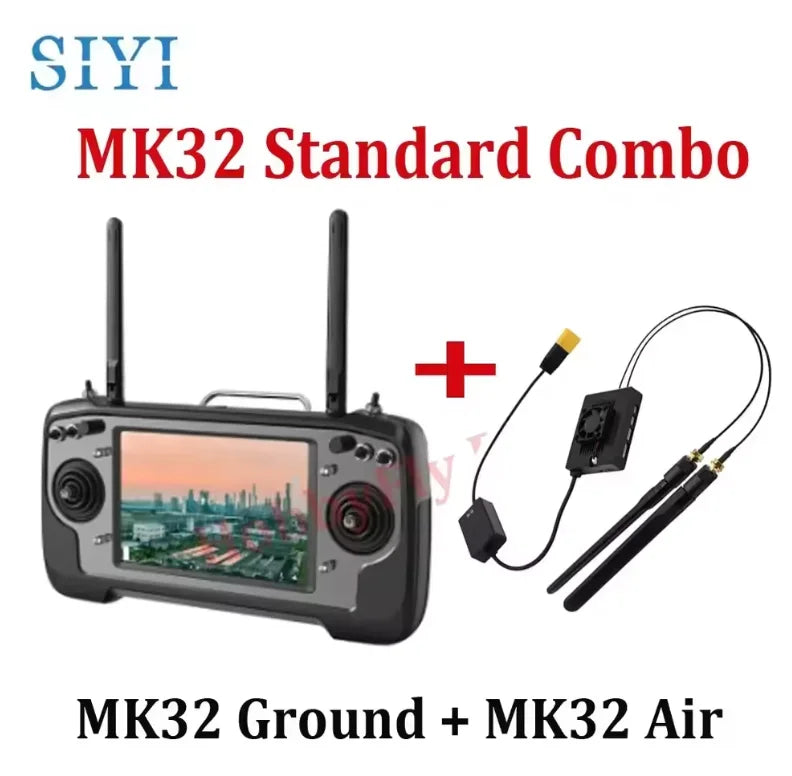

- MK32 Standard Combo — Ground station + air unit

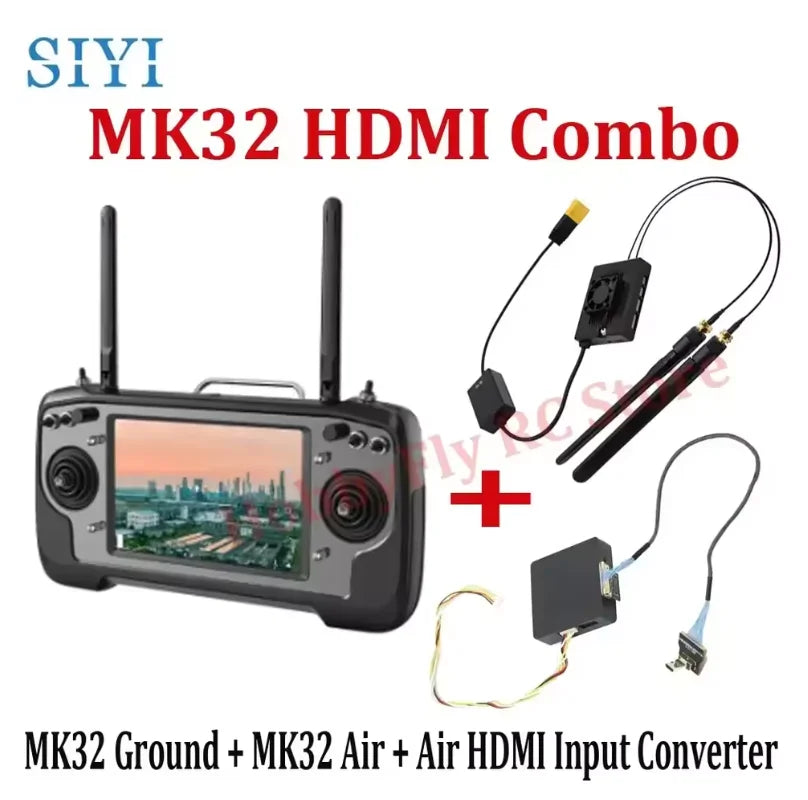

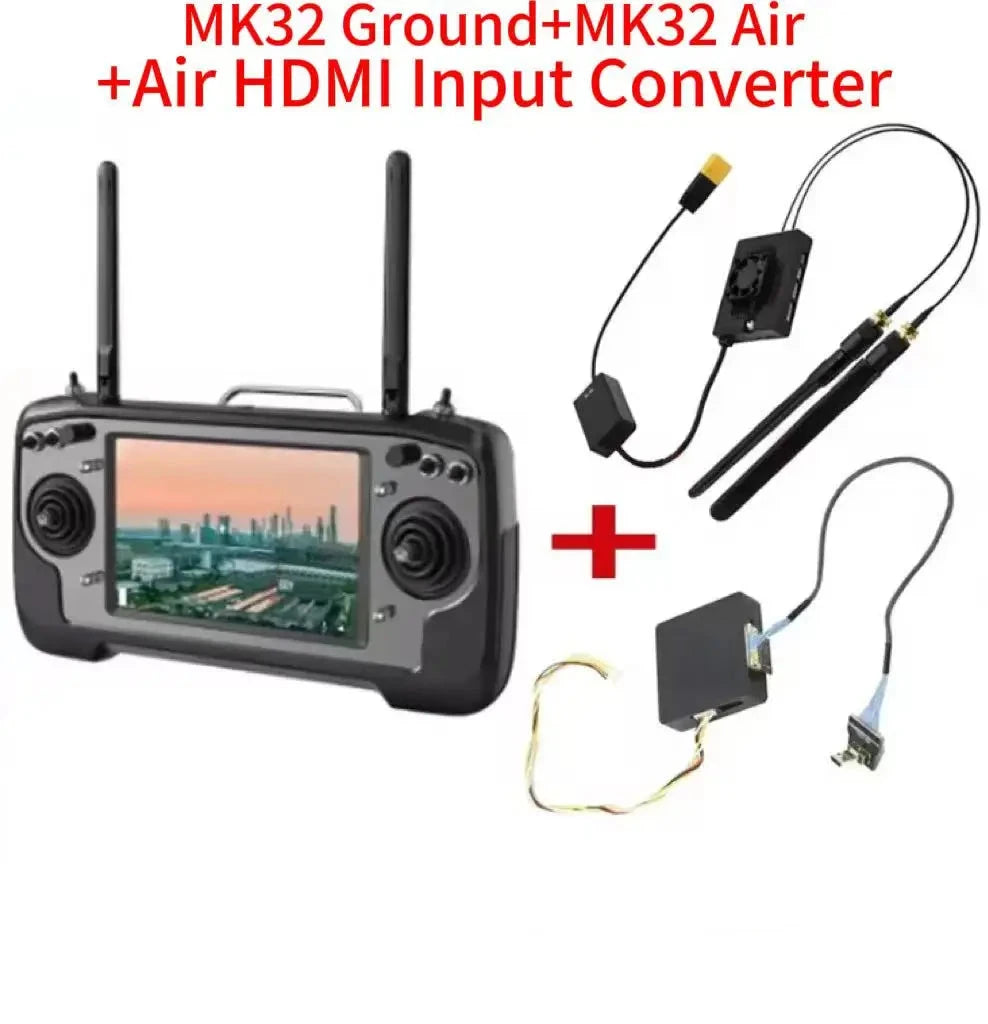

- MK32 HDMI Combo — Ground station + air unit + HDMI Input Converter Module (Mini HDMI in, 1080p/720p H.265 recording to MicroSD up to 32GB)

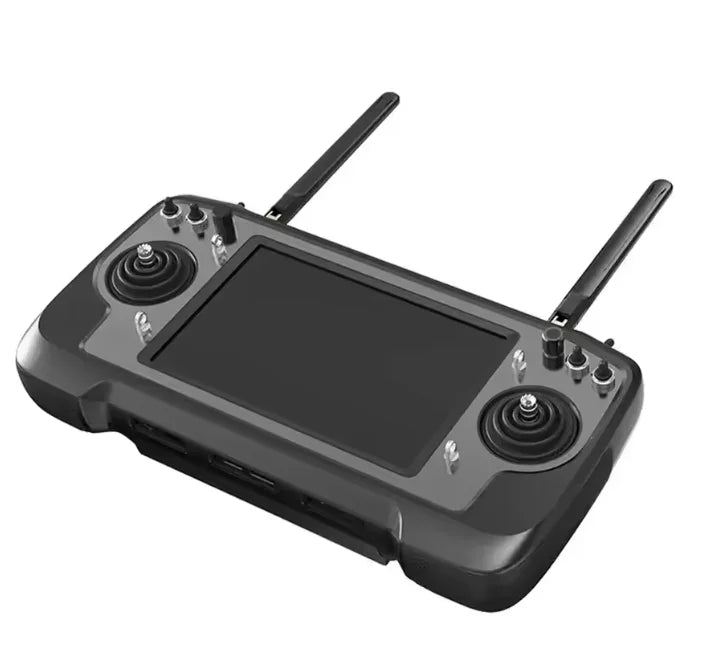

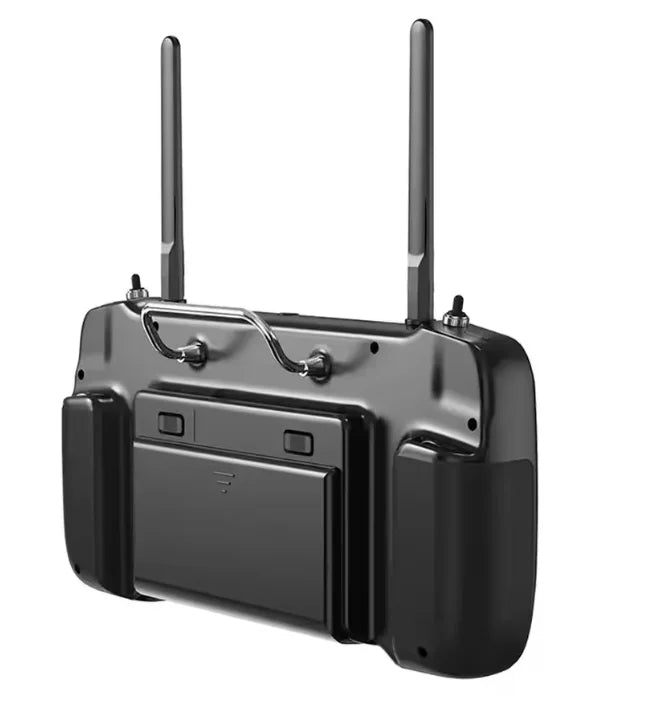

Ground Station Specifications
- Display: 7-inch HD high-brightness LCD touchscreen
- OS: Android 9.0, 4G RAM, 64G ROM
- Frequency: 5GHz
- Range: 15km (unobstructed, interference-free)
- Channels: 16
- Battery: 10200mAh 7.4V 2S Li-ion, 75.48Wh
- Battery Life: 10 hours
- Charging: PD 30W, 3.5 hours
- Weight: 1440g
- Dimensions: 308×148×72mm (antennas overlapped)
- IP Rating: IP4X
- Working Temperature: -10°C to +50°C

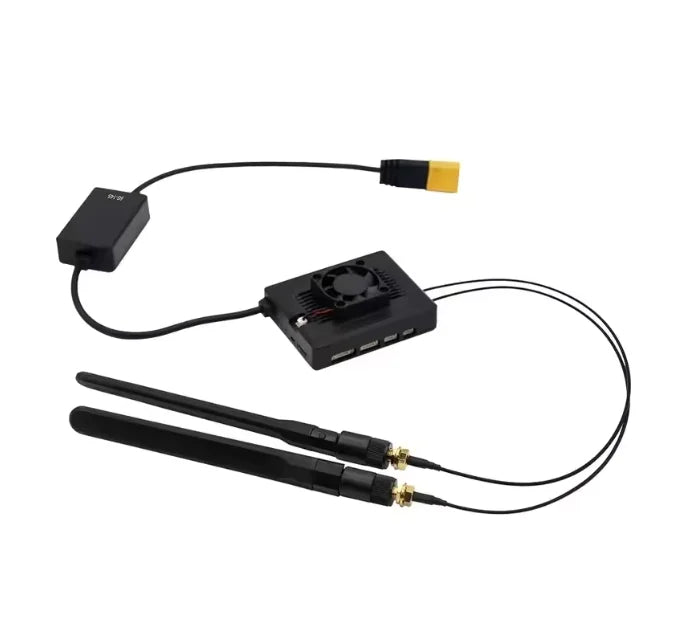

Air Unit Specifications
- RC Output: 16ch S.Bus + 5ch PWM
- Interfaces: UART datalink to FC, S.Bus, PWM, Ethernet video input, Type-C firmware upgrade
- Power Input: 11–16.8V (expandable to 18S with BEC)
- Antenna: SMA, 5dBi omni
- Dimensions: 70×55×16mm (excl. antenna)
- Weight: 74g (excl. antenna)
- Working Temperature: -10°C to +50°C

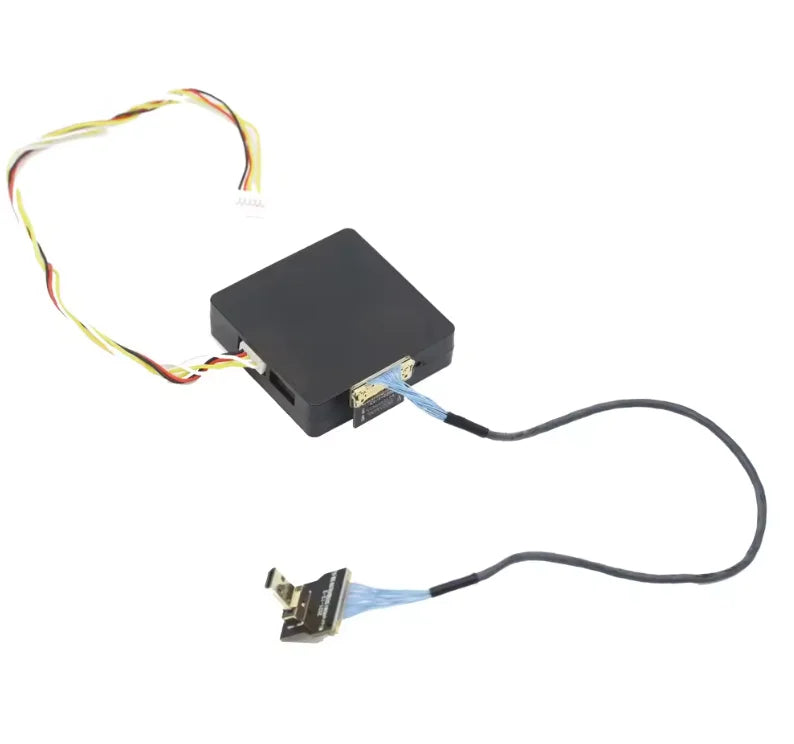

HDMI Input Converter (HDMI Combo only)
- Video Input: Mini HDMI
- Recording: 1080p@30fps or 720p@30fps, H.265, 12Mbps
- Storage: MicroSD Class10 up to 32GB (FAT32)
- Dimensions: 42×41×11mm / Weight: 26g
Perfect For
- Government, defense, and enterprise UAV operators requiring an all-in-one ground station with long-range data link
- ArduPilot, PX4, and INAV operators using QGroundControl or Mission Planner
- UGV and USV operators needing ground-to-ground or ground-to-water control (1–2km+ with standard antenna)
- Professional UAV integrators building complete C2 and video downlink systems
Important Notes
- MK32 operates on 5GHz; MK32E operates on 2.4GHz — links are not cross-compatible
- Compatible with HM30 and MK15 links; not compatible with MK15E/MK32E
- Windows GCS communicates via Bluetooth or Type-C port (not WiFi UDP)
- CE and FCC certified
