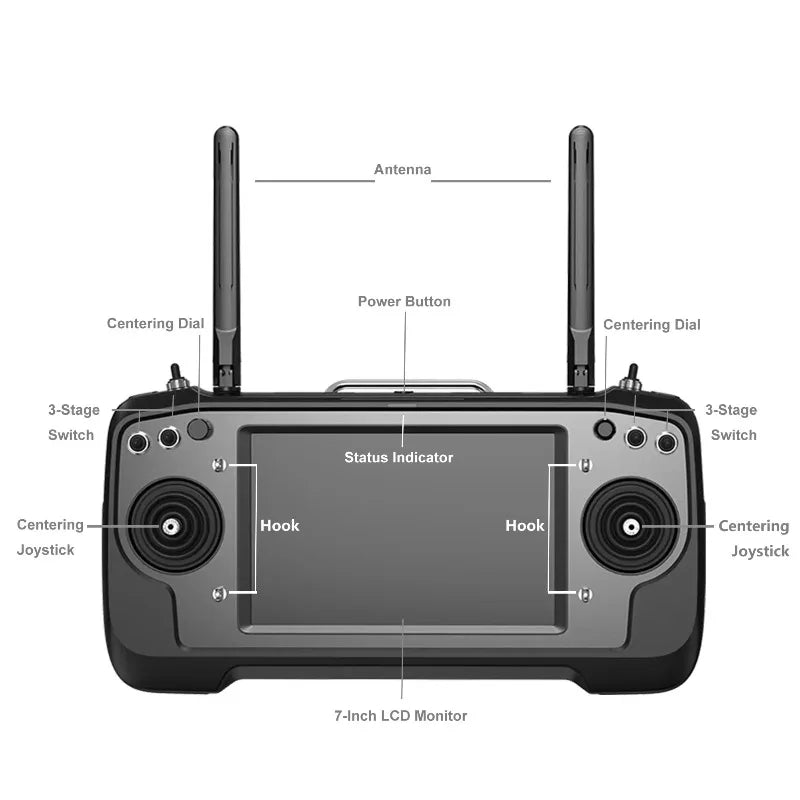

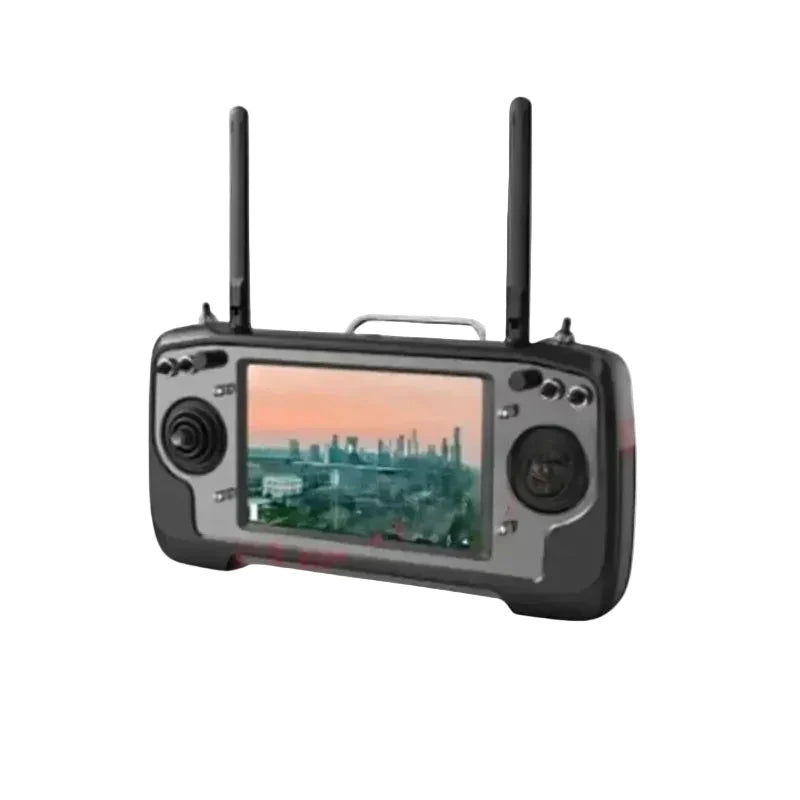

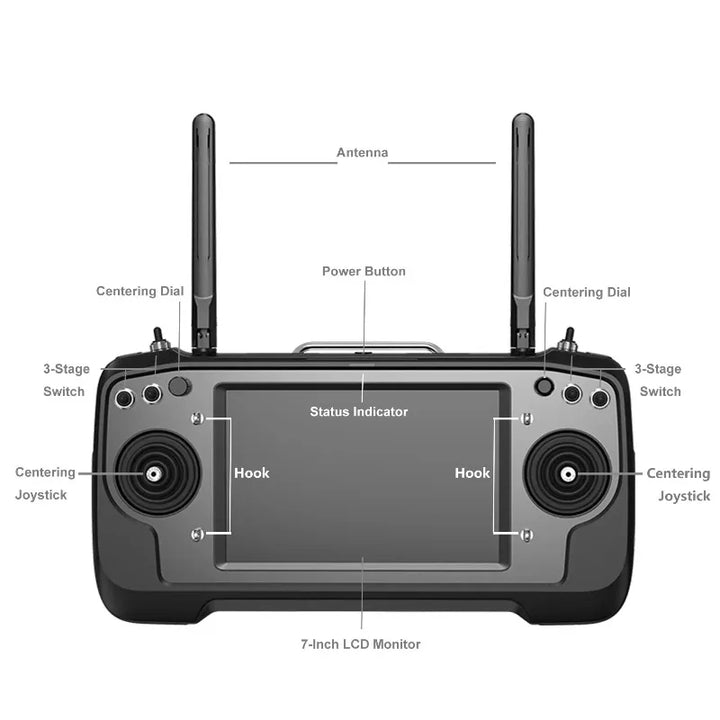

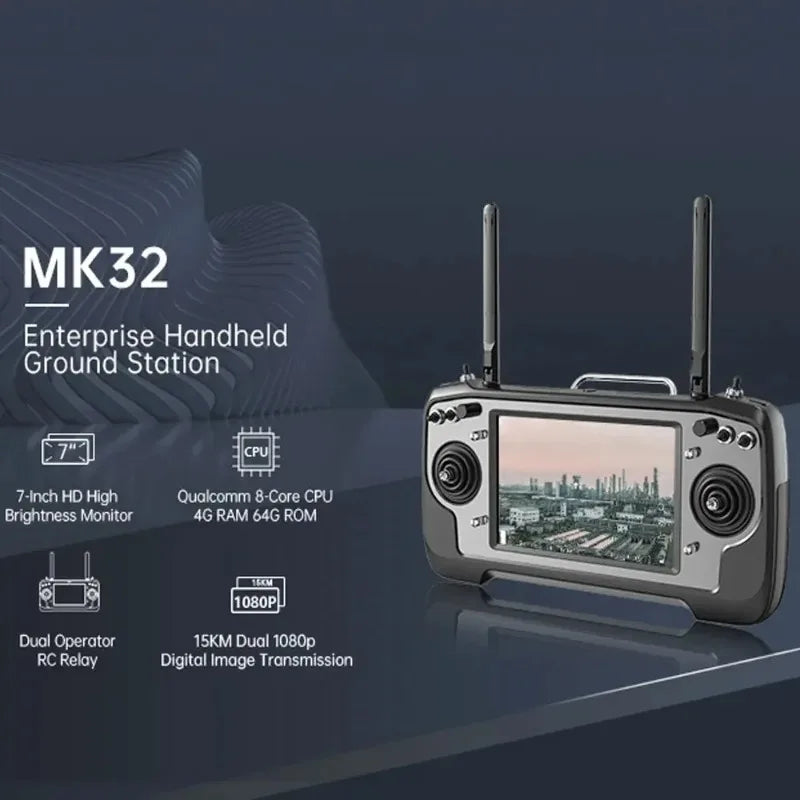

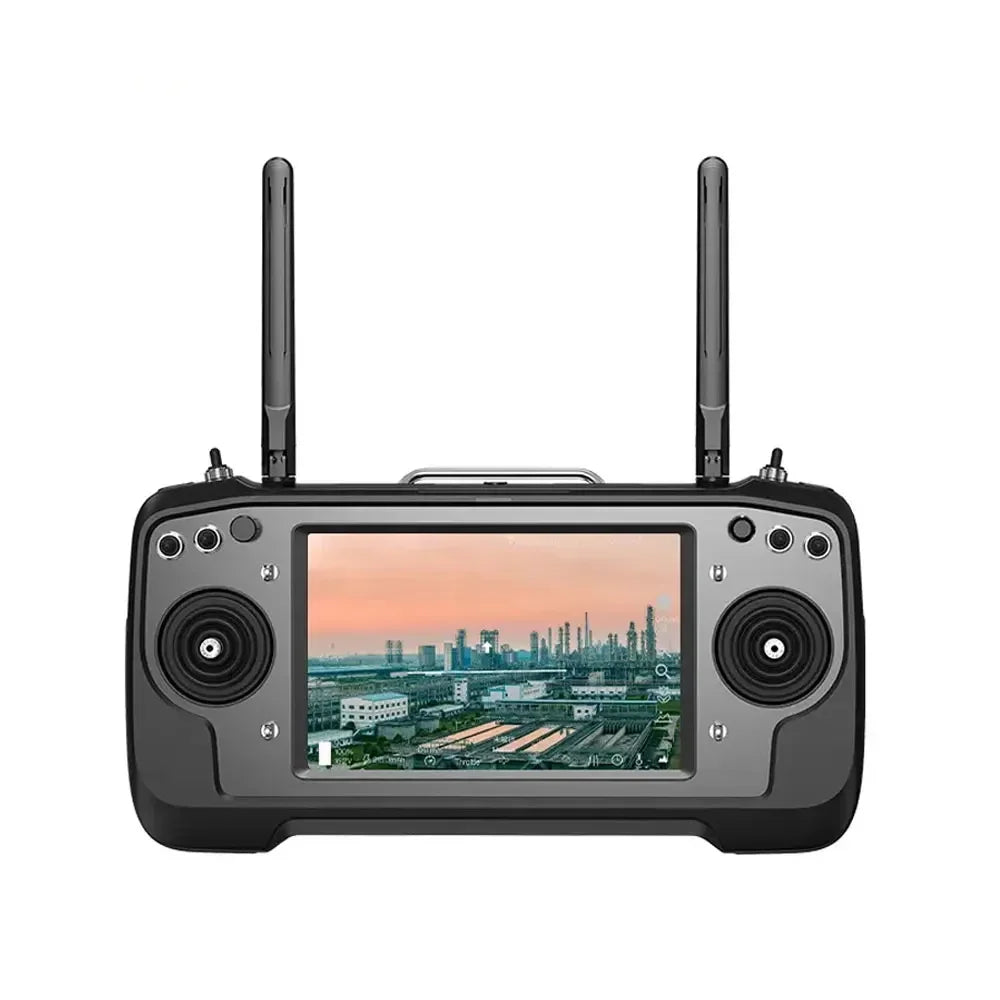

SIYI MK32 Enterprise Handheld Ground Station
The SIYI MK32 combines aircraft control, telemetry, video, and ground-control software in one rugged handheld system. Built for professional UAV, UGV, and USV operations, it pairs a bright 7-inch touchscreen controller with an air unit for integrated command and data links.
Key Capabilities

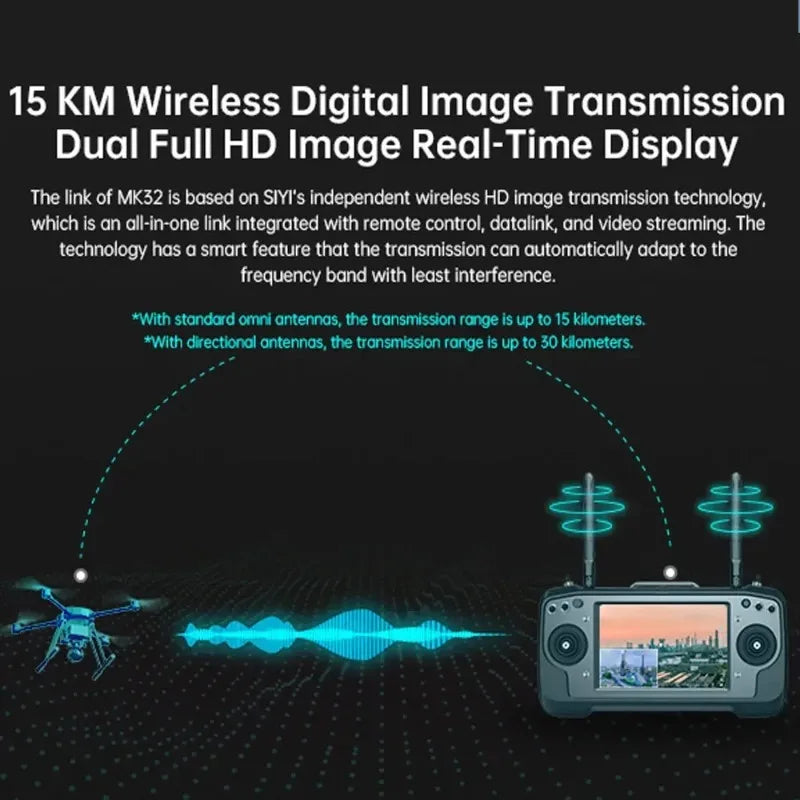

- Up to 15 km stated air-to-ground transmission range in unobstructed, low-interference conditions
- 16 physical control channels and 16 communication channels

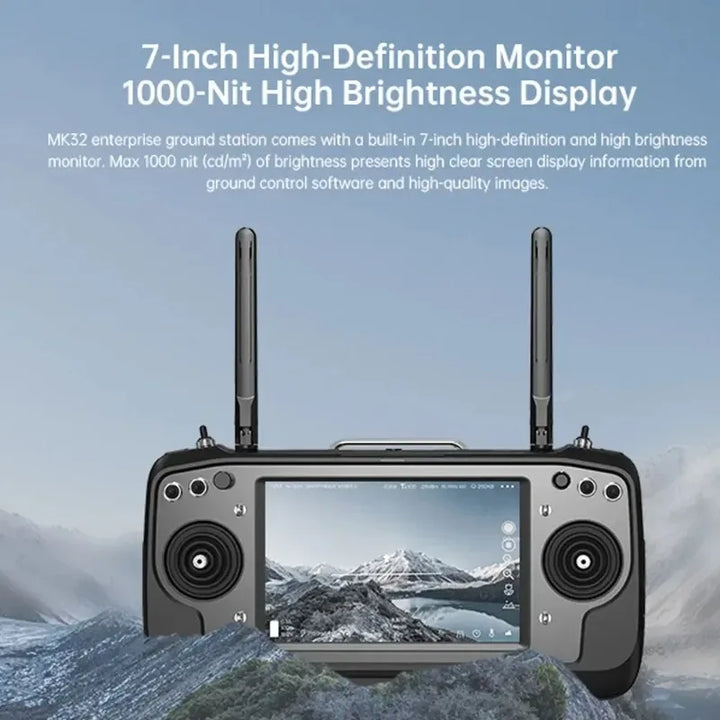

- 7-inch high-brightness HD touchscreen
- Android 9 operating system with 4GB RAM and 64GB storage
- Compatible with QGroundControl and SIYI FPV
- UART datalink support for Pixhawk, APM-based, and compatible flight controllers
- Standard HDMI video output from the handheld ground station
- 4G cellular, Ethernet, USB-A, USB-C, SIM, and TF card connectivity
- 10,200mAh 2S Li-ion battery with up to 10 hours of stated operation
- PD 30W fast charging
Ground Station Specifications

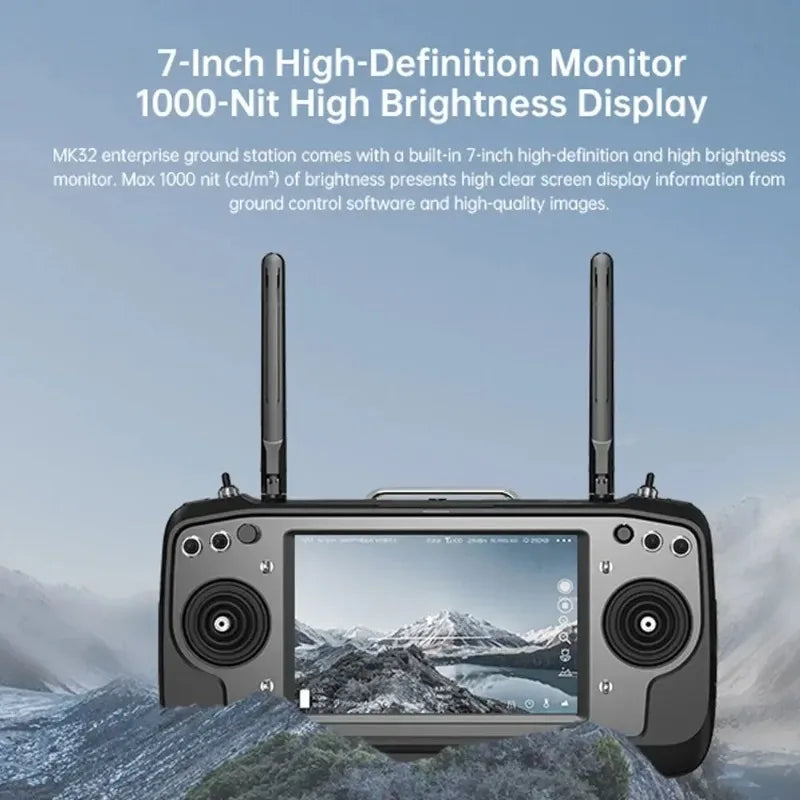

- Display: 7-inch HD high-brightness touchscreen
- System: Android 9
- Memory: 4GB RAM, 64GB storage
- Dimensions: 308 × 148 × 72 mm with antennas folded
- Weight: 1,440 g
- Battery: 10,200mAh, 7.4V, 75.48Wh
- Charging time: Approximately 3.5 hours with compatible 30W PD charging
- Operating temperature: -10°C to 50°C
- Ingress rating: IP4X
Air Unit
- 16-channel S.BUS output and five PWM outputs
- UART datalink connection to compatible flight controllers
- Ethernet video input
- 11–16.8V power input; broader battery support requires a suitable BEC
- 70 × 55 × 16 mm with fan, excluding antennas
- 74 g excluding antennas
Package Options

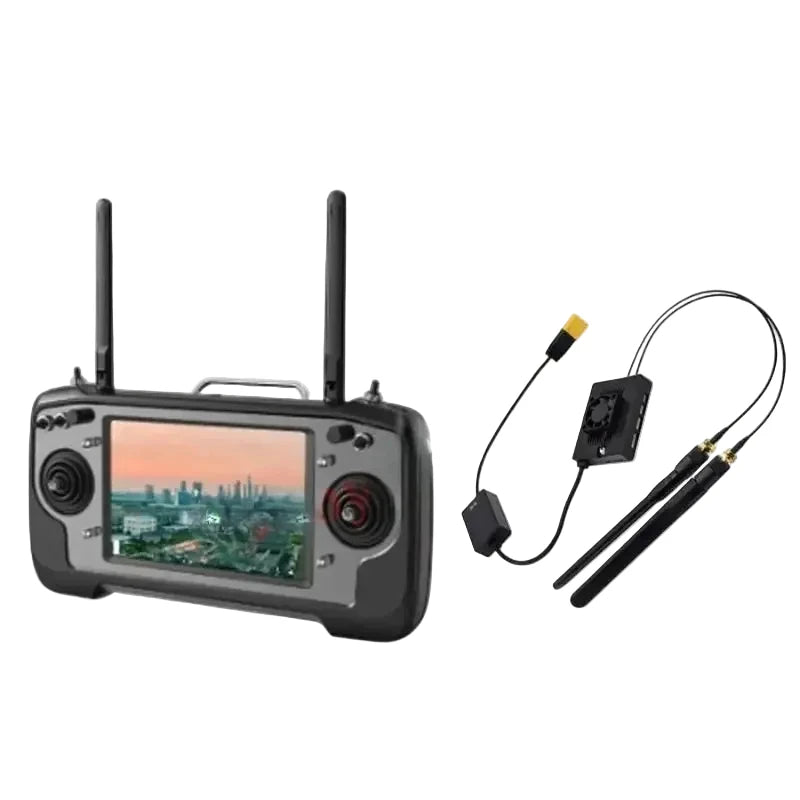

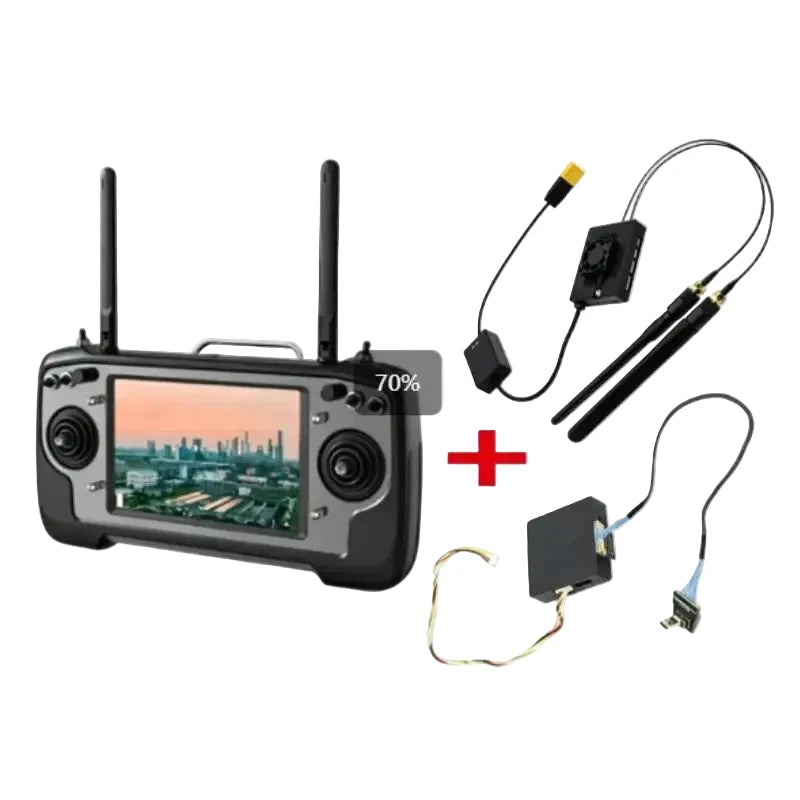

The Standard Combo includes the MK32 ground station and standard air-unit system. The HDMI Combo adds the air-unit HDMI input converter, supporting Mini HDMI input, Ethernet output, H.265 recording, and up to 1080p/30fps recording to a compatible microSD card. Confirm package contents and integration requirements before ordering.
Compatibility Notes
Compatible applications and functions depend on firmware, flight controller, payload, camera, and network configuration. The stated 15 km range applies to air-to-ground testing under unobstructed, low-interference conditions; ground-to-ground and ground-to-water range is typically shorter. Confirm frequency legality and system compatibility for your operating region.
