Skydroid C14 Pro 4-in-1 UAV Gimbal Payload — 48MP Dual Visible, 640×512 Thermal, 1.2km Laser Rangefinder, 3-Axis Stabilization, 210g

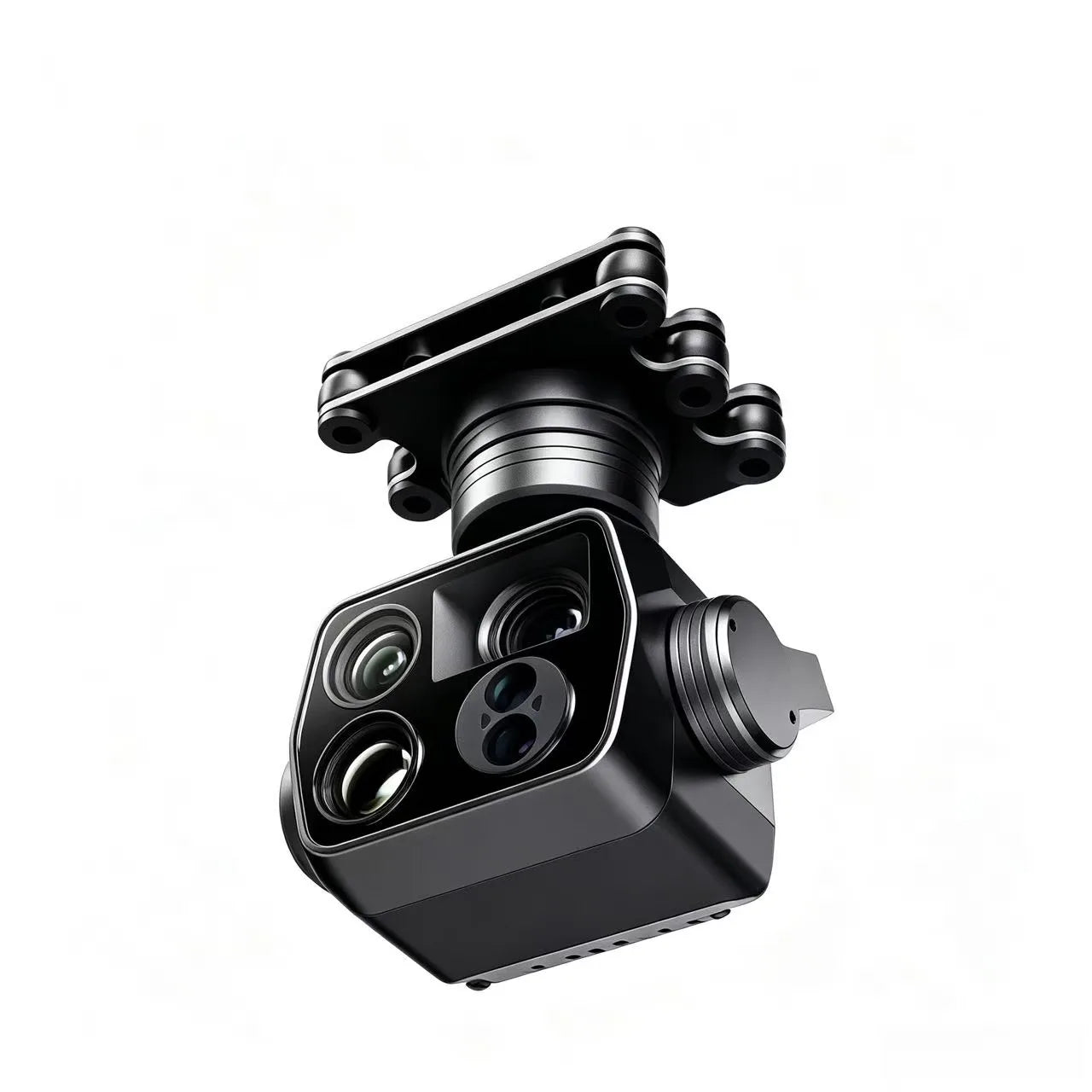

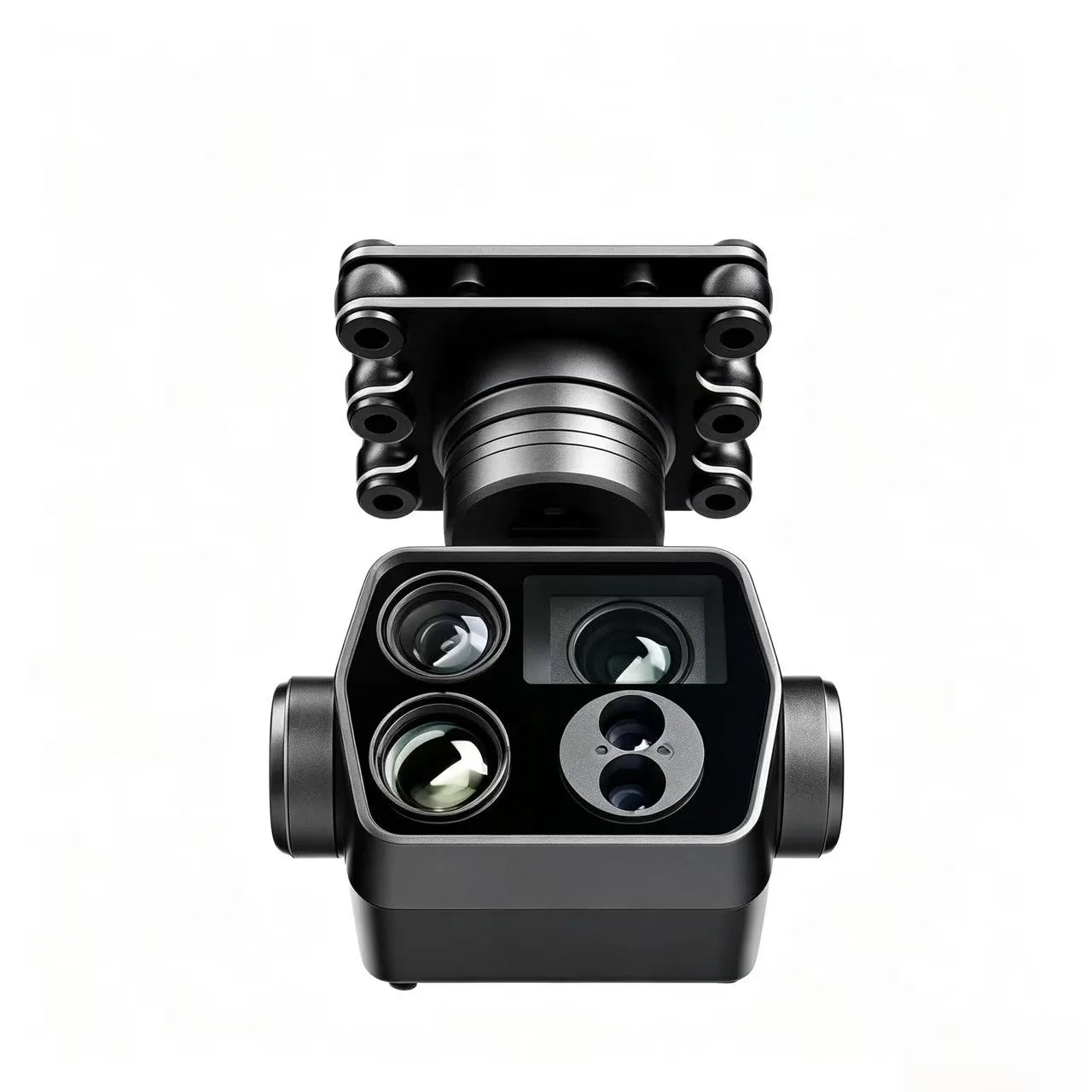

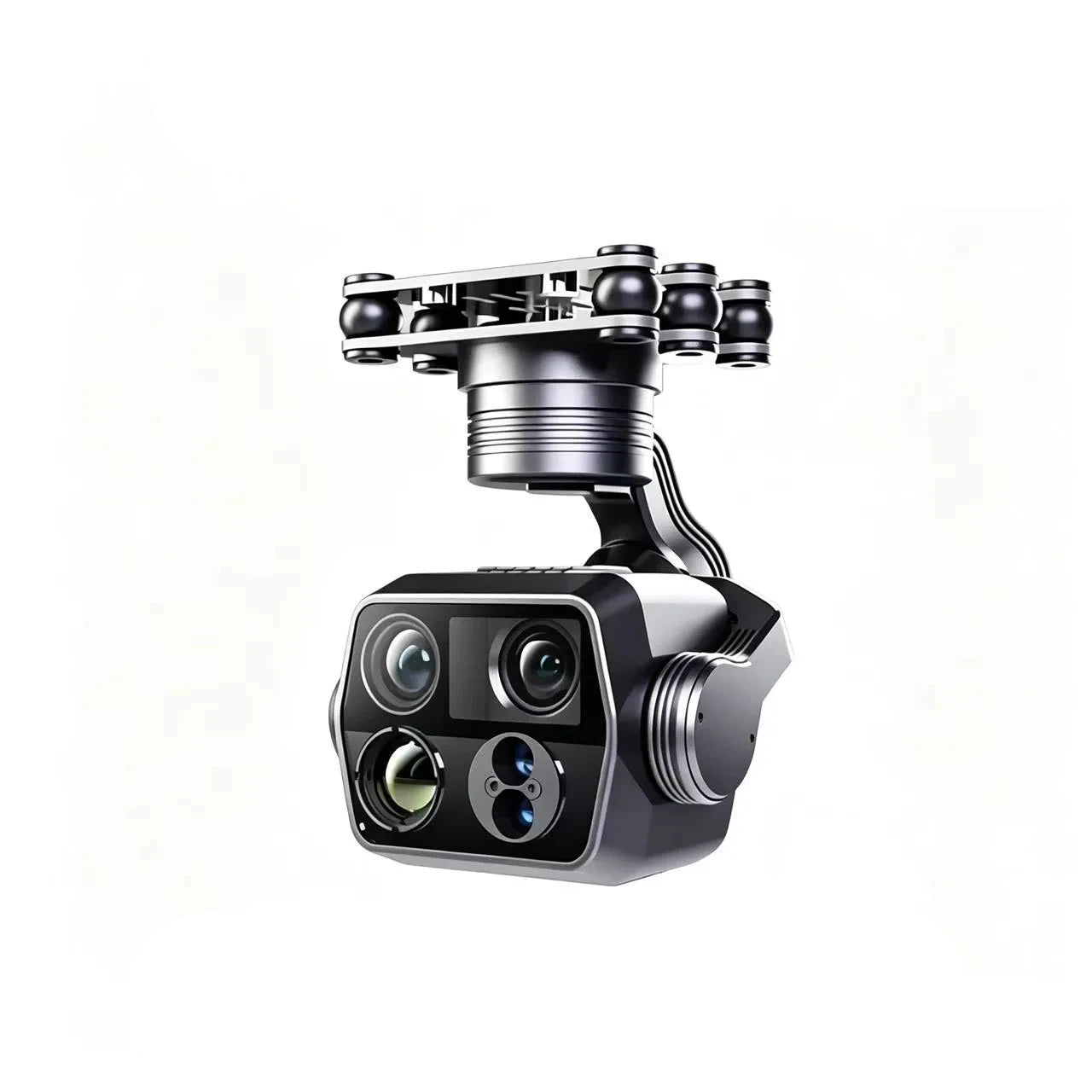

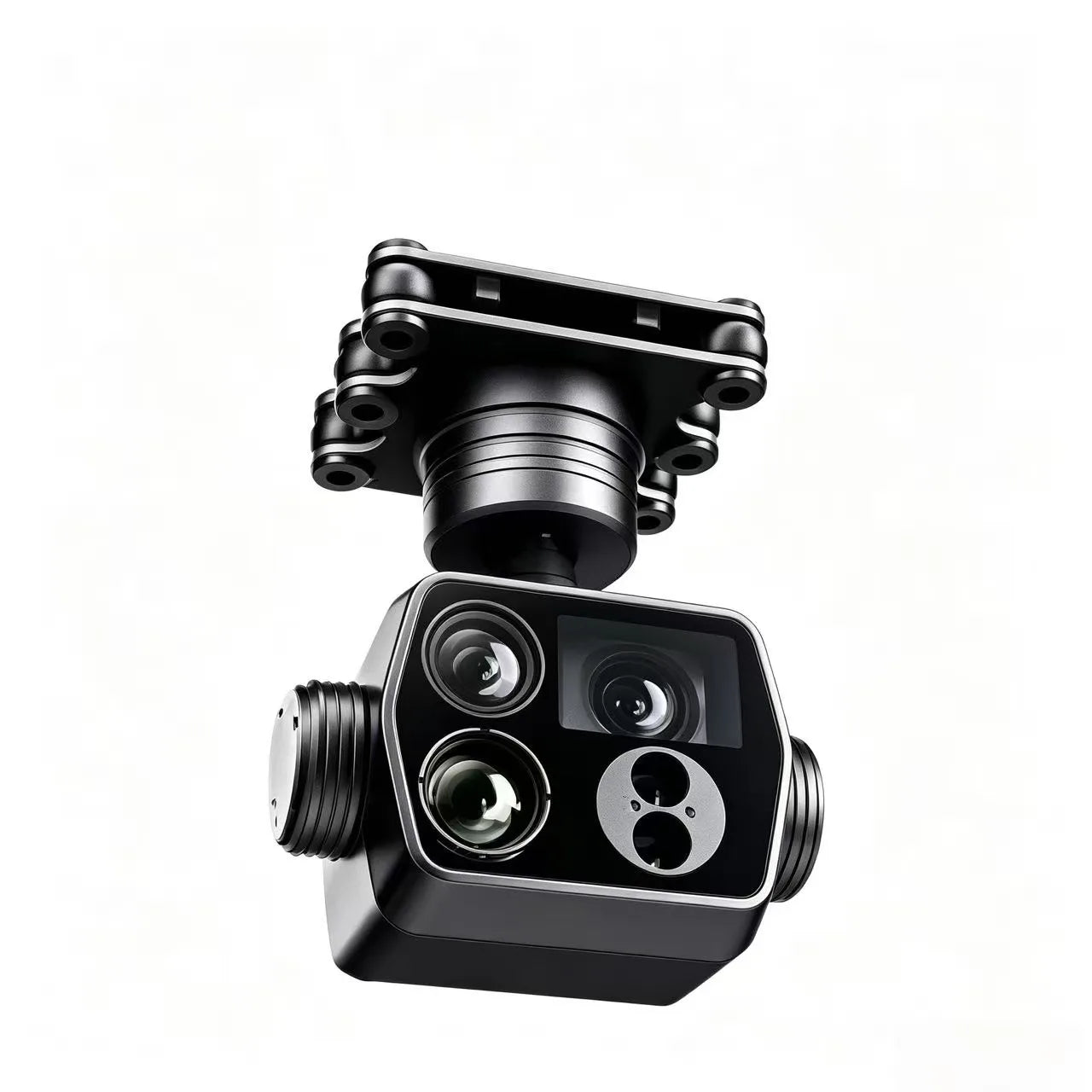

The Skydroid C14 Pro is a professional 4-in-1 multi-sensor gimbal payload for industrial UAVs, integrating a dual visible-light camera system, 640×512 thermal imaging, a 1.2km laser rangefinder, and a 3-axis mechanically stabilized gimbal in a single 210g module. With 48 megapixel resolution, 4K video output, and wide 12–80V power input, the C14 Pro is engineered for power line inspection, search and rescue, fire detection, terrain surveying, and security monitoring on industrial drone platforms.
Key Features

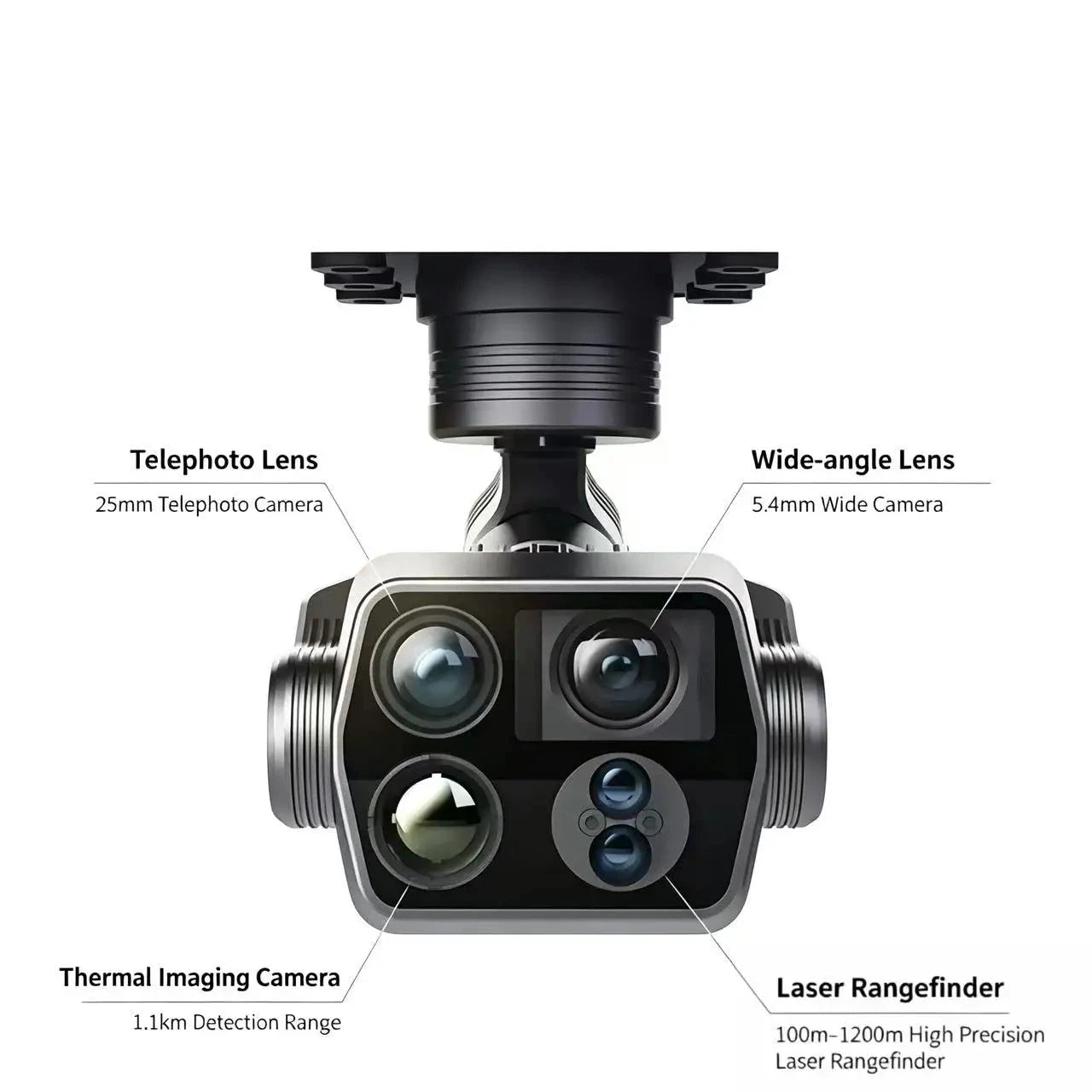

- Dual Visible Light Camera System — 25mm telephoto + 5.4mm wide-angle combination; 48MP ultra-high resolution, 4K main stream + 720P sub-stream output, max 8000×6000 resolution for long-distance detail capture
- 640×512 Thermal Imaging — 11mm focal length, 32.84° FOV, 10μm pixel spacing; rapid identification of heat sources for day/night search and rescue and fire detection
- 1.2km Laser Rangefinder — High-precision distance measurement up to 1,200m with real-time data transmission for power inspection and terrain surveying
- 3-Axis Mechanical Gimbal Stabilization — Hover stability ±0.01°, flight stability ±0.02°; pitch -110°~+75°, yaw -165°~+165°, roll -40°~+40° for full-coverage observation with no blind spots
- Wide Voltage Input: 12–80V — Compatible with most industrial plant protection and inspection drone platforms
- Lightweight — 210g — Minimal payload burden on small industrial drones; quick-release shock-absorbing mounting bracket included
- UDP / RTSP Video Output — Network port RTSP stream output; integrates with flight controllers and ground stations for real-time preview
- Local Storage — JPG photo capture and TS format video recording with onboard storage
Specifications
- Model: Skydroid C14 Pro (Yunzhuo C14Pro)
- Weight: 210g
- Visible Camera 1 (Telephoto): 25mm, 48MP, 4K main / 720P sub, max 8000×6000
- Visible Camera 2 (Wide): 5.4mm
- Thermal Camera: 640×512, 11mm, 32.84° FOV, 10μm pixel spacing
- Laser Rangefinder: Up to 1,200m
- Gimbal Axes: 3-axis mechanical stabilization
- Hover Stability: ±0.01°
- Flight Stability: ±0.02°
- Gimbal Range: Pitch -110°~+75° / Yaw -165°~+165° / Roll -40°~+40°
- Power Input: 12–80V
- Communication: UDP control protocol, RTSP video stream
- Photo Format: JPG
- Video Format: TS
- Operating Temperature: -10°C to +50°C
- Storage Temperature: -20°C to +50°C
- Compatibility: Yunzhuo S2 / S2 Mini flight control, G-series remote controls
Applications
- Power line and infrastructure inspection
- Forest fire detection and search and rescue
- River terrain surveying and mapping
- Construction site security monitoring
- Emergency rescue survey operations
Perfect For
- Industrial UAV operators needing a single multi-sensor payload combining visible, thermal, and ranging in one module
- Government, public safety, and enterprise teams requiring high-resolution 4K + thermal imaging on a lightweight platform
- Drone integrators building inspection or surveillance systems on Skydroid or compatible platforms
Important Notes
- Verify power input compatibility (12–80V) with your drone platform before purchase
- Designed for Yunzhuo S2/S2 Mini flight control and G-series remotes; confirm compatibility with other platforms
- Quick-release shock-absorbing mounting bracket included
