Skydroid H12 Integrated UAV Controller
Bring control, telemetry and a supported video feed into an integrated Skydroid H12 setup. The listed system pairs an Android-based controller with an R12 receiver for compatible aircraft, vehicles and other remotely operated platforms.
At the workbench, map the control channels, check the receiver power supply and test telemetry before moving to an operational trial. A compatible video source can add a live view, but the exact camera and interface must match your selected configuration.

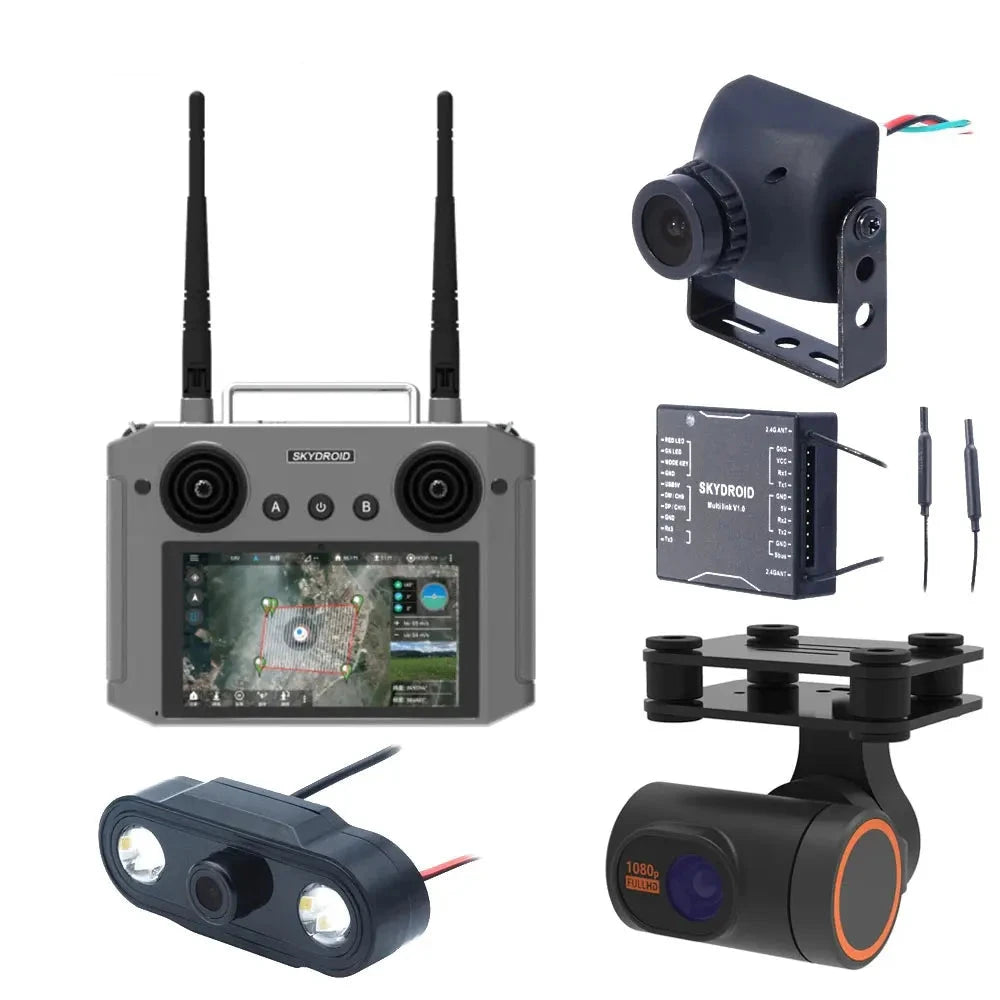

Choose Your Package
- H12 Standard: Standard controller package. The listing title references a receiver and PIX data cable; confirm the complete packing list.

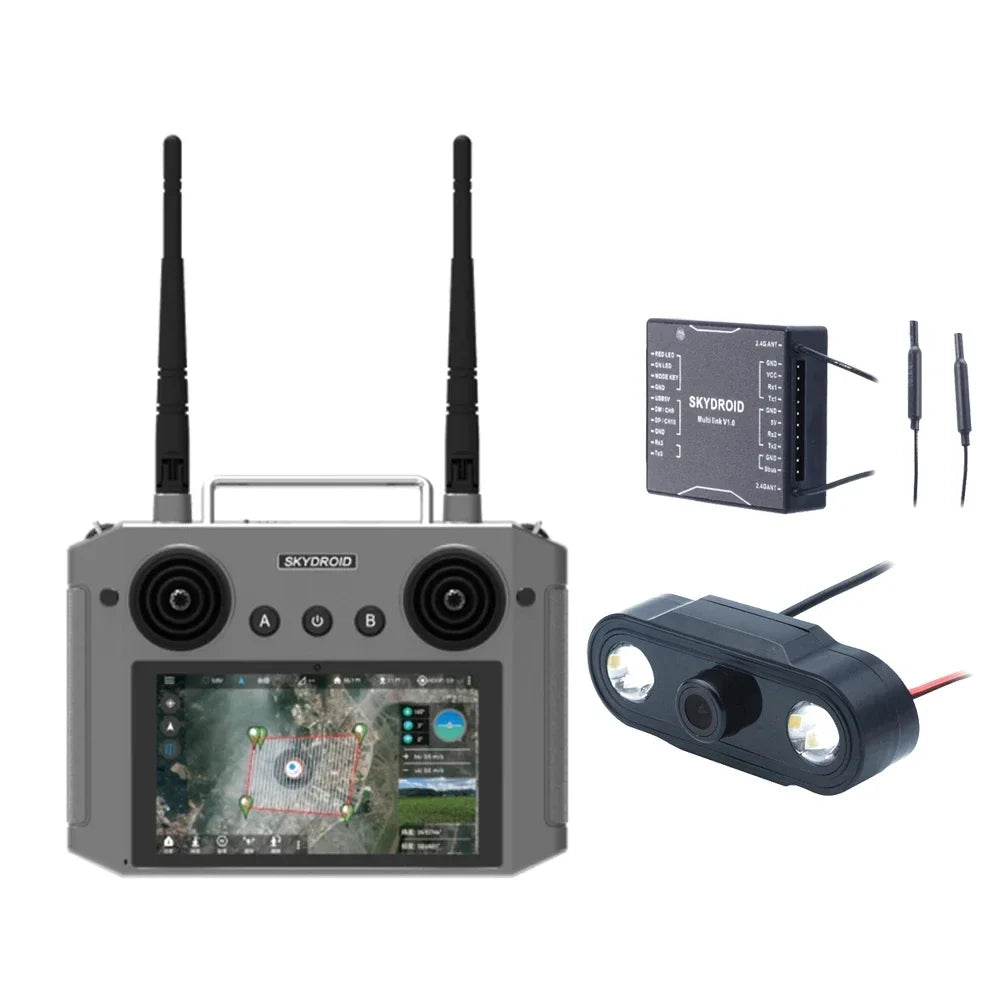

- With L-Dcam: Camera-designated package. Confirm the exact supplied camera before ordering: the option names L-Dcam, while the written camera specifications identify MINIDCAM.
Do not assume that the L-Dcam option has the MINIDCAM dimensions or electrical requirements listed below until the supplied camera is confirmed.

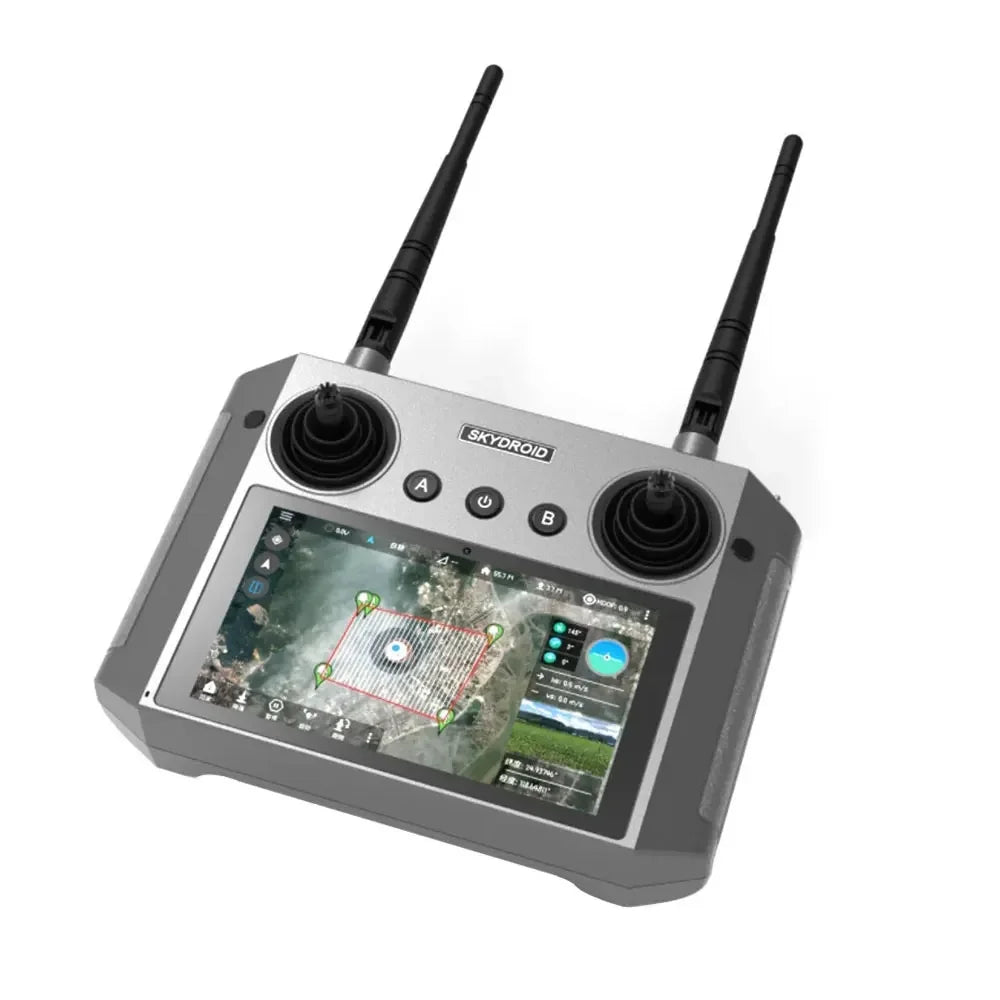

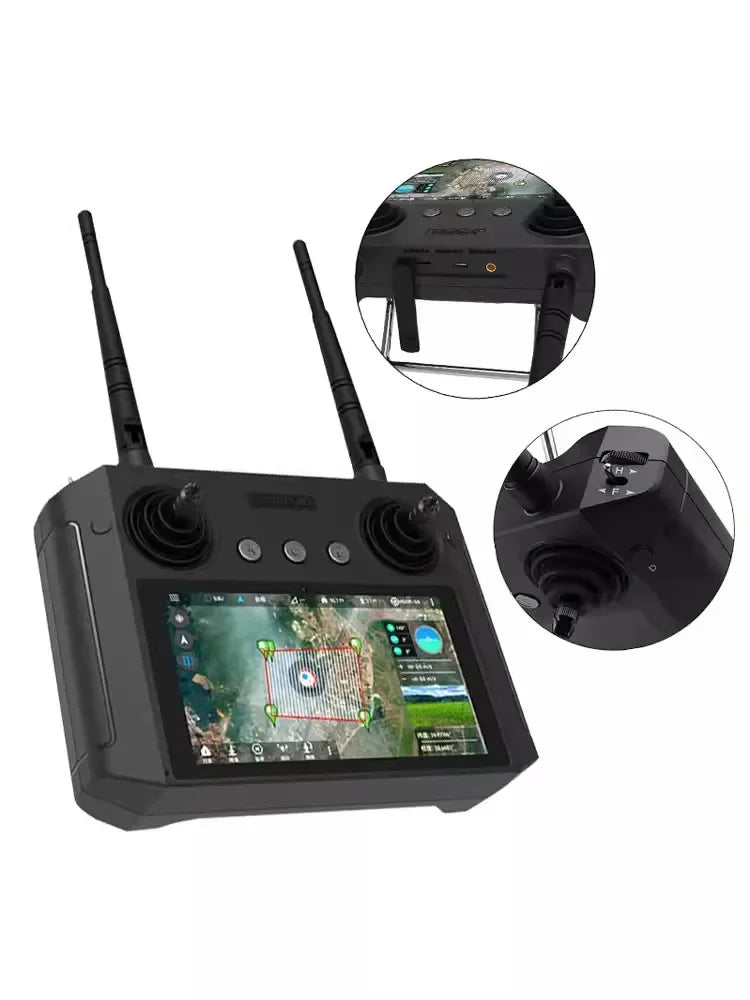

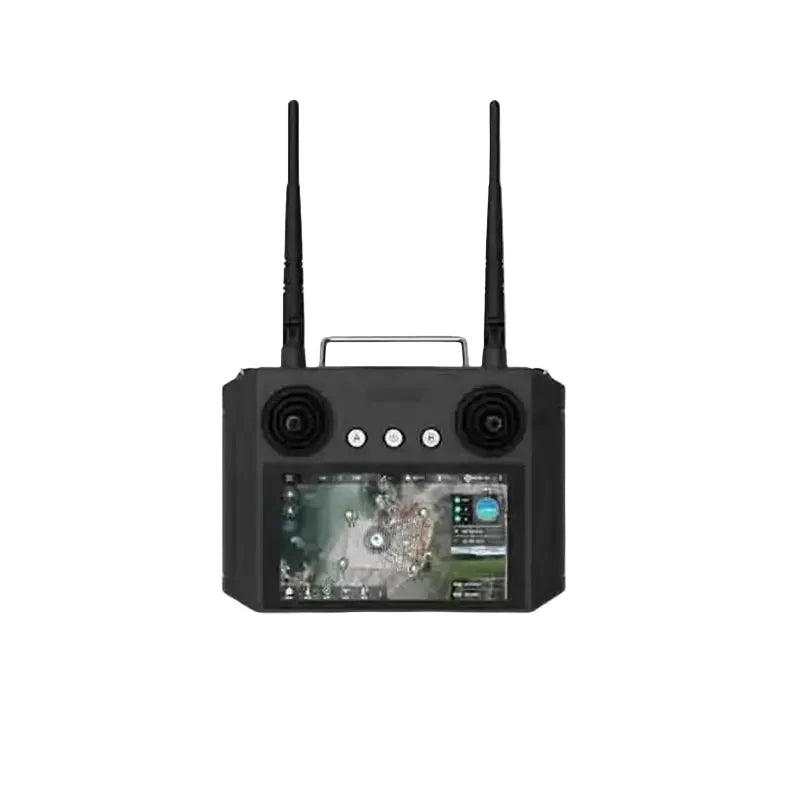

Controller Overview
- Brand/model: Skydroid H12.
- Listed control channels: 12.
- Listed radio band: 2.4GHz, as identified in the original product title.
- Listed processor: Qualcomm Snapdragon 625.
- Operating platform: Embedded Android; version is not specified.
- Listed functions: Remote control, data transmission, telemetry and supported video transmission.
The original title references 1080p video, but the supplied written specifications do not distinguish camera resolution, transmitted video resolution or display resolution. Confirm the exact video specification for your package.

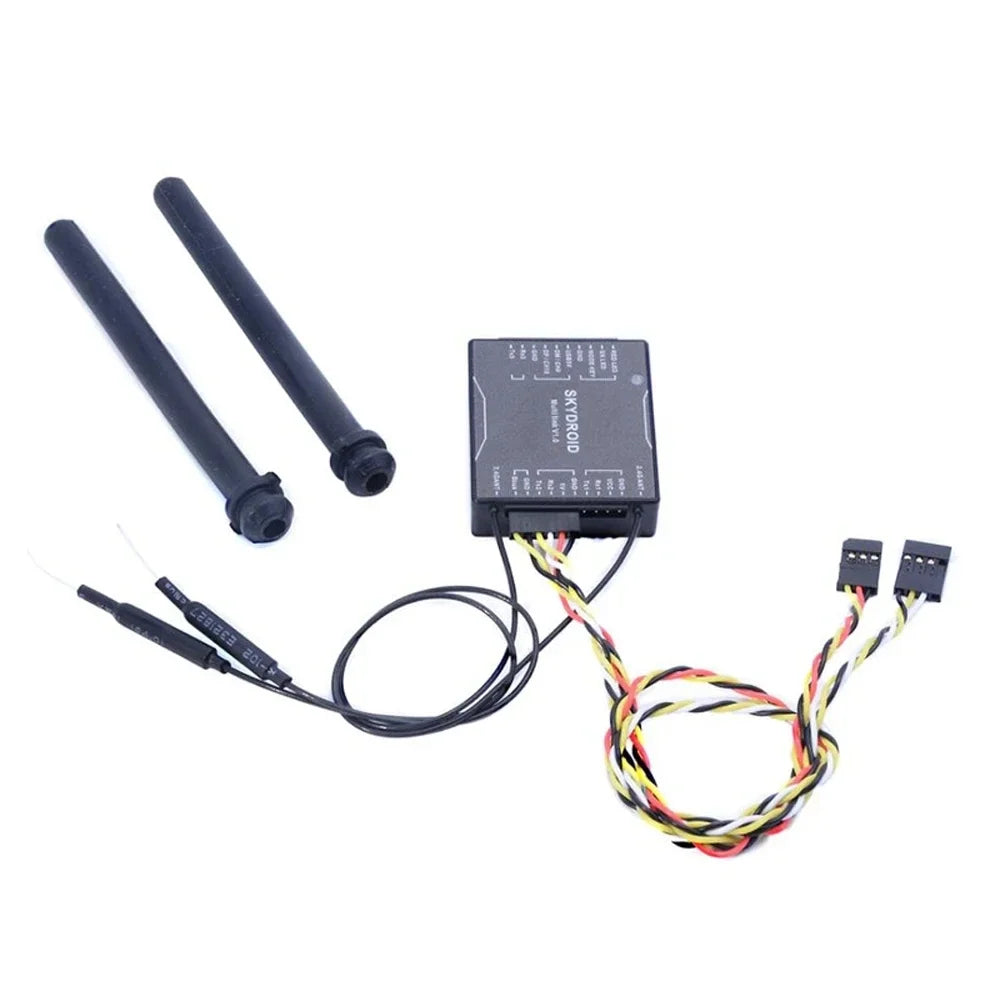

R12 Receiver Specifications
- Model: R12.
- Channels: 12.
- Operating voltage: 4.5–5.5V.
- Listed current: 140mA at 5V.
- Dimensions: 51 × 41 × 13mm.
- Weight: 14g.
Camera Reference: MINIDCAM
These figures describe the camera named in the written source, not a verified specification for the L-Dcam option:
- Power supply: 5V.
- Listed current: 180mA.
- Operating temperature: −10 to 50°C / 14 to 122°F.
- Dimensions: 32.2 × 29.8 × 26.8mm.
- Weight: 15.6g.
The source pairs −10 to 50°C with an inconsistent Fahrenheit range. The Fahrenheit values above are the conversion of the stated Celsius range; confirm the actual camera's limits before use.
Integration and Compatibility
The system is described for helicopters, fixed-wing aircraft, multirotors, vehicles and boats when equipped with compatible controls and interfaces. This is not universal compatibility with every flight controller or vehicle.
Verify control outputs, telemetry protocol, video interface, cable pinout, firmware and supported ground-control software before purchase. A generic DJI compatibility field does not establish support for DJI consumer aircraft. The PIX cable reference alone does not establish compatibility with every Pixhawk-family controller.
Perfect For
Experienced UAV and robotics integrators evaluating a combined control, telemetry and video setup. Range and link performance depend on the installation, antennas, environment and settings; no fixed operating range is established here.

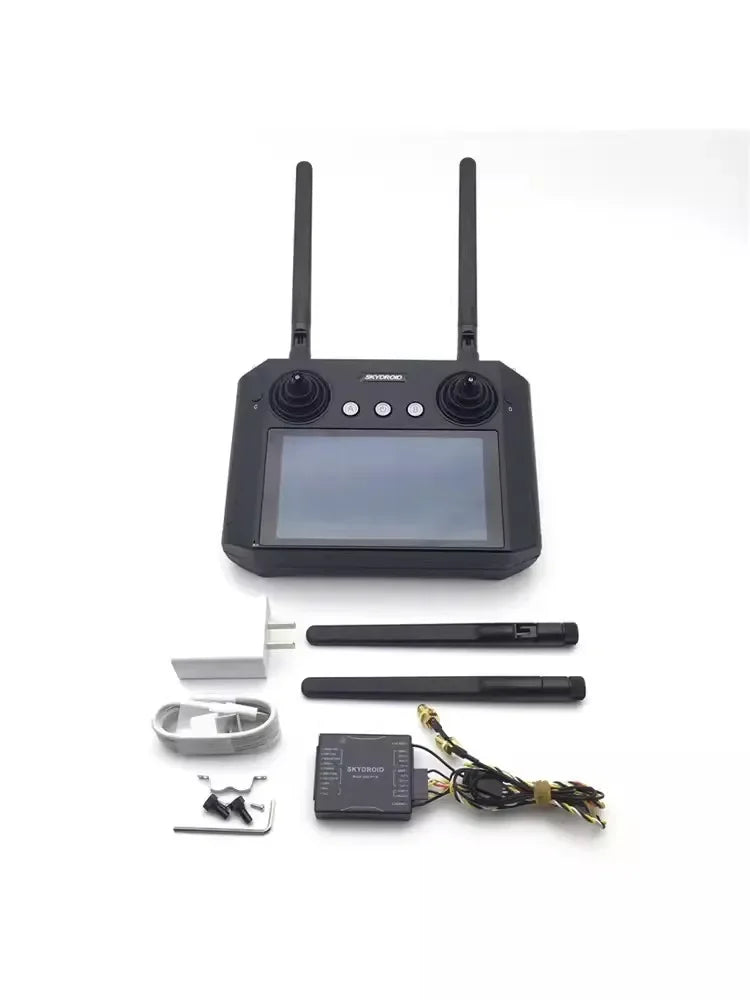

What's Included
The listing identifies an H12 controller package with receiver, PIX data cable and an optional camera configuration. Confirm the receiver model, camera model, antennas, charging equipment, cables and accessories included in your selected bundle. Aircraft and additional integration hardware are not established as included.
Setup and Safety
- Verify receiver voltage and wiring polarity before applying power.
- Remove aircraft propellers during control setup and failsafe testing.
- Confirm channel direction, operating modes, telemetry and video before use.
- Configure failsafe behavior appropriate to the platform.
- Perform the range and operational checks prescribed for the system.
For integration details and camera-package confirmation, contact sales@thedroneflight.com before ordering.
