Skydroid S3 Flight Controller — STM32H7, BMI088 IMU, 2S–18S, GPS & RTK Options
The Skydroid S3 is a high-performance flight controller built around the STM32H7 series main control chip for powerful, reliable flight management across multirotors, fixed-wing UAVs, RC boats, and RC cars. The integrated automotive-grade BMI088 IMU features an elaborate vibration-damping design that ensures stable and accurate attitude data collection even in demanding flight environments. A dedicated barometer and gyroscope round out the sensor suite for precise altitude hold and orientation tracking. The S3’s housing includes screw-mount holes for simplified, secure installation. Available in standard (S3), GPS, Mini, Mini GPS, and RTK configurations to match your platform and mission requirements.
Key Features
- STM32H7 High-Performance Processor — Latest-generation STM32H7 ARM Cortex-M7 MCU; delivers the processing headroom needed for complex flight algorithms, fast PID loops, and real-time sensor fusion
- Automotive-Grade BMI088 IMU — Bosch BMI088 6-axis IMU with purpose-designed vibration isolation; optimized for UAV environments where motor vibration can compromise sensor accuracy
- Wide Voltage Range: 2S–18S — Supports 2S through 18S LiPo input; compatible with everything from small multirotors to large industrial UAVs and high-voltage fixed-wing platforms
- Integrated Barometer & Gyroscope — On-board barometer for altitude hold and gyro for stable rate and angle mode flight; no external sensors required for basic operation
- Screw-Mount Housing — Reinforced housing with dedicated screw mounting holes; simplifies installation and provides a secure, vibration-resistant connection to the airframe
- GPS & RTK Variants — Standard variants for general FPV and UAV use; GPS variants add position hold and return-to-home; the S3 RTK variant provides centimeter-level positioning for precision agriculture, survey, and professional UAV operations
- Mini Form Factor Options — S3 Mini and S3 Mini GPS offer the same STM32H7/BMI088 core in a smaller footprint; ideal for compact multirotors and builds where board space is at a premium
- Multi-Platform Compatible — Supports multirotor (quad, hex, octo), fixed-wing, RC boat, and RC car configurations

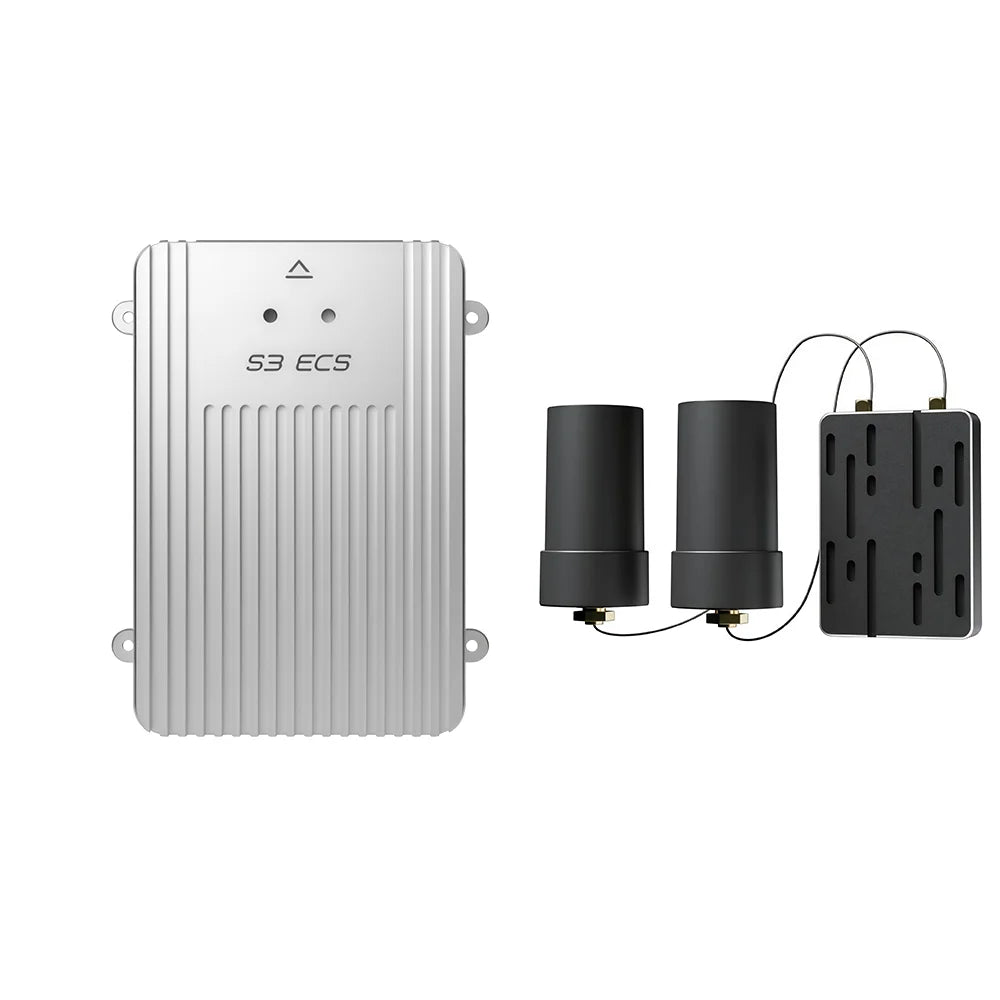

Variant Guide

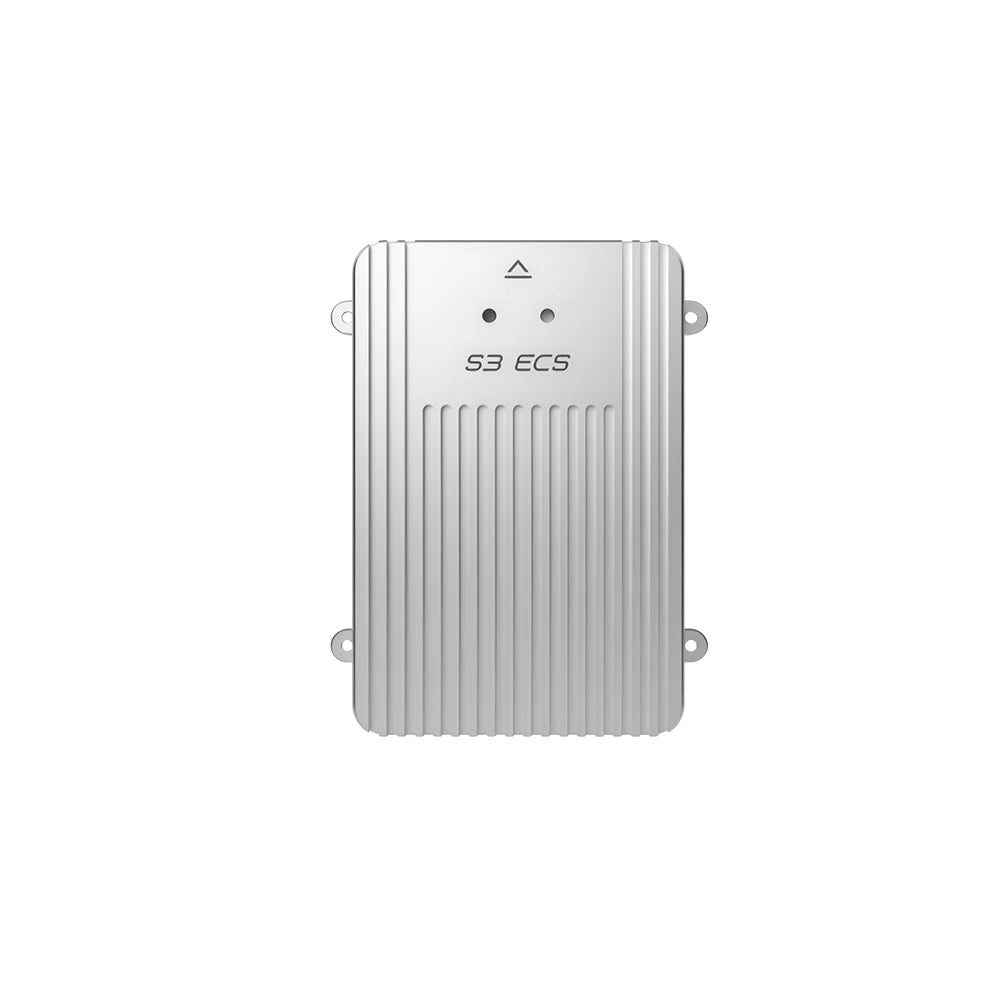

- S3 — Standard full-size FC; no integrated GPS module

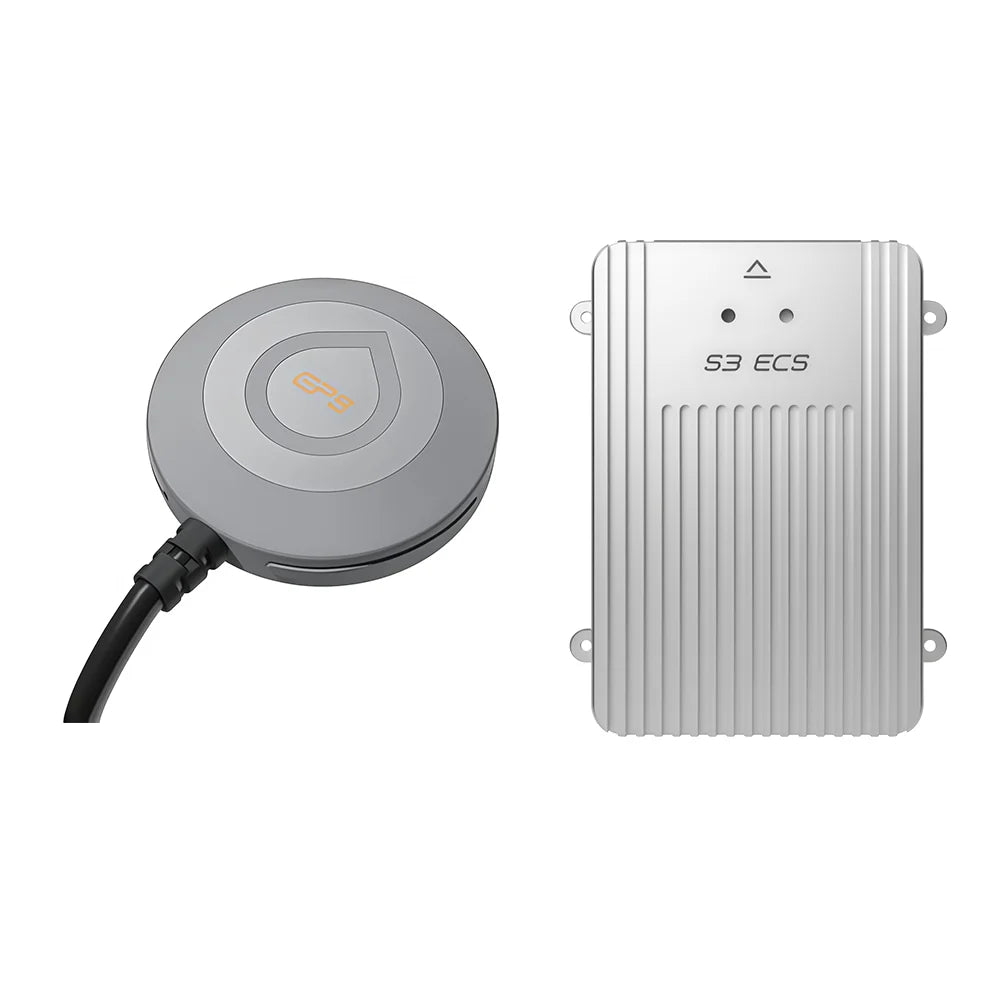

- S3-GPS — Full-size FC with integrated GPS for position hold and RTH

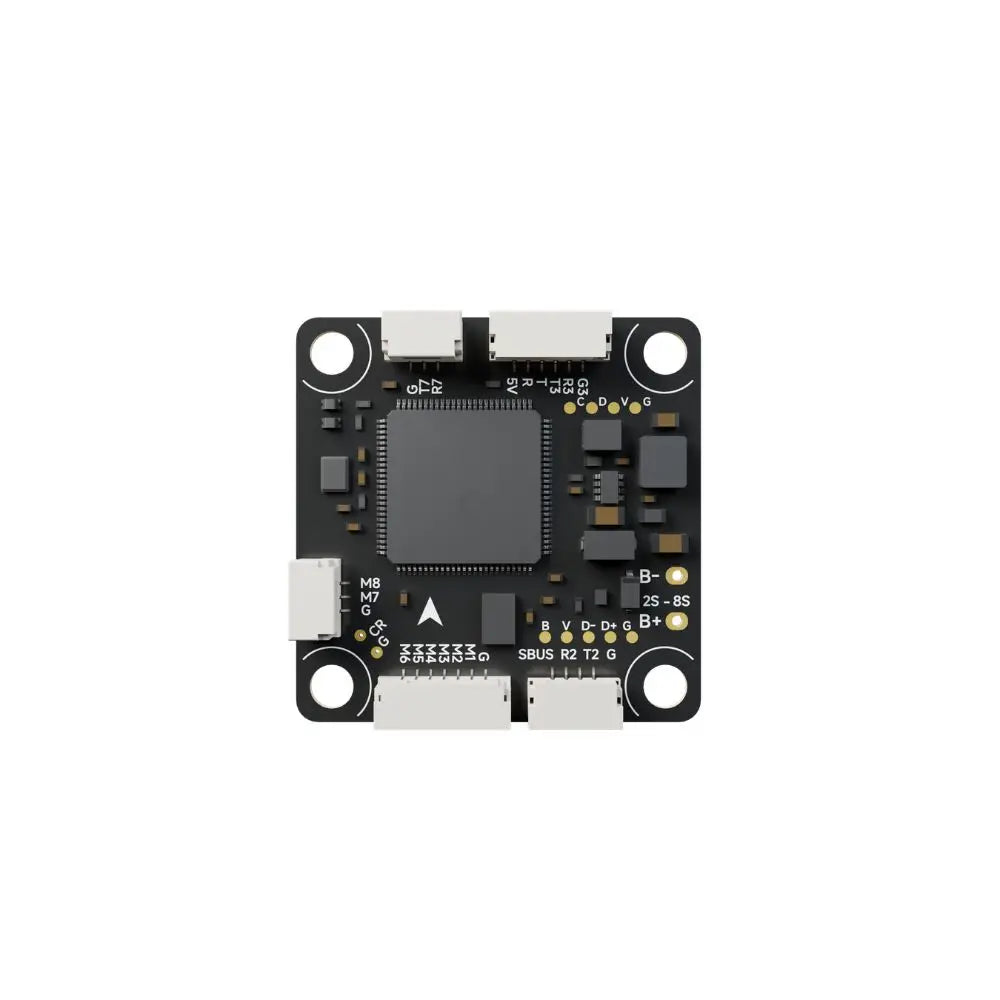

- S3 Mini — Compact form factor FC; no GPS module

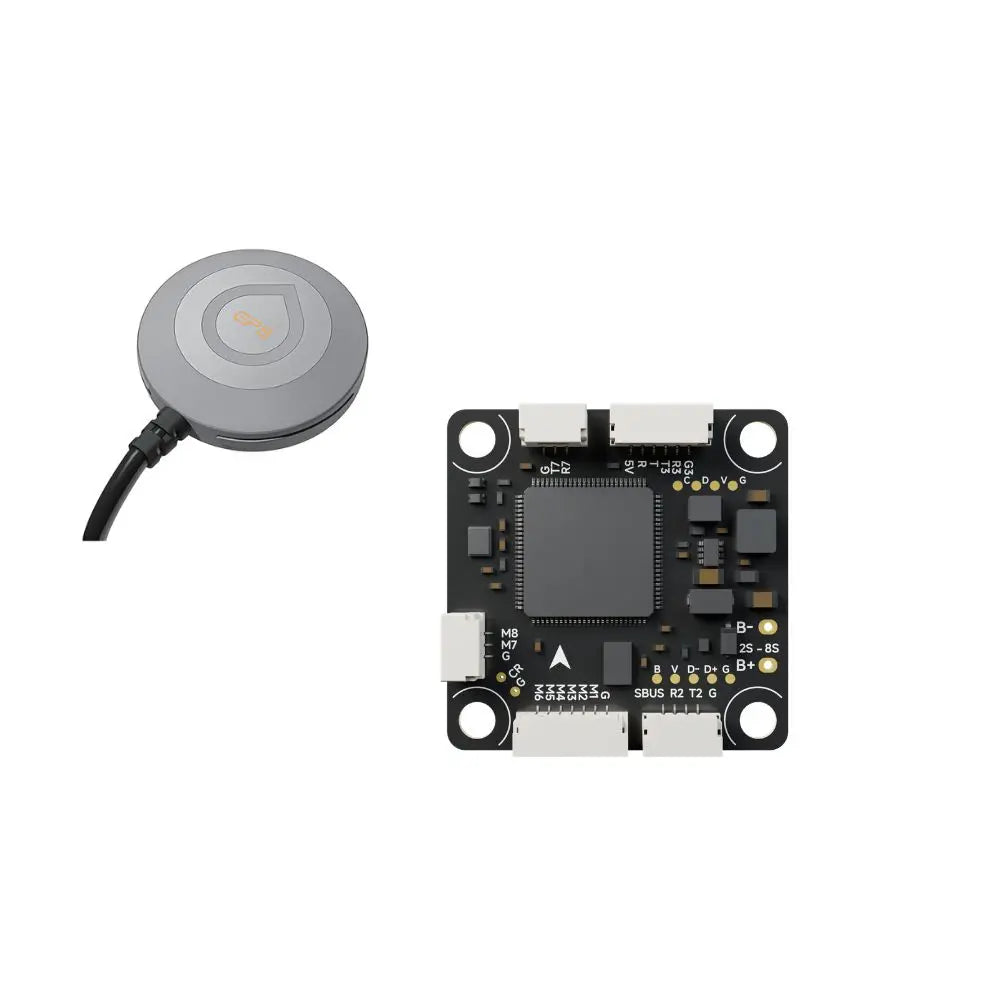

- S3 Mini-GPS — Compact FC with integrated GPS
- S3 RTK — Full-size FC with RTK GNSS for centimeter-level positioning; for precision agriculture, mapping, survey, and professional UAV missions
Specifications
- Brand: Skydroid
- Model: S3 Series
- Processor: STM32H7 (ARM Cortex-M7)
- IMU: Bosch BMI088 (automotive-grade, vibration-damped)
- Sensors: Barometer, Gyroscope, IMU
- Input Voltage: 2S – 18S LiPo
- GPS Option: Integrated GPS (GPS variants) / RTK GNSS (RTK variant)
- Compatible Platforms: Multirotor, Fixed Wing, RC Boat, RC Car
- Mounting: Screw-mount housing
Perfect For
- FPV and UAV builders who want a modern STM32H7-based FC with proven BMI088 vibration isolation
- Precision agriculture and survey operators requiring RTK-level positioning (S3 RTK variant)
- Multi-platform builders running both multirotors and fixed-wing aircraft on the same FC platform
- High-voltage builds (up to 18S) on industrial or heavy-lift UAV frames
Important Notes
- Radio transmitter, receiver, ESC, motors, and frame are not included
- For enterprise or volume inquiries, contact sales@thedroneflight.com
