Immersive HD Viewing for Analog and Digital FPV
The SKYZONE SKY04X Pro FPV goggles pair full-HD OLED displays with a wide 52° field of view for a sharp, immersive flying experience. A built-in SteadyView receiver, high-frame-rate DVR, adjustable optics, and head tracking make this headset a capable choice for freestyle, racing, and long-range pilots.
Key Features
- Full-HD OLED displays: Dual 1920 × 1080 panels deliver crisp detail and rich contrast.
- Wide 52° field of view: Creates an expansive, immersive view from the cockpit.
- 100 fps support: Designed for smooth viewing with compatible digital receiver systems.
- 5.8 GHz SteadyView receiver: Includes 48-channel analog video reception.
- Built-in DVR: Records H.264 video in MOV format to a supported microSD card.
- Adjustable optics: Focus adjustment from -6 to +2 and IPD adjustment from 58–71 mm.
- Integrated head tracker: Uses a three-axis accelerometer and three-axis gyroscope.
- Active cooling: An internal fan helps manage heat from the high-performance OLED panels.
Perfect For
- FPV freestyle and racing
- Long-range analog builds
- Pilots using compatible digital receiver modules
- Recording flight footage directly from the headset
Technical Specifications
- Display: OLED
- Resolution: 1920 × 1080
- Field of view: 52° diagonal
- Aspect ratio: 4:3 / 16:9
- Focus adjustment: -6 to +2
- IPD range: 58–71 mm
- Receiver: 5.8 GHz 48-channel SteadyView
- DVR: H.264, up to 100 fps, MOV, 6 Mbps
- Memory card support: Up to 128 GB
- Power input: DC 6.5–25.2V or USB 5V
- Dimensions: 185 × 75 × 67 mm
- Weight: Approximately 267 g

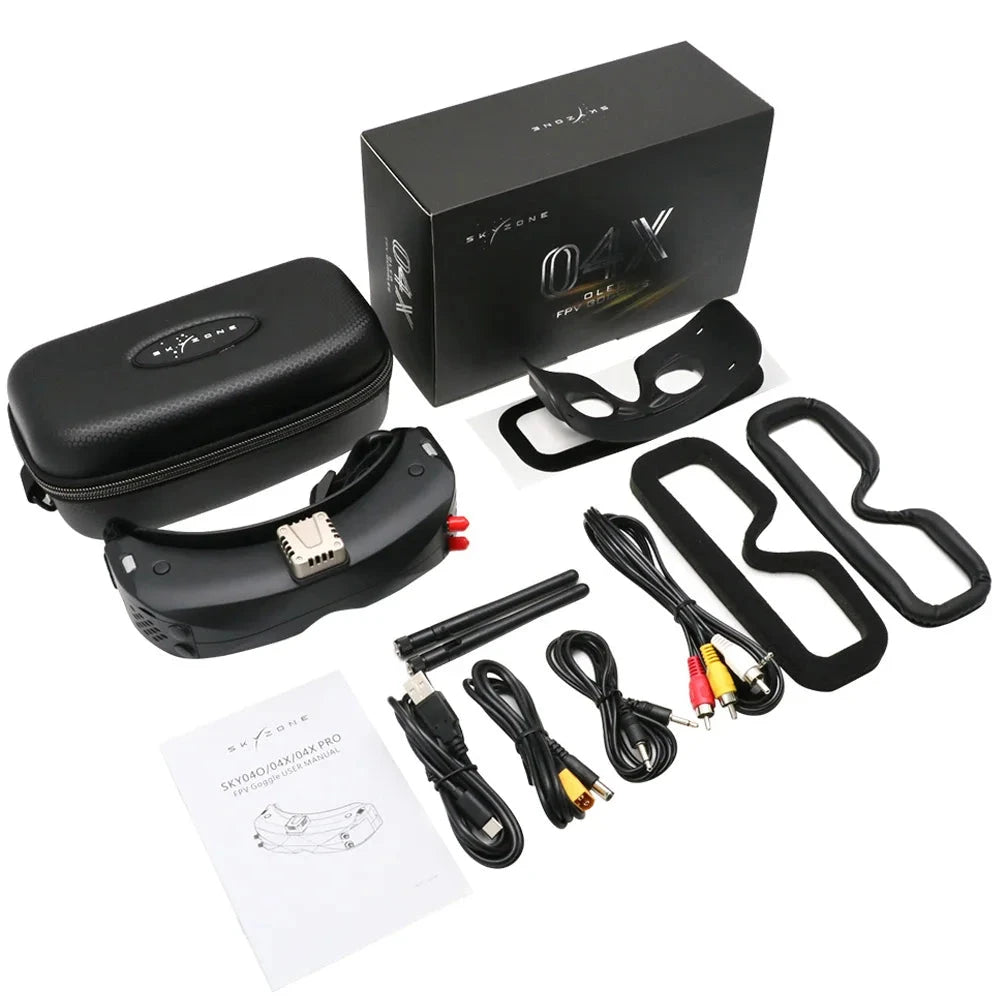

What’s Included
- SKYZONE SKY04X Pro goggles
- SteadyView receiver module
- Wide and narrow faceplates
- Hook-and-loop face foam
- Zippered carrying case
- Power cable and head-tracker cable
- Two 5.8 GHz 2 dB antennas
- Video/audio cable
- USB-C cable
- User manual
Important Notes
The cooling fan occupies the right-side bay, so this model does not support quadversity mode. Confirm transmitter frequency compatibility before use, install antennas before powering connected radio equipment, and follow local radio-frequency regulations.
