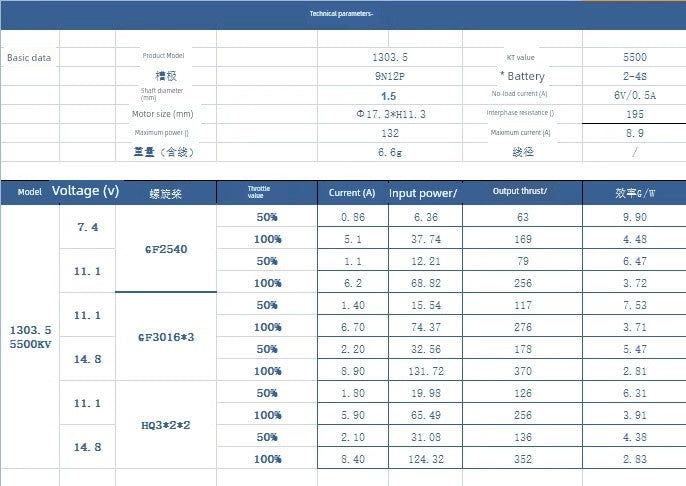

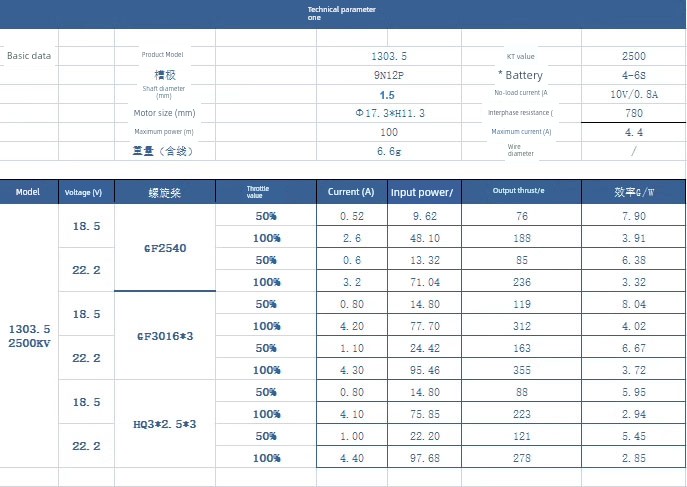

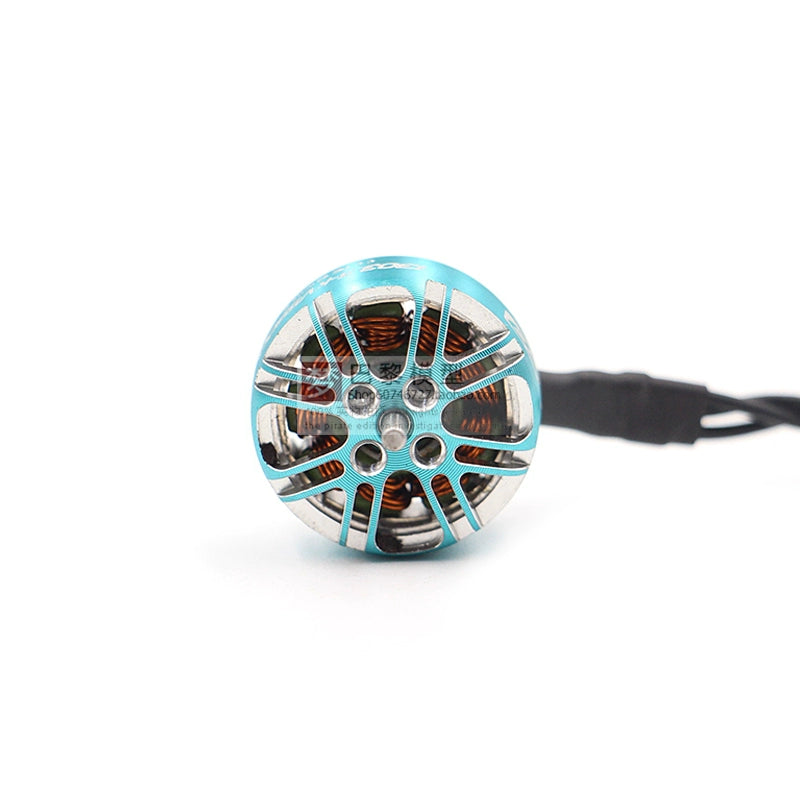

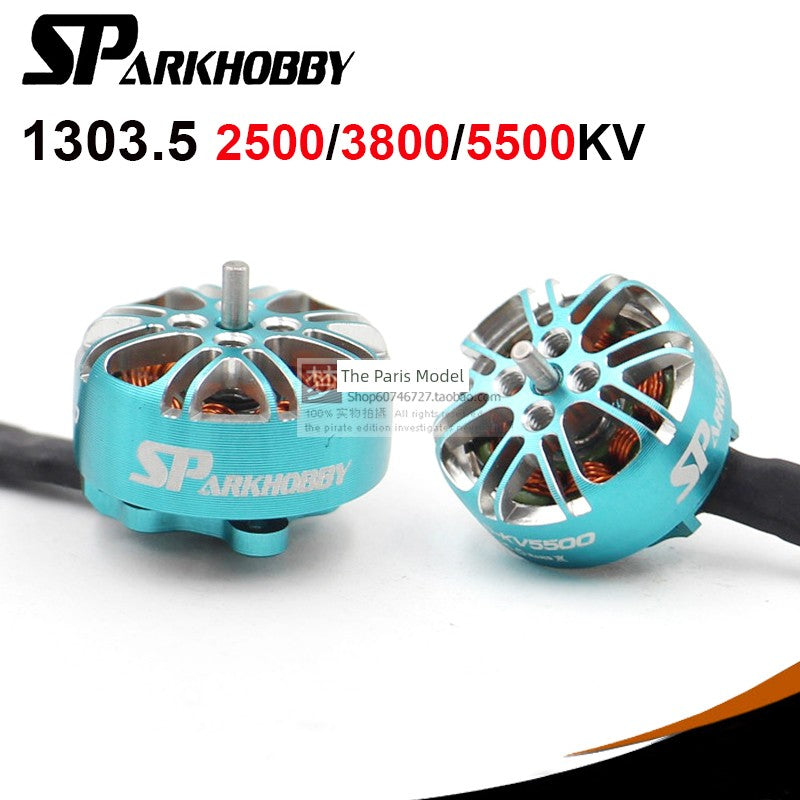

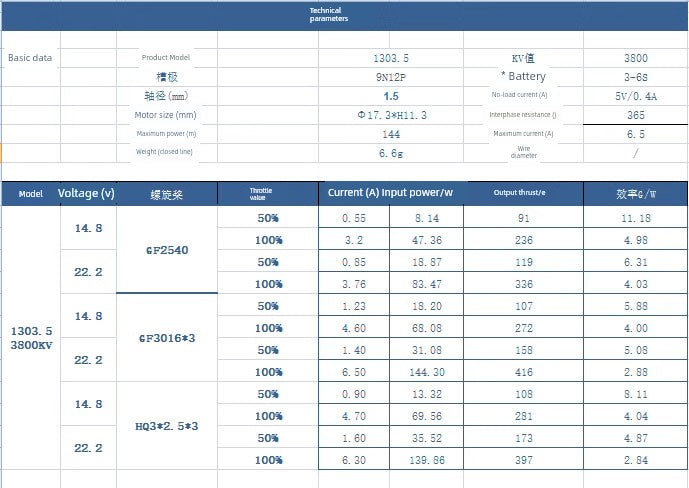

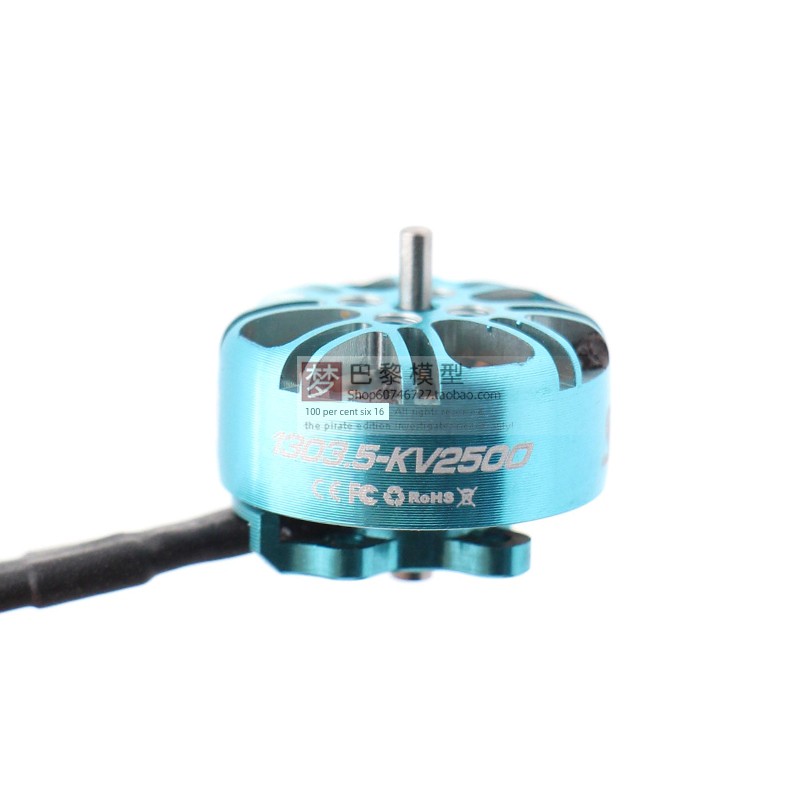

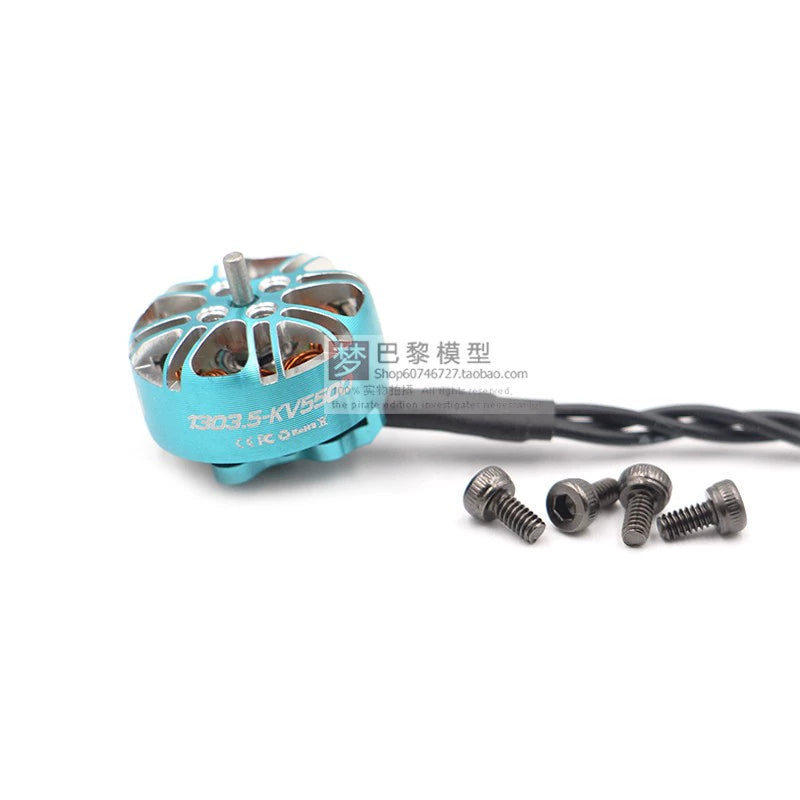

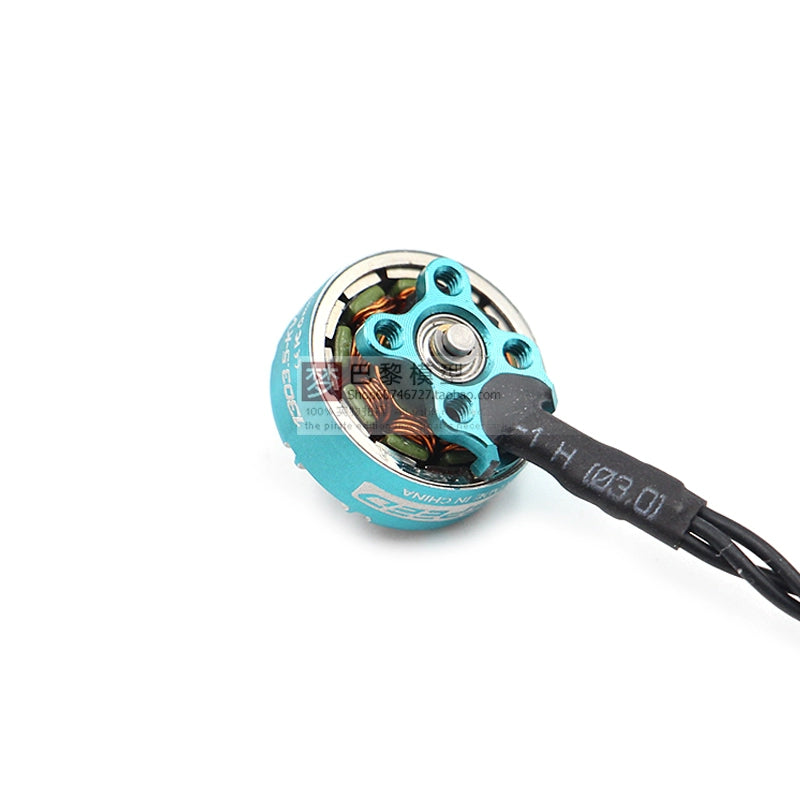

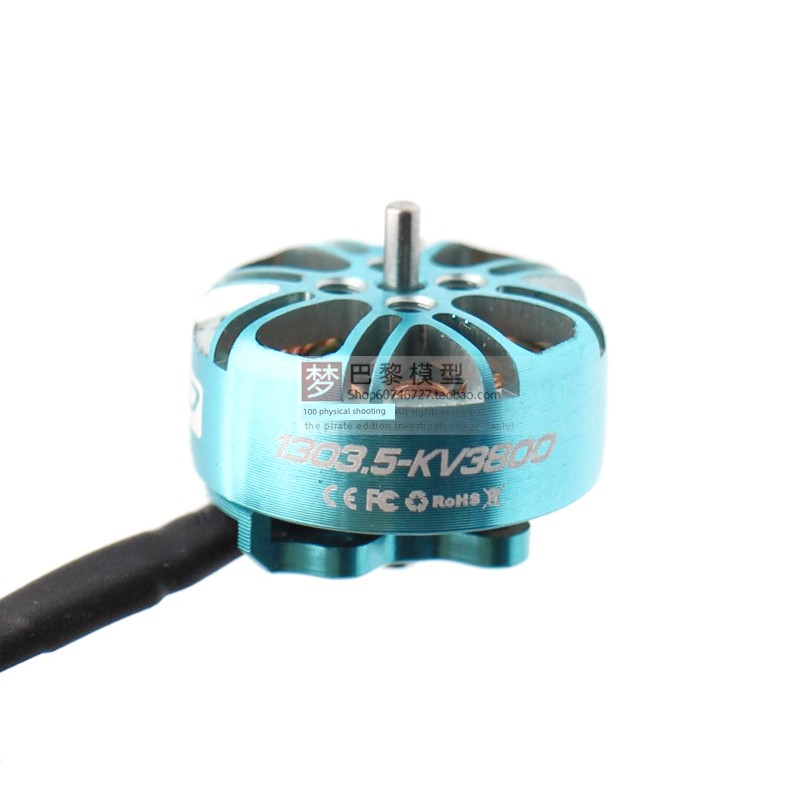

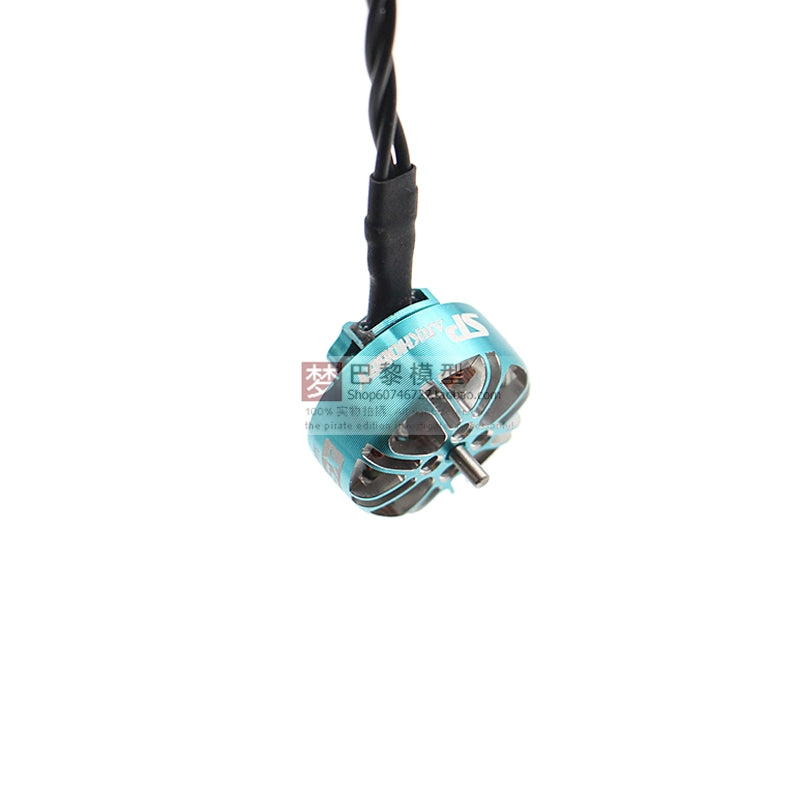

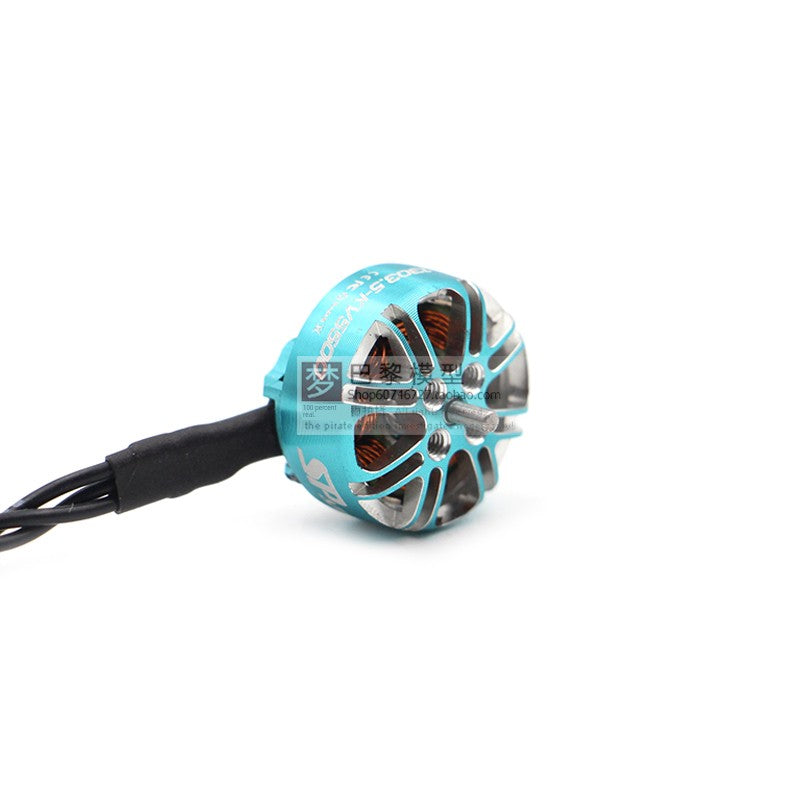

Item: SPARKHOBBY XSPEED 1303.5 2500KV 3800KV 5500KV Brushless Motor
Parameters:

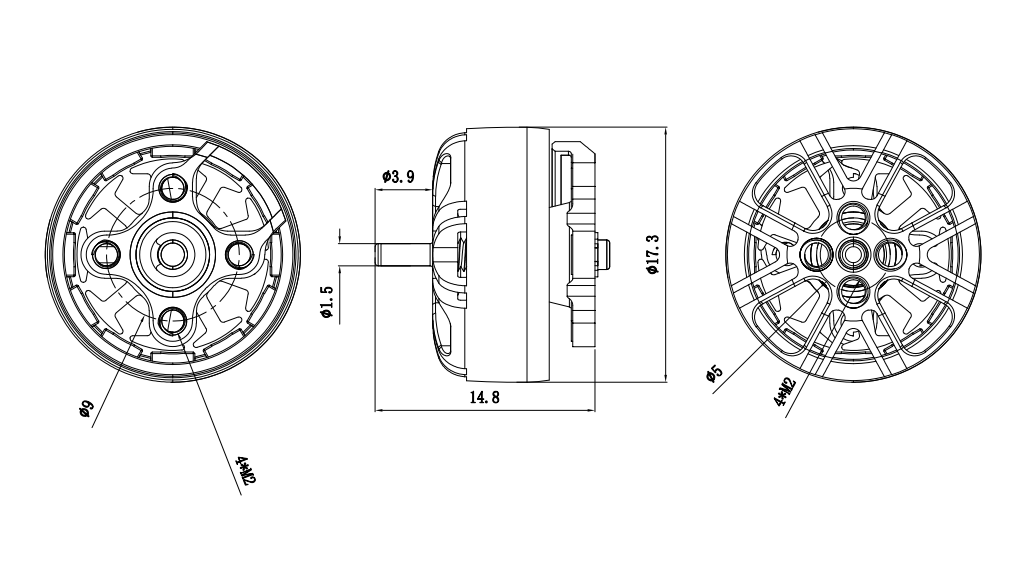

Overall Dimension: Φ17.3×11.3mm
prop mounting shaft diameter: 1.5mm

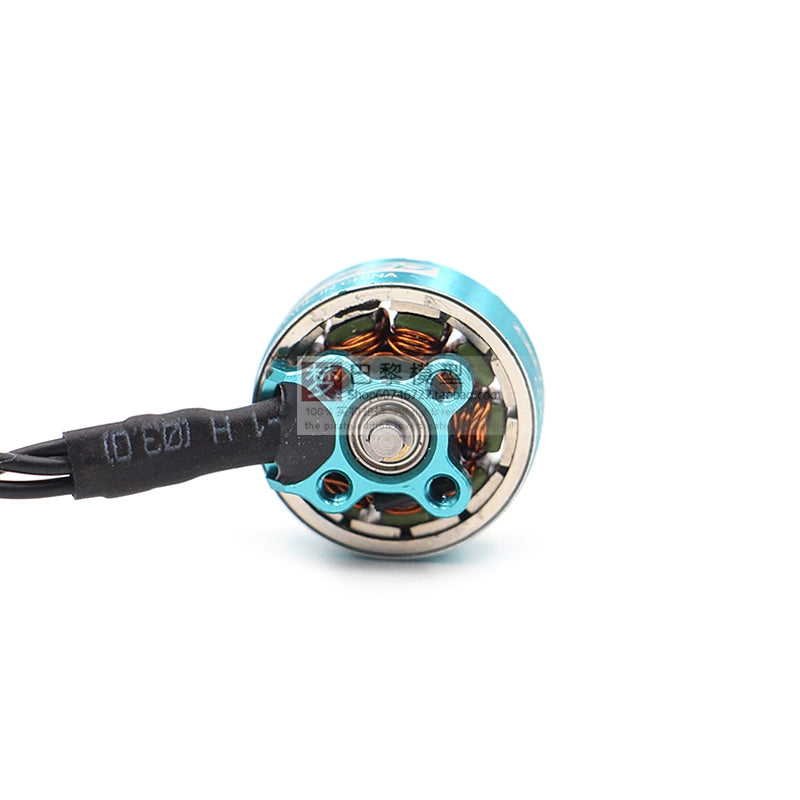

Installation hole position: 9×9mm,M2
Prop:2inch~3inch
Shaft Diameter: 2mm
Lead Wire Size: 24AWG×100mm
Configuration: 9N12P
Magnet Wire: 200℃ Enameled Wire
Lipo:
2500KV(4~6S)
3800KV(3~6S)
5500KV(2~4S)

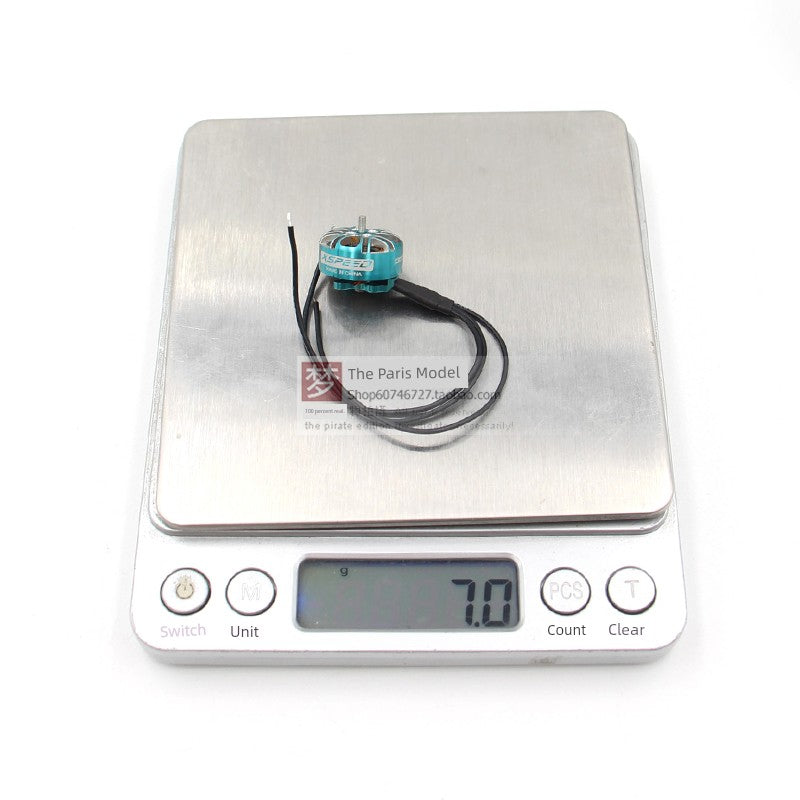

Weight:6.6g
Peak Current:
2500KV(4.4A)
3800KV(6.5A)
5500KV(8.9A)
ldle Current:
2500KV(10V/0.8A)
3800KV(5V/0.4A)
5500KV(6V/0.5A)
Maximum Power:
2500KV(100W)
3800KV(144W)
5500KV(132W)
Internal Resistance:
2500KV(780Ω)
3800KV(365Ω)
5500KV(195Ω)
Brand Name: SPARKHOBBY
Origin: Mainland China
Material: Metal
Recommend Age: 14+y
RC Parts & Accs: Motors
For Vehicle Type: Airplanes
Use: Vehicles & Remote Control Toys
Remote Control Peripherals/Devices: MOTOR
Tool Supplies: Assembled class
Model Number: 1303.5
Four-wheel Drive Attributes: Motors
