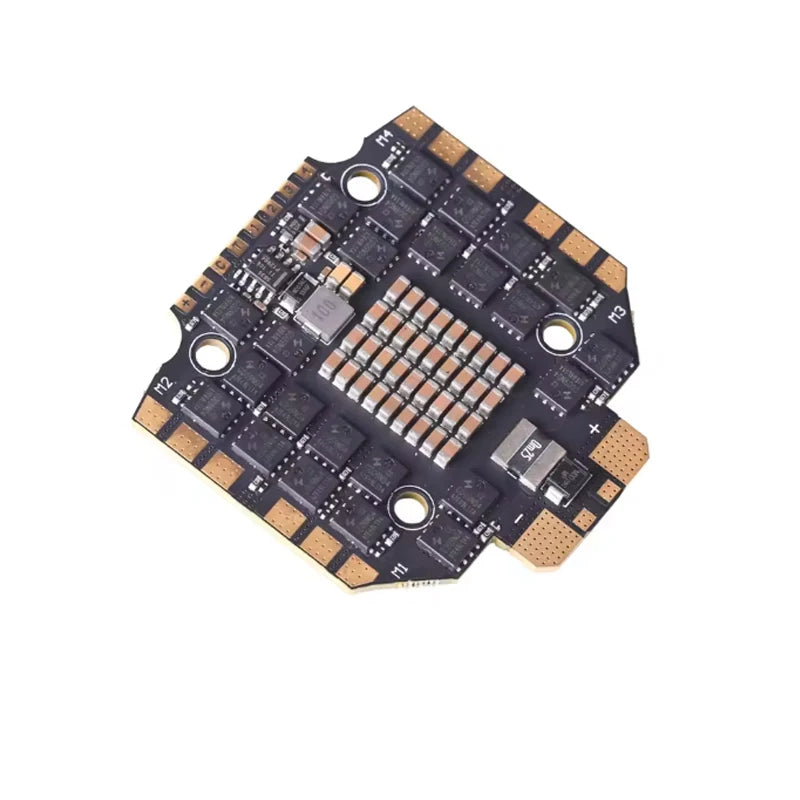

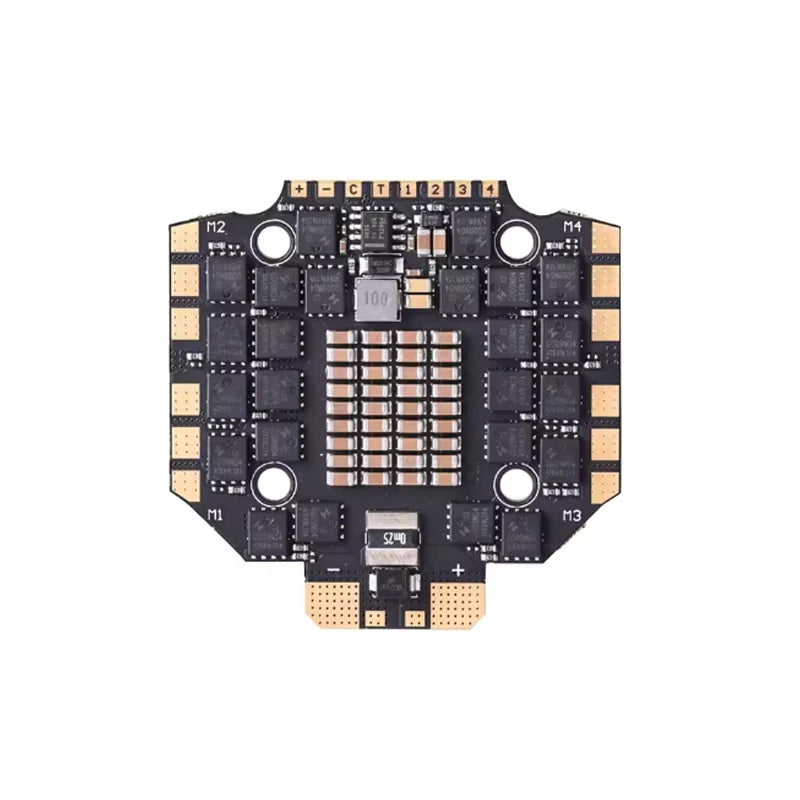

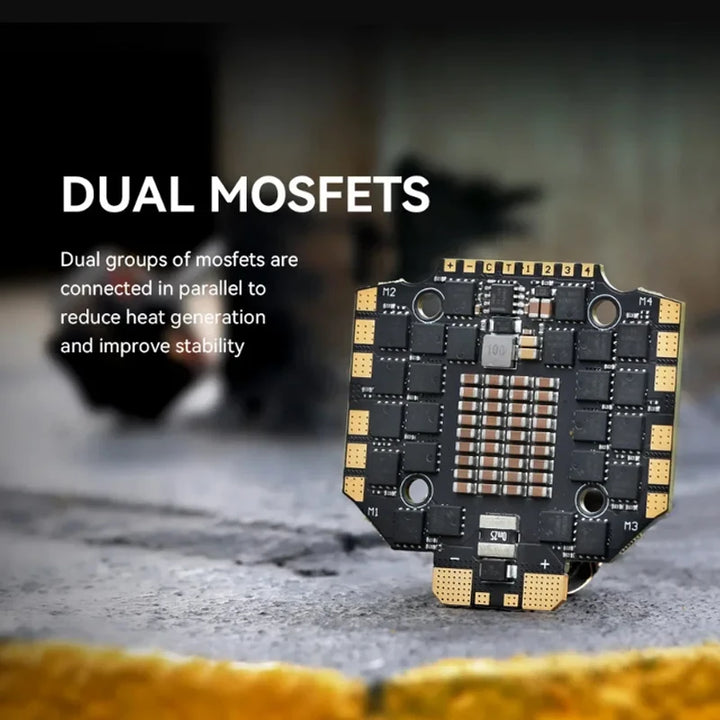

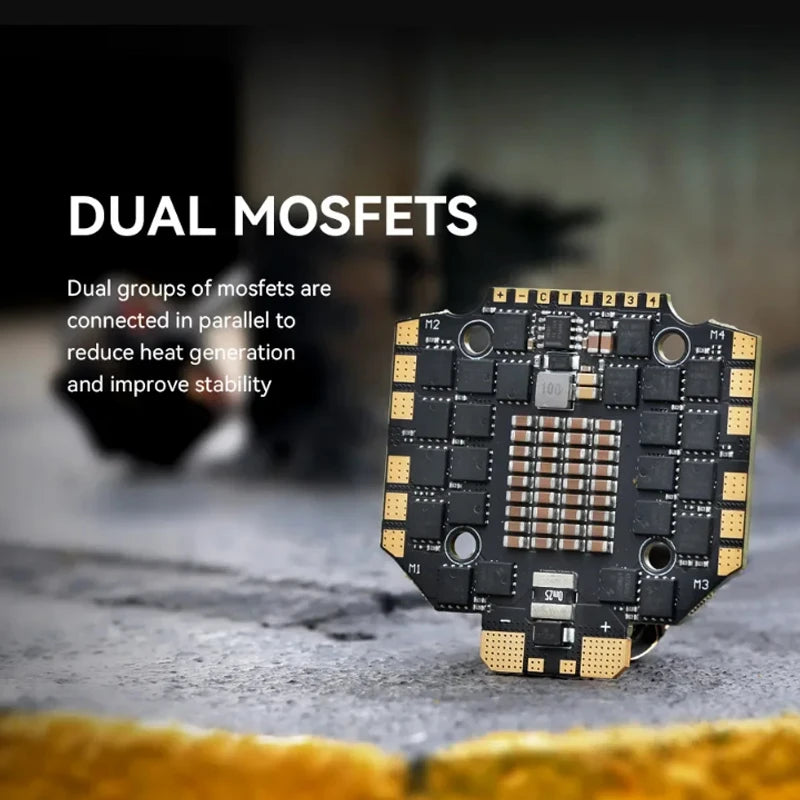

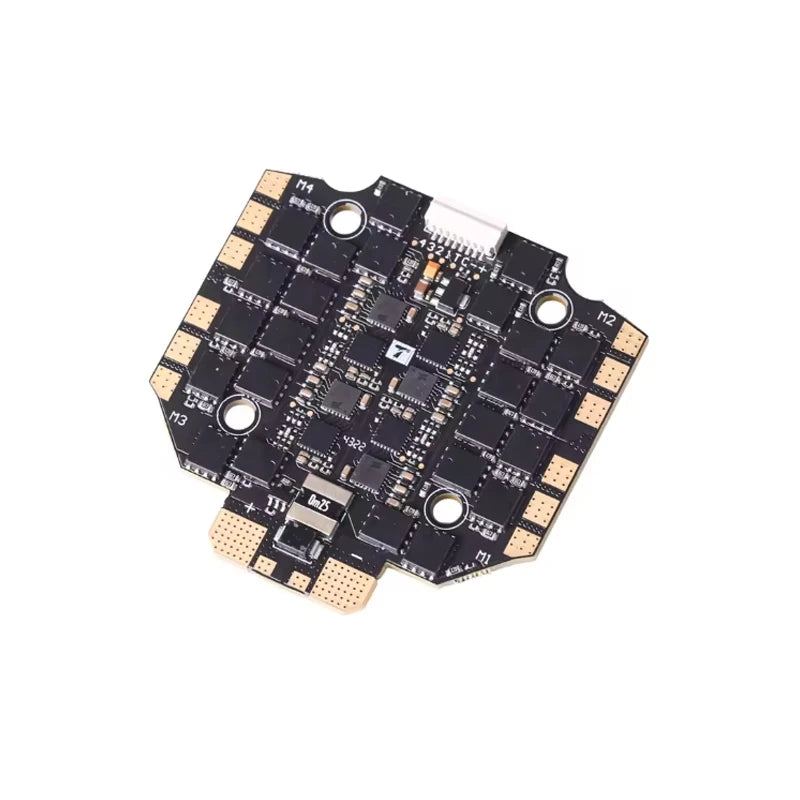

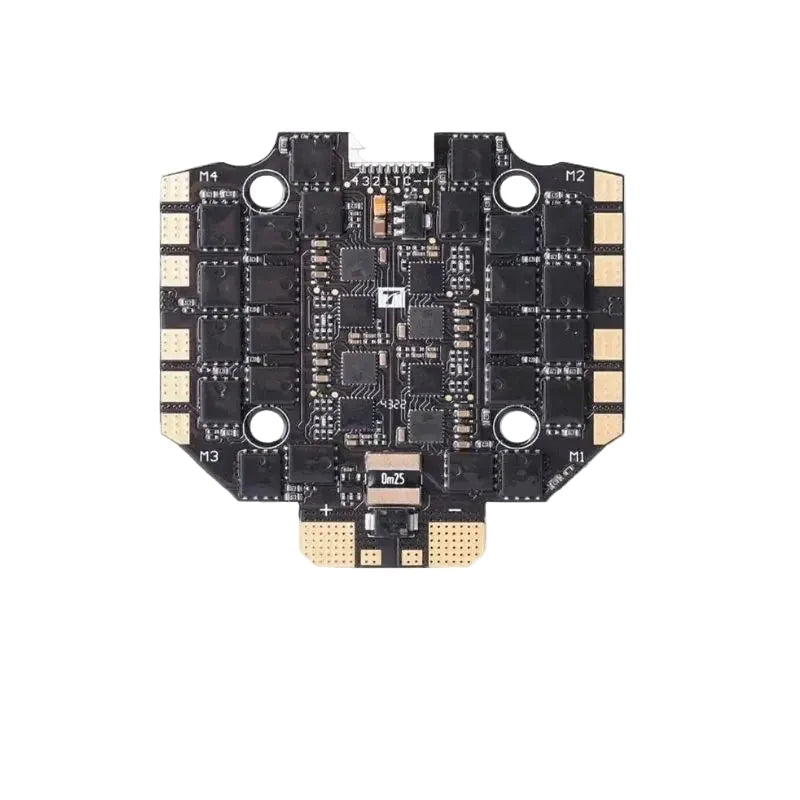

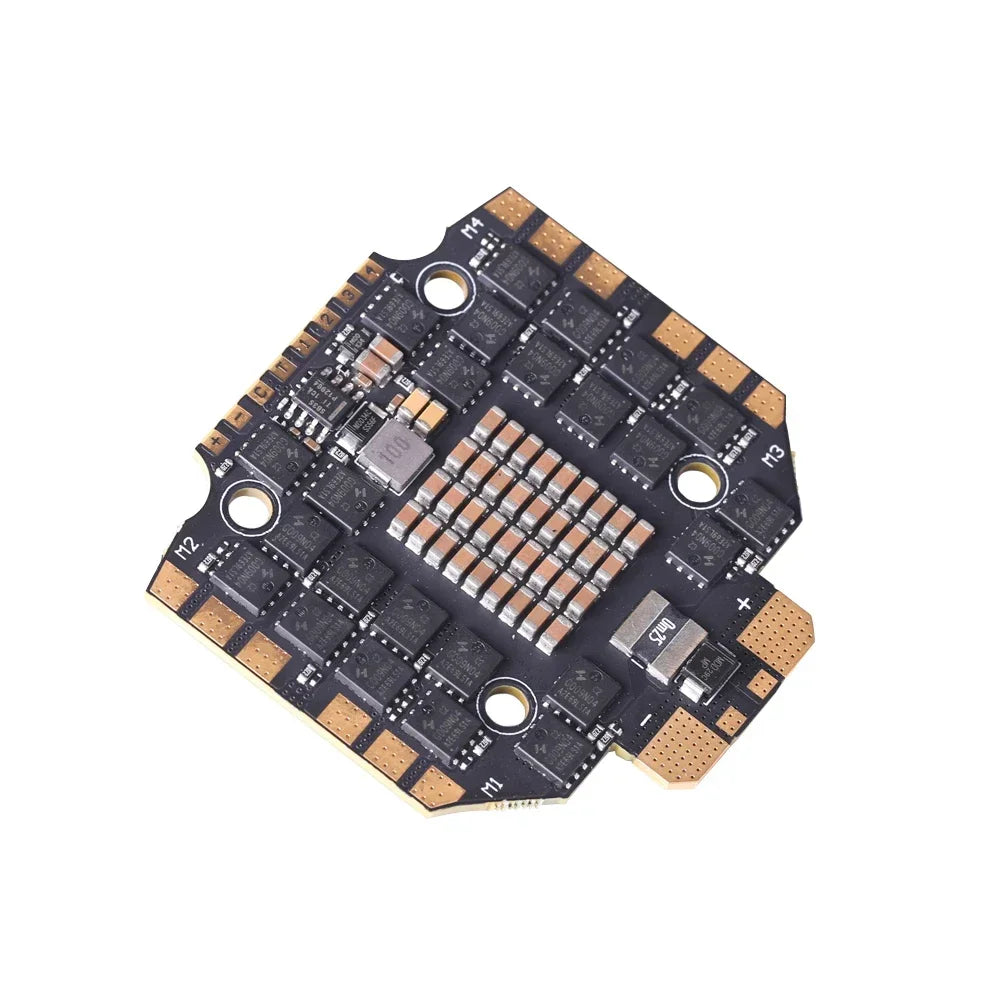

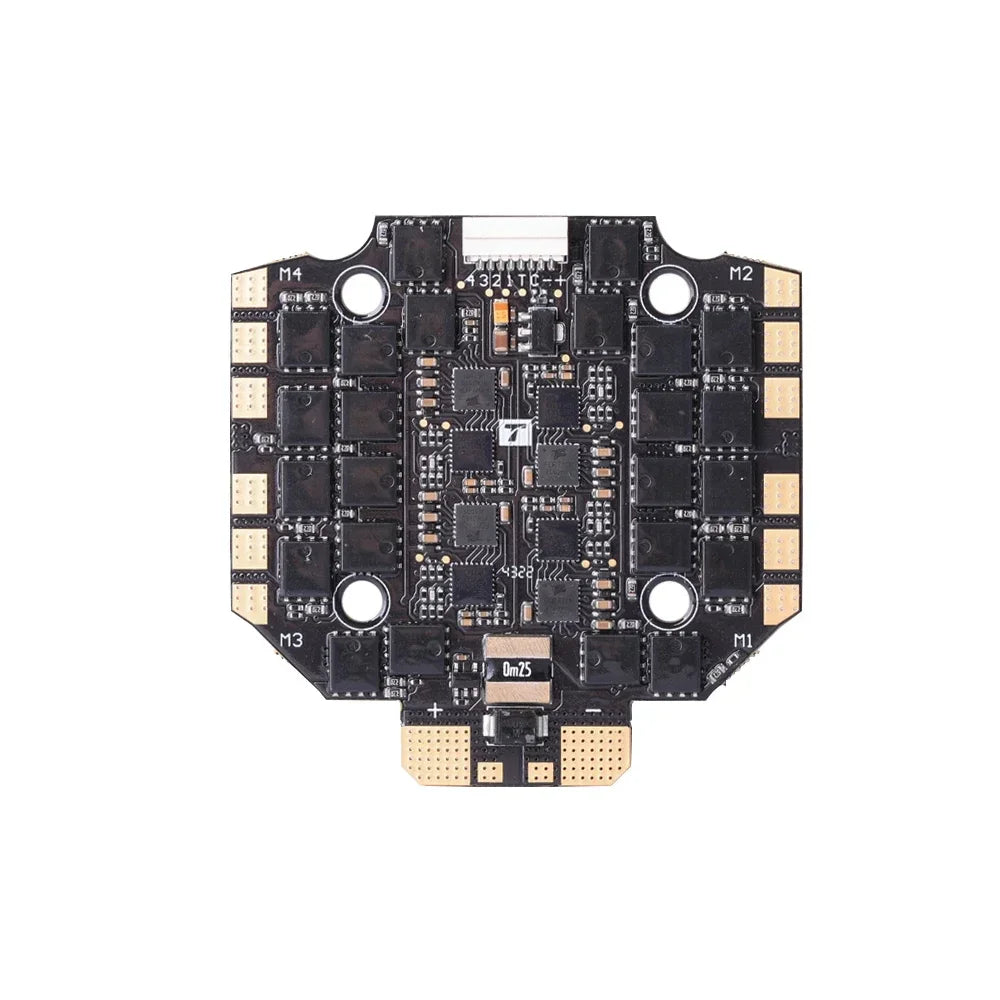

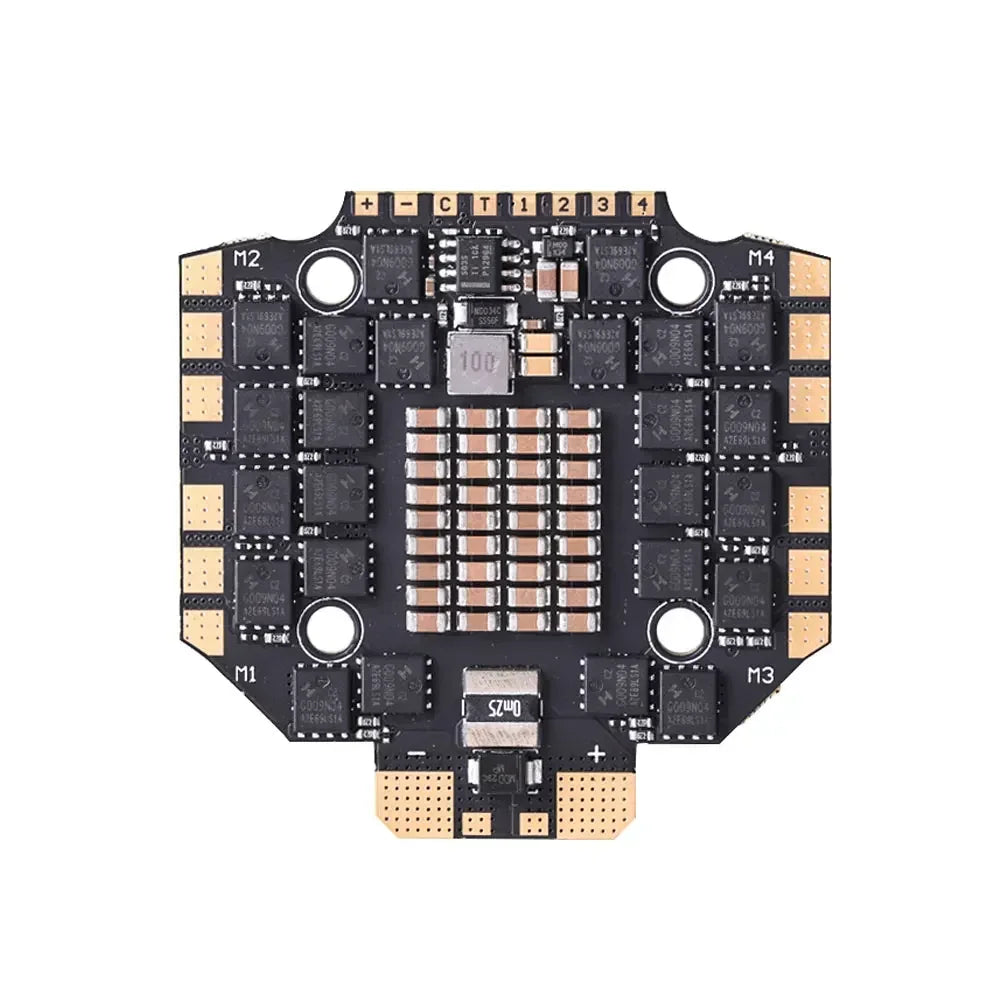

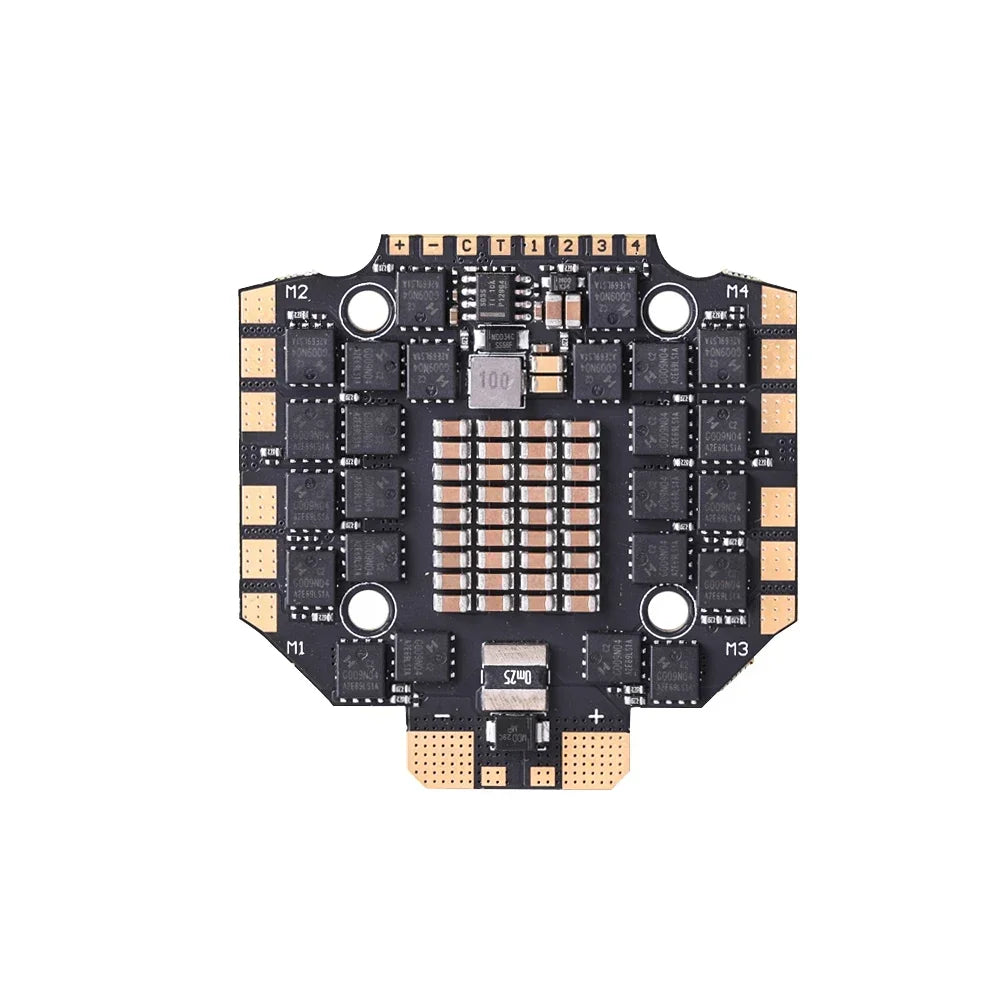

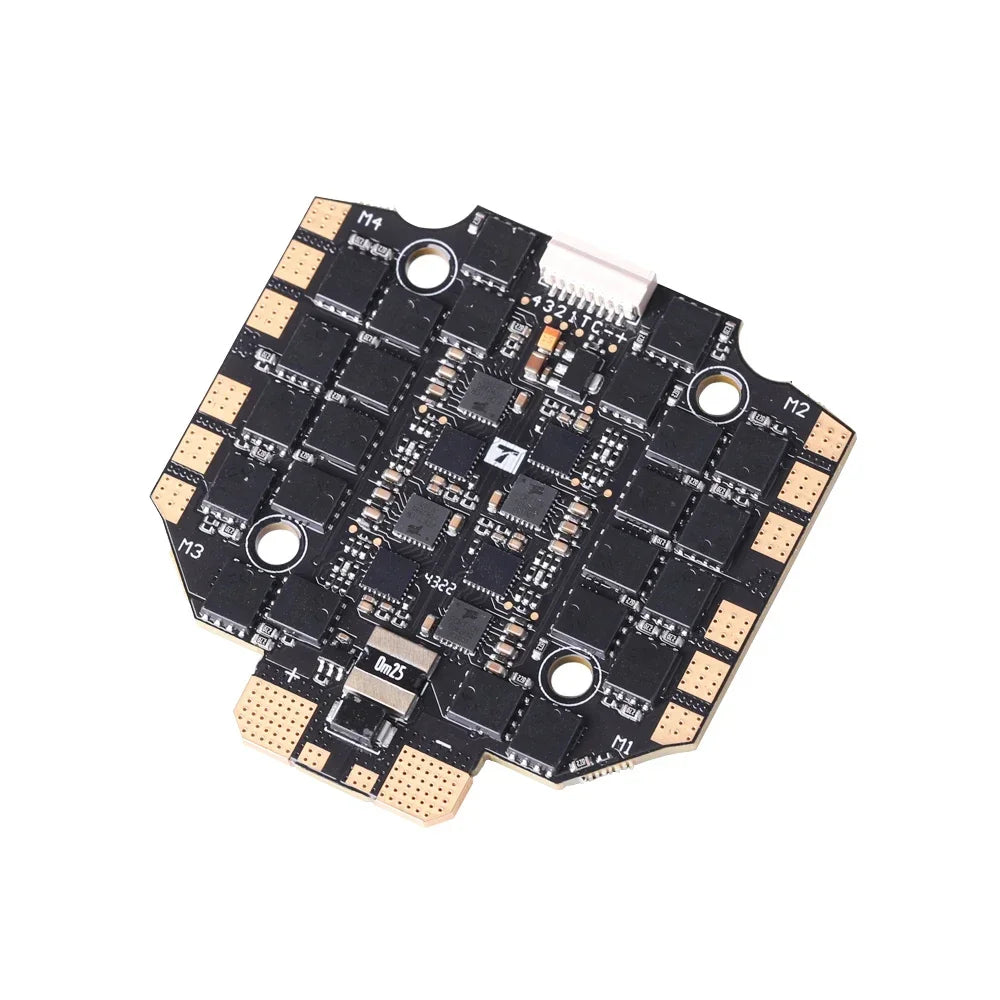

T-Motor CINE 80A 4-in-1 ESC
Build a compact four-motor power system with the T-Motor CINE 80A 4-in-1 electronic speed controller. Its listed 4–8S input range, BLHeli_32 firmware and 30.5 × 30.5 mm mounting pattern make it an option to evaluate for larger cinematic FPV and long-range quadcopter projects.
At the workbench, match your battery voltage, motor load and flight-controller wiring before installation. Keeping four ESC channels on one board helps organize a build, but current demands, cooling and connector compatibility still need to be checked for your exact setup.
Key Features
- Four ESC channels: Integrated 4-in-1 layout for four brushless motors.
- 4–8S input: Listed operating battery cell-count range.
- 80A continuous rating: Listed current rating; verify the manufacturer's operating and cooling conditions.
- 90A peak rating: Listed peak figure, not a continuous operating target. Peak duration is not specified in the supplied information.
- BLHeli_32 firmware: Identified in the product specifications.
- 30.5 × 30.5 mm mounting: Listed mounting-hole spacing with M3 hardware.
Technical Specifications
- Brand: T-Motor
- Model: CINE 80A 4-in-1 ESC
- Input: 4–8S
- Listed continuous current: 80A
- Listed peak current: 90A
- Mounting-hole spacing: 30.5 × 30.5 mm
- Mounting hardware size: M3
- Firmware: BLHeli_32
- Approximate board weight: 30 g
Build Compatibility
The supplied information recommends evaluating this ESC for 7–8-inch cinematic builds and larger long-range quadcopters. Confirm propeller load, motor current, battery voltage and cooling rather than relying on aircraft size alone.
Listed component suggestions include F7 PRO, VELOX F7, G4, F7 and PACER F7 flight controllers; F90, F100, V2812, V2808, V3008 and CINE66 motors; and C7.5 × 46 propellers. These are planning references, not a guarantee of plug-and-play compatibility. Check exact model revisions, pinouts and wiring.
X8 builds: One 4-in-1 board provides four motor channels, not eight. An eight-motor X8 requires additional ESC channels and a compatible flight-controller configuration. Generic DJI compatibility is not established by this listing.
Perfect For
Experienced FPV builders planning a larger cinematic or long-range multicopter power system after checking electrical requirements and mounting fit. This is an ESC component, not a flight-controller stack or complete drone.
What's Included
One T-Motor CINE 80A 4-in-1 ESC board as listed. Confirm supplied cables, mounting hardware, capacitor and other accessories before ordering. A flight controller, motors, battery and propellers are not established as included.
Installation and Safety
- Remove propellers during installation, configuration and bench testing.
- Verify battery polarity and all flight-controller connections before applying power.
- Check solder joints, insulation and clearance from conductive frame components.
- Provide appropriate cooling and follow the manufacturer's current and voltage limits.
For build-configuration and package-content questions, contact sales@thedroneflight.com before ordering.
