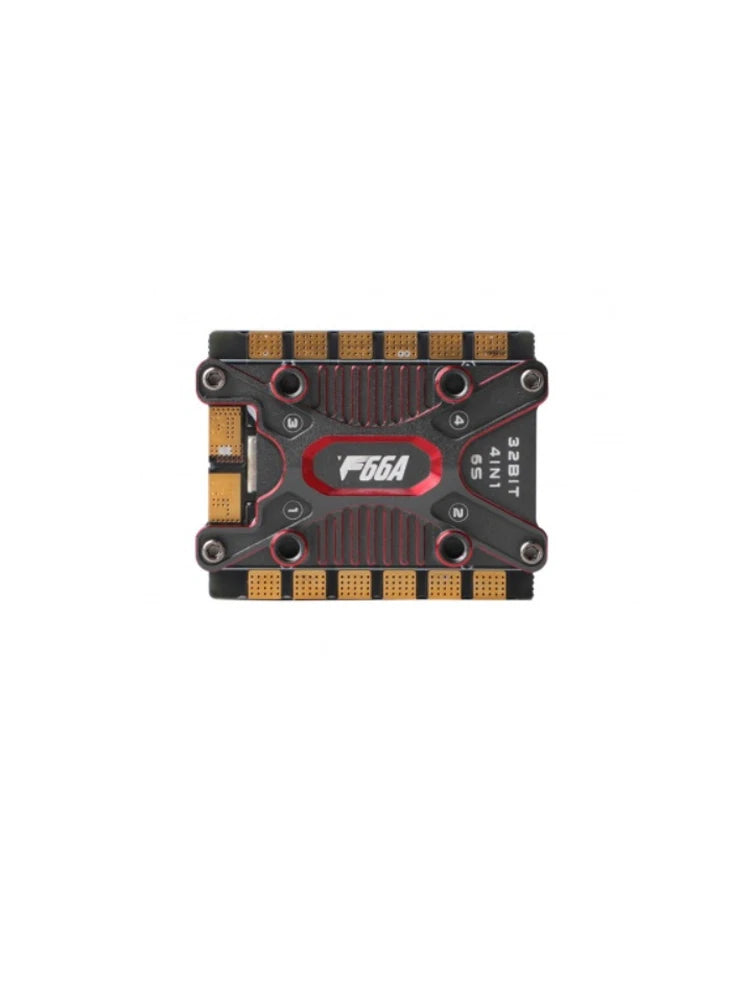

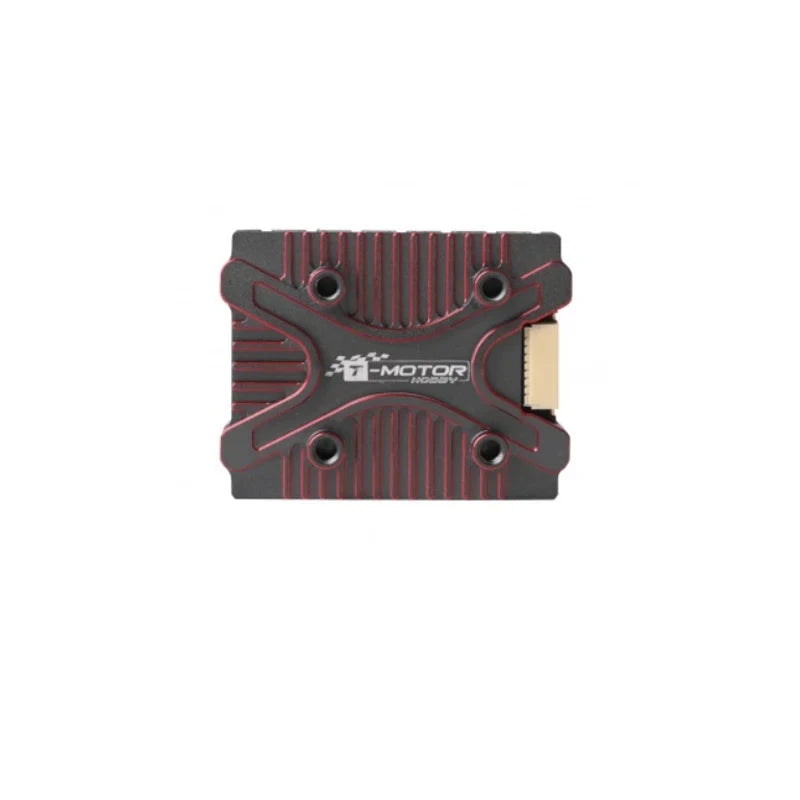

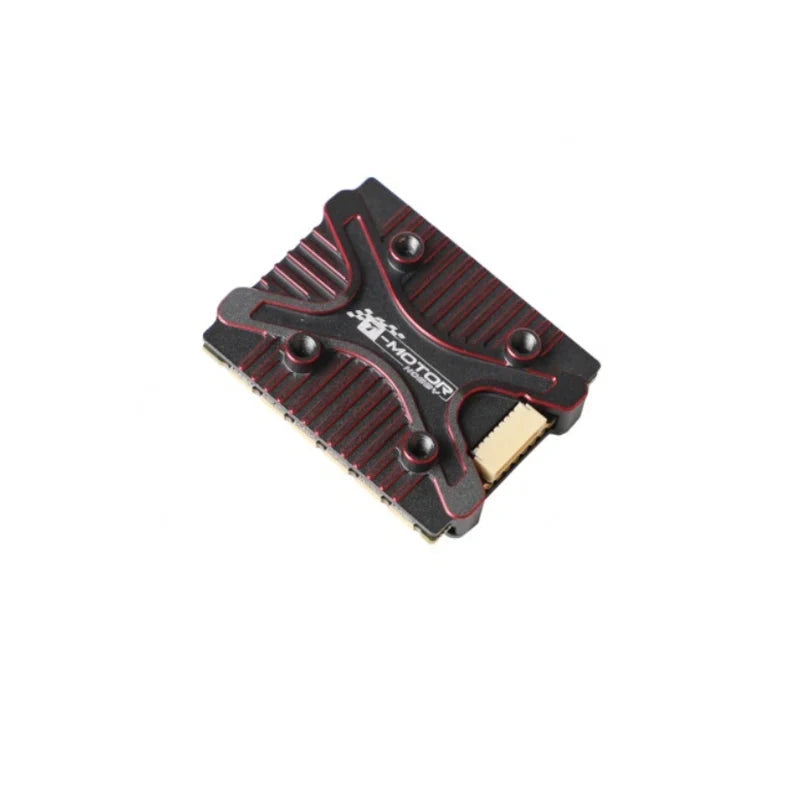

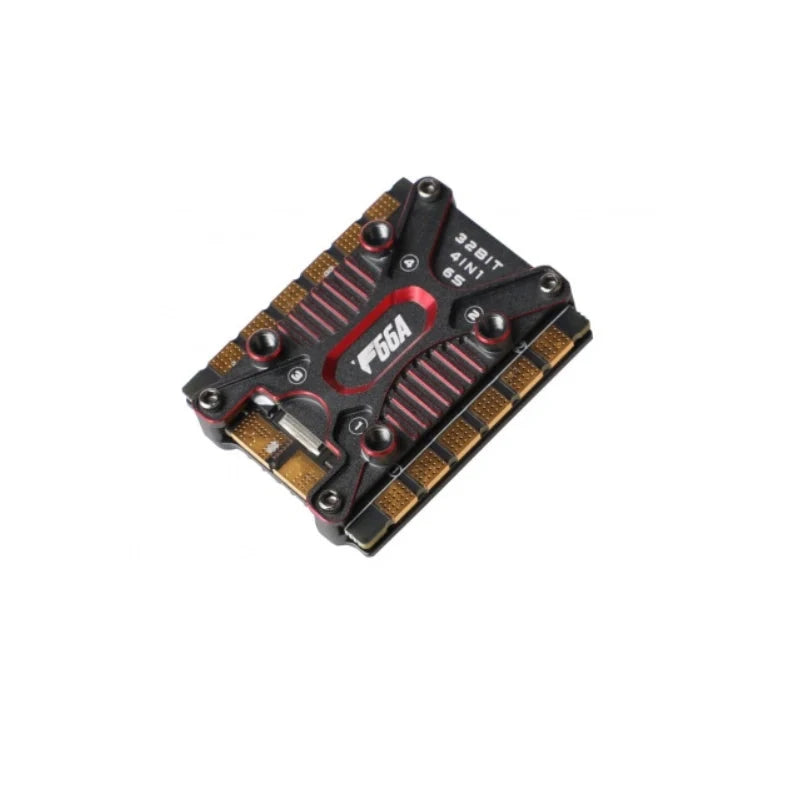

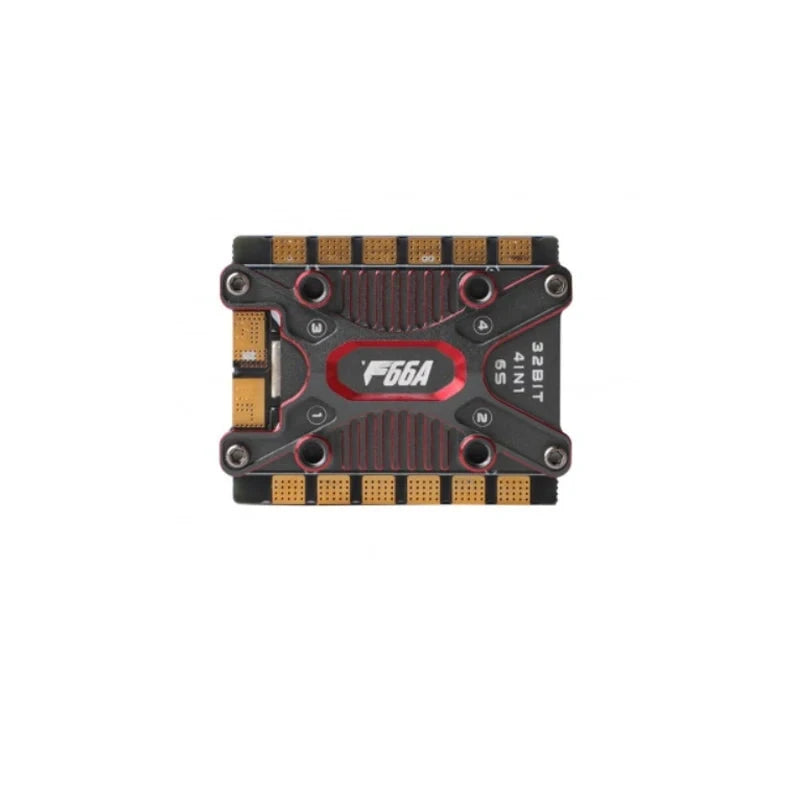

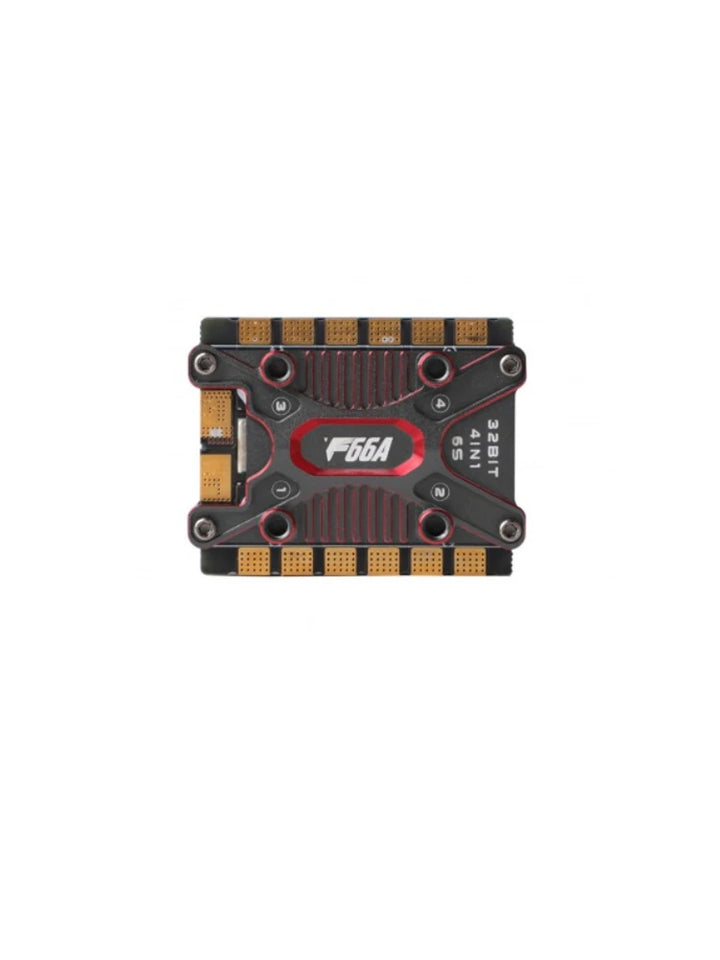

T-Motor F66A Mini 4-in-1 ESC — High-Current Power in a 20x20mm Package
The T-Motor F66A Mini is a compact, high-performance 4-in-1 ESC running AM32 firmware. Engineered for racing and freestyle builds that demand maximum current in minimal space, the F66A features double-sided heatsinks, imported TDK capacitors, and CE-certified safety — all in the standard 20x20mm stack footprint.
Key Features
- 66A continuous current — handles aggressive 5" racing and freestyle power demands
- AM32 32-bit firmware — open-source, faster response, better than BLHeli_32
- Double-sided heatsink design — higher peak current capability, better thermal management
- No through-holes PCB — shortest current path, unobstructed high-current output
- Imported TDK capacitors — premium power filtering for clean, stable power delivery
- Offset mounting holes — designed for easy installation on racing drone frames
- CE certified — verified safety and quality
- 3-6S LiPo input — 4S to 6S versatility
- 20×20mm mount — universal stack compatibility
Recommended Motor Pairing
T-Motor recommends pairing with F60 Pro V or F40 Pro V motors for optimal performance.
Perfect For
- 5" FPV racing builds
- Freestyle quads on 4S-6S
- Pilots upgrading to AM32 from BLHeli_32
- Compact stack builds requiring 20x20mm form factor
Specifications
- Model: T-Motor F66A Mini
- Configuration: 4-in-1
- Firmware: AM32
- Voltage: 3-6S LiPo
- Continuous Current: 66A per channel
- Mount: 20×20mm
- Dimensions: 43×34×13.5mm
- Certification: CE
- Origin: Mainland China
What's in the Box
- 1× T-Motor F66A Mini 4-in-1 ESC
