T-Motor M1103 1103 Brushless Motor — 8000KV / 11000KV, 2–3S LiPo, Whoop & Toothpick FPV

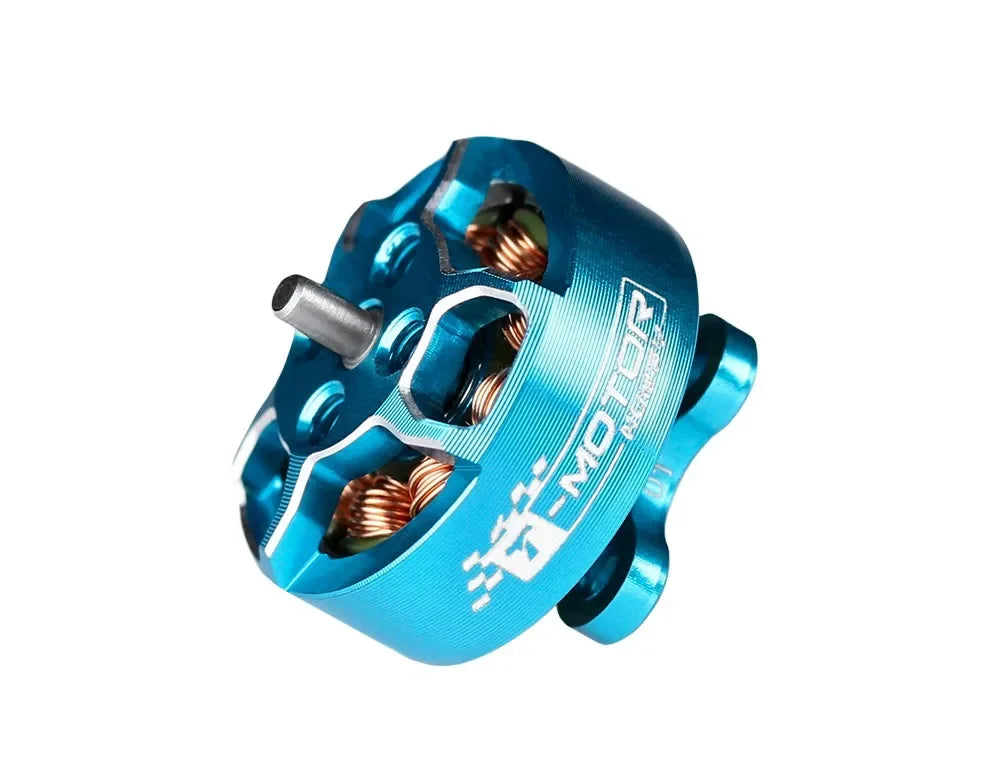

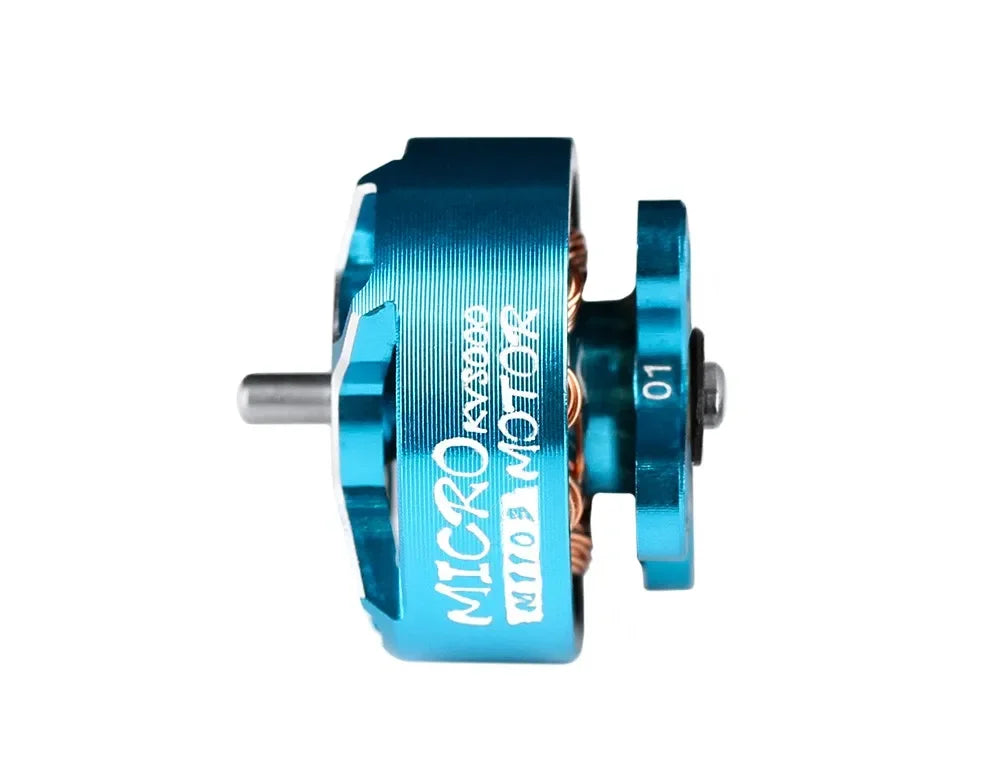

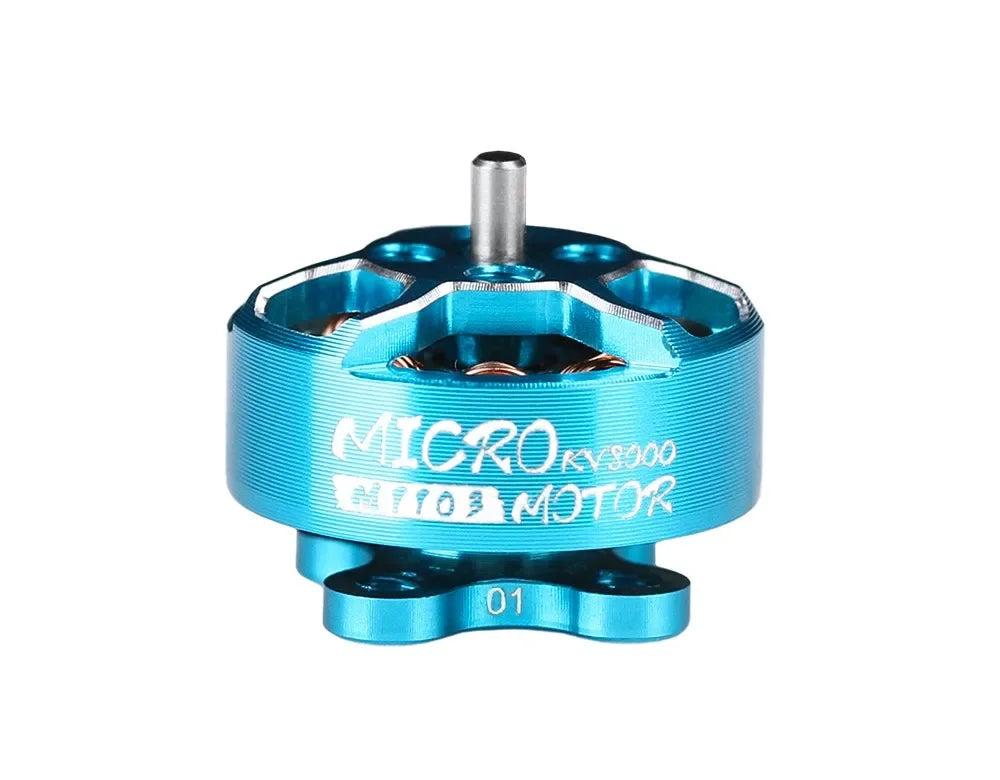

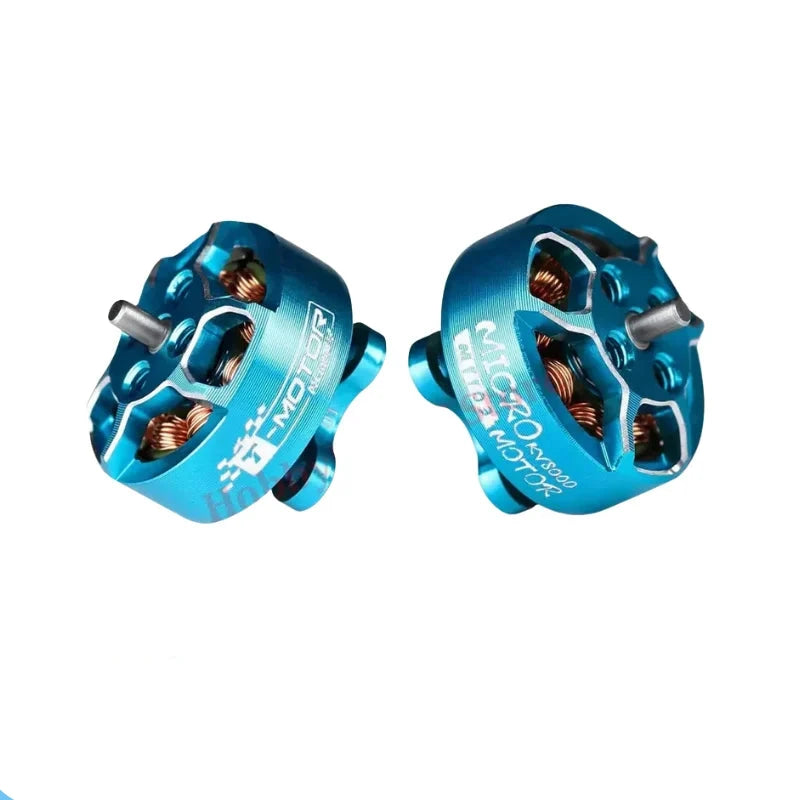

The T-Motor M1103 is a precision-engineered 1103 brushless motor designed for 1.6–2.5" micro whoops and 2–3" toothpick FPV drones. Available in 8000KV (2–3S, lower RPM, more torque) and 11000KV (2–3S, higher RPM, faster response) configurations, the M1103 features a 9N12P stator, 1.5mm shaft, and ultra-compact Ø14.4×14mm dimensions at just 5.1–5.3g. Available as a single motor or a 4-pack for full quad builds.
Key Features
- 8000KV or 11000KV — Choose 8000KV for more torque and efficiency on 2–3S, or 11000KV for higher RPM and faster throttle response
- 9N12P Stator Configuration — Optimized pole count for smooth, efficient power delivery in micro-class builds
- Ultra-Compact & Lightweight — Ø14.4×14mm, 5.3g (8000KV) / 5.1g (11000KV); minimal weight impact on sub-3" frames
- 1.5mm Shaft — Standard micro motor shaft diameter compatible with most 1.6–3" props
- 2–3S LiPo Compatible — Flexible voltage range for both 2S and 3S micro builds
- 1pc or 4pc Options — Single motor for replacement or 4-pack for a complete quad build
Specifications
- Model: T-Motor M1103 (1103)
- KV Options: 8000KV / 11000KV
- Stator: 9N12P
- Cell Count: 2–3S LiPo
- Shaft Diameter: 1.5mm
- Motor Dimensions: Ø14.4 × 14mm
- Weight (incl. cables): 5.3g (8000KV) / 5.1g (11000KV)
- Idle Current @ 10V: 0.58A (8000KV) / 0.65A (11000KV)
- Internal Resistance: 163mΩ (8000KV) / 101mΩ (11000KV)
- Max Continuous Power (60s): 137W (8000KV) / 106.4W (11000KV)
What's in the Box
- 1× T-Motor M1103 Brushless Motor

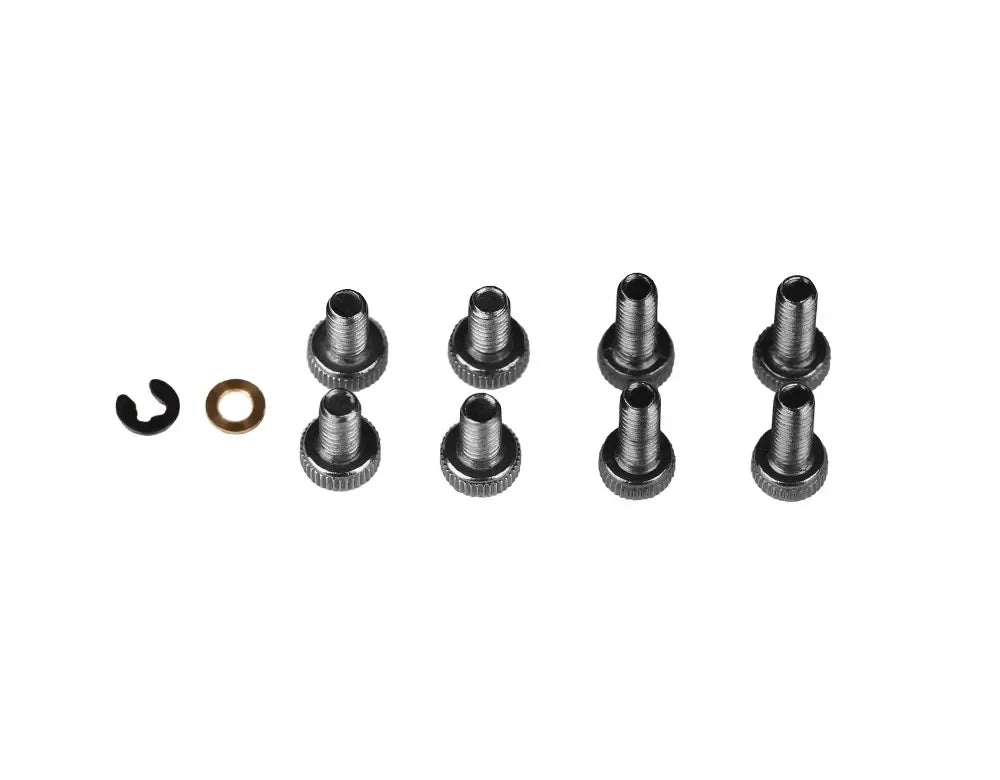

- 1× Bag of mounting screws
Perfect For
- 1.6–2.5" micro whoop and tinywhoop FPV builds
- 2–3" toothpick and cinewhoop FPV drone builds
- Pilots replacing a single motor or building a complete quad with the 4-pack
Important Notes
- Select 8000KV for 2–3S builds prioritizing torque and efficiency; select 11000KV for higher RPM and faster response
- Verify prop compatibility with your frame before ordering — 1.5mm shaft fits most 1.6–3" micro props
- ESC must be rated for the motor’s max continuous current draw
