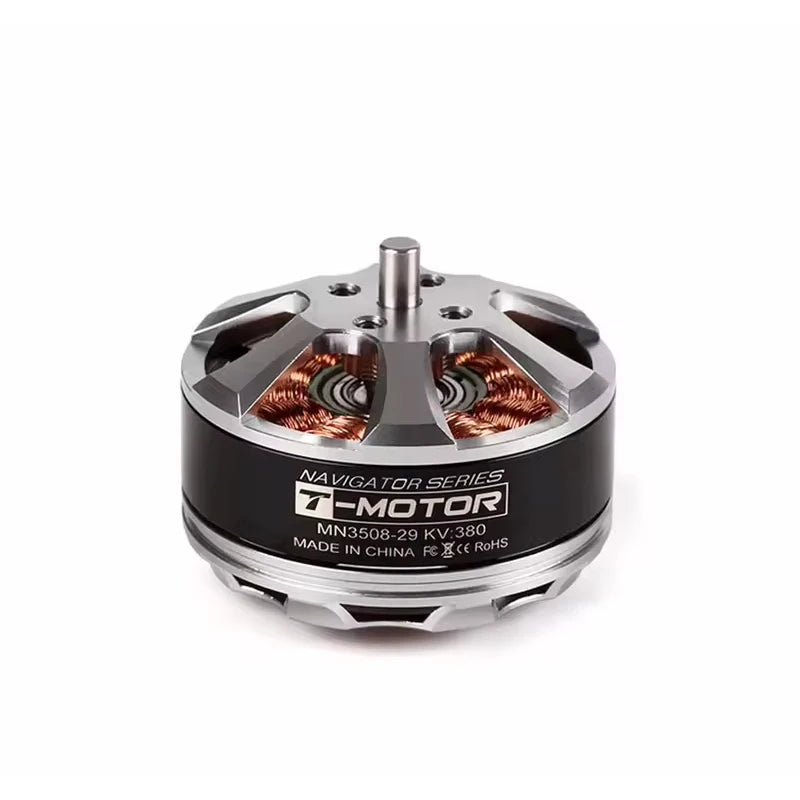

T-MOTOR MN3508 Navigator Series Brushless Motor
The T-MOTOR MN3508 is part of T-MOTOR’s renowned Navigator Series — a line of precision outrunner brushless motors engineered for multi-rotor UAV, quadcopter, and hexacopter applications. With a 35mm stator diameter, 12N14P configuration, and 3–6S compatibility, the MN3508 delivers reliable, efficient power for professional and commercial drone builds. Available in three KV ratings to match your prop size and application requirements.
Key Features
- Navigator Series Quality — T-MOTOR’s professional-grade outrunner motor line for UAV and multi-rotor applications
- Three KV Options — KV380 for large props and efficiency; KV580 for balanced performance; KV700 for higher RPM and smaller props
- 12N14P Configuration — 12 stator slots, 14 pole magnets for smooth, efficient power delivery
- 3–6S Compatible — Wide voltage range for flexible build configurations
- 14A Max Continuous Current / 310W Max Power — Robust power output for demanding UAV payloads
- 4mm Shaft Diameter — Standard shaft size for broad prop adapter compatibility
- 600mm Motor Cable — Long lead wire for flexible frame routing
- Composite Material Construction — Lightweight and durable for extended flight operations
Variant Options
- KV380 — Low KV for large-diameter props; optimized for efficiency and long flight times on 4–6S
- KV580 — Mid KV for balanced thrust and efficiency across a range of prop sizes
- KV700 — Higher KV for smaller props and faster response; suited for agile multi-rotor builds
Specifications
- Model: MN3508
- Series: Navigator
- Configuration: 12N14P
- Stator Diameter: 35mm
- Stator Height: 8mm
- KV Options: 380 / 580 / 700
- Input Voltage: 3–6S LiPo
- Max Continuous Current (180s): 14A
- Max Power (180s): 310W
- Idle Current @ 10V: 0.4A
- Shaft Diameter: 4mm
- Cable Length: 600mm
- Dimensions: 50×30×30mm
- Weight: ~250g (with cable)
Perfect For
- Quadcopter and hexacopter UAV builds requiring reliable, efficient power
- Commercial and industrial multi-rotor platforms
- Long-range and endurance UAV builds (KV380)
- Payload-carrying drones requiring consistent torque output
Important Notes
- Select KV rating based on your prop size and battery voltage
- ESC, propeller, and battery not included
