Tarot T-3D VI TL3T06 Metal 3-Axis Gimbal for GoPro Hero 9 — CNC, Built-in IMU, 3S–6S
Important: GoPro Hero 9 camera is not included. This gimbal provides stabilization only — it does not supply power or video output to the camera.

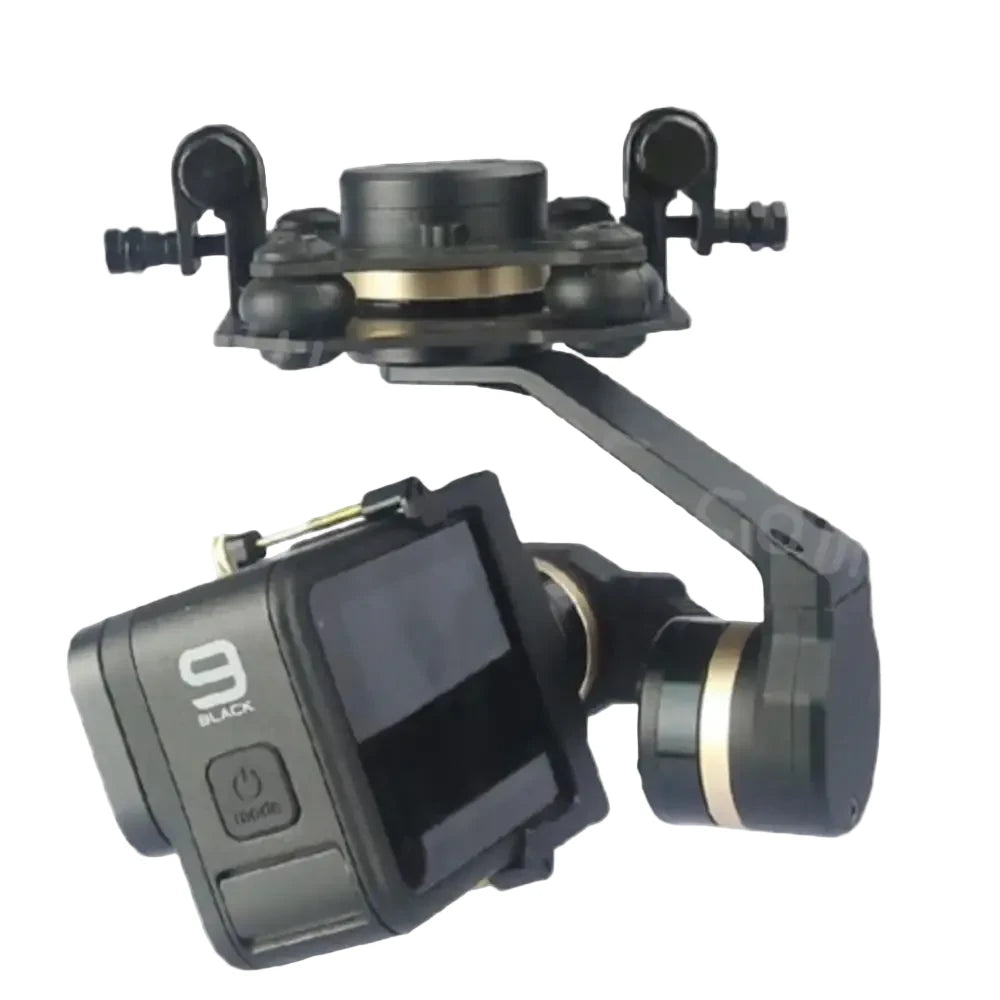

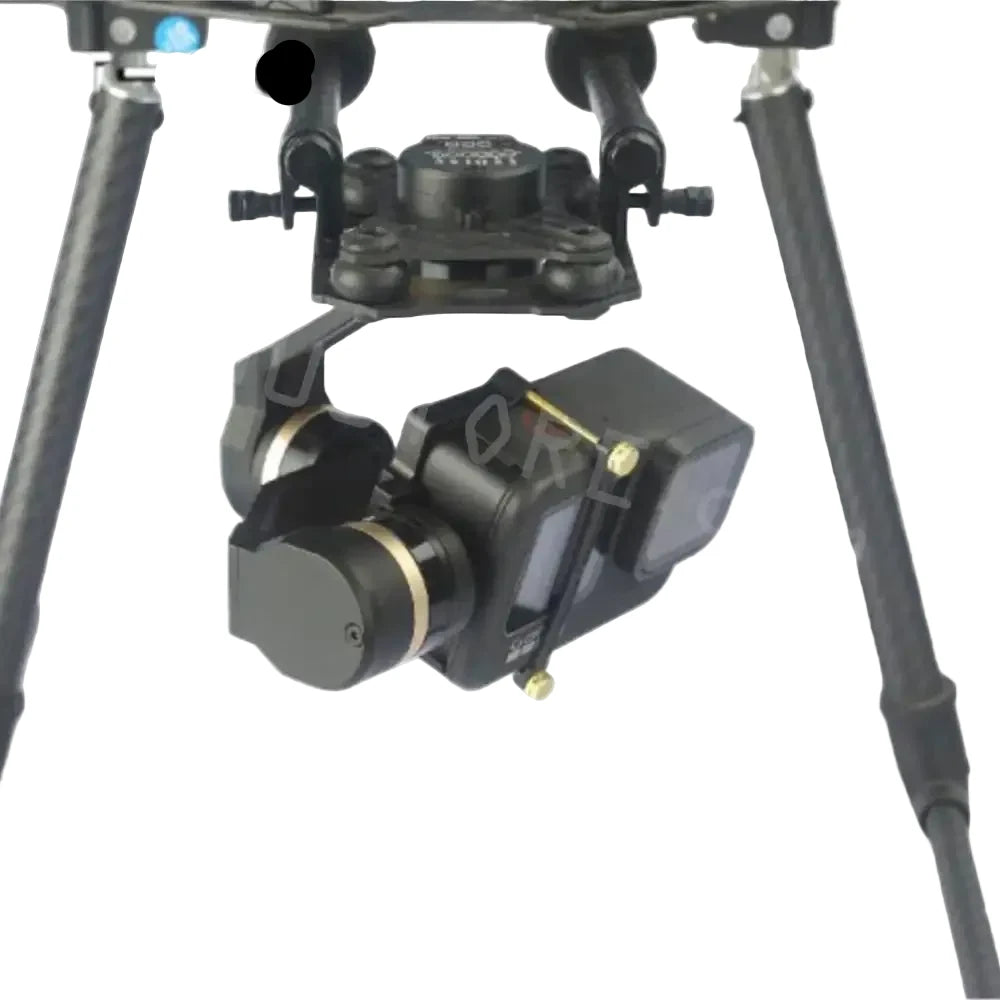

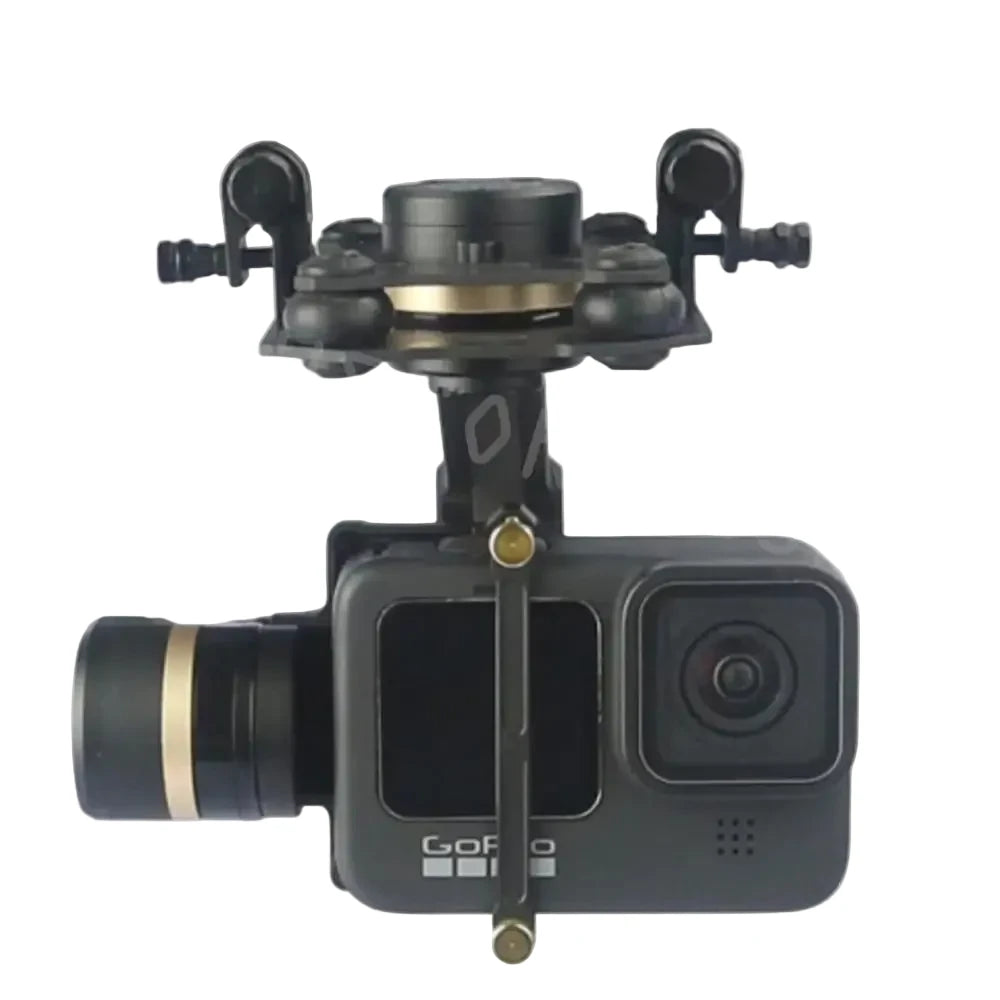

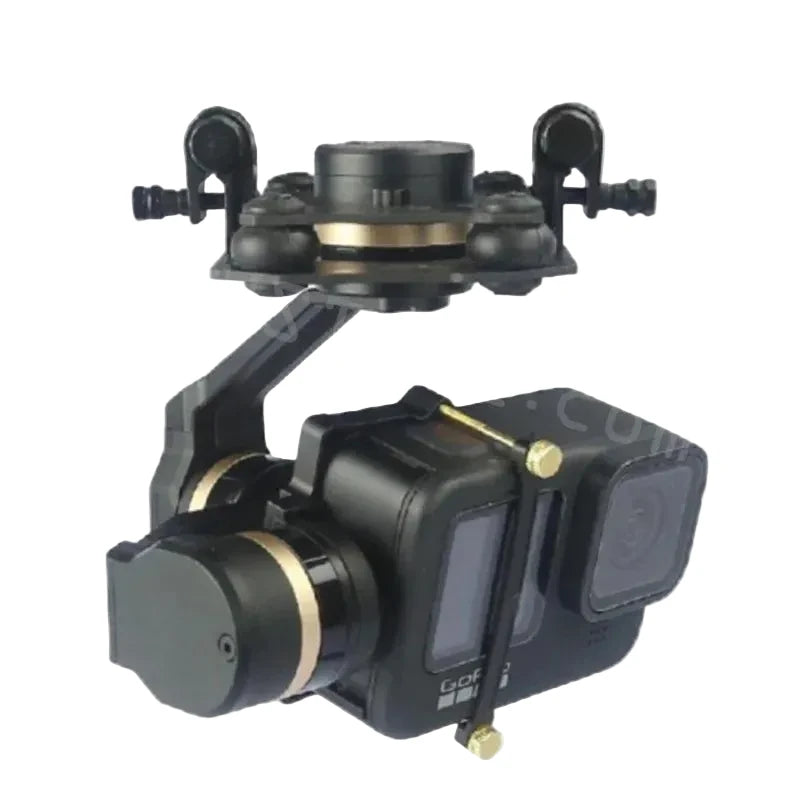

The Tarot T-3D VI (TL3T06) is a professional CNC-machined metal 3-axis brushless gimbal designed for the GoPro Hero 9, purpose-built for FPV drones, multirotors, and RC quadcopters that require stable aerial footage in demanding flight conditions. The fully CNC machined integral ribbed wall plate structure delivers a rigid, lightweight chassis that maintains ±0.02° attitude control accuracy across all three axes. A built-in independent IMU and integrated gimbal servo drive module provide self-contained stabilization without relying on external flight controller data. Supports both pointing follow and FPV working modes, and is compatible with S-Bus and PWM receivers for direct RC control of gimbal orientation. Wide 3S–6S input voltage (11–26V) works with the majority of FPV drone power systems.
Key Features
- CNC Machined Integral Ribbed Wall Plate Structure — Industrial-grade full CNC aluminum construction with ribbed wall plate for maximum rigidity and minimal flex; resists vibration transmission from the airframe to the camera mount
- Built-in Independent IMU — Onboard IMU provides self-contained attitude sensing for precise gimbal stabilization independent of the flight controller; no FC integration required for basic stabilization
- ±0.02° Attitude Control Accuracy — High-precision stabilization across all three axes for smooth, shake-free aerial footage even in windy or turbulent conditions
- 3S–6S Wide Input Voltage (11–26V) — Compatible with 3S through 6S LiPo power systems; low operating current (30mA @ 25V / 50mA @ 12V) minimizes impact on flight time
- Pointing Follow & FPV Working Modes — Supports two operational modes: pointing follow (gimbal tracks a set heading) and FPV mode (gimbal follows aircraft attitude for immersive FPV video)
- S-Bus / PWM Receiver Support — Direct RC receiver input for pilot-controlled gimbal tilt/pan during flight; no additional adapter required for S-Bus or PWM systems
- Full ±200°/s Max Speed on All Axes — High-speed servo response on PAN, TILT, and ROLL ensures the gimbal keeps up with fast aircraft movements and direction changes
- Wide Operating Temperature — Rated -20°C to +50°C; suitable for cold-weather and hot-climate outdoor operations
- Lightweight at 165g — Compact 107×91×109mm footprint and 165g weight minimize impact on aircraft payload capacity and flight characteristics
Rotation Range
- PAN (Yaw): ±330°
- TILT (Pitch): -135° to +45°
- ROLL: ±48°
Specifications
- Model: Tarot T-3D VI, TL3T06
- Compatible Camera: GoPro Hero 9 (not included)
- Input Voltage: 3S–6S LiPo (11V–26V)
- Operating Current: 30mA (@25V) / 50mA (@12V)
- Blocking Current: 350mA (@25V) / 700mA (@12V)
- Attitude Control Accuracy: ±0.02°
- Max Speed (all axes): ±200°/s
- PAN Range: ±330°
- TILT Range: -135° to +45°
- ROLL Range: ±48°
- Receiver Input: S-Bus / PWM
- Operating Temperature: -20°C to +50°C
- Dimensions: 107×91×109mm
- Weight: 165g
- PC Software: Windows XP / Vista / 7 / 8 (32 or 64-bit) / Windows 10
What’s Included
- 1× Tarot T-3D VI TL3T06 GoPro Hero 9 Metal 3-Axis Gimbal (165g)
- 1× Gimbal Main Control Module (36×25×11mm)
- 1× 8P Gimbal Main Control to Gimbal Body Connection Cable
- 1× 5V Output / Receiver Integration Cable
- 1× USB Module (27×21×7mm)
- 1× ZYX-M Flight Control Connection Cable
Perfect For
- FPV drone and multirotor builds requiring a high-precision 3-axis gimbal for smooth GoPro Hero 9 aerial footage
- Aerial photography and cinematography pilots using 3S–6S platforms who need direct RC control of gimbal orientation
- RC quadcopter operators wanting self-contained stabilization without flight controller integration complexity
- Cold or hot-climate outdoor operations requiring a gimbal rated for -20°C to +50°C operating range
