TBS Crossfire Micro TX V2 / Nano TX — 915/868MHz CRSF Long Range RC Link, DSSS+FHSS Frequency Hopping, 150Hz Update Rate, 25mW–1W Selectable Power, Two-Way Telemetry, JR Module, FPV Drone
The TBS Crossfire is the gold standard in long-range FPV RC link systems. The Micro TX V2 and Nano TX transmitter modules operate on 915MHz (USA/Asia/Australia) and 868MHz (EU/Russia), delivering a robust, interference-immune connection using DSSS + FHSS frequency hopping. With a 150Hz update rate (3× faster than typical RC links), two-way telemetry, and selectable RF power from 25mW to 1W, Crossfire gives you the range, reliability, and responsiveness needed for serious FPV flying. Available as Nano TX only, Micro TX V2 only, or as a complete Micro Kit.
Key Features
- 915/868MHz Dual-Band — 915MHz for USA/Asia/Australia; 868MHz for EU/Russia
- DSSS + FHSS Frequency Hopping — Self-healing, interference-immune, adaptive link
- 150Hz Update Rate — 3× faster than typical RC links for ultra-responsive control feel
- Two-Way Communication & Telemetry — Real-time link vitals, RSSI, and flight data back to your radio
- 25mW to 1W Selectable RF Power — Dial in the power level for your flying environment (local regulations apply)
- CRSF / SBUS / PPM Output — 8 or 12 channel output, compatible with all major flight controllers
- Adaptive Bandwidth Control — Automatically optimizes range and link quality in real time
- Multi-Pilot Support — Fly with 10+ pilots simultaneously without interference
- OTA Firmware Updates — Software updates delivered over the RF link, no USB required

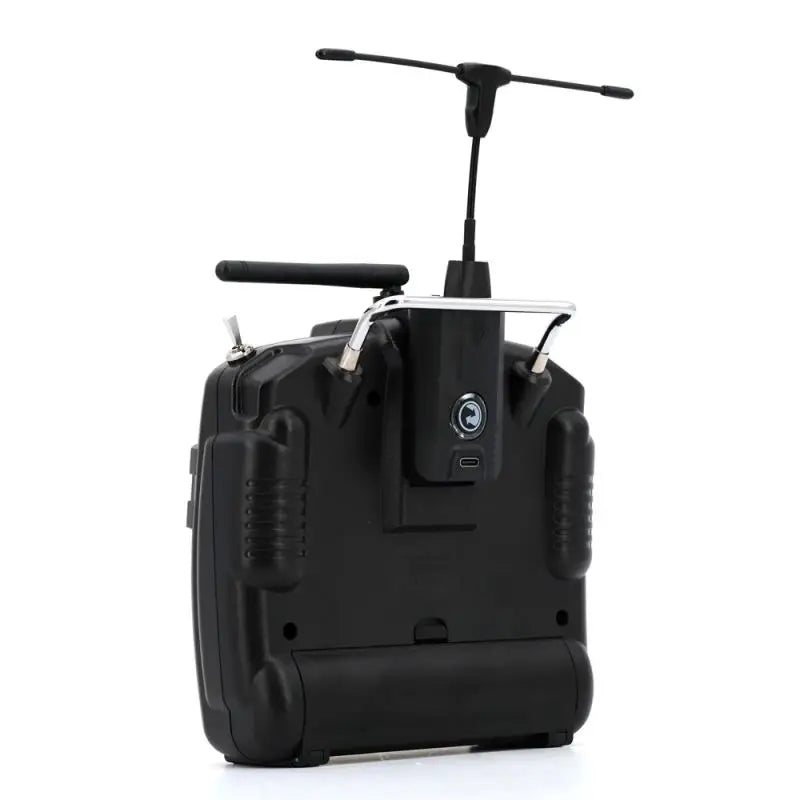

- JR Module Form Factor — Compatible with JR-bay radios (Radiomaster, FrSky, Jumper, etc.)
- USB-C Connectivity — Modern connector for configuration and charging
- Noise Immune Design — Engineered to reject on-board ESC and video transmitter interference
Variant Options
- Nano TX Only — Compact Nano transmitter module ($216)
- Micro TX V2 Only — Full-size Micro TX V2 JR module ($224)

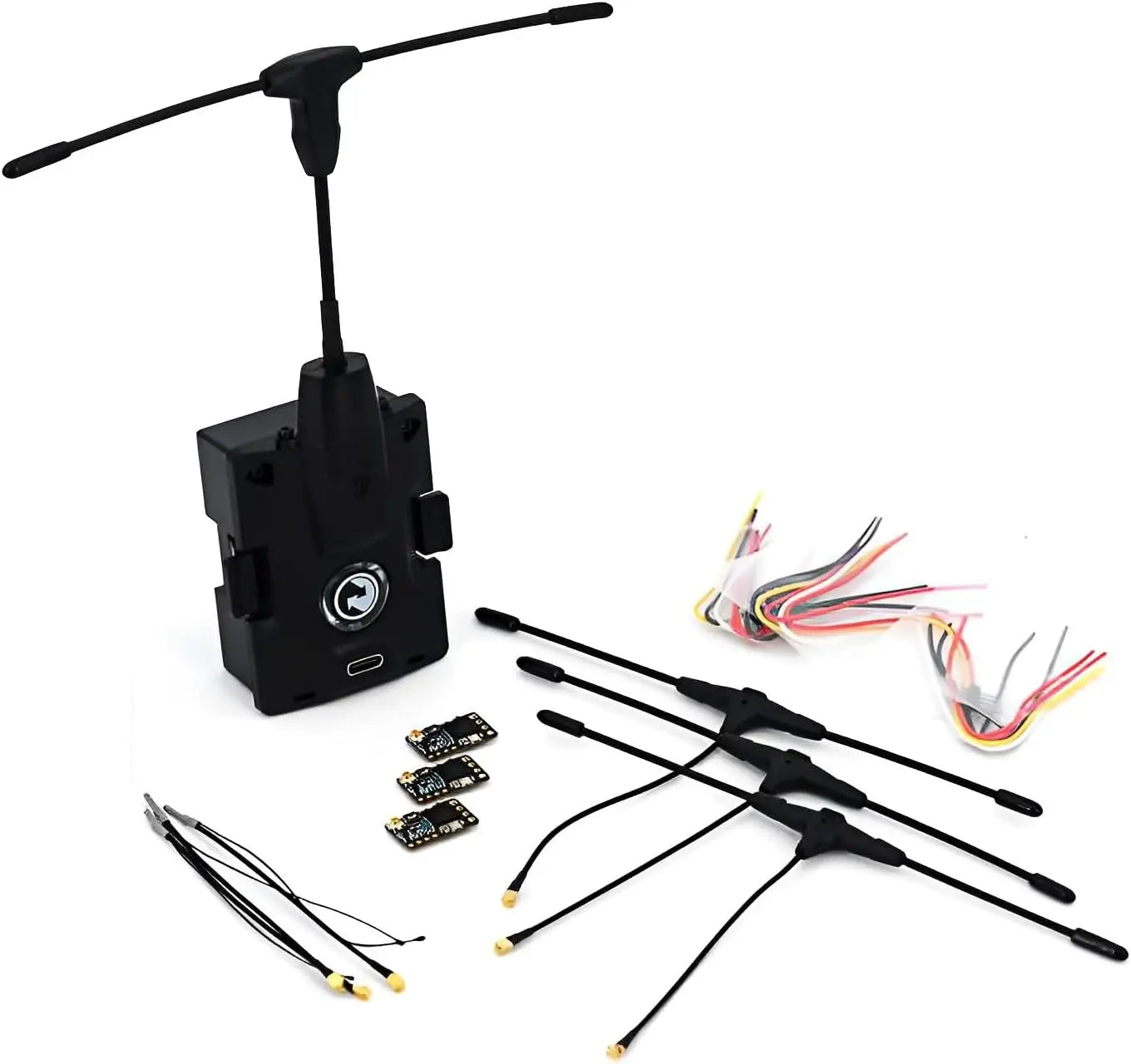

- Micro Kit — Micro TX V2 + Nano SE Receiver for a complete long-range system ($355)
Technical Specifications — Micro TX V2
- Frequency: 868MHz (EU/Russia) / 915MHz (USA/Asia/Australia)
- Input Voltage: 3.5–13V
- Connector: USB-C
- Power Consumption: 1.1W (@10mW) – 2W (@100mW)
- Dimensions: 65 × 48 × 22mm (JR module size)
- Weight: 48g
- Update Rate: 150Hz
- RF Power: 25mW – 1W selectable
- Output Protocols: CRSF, SBUS, PPM (8 or 12 channels)
Compatible With
- Radiomaster TX16S, Zorro, Boxer, and other JR-bay radios
- FrSky, Jumper, and other JR module-compatible transmitters
- Betaflight, iNav, ArduPilot flight controllers via CRSF
- TBS Nano SE, Nano RX, and other Crossfire receivers
Perfect For
- Long-range FPV freestyle and cruising
- Fixed-wing and VTOL UAV long-range missions
- Pilots upgrading from 2.4GHz systems for extended range
- Multi-pilot group flying sessions
