TBS Crossfire Sixty9 — AIO CRSF Receiver + Unify Pro32 Video Transmitter, 915MHz, Up to 1W Adjustable, 2-6S (8-25V), 20×20mm / 30×30mm, 4.1g, FPV Drone
The TBS Crossfire Sixty9 is the ultimate all-in-one FPV board, combining the TBS Crossfire long-range RC receiver with an improved Unify Pro32 analog video transmitter on a single 20×20mm form-factor PCB. Weighing just 4.1g, it delivers race-friendly, long-range capable video transmission alongside the proven Crossfire RC link — all in one compact, plug-and-play package. Supports 2-6S (8-25V) input, outputs 2× CRSF + 2× PWM (or 6× PWM) directly to your flight controller, and includes adapters for both 20×20mm and 30×30mm stacks.
Key Features
- AIO CRSF Receiver + Unify Pro32 VTx — Best-in-class RC link and video transmitter on a single board
- 915MHz Crossfire RC Link — Long-range, interference-immune CRSF V3 ready receiver
- Up to 1W Adjustable Video Transmitter — High-power analog VTx with perfect cooling support
- 2-6S Input (8-25V) — Wide voltage range for compatibility across LiPo configurations
- 2× CRSF + 2× PWM Output — Or configure as 6× PWM; direct FC connection via JST-SH
- 20×20mm Form Factor — Compact mounting with 30×30mm adapter included
- Dedicated Low-Noise Power Supply — Separate power rails for receiver and VTx for clean signal
- 5V Built-In Regulator — Powers camera and FC accessories directly
- Plug-and-Play + Solder Pad Connectivity — JST-SH connector for FC and camera; solder pads for custom wiring
- 3 Mounting Configurations — Flexible installation options for different frame types
- RF Tin Shield Included — Optional shield for added low-noise tolerance
- CRSF V3 Ready — Compatible with latest TBS Crossfire firmware (V4.62+)
Technical Specifications
- Weight: 4.1g (board only)
- Board Size: 24 × 24mm
- Mounting: 20×20mm (30×30mm adapter included)
- Input Voltage: 8–25V (2–6S LiPo)
- Frequency: 915MHz
- VTx Power: Up to 1W (with adequate cooling)
- RC Output: 2× CRSF + 2× PWM, or 6× PWM
- Antenna Ports: 1× VTx, 1× RC receiver
- Firmware Required: V4.62 and above
- Protocol: CRSF V3
What’s in the Box
- 1× TBS Crossfire Sixty9 AIO Board
- 1× TBS Crossfire Immortal-T Antenna
- 1× u.FL to SMA Mount (for VTx)

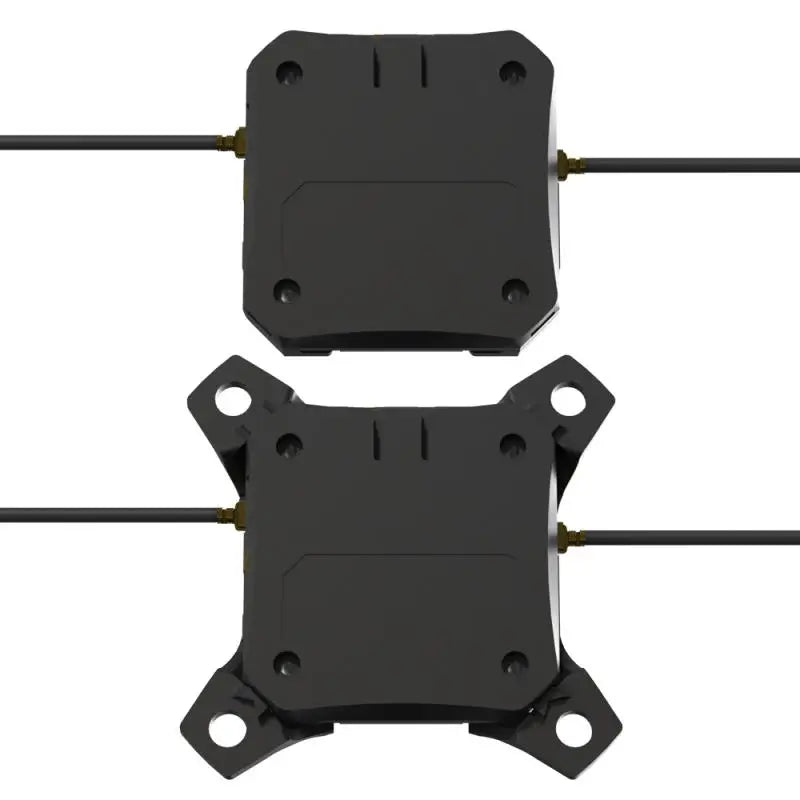

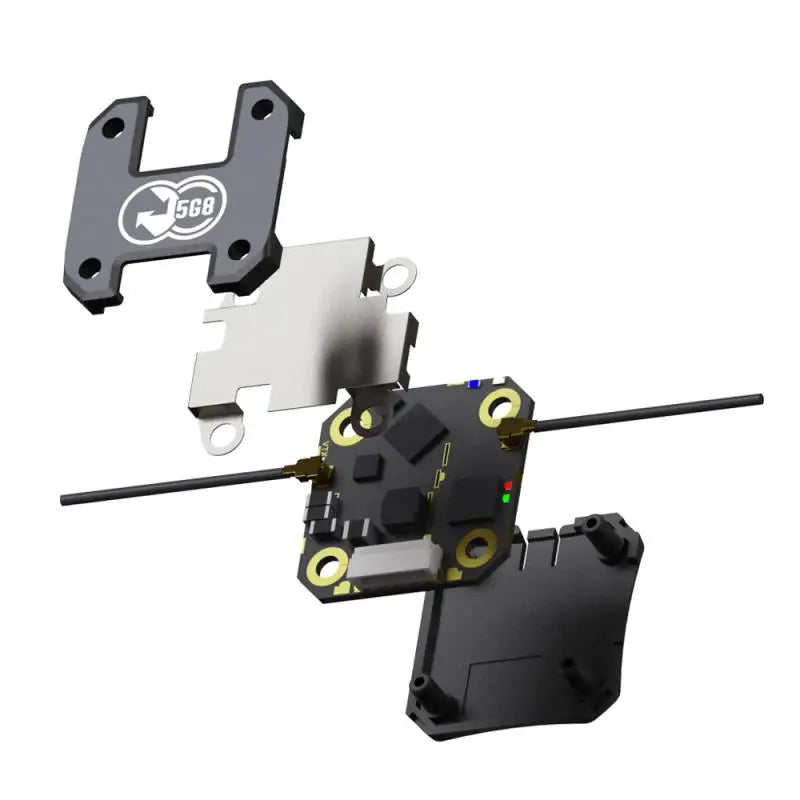

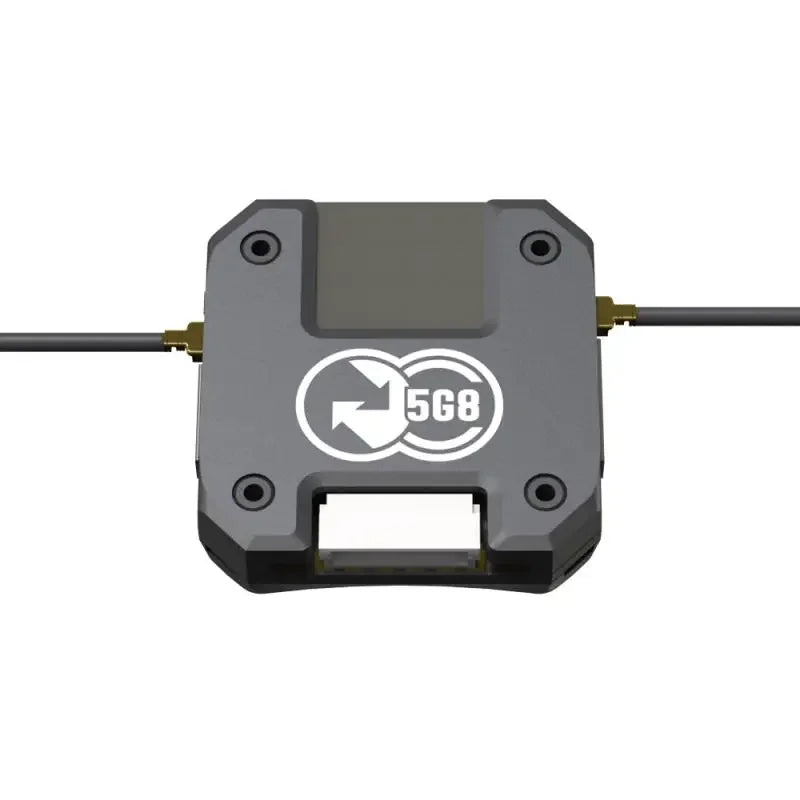

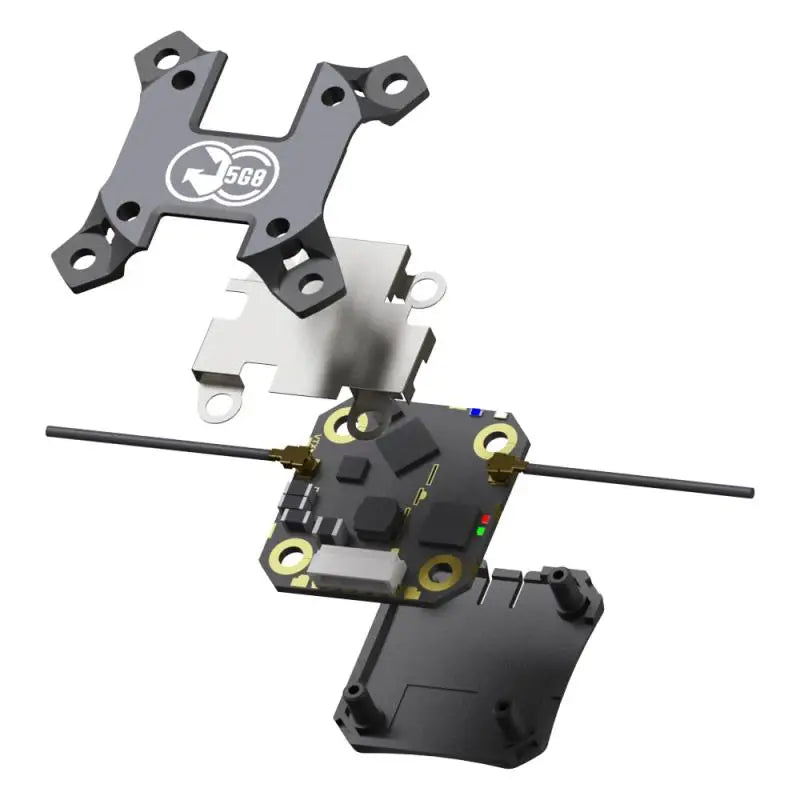

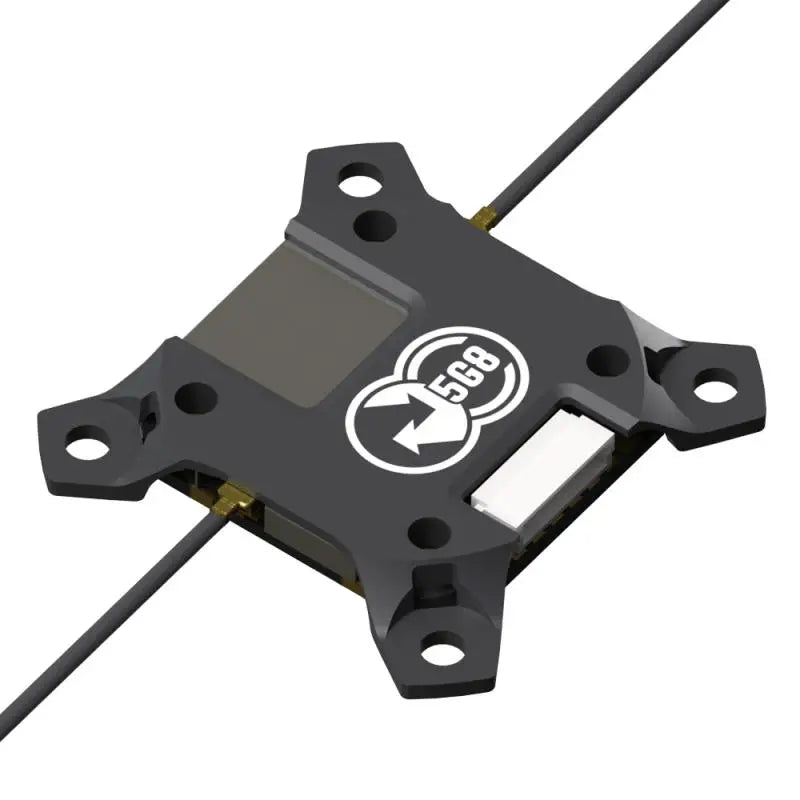

- 1× 30×30mm Heatsink / Case
- 1× 20×20mm Heatsink / Case
- 1× Optional Tin Shield (low-noise tolerance)
- 1× JST-SH × 9 Connector
Compatible With
- TBS Tango 2 / Tango 2 Pro transmitters
- Any Crossfire-compatible radio (Radiomaster, FrSky, Jumper with JR module)
- Betaflight and iNav flight controllers via CRSF
- 20×20mm and 30×30mm FPV drone stacks
Perfect For
- FPV freestyle and racing builds requiring a clean, minimal stack
- Long-range FPV builds needing integrated VTx + RC link
- Pilots upgrading to Crossfire with a full AIO solution
