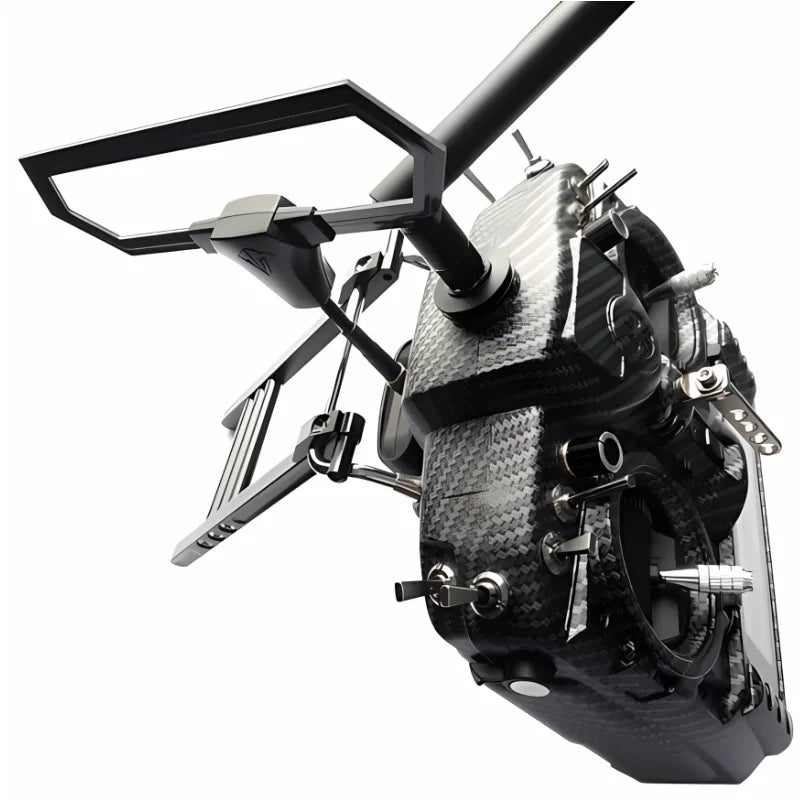

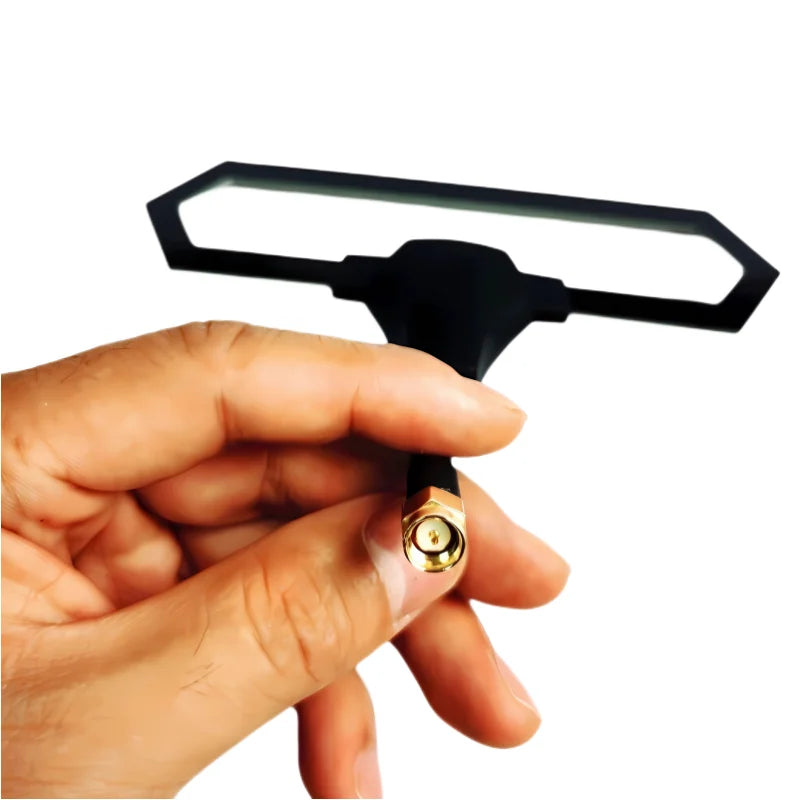

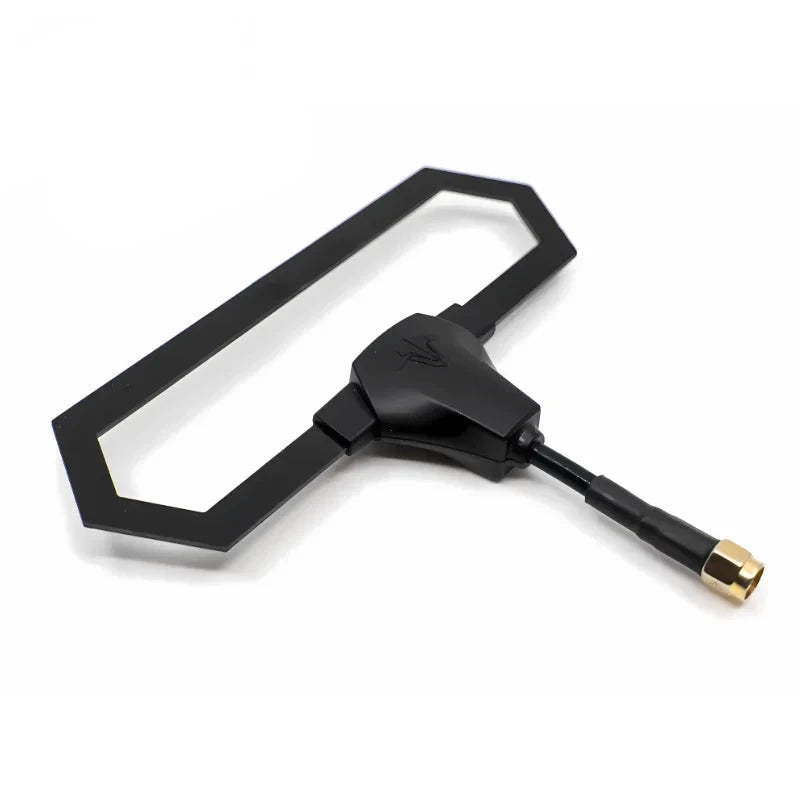

TBS Diamond Antenna — 868/915MHz Dual-Band CRSF, 35km Long Range, 2.88dB Gain, SMA Male, 20.6g, Compatible with TBS Crossfire & Tracer Transmitters
The TBS Diamond Antenna is a high-performance long-range RC antenna designed by IBCrazy Video Aviation Systems for use with TBS Crossfire and TBS Tracer transmitters. Its patented diamond radiation pattern delivers a 360° signal dome with up to 35km of CRSF range and under 1ms latency — up to 8× stronger than standard whip antennas. Precision-tuned for 868MHz (EU) and 915MHz (FCC), it’s a plug-and-play upgrade for any Crossfire or Tracer-equipped radio.
Key Features
- 868/915MHz Dual-Band — Precision-tuned for EU (868MHz) and FCC (915MHz) operation; legal in 40+ countries
- 35km CRSF Long Range — Patented diamond radiation pattern delivers up to 35km range at <1ms latency (tested @500mW)
- 2.88dB Gain — Optimized gain for maximum range without sacrificing omnidirectional coverage
- 360° Signal Dome — No null zones; consistent signal in all directions including overhead
- 8× Stronger Than Stock Whip Antennas — Significant range and reliability improvement over factory antennas

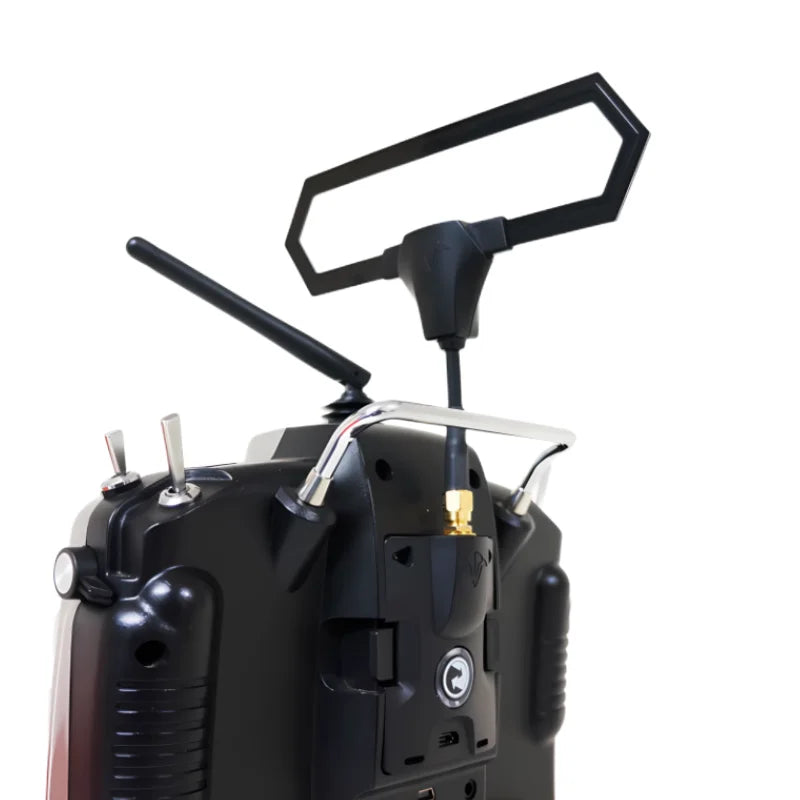

- Plug-and-Play for TBS Ecosystem — Direct SMA male connection to Crossfire TX and Micro TX; maintains full telemetry
- Lightweight at 20.6g — Minimal weight addition to your radio setup
- Designed by IBCrazy Video Aviation Systems — Trusted antenna engineering from a leading FPV RF specialist
Specifications
- Frequency: 850–950MHz (868MHz EU / 915MHz FCC)
- Gain: 2.88dB
- Connector: SMA Male
- Weight: 20.6g
- Dimensions: 135 × 120mm
- Range: Up to 35km (CRSF, @500mW)
- Radiation Pattern: Diamond (omnidirectional)
- Designed by: IBCrazy Video Aviation Systems
- Quantity: 1 antenna per order
Compatible With
- TBS Crossfire TX (full-size)
- TBS Crossfire Micro TX / Micro TX V2
- TBS Tracer transmitters
- Any SMA male-compatible Crossfire or Tracer radio module

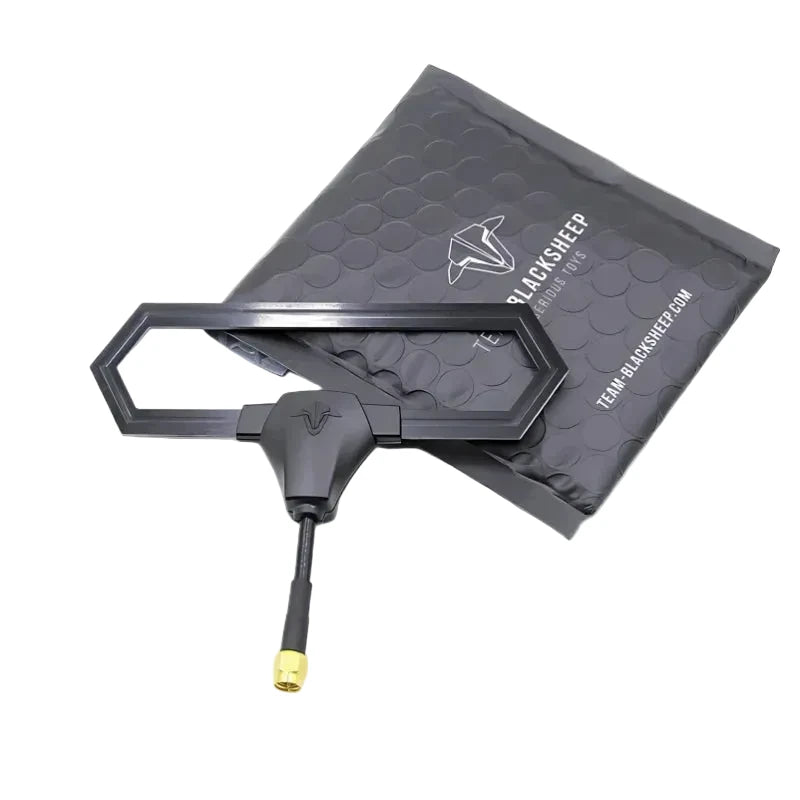

What’s in the Box
- 1× TBS Diamond Antenna
Perfect For
- Long-range FPV pilots wanting maximum range from their Crossfire or Tracer system
- Fixed-wing and VTOL UAV operators needing reliable long-distance RC links
- Pilots upgrading from stock whip antennas for improved signal performance
