Walksnail Ascent HD FPV System — Ascent Goggles / Ascent VRX / Ascent Lite VTX

The Walksnail Ascent HD is a complete digital FPV ecosystem offering 1080P/60fps transmission, 32–35ms average latency, and 4km+ range on the 5.8GHz band. Available as individual components or as bundled sets, the Ascent system lets you configure your digital FPV setup around your existing gear — whether you need the full goggle/VTX/VRX kit or just the VRX to add HD reception to your existing goggles. Supports Betaflight, iNav, Fettec, Kiss, and ArduPilot flight controller systems via the Ascent Lite VTX.

Available Configurations

Ascent Goggles Only — 1920×1080 4.5" LCD goggles; standalone goggle unit for pilots who already own a compatible VTX
Ascent VRX Only — Standalone video receiver with HDMI out, SD recording, and Type-C; for use with third-party goggles
Ascent Lite VTX Only — Ultralight 6g VTX for micro and toothpick FPV builds; 25mm mounting, 3–12.6V input

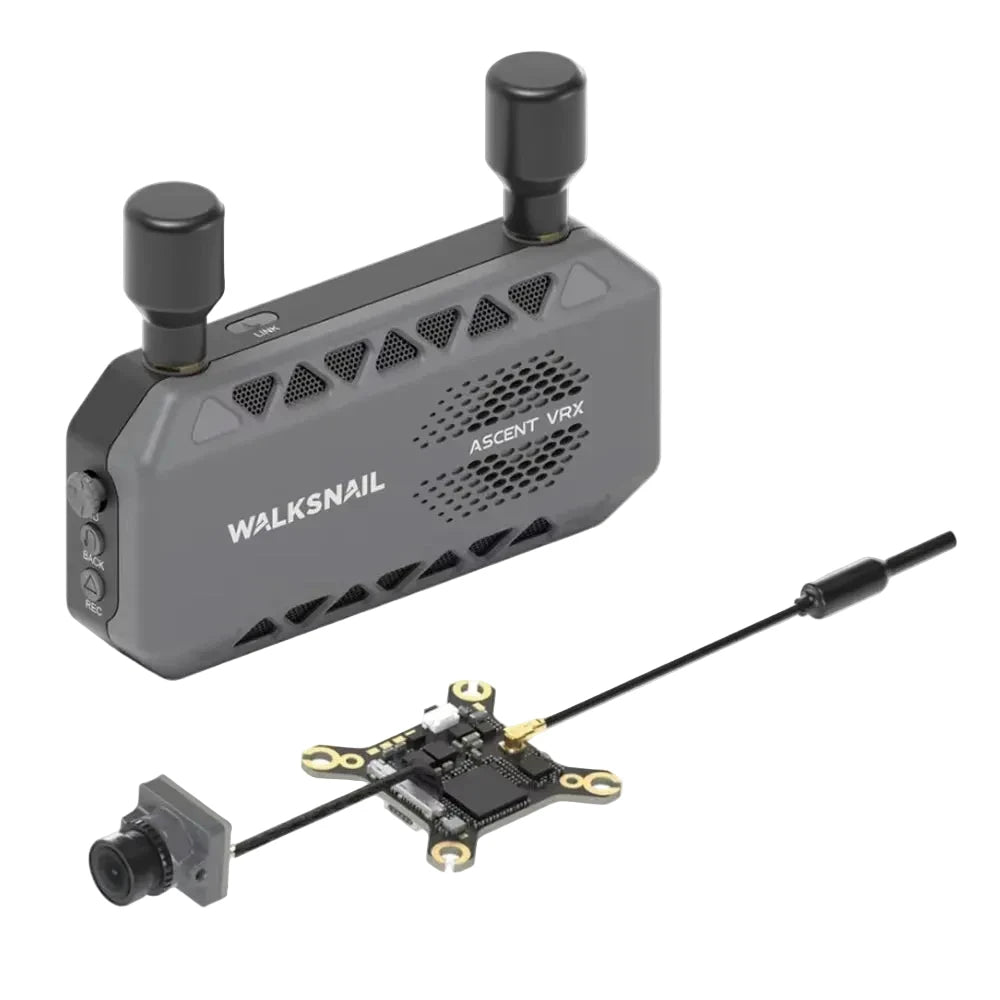

VRX + VTX Bundle — Ascent VRX and Ascent Lite VTX together; for pilots adding Ascent HD to existing goggles

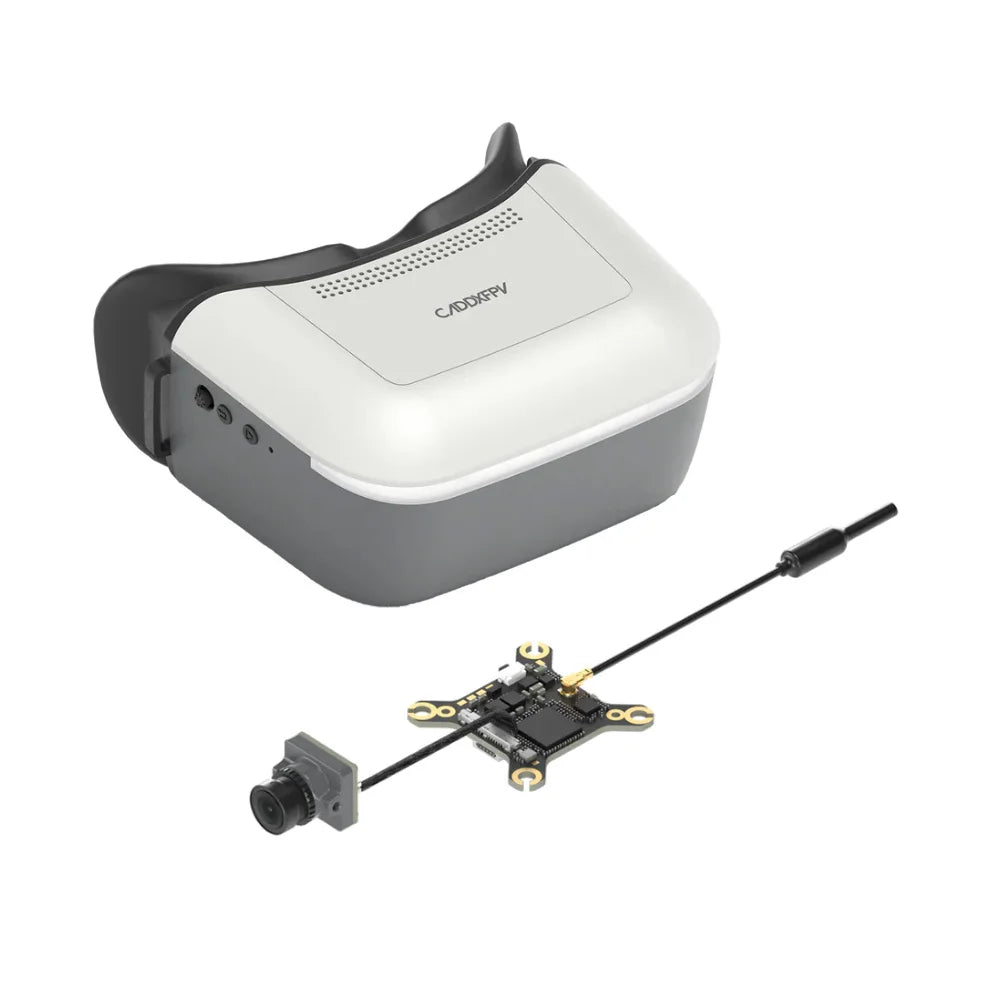

Goggles + VTX Bundle — Ascent Goggles and Ascent Lite VTX; complete air and ground system without VRX

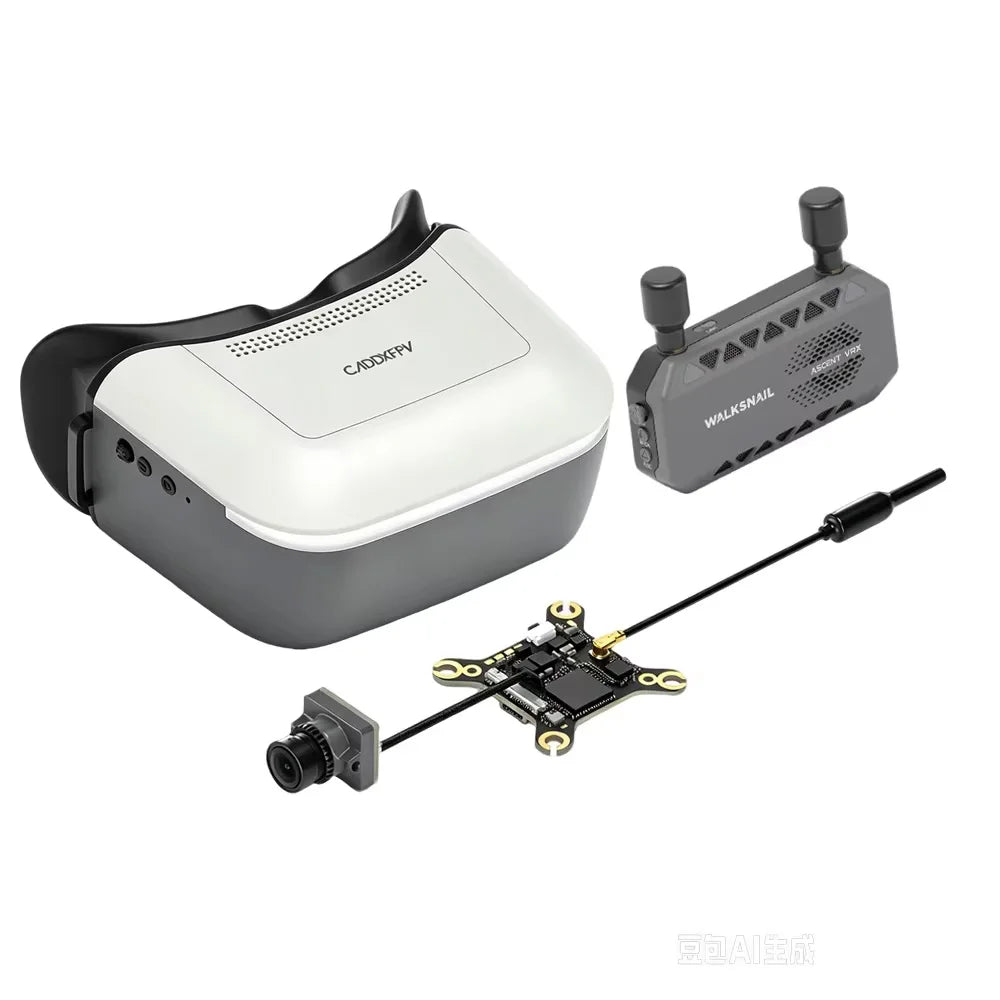

Goggle + VTX + VRX Complete Kit — Full Ascent HD system; everything needed for a complete digital FPV setup

Ascent Goggles

System: Ascent HD
Screen: 4.5" LCD, 1920×1080 @ 60Hz
Transmission Resolution: 1080P/60fps, 720P/60fps
Min. Latency: Average 32ms
Frequency: 5.738.5–5.806.5GHz
Channels: 4
Range: >4km
Antenna Gain: 4.9dBi LHCP
Max Bitrate: 25Mbps
Power Input: 6V–25.2V (2S–6S)
SD Card: Micro SD up to 256GB
I/O: DC5.5×2.1mm, Micro SD slot
Transmission Power (EIRP): FCC <20dBm / CE <14dBm / SRRC <20dBm

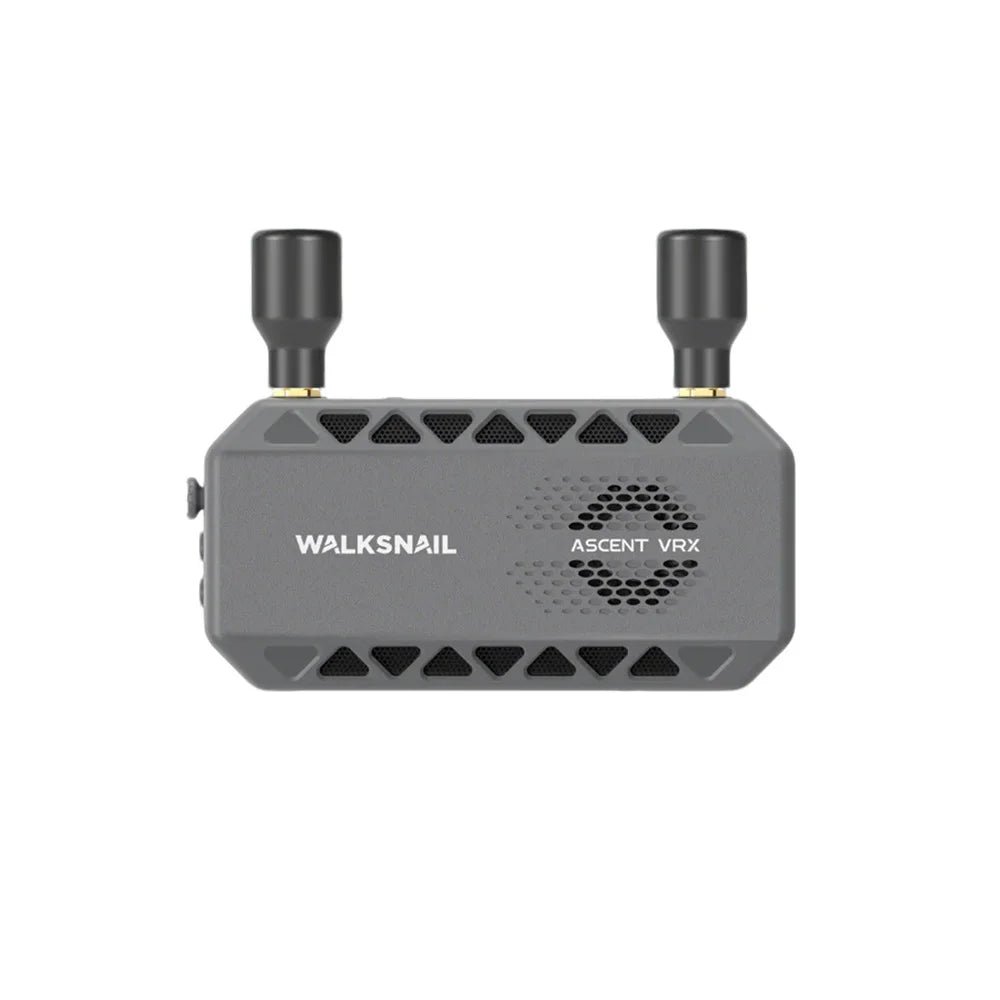

Ascent VRX

System: Ascent HD
Frequency: 5.725–5.829GHz
HDMI Out: 1080P50/60fps, 720P50/60/100/120fps
Recording: MP4 (H.264), Micro SD up to 256GB
Power Input: 7.4–25.2V
Bandwidth: 5M / 10M / 20M / Auto
Weight: 118g
Dimensions: 114.5×64×24mm
I/O: HDMI, Micro SD, DC5.5×2.1mm, SH1.0×6Pin, Type-C
Antenna: Red Bird LHCP, 2dBi, RP-SMA×2, ≥97% efficiency
Transmission Power (EIRP): FCC/SRRC <30dBm / CE <14dBm

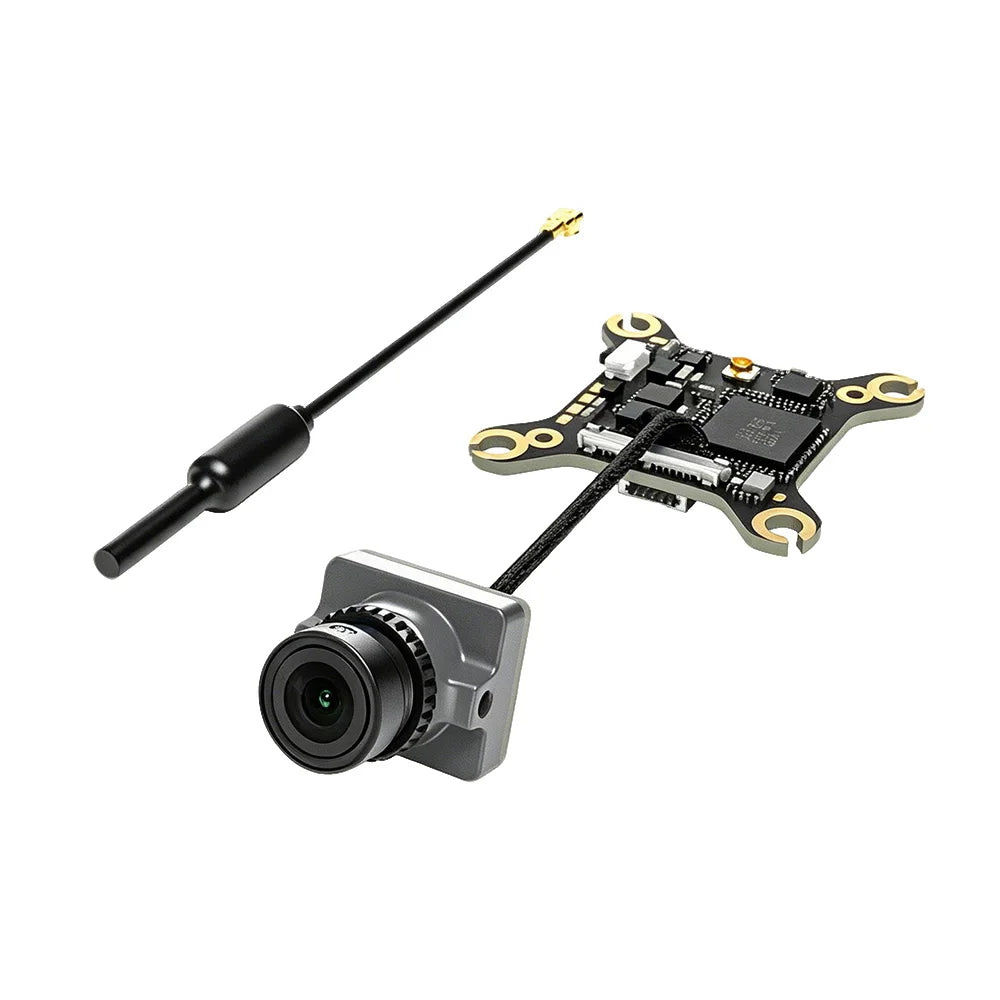

Ascent Lite VTX

Model: WN13-4S09B
Frequency: 5.730–5.815GHz
Channels: 3
Resolution: 1080P/60fps, 720P/100fps
Image Sensor: 1/2.8"
Latency: Average 35ms
Bitrate: 25Mbps
Bandwidth: 5M / 10M / 20M / Auto
OSD: Canvas mode
FC Compatibility: Betaflight, iNav, Fettec, Kiss, ArduPilot
Weight: 6g (antenna not included)
Mounting: 25mm
Power Input: 3V–12.6V
Antenna: 1× IPEX-1
Aspect Ratio: 16:9
Transmission Power (EIRP): FCC/SRRC <20dBm / CE <14dBm
Dimensions: Camera 12×14×15mm / VTX 30.5×30.5×3.5mm

Perfect For

FPV pilots upgrading to digital HD video with a complete Walksnail Ascent ecosystem from goggles to VTX
Micro and toothpick FPV builds needing an ultralight 6g VTX with full FC protocol support (Betaflight, iNav, Kiss)
Pilots with existing goggles adding the Ascent VRX for HDMI-out HD reception and onboard SD recording
Freestyle and racing drone operators wanting 32–35ms latency digital HD FPV with 4km+ range on 5.8GHz
